Manufacturer
Samsung
Model Number
DDW24G9000APDA
Description
Wm : Washingmachine
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DD90-00702B | |
| DD62-00188G | |
| DD62-00188C | |
| DD62-00188B | |
| DD98-01143D | |
| DD98-01143C | |
| DD97-00808V | |
| DD97-00779L | ASSEMBLY BASE-MODULE;DW8700B,NA DACOR |
| DD97-00793A | ASSEMBLY BASE;DW8700B,NA DACOR |
| DD97-00736D | ASSEMBLY BASKET 3RD;DW8700B,MOVABLE TYPE,DEC |
| DD97-00802A | ASSEMBLY BASKET ADJUSTER L;DW8700B,DACOR,US, |
| DD97-00801A | ASSEMBLY BASKET ADJUSTER R;DW8700B,DACOR,US, |
| DD97-00698G | ASSEMBLY BASKET MIDDLE;DW8700B,DACOR,US,HONE |
| DD97-00708B | ASSEMBLY BASKET-CUTLERY MODULE;DW8700B,EU |
| DD97-00697J | ASSEMBLY BASKET-LOW MODULE;DW8700B,DACOR,US, |
| DD97-00803A | ASSEMBLY BASKET-MIDDLE MODULE;DW8700B,DACOR, |
| DD96-00061A | ASSEMBLY BUZZER;DW LED MODEL,30,-40TO+85C,MI |
| DD97-00611B | ASSEMBLY CASE BRAKE-MODULE;DW8700B |
| DD97-00693B | ASSEMBLY COVER BASE;DW8700B,NA, WARNING |
| DD97-00256C | ASSEMBLY COVER DOOR SWITCH;DW8700B |
| DD97-00661B | ASSEMBLY COVER PCB;DW8700B,GIUDE COVER+COVER |
| DD97-00652P | ASSEMBLY COVER PCB;DW8700B,NA DACOR |
| DD97-00226F | ASSEMBLY COVER PLINTH;DW9500M,BU,COMMON,-,-, |
| DD97-00704G | ASSEMBLY DOOR INNER;DW8700B,FBI,SLIDE HINGE, |
| DD97-00705K | ASSEMBLY DOOR INNER;DW8700B,FBI_SLIDING,DISP |
| DD97-00694K | ASSEMBLY DOOR-MODULE;DW8700B,DACOR,US,FBI,SL |
| DD97-00796A | ASSEMBLY DUCT MIDDLE;DW8700B_US |
| DD97-00745B | ASSEMBLY DUCT POWER-MODULE;DW8700B,DACOR,US |
| DD97-00795A | ASSEMBLY DUCT;DW8700B_US |
| DD97-00499G | ASSEMBLY FRAME FRONT;DW8700B NA DACOR |
| DD97-00627F | ASSEMBLY GUIDE WATER-MODULE;DW8700B,COMMON |
| DD97-00735E | ASSEMBLY HANDLE;DW8700B,DACOR,COVER DECO,W/O |
| DD97-00735D | ASSEMBLY HANDLE;DW8700B,KOREA,BEST(INFINITE) |
| DD97-00765A | ASSEMBLY HINGE;DW8700B,SLIDING HINGE SPRING |
| DD97-00662A | ASSEMBLY HOSE DRAIN;DW8700B |
|
|

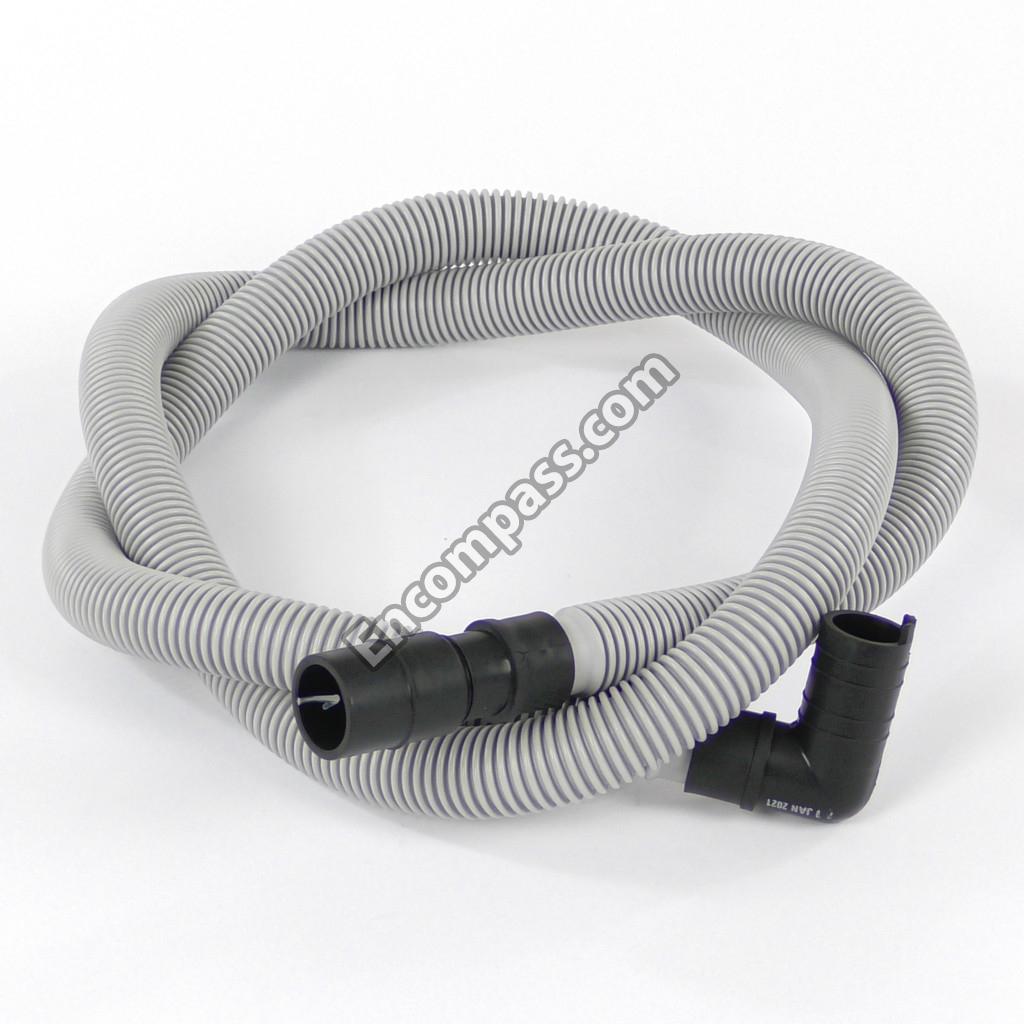

ASSEMBLY HOSE DRAIN;DW9900R,PP+TPE,LIGHT GRA |
| DD96-00059A | ASSEMBLY LAMP LED;1,FR-4,38*15,WHITE,25045HP |
| DD96-00057B | ASSEMBLY LAMP LED;FR-4,WHITE,45MA, 47OHM,DC5 |
| DD92-00065A | ASSEMBLY MODULE;TOUCH,DW9000M,EU / FBI,YES |
| DD93-01025B | ASSEMBLY MOTOR BLDC;DW8700B-PJT, US TYPE |
| DD98-01089A | ASSEMBLY PACKING ACCESSORY;DW9500M,BU,COMMON |
| DD97-00664J | ASSEMBLY PANEL BOX;DW8700B,DACOR,US,FBI_SLID |
| DD97-00668D | ASSEMBLY PANEL CONTROL;DW8700B,DACOR,US,FBI, |
| DD92-00082M | ASSEMBLY PBA MODULE-SUB;DISPLAY_CONTROL,DW87 |
| DD94-01277Y | ASSEMBLY PCB EEPROM;1,DD92-00109A |
| DD92-00109A | ASSEMBLY PCB MAIN;MAIN,DW8700B NA DACOR,328X |
| DD97-00699A | ASSEMBLY PLASTIC SUPPORTOR;DW8700B,BEST_BETT |

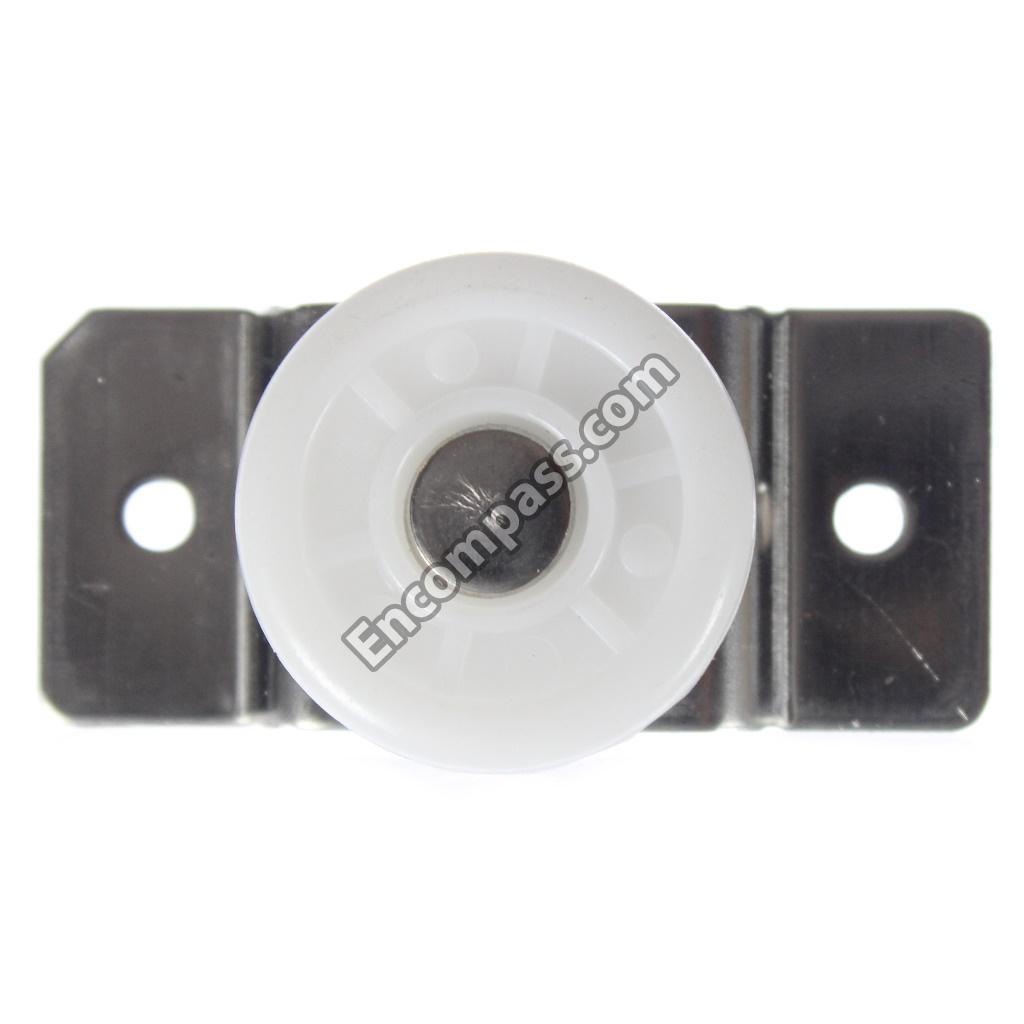

| DD97-00507B | ASSEMBLY ROLLER-LOW;DW7000B,COMMON |
|
|
ASSEMBLY ROLLER;DW9900M,COMMON,-,-,-,- |
| DD97-00794A | ASSEMBLY ROTOR MIDDLE DUCT;DW8700B_US |
| DD97-00701A | ASSEMBLY ROTOR MIDDLE;DW8700B,COMMON |
| DD97-00646D | ASSEMBLY ROTOR;DW8700B,DACOR |
|
|
ASSEMBLY WIRE HARNESS-LEAKAGE;GALA-E,DC5V/0. |
| DD39-00029M | ASSEMBLY WIRE HARNESS-MAIN;DW8700B,AC230V/10 |
| DD93-01028A | ASSEMBLY WIRE HARNESS-SUB;DW5000C-PJT,12V,22 |
| DD39-00013Z | ASSEMBLY WIRE HARNESS-SUB;DW8700B,AC230V/0.1 |
| DD39-00013Y | ASSEMBLY WIRE HARNESS-SUB;DW8700B,DC12V/0.1A |
| 6902-000336 | BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO |
| DD61-00789B | BASKET 3RD-UP;DW8700B,PA6+GF20%,T3,CLEAR |
| DD61-00788B | BASKET 3RD;DW8700B,PA6+GF20%,T3,CLEAR GR |
| DD61-00792A | BASKET CUTLERY MAIN;DW8700B,PP+TD30%,T3, |
| DD67-00227C | BASKET LOWER;DW8700B,MSWR,D5,T5,9.8176,S |
| DD61-00325A | BRACKET 3RD-RAIL;GALA-E,PREMIUM,BEST,STS |
| DD61-00410A | BRACKET COVER-FRONT;GALA-E,GI-SGCC,T1.2, |
|
|
BRACKET HOSE;DW9900M,GI-SGCC,T0.8,ID 38. |
|
|

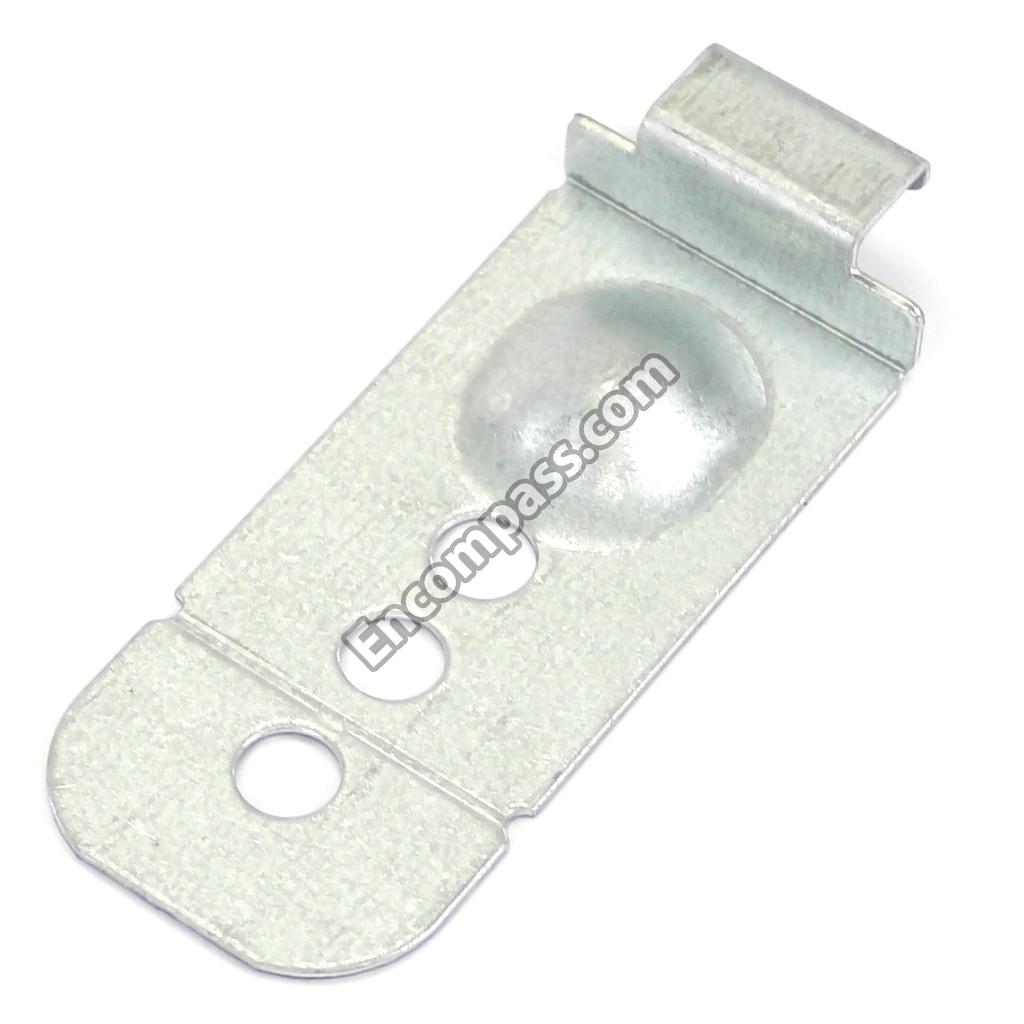

BRACKET INSTALL;DW9900H,GI-SGCC,T0.6,-,- |
| DD61-00755A | BRACKET RAIL-LEFT;DW8700B,PA66,-,NATURAL |
|
|
BRACKET RAIL-MID;GALA-E,COMMON,STS304,T0 |
| DD61-00757A | BRACKET RAIL-RIGHT;DW8700B,PA66,-,NATURA |
| DD61-00593B | BUSH;DW7000B,POM,CLEAR GRAY,-,F20-03 |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001303 | C-AL,SMD;220UF,20%,35V,-,TP,8.3X8.3X10MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2402-001145 | C-AL,SMD;47UF,20%,50V,TP,6.6X6.6X7.7MM,- |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-000888 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1608,T0. |
| 2201-000915 | C-CERAMIC,DISC;100PF,10%,1000V,Y5P,TP,6X |
| 2201-000332 | C-CERAMIC,DISC;2.2NF,20%,250VAC,Y5U,TP,9 |
| 2301-001899 | C-FILM,LEAD;100NF,5%,630V,TP,18X12X8MM,7 |
| DE65-20014A | CABLE CLAMP;DA-6N,NY-66 |
|
|

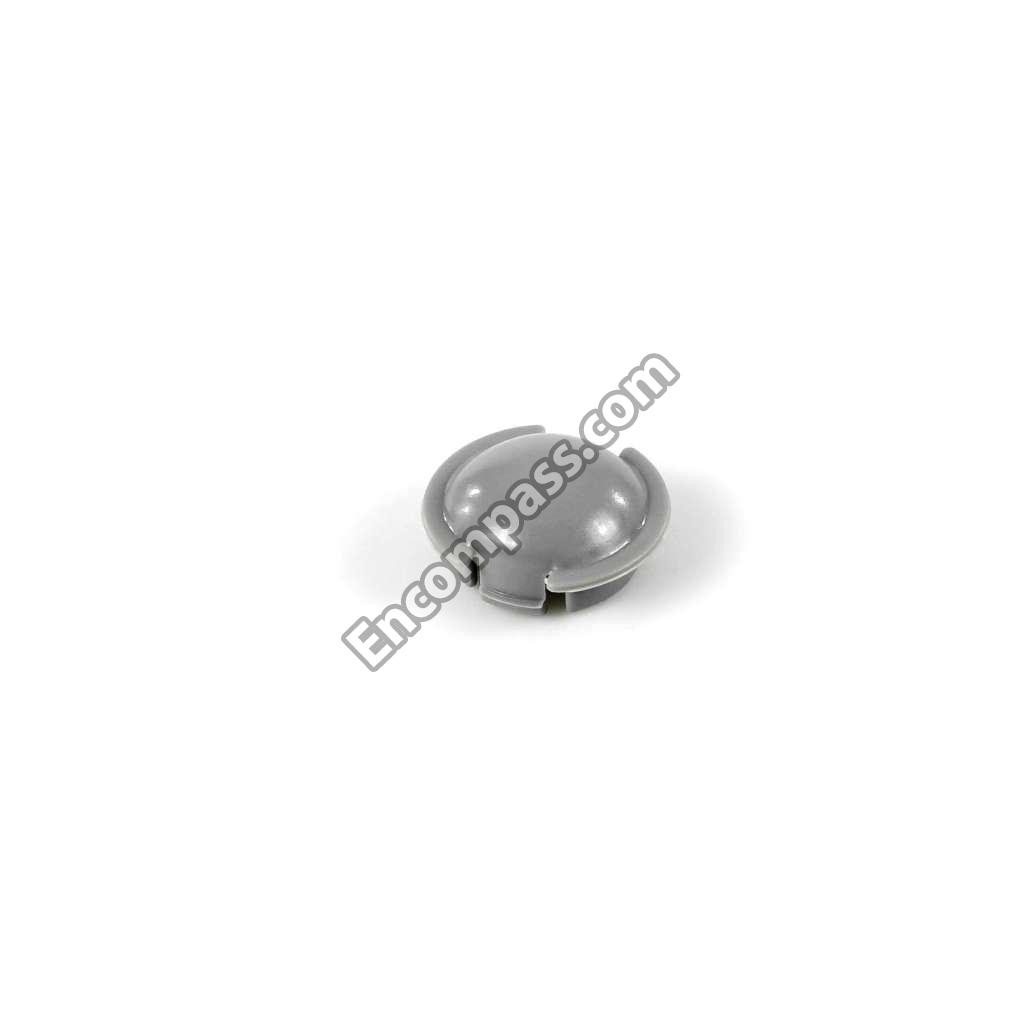

CAP DOOR GUIDE;GALA-E,POM,-,-,F20-03,CLE |
| DD67-00162B | CAP OUTLET DRY;DW7000B,PP+TD30%,-,-,PTN9 |
| DD61-00586A | CASE GEAR;DW9000M,PP,-,BLACK,-,P-002HB,C |
| DC02-10024A | CHEMICALS-GREASE;ALVANIA#2,ALVANIA#2 |
|
|

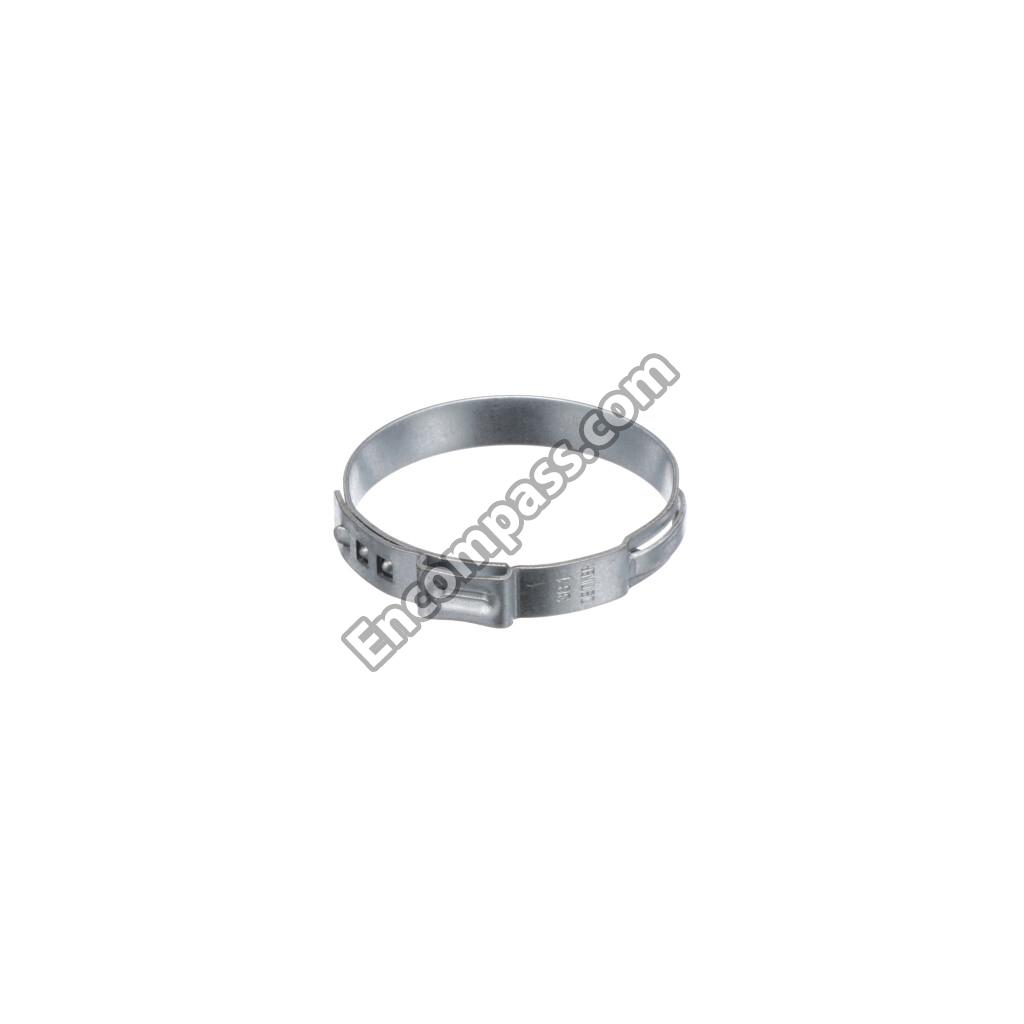

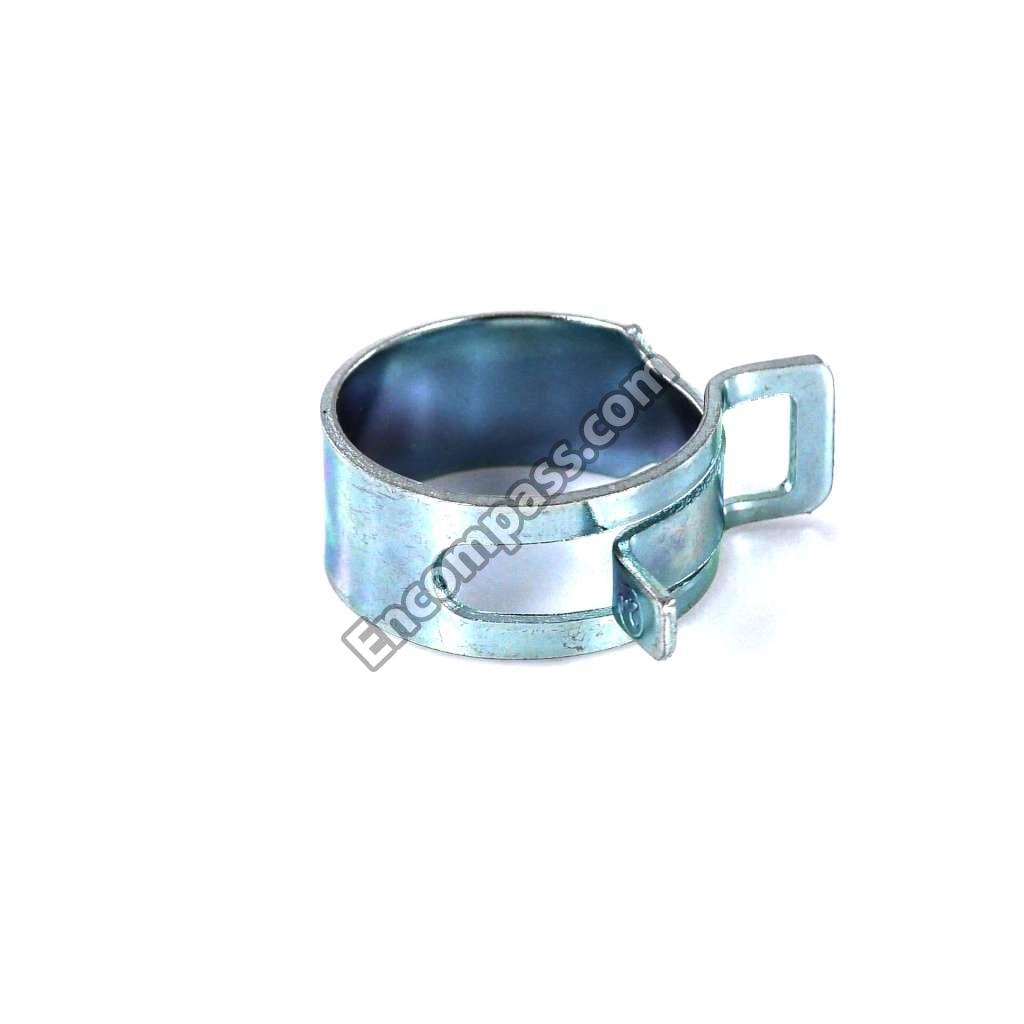

CLAMPER HOSE;ALL MODEL,SK5,-,-,-,-,ID24, |
| DD65-00001N | CLAMPER HOSE;GALA-E,SK5,DACRO COAT |
| DD63-00375A | COVER CIRCULATION PUMP;DW8700B,PP+TD30%, |
| DD63-00397A | COVER CUTLERY-LEFT;DW8700B,PP+TD30%,T3,H |
| DD63-00398A | COVER CUTLERY-RIGHT;DW8700B,PP+TD30%,T3, |
| DD63-00376A | COVER DRAIN PUMP;DW8700B,PP+TD30%,-,-,CL |
| DD63-00385B | COVER FILTER-BOTTOM;DW8700B,PP+TD20%,-,- |
| DD63-00388A | COVER FILTER;DW8700B,PP+TD30%,-,-,CLEAR |
| DC63-01432C | COVER FILTER;WA456DRHDWD,ABS,T2.5,5VA,NA |
| DD63-00254D | COVER PLINTH;DW9500M,BU,GI-SGCC,T0.4,BLA |
|
|
COVER TUB EDGE-LEFT;DW9900H,PP,BLACK,RM6 |
|
|
COVER TUB EDGE-RIGHT;DW9900H,PP,BLACK,RM |
| DD63-00326B | COVER WIRE;DW7000B,PP,-,V-0,NATURAL,-,FH |
| DD63-00380A | COVER WIRE;DW8700B,PP,T1.5,-,BLACK,-,RM6 |
| DD63-00151A | COVER-WIRE HARNESS DOOR;GALA-E,PP,BLACK, |
| DD69-00052B | CUSHION BASKET , DW9000H,EPS,W32,L50,H100, |
| DD63-00221B | CUSHION DUCT-LEFT;DW9900H,PU FOAM,T25,BL |
| 0402-001224 | DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60 |
| 0402-001192 | DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001010 | DIODE-SWITCHING;1N4148W,75V,150MA,400MW, |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.6V,5.32/5.88V,50 |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
| DD59-01005B | DISPENSER;DW8700B,DACOR,US,PP,EPDM,DC12V |
| DD64-00238C | DOOR OUTER;DW8700B, DACOR ,FBI_SLIDING,G |
| DD67-00224A | DUCT POWER-LOW;PP+TD30%,-,-,PTN960,CLEAR |
| DD67-00225A | DUCT POWER-UP;PP+TD30%,-,-,PTN960,CLEAR |
| DD60-00007A | ELBOW HOSE;TPE,DARK HOLDER GRAY,EK-1045, |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
| DD63-00384A | FILTER COARSE;DW8700B,PP+TD30%,-,CLEAR G |
| DD29-00009A | FILTER EMI;6.5MH,D53X96.5MM,15A,AC250V,- |
| DD63-00387A | FILTER FINE;DW8700B,STS304,T0.4,-,-,-,-, |
| DD63-00383A | FILTER MICRO;DW8700B,PP+TD30%,-,CLEAR GR |
| DD61-00775A | FIXER RUBBER-LOW LEFT;DW8700B,EPDM,-,BLA |
| DD61-00776A | FIXER RUBBER-LOW RIGHT;DW8700B,EPDM,-,BL |
| DD61-00777A | FIXER RUBBER-UP LEFT;DW8700B,EPDM,-,LIGH |
| DD61-00778A | FIXER RUBBER-UP RIGHT;DW8700B,EPDM,-,LIG |
| DD61-00524B | FOOT BUILT IN;DW9000H,PA6+GF30%,BLACK,L1 |
| DD61-00330B | FOOT BUILT IN;DW9000M,PA66+GF15%,BLACK,- |
|
|
FOOT BUILT IN;DW9000M,PA66+GF15%,BLACK,- |
|
|

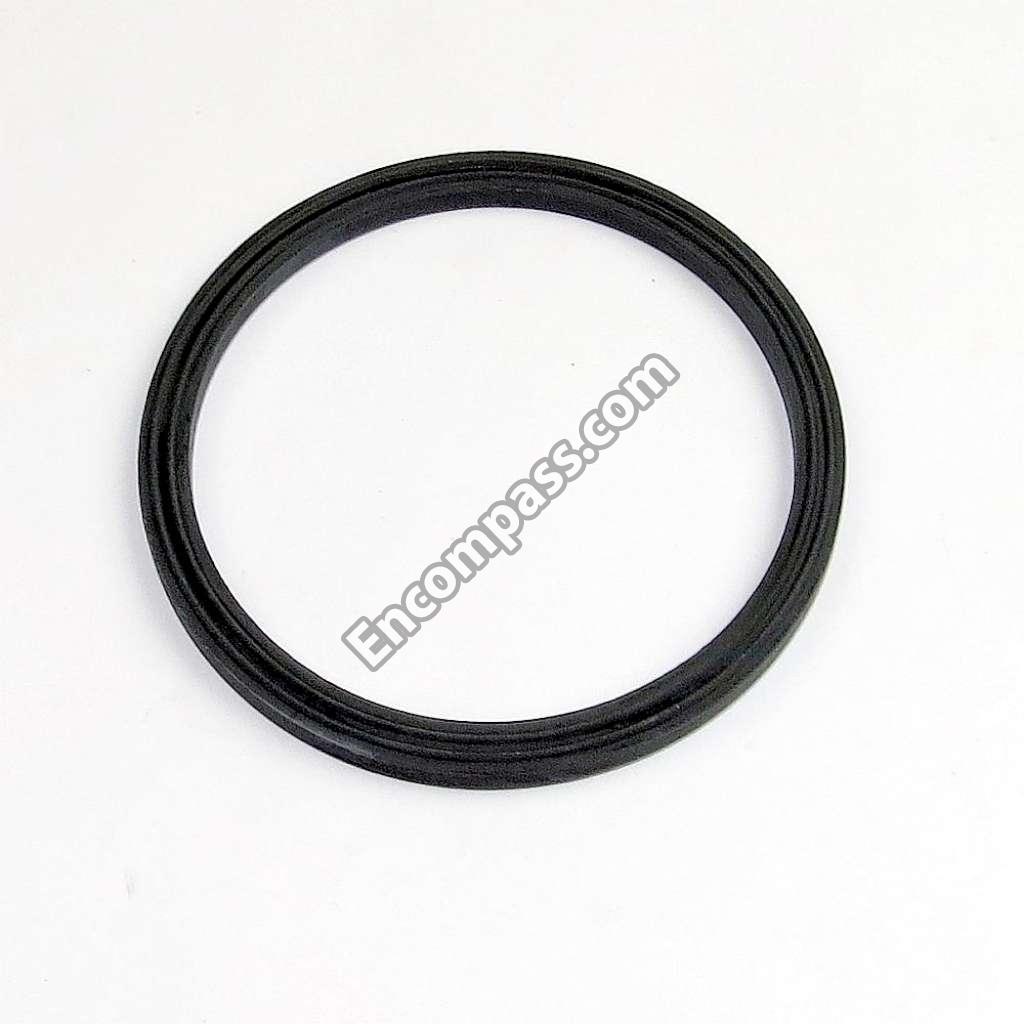

GASKET;DW7000B,EPDM,-,T4.1,,,BLACK,-,, |
|
|

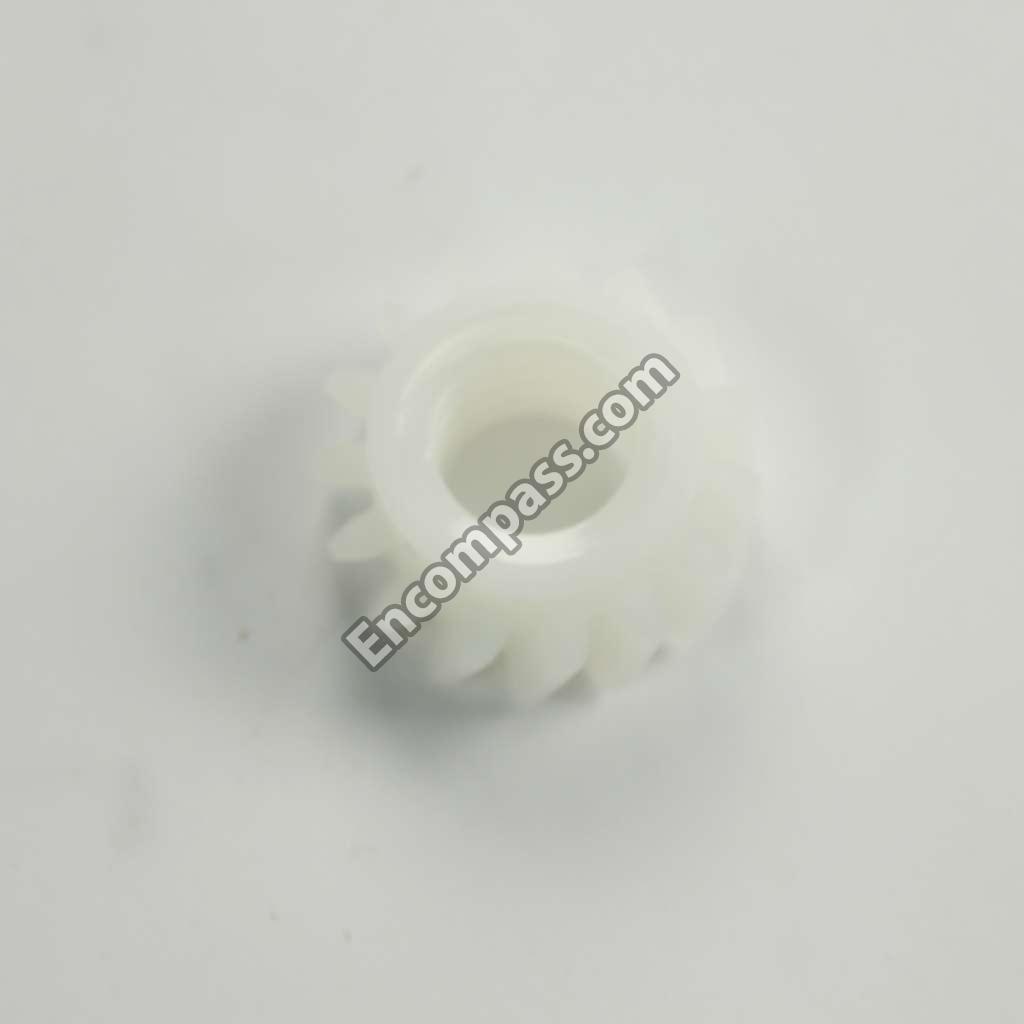

GEAR HELICAL;GALA-E,PA6,NATURAL,-,OD35,1 |
|
|
GEAR WORM;GALA-E,PA6,NATURAL,-,OD23,1015 |
| DD61-00660C | GUIDE BUTTON;DW8700B,POM,T2,HB,F20-03,HO |
| DD61-00671A | GUIDE CUFF D;DW9900R,POM,F20-03,BLACK |
|
|
GUIDE HINGE;DW9900H,POM,F20-03,NATURAL |
| DD61-00708A | GUIDE LIQUID;DW8700B,PP,T1.5,-,RM60,BLAC |
| DD61-00580B | GUIDE ROLLER-LOW;DW7000B,PP+TD30%,-,-,PT |
| DD61-00390A | GUIDE SALT;GALA-E,COMMON,PP,-,-,PPC05-2, |
| DD61-00512A | GUIDE SCREW;DW9000H,PP+TD30%,-,HB,MT43,L |
| DD64-00248B | HANDLE BASKET-3RD TRAY;DW8700B,POM,T3,F2 |
| DD64-00247A | HANDLE CUTLERY;DW8700B,PP+TD30%,T3,PTN96 |
| 3711-000999 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,5P, |
| 3711-004236 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P, |
| 3711-005221 | HEADER-BOARD TO CABLE;BOX,10P,2R,4.2MM,S |
| 3711-003844 | HEADER-BOARD TO CABLE;BOX,12P,1R,2MM,STR |
| 3711-000833 | HEADER-BOARD TO CABLE;BOX,2P,1R,8MM,STRA |
| 3711-008000 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,SMD- |
| 3711-006042 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.0MM,SM |
| 3711-005941 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| 3711-006099 | HEADER-BOARD TO CABLE;TP,SMD-S,1R,10P,2. |
| DD61-00820A | HOLDER DUCT-MIDDLE;DW8700B,PP+TD20%,-,CL |
| DD61-00592B | HOLDER DUCT-UP;DW7000B,PP+TD30%,-,CLEAR |
| DD61-00604A | HOLDER HOSE-OUTLET;DW9000M,PP,BLACK,RM60 |
| DD61-00518B | HOLDER HOSE;DW9000H,PP,BLACK,RM60,BK0001 |
| DD61-00397A | HOLDER HOSE;GALA-E,COMMON,PP,BLACK,RM60, |
| DD61-00526B | HOLDER RAIL 3RD;DW7000B,POM,-,CLEAR GRAY |
| DD61-00657B | HOLDER RAIL 3RD;DW7000B,POM,-,CLEAR GRAY |
| DD61-00355B | HOLDER RAIL-MIDDLE FRONT;DW7000B,POM,-,C |
| DD61-00356B | HOLDER RAIL-MIDDLE REAR;DW8700B,POM,T1.5 |
| DD61-00617C | HOLDER ROTOR-MIDDLE;DW8700B_US,PP+TD20%, |
| DD61-00591B | HOLDER ROTOR-UP;DW7000B,PP+TD30%,-,CLEAR |
| DD61-00656A | HOLDER ROTOR;DW8000R,POM,T2,NATURAL,F20- |
| DD61-00449C | HOLDER SEAL DOOR;DW8700B,PP+TD30%,-,BLAC |
| DD61-00472B | HOLDER TINE-LOW;DW8700B,POM,-,CLEAR GRAY |
| DD61-00681B | HOLDER TINE-UP;DW7000B,POM,-,CLEAR GRAY, |
| DD61-00732A | HOLDER TINE-UP;DW8700B,EU,PP+GLF15%,T3,C |
| DD61-00400A | HOLDER-BRACKET RAIL;DW9000H,DW8000J,POM, |
| DD61-00621B | HOLDER-TUB LIGHT;DW8700B,PP+GLF15%,-,NAT |
| DD67-00214A | HOSE PUMP-OUT;DW8700B,EPDM,ID29.6,T2.5,H |
| DD67-00161A | HOSE SOFTNER IN;DW9000M,EPDM,HS75,BLACK |
| DD67-00217A | HOSE WATER;DW8700B,EPDM,ID10.7,T3.1,HS65 |
| DD61-00753A | HOUSING-LEFT;DW8700B,FBI,GI-SGCC,T0.6,-, |
| DD61-00749A | HOUSING-MODULE;DW8700B,POM,-,CLEAR GRAY, |
| DD61-00754A | HOUSING-RIGHT;DW8700B,FBI,GI-SGCC,T0.6,- |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 0903-001983 | IC-MICROCONTROLLER;R5F100FCAFP,LQFP,44P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252) |
| 1203-002722 | IC-POSI.FIXED REG.;KA78R15,TO-220,4P,10X |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1202-001090 | IC-VOLTAGE COMP.;KIA75S393F,5P,TSV,TP,2. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| DC68-02060A | LABEL BAR CODE |
|
|
LEVER DOOR;DW9900H,ZNDC,-,-,-,- |
| DD61-00597A | MAGNET;DW9900M,FERRITE,-,-,-,- |
|
|

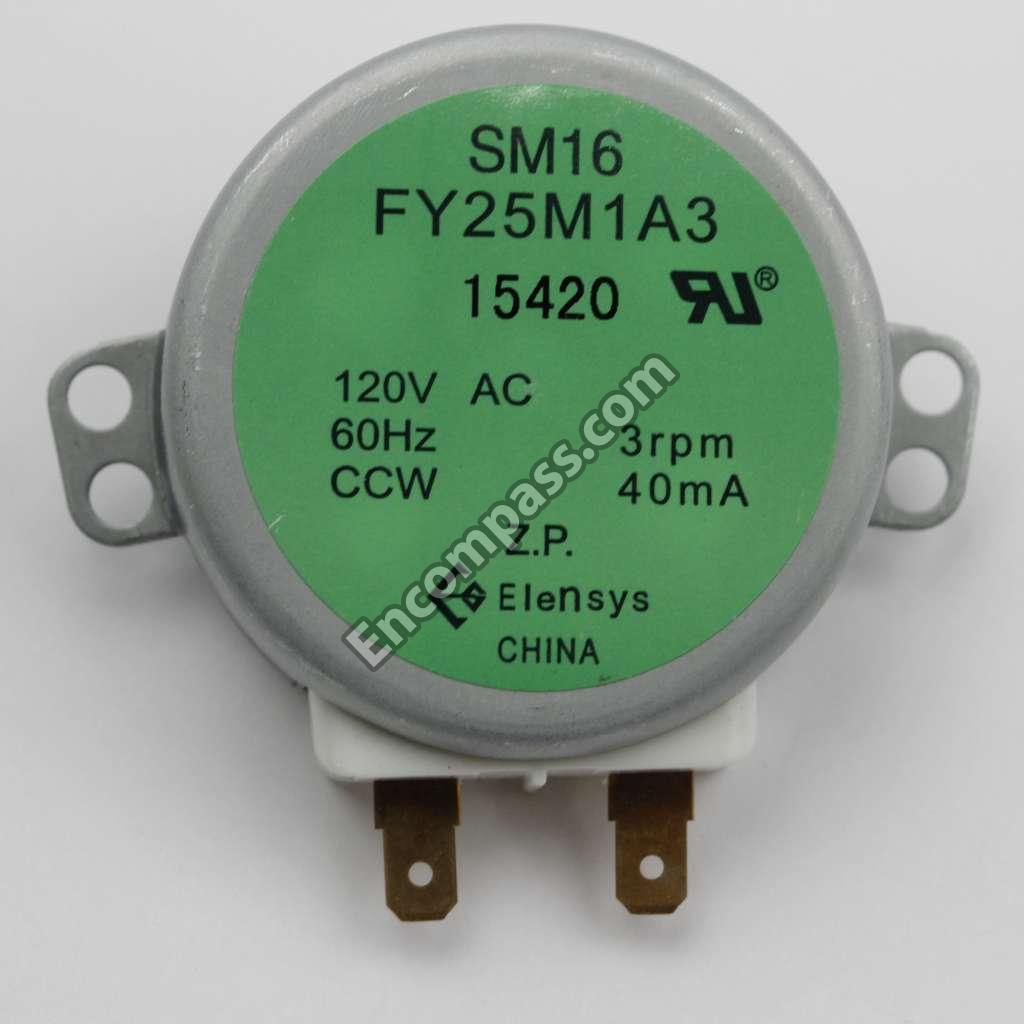

MOTOR AC DRIVE;OTR,SM16FY25M1A3, 50TYZ-0 |
| DD31-00016B | MOTOR BLDC PUMP;BD15-3C,2800-3400RPM,230 |
| DC60-50153A | NUT HEX;SM10C |
| 0205-001027 | OIL-SILICON;G746 |
| DD69-00136A | PACKING SHEET;BUILT-IN,PP,T0.15,W100,L66 |
| DD61-00712A | PLATE BASE;DW8700B,PP,T2.5,BLACK,-,-,P-0 |
|
|
POWER CORD-AT;SJT 3X16AWG 105C,GRY,US3S, |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-001654 | R-CHIP;10MOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000312 | R-CHIP;10OHM,5%,1/4W,TP,3216 |
| 2007-000394 | R-CHIP;150KOHM,1%,1/4W,TP,3216 |
| 2007-000451 | R-CHIP;180OHM,5%,1/4W,TP,3216 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000490 | R-CHIP;2.2KOHM,1%,1/8W,TP,2012 |
| 2007-000496 | R-CHIP;2.2KOHM,5%,1/4W,TP,3216 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-000537 | R-CHIP;200OHM,1%,1/4W,TP,3216 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000668 | R-CHIP;2KOHM,1%,1/8W,TP,2012 |
| 2007-000718 | R-CHIP;30.1KOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-008304 | R-CHIP;300KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000930 | R-CHIP;470OHM,1%,1/4W,TP,3216 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-000119 | R-CHIP;560OHM,5%,1/10W,TP,1608 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-007321 | R-CHIP;68OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|

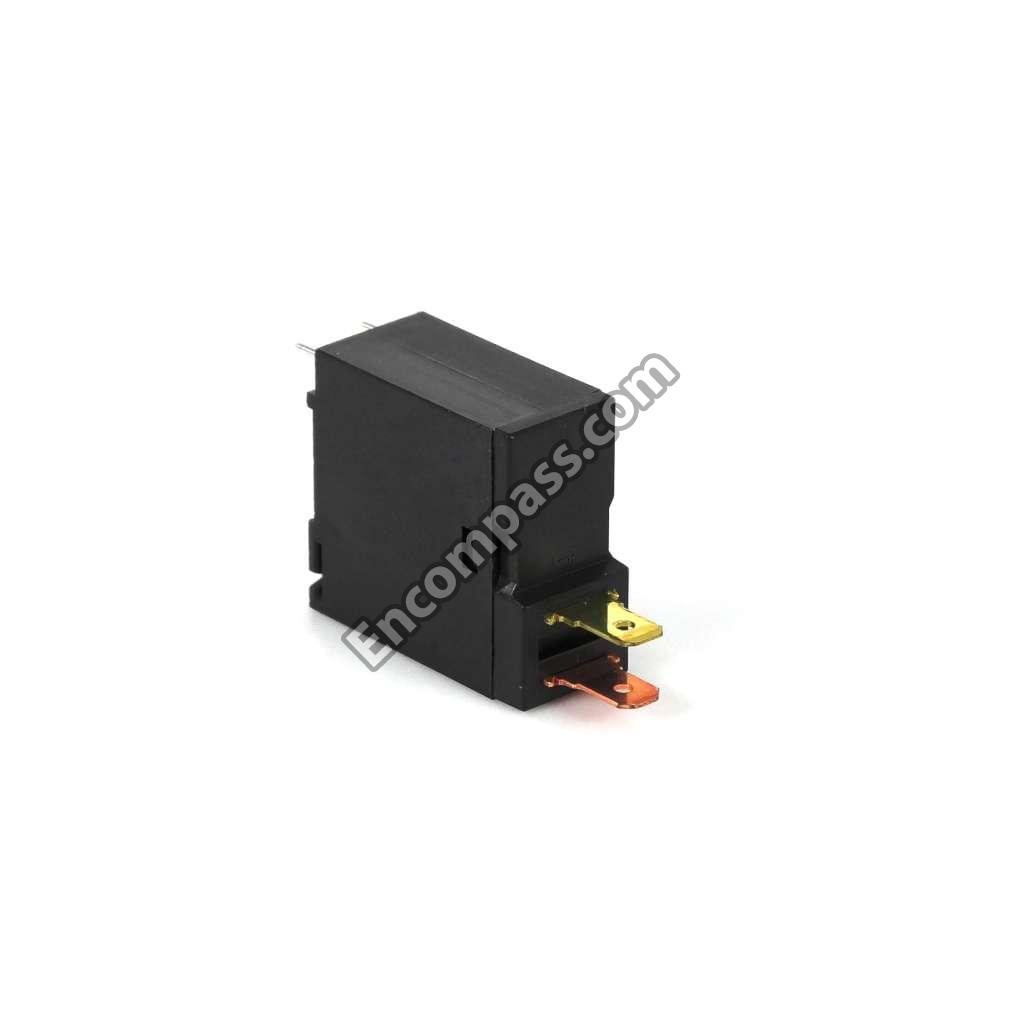

RELAY-POWER;12.0V,16000MA,1FORMA,6.5MS,1 |
|
|
RELAY-POWER;12V,0.9W,25000MA,1FORMA,20MS |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| DD66-00078A | ROLLER-3RD TUB;GALA-E,POM,OD22,INNER GRA |
| DD67-00216A | RUBBER SKIRT;DW8700B,EPDM,-,-,BLACK,- |
| 6001-000516 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,P |
|
|

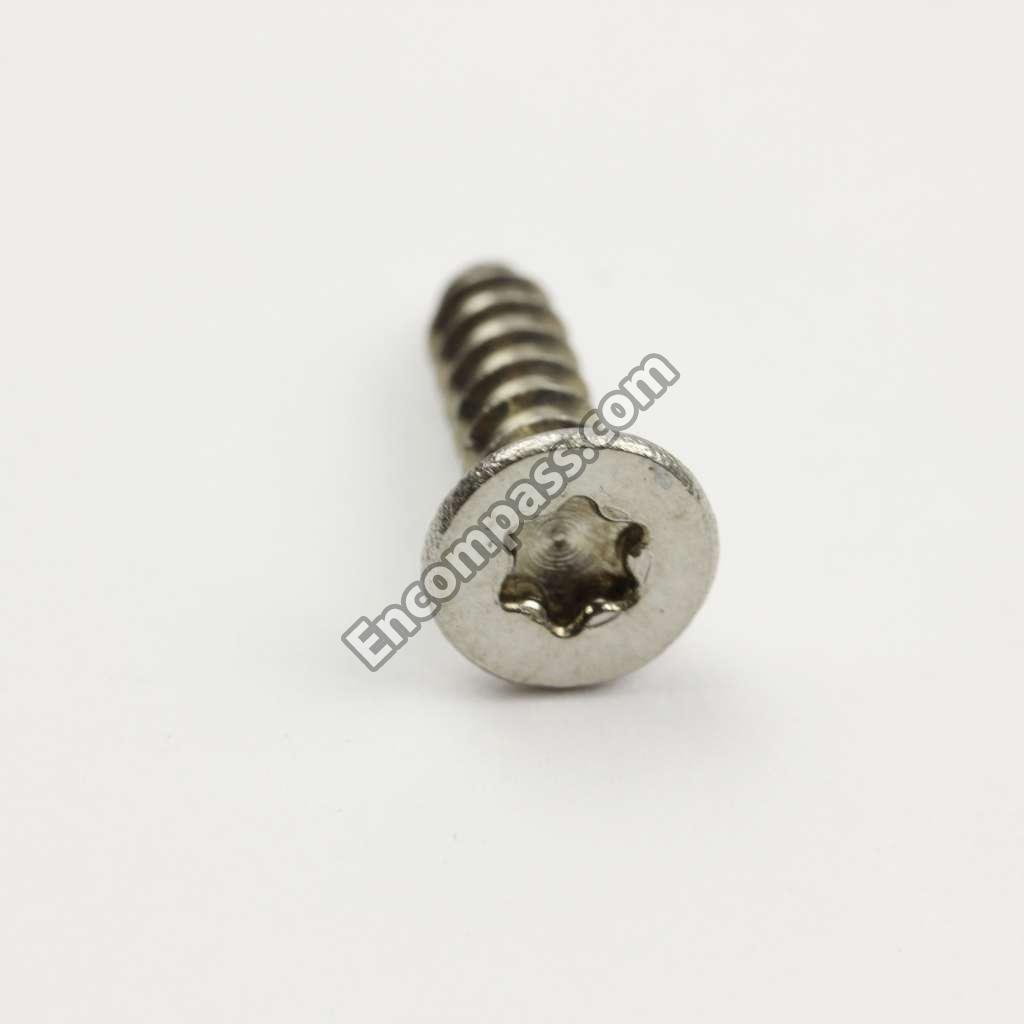

SCREW-SPECIAL;SPECIAL FH,TORX,M4,L16,STS |
|
|
SCREW-SPECIAL;TH,+,WT,M4,L10,ZPC(WHT),SW |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING;STS304,PASS,L12,M4,FH,+,1 |
| 6002-001435 | SCREW-TAPPING;STS430,PASS,L12,M4,TH,+,2 |
| 6002-000413 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH |
| 6002-000554 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
| 6002-000231 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
| 6002-001257 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L30,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
| 6003-000170 | SCREW-TAPTYPE |
| DD62-00193A | SEAL HOLDER DUCT-MIDDLE;DW8700B_US,EPDM, |

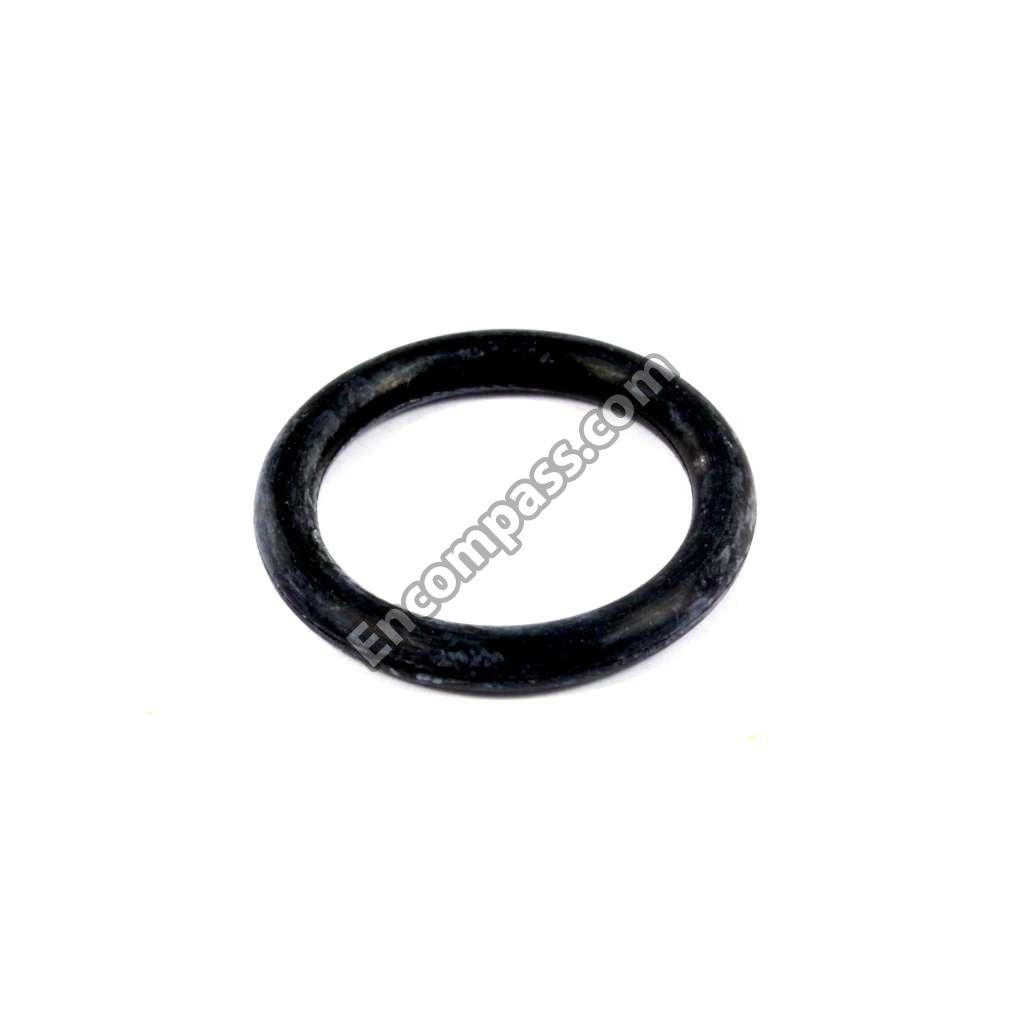

| DD62-00138A | SEAL RING;GALA-E,EPDM,-,-,BLACK,- |
|
|
SEAL SOIL SENSOR;GALA-E,EPDM,-,-,-,BLACK |
| DD62-00181A | SEAL TUB PACKING;DW8700B,TPV,-,-,SA7-35N |
| DD62-00109A | SEAL-BRACKER RAIL;DMT800/DMT400,EPDM,-,- |
|
|
SENSOR;5V,-,-,SMAW250-3PIN,0-3000NTU,VCC |
| DD66-00181B | SHAFT ROLLER-LOW;DW7000B,POM,-,-,CLEAR G |
| DD66-00225A | SHAFT-ADJUSTER;DW8700B,SWRCH10A,L364.5,O |
| 2802-001196 | SMG PART |
| 2203-008462 | SMG PART |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007627 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007538 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007319 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007314 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 0101-003143 | SMG PART |
| 0103-001533 | SMG PART |
| 0103-008912 | SMG PART |
| 0201-001982 | SMG PART |
| 0201-002354 | SMG PART |
| 0201-003987 | SMG PART |
| 0202-001463 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001933 | SMG PART |
| 0203-001607 | SMG PART |
| 0203-004933 | SMG PART |
| 0204-004665 | SMG PART |
| 0204-009273 | SMG PART |
| 0205-001197 | SMG PART |
| 0402-001472 | SMG PART |
| 0402-001741 | SMG PART |
| 0404-001991 | SMG PART |
| 0406-001865 | SMG PART |
| 0505-001943 | SMG PART |
| 0601-002679 | SMG PART |
| 0604-001405 | SMG PART |
| 0903-002197 | SMG PART |
| 0903-002203 | SMG PART |
| 1003-002536 | SMG PART |
| 1203-004967 | SMG PART |
| 1203-009428 | SMG PART |
| 1203-009429 | SMG PART |
| 1404-001481 | SMG PART |
| 1404-001872 | SMG PART |
| 2007-000571 | SMG PART |
| 2007-000764 | SMG PART |
| 2007-007386 | SMG PART |
| 2007-012278 | SMG PART |
| 2007-012404 | SMG PART |
| 2201-002690 | SMG PART |
| 2203-010033 | SMG PART |
| 2203-010142 | SMG PART |
| 2301-002011 | SMG PART |
| 2401-004519 | SMG PART |
| 2401-006198 | SMG PART |
| 3301-002113 | SMG PART |
| 3501-001291 | SMG PART |
| 3501-001306 | SMG PART |
| 3502-001180 | SMG PART |
| 3601-001731 | SMG PART |
| 3601-001927 | SMG PART |
| 3711-000260 | SMG PART |
| 3711-000262 | SMG PART |
| 3711-008905 | SMG PART |
| 3711-009393 | SMG PART |
| 3711-009395 | SMG PART |
| 4709-003221 | SMG PART |
| 6001-002698 | SMG PART |
| 6002-001018 | SMG PART |
| 6041-001066 | SMG PART |
| 6902-001812 | SMG PART |
| 6902-001827 | SMG PART |
| 6902-003459 | SMG PART |
| 6922-000009 | SMG PART |
| DB68-03058C | SMG PART |
| DC26-00056C | SMG PART |
| DC62-00243A | SMG PART |
| DC68-02173A | SMG PART |
| DC68-02298A | SMG PART |
| DC94-02705A | SMG PART |
| DD01-01002A | SMG PART |
| DD01-01023A | SMG PART |
| DD02-01003A | SMG PART |
| DD07-00017F | SMG PART |
| DD31-00011C | SMG PART |
| DD32-00007A | SMG PART |
| DD41-00016B | SMG PART |
| DD41-00020A | SMG PART |
| DD47-00015A | SMG PART |
| DD61-00197B | SMG PART |
| DD61-00305B | SMG PART |
| DD61-00312B | SMG PART |
| DD61-00373A | SMG PART |
| DD61-00375A | SMG PART |
| DD61-00424A | SMG PART |
| DD61-00516A | SMG PART |
| DD61-00517A | SMG PART |
| DD61-00541B | SMG PART |
| DD61-00618B | SMG PART |
| DD61-00635A | SMG PART |
| DD61-00639B | SMG PART |
| DD61-00693A | SMG PART |
| DD61-00702A | SMG PART |
| DD61-00703A | SMG PART |
| DD61-00709A | SMG PART |
| DD61-00711A | SMG PART |
| DD61-00713G | SMG PART |
| DD61-00714A | SMG PART |
| DD61-00715A | SMG PART |
| DD61-00716A | SMG PART |
| DD61-00717A | SMG PART |
| DD61-00718A | SMG PART |
| DD61-00719A | SMG PART |
| DD61-00724A | SMG PART |
| DD61-00727A | SMG PART |
| DD61-00730A | SMG PART |
| DD61-00743A | SMG PART |
| DD61-00746A | SMG PART |
| DD61-00747A | SMG PART |
| DD61-00756A | SMG PART |
| DD61-00758A | SMG PART |
| DD61-00759A | SMG PART |
| DD61-00760A | SMG PART |
| DD61-00790A | SMG PART |
| DD61-00791A | SMG PART |
| DD61-00821A | SMG PART |
| DD61-00822A | SMG PART |
| DD61-00823A | SMG PART |
| DD61-00824A | SMG PART |
| DD61-00825A | SMG PART |
| DD61-00826A | SMG PART |
| DD62-00079A | SMG PART |
| DD62-00156A | SMG PART |
| DD62-00158A | SMG PART |
| DD62-00169A | SMG PART |
| DD62-00174A | SMG PART |
| DD62-00175A | SMG PART |
| DD62-00177A | SMG PART |
| DD62-00178A | SMG PART |
| DD62-00184A | SMG PART |
| DD62-00185A | SMG PART |
| DD62-00192A | SMG PART |
| DD63-00259A | SMG PART |
| DD63-00271A | SMG PART |
| DD63-00313B | SMG PART |
| DD63-00336B | SMG PART |
| DD63-00340A | SMG PART |
| DD63-00378A | SMG PART |
| DD63-00386A | SMG PART |
| DD63-00389A | SMG PART |
| DD63-00390A | SMG PART |
| DD63-00391A | SMG PART |
| DD63-00392A | SMG PART |
| DD63-00393A | SMG PART |
| DD63-00394A | SMG PART |
| DD63-00395A | SMG PART |
| DD63-00417E | SMG PART |
| DD63-00419B | SMG PART |
| DD63-00423A | SMG PART |
| DD63-00427B | SMG PART |
| DD63-00442A | SMG PART |
| DD63-00450A | SMG PART |
| DD64-00199A | SMG PART |
| DD64-00231B | SMG PART |
| DD64-00240C | SMG PART |
| DD64-00242A | SMG PART |
| DD64-00258D | SMG PART |
| DD64-00266B | SMG PART |
| DD64-00267A | SMG PART |
| DD64-00267C | SMG PART |
| DD66-00059B | SMG PART |
| DD66-00061B | SMG PART |
| DD66-00076B | SMG PART |
| DD66-00089B | SMG PART |
| DD66-00111A | SMG PART |
| DD66-00147A | SMG PART |
| DD66-00148A | SMG PART |
| DD66-00149A | SMG PART |
| DD66-00180A | SMG PART |
| DD66-00185B | SMG PART |
| DD66-00186B | SMG PART |
| DD66-00198B | SMG PART |
| DD66-00203B | SMG PART |
| DD66-00204A | SMG PART |
| DD66-00210A | SMG PART |
| DD66-00211A | SMG PART |
| DD66-00214B | SMG PART |
| DD66-00215B | SMG PART |
| DD66-00216A | SMG PART |
| DD66-00217A | SMG PART |
| DD66-00218A | SMG PART |
| DD66-00219A | SMG PART |
| DD66-00223B | SMG PART |
| DD66-00224B | SMG PART |
| DD66-00234A | SMG PART |
| DD67-00123A | SMG PART |
| DD67-00168A | SMG PART |
| DD67-00212A | SMG PART |
| DD67-00221A | SMG PART |
| DD67-00223A | SMG PART |
| DD67-00226B | SMG PART |
| DD67-00258A | SMG PART |
| DD67-00271A | SMG PART |
| DD67-00272A | SMG PART |
| DD67-00273A | SMG PART |
| DD67-00274A | SMG PART |
| DD68-00020A | SMG PART |
| DD68-00021A | SMG PART |
| DD68-00094H | SMG PART |
| DD68-00098C | SMG PART |
| DD68-00114A | SMG PART |
| DD68-00150K | SMG PART |
| DD68-00152N | SMG PART |
| DD68-00185E | SMG PART |
| DD68-00250L | SMG PART |
| DD69-00043A | SMG PART |
| DD69-00051A | SMG PART |
| DD69-00052C | SMG PART |
| DD69-00054A | SMG PART |
| DD69-00121A | SMG PART |
| DD69-00128D | SMG PART |
| DD69-00149B | SMG PART |
| DD69-00150B | SMG PART |
| DD69-00151B | SMG PART |
| DD69-00152A | SMG PART |
| DD69-00155A | SMG PART |
| DD69-00156A | SMG PART |
| DD69-00159A | SMG PART |
| DD69-00172A | SMG PART |
| DD90-00597H | SMG PART |
| DD90-00664Q | SMG PART |
| DD90-00665L | SMG PART |
| DD90-00668C | SMG PART |
| DD90-00674N | SMG PART |
| DD92-00088A | SMG PART |
| DD92-00098A | SMG PART |
| DD92-00107B | SMG PART |
| DD94-01241A | SMG PART |
| DD94-01302A | SMG PART |
| DD94-01303A | SMG PART |
| DD97-00509B | SMG PART |
| DD97-00555C | SMG PART |
| DD97-00556C | SMG PART |
| DD97-00649B | SMG PART |
| DD97-00657C | SMG PART |
| DD97-00660D | SMG PART |
| DD97-00673A | SMG PART |
| DD97-00674J | SMG PART |
| DD97-00675A | SMG PART |
| DD97-00676L | SMG PART |
| DD97-00677P | SMG PART |
| DD97-00678F | SMG PART |
| DD97-00689A | SMG PART |
| DD97-00690B | SMG PART |
| DD97-00695A | SMG PART |
| DD97-00747R | SMG PART |
| DD97-00766A | SMG PART |
| DD97-00767A | SMG PART |
| DD97-00768A | SMG PART |
| DD97-00782B | SMG PART |
| DD98-01121A | SMG PART |
| DD98-01122B | SMG PART |
| DD98-01123J | SMG PART |
| DD98-01132F | SMG PART |
| DD98-01139B | SMG PART |
| DE02-00030A | SMG PART |
| 0202-001459 | SOLDER-CREAM;D20~38UM,96.5SN/3AG/0.5CU,F |
| DD67-00213B | SUMP;DW8700B,PP+TD20%,T1.8,LIGHT WARM GR |
| DD61-00731A | SUPPORT CUP-HOLDER;DW8700B,POM,T3,HB,F20 |
| DD61-00745A | SUPPORT CUP;DW8700B,PP+TD30%,T3,HB,PTN96 |
|
|

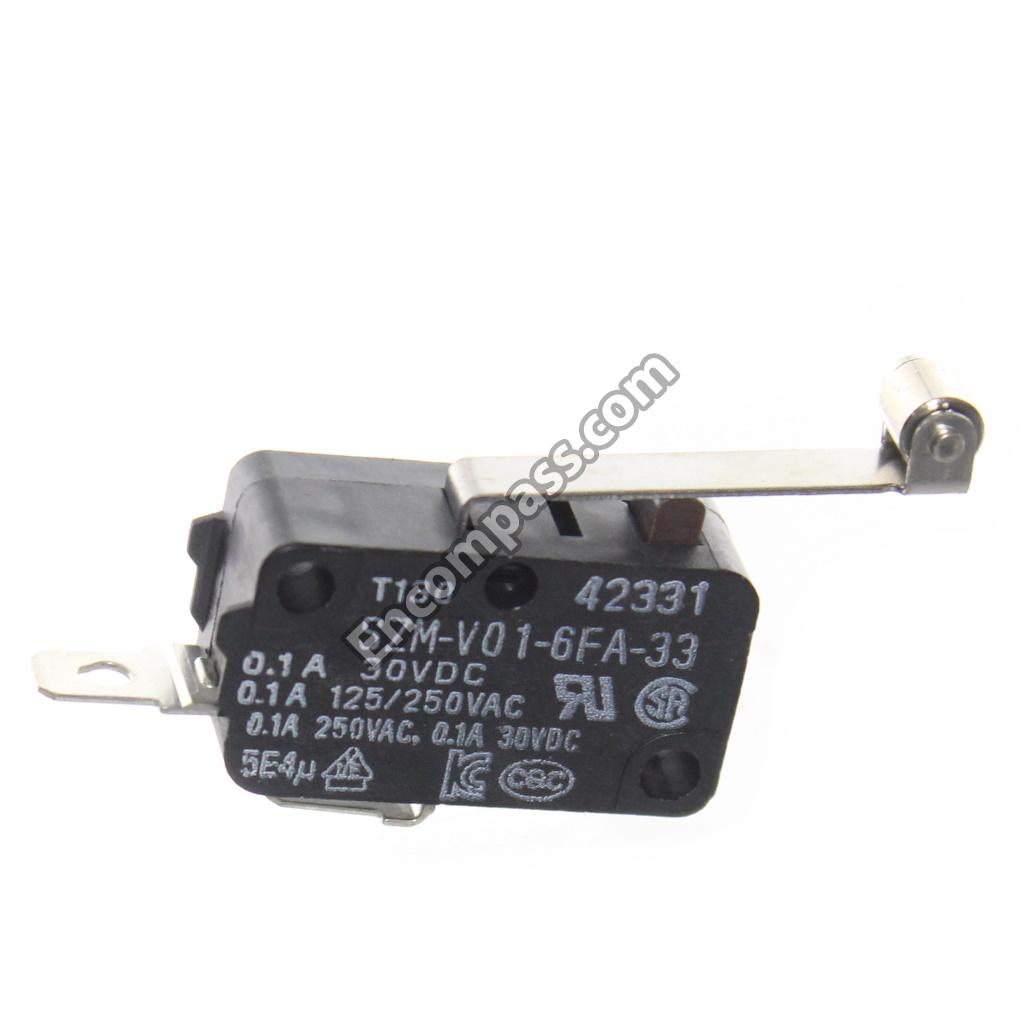

SWITCH DOOR;DC12V,0.01 |
|
|
SWITCH-MICRO;AC125-250V,0.1A,60GF |
| DD67-00088A | TANK WATER-SOFTNER SEAL;GALA-E,COMMON,NB |
| DD67-00086A | TANK WATER-SOFTNER-CAP;GALA-E,COMMON,PP+ |
| DD67-00087A | TANK WATER-SOFTNER-HOLDER;GALA-E,COMMON, |
| DD67-00083B | TANK WATER-SOFTNER;DW8700B_DACOR,PP,-,NA |
| DE02-00029B | TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N |
| 0203-006665 | TAPE-OPP MASKING;PP,T0.045,W24,L1000M,WH |
| 0203-004932 | TAPE-POLY;PP,RAPGARD F8R,T0.035,W50,L100 |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0502-001266 | TR-POWER;KTA1532T,PNP,900MW,TSM,TP,200/- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
| DD64-00250A | TRIM SIDE;DW8700B,FBI,PP+TD30%,TB53,-,BL |
| DD64-00241A | TRIM UPPER;DW8700B,PP+TD30%,TB53,-,BLACK |
| DD64-00150A | TRIM-LOW;DW9900H,PP,EP649N,-,BLACK,-,TPV |
| DD62-00176A | VALVE DISTRIBUTER;DW8700B,POM,NATURAL,-, |
|
|

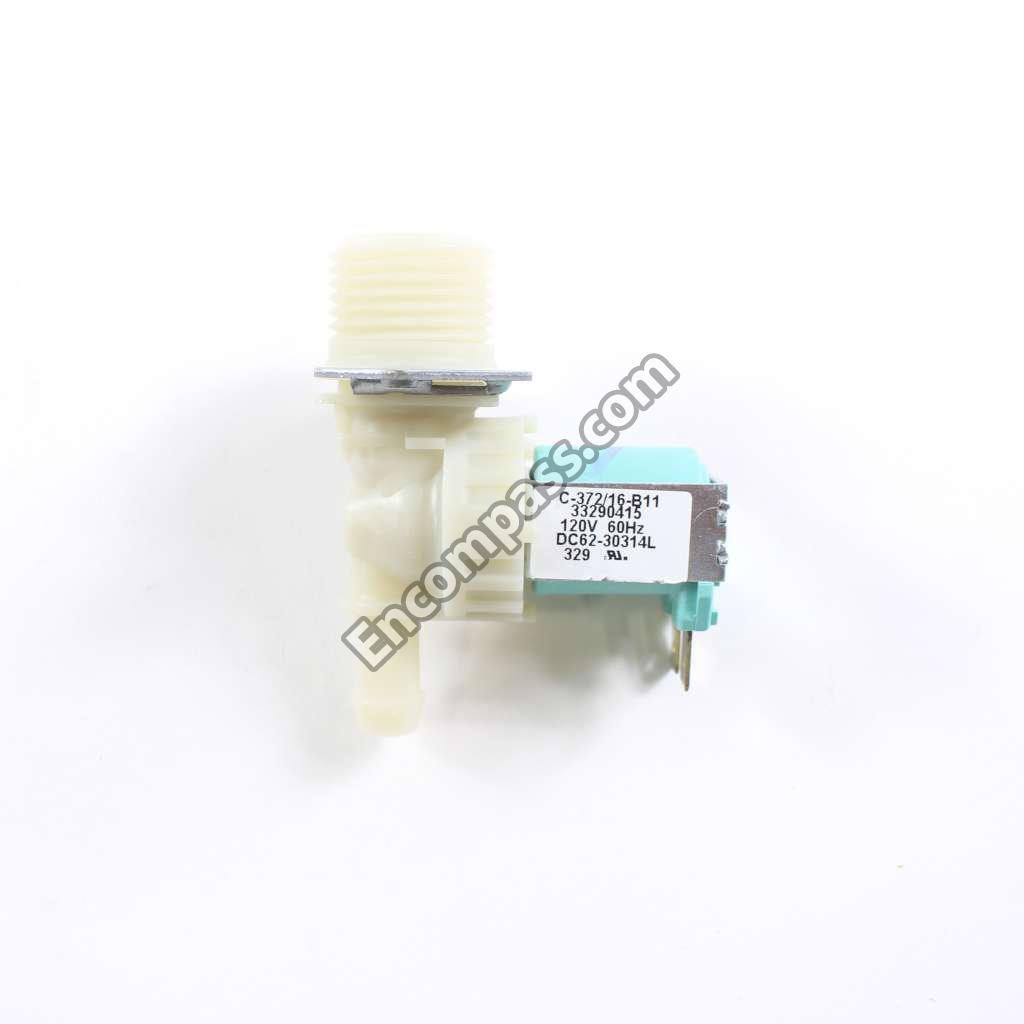

VALVE WATER;AC110-127V,INCH,#250,1,1,5 |
| DD67-00230A | WIRE FOLDING-FRONT LEFT FRONT;DW8700B,MS |
| DD67-00231A | WIRE FOLDING-FRONT RIGHT FRONT;DW8700B,M |
| DD67-00228A | WIRE FOLDING-LEFT;DW8700B,MSWR,D5,T5,9.7 |
| DD67-00238A | WIRE FOLDING-LEFT;DW8700B,MSWR,D5,T5,9.7 |
| DD67-00229A | WIRE FOLDING-RIGHT;DW8700B,MSWR,D5,T5,9. |
