Model Image
Manufacturer

Samsung

Model Number

DP700A7DS03US

Description

Series 7 - 27-inch All-in-one Touchscreen Desktop

Interactive Exploded View

Parts List

Part Number Description
BA81-18131A 3 BUTTON WIRELESS MOUSE
BA44-00280A AC ADAPTOR;A200A002L,AD-20019,19VDC,10.5A,-
BA42-00417A ANTENNA-WLAN;02102140-05287,MERCURY,2.3-
BA42-00418A ANTENNA-WLAN;02102140-05288,MERCURY,2.3-
4301-001094 BATTERY-LI;3V,220MAH,BUTTON,20X3.2MM,NO,
3301-001649 BEAD-SMD;180OHM,1608,TP,226OHM/389MHZ
BA81-18054A BEZEL-HOOK_L;MERCURY-27,PC+ABS,W39.51*L3
BA81-18053A BEZEL-HOOK_R;MERCURY-27,PC+ABS,W39.51*L3
BA59-03504A BOARD-TSB;MERCURY,SEC,TOUCH SENSOR,W
BA61-01843A BRACKET-BEZEL_DECO-L;MERCURY-27,STAINLES
BA61-01841A BRACKET-BEZEL_DECO-LOWER;MERCURY-27,STAI
BA61-01842A BRACKET-BEZEL_DECO-R;MERCURY-27,STAINLES
BA61-01840A BRACKET-BEZEL_DECO-UPPER;MERCURY-27,STAI
BA61-01676A BRACKET-DC_JACK;NEPTUNE,SECC,BLACK
BA61-01620A BRACKET-HDD;NIKE-14,STAINLESS,SE
BA61-01846A BRACKET-ODD;MERCURY-27,SECC,
BA81-18058B BRACKET-STAND_TOP;MERCURY-27,SEC,SECC,W4
BA61-01844A BRACKET-SUPPORT-L;MERCURY-27,SECC,
BA61-01845A BRACKET-SUPPORT-R;MERCURY-27,SECC,
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2402-001042 C-AL,SMD;100UF,20,16V,GP,TP,6.6X6.6X5.4M
2402-001387 C-AL,SMD;10UF,20%,100V,TP,8X8X6.2
2203-005571 C-CER,CHIP
2203-000627 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-001683 C-CER,CHIP;0.068NF,5%,50V,NP0,TP,1608
2203-006336 2203-006336 C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216
2203-006090 C-CER,CHIP;10000NF,10%,6.3V,X5R,TP,2012
2203-007456 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1005,0.
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-007486 C-CER,CHIP;1000NF,10%,50V,X5R,TP,1608
2203-006399 C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005
2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006166 C-CER,CHIP;100NF,10%,25V,X5R,TP,1005
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-000206 C-CER,CHIP;100NF,10%,50V,X7R,TP,2012
2203-002720 C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,0.5T
2203-006000 C-CER,CHIP;1NF,10%,3000V,X7R,TP,4520
2203-000440 C-CER,CHIP;1NF,10%,50V,X7R,TP,1608
2203-006260 C-CER,CHIP;220NF,10%,10V,X5R,TP,1005
2203-006170 C-CER,CHIP;220NF,10%,16V,X7R,TP,1608
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-006377 C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-007424 C-CER,CHIP;4700NF,10%,50V,X7R,TP,3216
2203-006069 C-CER,CHIP;4700NF,10%,6.3V,X7R,2012
2203-002050 C-CER,CHIP;47NF,10%,50V,X7R,TP,1608
2203-001140 C-CER,CHIP;68NF,10%,16V,X7R,TP,1608
2409-001173 C-ORGANIC,SMD;15UF,20%,25V,TP,6.6X6.6X4.
2409-001159 C-ORGANIC,SMD;220UF,20%,2.5V,TP,3.5X2.8X
BA59-03452A CAMERA MODULE;NCM-157F,SC-
BA39-01298A CBF HARNESS-TWEETER CABLE;MERCURY27,WIRE
BA39-01279A CBF-FHD_BKLT;MERCURY,WIRE,12P,L500MM,B
BA39-01224A BA39-01224A CBF-HDD;ATHENA-17,WIRE,20P,L100MM,BLK,
3709-001608 CONNECTOR-CARD EDGE;204P,0.6MM,SMD-A,AU,
3709-001654 CONNECTOR-CARD EDGE;204P,0.6MM,SMD-A,AU,
3709-001656 CONNECTOR-CARD EDGE;204P,0.6MM,SMD-A,AU,
3709-001728 CONNECTOR-CARD EDGE;204P,0.6MM,SMD-A,AUF
3709-001757 CONNECTOR-CARD EDGE;204P,0.6MM,SMD-A,AUF
3709-001729 CONNECTOR-CARD SLOT;204P,0.6,SMD-A,AUF,S
3709-001609 CONNECTOR-CARD SLOT;204P,0.6MM,SMD-A,AU,
3709-001761 CONNECTOR-CARD SLOT;204P,0.6MM,SMD-A,AUF
3708-002922 CONNECTOR-FPC/FFC/PIC;12P,0.5MM,SMD-A,AU
3708-002933 CONNECTOR-FPC/FFC/PIC;30P,1.0MM,SMD-A,SN
3711-007691 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
BA63-00890A COVER-HINGE;MERCURY-27,ABS+PC,
BA81-18064A COVER-STAND_BOTTOM;MERCURY-27,PC+ABS,W51
BA81-18062A COVER-STAND_TOP;MERCURY-27,PC+ABS,W179.9
0404-001595 DIODE-SCHOTTKY;B2100,100V,2000MA,SMB,TP
0404-001084 DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T
0404-001020 DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T
0401-000132 DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP
0401-000191 DIODE-SWITCHING;MMBD4148,100V,200MA,SOT-
0406-001141 DIODE-TVS;PGB1010603NR,-/-/1000V,0W,EIA-
BA81-18056A BA81-18056A DOOR-MEMORY;MERCURY-27,PC+ABS,W94*L59*H2
BA81-18073A DOOR-ODD;MERCURY-27,PC+ABS,W128*L34.4*H1
BA81-18055A DOOR-SIO;MERCURY-27,PC+ABS,W128*L32.4*H1
BA81-18067A DUCT-SYSTEM;MERCURY-27,PC+ABS,W242.76*L4
BA59-03711A DVD-SUPERMULTI;DS-8A8SH,8X,130MS,SATA,1M
BA59-03835A DVD-SUPERMULTI;SN-208FB,8X,220MS,SATA,51
BA59-03722A DVD-SUPERMULTI;UJ8D1,8X,130MS,SATA,1MB,6

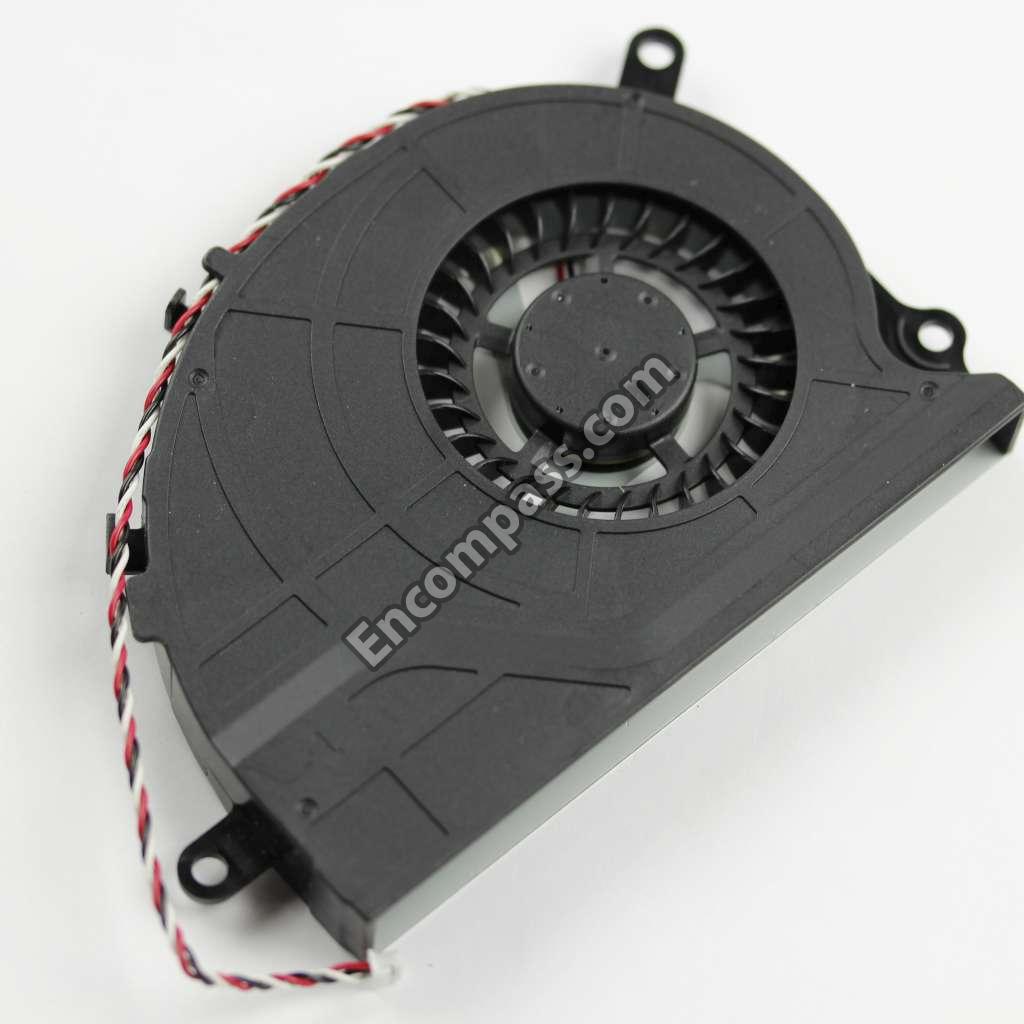

BA31-00133A BA31-00133A FAN;KSB0705HA-CD56,MERCURY,PLASTIC,DEL
0505-003160 FET-SILICON;2N7002BKW,N,60V,310MA,1.6OHM
0505-002386 FET-SILICON;AO3415AL,P,-20V,-4A,0.045OHM
0505-002421 FET-SILICON;AOD464,N,105V,40A,28MOHM,100
0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O
0505-001883 FET-SILICON;RHU002N06,N,60V,200MA,3.3OHM
BA41-02079A FFC-LVDS;MERCURY,-,30P,T0.32,L700*W35M
BA41-02081A FFC-ODD;MERCURY,-,12P,T0.3,L280*W6.5MM
BA63-00373A GASKET-1394_TOP;AQUILA,CU+NI,NTR,-
BA81-06934A GASKET-ANT;WINCHESTER,CONDUCTIVE FABRIC,
BA59-03851A BA59-03851A HARD DRIVE
BA39-01272A HARNESS-DC_JACK;MERCURY,WIRE,8P,L200MM
BA39-01270A HARNESS-FRONT_IO;MERCURY,WIRE,20P,L500
BA39-01266A HARNESS-SIDE_IO-BOARD_SIGNAL;MERCURY,WIR
BA39-01267A HARNESS-SIDE_IO-POWER;MERCURY,WIRE,30P
BA39-01268A HARNESS-TSP;MERCURY,WIRE,5P,L140MM,BLK
BA39-01269A HARNESS-WEBCAM;MERCURY,WIRE,10P,L300MM
3711-008204 HEADER-BOARD TO CABLE;3WALL,8P,1R,2MM,AN
3711-007591 HEADER-BOARD TO CABLE;BOX,10P,1R,1.25MM,
3711-007616 HEADER-BOARD TO CABLE;BOX,10P,1R,1.25MM,
3711-007689 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM,
3711-007693 HEADER-BOARD TO CABLE;BOX,2P,1R,1.25MM,S
3711-007595 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-007597 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-007614 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-007615 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-008278 HEADER-BOARD TO CABLE;BOX,4P,1R,2MM,SMD-
3711-003057 HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S
BA62-00768A HEAT SINK-CPU;MERCURY27,AL,NATURAL
BA62-00605A HEAT SINK-PCH;PETRONAS13/14/15,AL,
BA61-01813B HINGE-L;MERCURY-27,STAINLESS,N
BA61-01814B HINGE-R;MERCURY-27,STAINLESS,N
1001-001679 IC-ANALOG SWITCH;-,SON,10P,3.0X3.0X1.0
1201-003358 IC-AUDIO AMP;MAX9737ETG+T,TQFN,24P,4X4MM
1006-001427 IC-BUS TRANSCEIVER;PS8101,QFN,48P,7X7MM,
1205-004291 IC-CODEC;ALC269Q-VC2-GR,QFN,48P,6X6MM,PL
1105-002345 IC-DRAM MODULE;AM1U16BC4P2-B19C,DDR3 4G
1105-002377 IC-DRAM MODULE;M471B5173BH0-CK0,DDR3 160
1105-002501 IC-DRAM MODULE;M471B5173DB0,DDR3L 25NM 1
1105-002391 IC-DRAM MODULE;M471B5273CH0-CK0,IC-DRAM
1105-002376 IC-DRAM MODULE;M471B5273EB0-CK0,DDR3 160
1103-001500 IC-EEPROM;AT24C02C-SSHM-T,2KBIT,256X8,SO
1103-001514 IC-EEPROM;S-24C16CI-J8T1U,16K BITS,8X256
1205-004159 IC-ETHERNET CONTROLLER;RTL8111E-VL-CG,QF
0904-002777 IC-GRAPHIC CONT.;216-0835063,FCBGA,962P,
1205-003964 IC-LCD CONTROLLER;SE979LMRD-LF,PQFP,128P
0902-002948 IC-MICROPROCESSOR;CM8063701212200,2.5GHZ
1107-001915 IC-NOR FLASH;32MBIT,X1,SOP,8P,5.25X5.25M
1203-006083 IC-POSI.ADJUST REG.;APL5336KAITRG,SOP-8P
1203-006381 IC-PWM CONTROLLER;ISL62882CHRTZ-T,TQFN,4
1203-006546 IC-PWM CONTROLLER;MAX17511GTL+,TQFN,40P,
1203-005536 IC-PWM CONTROLLER;TPS51117RGYR,QFN,14P,3
1203-005332 IC-PWM CONTROLLER;TPS51125RGER,QFN,24P,4
1205-004224 IC-REPEATER;PS121,QFN,48P,7X7MM,PL,5V,16
1001-001592 IC-RF SWITCH;SKY13317-373LF,8P,1.5X1.5X0
1001-001515 IC-RF SWITCH;UPG2179TB-E4,SPDT,SUPER MIN
1209-001887 IC-SENSOR;EMC2112-BP-TR,QFN,20P,4X4MM,PL
1205-003683 IC-SWITCH;TPS2062ADRBR,SON,8P,3X3MM,PLAS
1209-002095 IC-SYNTHESIZER;252M-42LFT,SOIC,8P,4.9X3.
2703-004300 INDUCTOR-SMD;1.5NH,0.1NH,0603,0.12OHM,60
2703-000158 INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45,
2703-003879 INDUCTOR-SMD;33UH,20%,10.0MMX10.0MM,0.12
3722-003401 JACK-MODULAR;8P/8C,C TYPE,Y,ANGLE,AU,1
3722-003566 JACK-PHONE;6P,AUF,BLK,ANGLE
3722-003317 JACK-USB;4P/1C,AU,BLK,ANGLE,A
3722-003565 JACK-USB;9P,AUF/TIN,BLUE,ANGLE-OFFSET,A
BA68-04365A LABEL ENERGY-STAR;ALL,SEC,PET,W14.7,L1
BA68-08429A LABEL-AR5B22;NIKE-13R,PET,T0.09,W20,L4
BA81-10720A LABEL-ECO;MELON-R,PET,T0.25,W11,L18MM,
BA68-10751A LABEL-LOGO_GFX-AMD;LOTUS-AMD,PET+PC,
BA68-06892A LABEL-LOGO_I7_CPU;N/P ALL,SEC,PET,T0.1,W
BA68-08890A LABEL-LOGO_WIN8_STANDARD;ALL,WINDOWS8_ST
BA68-20039A LABEL-PPID_E;BLADE,PAPER,WHITE,-
BA96-06550A LCD DISPLAY
BA68-08500A MANUAL-GUIDE_PL;MCLAREN-15,SEC,ALL,EXPOR
BA92-11516A MOTHERBOARD (MAIN BOARD)PGA,4~8G,
BA92-10998A ODD BOARD
BA92-10999A POWER BUTTON PCB

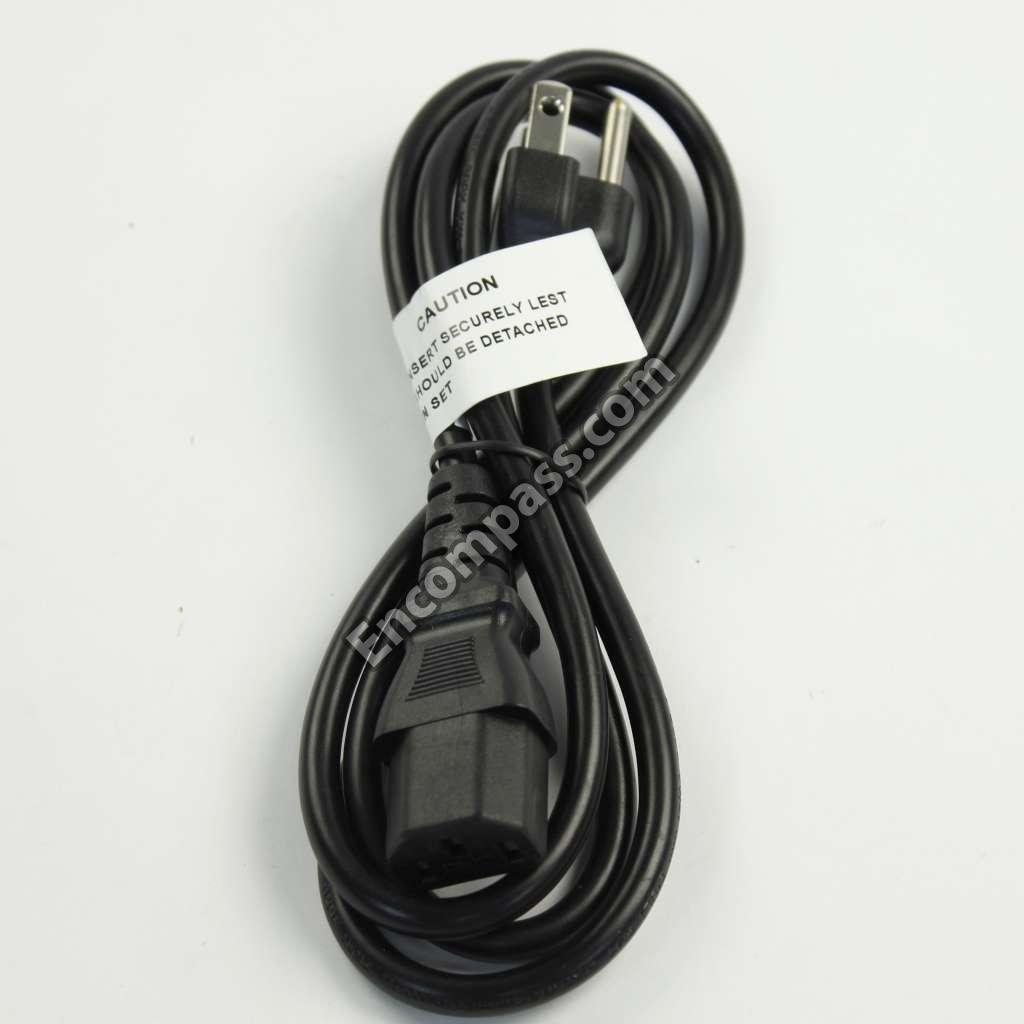

3903-001051 3903-001051 POWER CORD;DT,US,EP3,IEC320 C13,125/
2007-008121 R-CHIP;0.33OHM,5%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-000231 R-CHIP;1.3KOHM,1%,1/10W,TP,1608
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-002900 R-CHIP;11KOHM,1%,1/10W,TP,1608
2007-002901 R-CHIP;12.1KOHM,1%,1/10W,TP,1608
2007-008167 R-CHIP;120KOHM,1%,1/16W,TP,1005
2007-008437 R-CHIP;121OHM,1%,1/16W,TP,1005
2007-007352 R-CHIP;130KOHM,1%,1/10W,TP,1608
2007-008070 R-CHIP;130OHM,1%,1/10W,TP,1608
2007-008693 R-CHIP;130OHM,1%,1/16W,TP,1005
2007-000063 R-CHIP;150KOHM,1%,1/10W,TP,1608
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-007937 R-CHIP;17.4KOHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000503 R-CHIP;2.2OHM,5%,1/10W,TP,1608
2007-007617 R-CHIP;2.49KOHM,1%,1/10W,TP,1608
2007-000536 R-CHIP;200OHM,1%,1/10W,TP,1608
2007-007520 R-CHIP;20OHM,1%,1/10W,TP,1608
2007-008330 R-CHIP;22.6OHM,1%,1/16W,TP,1005
2007-000570 R-CHIP;220OHM,1%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-007237 R-CHIP;24.3KOHM,1%,1/10W,TP,1608
2007-007302 R-CHIP;24.9OHM,1%,1/10W,TP,1608
2007-007785 R-CHIP;249KOHM,1%,1/10W,TP,1608
2007-008308 R-CHIP;249OHM,1%,1/16W,TP,1005
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608
2007-000695 R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-008576 R-CHIP;3.65KOHM,1%,1/10W,TP,1608
2007-008304 R-CHIP;300KOHM,1%,1/16W,TP,1005
2007-000729 R-CHIP;300OHM,5%,1/10W,TP,1608
2007-000736 R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005
2007-008309 R-CHIP;37.4OHM,1%,1/16W,TP,1005
2007-008223 R-CHIP;39.2KOHM,1%,1/10W,TP,1608
2007-002987 R-CHIP;4.75KOHM,1%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-007549 R-CHIP;4.99KOHM,1%,1/10W,TP,1608
2007-000057 R-CHIP;40.2KOHM,1%,1/10W,TP,1608
2007-008708 R-CHIP;40.2OHM,1%,1/16W,TP,1005
2007-007797 R-CHIP;44.2OHM,1%,1/10W,TP,1608
2007-000077 R-CHIP;470OHM,5%,1/10W,TP,1608
2007-007226 R-CHIP;49.9OHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-008429 R-CHIP;499OHM,1%,1/16W,TP,1005
2007-008300 R-CHIP;5.11KOHM,1%,1/16W,TP,1005
2007-002918 R-CHIP;51.1KOHM,1%,1/10W,TP,1608
2007-000999 R-CHIP;510OHM,1%,1/10W,TP,1608
2007-008026 R-CHIP;56OHM,1%,1/16W,TP,1005
2007-008597 R-CHIP;6.19KOHM,1%,1/16W,TP,1005
2007-007619 R-CHIP;60.4OHM,1%,1/10W,TP,1608
2007-007456 R-CHIP;619OHM,1%,1/16W,TP,1005
2007-008296 R-CHIP;680KOHM,1%,1/16W,TP,1005
2007-000050 R-CHIP;7.15KOHM,1%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-008438 R-CHIP;715OHM,1%,1/16W,TP,1005
2007-001153 R-CHIP;750OHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-008676 R-CHIP;80.6KOHM,1%,1/16W,TP,1005
2007-007735 R-CHIP;91OHM,1%,1/10W,TP,1608
BA92-10996A REAR IO BOARD
BA81-18051A RUBBER-FOOT;MERCURY-23,SILICON,W10*L40*H
BA81-16640A RUBBER-FRONT_UPPER;XIDAN-14,TPU RUBBER,L
BA81-07552A RUBBER-SUPPORT_MAINBOARD;MONTEREY,PMP,NB
6001-001650 SCREW-MACHINE;BH,+,M2,L3,NI PLT,SWRCH18A
6001-002749 SCREW-MACHINE;CH,+,M2,L3,ZPC(BLK),SWRC
6001-001570 SCREW-MACHINE;CH,+,M2,L4,ZPC(BLK),SWRCH1
6001-001480 SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRC
6001-001114 SCREW-MACHINE;FH,+,M4,L6,ZPC(BLK),SWRC
6001-000781 SCREW-MACHINE;PH,+,M3,L8,ZPC(BLK),SWRC
6009-001276 SCREW-SPECIAL;PWH,+,M3,L12(5),ZPC(WHT),S
3704-001600 SOCKET-IC;1155P,BGA,AU,0.914MM
3710-003575 SOCKET-INTERFACE;20P,1R,0.5MM,SMD-A,AU,B
3710-003327 SOCKET-INTERFACE;6P+7P,1R,1MM,SMD-A,AU,B
BA96-06269A SPEAKER-TWEETER;MERCURY23,260/180
BA96-06268A SPEAKER-WOOFER;MERCURY23,190MM,WH
BA61-01831A SUPPORT-STAND;MERCURY-27,ZN,
BA61-01802A SUPT BRACKET-CPU;MERCURY,SPCC,
0203-001869 TAPE-KAPTONE;-,T0.06,W10,L33000MM,GOLDEN
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
BA75-04196B UNIT-BEZEL_FRONT;MERCURY-27,SEC,PC/ABS,-
BA75-04655A UNIT-BRACKET_SUPPORT_R;MERCURY27,SECC,
BA75-04198C UNIT-COVER-PORT;MERCURY-27,SEC,PC/ABS,
BA75-04197A UNIT-COVER_BACK;MERCURY-27,SEC,PC/ABS,
BA75-04372A UNIT-COVER_REAR;MERCURY-27,SEC,PC/ABS,
BA75-04199B UNIT-FRAME_MAIN;MERCURY-27,SEC,PC/ABS,
BA75-04290A UNIT-HOLDER_CAMERA;MERCURY27,DOMESTIC,PC
BA75-04263A UNIT-STAND_SYSTEM;MERCURY-27,SEC,PC/ABS,
BA81-18123A BA81-18123A USB WIRELESS RECEIVER (FOR KEYBOARD & MOUSE)
BA81-18114A BA81-18114A WIRELESS KEYBOARD
BA92-10153A WLAN NETWORK MODULE PCB
Main Menu x
