Manufacturer
Samsung
Model Number
DP710A4ML01US
Description

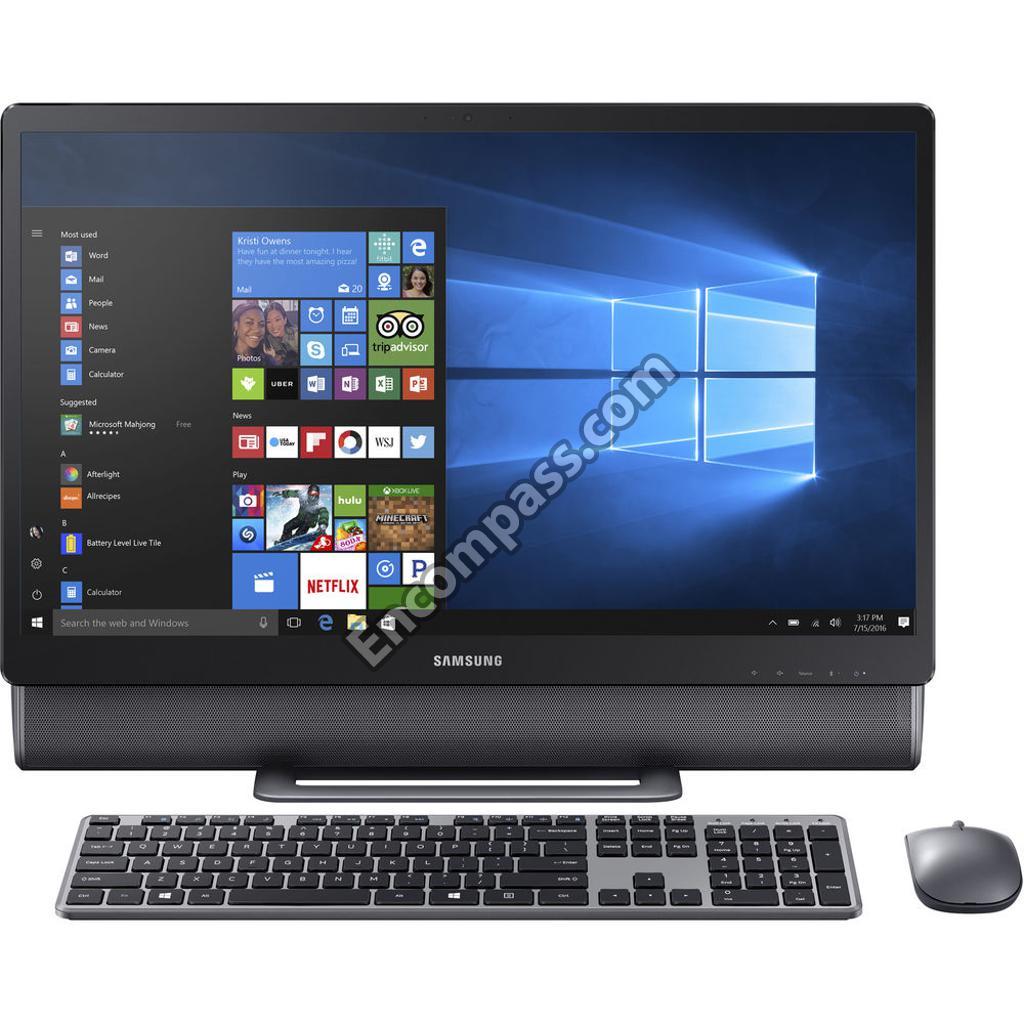

23.8-inch Multi-touch All-in-one Desktop Computer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BA42-00601A | ANTENNA-WIFI-AUX |
| BA42-00600A | ANTENNA-WIFI-MAIN |
| BA92-16901A | ASSEMBLY BOARD-3IN1 TOP |
| BA98-00182A | ASSEMBLY BRACKET-HDD |
| BA98-01020A | ASSEMBLY BRACKET-KENSINGTON |
| BA98-01067A | ASSEMBLY BRACKET-LCD |
| BA98-01021A | ASSEMBLY BRACKET-PORT BOARD |
| BA96-07150A | ASSEMBLY CAMERA |
| BA98-00970A | ASSEMBLY CASE REAR-LCD |
| BA98-01061A | ASSEMBLY CASE-STAND |
| BA98-01064A | ASSEMBLY HINGE-L |
| BA98-01065A | ASSEMBLY HINGE-R |
| BA98-01107A | ASSEMBLY HOLDER-FAN |
| BA98-01068A | ASSEMBLY KEY |
| BA97-09726A | ASSEMBLY MECHA SUBTSP-SVC |
| BA92-17341A | ASSEMBLY MOTHER BD-TOP |
| BA96-07121A | ASSEMBLY SPEAKER-SPEAKER LEFT |
| 4301-001094 | BATTERY-LI(2ND) |
| BA92-17264A | BOARD ASSEMBLY BUTTON-TOP |
| BA92-17263A | BOARD ASSEMBLY WLAN-TOP |
| BA61-03282A | BRACKET-KEY |
| BA61-03288A | BRACKET-MAIN BOARD |
| BA61-03301A | BRACKET-SHIELD CAN |
| 2402-001387 | C-AL, SMD |
| 2402-001268 | C-AL, SMD |
| BA39-01418A | CBF HARNESS-3IN1 |
| BA39-01421A | CBF HARNESS-BUTTON BOARD |
| BA39-01420A | CBF HARNESS-CAMERA |
| BA39-01416A | CBF HARNESS-HDD |
| BA39-01422A | CBF HARNESS-LCD |
| BA39-01419A | CBF HARNESS-LCD BACKLIT |
| BA39-01417A | CBF HARNESS-POWER |
| BA39-01426A | CBF HARNESS-TSP |
| BA81-04896A | CLAMP-CABEL TOP |
| BA98-00972A | COVER ASSEMBLY-FRONT |
| BA98-00973A | COVER ASSEMBLY-REAR |
| BA98-00974A | COVER ASSEMBLY-SIDE CAP-L |
| BA98-00975A | COVER ASSEMBLY-SIDE CAP-R |
| BA63-01906A | COVER-PORT |
| BA82-01011A | DONGLE ASSEMBLY |
| BA31-00173A | FAN-CPU |
| BA31-00174A | FAN-SYSTEM |
|
|
HDD-HDD |
| BA61-03378A | HOLDER-CAMERA |
| 3722-003852 | JACK-DC POWER |
| 3722-003787 | JACK-MODULAR |
| 3722-003853 | JACK-PHONE |
| BA82-01009A | KEYBOARD ASSEMBLY |
| BA59-04203A | LCD PANEL-23.8 FHD |
| 0601-003090 | LED |
| BA82-01010A | MOUSE ASSEMBLY |
|
|
POWER CORD-DT |
| BA81-06212A | RUBBER-GUIDE |
| BA67-00673A | RUBBER-RING |
| BA67-00688A | RUBBER-SUPPORT |
| 6001-003173 | SCREW-MACHINE |
| 6001-002749 | SCREW-MACHINE |
| 6001-002737 | SCREW-MACHINE |
| 6001-001626 | SCREW-MACHINE |
| 6001-001480 | SCREW-MACHINE |
| 6001-001114 | SCREW-MACHINE |
| 6001-000130 | SCREW-MACHINE |
| 6009-002007 | SCREW-SPECIAL |
| 3710-003575 | SOCKET-INTERFACE |
| 3722-003967 | USB JACK |
| 3722-003789 | USB JACK |
