Manufacturer
Samsung
Model Number
DV42H5400EF
Description
Front-loading Electric Dryer 7.5 Cu Ft Merlot
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

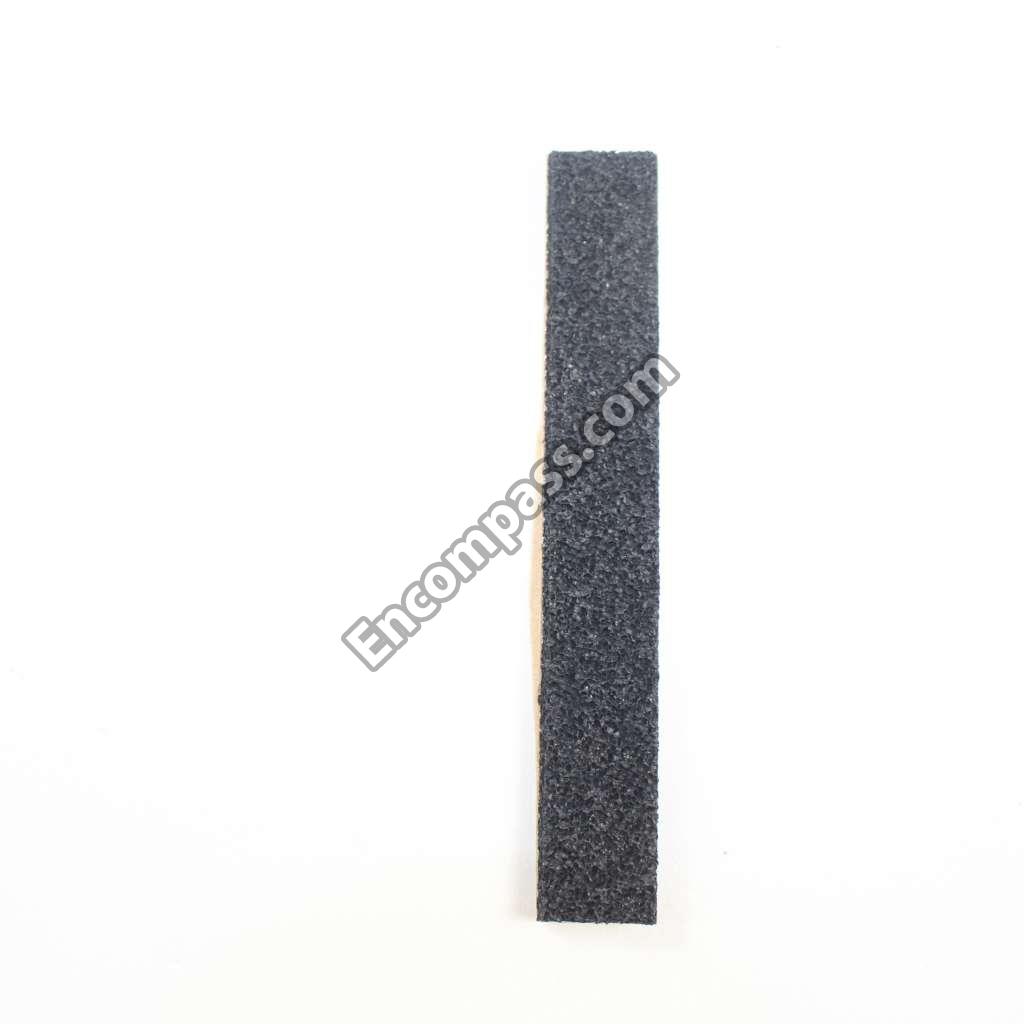

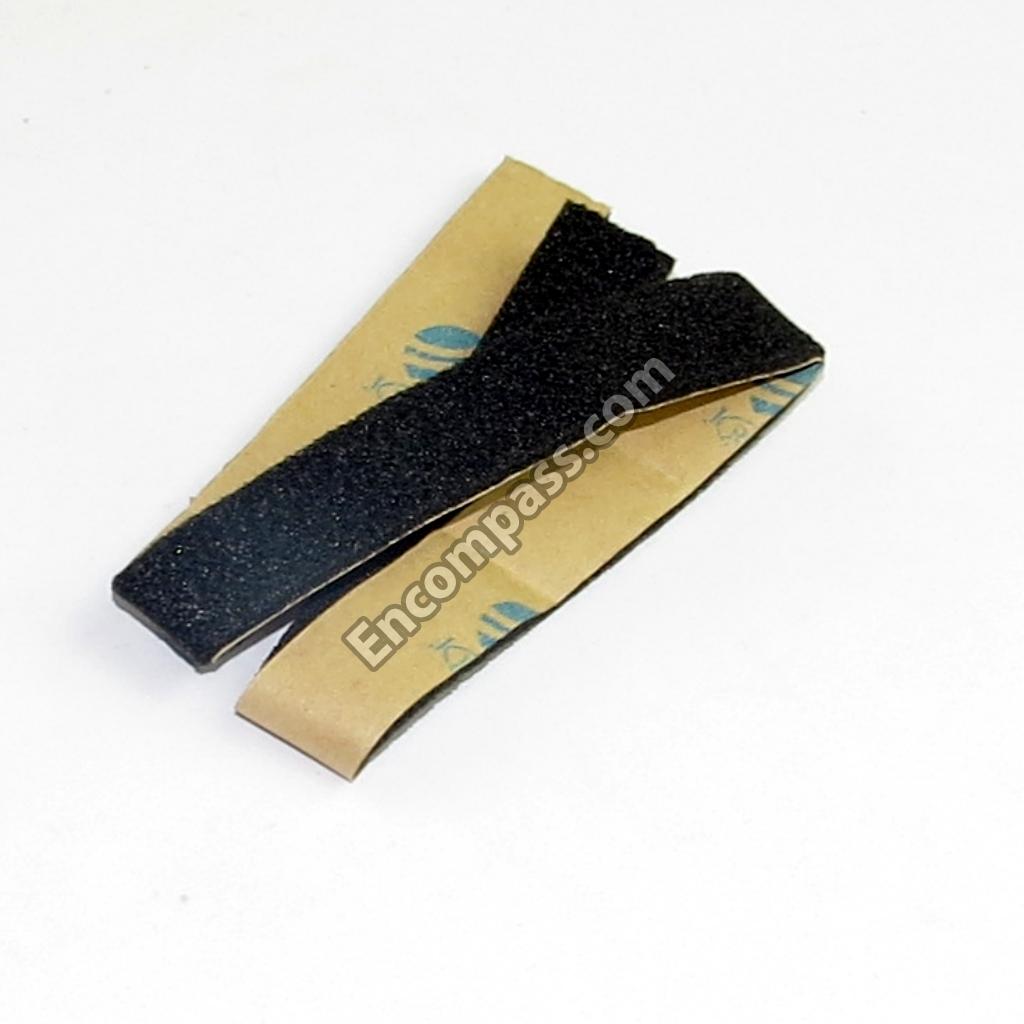

ABSORBER SPONGE;EPDM,T3.0,W15,L350,BLA |
|
|
ABSORBER SPONGE;MDE9700AYW,EPDM,T3,W15,L |
|
|

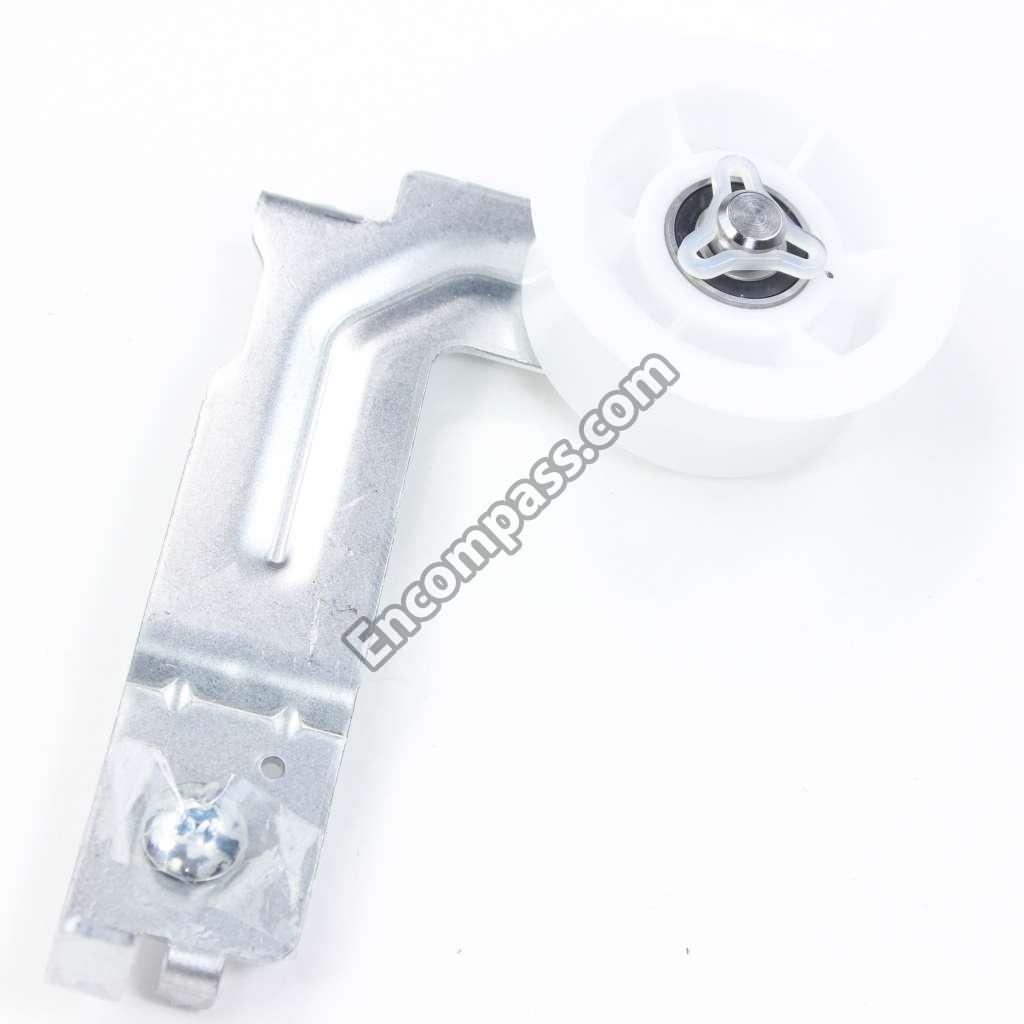

ASSY BRACKET IDLER;MDE9700AYW,DRYER, |
|
|

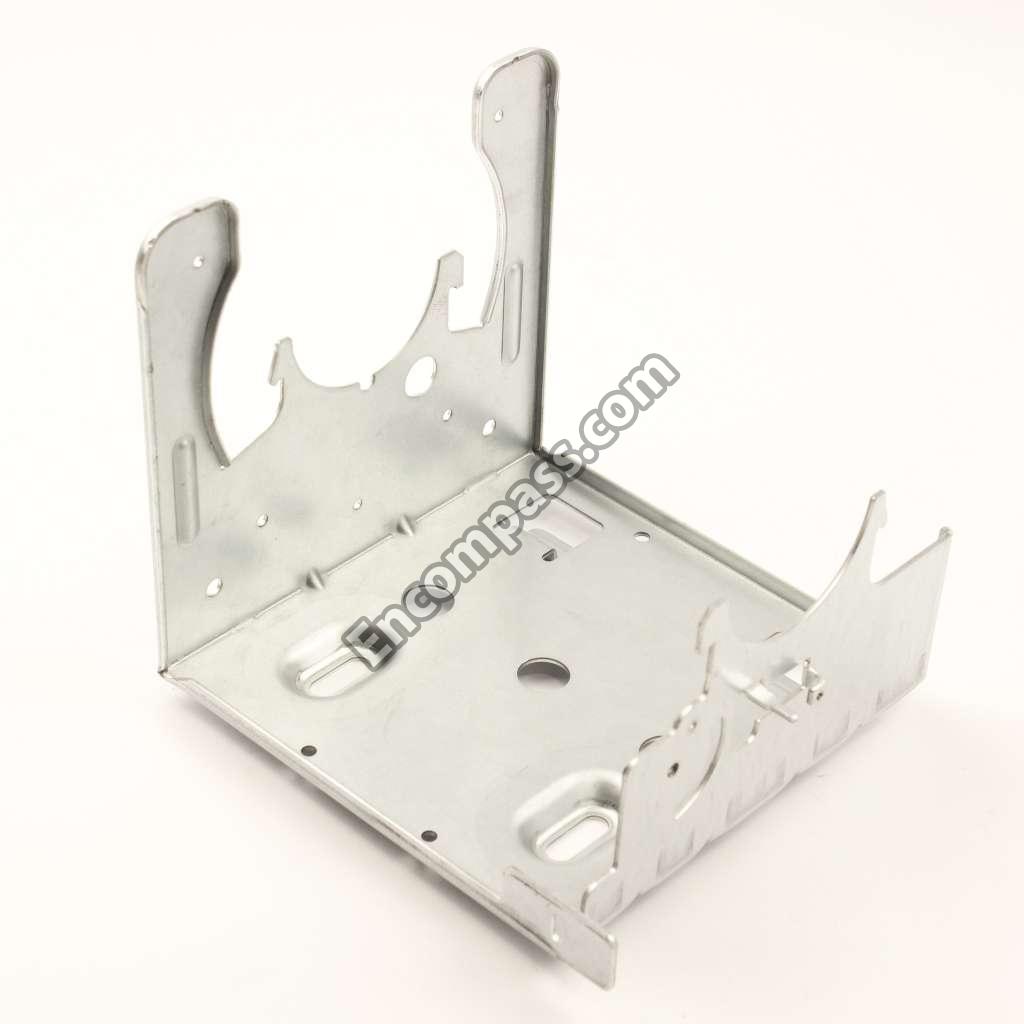

ASSY BRACKET MOTOR;MDE9700AYW,DRYER, |
|
|

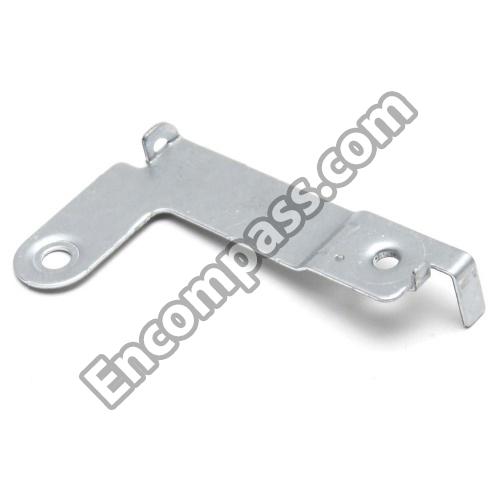

ASSY BRACKET THERMOSTAT;DRYER |
|
|

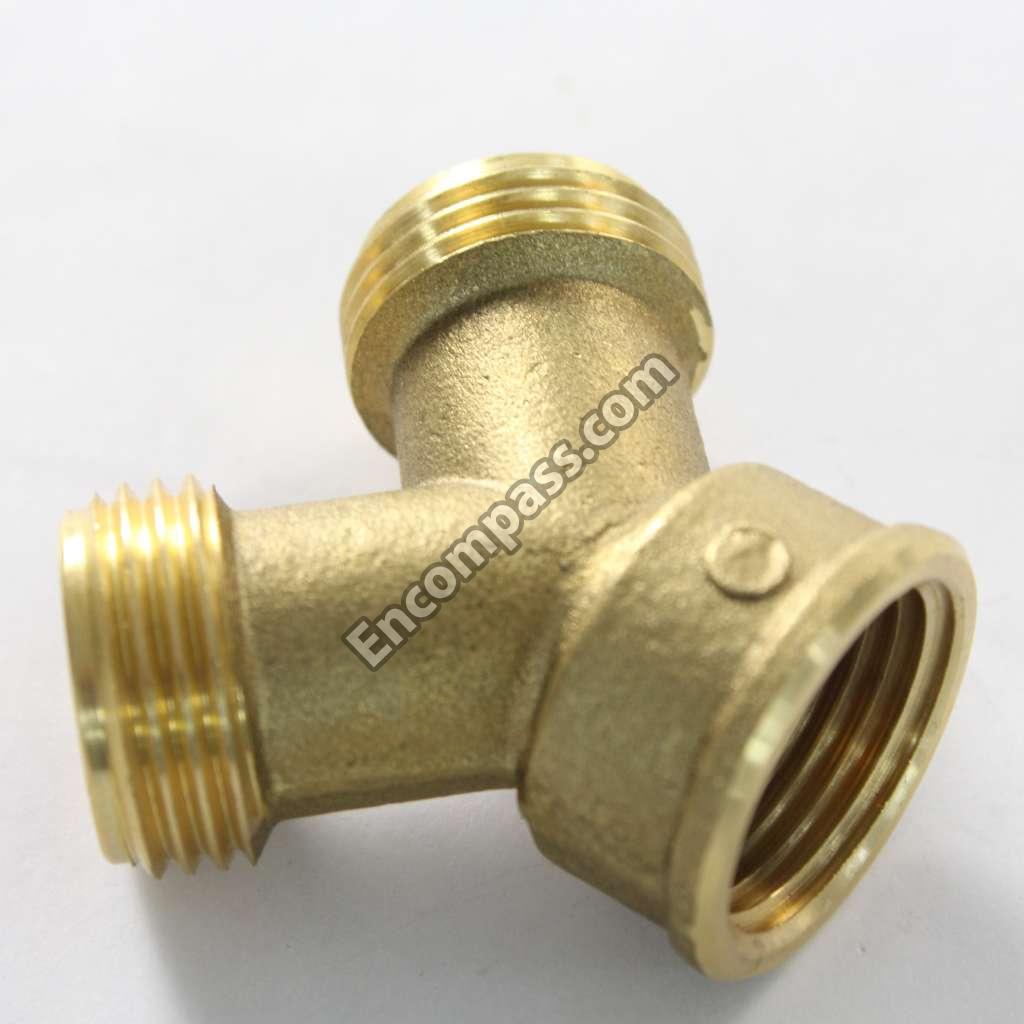

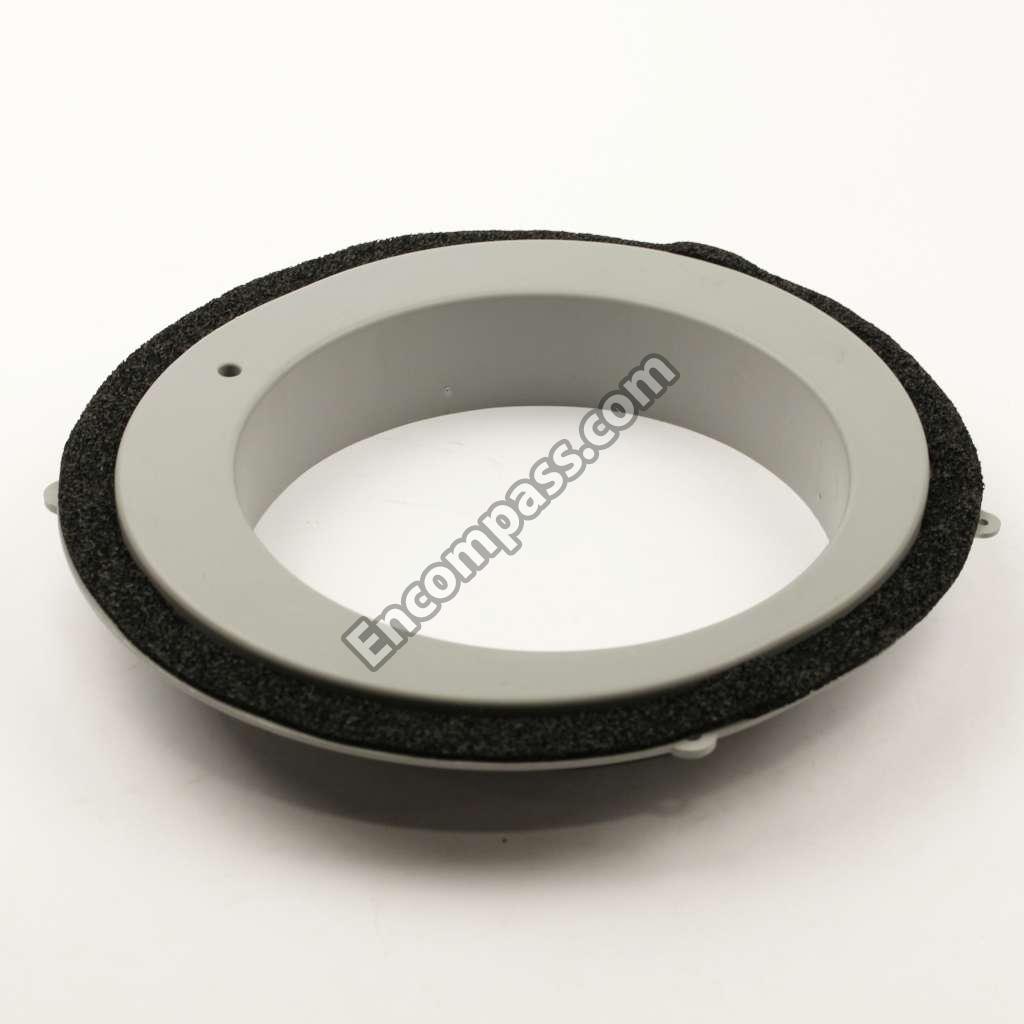

ASSY CONNECTOR;DV448AEW,PACKING/HOSE C |
|
|
ASSY COVER DUCT;GRACE(S)-DRYER,DV457EVGS |
|
|

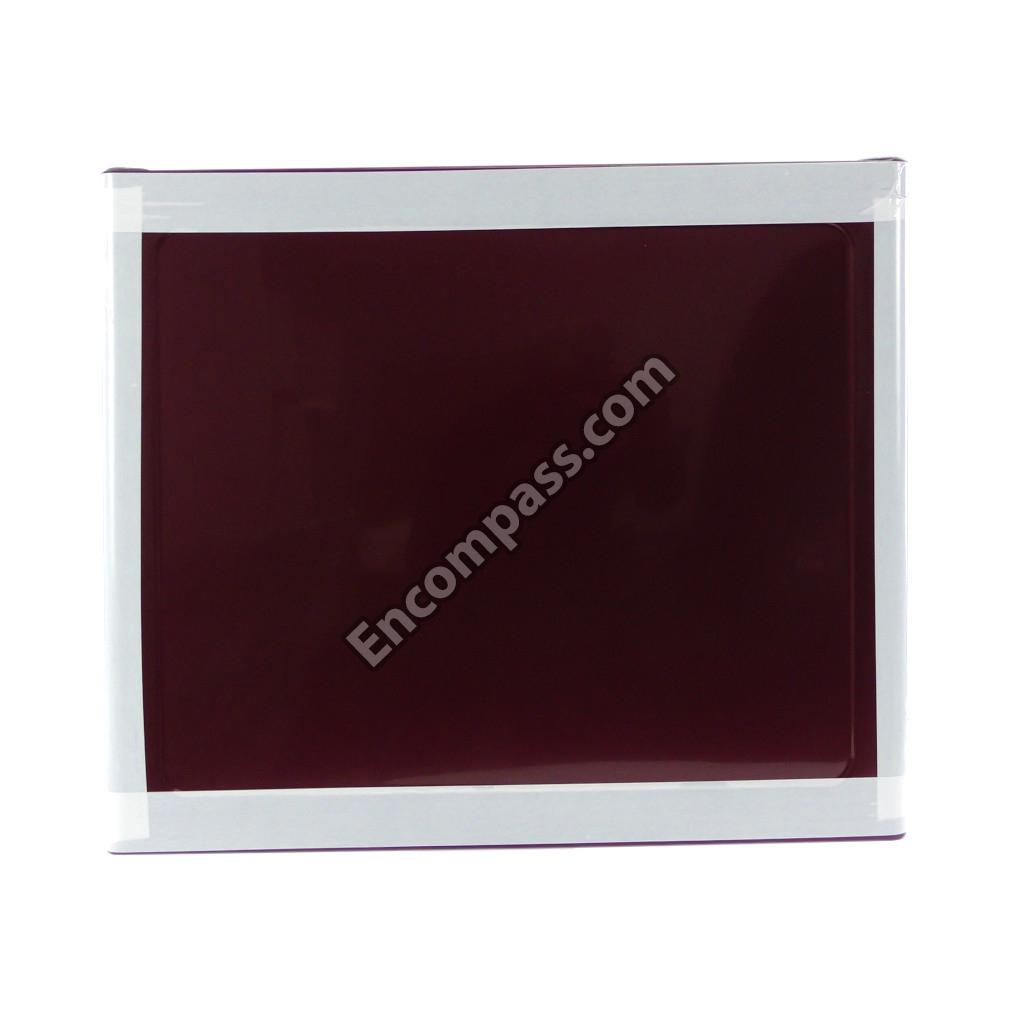

ASSY COVER TOP;DV5000HA,REFINED WINE |
|
|
ASSY DIE RACK DRY;GRACE-DRYER,- |
|
|

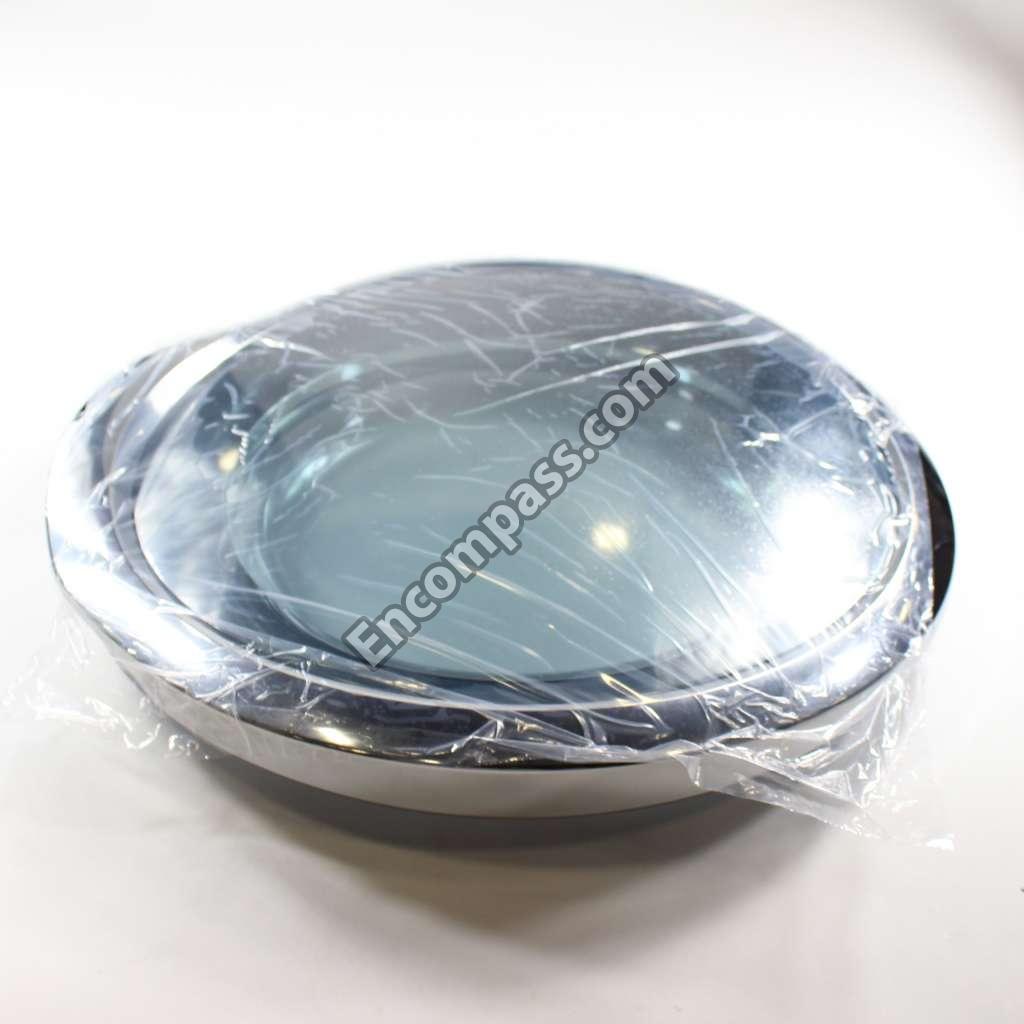

ASSY DOOR;DV-6000HA |
|
|

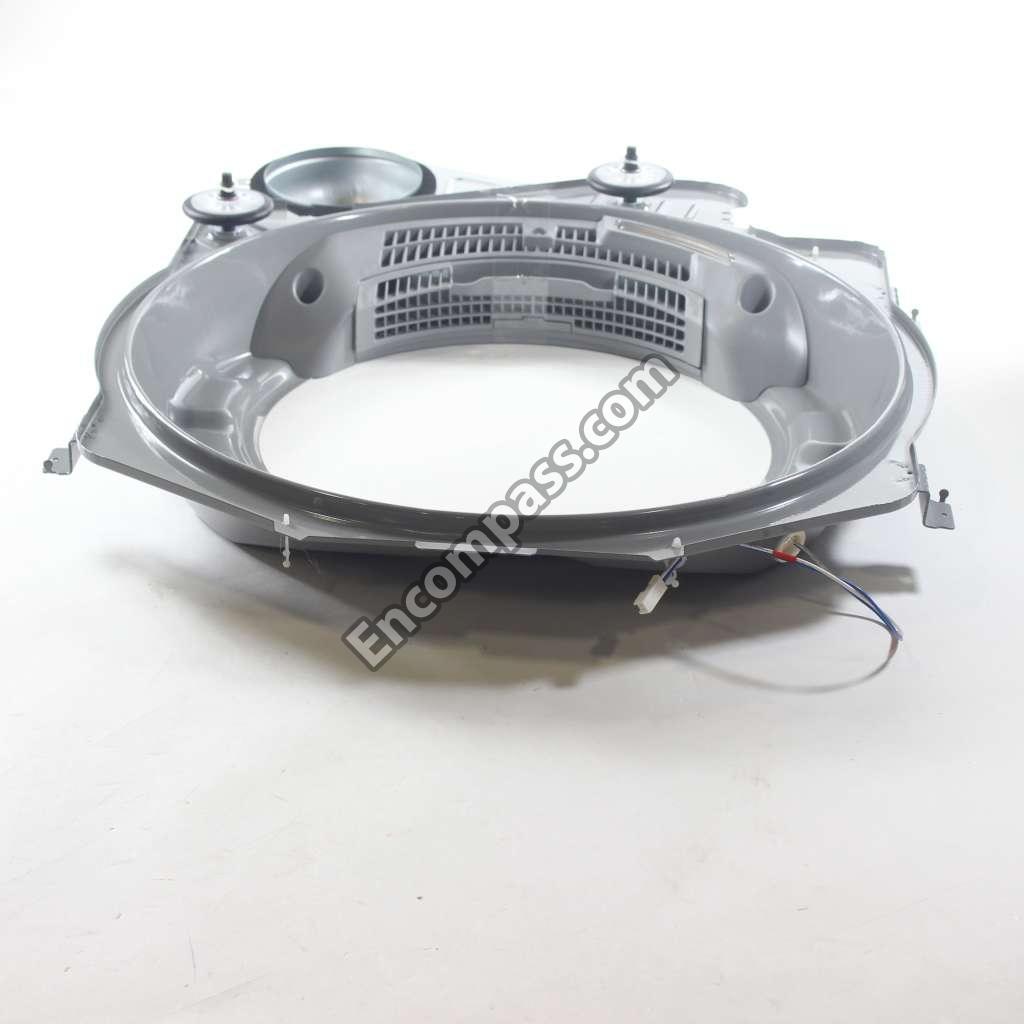

ASSY DRUM FRONT;DV6000HA DRYER |
| DC97-14849E | ASSY DRUM WRAPPER;-,DV393ETPARA/A3,- |
|
|
ASSY DUCT AIR;MDE7800AYW,DRYER,ELECT |
|
|
ASSY DUCT CONNECTOR;MDE7800AYW,DRYER,- |
|
|

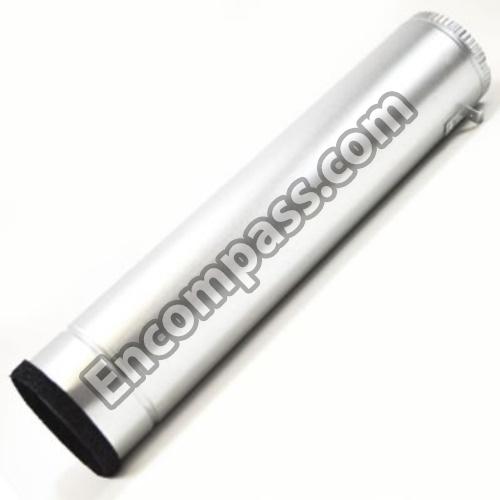

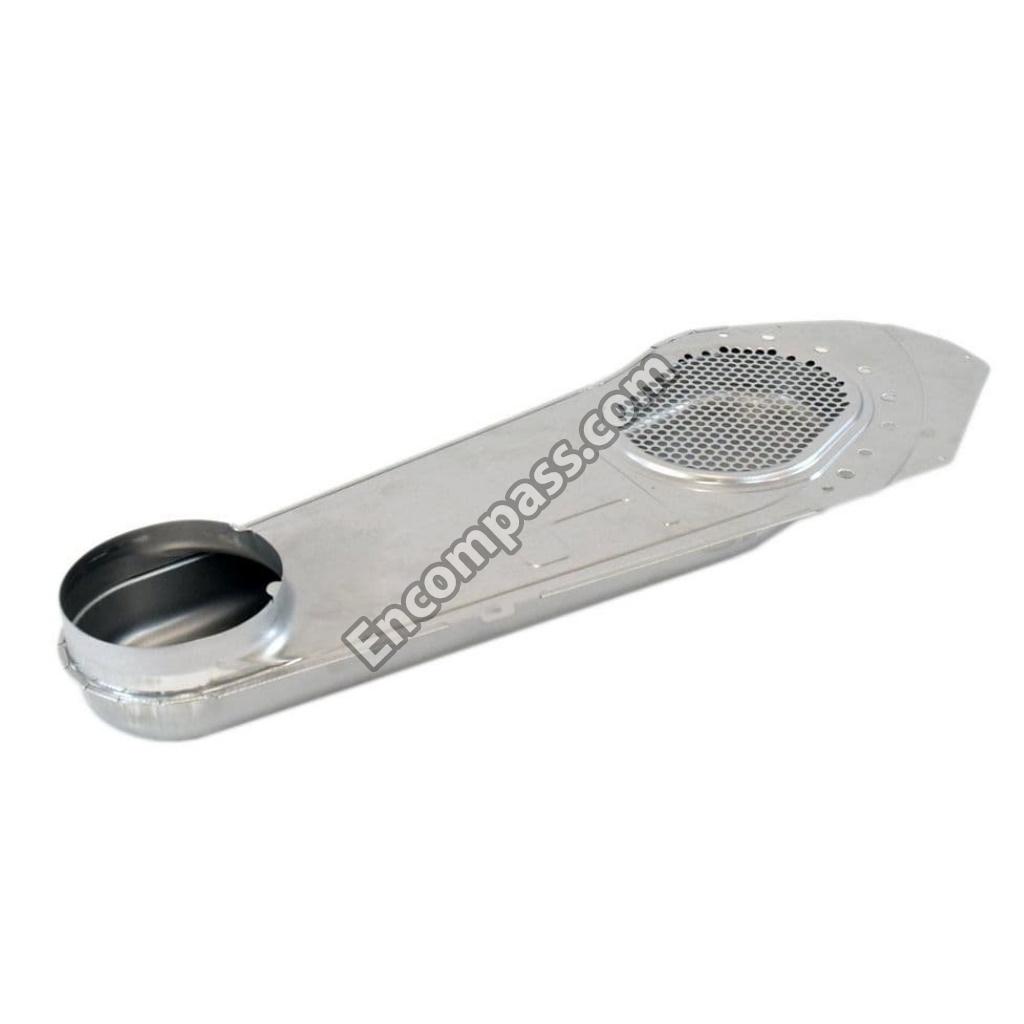

ASSY DUCT EXHAUST;GRACE-S DRYER,DV457EVG |
|
|

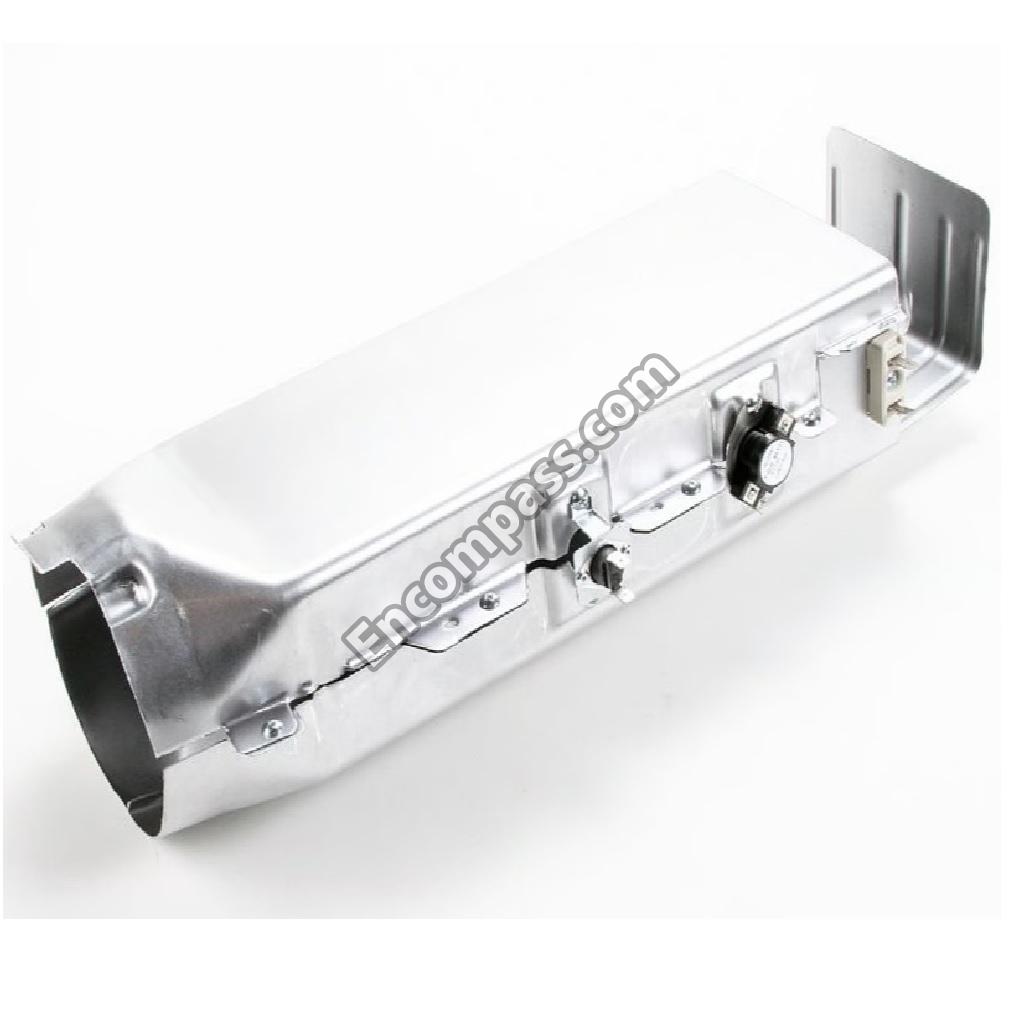

ASSY DUCT HEATER;27-DRYER,ELECTRIC |
| DC93-00187A | ASSY DUCT OUTLET;GRACE PJT,DV520AEP,SGCC |

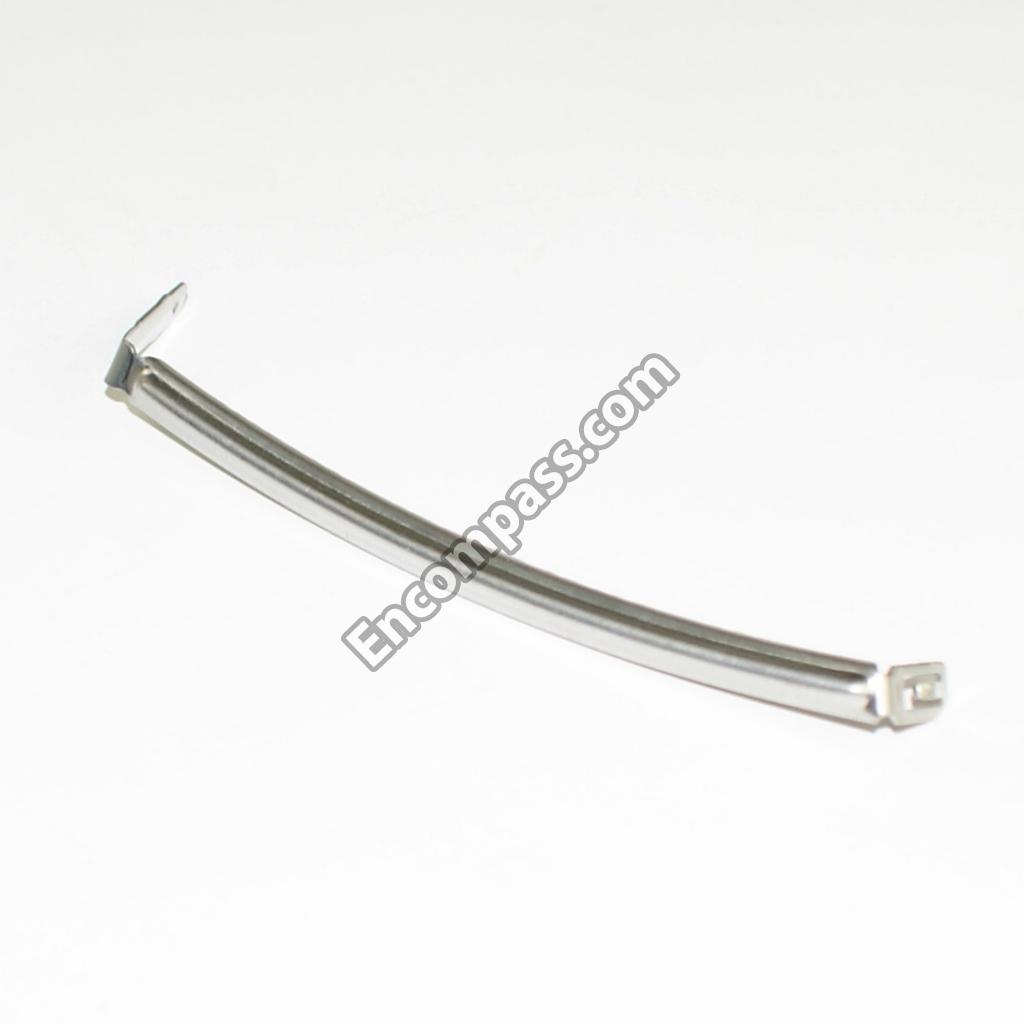

| DC93-00431A | ASSY FLAT WIRE;DRUM-L,CA-KENMORE,SUB,2P/ |
| DC97-15979M | ASSY FRAME FRONT;DV5000HA DRYER,REFINED |
|
|
ASSY FRAME PLATE(U);GRACE-PJT,DV520AEP,T |
|
|

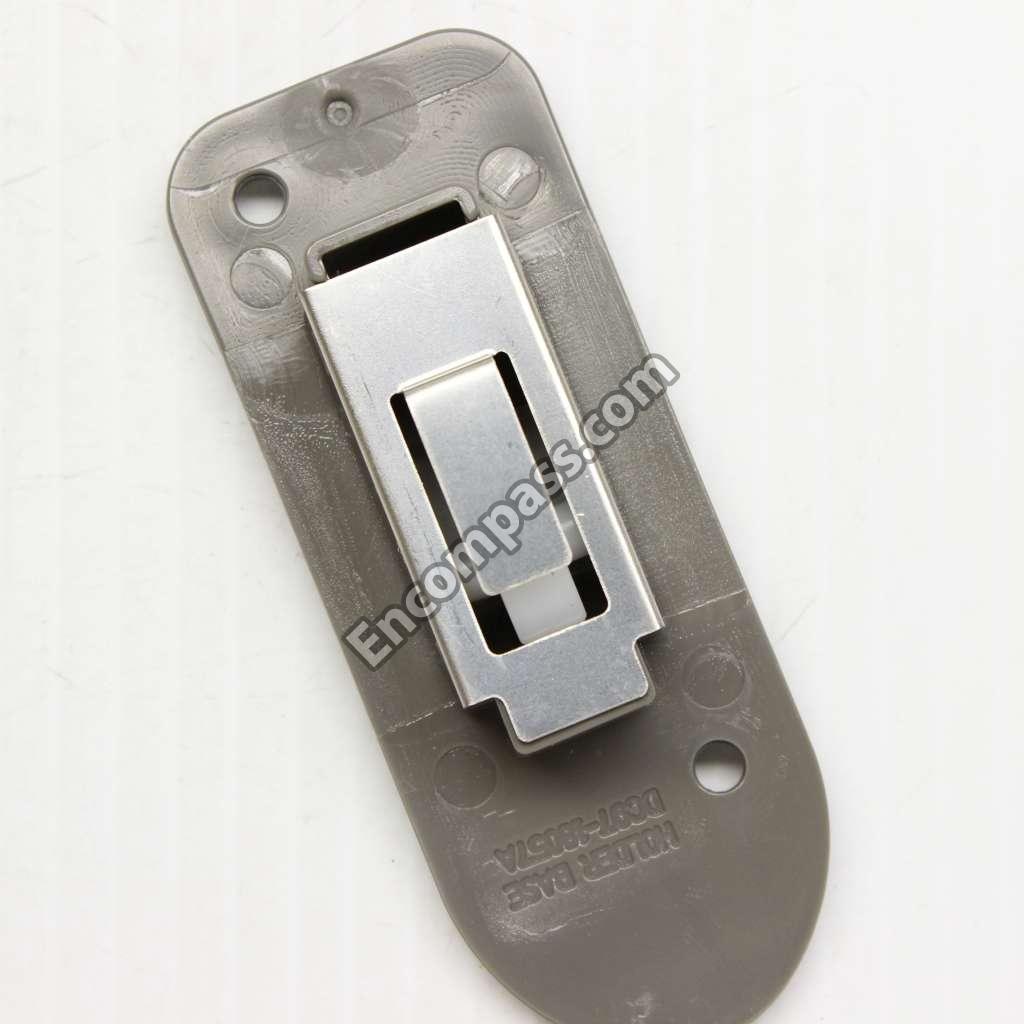

ASSY HOLDER LEVER;DV-H600A,GRAY |
|
|

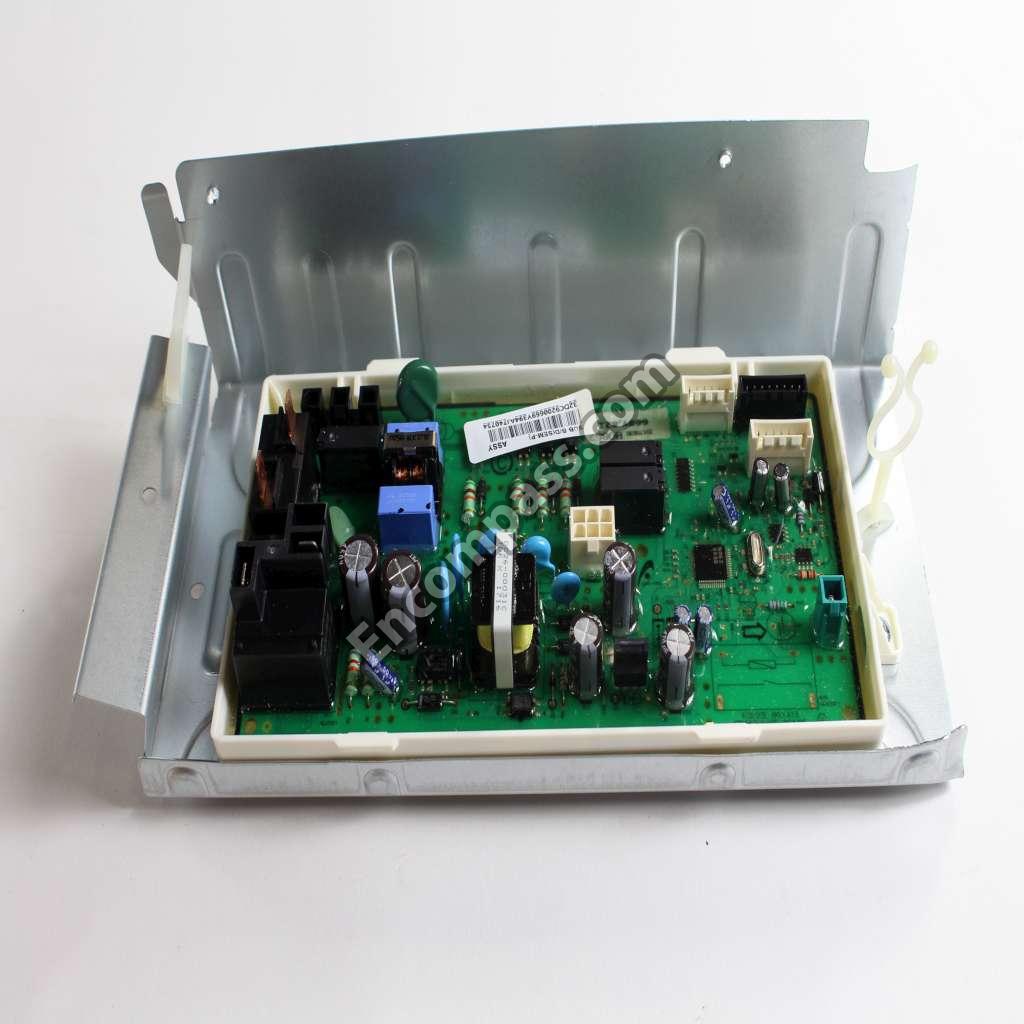

ASSY HOLDER PCB;DV-6000HA,DV45H6300G*,GA |
|
|
ASSY HOSE CONNECTOR;DV448AEW/UBS2 COLD |
|
|

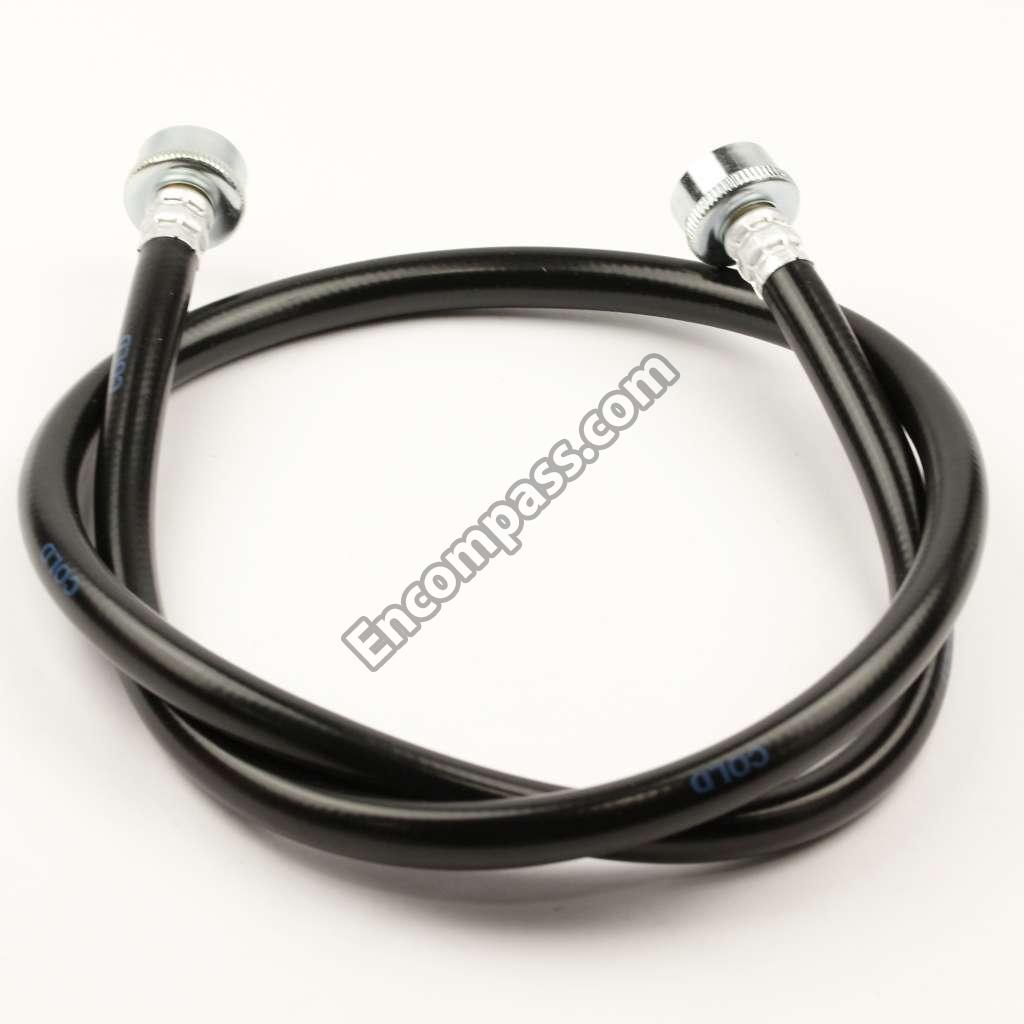

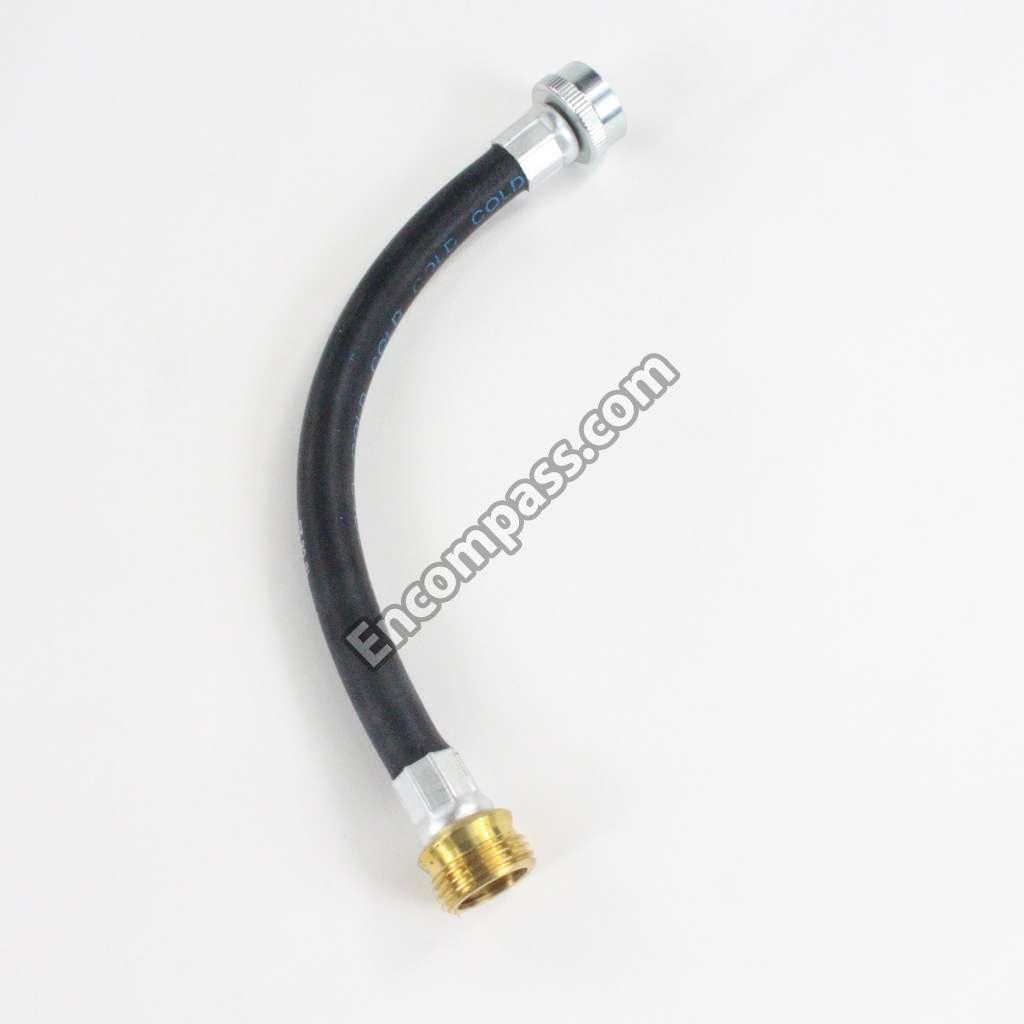

ASSY HOSE WATER;PURPLE,WF448AAW |
|
|

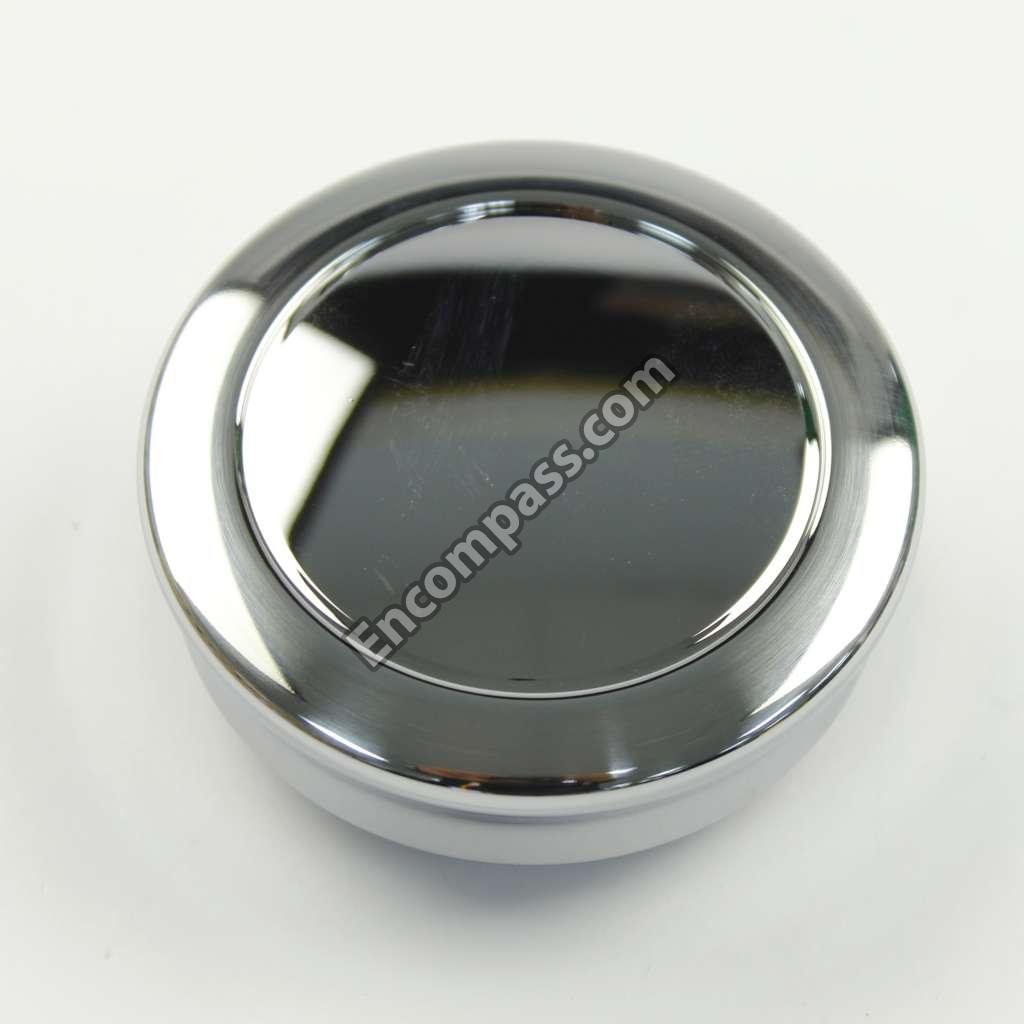

ASSY KNOB ENCODER;WF6000HA |
|
|

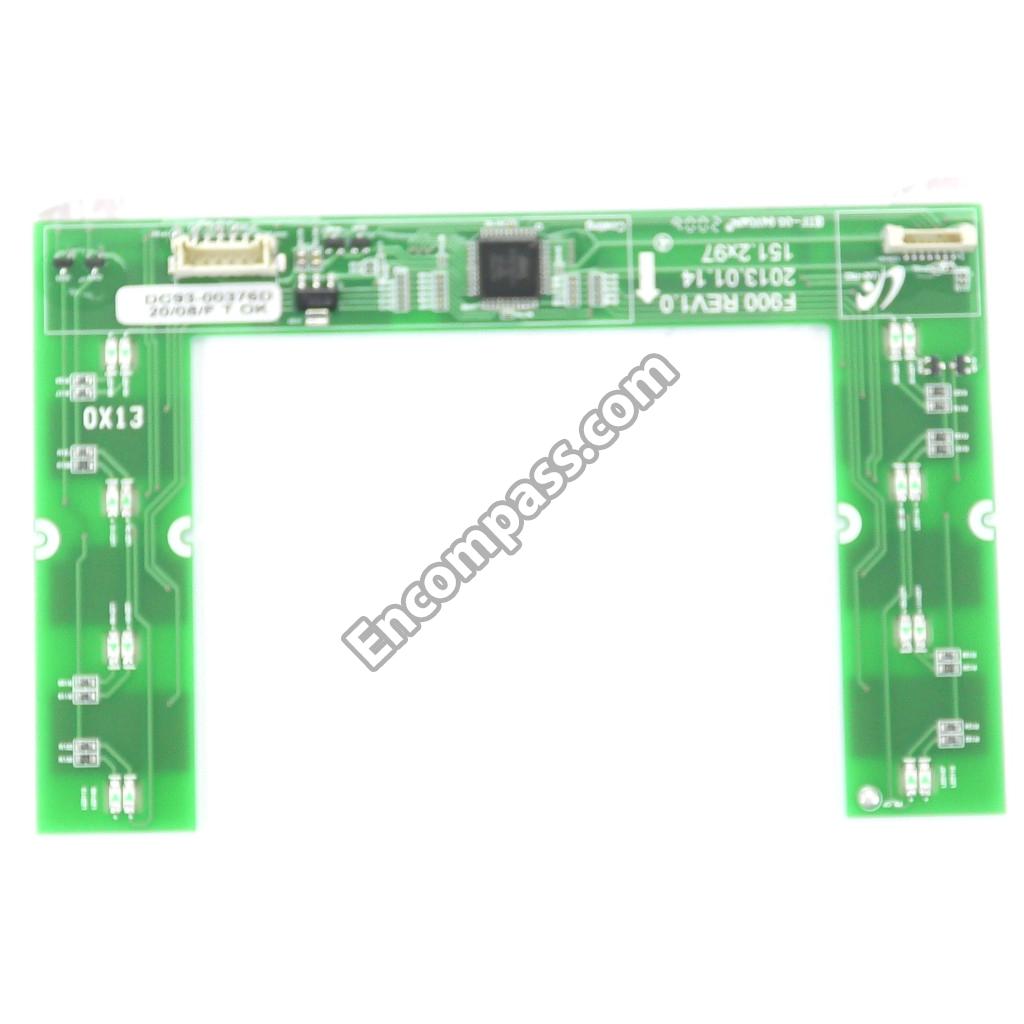

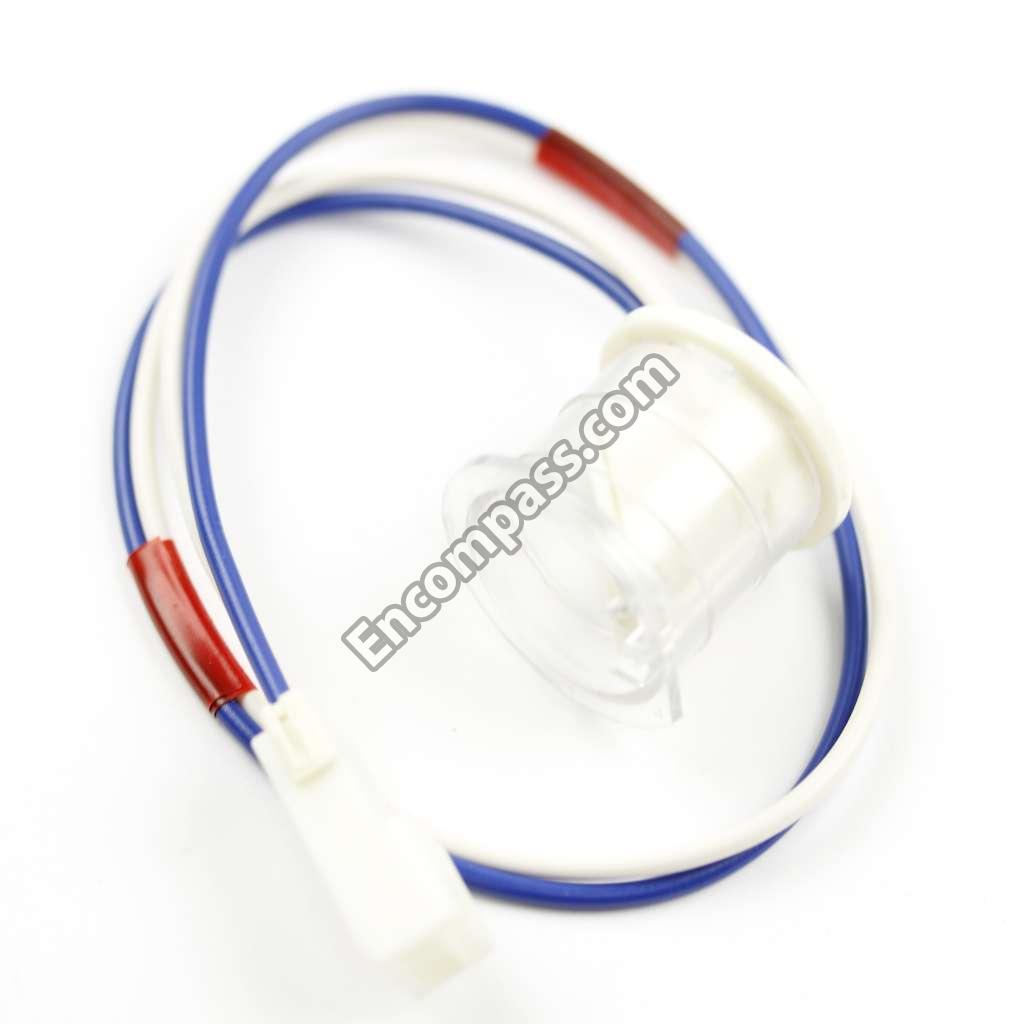

ASSY LAMP LED;1EA,FR-4,197*117,WHITE,AMP |
|
|

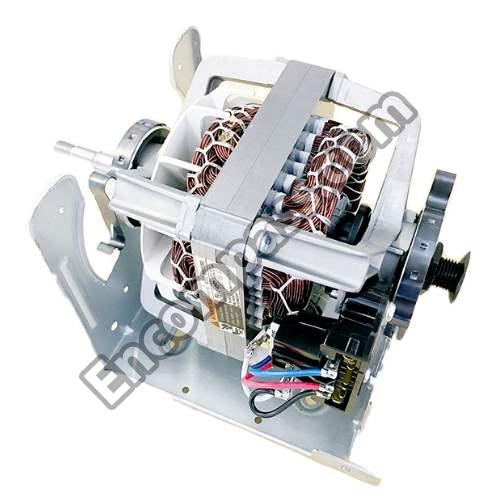

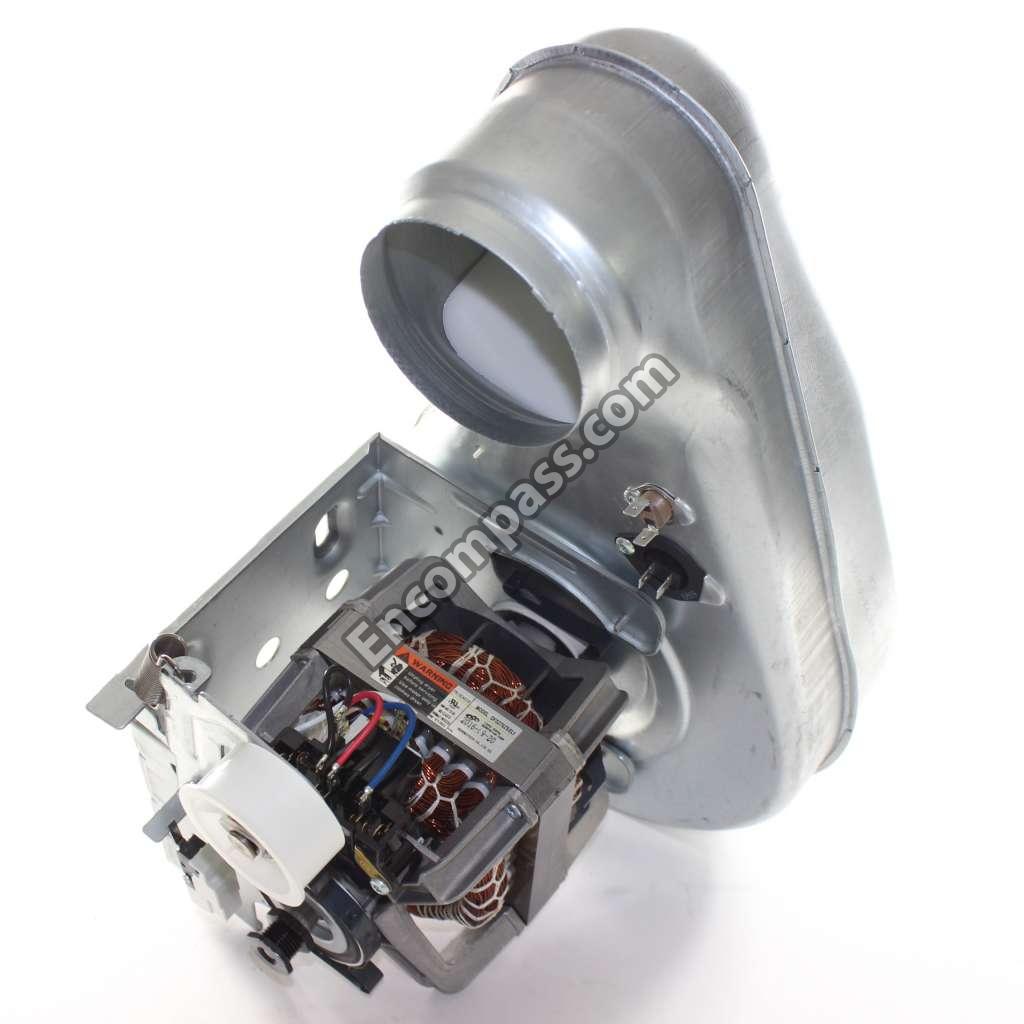

ASSY MOTOR;GRACE(S) DRYER,DV457 |
|
|

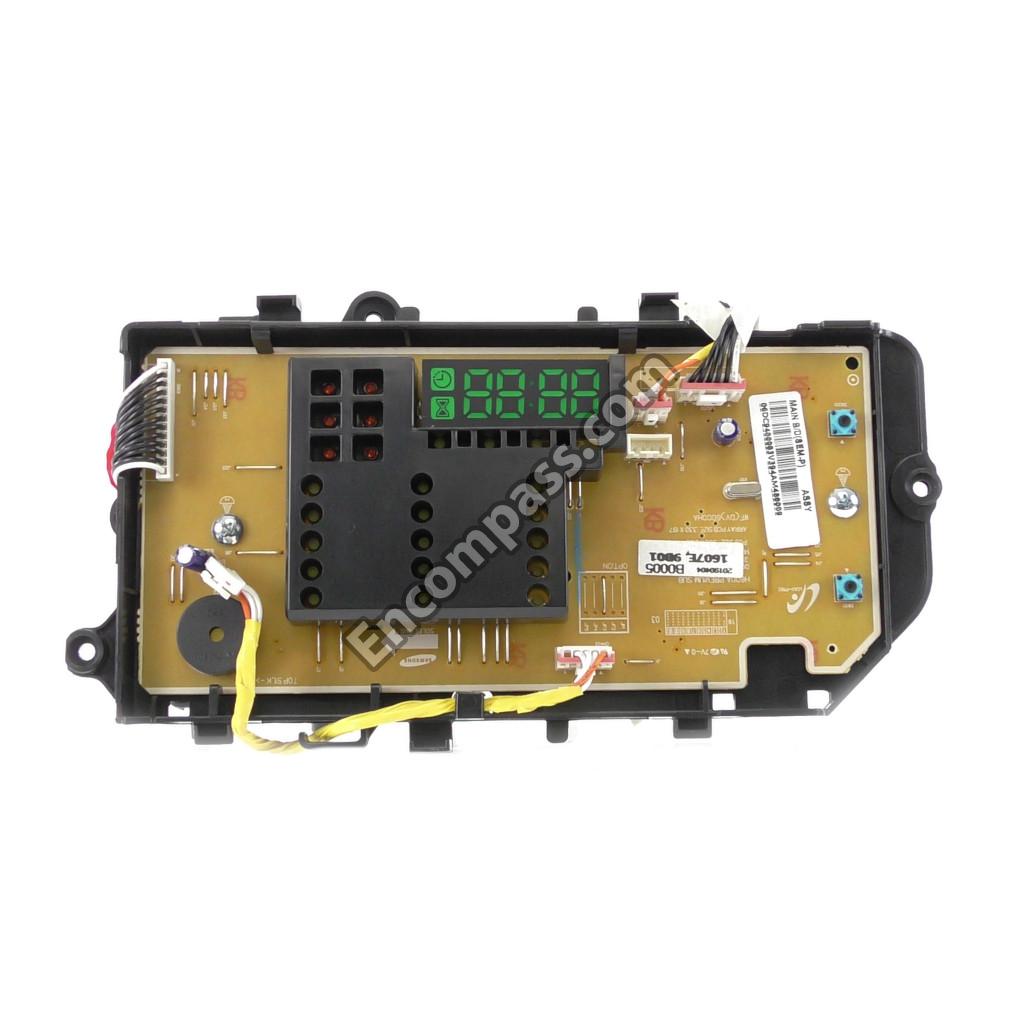

ASSY PCB SUB;DV5000HA,330*98.5,12V, 5V,D |
|
|
ASSY PLASTIC SUPPORTOR;27-DRYER |
|
|

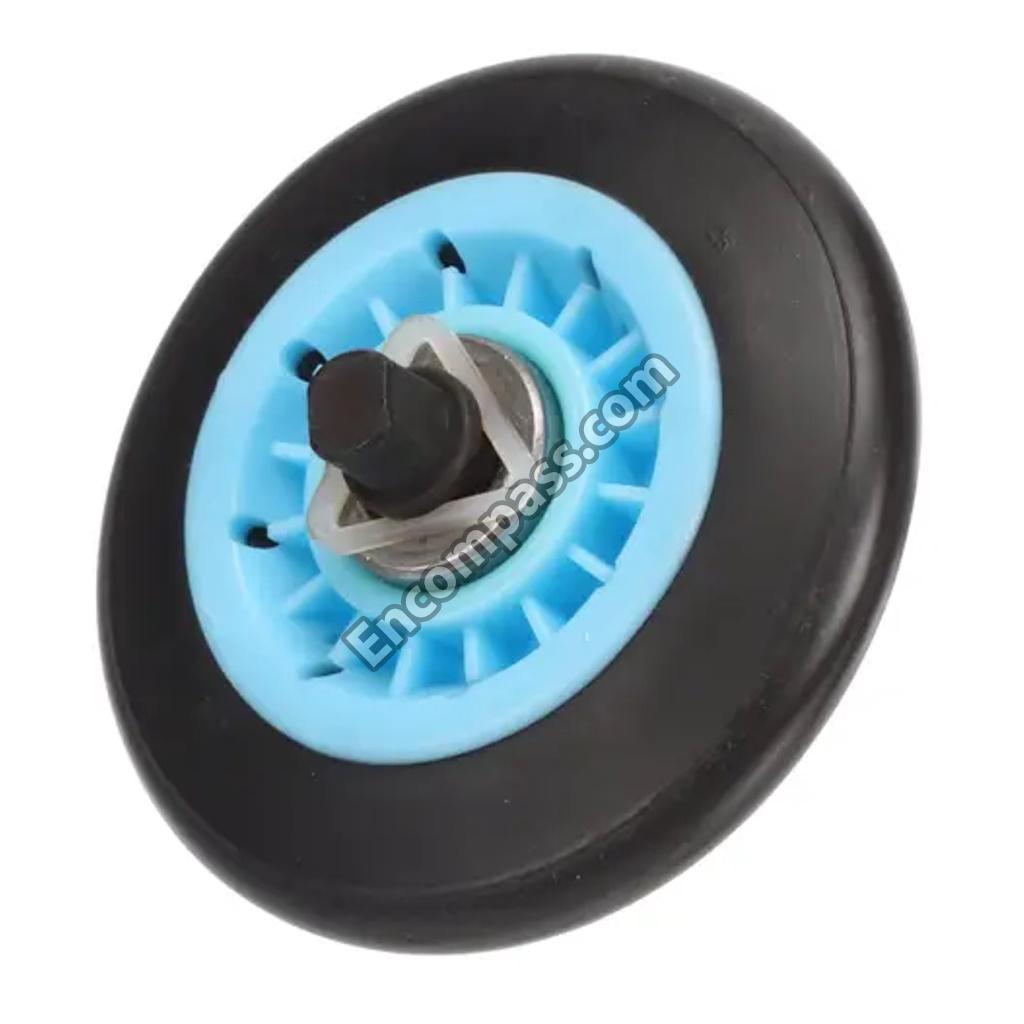

ASSY ROLLER;-,MDE9700AYW,DRYER/MOTOR/IDL |
| DC97-15983B | ASSY S.DRUM FRONT;DV-6000HA |
|
|
ASSY S.PANEL CONTROL;DV42H5400EF,ENG |
|
|
ASSY SCREW;ACE-PJT,DV419AEU,SWRCH18A,M4* |
|
|
ASSY SENSOR;6000HA,12V,TOUCH SENSOR |
|
|
ASSY STEAM KIT;ORCA DRYER,DV5471 |
|
|
ASSY WINDOW PANEL;DV42H5600,400,ENGLISH |
|
|

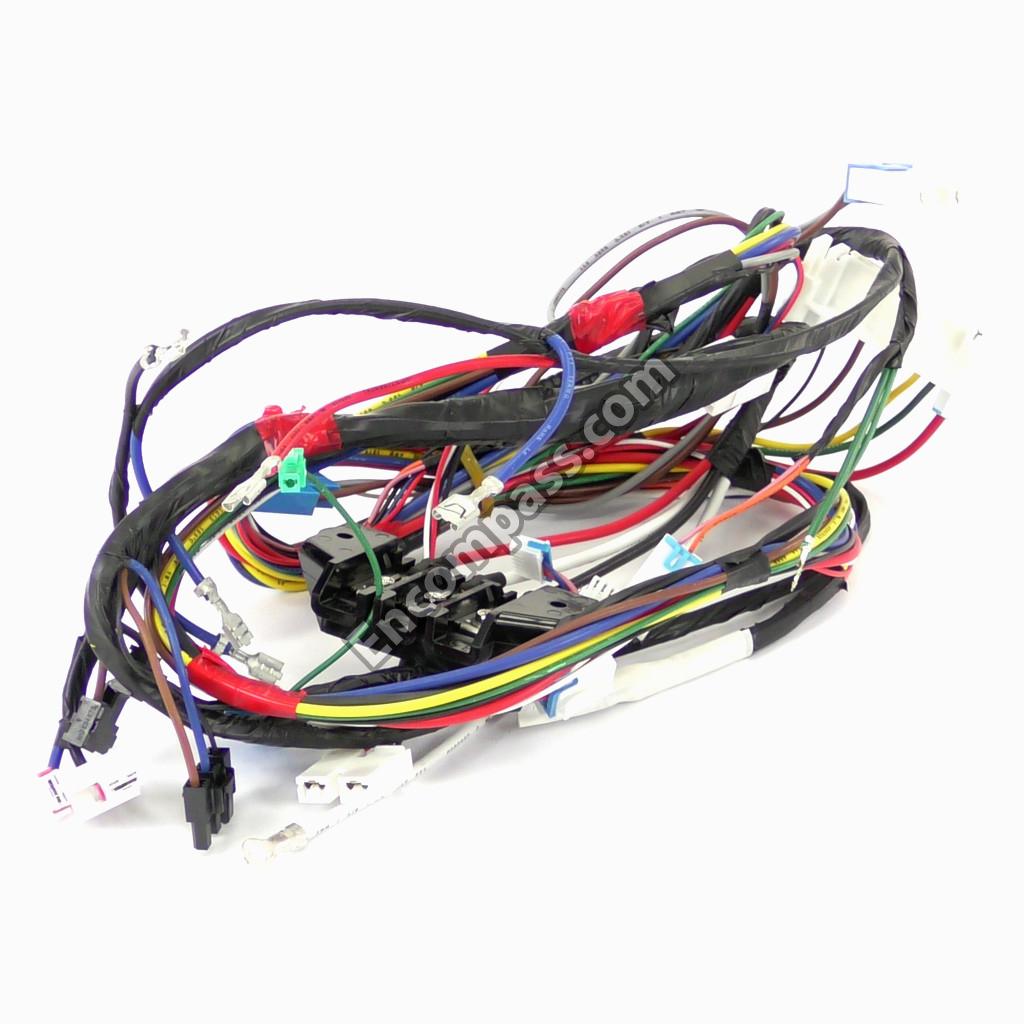

ASSY WIRE HARNESS-MAIN;DRYER-ELECTIC,DV5 |
|
|

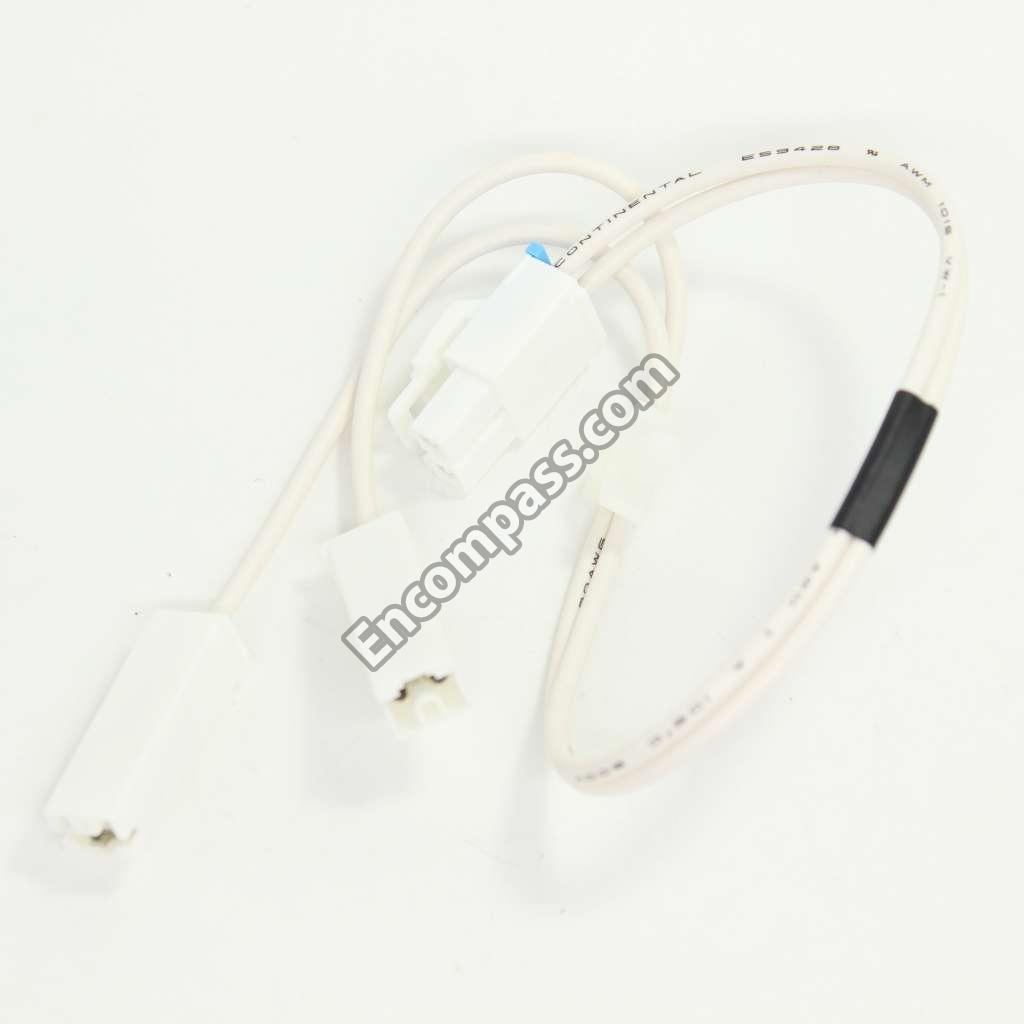

ASSY WIRE HARNESS;- |
|
|

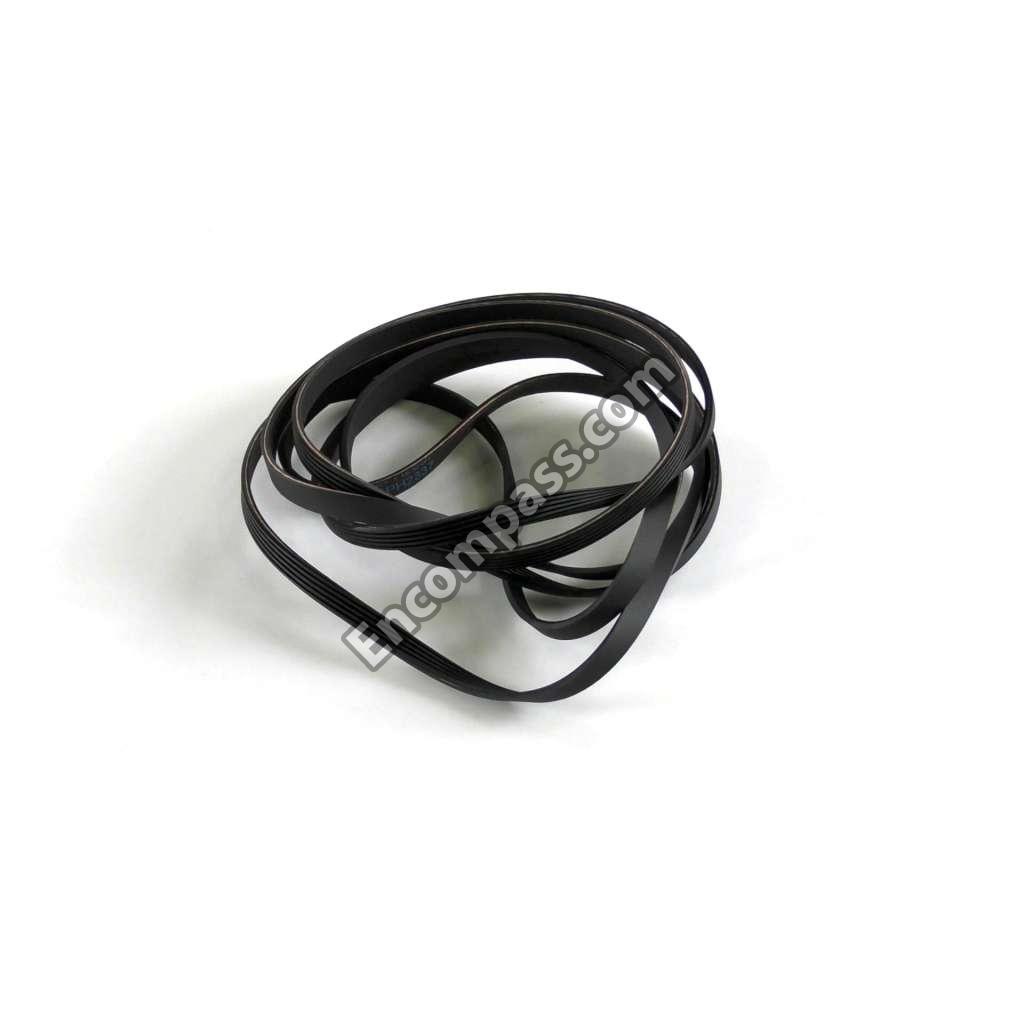

BELT-TIMING GEAR;RUBBER,W8,L2337,BLK |
| DC61-02020A | BRACKET COVER TOP;DV438AEW/XAA,GI-SGCC,T |
| DC61-01238A | BRACKET DRUM BACK;27-DRYER,GI-SGCC,T0.8, |
|
|
BRACKET DRUM BACK;DV520AEP/XAA,GI-SGCC,T |
| DC61-01237A | BRACKET DRUM BACK;WINGS-DRYER,GI-SGCC,T0 |
| DC61-01236A | BRACKET DRUM FRONT;HGI-SGHC,T2.0,DRUM-FR |
| DC61-03754A | BRACKET DUCT;DV9000H,GI-SGCC,T1.0,ELEC T |
|
|
BRACKET HINGE;GRACE-DRYER,HGI,T2.0,W89.4 |
|
|
BRACKET IDLER;MDE9700AYW,HGI-SGHC,T2.0 |
|
|
BRACKET MOTOR;WINGS-DRYER,HGI-SGHC,T2.0 |
| DC64-03066D | BUTTON PUSH;WF5000_6000HA,ABS,HB,REFINED |
| 3002-001139 | BUZZER-PIEZO;80DB,9V,2KHZ,BK |
| DC61-00553C | CABLE CLAMP;-,PA66,NTR |
| 6502-000127 | CABLE CLAMP;DAWH-18NB,PA66,NTR |
|
|

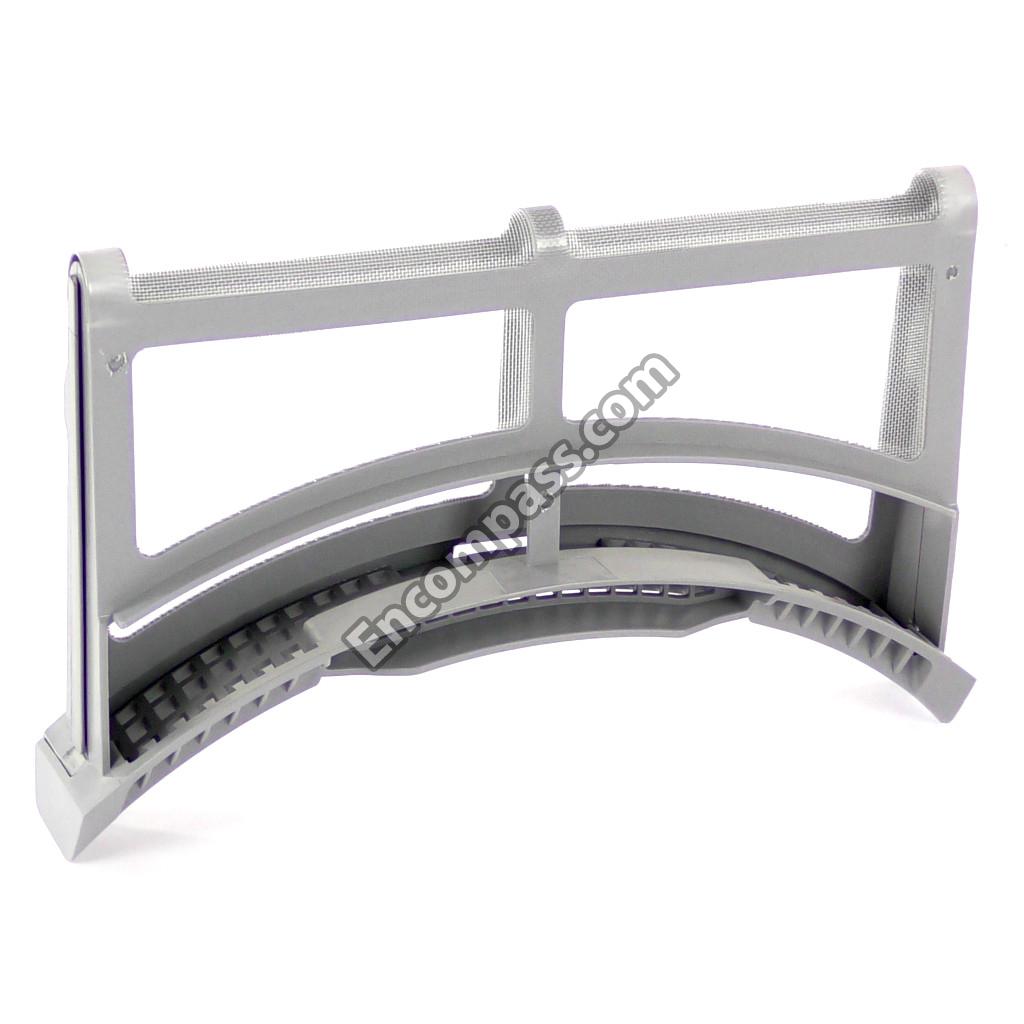

CASE FILTER;GRACE-DRYER,PP,GRAY,FC2305 |
| DC61-00133A | CLAMPER HOSE-FIX;P1291,PP,HOSE+PLUG,BJ |
|
|
COVER BACK;HUDSON-DRYER,GI-SGCD,T0.6,- |
|
|
COVER DOOR;GRACE-DRYER,ABS,T2.8,PLATING |
|
|
COVER FRONT;WF448AAP,PP,T1.5,GRAY,G332 |
|
|

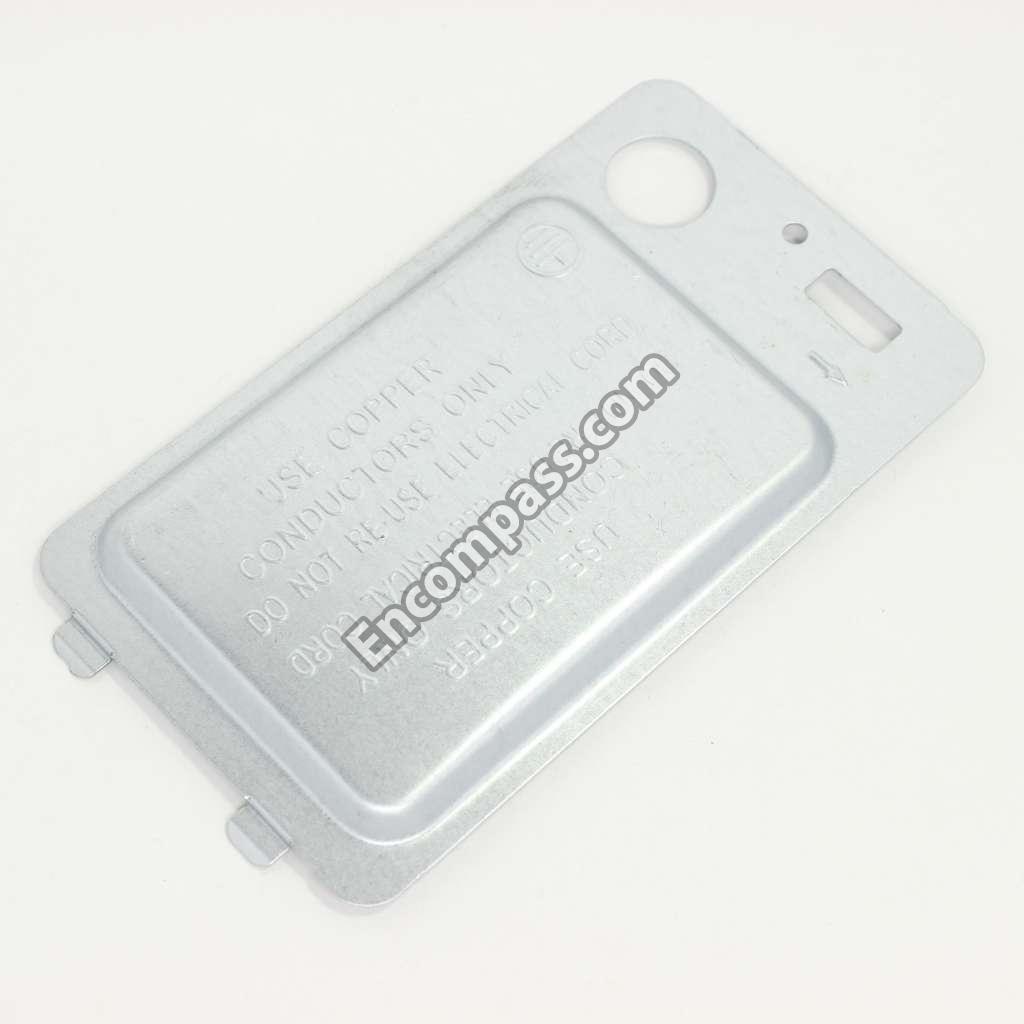

COVER POWER;WINGS-DRYER,GI-SGCC,T0.5,NTR |
|
|
COVER SWITCH;DV448,ABS+PC,T1.5,UL94-V0,N |
|
|
COVER-FILTER(B);GRACE-DRYER,PP,GRAY |
| DC63-01143A | COVER-FILTER(F);GRACE-DRYER,PP,GRAY |
|
|
COVER-FILTER(U);GRACE-DRYER,PP,GRAY |
| DC69-00923B | CUSHION DOOR;DRUM,EPS,T8,W39,L65,WHT,DOO |
|
|

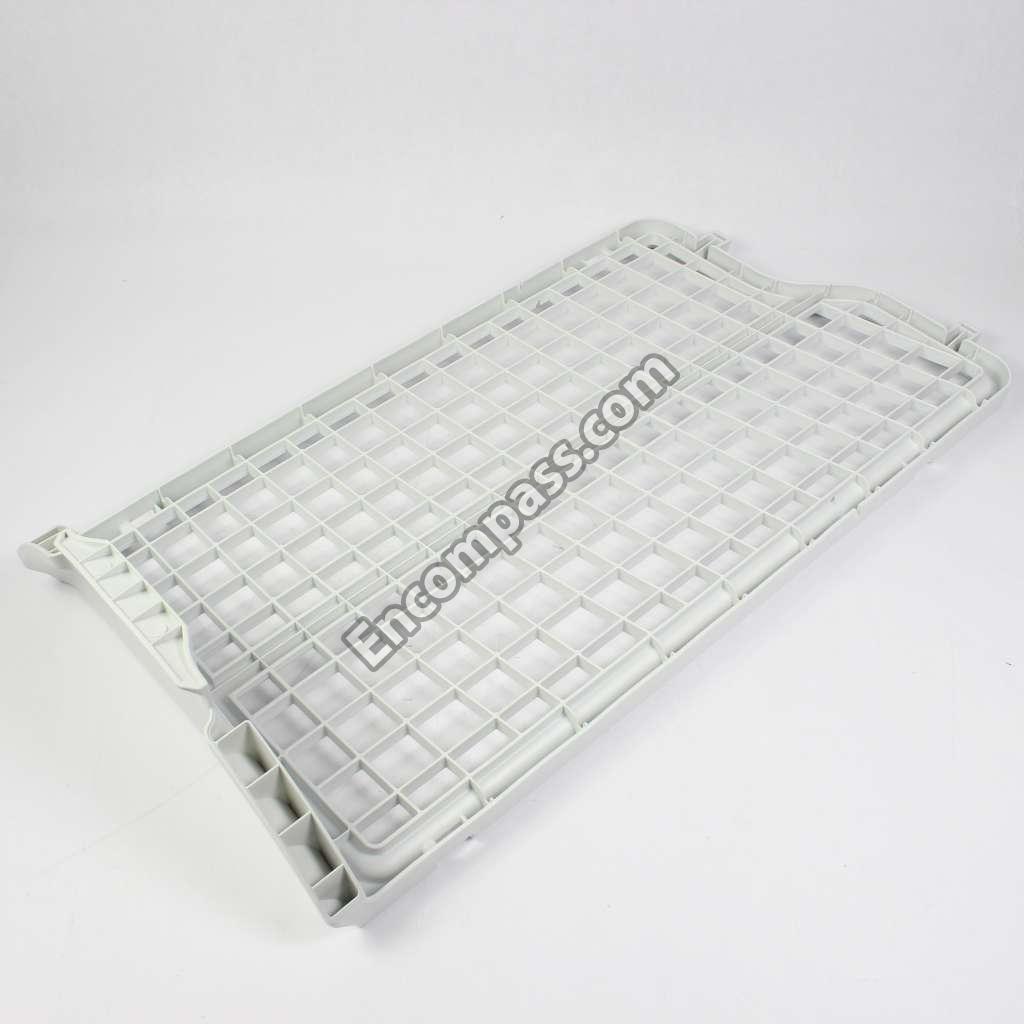

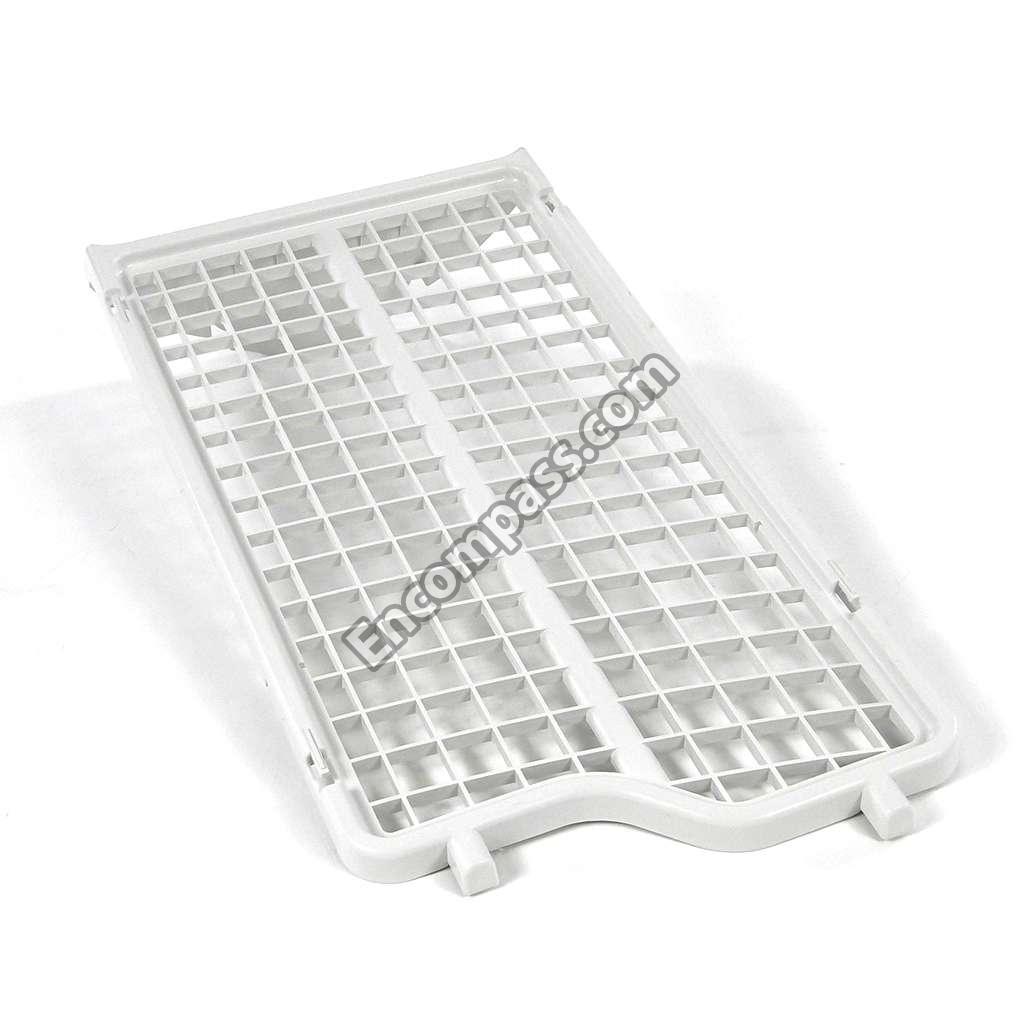

DIE RACK DRY;GRACE-DRYER,PP,WHITE(W520) |
|
|
DOOR GLASS;27-DRYER,GLASS,T5,W427.3XL427 |
|
|

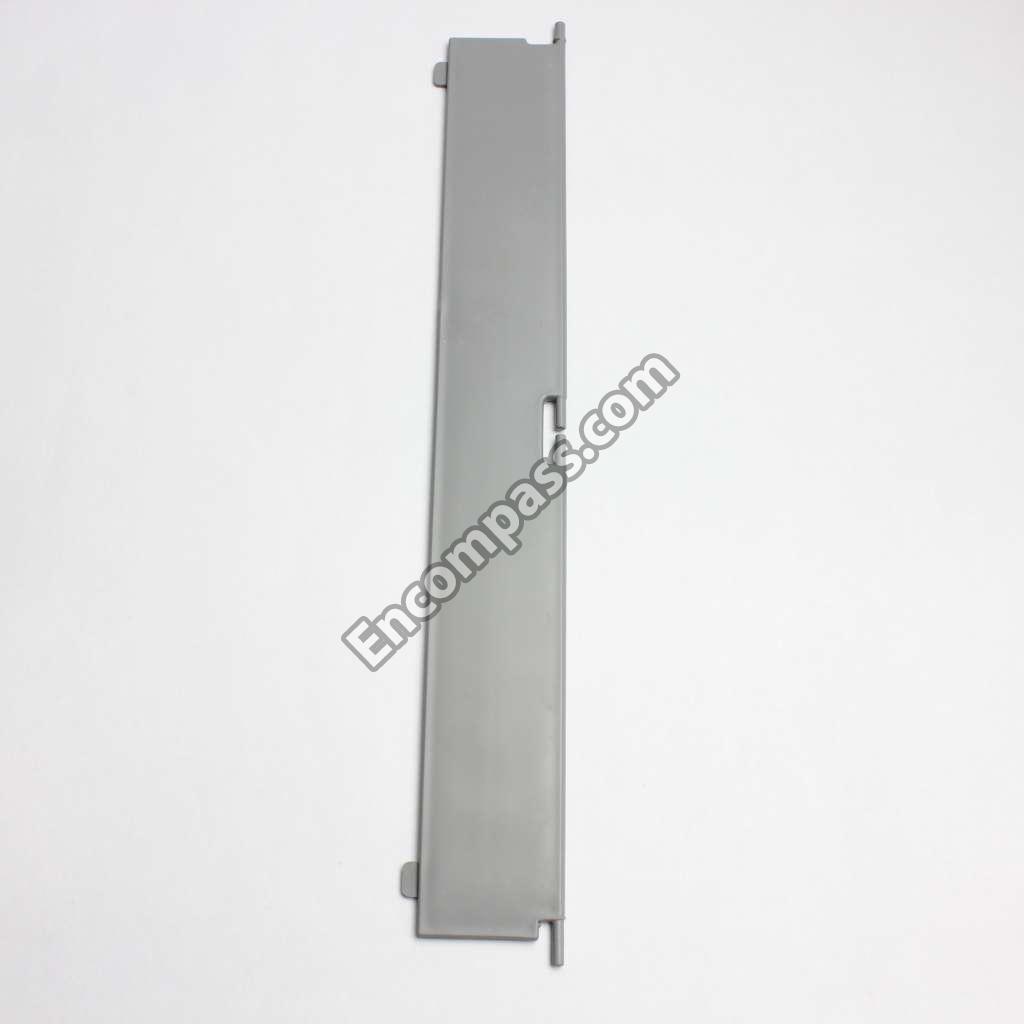

DRUM LIFTER;DV448AEW/XAA,PP,L455.5,GRY,P |
|
|
DUCT HEATER-LOW;ALCOAT-SA1C,T0.5,NTR |
|
|
DUCT HEATER-UP;ALCOAT-SA1C,T0.5,NTR |
|
|

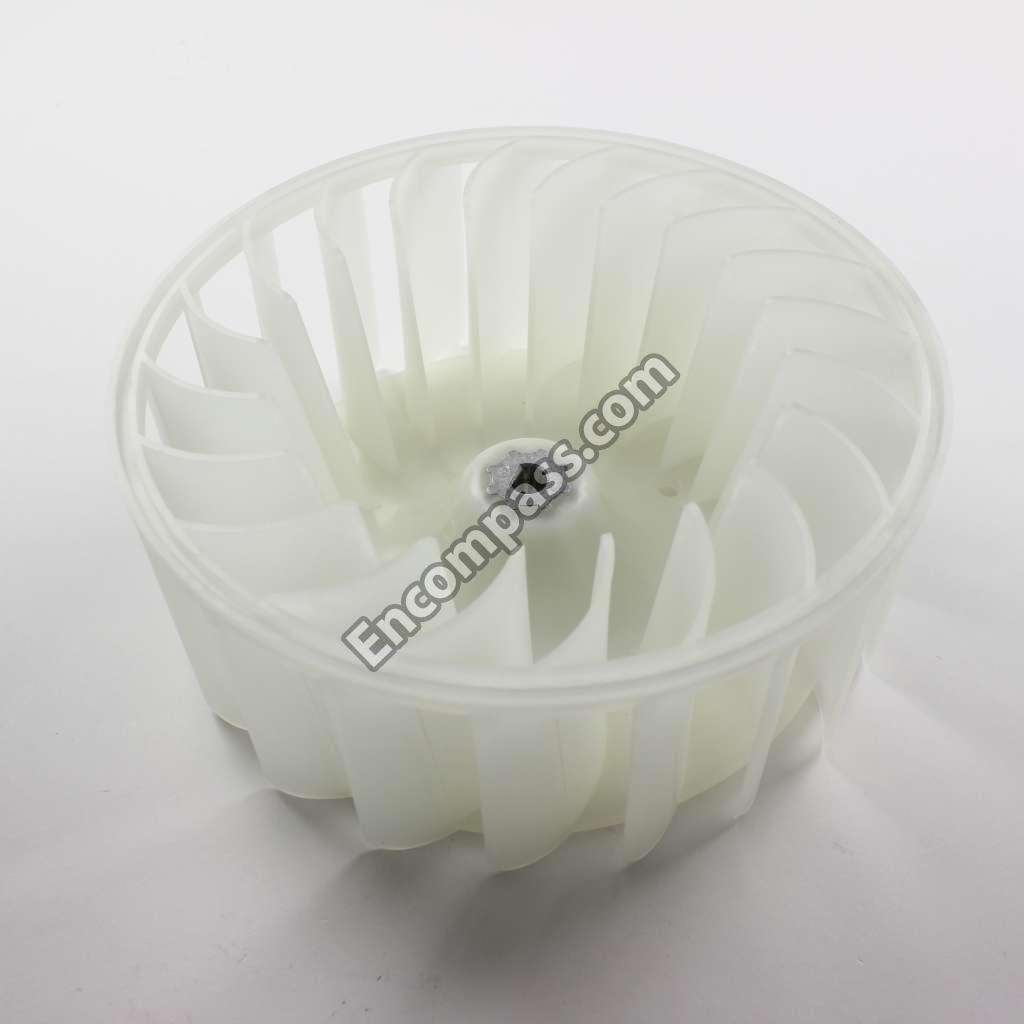

FAN;27-DRYER,FRPP,OD207.6/ID12,GF15% |
|
|

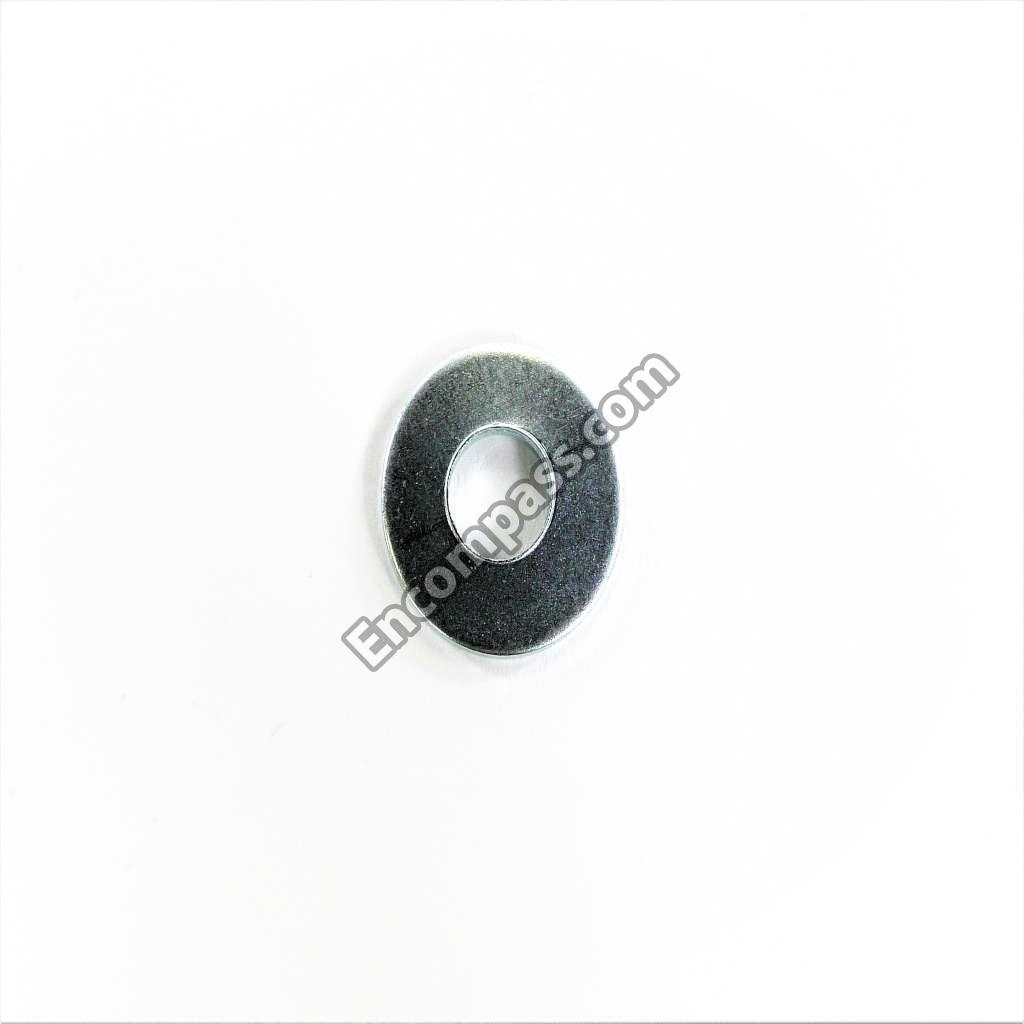

FASTENER-PLAIN;HUDSON-DRYER,FE,T1.6,NTR, |
|
|
FIXER LAMP;GE24-DRYER,EPDM,GRAY,- |
| DC61-02600A | FRAME PLATE-UP;GRACE-DRYER,GI-SGCD,T |
|
|

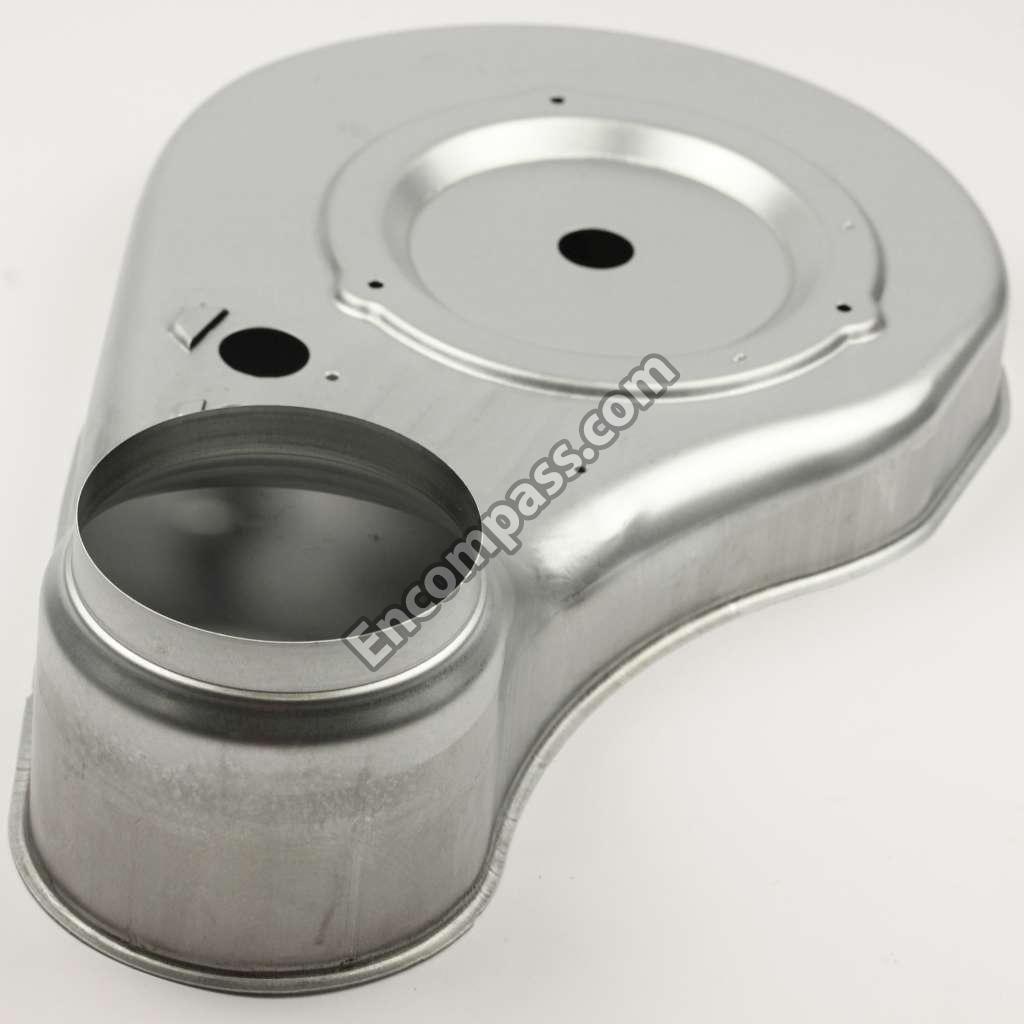

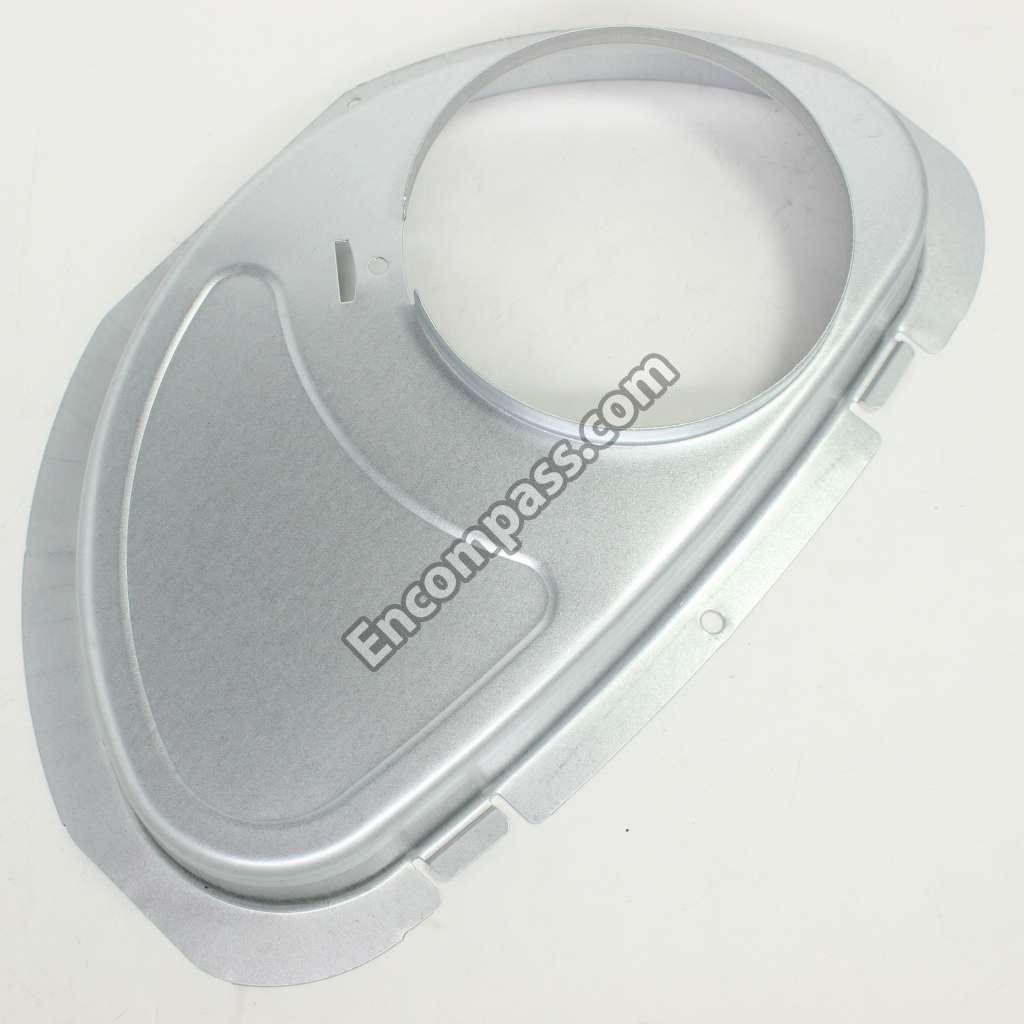

GUIDE DUCT FAN;27-DRYER,GI-SGCC,T0.6 |
|
|
GUIDE HINGE;HAUZEN(DOM),POM,NTR(WHT),HIN |
|
|
GUIDE PANEL;WF438AAW,PP,T2.0,FC2305/NTR, |
|
|
GUIDE-FAN;DV50F9A8EVW,PP,T3.0,W102.1,TB5 |
| 3711-000024 | HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,ST |
| 3711-000012 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST |
| 3711-000999 | HEADER-BOARD TO CABLE;BOX,5P,1R,2.5MM,ST |
| 3711-001038 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.5MM,ST |
| 3711-005707 | HEADER-BOARD TO CABLE;BOX,7P,1R,2.5MM,ST |
|
|

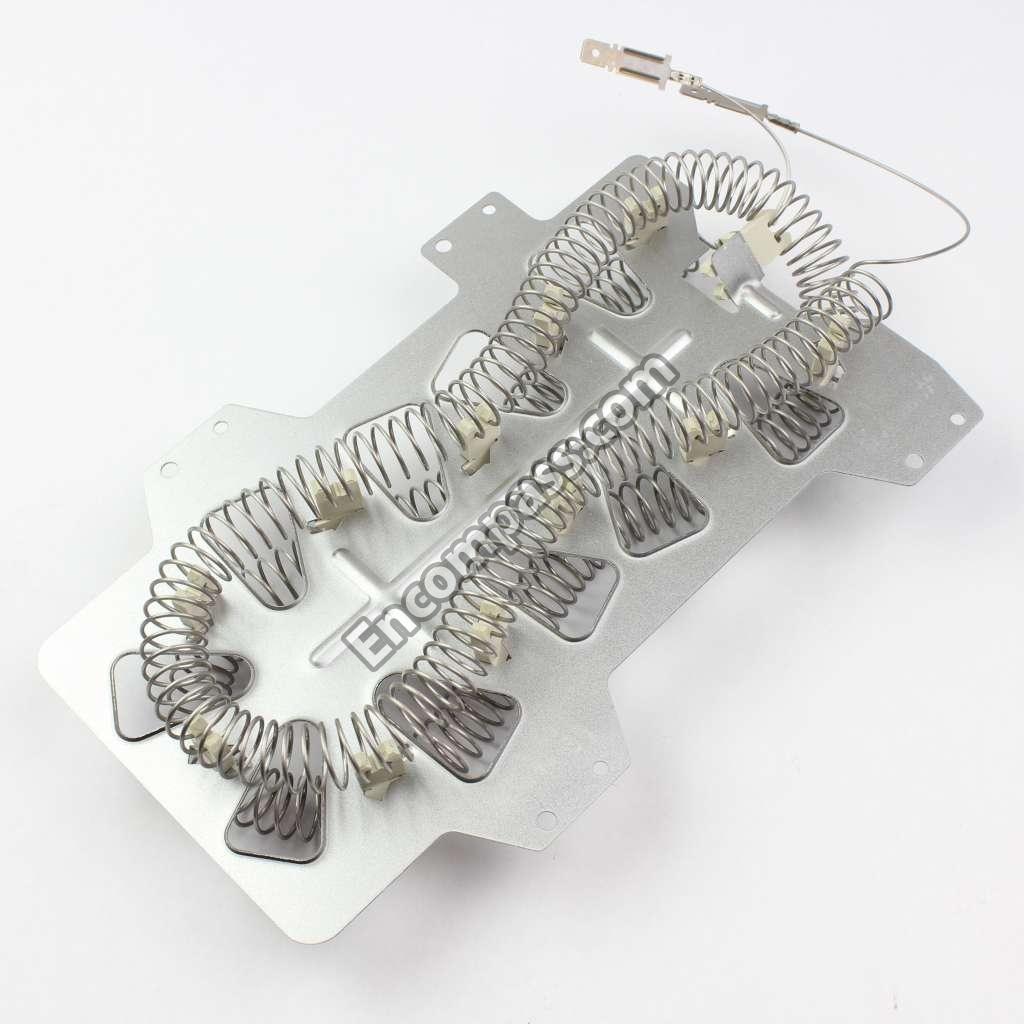

HEATER DRY;AC240V,5300W,CRNI,- |
| DC61-02596A | HOLDER GLASS;GRACE-DRYER,PP,T3.0,DARK HO |
|
|

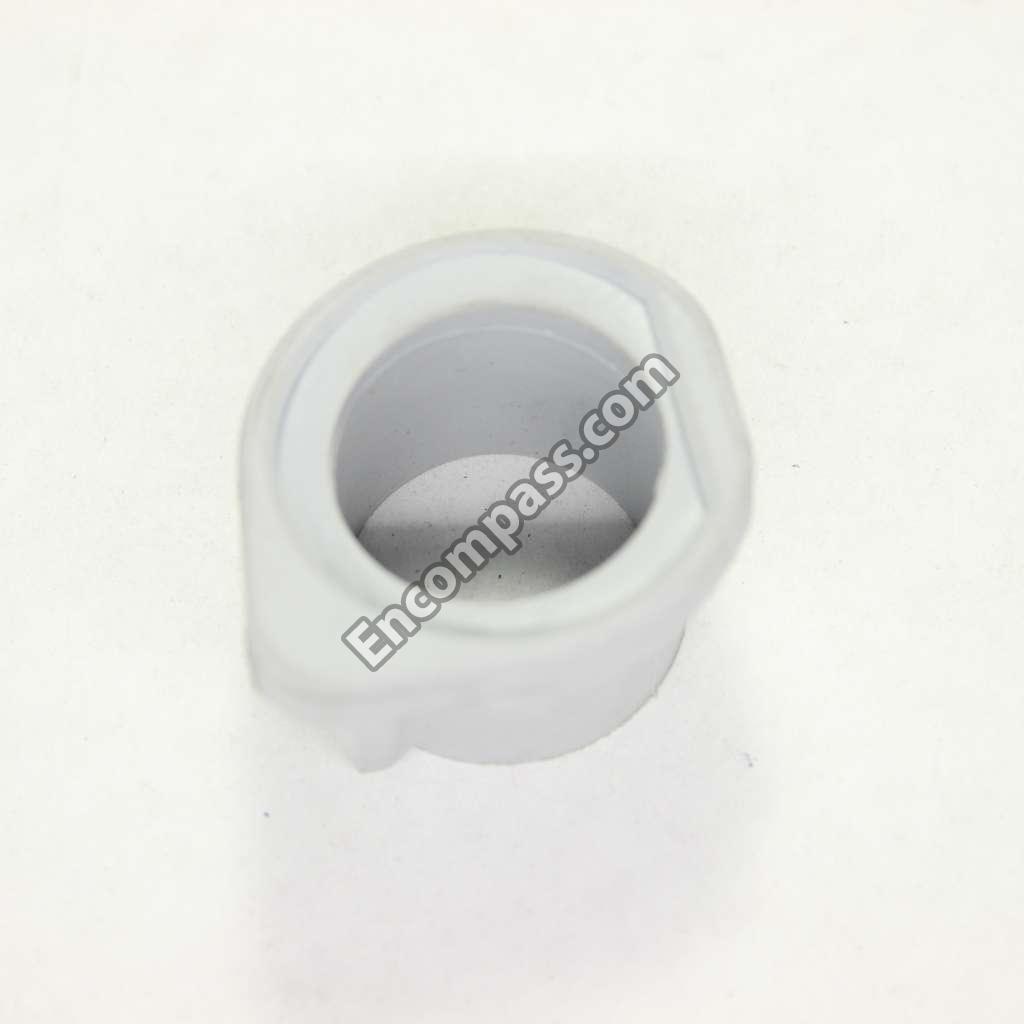

HOLDER SHAFT;WINGS-DRYER,PA,NTR,ROLLER |
|
|
HOLDER WIRE;DAWH-2NC,PA66,NATURAL,- |
| DC61-60074A | HOLDER WIRE;PA,NATURAL,101F,RECTANGL |
|
|
HOLDER-PCB;WINGS-DRYER,GI,T0.6,NTR,MAIN |
|
|
HOLDER-POWER;MDE9700AYW,PP,SNOW WHITE,BJ |
| DC67-00331A | HOSE DRAWER;DV448AEW,PA,TRANSPARENT |
|
|
INLAY PANEL;WF42H5000AW,PET,T0.2,BLACK |
|
|

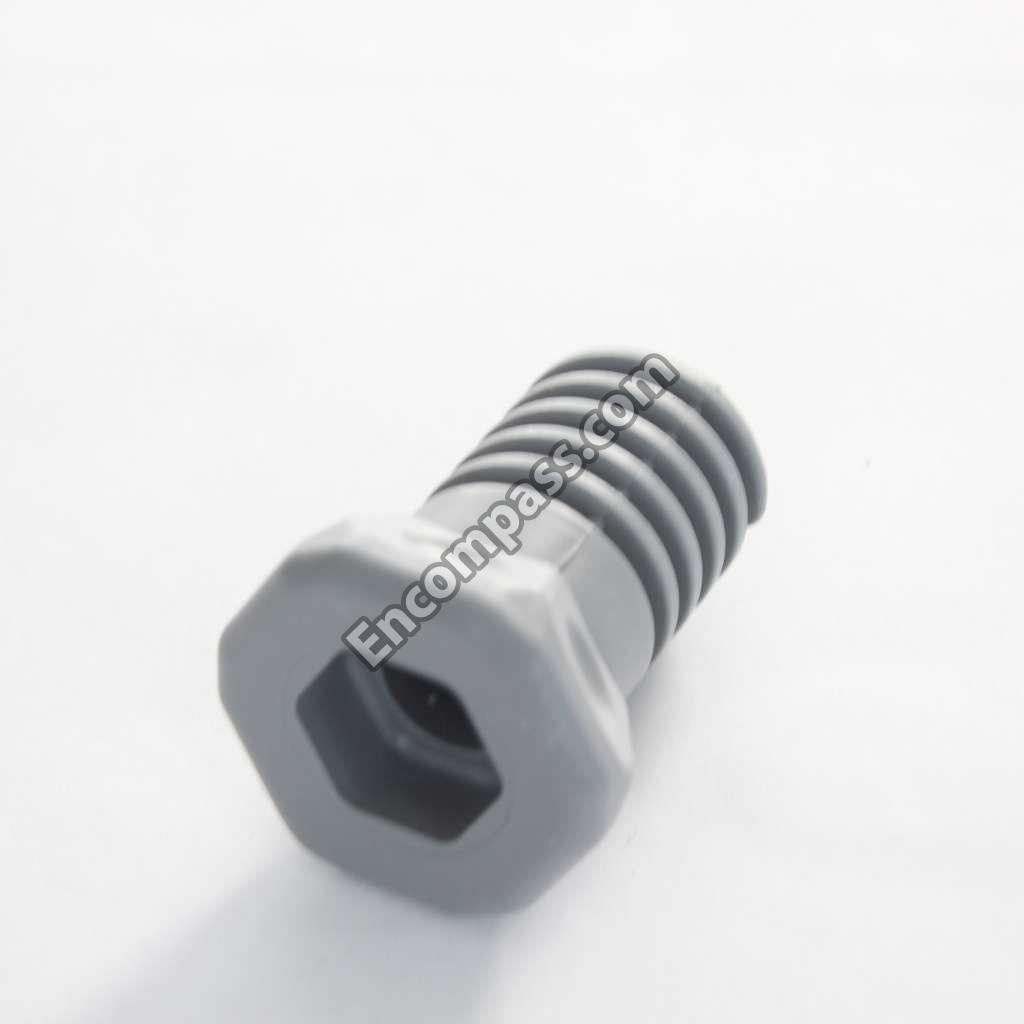

LEG;DV511AER,PP,5V-A,DARK HOLDER GRAY,FH |
|
|

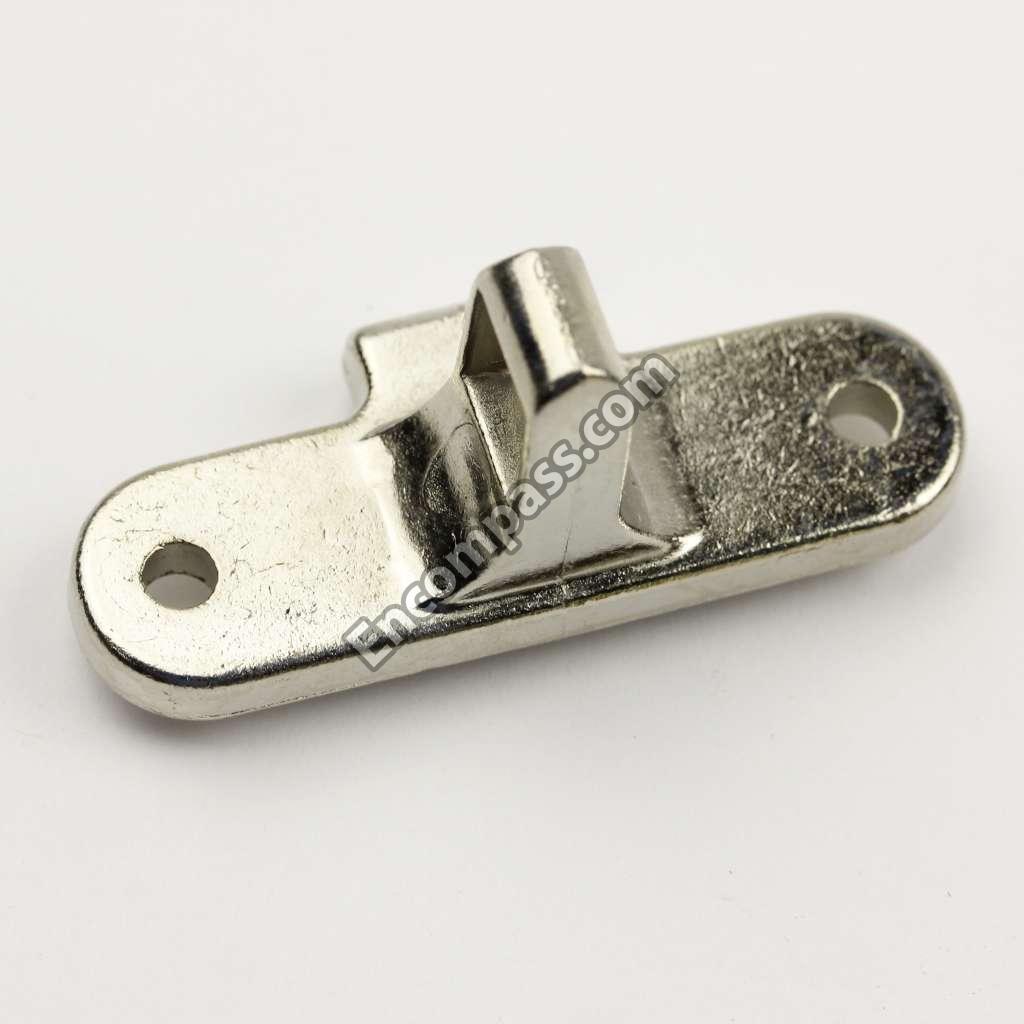

LEVER DOOR;DV9000H,ZNDC,T3.0,- |
|
|
MASCOT;ALL,NI,T0.06,L80 |
|
|

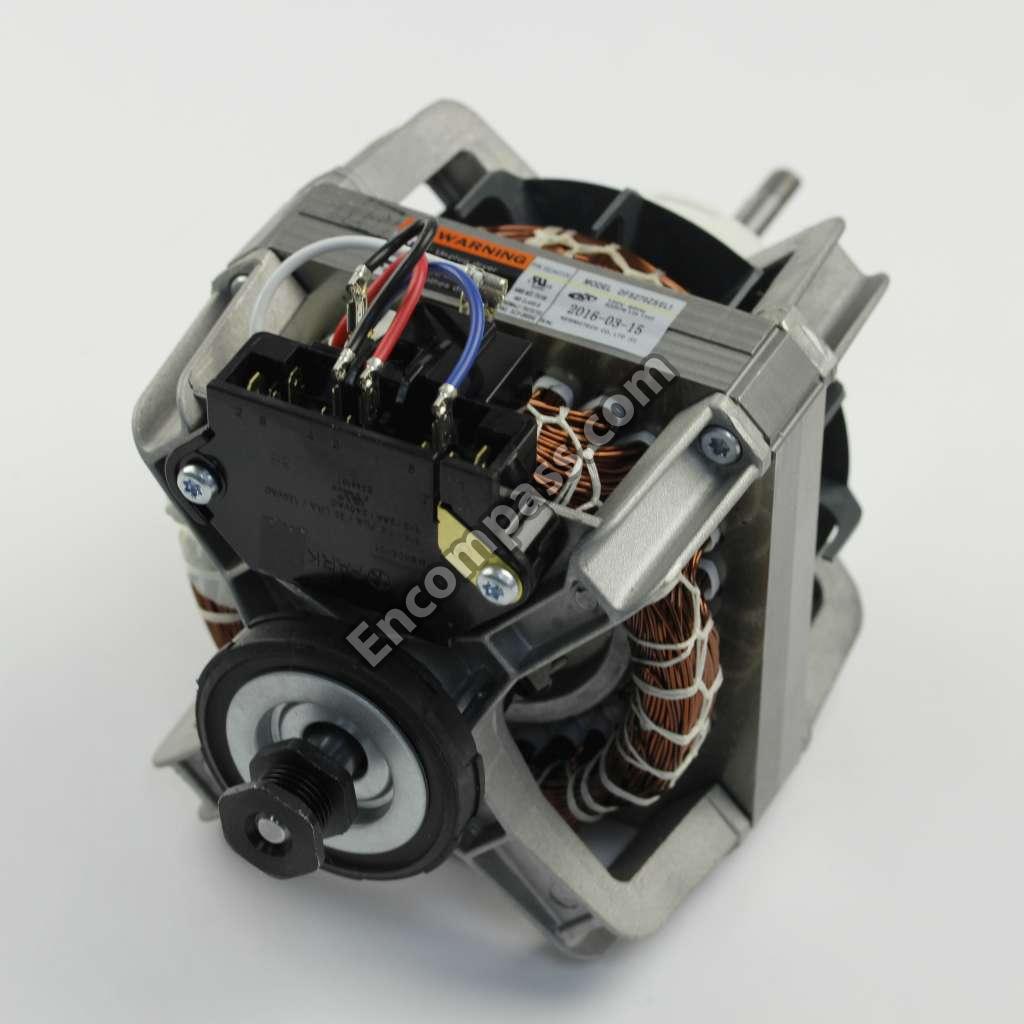

MOTOR AC DRIVE;DRYER MOTOR,DFS270ZSEL1,4 |
|
|

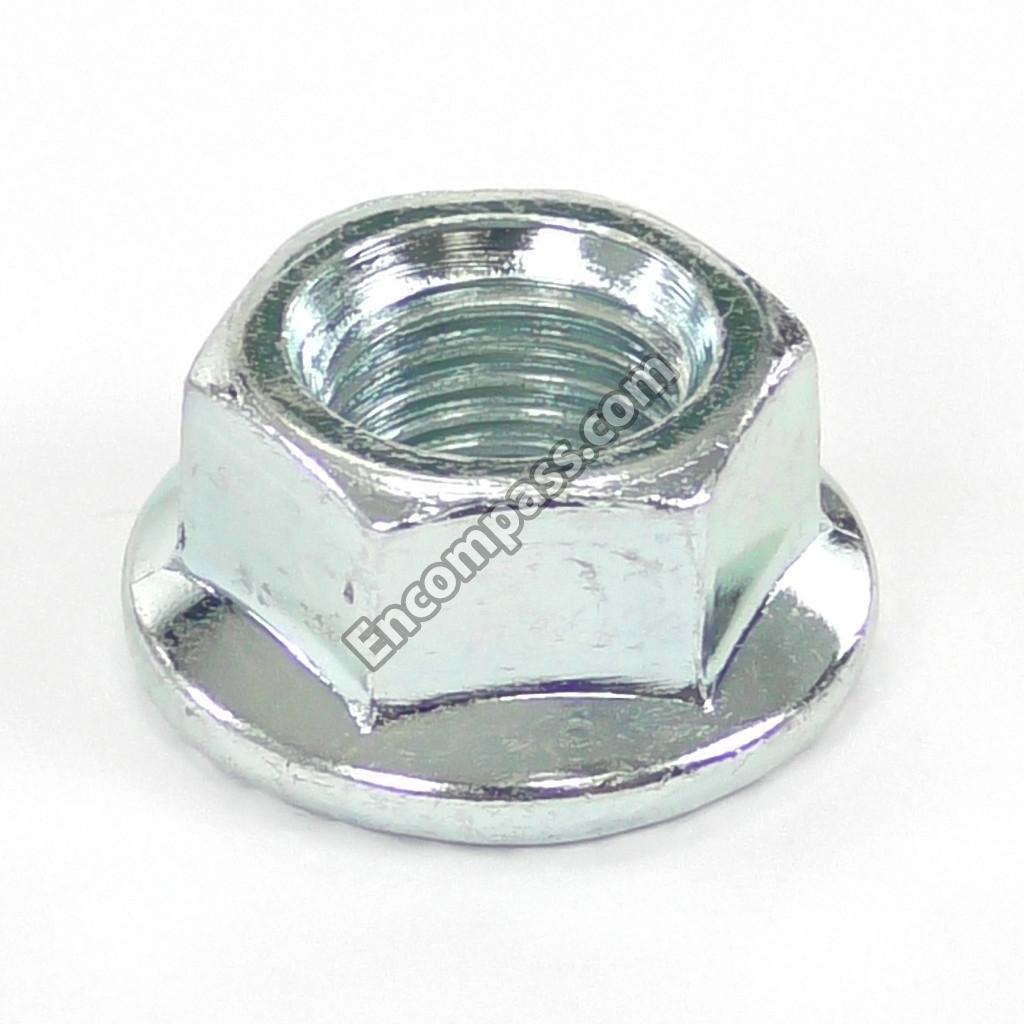

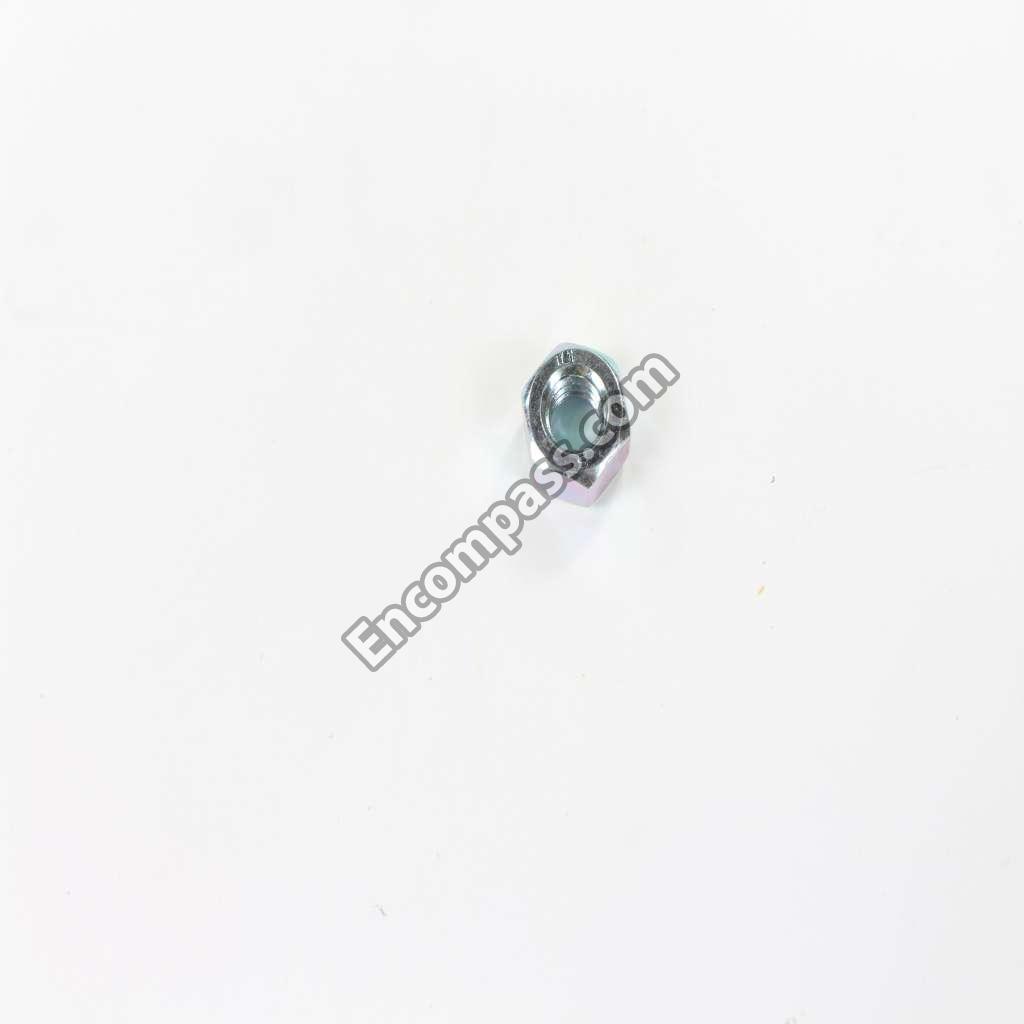

NUT HEX;MSWR,M10 |
|
|
NUT-INCH;LEFT TURN,3/8"-24,ZPC(YEL),MSWR |
|
|
PLATE SENSOR;DV220AEW,STS430,T0.8,TOUCH- |
|
|
RELAY-MINIATURE;12V,200MW,3000MA,1FORMA, |
|
|
RELAY-POWER;12V,0.9W,25000MA,1FORMA,20MS |
| 6041-001035 | RIVET-RH;K1661-0512,AL(A5052),OD3.9,L11, |
|
|

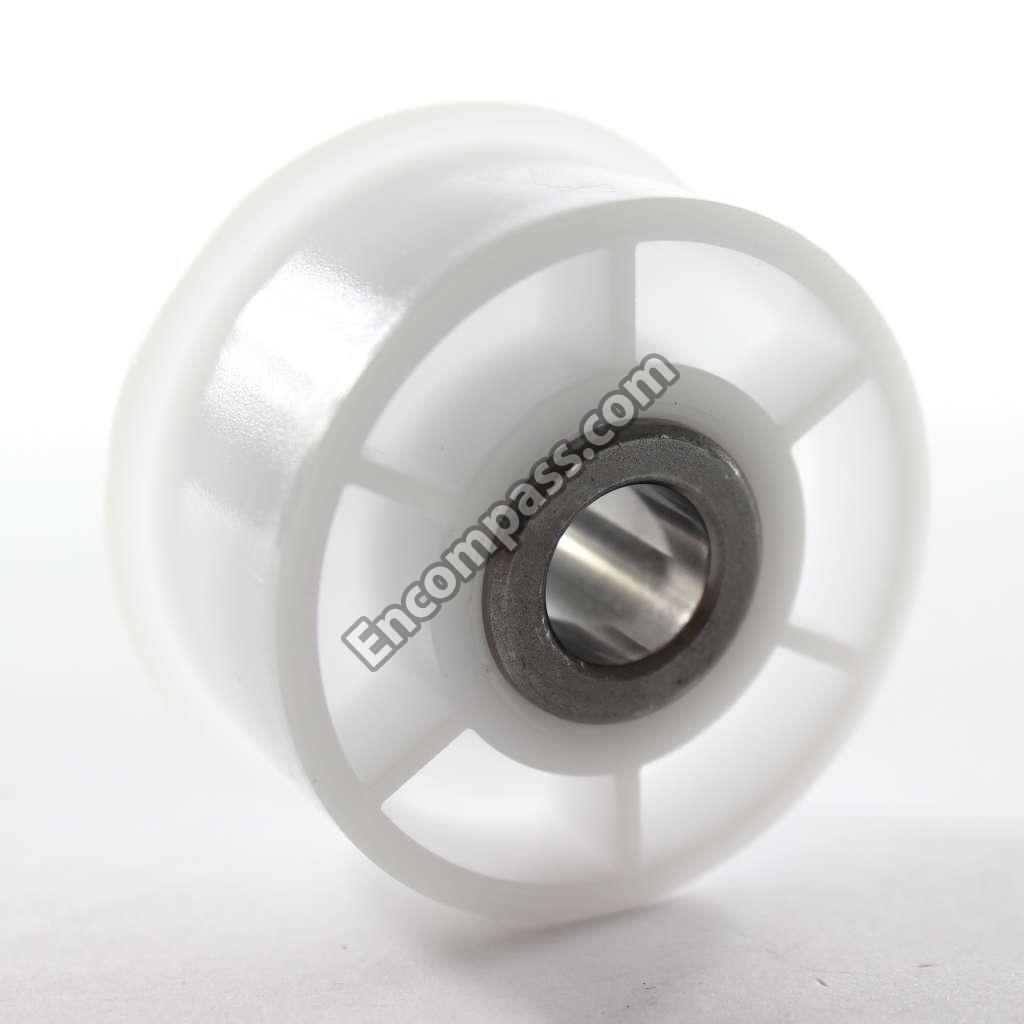

ROLLER IDLER;WINGS-DRYER,POM,MOT |
|
|

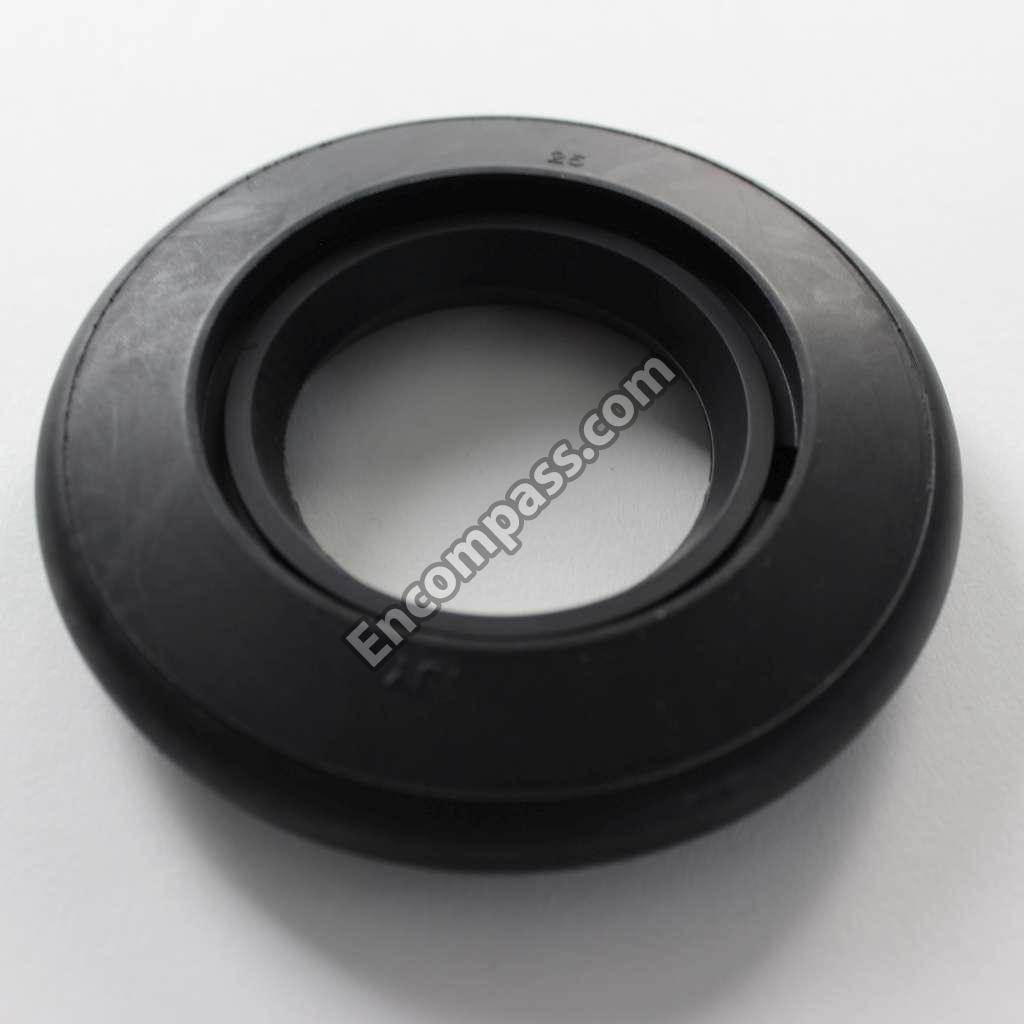

ROLLER;WINGS-PROJECT,EPDM,BLK,INSE |
|
|

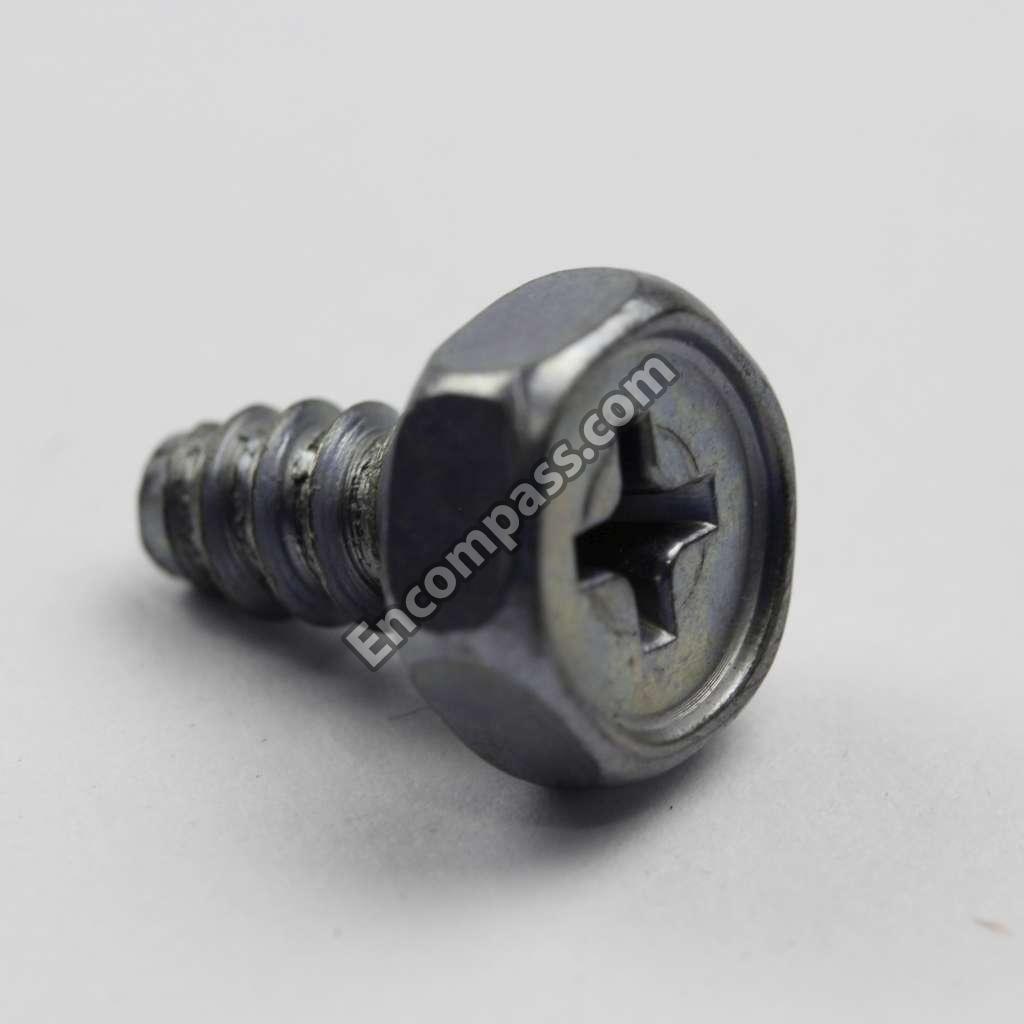

SCREW-HEX;HEX,+,M5,L10,NI-ZN(WHT),SWRCH1 |
|
|

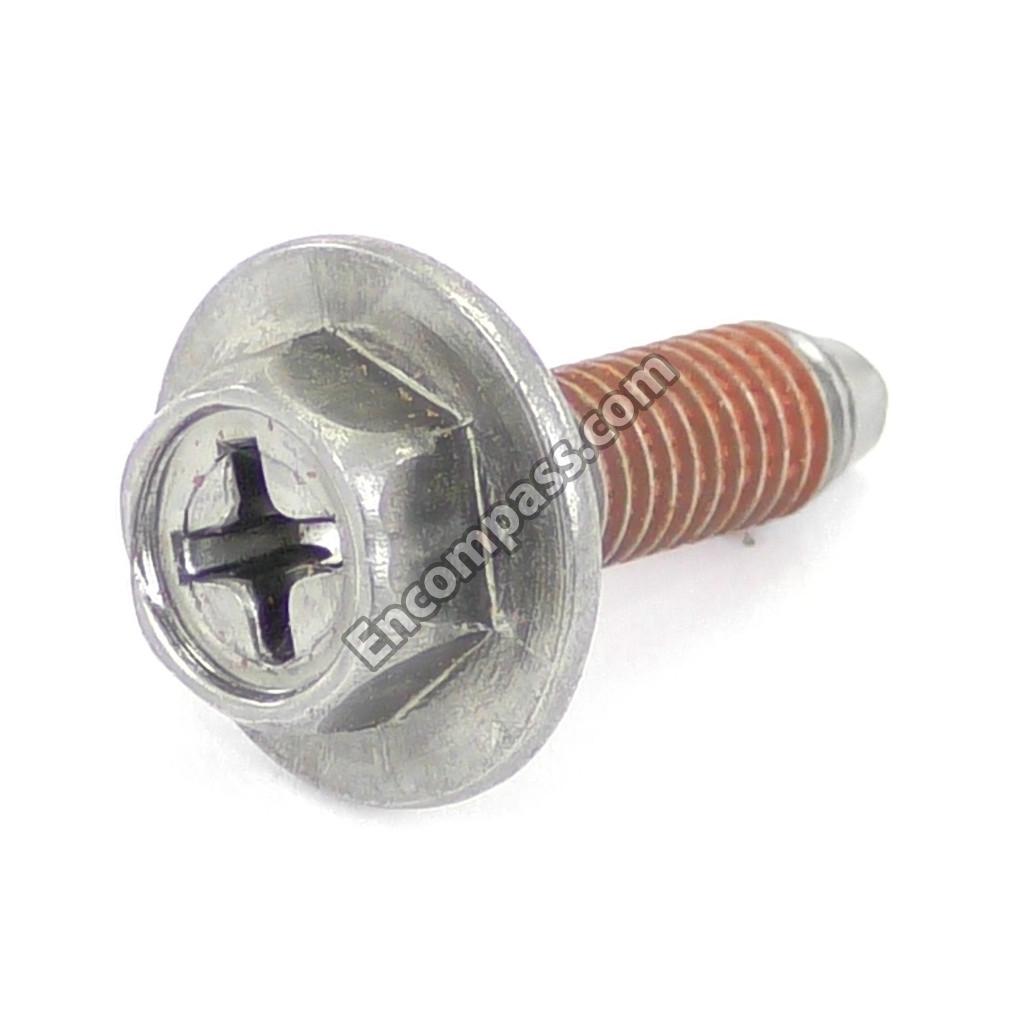

SCREW-HEX;HWH,+,M5,L16,PASS,STS430,FP,SE |
|
|

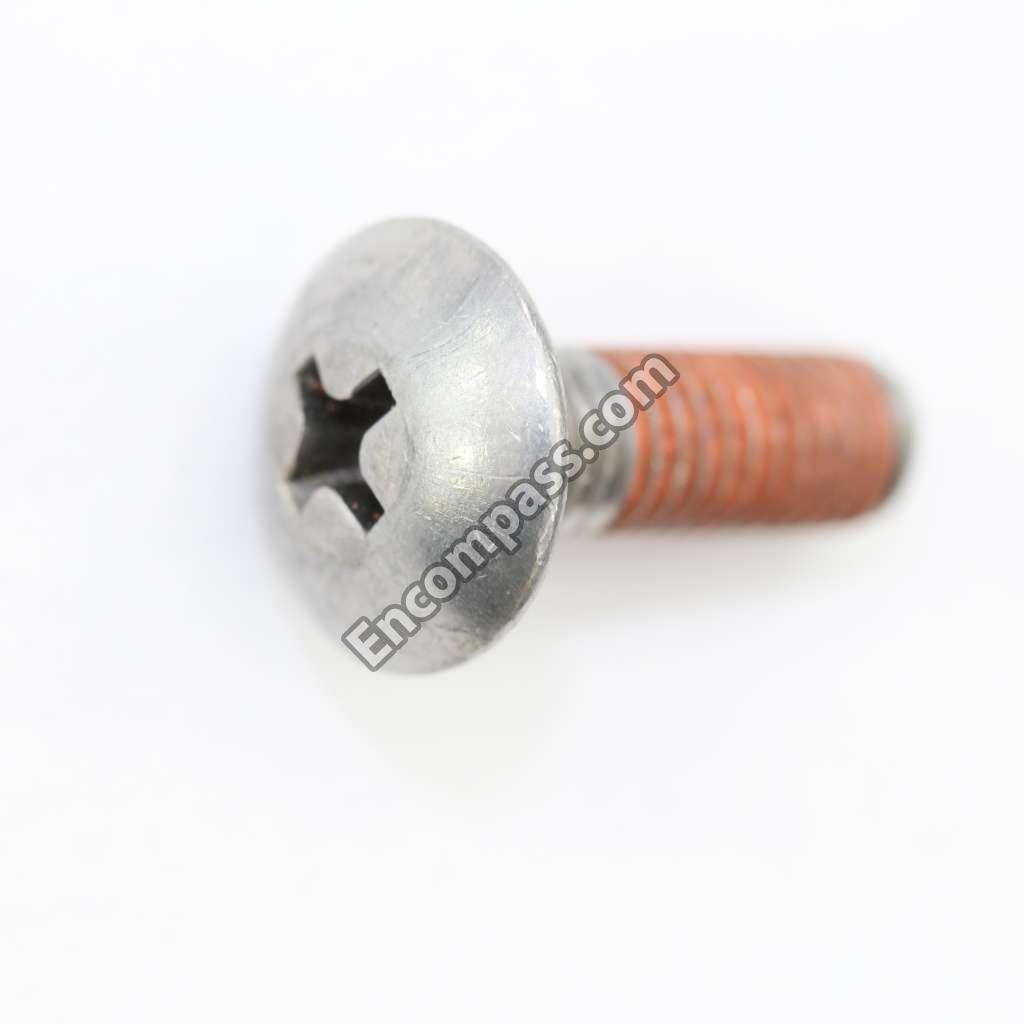

SCREW-MACHINE;TH,+,M5,L12,PASS,STS430, |
|
|
SCREW-MACHINE;TH,+,M5,L16,PASS,STS430,FP |
|
|

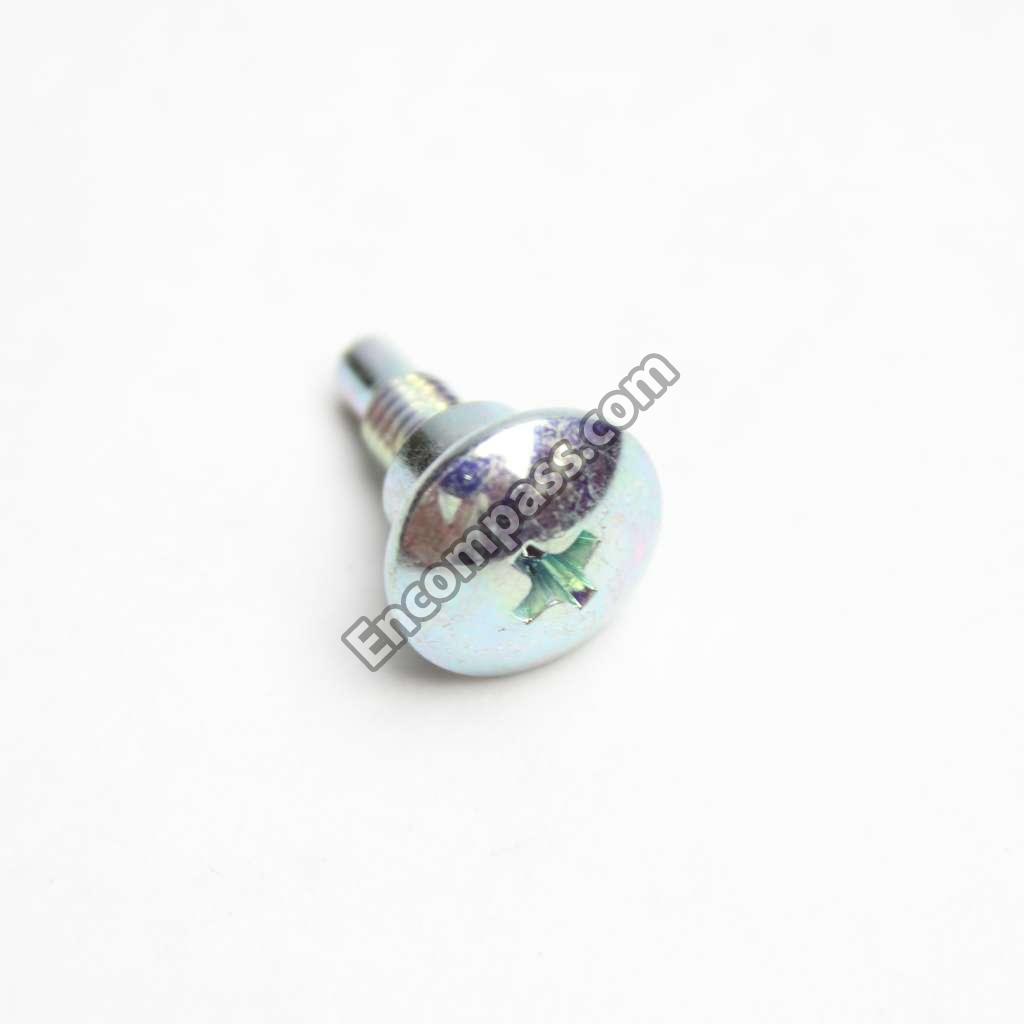

SCREW-SPECIAL;TH,+,M5,L11,ZPC(WHT),SWR |
|
|

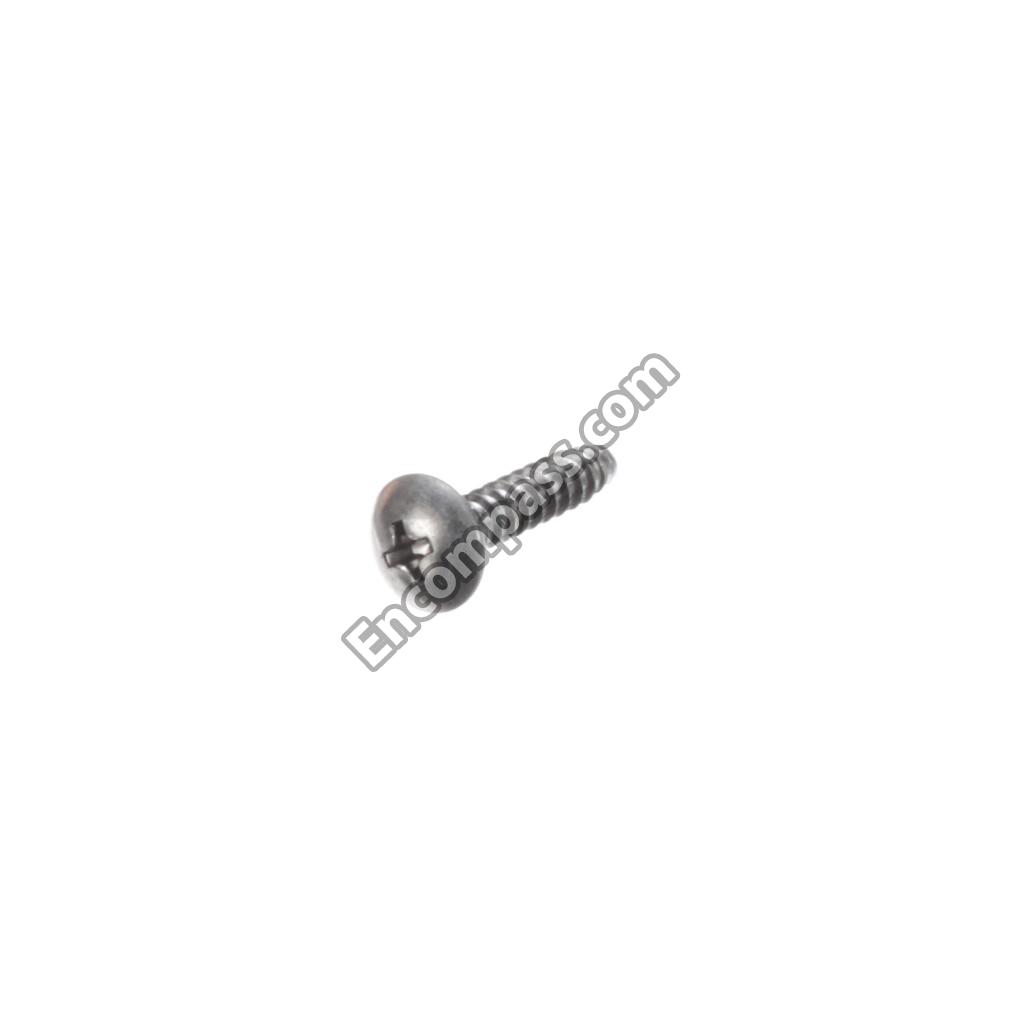

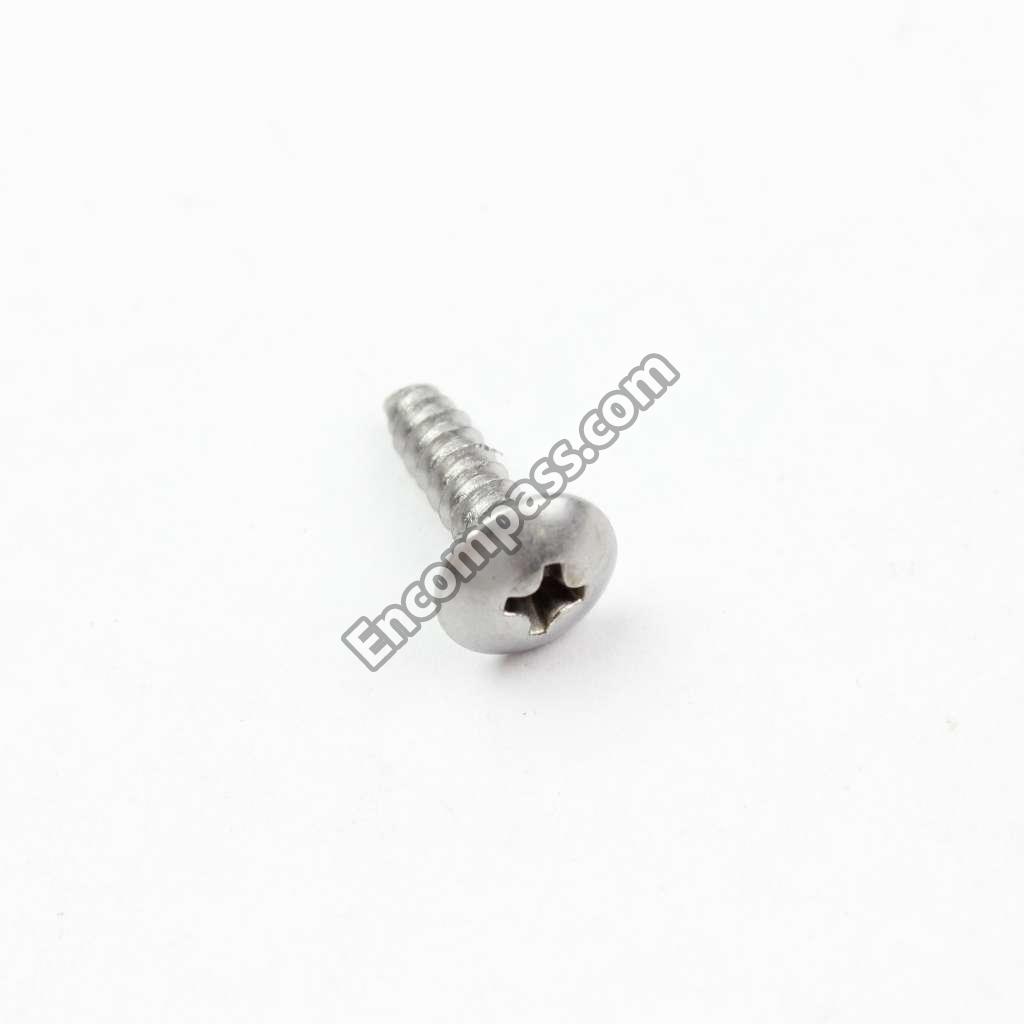

SCREW-TAPPING;PH,+,NO,2S,M3,L16,ZPC(WHT) |
|
|
SCREW-TAPPING;PH,+,NO,2S,M3,L8,ZPC(WHT), |
|
|
SCREW-TAPPING;TH,+,1,M4,L12,ZPC(WHT),SWR |
|
|
SCREW-TAPPING;TH,+,2,M4,L14,PASS,STS430 |
|
|
SCREW-TAPPING;TH,+,2S,M5,L12,ZPC(WHT), |
|
|
SCREW-TAPPING;TH,+,NO,1,M4,L16,ZPC(WHT), |
| 6002-000231 | SCREW-TAPPING;TH,+,NO,2S,M4,L12,ZPC(WHT) |
|
|
SCREW-TAPPING;TH,+,NO,2S,M4,L18,PASS,STS |
|
|

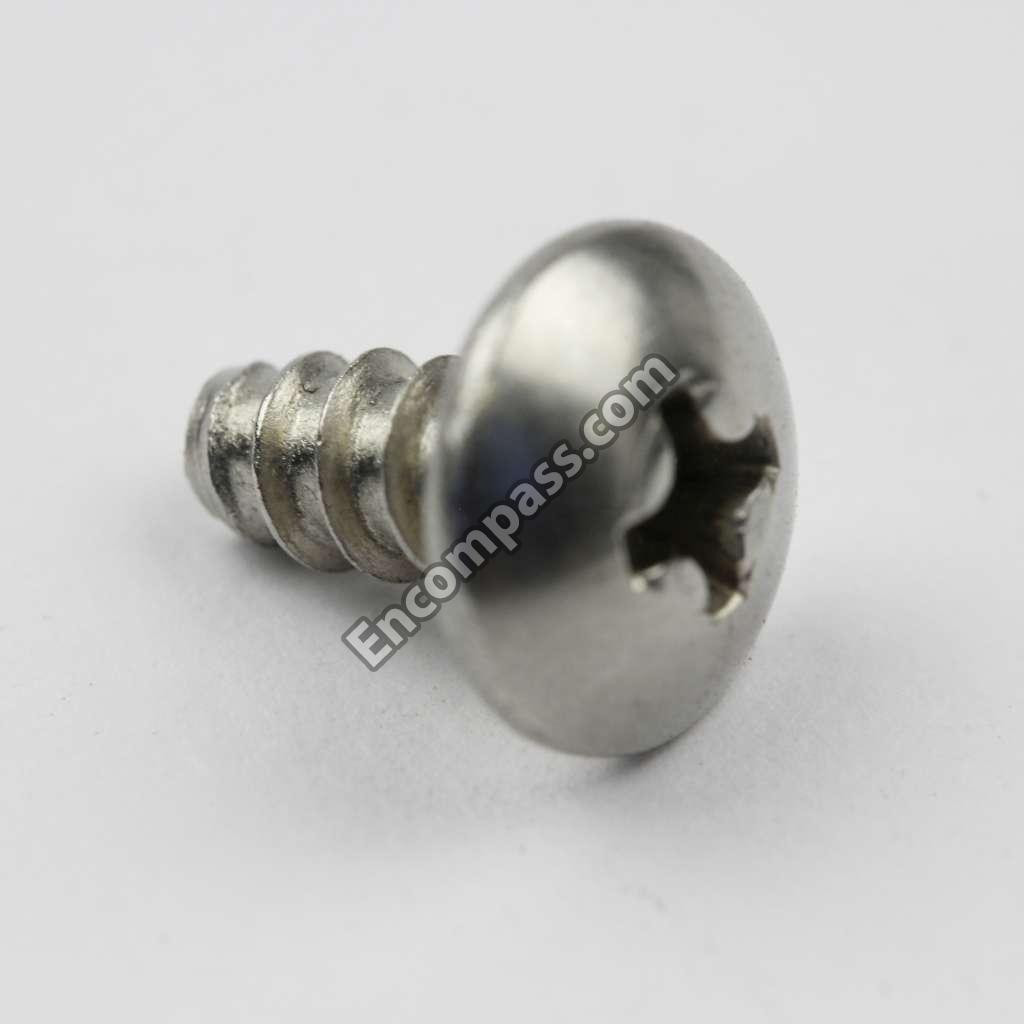

SCREW-TAPPING;TH,+,NO,2S,M4,L8,PASS,STS3 |
|
|
SCREW-TAPPING;TH,+,NO,2S,M4,L8,ZPC(WHT), |
|
|
SCREW-TAPTYPE;TH,+,WT,S,M4,L10,ZPC(WHT), |
|
|

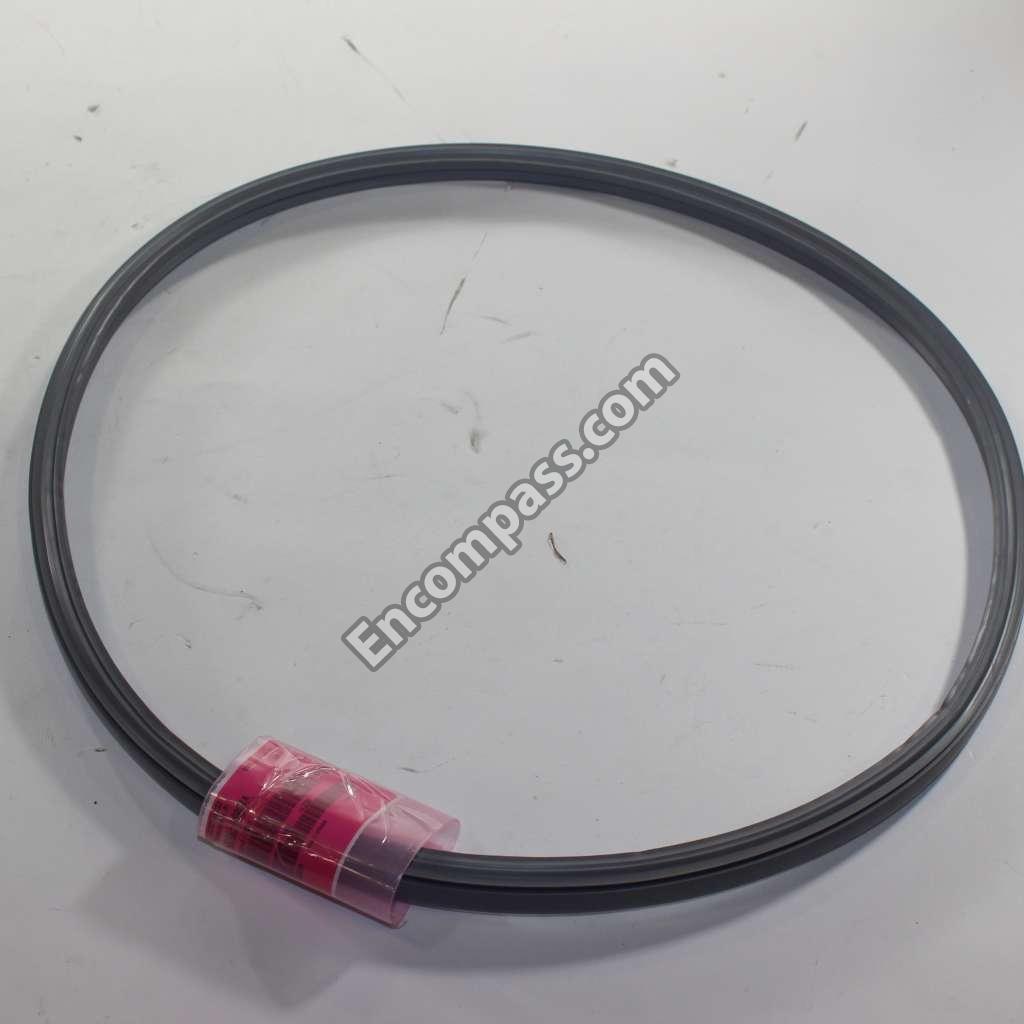

SEAL DOOR;DV448AEW,TPE,GRY,1280MM,PU |
|
|

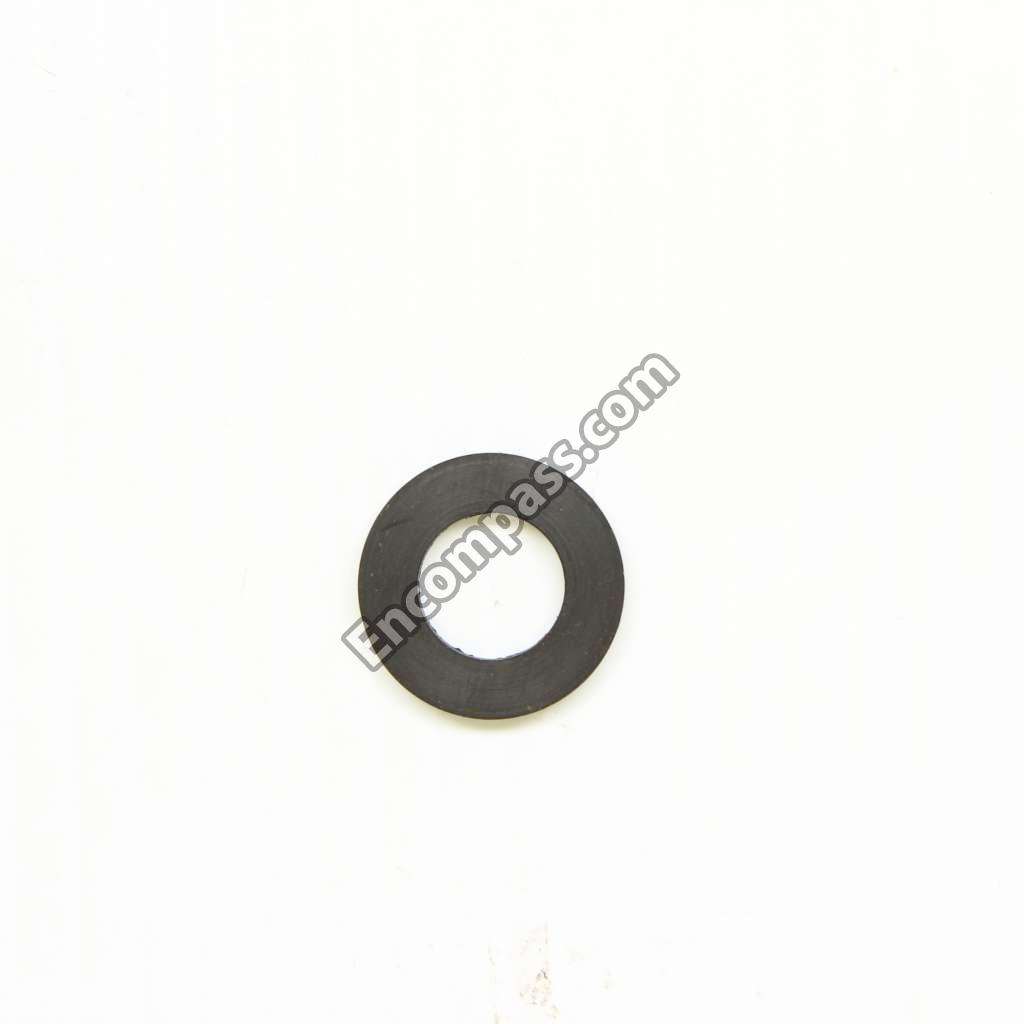

SEAL WATER;DV338,EPDM,T3.0,ID13.5,OD24.5 |
| DC63-00597E | SHEET DAMPING;FRONTIER,BUTYL,T1.5,BLAC |
|
|
SPRING ETC FILTER;BIGBANG-DRYER,HSWR,PI0 |
|
|

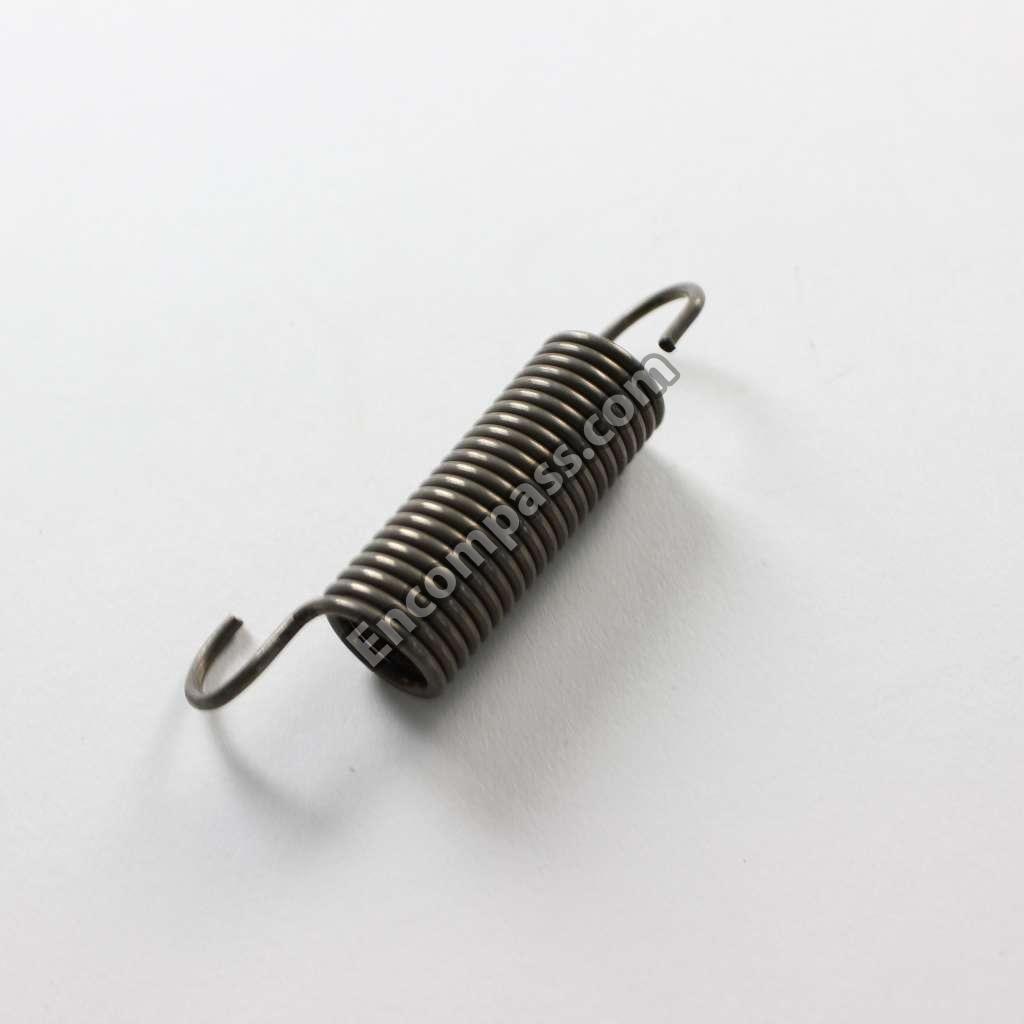

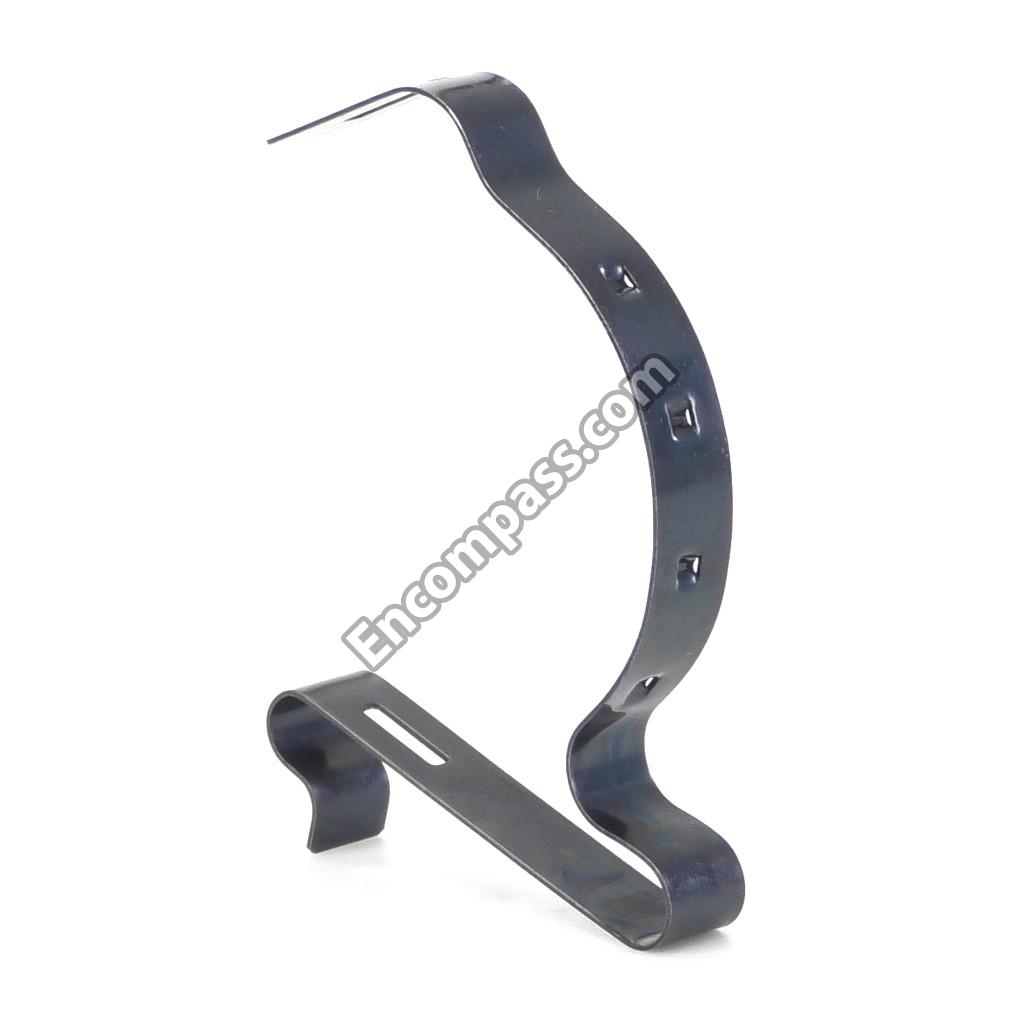

SPRING ETC TENSION;MDE9700AYW,HSWR-SWRH, |
|
|
SPRING PLATE;WINGS-DRYER,SK5,MOTOR |
|
|
STAND OFF;NTR,PA66,DAWH-3NA |
| DC61-02598A | SUPPORT HINGE;GRACE-DRYER,GI-SGCC,T1.4,S |
|
|

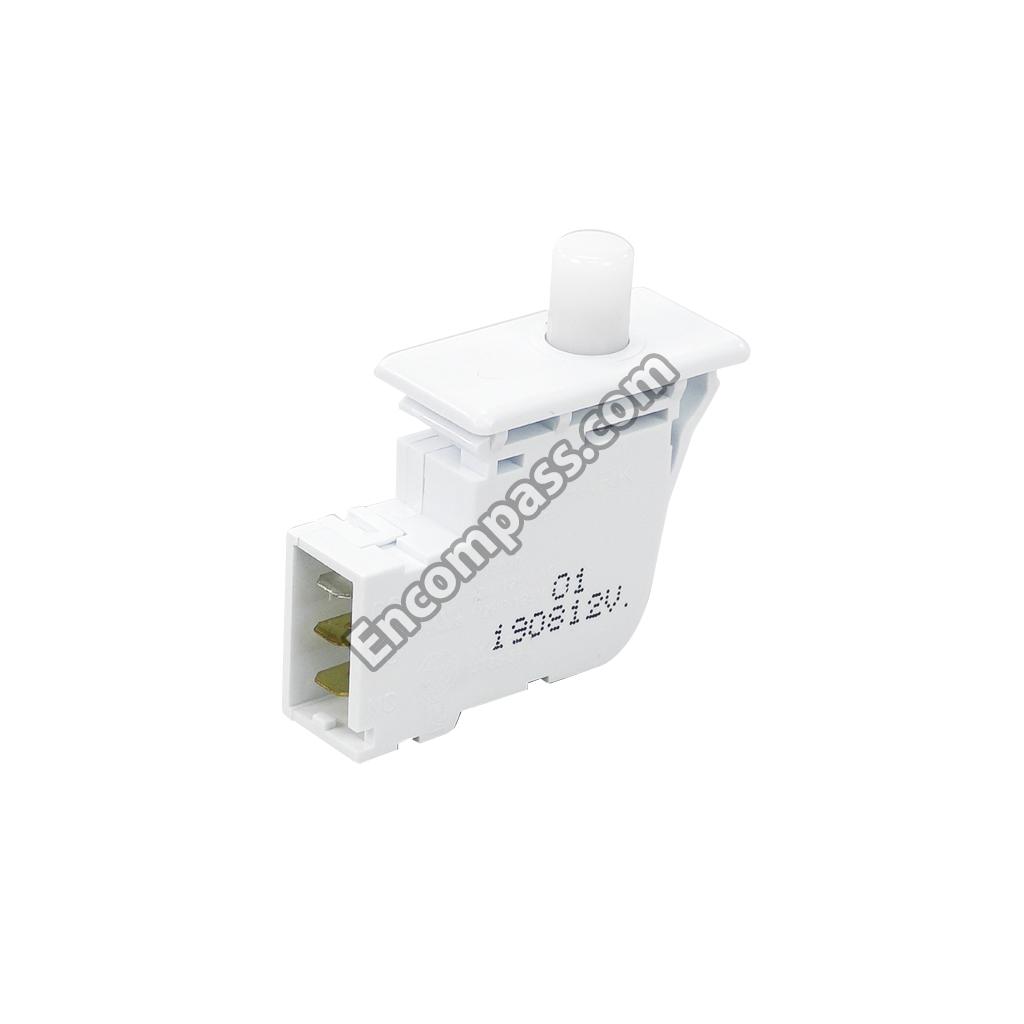

SWITCH DOOR;AC125V/250V,7.5/5,OP7.8MM |
|
|

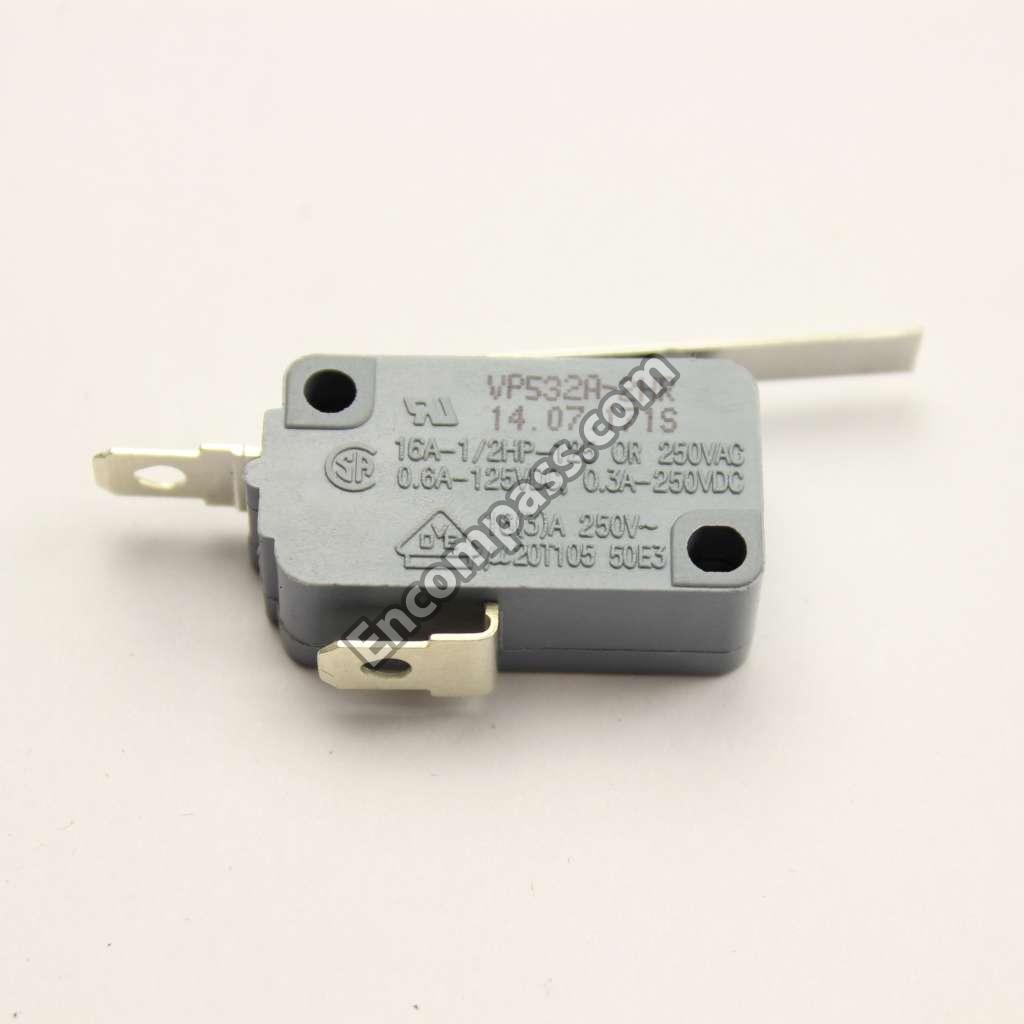

SWITCH-MICRO;125/250VAC,16A,180GF,SPST-N |
|
|
THERMISTOR;WASHER,-40~105,5,5,10K 2%( |
|
|

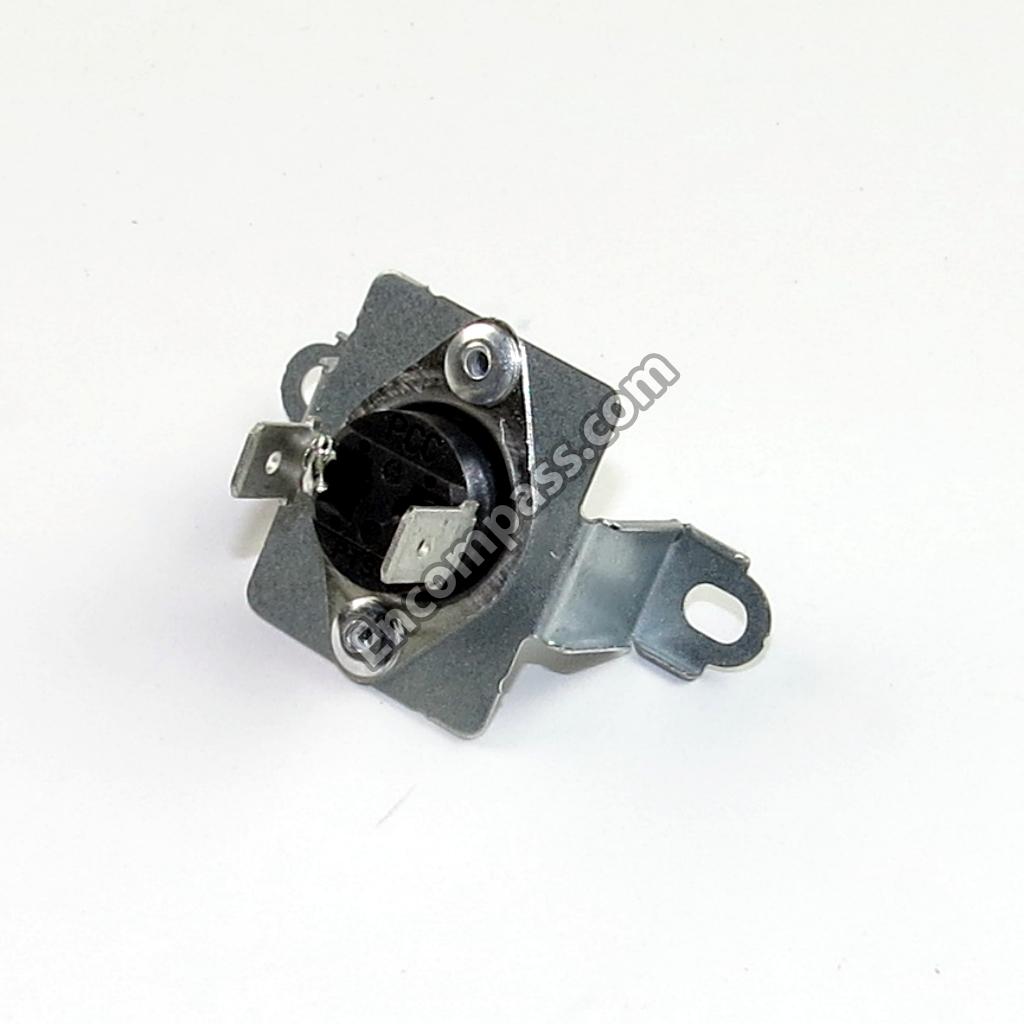

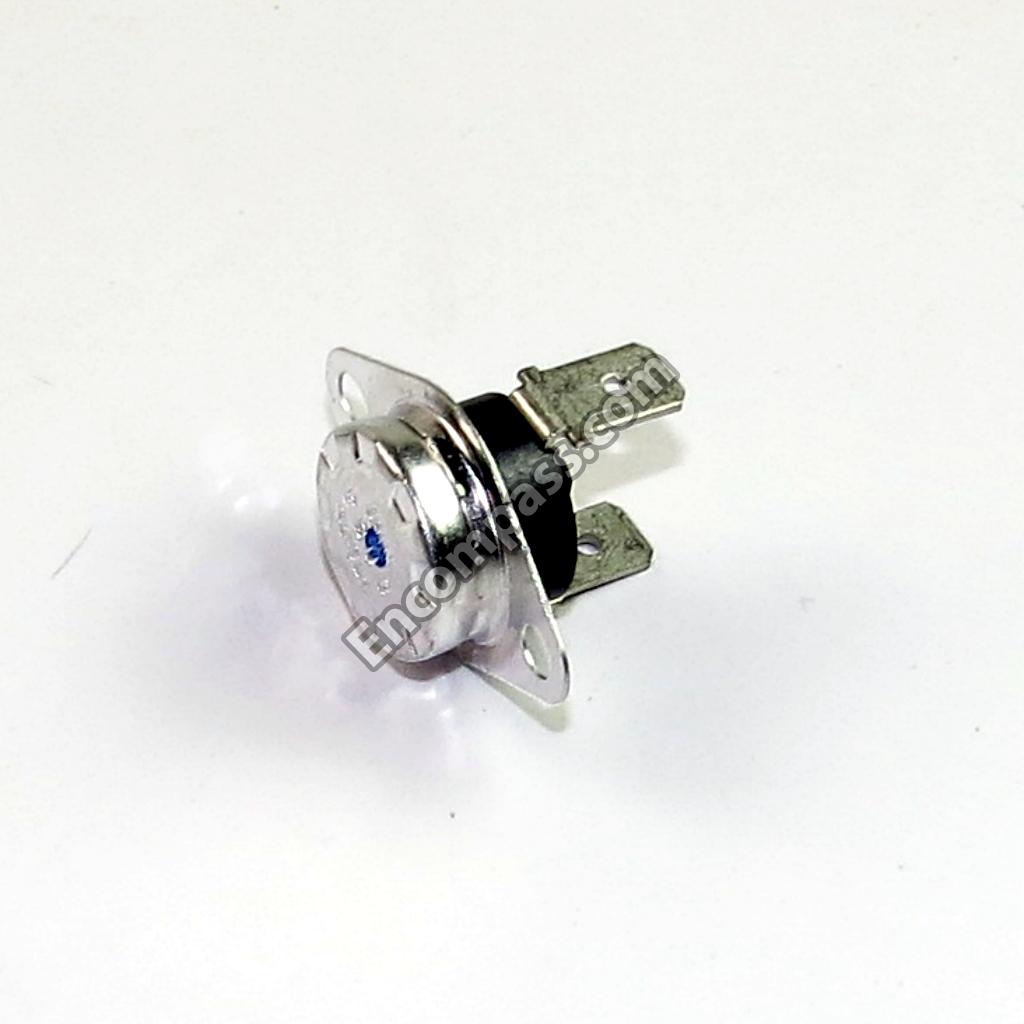

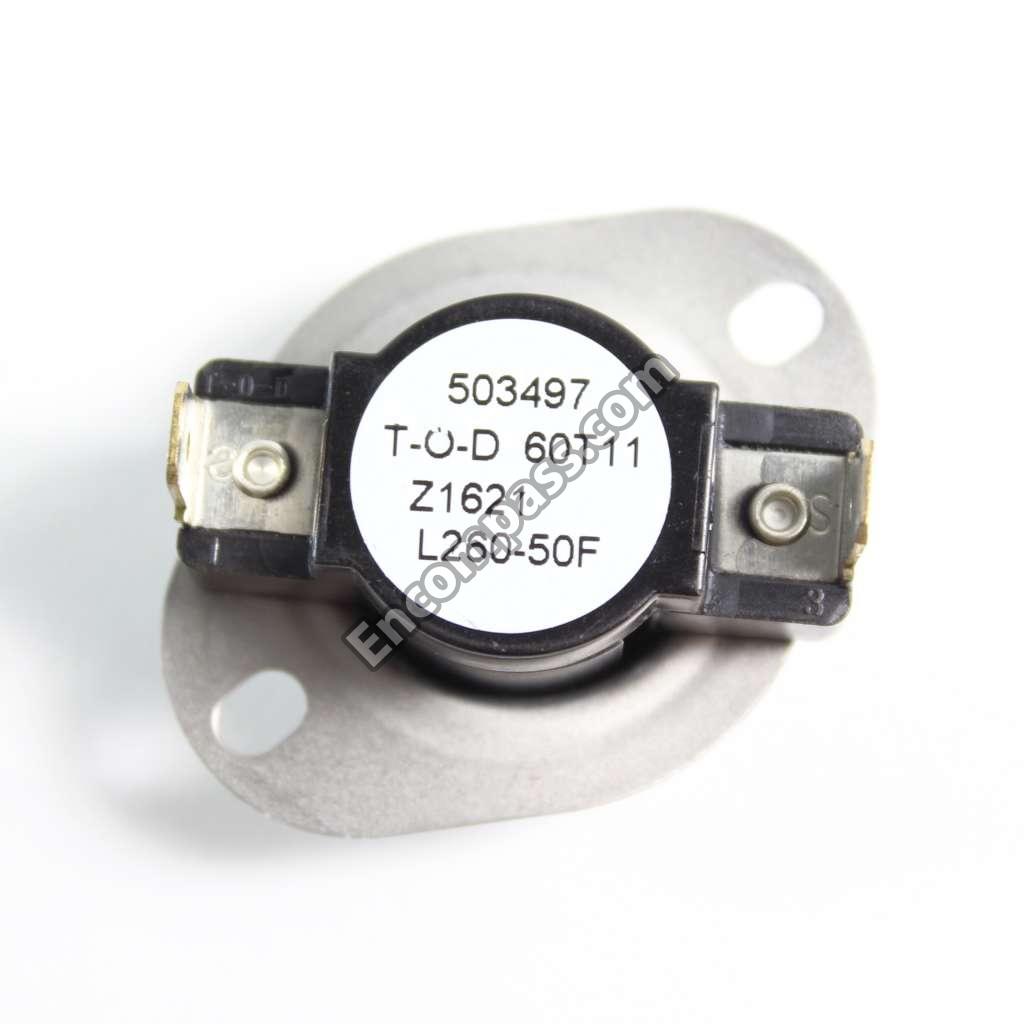

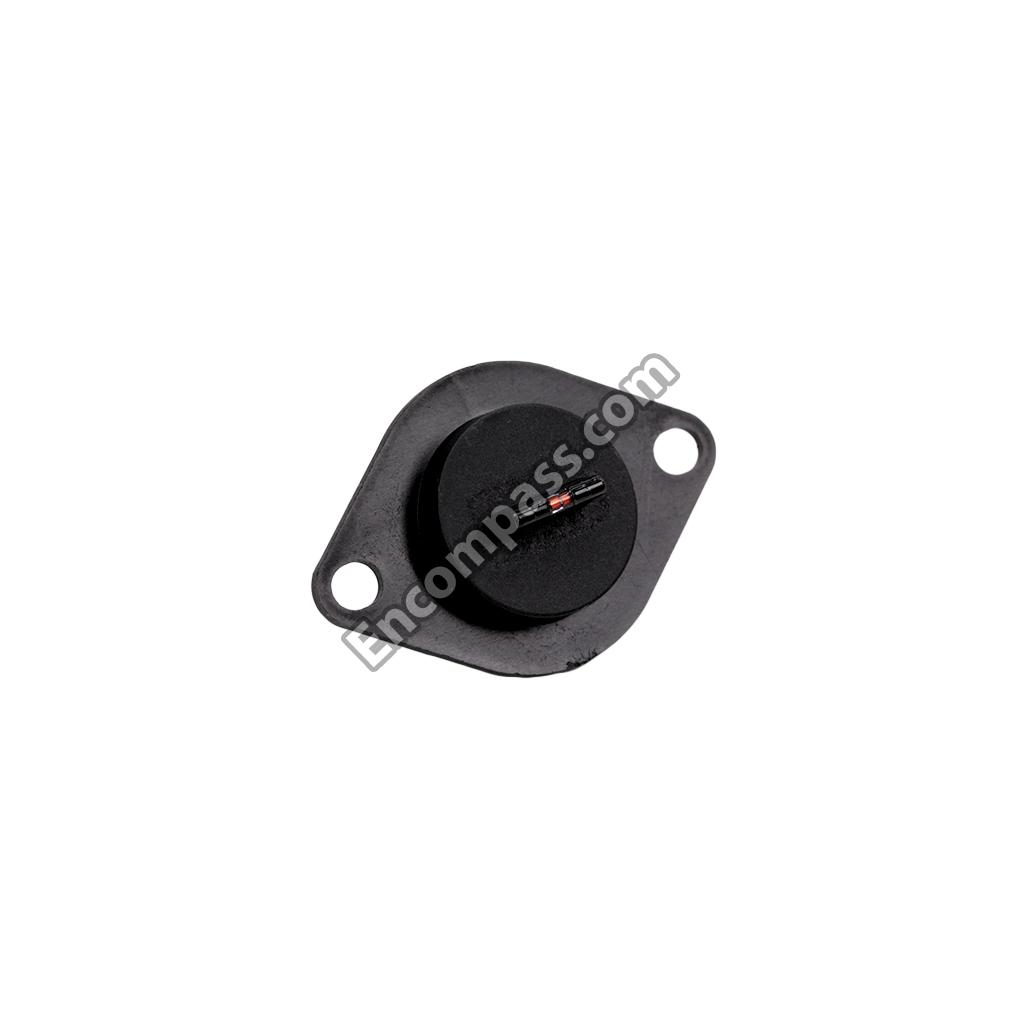

THERMOSTAT;AC120/240V,25A,127,99,NORMAL, |
|
|
THERMOSTAT;AC125/250V,25A,160,-35,S.O.D, |
|
|

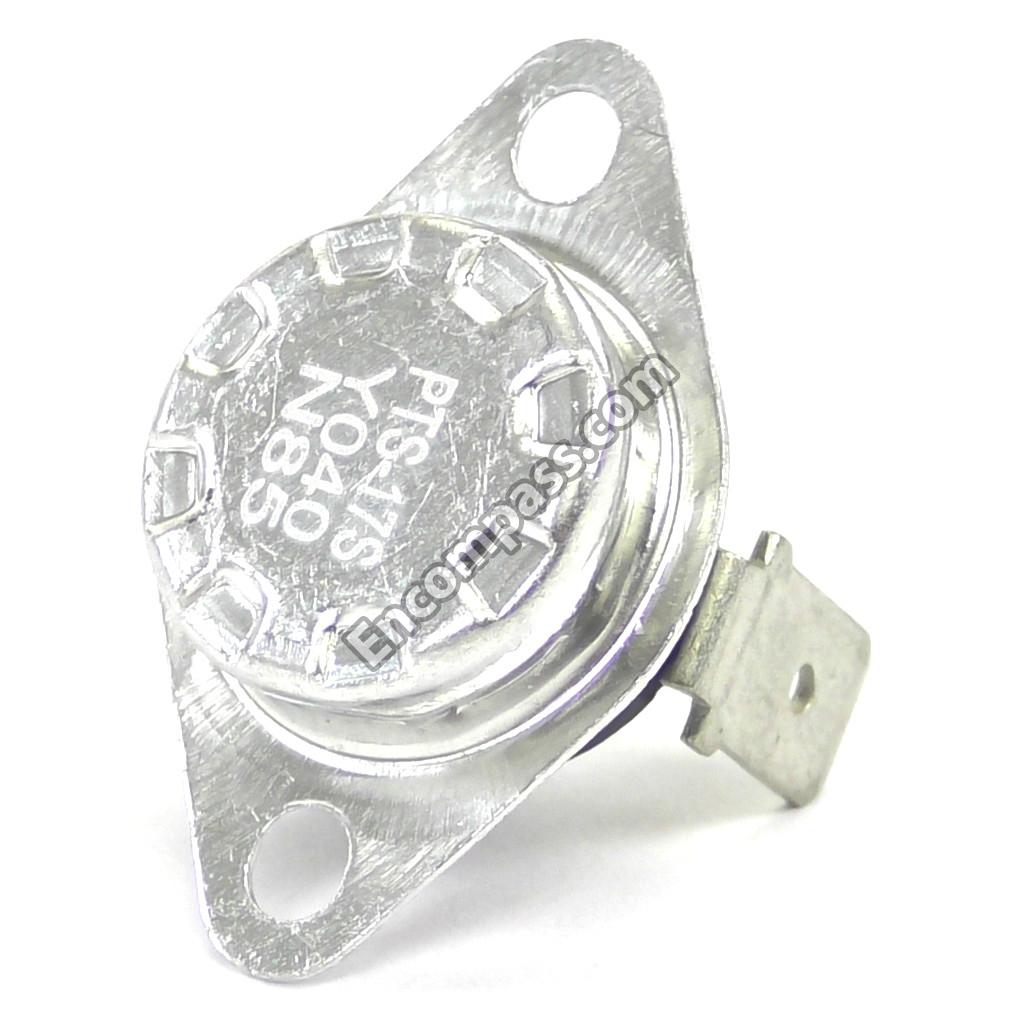

THERMOSTAT;AC125/250V,25A,85,-35,S.O.D,2 |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,ST,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,PNP,350MW,SOT-2 |
| 3812-000219 | WIRE-NO SHEATH CU;TCWA,300V,52MM(TAPING) |
