Manufacturer
Samsung
Model Number
DVG51CG8000VA3
Description
Gas Dryer - 7.5 Cu. Ft.
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ABSORBER SPONGE;-,EPDM,T3,D0,-,BLACK,-,- |
|
|
ASSEMBLY BRACKET IDLER;ALL DRYER |
|
|
ASSEMBLY BRACKET MOTOR;BIGBANG |
|
|
ASSEMBLY BURNER-MODULE;DV6000R,SINGLE TYPE |
| DC97-16160B | ASSEMBLY COVER FILTER;DV6000R,PP,T2.5,VERSAI |
| DC97-21429T | ASSEMBLY COVER PCB;DV*51CG8000*A3,SINGLE,NO |
| DC97-21428P | ASSEMBLY COVER TOP-MODULE;DV8600A,DV*50A8800 |
| DC97-15975K | ASSEMBLY DOOR-MODULE;DV6000T,DV*45T6000V/A3, |
| DC97-15984H | ASSEMBLY DRUM FRONT-MODULE;27-INCH DRUM,VERSAILL |
| DC97-23529E | ASSEMBLY DRUM WRAPPER-MODULE;DV6700B,EGI,VER |
| DC97-07521E | ASSEMBLY DUCT AIR;27 DRYER,DV405GTPASU/AA,A |
|
|

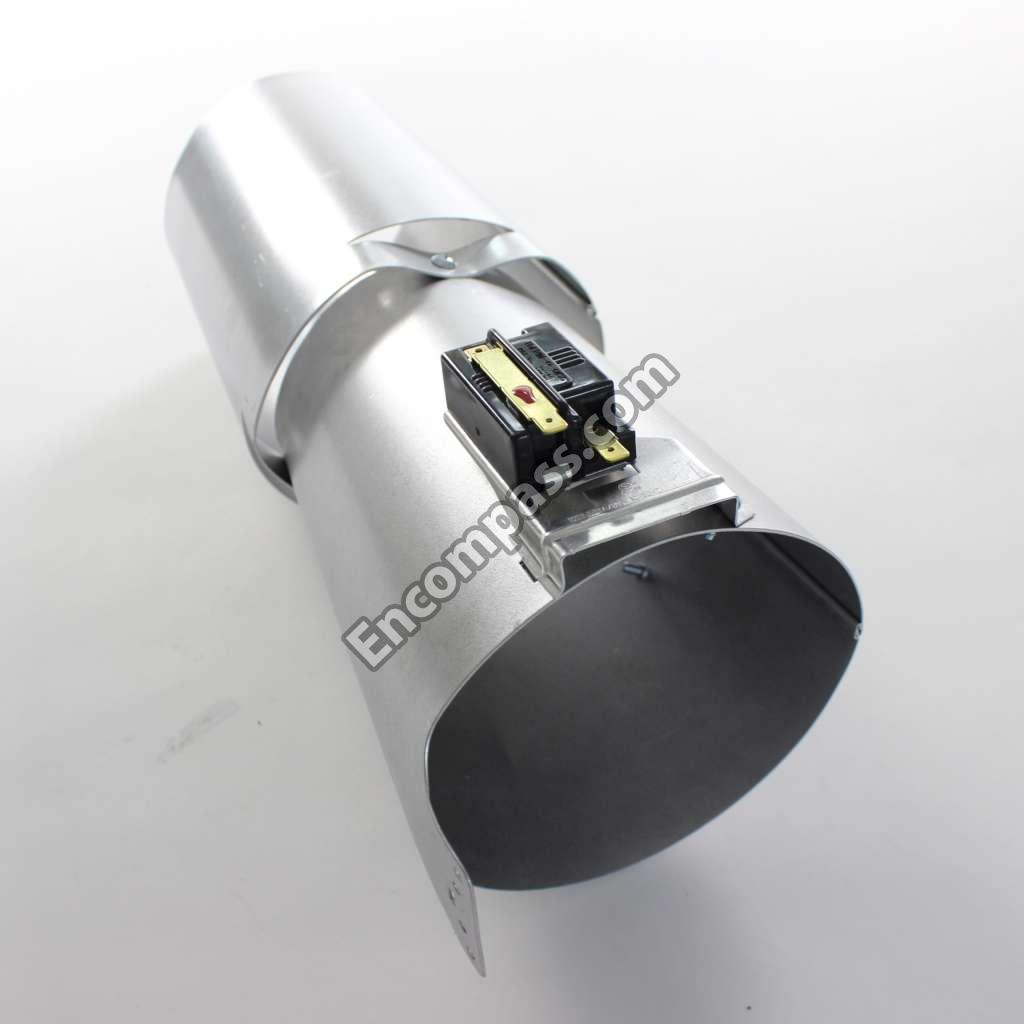

ASSEMBLY DUCT CONE;27 DRYER,DV457GVGSGR/AA, |
|
|
ASSEMBLY DUCT EXHAUST;DV7000J, DV7000H,GI-SG |
| DC93-00187A | ASSEMBLY DUCT OUTLET;GRACE PJT,DV520AEP,SGCC |
|
|
ASSEMBLY DUCT;MDG9700AWW,-,-,-,GAS,- |
|
|
ASSEMBLY FAN MOTOR-MODULE;GRACE(S) DRYER,DV4 |
| DC97-23649A | ASSEMBLY FRAME FRONT-MODULE;DV8800A,DV*50A88 |
| DC97-21426A | ASSEMBLY FRAME PLATE-UP;DV6000R,DVE45R6300V, |
| DC97-23142W | ASSEMBLY FRAME-MODULE;DVG20T6000V/AZ,T0.7,BL |
|
|
ASSEMBLY GASKET PAD;MDE9700AYW,DRYER/DRUM-WR |
|
|
ASSEMBLY HOLDER LEVER;DV7500K,DV50K7500*,VER |
|
|
ASSEMBLY LAMP LED;1EA,FR-4,14*12,WHITE,SMH20 |
|
|
ASSEMBLY MODULE;JOG MODULE,A PJT,12 CYCLE,ST |
|
|
ASSEMBLY MOTOR PARTS;27-INCH DRYER |
| DC97-24062D | ASSEMBLY PANEL CONTROL;DV8000C,DVG8000VA3,BL |
| DC92-03451H | ASSEMBLY PBA MODULE;FCD_DRY,DV8000C,SEA,GAS, |
| DC92-03330E | ASSEMBLY PCB MAIN;FCD,DV8000C,190*97MM,120V/ |
| DC99-00507C | ASSEMBLY PIPE;LNG MODEL,GAS DRYER/ELBOW ASSEMBLY |
|
|
ASSEMBLY PLASTIC SUPPORT;DV7000R,- |
| DC97-21616M | ASSEMBLY S.PANEL CONTROL;DV6000R,DVE45R6300V |
|
|
ASSEMBLY SCREW;ACE-PJT,DV419AEU,SWRCH18A,M4* |
|
|
ASSEMBLY SCREW;MDG9700AWW |
|
|
ASSEMBLY SENSOR-RADIANT;-,AC 120V,60 HZ,32 ~ |
| DC93-01033A | ASSEMBLY WIRE HARNESS-MAIN;DRYER-L,1 STAGE G |
|
|
ASSEMBLY WIRE HARNESS-TOUCH;DRYER-L,-,,,,,,, |
| 6922-000003 | BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A, |
| 6601-000125 | BEARING-BALL;608ZZ,ID8,OD22,L7,STB2 |
|
|
BELT-TIMING GEAR;RUBBER,RED/YEL,T2.4,W8, |
|
|
BOLT-ETC;M5,L11,ZPC(WHT),SWRCH18A |
|
|
BRACKET BURNER;WINGS-DRYER,GI-SGCC,T1.4 |
| DC61-01238A | BRACKET DRUM BACK;27-DRYER,GI-SGCC,T0.8, |
|
|
BRACKET DRUM BACK;DV520AEP/XAA,GI-SGCC,T |
| DC61-01237A | BRACKET DRUM BACK;WINGS-DRYER,GI-SGCC,T0 |
| DC61-01236A | BRACKET DRUM FRONT;-,HGI-SGHC,T3,-,-,-,D |
| DC61-02626C | BRACKET HINGE;GRACE-DRYER,HGI-SGHC,T2,-, |
|
|
BRACKET IGNITER;DV220AEW,GI-SGCD,T1.2,-, |
|
|
BRACKET MOTOR;WINGS-DRYER,HGI-SGHC,T1.8, |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2401-001548 | C-AL;47UF,20%,25V,TP,5X11MM,5MM,-55TO+10 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2301-001220 | C-FILM,LEAD-PPF;100NF,10%,275VAC,BK,18X6 |
| 2301-001788 | C-FILM,MPEF;220NF,10%,275VAC,BK,18X8.5X1 |
| 6502-000127 | CABLE CLAMP;DAWH-18NB,PA66,NTR |
| DC61-00553C | CABLE CLAMP;PA66,NTR |
| DC67-00348B | CAP COVER TOP;DV448AEP,ABS,-,-,HG-0760GP |
| DC67-00333B | CAP COVER TOP;DV448AEP,ABS,HB,HG-0760GP, |
| DC61-02595C | CASE FILTER;DV8600A,PP+TD30%,-,VERSAILLE |
| DC02-10009A | CHEMICALS-LOCK SCREW;NO2 |
| DC63-01983A | COVER CONNECTOR;DV5000H,PP,T2.5,5VA,DARK |
| DC63-01140B | COVER FILTER-UP;GRACE-DRYER,PP,-,5VA,VER |
|
|
COVER FRONT;WF448AAP,PP,T1.5,-,INOX GRAY |
| DC63-02385A | COVER PCB;DVE45R6400V,GI-SGCC,T0.6,MAIN |
|
|
COVER SWITCH;DV448,PC+ABS,T1.5,V-0,NATUR |
|
|
DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP |
| 0402-001192 | DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP |
| 0402-001669 | DIODE-RECTIFIER;ES3D,200V,3A,SMC,TP |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-001499 | DIODE-ZENER;MMSZ5252B,22.8~25.2V,500MW,S |
|
|
DOOR GLASS;27-DRYER,GLASS,T5,-,-,-,-,ARC |
| DC66-01095B | DRUM LIFTER;DV8900B,PP+TD30%,-,-,HB,FC23 |
| DC67-00822A | DUCT EXHAUST;GI-SGCC,T0.35,-,-,- |
|
|
DUCT-CONE(F);ALCOAT-SA1C,T0.8,FRONT |
|
|
FAN;PP+GLF15%,T3,GF15% |
|
|
FASTENER-PLAIN;HUDSON-DRYER,EGI-SECC,T1. |
|
|
FIXER LAMP;GE24-DRYER,EPDM,-,GRAY,- |
| DC61-05418E | FRAME;DVG45T6000V/A3,GI-SGCC,-,BLACK CAV |
| DC61-03133A | GUIDE COVER TOP;DV5471AEP,PA66+GF25%,-,- |
|
|
GUIDE COVER TOP;HUDSON,POM,-,-,500P,BLAC |
|
|
GUIDE DUCT FAN;27-DRYER,GI-SGCC,T0.6 |
|
|
GUIDE HINGE;HAUZEN(DOM),POM,-,-,K300,NAT |
|
|
GUIDE-FAN;DV50F9A8EVW,PP+TD30%,T3,W102.1 |
| 3711-000833 | HEADER-BOARD TO CABLE;BOX,2P,1R,8MM,STRA |
|
|
HEATER IGNITER;AC120V,NORTON,660W,SILICO |
| DC61-04152A | HINGE DOOR;DV7500K,ALDC,-,-,-,-,-,METALI |
| DC61-00882A | HOLDER D.WIRE;PA66+GF15%,BLACK,KN333G15, |
|
|
HOLDER WIRE;DAWH-2NC,PA66,-,NATURAL,-,-, |
| DC61-60074A | HOLDER WIRE;PA66,NATURAL,101F,RECTANGLE |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
|
|
KNOB ENCODER;WA54P7650A*,ABS,-,-,NATURAL |
|
|
LEG;DV511AER,PP,5VA,DARK HOLDER GRAY,FH2 |
|
|
LEVER DOOR;DV9000H,ZNDC,T3 |
|
|
MASCOT;ALL,NI,-,-,-,-,- |
|
|
MOTOR AC DRIVE-MODULE;DRYER MOTOR,-,4POL |
|
|
NUT HEX;-,MSWR,T,-,-,-,M10 |
| 6021-001130 | NUT-CIRCULAR;SK5,BLK,SPN-4,ID3.8,OD12,H1 |
|
|
NUT-INCH;SWRCH10A,ZPC(YZPC(YEL)EL),LEFT |
|
|
PLATE SENSOR;DV220AEW,STS430,T0.8,TOUCH- |
|
|
POWER CORD-AT;SJT 3X16AWG 105C,GRY,US3S, |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000394 | R-CHIP;150KOHM,1%,1/4W,TP,3216 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000474 | R-CHIP;1MOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000537 | R-CHIP;200OHM,1%,1/4W,TP,3216 |
| 2007-000761 | R-CHIP;330KOHM,5%,1/4W,TP,3216 |
| 2007-008231 | R-CHIP;680OHM,1%,1/16W,TP,1005 |
| 2007-007321 | R-CHIP;68OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|
RELAY-MINIATURE;12V,200MW,3000MA,1FORMA, |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
|
|
ROLLER;WINGS-PROJECT,EPDM,BLACK,INSERT |
|
|
SCREW-HEX;HEX,+,M5,L10,NI-ZN(WHT),SWRCH1 |
|
|
SCREW-HEX;HWH,+,M5,L16,PASS,STS430,FP,SE |
|
|
SCREW-MACHINE;STS304,PASS,L12,M5,TH,+,2, |
|
|
SCREW-MACHINE;STS430,PASS,L16,M5,TH,+,FP |
| 6002-000473 | SCREW-TAPPING;STS304,PASS,L14,M4,TH,+,1 |
|
|
SCREW-TAPPING;STS304,PASS,L8,M4,TH,+,NO, |
|
|
SCREW-TAPPING;STS430,PASS,L14,M4,TH,+,2 |
|
|
SCREW-TAPPING;STS430,PASS,L18,M4,TH,+,NO |
|
|
SCREW-TAPPING;SWRCH18A,NI PLT,L12,M4,TH, |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
| 6002-000231 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M5,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M3,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
| 6002-001436 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SEAL DOOR;DV448AEW,TPE,-,-,EK-1045,DARK |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 1201-000181 | SMG PART |
| 0101-003297 | SMG PART |
| 0102-001603 | SMG PART |
| 0103-001041 | SMG PART |
| 0103-001846 | SMG PART |
| 0103-002442 | SMG PART |
| 0103-002994 | SMG PART |
| 0103-003217 | SMG PART |
| 0103-003269 | SMG PART |
| 0103-003294 | SMG PART |
| 0103-003325 | SMG PART |
| 0103-003385 | SMG PART |
| 0103-003454 | SMG PART |
| 0103-003461 | SMG PART |
| 0103-004710 | SMG PART |
| 0103-005975 | SMG PART |
| 0103-007355 | SMG PART |
| 0103-008645 | SMG PART |
| 0103-008912 | SMG PART |
| 0103-009089 | SMG PART |
| 0103-009569 | SMG PART |
| 0103-010287 | SMG PART |
| 0103-011328 | SMG PART |
| 0103-012207 | SMG PART |
| 0103-012232 | SMG PART |
| 0202-001463 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-006425 | SMG PART |
| 0203-006428 | SMG PART |
| 0204-004665 | SMG PART |
| 0204-004866 | SMG PART |
| 0204-004868 | SMG PART |
| 0402-001741 | SMG PART |
| 0406-001594 | SMG PART |
| 0505-001943 | SMG PART |
| 0601-002679 | SMG PART |
| 0604-001405 | SMG PART |
| 0903-001966 | SMG PART |
| 0903-002203 | SMG PART |
| 1203-007747 | SMG PART |
| 1205-005895 | SMG PART |
| 1405-001239 | SMG PART |
| 2007-001015 | SMG PART |
| 2007-007385 | SMG PART |
| 2007-008682 | SMG PART |
| 2201-002427 | SMG PART |
| 2203-010032 | SMG PART |
| 2401-004267 | SMG PART |
| 2401-005387 | SMG PART |
| 2703-003657 | SMG PART |
| 3301-002113 | SMG PART |
| 3501-001207 | SMG PART |
| 3501-001753 | SMG PART |
| 3711-000744 | SMG PART |
| 3711-004826 | SMG PART |
| 3711-009410 | SMG PART |
| 3711-009517 | SMG PART |
| 4709-003031 | SMG PART |
| 4715-001217 | SMG PART |
| 6002-001384 | SMG PART |
| 6031-001876 | SMG PART |
| 6041-001030 | SMG PART |
| 6601-003218 | SMG PART |
| 6902-002371 | SMG PART |
| DB26-00133A | SMG PART |
| DC01-00120H | SMG PART |
| DC01-00120U | SMG PART |
| DC01-00120V | SMG PART |
| DC01-00120Y | SMG PART |
| DC01-00121H | SMG PART |
| DC01-00122C | SMG PART |
| DC01-00122D | SMG PART |
| DC01-00122V | SMG PART |
| DC01-00122X | SMG PART |
| DC01-00123C | SMG PART |
| DC01-00123D | SMG PART |
| DC01-00123E | SMG PART |
| DC01-00123G | SMG PART |
| DC01-00123H | SMG PART |
| DC01-00123J | SMG PART |
| DC01-00124A | SMG PART |
| DC01-00127B | SMG PART |
| DC01-00128B | SMG PART |
| DC01-00129F | SMG PART |
| DC01-00129H | SMG PART |
| DC01-00129T | SMG PART |
| DC01-00258A | SMG PART |
| DC01-00259A | SMG PART |
| DC01-00281A | SMG PART |
| DC01-00487F | SMG PART |
| DC01-00518A | SMG PART |
| DC01-00563B | SMG PART |
| DC01-00575B | SMG PART |
| DC01-00658A | SMG PART |
| DC01-00718A | SMG PART |
| DC02-00014A | SMG PART |
| DC27-00007A | SMG PART |
| DC41-00293A | SMG PART |
| DC61-01208A | SMG PART |
| DC61-01223A | SMG PART |
| DC61-01227A | SMG PART |
| DC61-01230C | SMG PART |
| DC61-02960A | SMG PART |
| DC61-03031H | SMG PART |
| DC61-03755A | SMG PART |
| DC61-04018A | SMG PART |
| DC61-04162A | SMG PART |
| DC61-04235A | SMG PART |
| DC61-04553A | SMG PART |
| DC61-04875B | SMG PART |
| DC61-04918C | SMG PART |
| DC61-04922D | SMG PART |
| DC61-04929A | SMG PART |
| DC62-00234B | SMG PART |
| DC63-00621B | SMG PART |
| DC63-01026A | SMG PART |
| DC63-01139B | SMG PART |
| DC63-01143B | SMG PART |
| DC63-01202A | SMG PART |
| DC63-01548A | SMG PART |
| DC63-01758A | SMG PART |
| DC63-02104D | SMG PART |
| DC63-02340B | SMG PART |
| DC63-02341B | SMG PART |
| DC63-02382Z | SMG PART |
| DC63-02464B | SMG PART |
| DC63-02636A | SMG PART |
| DC63-02971L | SMG PART |
| DC64-03115A | SMG PART |
| DC64-03840B | SMG PART |
| DC64-03858E | SMG PART |
| DC64-04108K | SMG PART |
| DC66-00400G | SMG PART |
| DC66-00405S | SMG PART |
| DC66-00411R | SMG PART |
| DC66-00440A | SMG PART |
| DC66-00596C | SMG PART |
| DC66-00902A | SMG PART |
| DC66-00903A | SMG PART |
| DC67-00130A | SMG PART |
| DC67-00135B | SMG PART |
| DC67-00137C | SMG PART |
| DC67-00454A | SMG PART |
| DC67-00455A | SMG PART |
| DC67-00678A | SMG PART |
| DC68-02173A | SMG PART |
| DC68-02236B | SMG PART |
| DC68-02238D | SMG PART |
| DC68-02298A | SMG PART |
| DC68-02321A | SMG PART |
| DC68-02322A | SMG PART |
| DC68-02324A | SMG PART |
| DC68-02948A | SMG PART |
| DC68-02977C | SMG PART |
| DC68-03194M | SMG PART |
| DC68-03257B | SMG PART |
| DC68-04090A | SMG PART |
| DC68-04224C | SMG PART |
| DC68-04394A | SMG PART |
| DC68-20091J | SMG PART |
| DC69-01178L | SMG PART |
| DC69-01721B | SMG PART |
| DC69-02097B | SMG PART |
| DC69-02097C | SMG PART |
| DC69-02340A | SMG PART |
| DC69-02570A | SMG PART |
| DC69-02621A | SMG PART |
| DC69-02622A | SMG PART |
| DC69-02623A | SMG PART |
| DC72-00011Y | SMG PART |
|
|
SMG PART |
| DC72-00032D | SMG PART |
| DC72-00032E | SMG PART |
| DC72-00032G | SMG PART |
| DC72-00040D | SMG PART |
| DC90-15188A | SMG PART |
| DC90-29998X | SMG PART |
| DC90-30542S | SMG PART |
| DC90-31238D | SMG PART |
| DC90-31239B | SMG PART |
| DC92-02337B | SMG PART |
| DC92-02412B | SMG PART |
| DC92-03331A | SMG PART |
| DC94-13987A | SMG PART |
| DC94-13988A | SMG PART |
| DC94-13989A | SMG PART |
| DC97-07509C | SMG PART |
| DC97-16609F | SMG PART |
| DC97-21492P | SMG PART |
| DC97-23459B | SMG PART |
| DC97-23928A | SMG PART |
| DC97-23945F | SMG PART |
| DC98-04121A | SMG PART |
| DC98-04122A | SMG PART |
| DC98-04909B | SMG PART |
|
|
SPRING ETC FILTER;BIGBANG-DRYER,HSWR,PI0 |
|
|
SPRING ETC TENSION;MDE9700AYW,HSWR-SWRH, |
|
|
SPRING PLATE;DRYER,SK5,-,HEAT TREATMENT, |
|
|
STAND OFF;NTR,PA66,DAWH-3NA |
| DC61-04154A | SUPPORT HINGE;DV7500K,GI-SGCC,T1.4,SGCC |
|
|
SWITCH DOOR;AC125/250V,7.5A,5A,BUTTON HE |
| 3405-001118 | SWITCH-MICRO;125/250VAC,16A,180,SPST-NC, |
| DC69-90008A | TAPE OPP;OPP,T0.054,W50 |
| 0203-001544 | TAPE-FILAMENT;260A,T0.16,W15,L50M |
| 0203-001545 | TAPE-FILAMENT;PP,T0.16,W35,L50M,WHITE |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
|
|
THERMISTOR;WASHER,-40~105 ,5,5,10K 2%( |
|
|
THERMOSTAT;AC125/250V,25A,110C,82.2C,NOR |
|
|
THERMOSTAT;AC125/250V,25A,85,-35,S.O.D,2 |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
|
|
TUBE BURNER;WINGS-DRYER,PRESS(GAS UNIT), |
|
|
VALVE GAS;AC110-127V,20,000 BTU, SINGLE, |
|
|
WINDOW ENCODER;WW6800M,PMMA,-,-,TF-0959T |
