Manufacturer
Samsung
Model Number
EXS1855CSB
Description
18-55mm F3.5- 5.6 Ois Iii Standard Zoom Lens
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| AD97-20985C | ASSY BARREL-OUTER R;BLK,XL1205 |
| AD92-01898A | ASSY PBA SUB-ASSY_XL1205_MAIN_PCB;XL1205 |
| AD97-18288A | ASSY SUB BARREL-LENS CAP;XL1013,ABS,XL10 |
|
|

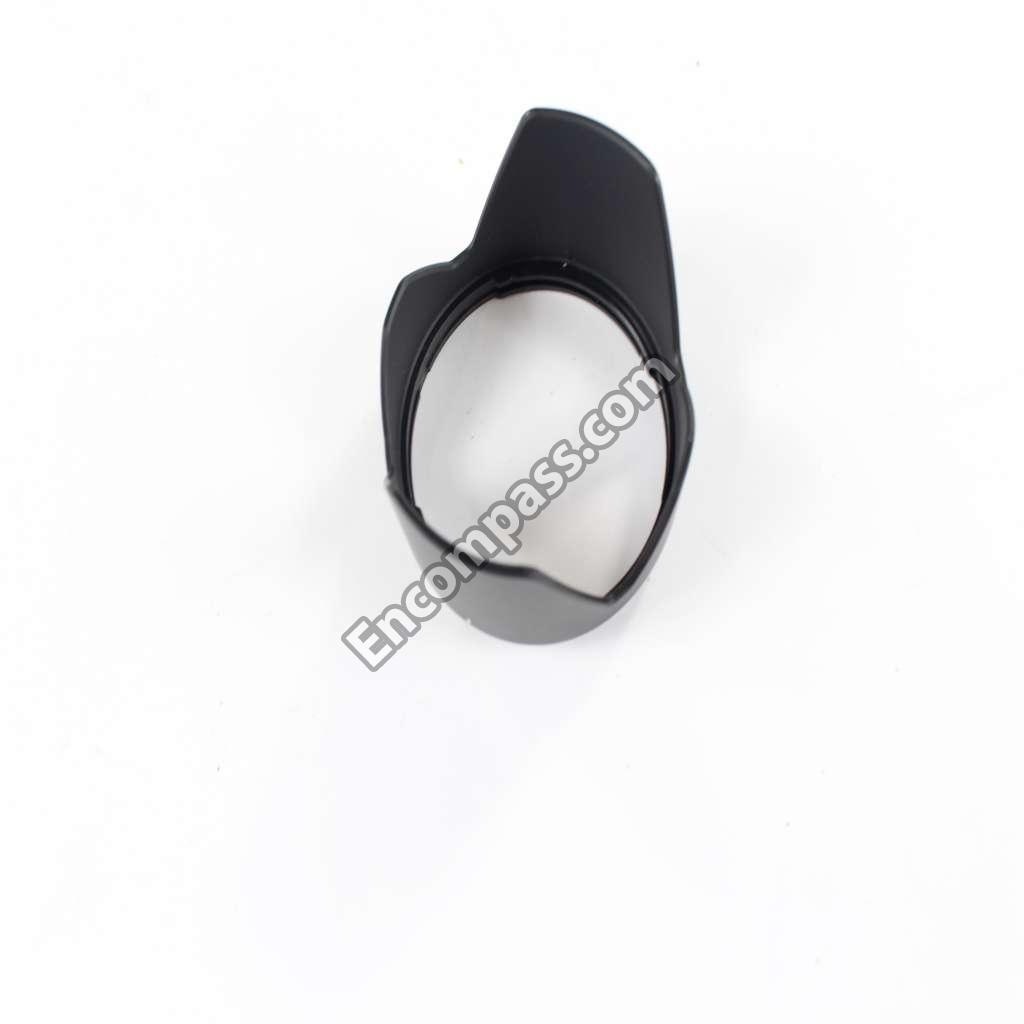

ASSY SUB BARREL-LENS HOOD;XL1013,1855MM |
| AD97-21699B | ASSY SUB BARREL-LENS;BLK,XL1205 |
| AD97-21213B | ASSY SUB BARREL-SWITCH I FN;BLK,BLK,XL10 |
| AD67-01353B | BARREL-1ST MOVER;XL1013I,PC(GF30%),BLK |
| AD67-01358A | BARREL-CAM;XL1013,PC(GF30%) |
| AD67-01360B | BARREL-FILTER;XL1013I,PC(GF30%),BLK |
| AD67-01365B | BARREL-INDEX RING 3;XL1013I,PC(GF10%),BL |
| AD67-01359A | BARREL-MAIN;XL1013,PC(GF30%) |
| AD67-01377C | BARREL-ZOOM RING;XL1013,PC(GF30%),BLK |
| 3301-001959 | BEAD-SMD;5OHM,1.0X0.5X0.5 |
| AD69-02493A | BOX-POUCH_S1855S;EX-S1855SB,CB,119.5,81, |
| AD64-02675A | BUTTON-A;XL1013,PC+GF10% |
| 2203-006399 | C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| AD63-04241C | COVER-BUTTON;XL1013I,PC(GF10%),BLK |
| AD63-03989A | COVER-MOUNT CAP;XL1012,PC(GF30),BLACK |
| AD63-04242A | COVER-MOUNT;XL1013,PC(GF10%) |
| AD41-01327A | FPC-MFPI_FPCB;XL1013,6,0.8 |
| AD41-01305A | FPC-XL1012_CONTACT;XL1012,POLYMIDE, COPP |
| AD66-00723A | GEAR-1;XL1013,POM |
| AD66-00724A | GEAR-2;XL1013,POM |
| AD66-00725A | GEAR-3;XL1013,POM |
| AD61-05701A | MOUNT-LENS;XL1205,AL6063 |
| AD61-04259A | PLATE-POTENTIOMETER PLATE;XL1013,STS304 |
| 2007-007008 | R-CHIP;300OHM,5%,1/16W,TP,1005 |
| 6003-001674 | SCREW-TAPTYPE;PH,B,M1.4,L2.5,NI PLT,SW |
| 6003-001769 | SCREW-TAPTYPE;PH,B,M1.4,L2.5,ZPC(BLK)- |
| 6003-001706 | SCREW-TAPTYPE;PH,B,M1.4,L3,ZPC(BLK),SW |
| 6003-001770 | SCREW-TAPTYPE;PH,B,M1.4,L3,ZPC(BLK)-72 |
| 6003-001703 | SCREW-TAPTYPE;PH,B,M1.7,L3.5,ZPC(BLK), |
| 6003-001641 | SCREW-TAPTYPE;PH,B,M1.7,L3.5,ZPC(BLK), |
| 6003-001671 | SCREW-TAPTYPE;PH,B,M1.7,L5,NI PLT,SWRCH1 |
|
|

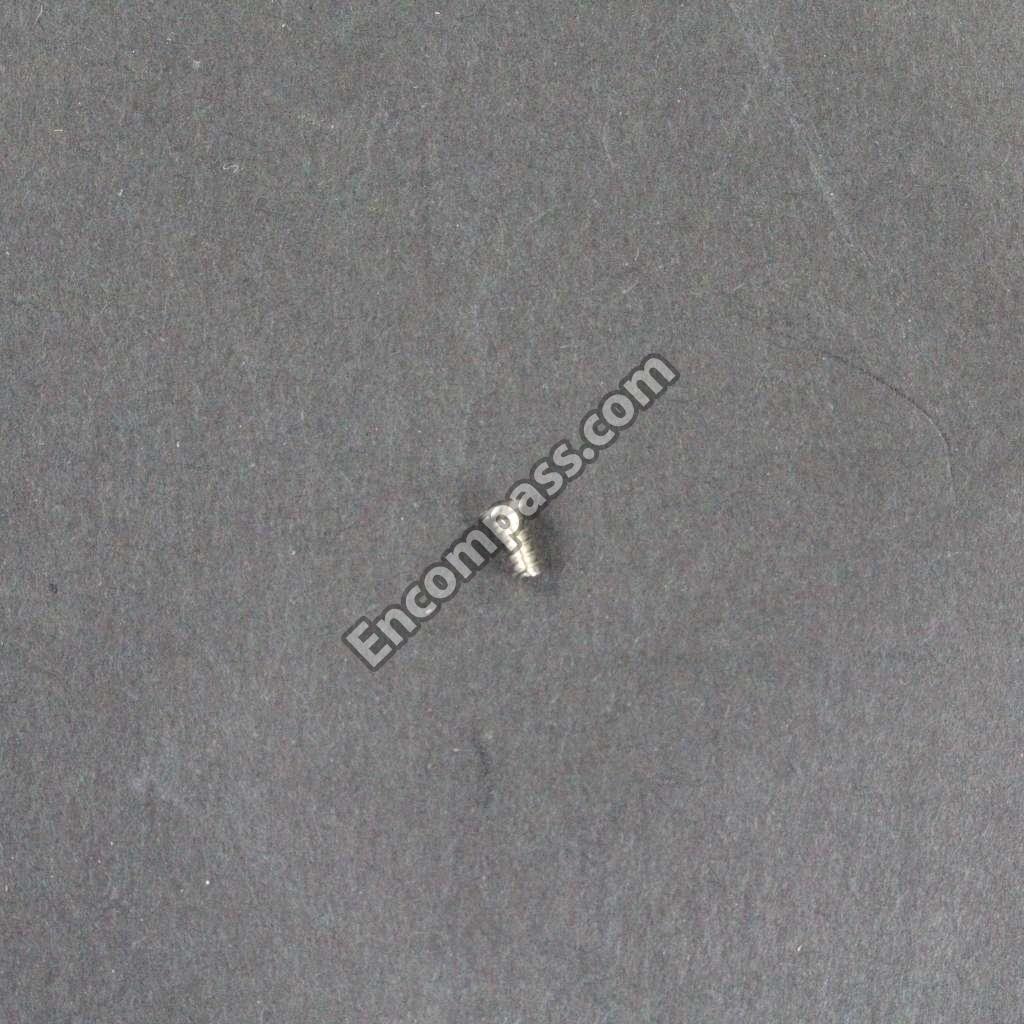

SCREW-TAPTYPE;PH,B,M2,L4,NI PLT,SWRCH1 |
| 6003-001657 | SCREW-TAPTYPE;RH,B,M1.4,L4,ZPC(BLK),SW |
| AD66-00733A | SHAFT-CAM ROLLER;XL1013,SUS304-B |
| AD66-00732A | SHAFT-ZOOMING ROLLER;XL1013,SUS303-C |
| AD63-06912A | SHEET-NAME PLATE;XL1205,PC |
| AD63-04270A | SHIELD-3;XL1013,CHAMOIS+TAPE |
| 0202-001492 | SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,D0 |
| 3408-001149 | SWITCH-SLIDE;5VDC,0.3A,1,1P2P |
| 3404-001347 | SWITCH-TACT;15,20MA,160GF,4.5X4.5X0.55,1 |
