Manufacturer
Samsung
Model Number
HG22NE690ZFXZA
Description
Led Tv(h),hg22ne690zf,22,united States,
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-001578 | ADHESIVE-HM |
| BN96-23636B | ASSEMBLY BOARD P-TOUCH FUNCTIO |

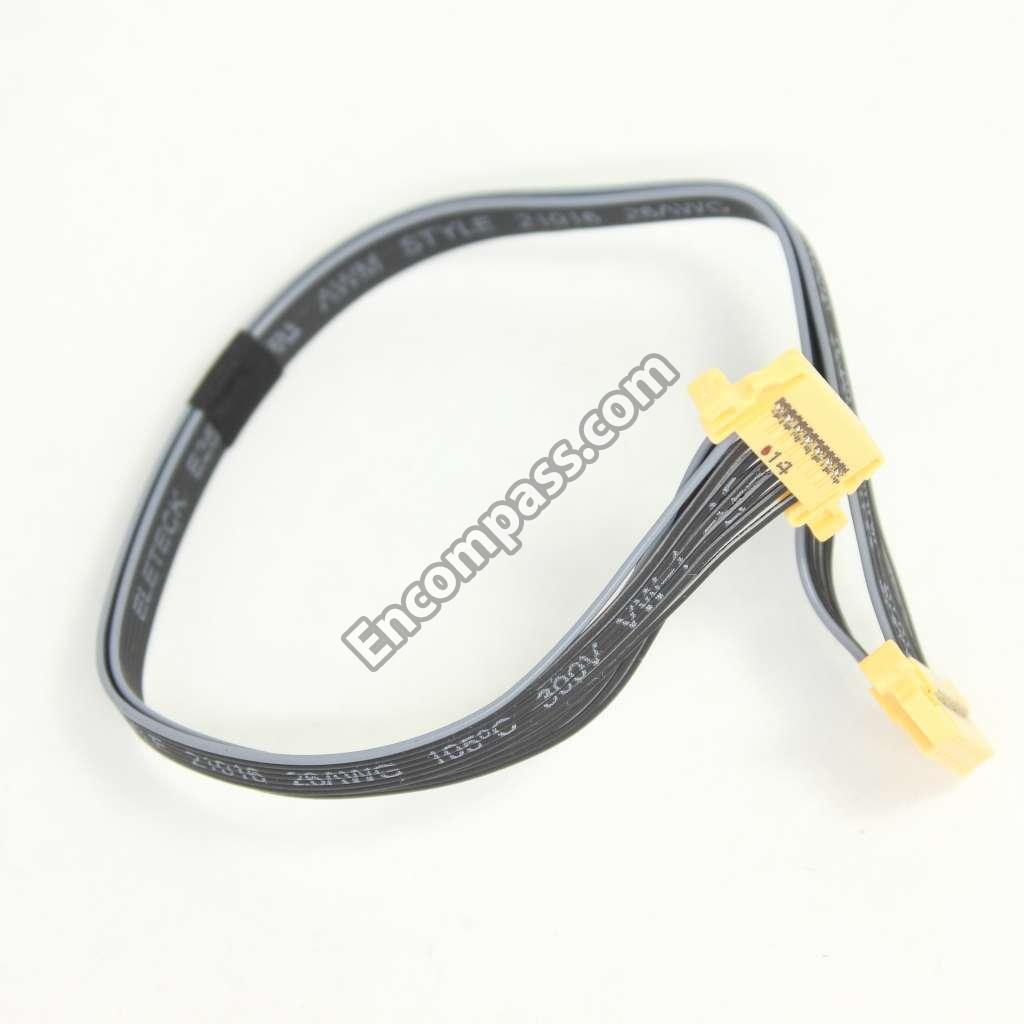

| BN96-18610Y | ASSEMBLY CABLE P-FFC |
| BN96-19716J | ASSEMBLY COVER P-FRONT |
| BN96-19639H | ASSEMBLY SPEAKER P |
|
|
ASSEMBLY STAND P-BASE |
| 6902-000341 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
|
|
BEAD-SMD |
| 3301-001404 | BEAD-SMD |
| 3301-000314 | BEAD-SMD |
| 2402-001268 | C-AL,SMD |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006960 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006260 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-005642 | C-CER,CHIP |
| 2203-005344 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-005083 | C-CER,CHIP |
| 2203-002711 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-000627 | C-CER,CHIP |
| 2409-001168 | C-EDL |
| 2503-001051 | C-NETWORK |
|
|
CBF IF-MODULAR/MODULAR |
|
|
CBF IF-MODULAR/MODULAR |
|
|
CBF-POWER CORD;DT,USA,ANGLE,2P |
| BN65-00002A | CLAMPER CORE |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC |
| 3701-001856 | CONNECTOR-HDMI |
| 3711-007569 | CONNECTOR-HEADER |
| 3707-001106 | CONNECTOR-OPTICAL |
| BN63-02183C | COVER-SHEET |
| 2801-003326 | CRYSTAL-SMD |
| BN69-06554A | CUSHION-SET |
| BN44-00467D | DC VSS-LED TV PD BD |
| 0404-001881 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0401-001099 | DIODE-SWITCHING |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0403-001797 | DIODE-ZENER |
| 0403-001785 | DIODE-ZENER |
| 0505-003397 | FET-SILICON |
| 0505-002917 | FET-SILICON |
| 0505-002560 | FET-SILICON |
|
|
FUSE-SURFACE MOUNT |
|
|
GUIDE-STAND |
| 3711-008131 | HEADER-BOARD TO CABLE |
| 3711-005601 | HEADER-BOARD TO CABLE |
|
|
HOLDER-WIRE STAND |
| 1201-003690 | IC-AUDIO AMP |
| 1205-003201 | IC-BUS SWITCH |
| 0801-002780 | IC-CMOS LOGIC |
| 0801-002564 | IC-CMOS LOGIC |
| 1203-008118 | IC-DC/DC CONVERTER |
| 1203-007984 | IC-DC/DC CONVERTER |
| 1203-007694 | IC-DC/DC CONVERTER |
| 1105-002534 | IC-DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM |
| 1204-003535 | IC-DECODER |
| 1204-003354 | IC-DEMODULATOR |
| 1006-001509 | IC-DRIVER/RECEIVER |
| 1103-001564 | IC-EEPROM |
| 1103-001561 | IC-EEPROM |
| 1107-002290 | IC-EMMC |
| 0903-001879 | IC-MICROCONTROLLER |
| 1107-002226 | IC-NOR FLASH |
| 1203-007242 | IC-POSI.ADJUST REG. |
| 1203-006136 | IC-POSI.FIXED REG. |
| 1203-006109 | IC-POSI.FIXED REG. |
| 0909-001032 | IC-REAL TIME CLOCK |
| 1205-004447 | IC-SWITCH |
| 1203-006017 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 2703-004724 | INDUCTOR-SMD |
| 2703-003790 | INDUCTOR-SMD |
| 2703-003713 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD |
| 3722-003246 | JACK-MODULAR |
| 3722-003229 | JACK-MODULAR |
| 3722-003667 | JACK-PHONE |
| 3722-003226 | JACK-PHONE |
|
|
JACK-PIN |
| 3722-003248 | JACK-USB |
| BN68-01176A | LABEL RATING |
| BN68-00513A | LABEL-E, PASS |
| BN68-00129A | LABELSHIPPING |
| BN07-01352A | LCD-PANEL |
| BN39-01476V | LEAD CONNECTOR |
|
|
LEAD CONNECTOR |
| BN72-60002A | LEVER-BOTTOM |
| BN72-60001A | LEVER-TOP |
| 2806-001308 | OSCILLATOR-VCXO |
| 2007-008779 | R-CHIP |
| 2007-008332 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-001168 | R-CHIP |
| 2007-001116 | R-CHIP |
| 2007-000803 | R-CHIP |
| 2007-000695 | R-CHIP |
| 2011-001587 | R-NETWORK |
| 2011-001527 | R-NETWORK |
| 2011-001506 | R-NETWORK |
| 2011-001449 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
| BN63-05199C | SHEET-COVER |
| BN60-00162Y | SPACER-FOAM |
| BN61-02429B | STUD-PEM |
| 0203-001602 | TAPE-OPP MASKING |
| 0501-000445 | TR-SMALL SIGNAL |
| BN40-00279B | TUNER |
| BH75-10529A | UNIT-HANDLE PACKING |
|
|
VARISTOR |
| 1405-001233 | VARISTOR |
