Manufacturer

Samsung

Model Number

HG40ND690UFXZA

Description

Led Tv(h),hg40nd690uf,40,united States,

Interactive Exploded View

Parts List

Part Number	Description
BN96-37097B	ASSEMBLY BOARD P-FUNCTION IR
BN96-35345B	ASSEMBLY BOARD P-FUNCTION_SW
BN96-36273E	ASSEMBLY CABLE P
BN96-35593A	ASSEMBLY CHASSIS TOP P
BN96-37237T	ASSEMBLY COVER P-REAR
BN96-35974A	ASSEMBLY GUIDE P-STAND
BN96-34792A	ASSEMBLY LED BAR P
BN96-34791A	ASSEMBLY LED BAR P
BN96-34887A	ASSEMBLY OPEN CELL
BN94-08625D	ASSEMBLY PCB MAIN
BN96-35007D	ASSEMBLY SPEAKER P
BN96-35977A	ASSEMBLY STAND P-BASE
BN95-01936B	ASSEMBLY T CON
BH69-00418A	BAG PE-WRAPPING FILM
3301-002039	BEAD-SMD
3301-001404	BEAD-SMD
2402-001268	C-AL,SMD
2203-007544	C-CER,CHIP
2203-007513	C-CER,CHIP
2203-007306	C-CER,CHIP
2203-007193	C-CER,CHIP
2203-007176	C-CER,CHIP
2203-006818	C-CER,CHIP
2203-006741	C-CER,CHIP
2203-006698	C-CER,CHIP
2203-006348	C-CER,CHIP
2203-006320	C-CER,CHIP
2203-006158	C-CER,CHIP
2203-006126	C-CER,CHIP
2203-006048	C-CER,CHIP
2203-005968	C-CER,CHIP
2203-005918	C-CER,CHIP
2203-005344	C-CER,CHIP
2203-005249	C-CER,CHIP
2203-005083	C-CER,CHIP
2203-003039	C-CER,CHIP
2203-002982	C-CER,CHIP
2203-002711	C-CER,CHIP
2203-002285	C-CER,CHIP
2203-001851	C-CER,CHIP
2203-001124	C-CER,CHIP
2203-000975	C-CER,CHIP
2203-000888	C-CER,CHIP
2203-000715	C-CER,CHIP
2203-000627	C-CER,CHIP
2203-000575	C-CER,CHIP
2409-001168	C-EDL
2503-001051	C-NETWORK
2409-001191	C-ORGANIC,SMD
2409-001118	C-POLYMER ,CHIP
BN39-01011E	CBF IF-MODULAR/MODULAR
BN39-00865B	CBF IF-MODULAR/MODULAR
3903-000985	CBF-POWER CORD
3903-000853	CBF-POWER CORD
3701-001861	CONNECTOR-HDMI
3701-001856	CONNECTOR-HDMI
3711-007839	CONNECTOR-HEADER
3707-001106	CONNECTOR-OPTICAL
2801-005324	CRYSTAL-SMD
2801-004814	CRYSTAL-SMD

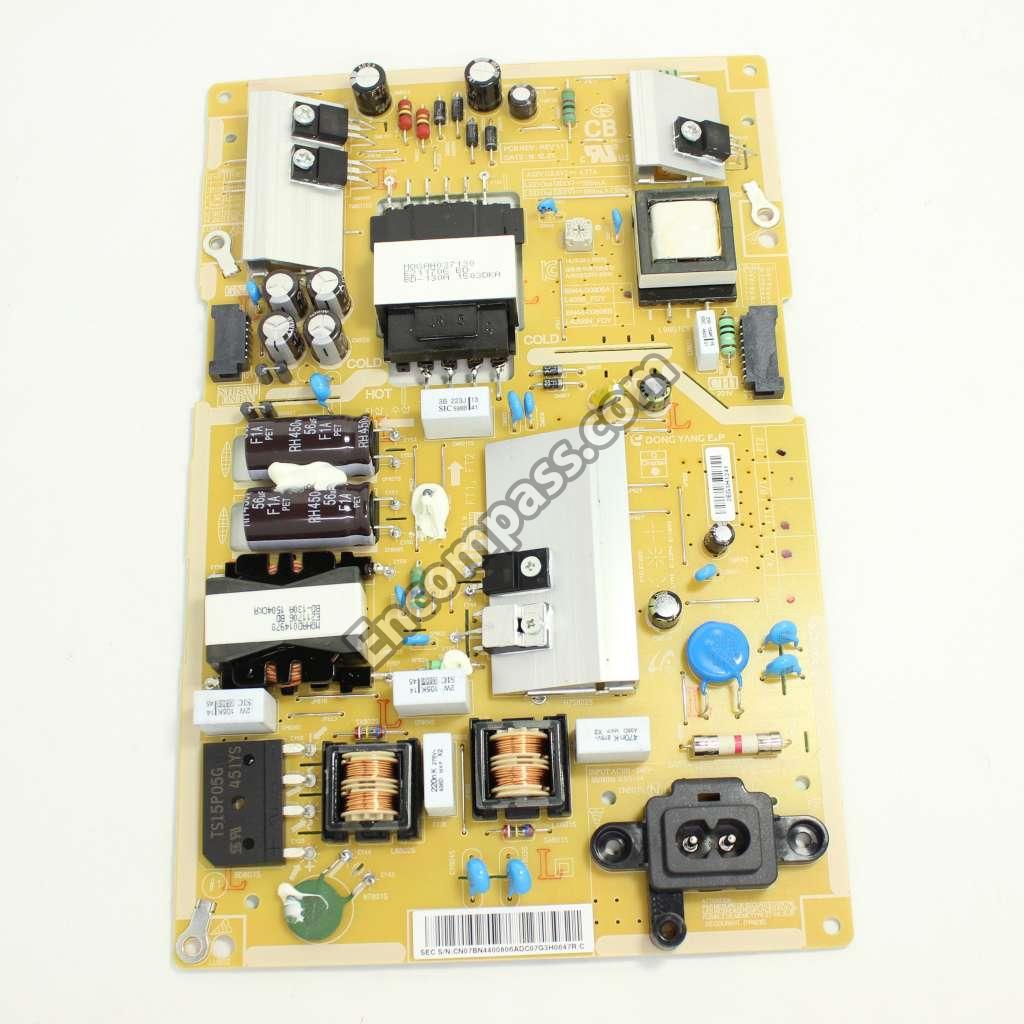

BN44-00806A	DC VSS-LED TV PD BD
0404-001881	DIODE-SCHOTTKY
0404-001643	DIODE-SCHOTTKY
0404-001640	DIODE-SCHOTTKY
0404-001404	DIODE-SCHOTTKY
0401-001099	DIODE-SWITCHING
0401-001056	DIODE-SWITCHING
0406-001691	DIODE-TVS
0406-001689	DIODE-TVS
0406-001635	DIODE-TVS
0406-001628	DIODE-TVS
0403-001831	DIODE-ZENER
0403-001164	DIODE-ZENER
0505-003507	FET-SILICON
0505-003397	FET-SILICON
0505-003224	FET-SILICON
0505-002893	FET-SILICON
0505-002598	FET-SILICON
0505-001844	FET-SILICON
3601-001386	FUSE-SURFACE MOUNT
3601-001376	FUSE-SURFACE MOUNT
3711-008859	HEADER-BOARD TO CABLE
3711-008659	HEADER-BOARD TO CABLE
3711-008422	HEADER-BOARD TO CABLE
3711-008131	HEADER-BOARD TO CABLE
BN61-09494D	HOLDER-BOLT
1201-003690	IC-AUDIO AMP
1205-003201	IC-BUS SWITCH
0801-003580	IC-CMOS LOGIC
0801-003330	IC-CMOS LOGIC
0801-002780	IC-CMOS LOGIC
0801-002564	IC-CMOS LOGIC
1203-008391	IC-DC/DC CONVERTER
1203-008118	IC-DC/DC CONVERTER
1203-007984	IC-DC/DC CONVERTER
1203-007018	IC-DC/DC CONVERTER
1105-002529	IC-DDR3 SDRAM
1204-003354	IC-DEMODULATOR
1006-001509	IC-DRIVER/RECEIVER
1103-001564	IC-EEPROM
1103-001561	IC-EEPROM
1107-002374	IC-EMMC
1107-002287	IC-EMMC
1205-004385	IC-ETHERNET CONTROLLER
0903-001879	IC-MICROCONTROLLER
1107-002265	IC-NOR FLASH
1107-002226	IC-NOR FLASH
1201-000166	IC-OP AMP
1203-008023	IC-POSI.ADJUST REG.
1203-007757	IC-POSI.ADJUST REG.
1203-007242	IC-POSI.ADJUST REG.
1203-006136	IC-POSI.FIXED REG.
1203-006130	IC-POSI.FIXED REG.
1203-006109	IC-POSI.FIXED REG.
0909-001032	IC-REAL TIME CLOCK
1205-004983	IC-SWITCH
1204-003617	IC-VIDEO PROCESS
1204-003573	IC-VIDEO PROCESS
1001-001886	IC-VIDEO SWITCH
1001-001885	IC-VIDEO SWITCH
1203-007728	IC-VOL. DETECTOR
1203-004364	IC-VOL. DETECTOR
2703-004724	INDUCTOR-SMD
2703-004589	INDUCTOR-SMD
2703-003937	INDUCTOR-SMD
2703-003862	INDUCTOR-SMD
2703-003747	INDUCTOR-SMD
2703-003713	INDUCTOR-SMD
2703-003263	INDUCTOR-SMD
2703-002834	INDUCTOR-SMD
2703-000158	INDUCTOR-SMD
3722-003246	JACK-MODULAR
3722-003199	JACK-MODULAR
3722-003667	JACK-PHONE
3722-003657	JACK-PHONE
3722-003546	JACK-PIN
3722-003837	JACK-USB
3722-003457	JACK-USB
BN68-00513A	LABEL-E, PASS
BN39-02030E	LEAD CONNECTOR-BLU
BN39-01990B	LEAD CONNECTOR-FUNCTION
BN39-02025A	LEAD CONNECTOR-POWER
BN39-02133A	LEAD CONNECTOR-SUB ASSEMBLY
BN59-01235A	NETWORK-WLAN CLIENT
2806-001308	OSCILLATOR-VCXO
BN95-01992A	PRODUCT LCD-SDC
2007-009777	R-CHIP
2007-008779	R-CHIP
2007-008596	R-CHIP
2007-008332	R-CHIP
2007-008294	R-CHIP
2007-008015	R-CHIP
2007-007942	R-CHIP
2007-007768	R-CHIP
2007-007617	R-CHIP
2007-007229	R-CHIP
2007-003015	R-CHIP
2007-002437	R-CHIP
2007-001433	R-CHIP
2007-001168	R-CHIP
2007-001125	R-CHIP
2007-001116	R-CHIP
2007-000999	R-CHIP
2007-000962	R-CHIP
2007-000869	R-CHIP
2007-000828	R-CHIP
2007-000772	R-CHIP
2007-000708	R-CHIP
2007-000669	R-CHIP
2007-000651	R-CHIP
2007-000614	R-CHIP
2007-000536	R-CHIP
2007-000516	R-CHIP
2007-000509	R-CHIP
2007-000336	R-CHIP
2007-000265	R-CHIP
2007-000239	R-CHIP
2007-000109	R-CHIP
2007-000084	R-CHIP
2007-000074	R-CHIP
2007-000067	R-CHIP
2007-000066	R-CHIP
2007-000052	R-CHIP
2007-000039	R-CHIP
2011-001587	R-NETWORK
2011-001527	R-NETWORK
2011-001506	R-NETWORK
2011-001449	R-NETWORK
2011-001264	R-NETWORK
2011-001262	R-NETWORK
AA59-00817A	REMOTE CONTROL
6001-003016	SCREW-MACHINE
6001-002757	SCREW-MACHINE
6001-002755	SCREW-MACHINE
6003-001010	SCREW-TAPTYPE
6003-001001	SCREW-TAPTYPE
6003-000275	SCREW-TAPTYPE
BN60-00162E	SPACER-FOAM
0504-000126	TR-DIGITAL
0502-001346	TR-POWER
0501-000465	TR-SMALL SIGNAL
0501-000445	TR-SMALL SIGNAL
BN40-00307A	TUNER
1405-001381	VARISTOR
1405-001271	VARISTOR
1405-001233	VARISTOR
