Manufacturer
Samsung
Model Number
HG40NJ478MFXZA
Description
40-inch Nj478 Series 4k Uhd Hospitality Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-15790A | A/S OPEN CELL-IC DRIVER GATE;IC DRIVER G |
| BN81-15789A | A/S OPEN CELL-IC DRIVER SOURCE;IC DRIVER |
|
|
ASSEMBLY ACCESSORY-SCREW;LED, LCD TV HOTEL,W |
|
|
ASSEMBLY BOARD P-FUNCTION ONE KEY;Y18 NU8000 |
| BN96-46098A | ASSEMBLY CHASSIS FRONT P;39.5UN5000M,PC+ABS+ |
| BN96-46699U | ASSEMBLY COVER P-REAR;40HJ478,HIPS,V-0,BK002 |
| BN96-46569A | ASSEMBLY LED BAR P;N5000,ALUMINUM,UN5000 JED |
| BN96-33321D | ASSEMBLY OPEN CELL;INX,39.5INCH,APPLYING NEW |
| BN94-13318B | ASSEMBLY PCB MAIN;HJ470 |
|
|

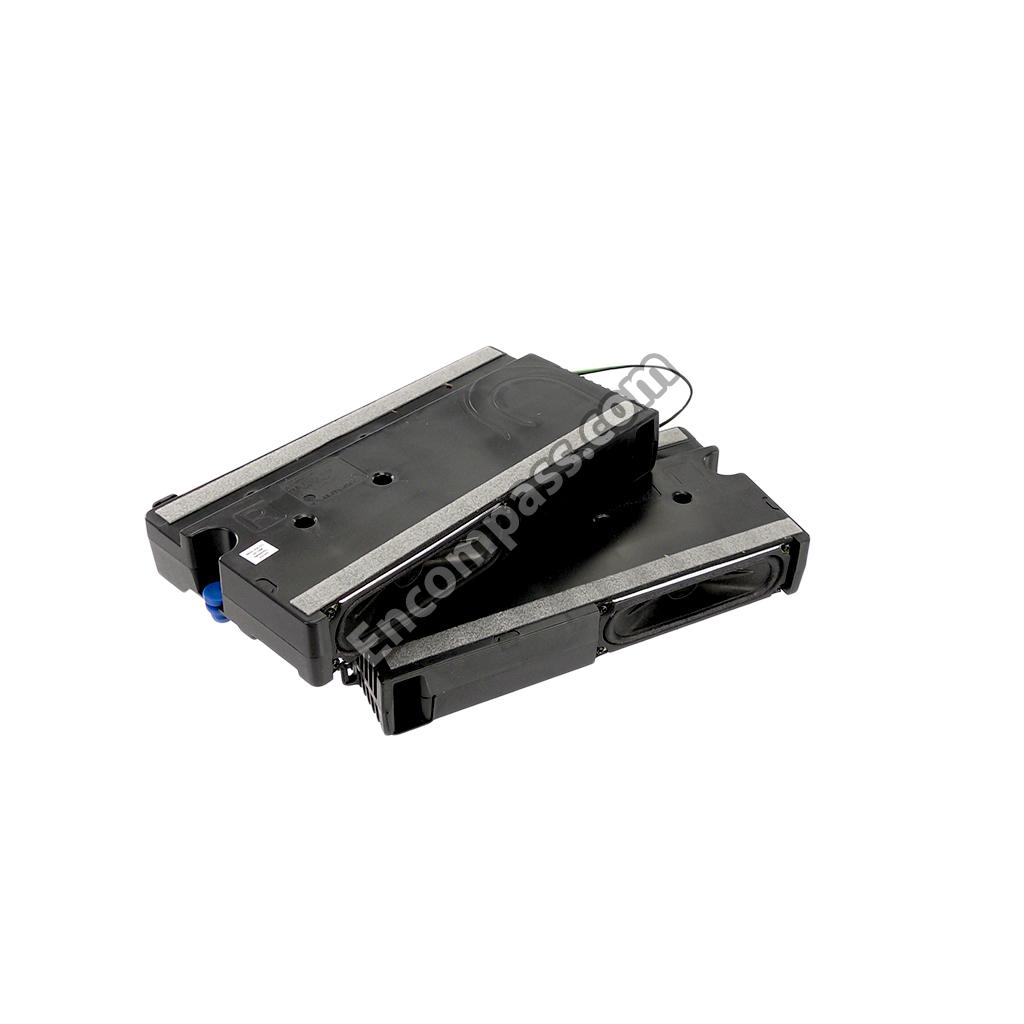

ASSEMBLY SPEAKER P-FRONT;TV-SPK,UN5000M,2CH, |
| BN96-31876A | ASSEMBLY STAND P-COVER BOTTOM;55UH5000,PC+AB |
| BN96-47606B | ASSEMBLY STAND P-GUIDE;49HJ470,PC+ABS GF20%, |
| 6902-000341 | BAG PE;LDPE,T0.05,W70,L90,TRP,ECO. N |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001168 | C-EDL;200000UF,3.3V,0.01MA,TP,6.8X11.3MM |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| BN63-17400A | COVER-TERMINAL SIDE;32HE460,HIPS,T1.5,HB |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
|
|
DC VSS-PD BOARD;L40MSFR_MHS,AC/DC,88W,AC |
| BN61-15843A | DIFFUSER PLATE;18Y_JEDI_39.5INCH_DP,PET, |
| 0404-001020 | DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| BN96-43790C | FFC;KANT-S,40M5300,FOLD,L550,51P,- |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| BN39-01656A | GENDER CABLE;2P,L34.6,UL,BLK,COAXIAL,39A |
|
|
HEADER-BOARD TO CABLE;BOX,10P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
|
|
HOLDER-STAND CABLE;26UE4000,PA66,NATURAL |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 0801-002564 | IC-CMOS LOGIC;74VHCT244A,BUFFER,TSSOP,20 |
| 1203-008734 | IC-DC/DC CONVERTER;RT6214,TSOT-23,6,3X1. |
| 1203-008919 | IC-DC/DC CONVERTER;SYD104AADC,TSOT23,6P, |
| 1204-003354 | IC-DEMODULATOR;LGDT1001,PBGA,49P,17X17X1 |
| 1103-001619 | IC-EEPROM;BR24G256-3,256KBIT,X8,SOP,8P,4 |
| 1103-001561 | IC-EEPROM;S-24C02DI-J800,2KBIT,256X8BIT, |
| 1103-001531 | IC-EEPROM;S-24C256CI-J8T1U4,256KBIT,32KX |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 0903-001879 | IC-MICROCONTROLLER;WT61P808,LQFP,48P,7X7 |
| 1107-002048 | IC-NAND FLASH;MT29F2G08ABAEAWP:E,2GBIT,2 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 0909-001072 | IC-REAL TIME CLOCK;5P90005CDCGI8,SOIC,8P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1204-003716 | IC-VIDEO PROCESS;SENK20,HS-LFBGA,447P,19 |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-005192 | INDUCTOR-SMD;4.7UH,20%,6060,T4.5,0.036OH |
| 2703-003890 | INDUCTOR-SMD;47UH,10%,3225,T2.2,2.13OHM, |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-004031 | JACK-MODULAR;6P/6C,INVERTED,N,STRAIGHT,N |
| 3722-003667 | JACK-PHONE;1P/7C,NI+SN,BLK,STRAIGHT,3.6P |
| 3722-003687 | JACK-PIN;3P,NI/SN,RED/WHT/YEL,ANGLE |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02125A | LEAD CONNECTOR-BLU;5200 39.5-INCH WIRE_HARNE |
| BN39-02275B | LEAD CONNECTOR-POWER;UL21016,10P,L400,BL |
| BN39-02223A | LEAD CONNECTOR-SUB ASSEMBLY;40K5500,UL21016, |
| AA59-00416C | MODULE RF-SHIELD BOX;UGC-AS-004A,-,-,-,- |
| BN61-15838A | OPTICAL SHEET-REFLECTOR;18Y_39.5INCH_N50 |
| 2806-001308 | OSCILLATOR-VCXO;27MHZ,30PF,TP,3.3V,50MA |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000121 | PRIMARY BATTERY MN;1.5V,4.4MAH,R03,10.5X |
| BN95-04925E | PRODUCT LCD-INX;CY-JN040BGNV4/H,N5000,HO |
| 2007-010304 | R-CHIP;1.82MOHM,1%,1/4W,TP,3216 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
|
|
REMOCON-TV;2012 HOTEL TV,SAMSUNG,44KEY,3 |
|
|
RF MODULATOR;DNBU16312IBL,B-LAN,5V,0TO+5 |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(BLK),L16,M4,B |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 3601-001374 | SMG PART |
| 2801-003856 | SMG PART |
| 2703-003149 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-001938 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006890 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006324 | SMG PART |
| 2203-005393 | SMG PART |
| 2203-001412 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007465 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007009 | SMG PART |
| 2007-007001 | SMG PART |
| 2007-001288 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000168 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000153 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000137 | SMG PART |
| 0406-001200 | SMG PART |
| 0404-001089 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-001602 | SMG PART |
| 0403-001783 | SMG PART |
| 1203-006562 | SMG PART |
| 1203-008103 | SMG PART |
| 1203-008104 | SMG PART |
| 1203-008105 | SMG PART |
| 2703-004199 | SMG PART |
| 2703-004457 | SMG PART |
| 6003-001899 | SMG PART |
| 6902-001612 | SMG PART |
| 6902-001962 | SMG PART |
| 6902-002380 | SMG PART |
| 6922-000013 | SMG PART |
| AA68-03242L | SMG PART |
| AA68-04155A | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00040C | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352B | SMG PART |
| BN41-02640A | SMG PART |
| BN46-00493D | SMG PART |
| BN46-00752A | SMG PART |
| BN60-00715C | SMG PART |
| BN60-00715M | SMG PART |
| BN60-01083A | SMG PART |
| BN60-01612A | SMG PART |
| BN61-04692A | SMG PART |
| BN61-08214A | SMG PART |
| BN61-08217A | SMG PART |
| BN61-08218A | SMG PART |
| BN61-08224A | SMG PART |
| BN61-08225A | SMG PART |
| BN61-10512A | SMG PART |
| BN61-11027A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-11982C | SMG PART |
| BN61-12411B | SMG PART |
| BN61-13521A | SMG PART |
| BN61-15757A | SMG PART |
| BN61-15758A | SMG PART |
| BN61-15768A | SMG PART |
| BN61-15831A | SMG PART |
| BN61-15981A | SMG PART |
| BN63-02183D | SMG PART |
| BN63-03477A | SMG PART |
| BN63-07229A | SMG PART |
| BN63-12128A | SMG PART |
| BN63-16971A | SMG PART |
| BN63-17418F | SMG PART |
| BN63-17418H | SMG PART |
| BN63-17672N | SMG PART |
| BN64-03902U | SMG PART |
| BN64-04065A | SMG PART |
| BN64-04068D | SMG PART |
| BN64-04081U | SMG PART |
| BN67-00327D | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04657E | SMG PART |
| BN68-04746A | SMG PART |
| BN68-04972G | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05722A | SMG PART |
| BN68-05723A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-07575A | SMG PART |
| BN68-07898R | SMG PART |
| BN68-08532A | SMG PART |
| BN68-09107G | SMG PART |
| BN69-17053Q | SMG PART |
| BN69-18578A | SMG PART |
| BN69-18626A | SMG PART |
| BN74-00031A | SMG PART |
| BN74-00053E | SMG PART |
| BN81-12991A | SMG PART |
| BN81-12992A | SMG PART |
| BN81-15787A | SMG PART |
| BN81-15788A | SMG PART |
| BN81-17110A | SMG PART |
| BN81-17110C | SMG PART |
| BN90-00060N | SMG PART |
| BN90-09696E | SMG PART |
| BN90-10157C | SMG PART |
| BN90-10161B | SMG PART |
| BN91-19974W | SMG PART |
| BN91-20348B | SMG PART |
| BN92-23869B | SMG PART |
| BN92-23873B | SMG PART |
| BN92-23876D | SMG PART |
| BN92-23877D | SMG PART |
| BN96-18013E | SMG PART |
| BN96-38693A | SMG PART |
| BN96-46102D | SMG PART |
| BN96-47100A | SMG PART |
| BN96-47627D | SMG PART |
| BN97-13230A | SMG PART |
| BN97-14088A | SMG PART |
| BN97-14089A | SMG PART |
| BN97-15115B | SMG PART |
| 3404-001379 | SWITCH-TACT;12V,50MA,250GF,4.9X4.9X1.5MM |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
