Model Image
Manufacturer

Samsung

Model Number

HG55ND690UFXZA

Description

Led Tv(h),hg55nd690uf,55,united States,

Interactive Exploded View
Exploded View

Parts List

Part Number Description
BN96-37097B ASSEMBLY BOARD P-FUNCTION IR
BN96-35345B BN96-35345B ASSEMBLY BOARD P-FUNCTION_SW

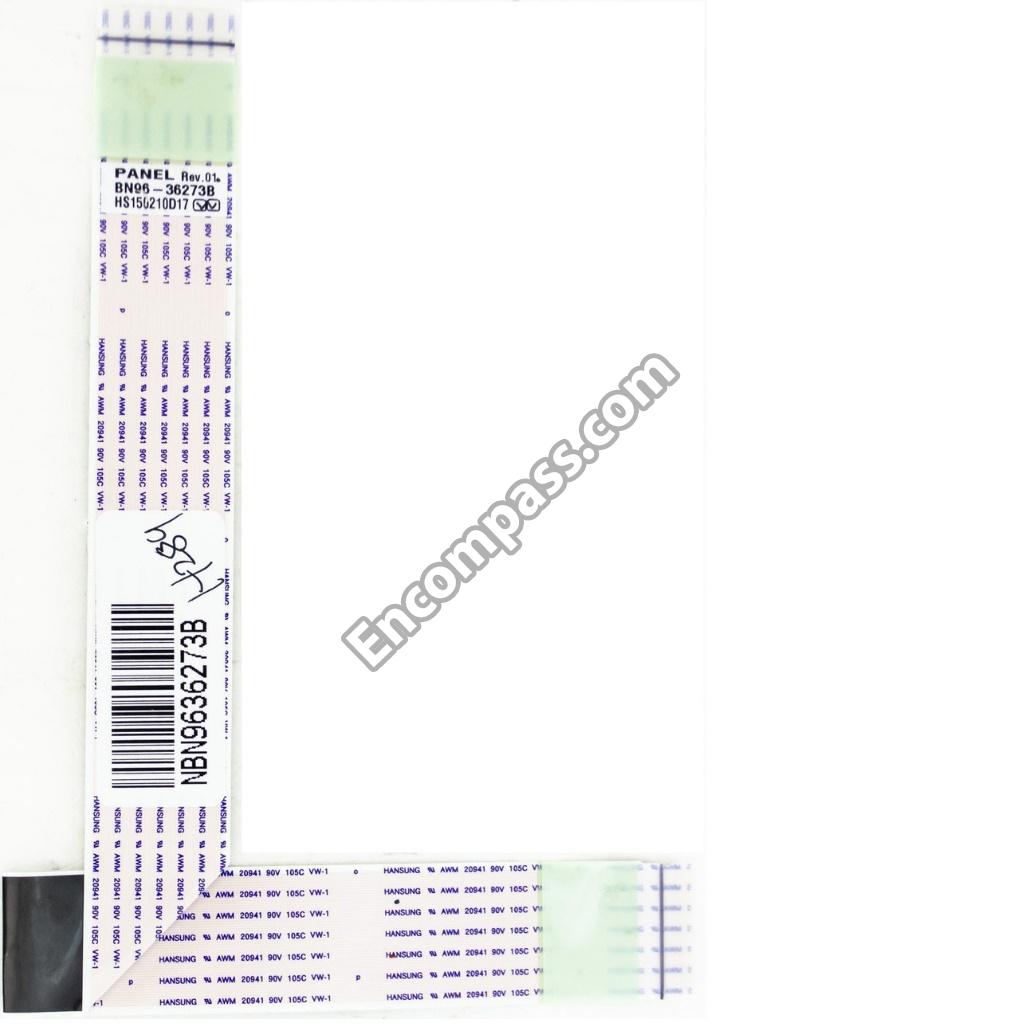

BN96-36273B BN96-36273B ASSEMBLY CABLE P
BN96-35596A ASSEMBLY CHASSIS TOP P
BN96-37240Q ASSEMBLY COVER P-REAR
BN96-35974A BN96-35974A ASSEMBLY GUIDE P-STAND
BN96-34798A ASSEMBLY LED BAR P
BN96-34797A ASSEMBLY LED BAR P
CALL_1-800-SAMSUNG ASSEMBLY OPEN CELL
BN94-08625F ASSEMBLY PCB MAIN
BN96-35006E BN96-35006E ASSEMBLY SPEAKER P
BN96-35979A BN96-35979A ASSEMBLY STAND P-BASE
BN95-01938A BN95-01938A ASSEMBLY T CON
BH69-00418A BAG PE-WRAPPING FILM
3301-002039 3301-002039 BEAD-SMD
3301-001404 BEAD-SMD
2402-001268 C-AL,SMD
2203-007544 C-CER,CHIP
2203-007513 C-CER,CHIP
2203-007306 C-CER,CHIP
2203-007193 C-CER,CHIP
2203-007176 C-CER,CHIP
2203-006818 C-CER,CHIP
2203-006741 C-CER,CHIP
2203-006698 C-CER,CHIP
2203-006348 C-CER,CHIP
2203-006320 C-CER,CHIP
2203-006158 C-CER,CHIP
2203-006126 C-CER,CHIP
2203-006048 C-CER,CHIP
2203-005968 C-CER,CHIP
2203-005918 C-CER,CHIP
2203-005344 C-CER,CHIP
2203-005249 C-CER,CHIP
2203-005083 C-CER,CHIP
2203-003039 C-CER,CHIP
2203-002982 C-CER,CHIP
2203-002711 C-CER,CHIP
2203-002285 C-CER,CHIP
2203-001851 C-CER,CHIP
2203-001124 C-CER,CHIP
2203-000975 C-CER,CHIP
2203-000715 C-CER,CHIP
2203-000627 C-CER,CHIP
2203-000575 C-CER,CHIP
2203-000491 C-CER,CHIP
2409-001168 C-EDL
2503-001051 C-NETWORK
2409-001191 C-ORGANIC,SMD
2409-001118 C-POLYMER ,CHIP
BN39-01011E BN39-01011E CBF IF-MODULAR/MODULAR
BN39-00865B BN39-00865B CBF IF-MODULAR/MODULAR
3903-000985 3903-000985 CBF-POWER CORD
3903-000853 3903-000853 CBF-POWER CORD
3701-001861 CONNECTOR-HDMI
3701-001856 CONNECTOR-HDMI
3711-007975 3711-007975 CONNECTOR-HEADER
3711-007839 CONNECTOR-HEADER
3707-001106 CONNECTOR-OPTICAL
2801-005324 CRYSTAL-SMD
2801-004814 CRYSTAL-SMD
BN44-00807A BN44-00807A DC VSS-LED TV PD BD
0404-001881 DIODE-SCHOTTKY
0404-001643 DIODE-SCHOTTKY
0404-001640 DIODE-SCHOTTKY
0404-001404 DIODE-SCHOTTKY
0401-001099 DIODE-SWITCHING
0401-001056 DIODE-SWITCHING
0406-001691 DIODE-TVS
0406-001689 DIODE-TVS
0406-001635 DIODE-TVS
0406-001628 DIODE-TVS
0403-001831 DIODE-ZENER
0403-001164 DIODE-ZENER
0505-003507 FET-SILICON
0505-003397 FET-SILICON
0505-003224 FET-SILICON
0505-002893 FET-SILICON
0505-002598 FET-SILICON
0505-001844 FET-SILICON
3601-001386 FUSE-SURFACE MOUNT
3601-001376 3601-001376 FUSE-SURFACE MOUNT
3711-008859 HEADER-BOARD TO CABLE
3711-008659 HEADER-BOARD TO CABLE
3711-008422 HEADER-BOARD TO CABLE
3711-008131 HEADER-BOARD TO CABLE
BN61-09494D BN61-09494D HOLDER-BOLT
1201-003690 IC-AUDIO AMP
1205-003201 IC-BUS SWITCH
0801-003580 IC-CMOS LOGIC
0801-003330 IC-CMOS LOGIC
0801-002780 IC-CMOS LOGIC
0801-002564 IC-CMOS LOGIC
1203-008391 IC-DC/DC CONVERTER
1203-008118 IC-DC/DC CONVERTER
1203-007984 IC-DC/DC CONVERTER
1203-007018 IC-DC/DC CONVERTER
1105-002529 IC-DDR3 SDRAM
1204-003354 IC-DEMODULATOR
1006-001509 IC-DRIVER/RECEIVER
1103-001564 IC-EEPROM
1103-001561 IC-EEPROM
1107-002287 IC-EMMC
1205-004385 IC-ETHERNET CONTROLLER
0903-001879 IC-MICROCONTROLLER
1107-002265 IC-NOR FLASH
1107-002226 IC-NOR FLASH
1201-000166 IC-OP AMP
1203-008023 IC-POSI.ADJUST REG.
1203-007757 IC-POSI.ADJUST REG.
1203-007242 IC-POSI.ADJUST REG.
1203-006136 IC-POSI.FIXED REG.
1203-006130 IC-POSI.FIXED REG.
1203-006109 IC-POSI.FIXED REG.
0909-001032 IC-REAL TIME CLOCK
1209-002183 1209-002183 IC-SENSOR
1205-004983 IC-SWITCH
1204-003617 IC-VIDEO PROCESS
1204-003585 IC-VIDEO PROCESS
1204-003573 IC-VIDEO PROCESS
1001-001886 IC-VIDEO SWITCH
1001-001885 IC-VIDEO SWITCH
1203-007728 IC-VOL. DETECTOR
1203-004364 IC-VOL. DETECTOR
2703-004724 INDUCTOR-SMD
2703-004589 INDUCTOR-SMD
2703-003937 INDUCTOR-SMD
2703-003862 INDUCTOR-SMD
2703-003747 INDUCTOR-SMD
2703-003713 INDUCTOR-SMD
2703-003263 INDUCTOR-SMD
2703-002834 INDUCTOR-SMD
2703-000158 INDUCTOR-SMD
3722-003246 JACK-MODULAR
3722-003199 JACK-MODULAR
3722-003667 JACK-PHONE
3722-003657 JACK-PHONE
3722-003546 3722-003546 JACK-PIN
3722-003837 JACK-USB
3722-003457 3722-003457 JACK-USB
BN68-00513A LABEL-E, PASS
BN39-02030C LEAD CONNECTOR-BLU
BN39-01990D BN39-01990D LEAD CONNECTOR-FUNCTION
BN39-02025D BN39-02025D LEAD CONNECTOR-POWER
BN39-02133C LEAD CONNECTOR-SUB ASSEMBLY
BN59-01235A NETWORK-WLAN CLIENT
2806-001308 OSCILLATOR-VCXO
BN95-01995A BN95-01995A PRODUCT LCD-SDC
2007-009777 R-CHIP
2007-008779 R-CHIP
2007-008332 R-CHIP
2007-008294 R-CHIP
2007-008070 R-CHIP
2007-008015 R-CHIP
2007-007942 R-CHIP
2007-007768 R-CHIP
2007-007651 R-CHIP
2007-007617 R-CHIP
2007-003015 R-CHIP
2007-002437 R-CHIP
2007-001237 R-CHIP
2007-001168 R-CHIP
2007-001139 R-CHIP
2007-001125 R-CHIP
2007-001116 R-CHIP
2007-000999 R-CHIP
2007-000962 R-CHIP
2007-000939 R-CHIP
2007-000903 R-CHIP
2007-000869 R-CHIP
2007-000821 R-CHIP
2007-000772 R-CHIP
2007-000708 R-CHIP
2007-000683 R-CHIP
2007-000651 R-CHIP
2007-000614 R-CHIP
2007-000516 R-CHIP
2007-000336 R-CHIP
2007-000287 R-CHIP
2007-000265 R-CHIP
2007-000239 R-CHIP
2007-000208 R-CHIP
2007-000109 R-CHIP
2007-000084 R-CHIP
2007-000078 R-CHIP
2007-000074 R-CHIP
2007-000067 R-CHIP
2007-000052 R-CHIP
2007-000043 R-CHIP
2007-000039 R-CHIP
2011-001587 R-NETWORK
2011-001527 R-NETWORK
2011-001506 R-NETWORK
2011-001449 R-NETWORK
2011-001264 R-NETWORK
2011-001262 R-NETWORK
AA59-00817A AA59-00817A REMOTE CONTROL
6001-003016 6001-003016 SCREW-MACHINE
6001-002757 6001-002757 SCREW-MACHINE
6001-002755 6001-002755 SCREW-MACHINE
6003-001010 6003-001010 SCREW-TAPTYPE
6003-000275 6003-000275 SCREW-TAPTYPE
6003-000115 6003-000115 SCREW-TAPTYPE
6003-000003 SCREW-TAPTYPE
BN63-07229C SHEET-COVER
0504-000126 TR-DIGITAL
0502-001346 TR-POWER
0501-000465 TR-SMALL SIGNAL
0501-000445 TR-SMALL SIGNAL
BN40-00307A TUNER
1405-001381 VARISTOR
1405-001271 1405-001271 VARISTOR
1405-001233 VARISTOR
