Manufacturer
Samsung
Model Number
HLS6167WX
Description
Dlp Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-OPTICAL;HP-P5581,OPTICAL |
|
|
ASSY COLOR WHEEL P;K220,SVC |
| BP96-00938F | ASSY COVER P-REAR BOTTOM;L6,HIPS,V0,GR50 |
| BP96-00975B | ASSY COVER P-SIDE;61L6,HIPS,HB,GR503,LEF |
| BP96-00976B | ASSY COVER P-SIDE;61L6,HIPS,HB,GR503,RIG |
| BP96-00990B | ASSY COVER P-STAND;61/67L6,HIPS,HB,GR503 |
| BP96-01426A | ASSY DYNAMIC BLACK P-DELTA 5 S;,DELTA EL |
| BP91-02032D | ASSY ENGINE P-DLP;61L6,XHD5,PHILIPS,132W |
|
|
ASSY LAMP P;K2,PHILIPS 132W,HD5 |
|
|
ASSY PCB MAIN;HLS6767,L66A,L6,CULB |
| BP94-02271H | ASSY PCB MISC-KEY CONTROL;HLS6765,L64D,L |
| BP94-02140G | ASSY PCB MISC-RMC LED;HLP5063W,L62B,ATLA |
| BP63-00424A | COVER-REAR;61L6,HIPS,HB,GRAY,TOP |
|
|

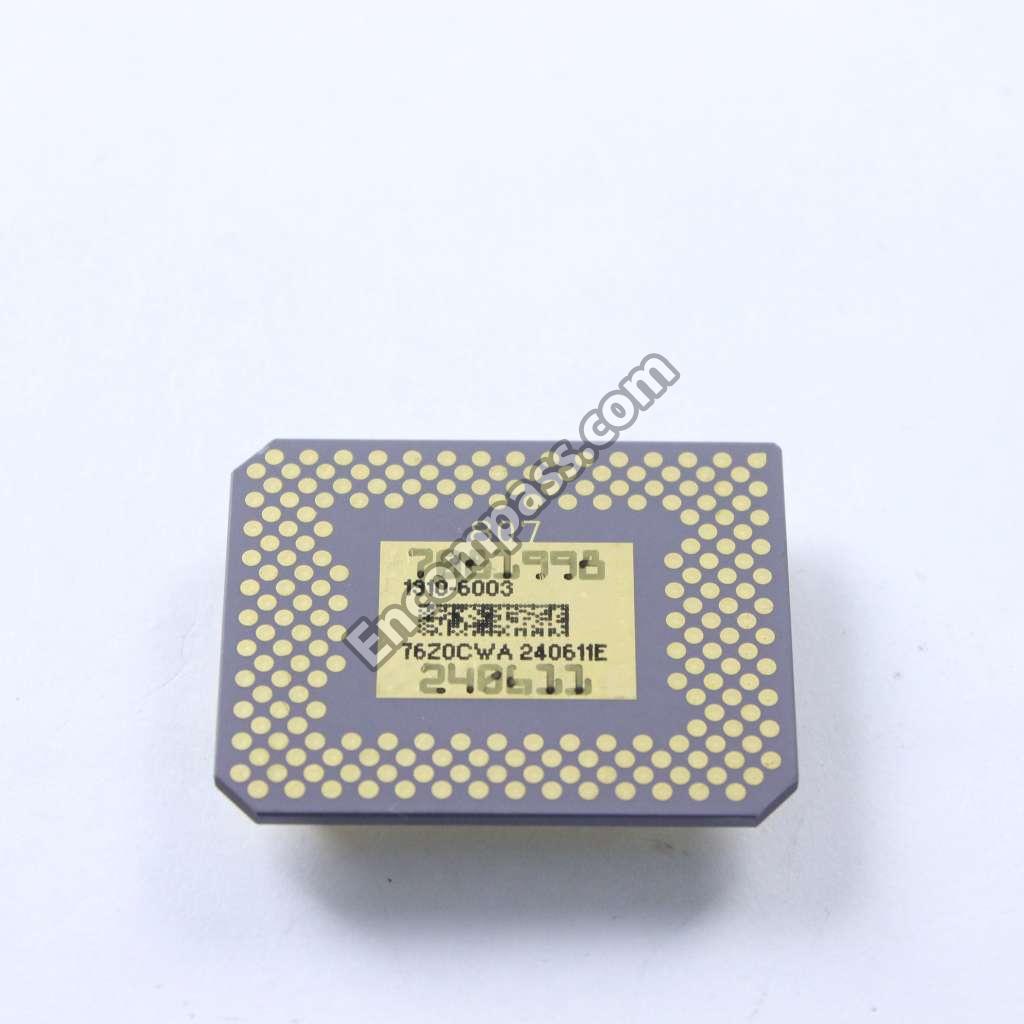

DLP;1920X1080/XHD5,0.65",TYPE A NON APER |
|
|
FAN;G6015M12B2-RG,K220,PBTP |
|
|
FAN;G9225L12B2-AG(WS),K220,PBTP |
| BP64-00548A | GLASS-ACTUATOR;MIRROR,34,39 |
| BP64-00592A | GLASS-COLOR WHEEL;55MM,FLOAT GLASS,T0.7, |
| BP64-00439C | KNOB-FAMILY ASSY;L6,ABS,HB,BLK |
| BP64-00384C | KNOB-FAMILY;L6,ABS,HB,BLK |
|
|
LAMP-BALLAST;EUC 132D P/41I,65MM,160MM,7 |
|
|
LAMP;UHP 120W/132W 1.0,E22,65*70,LL |
| BP67-00287A | LENS-P/J ASS\'Y;K280,GLASS,NTR,F2.4,XHD5 |
| BP67-00098A | MIRROR;FRONT MIRROR 61",GLASS,34.85MM,13 |
| AA32-00012A | MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES |
| BP59-00099A | MODULE-RF SPLITTER;UMX-NT-057,2INPUT 1OU |
|
|
POWER CORD |
|
|
REMOTE CONTROL |
| BP67-00164A | SCREEN LENTI;61W,1381*790,T2.5 |
|
|
TUNER |
