Manufacturer
Samsung
Model Number
HWO230PCD
Description
Mwo : Microwaveoven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DE81-03631A | SVC-1 2FLEX 90 DGR CONNECTOR;82195,DO130 |
| DG81-03787A | SVC-ASSEMBLY BEZEL;704001-02CD,ASSY, 1-INCH BEZE |
| DG81-03783A | SVC-ASSEMBLY DOOR SKIN;703370FAHCD,ASY, DOOR |
| DG81-03785A | SVC-ASSEMBLY DOOR;703376FAH-01CD,ASSEMBLY, DOOR, |
| DG81-03786A | SVC-ASSEMBLY DOOR;703376FAH-02CD,ASSEMBLY, DOOR, |
| DG81-03794A | SVC-ASSEMBLY EXHAUST;703362,ASSEMBLY, EXHAUST PL |
| DE81-10929A | SVC-ASSEMBLY WIRE HARNESS-MAIN;115307,ASY, W |
| DE81-05541A | SVC-ASY BAKE RNO130 230S;702013,DTO130B |
| DE81-07368A | SVC-ASY DOOR LINER;702086-01,DTO130FS |
| DE81-03191A | SVC-ASY GLASS TOUCH CTRL DBL;703314,HWO2 |
| DE81-08891A | SVC-ASY GLIDE RACK;701464,DR30EFS |
| DE81-04909A | SVC-ASY HIGH LIMIT SWITCH;703105,DTO130B |
|
|
SVC-ASY LIGHT HALOGEN 50W;113647,HGER30C |
| DE81-06861A | SVC-BAKE ELEMENT 3000W;106898,DTO130B |
| DE81-06280A | SVC-BAKE PAN RNO130 230;107823,DTO130B |
| DG81-03795A | SVC-BEZEL SKIN;702084FAHCD,WELDMENT, BEZ |
| DG81-03788A | SVC-BRACKET;115361,BRACKET, ELEMENT |
| DE81-09162A | SVC-BROIL ELEMENT;100681,DYO130B |
| DG81-03797A | SVC-BROIL;115170,ELEMENT, BROIL, 3600 W |
| DE81-04925A | SVC-BUSHING 1 2 RED CONDUI;83133,DO130 |
| DE81-08517A | SVC-BUSHING 3 8 HOLE;83523,DOP36M86DAM |
| DE81-03400A | SVC-BUSHING SPLIT 1 00 DIA;92191-02,DH30 |
| DE81-02832A | SVC-BUSHING SPLIT 1 375 DIA;92191-03,DO1 |
| DE81-04293A | SVC-BUSHING SPLIT 75 DIA;92191-01,DO230 |
| DE81-03857A | SVC-CABLE MOUNTING SADDLE;92023-02,DR30E |
| DG81-03651A | SVC-CASE BACK;107825,CASE BACK |
| DE81-09713A | SVC-CASE BOTTOM;107861,DTO130B |
| DG81-03652A | SVC-CASE TOP;107826,CASE TOP 30-INCH |
| DE81-04299A | SVC-CONDUIT 1 2 FLEX CUT 60;26420,DO130 |
| DE81-04298A | SVC-CONDUIT CORNER RNO DTO;108221,DTO127 |
| DE81-07965A | SVC-CONTROLLER MOUNT;105334,DTO127B |
| DE81-02922A | SVC-CONVECTION BAFFLE BLK P;105329BP,DR3 |
| DE81-04303A | SVC-CONVECTION ELEMENT 240V;82377,DO130 |
| DE81-09944A | SVC-COVER BACK;113636,HWO230EC |
| DG81-03790A | SVC-COVER BAKE;113631,BAKE ACCESS COVER |
| DE81-09440A | SVC-COVER DOUBLE;107863,DTO230B |
| DE81-09715A | SVC-COVER LATCH;105323,DTO127B |
| DE81-04306A | SVC-COVER MEAT PROBE WIRES;105478,DTO127 |
| DE81-08076A | SVC-COVER MEAT PROBE;105471,DR30GFS/LP |
| DE81-08833A | SVC-COVER TOP REAR;107831,DTO130B |
| DE81-06426A | SVC-DAMPER RECEPT HINGE;107511,DYRP36D-C |
| DE81-04327A | SVC-DOOR HANDLE SPACER PRO;702810,DTO127 |
| DE81-06884A | SVC-DOOR LATCH CLASSIC;100090,DO130 |
| DE81-10131A | SVC-DUCT REAR;113629,HWO127EC |
| DE81-04943A | SVC-DUCT SMOKE ELIMINATOR;105330,DTO127B |
| DE81-02837A | SVC-END CAP LH SS BRUSHED;108259-01S,DTO |
| DE81-02839A | SVC-END CAP RH SS BRUSHED;108259-02S,DTO |
| DE81-10782A | SVC-EXHAUST;113557FAH-03,EXHAUST GRILL, |
| DE81-04958A | SVC-EXTENSION COOLING FAN;105858,DYO130B |
| DE81-04960A | SVC-EXTENSION RELAY BOARD;105729,DTO127B |
| DE81-06304A | SVC-FAN COOL HWO227 230;113682,HWO227EC |
|
|
SVC-FAN COOLING 110 CFM;82347,DR30D-C/LP |
| DE81-04335A | SVC-FIBER WASHER W ADHESIVE;83555,DO130 |
| DE81-05647A | SVC-FILTER CONV 2 SCREENS;92322,EO127SCH |
| DE81-10909A | SVC-FRAME LOWER;113445,FRAME, LOWER, WIN |
| DE81-03712A | SVC-FRONT COVER COOLING FAN;108118,DTO12 |
| DE81-04336A | SVC-GASKET CELL RNO130 230;108074,DTO130 |
| DE81-07025A | SVC-GASKET WINDOW PACK;100015,DR30EFS |
| DG81-03784A | SVC-HANDLE DOOR;108260-05,HANDLE, DOOR, |
| DE81-07406A | SVC-HARNESS MAIN WIRE;105413,HWO227EC |
| DE81-04968A | SVC-HEADSHIELD LOWER DUCT;105463,DTO227B |
| DE81-07986A | SVC-HEAT SHIELD BLK;108041B,DTO130B |
| DE81-05850A | SVC-HERITAGE LOGO 4-INCH;110168,DR30D-C/ |
| DE81-07409A | SVC-HINGE COVER LT;108040-01,DTO127B |
| DE81-07410A | SVC-HINGE COVER RT;108040-02,DTO127B |
| DE81-08848A | SVC-HINGE DOOR DTO;108008,DTO127B |
| DE81-06455A | SVC-HOLDER BAKE ELEMENT;107239,DR30EFS |
| DE81-07412A | SVC-HOUSING LOWER FAN;113632,HWO227EC |
| DE81-07417A | SVC-INTAKE GRILL BLK;107833B,DTO130B |
| DE81-07055A | SVC-KIT CONVECTION FAN;700633,DR30EFS |
| DE81-09739A | SVC-LATCH PLATE;105356,DTO127B |
| DE81-04977A | SVC-LED CONTROLLER DOUBLE;113679,HWO230E |
| DG81-03796A | SVC-LED MODULE;113679-1,DISPLAY MODULE, |
| DE81-07989A | SVC-MEAT PROBE SOCKET;72717,DO130 |
| DE81-08569A | SVC-OVEN RACK RO130;106992,DR30EFS |
| DE81-02669A | SVC-OVEN SUPPORT BRACKET LT;113459-02,HW |
| DE81-02670A | SVC-OVEN SUPPORT BRACKET RT;113459-01,HW |
| DE81-04367A | SVC-PLUG MEAT PROBE SOCKET;102468,DO230 |
| DE81-09545A | SVC-RACK SUPPORT;106991,DR30EFS |
| DE81-05671A | SVC-RELAY BOARD DBL OVEN;102380,DO230 |
| DE81-09452A | SVC-RUBBER BUMPER;83618,DO130 |
| DE81-02108A | SVC-SCREW HWH;83379,"#8X1/2,TYPEA",DO130 |
| DE81-02331A | SVC-SCREW PHIL WAFER;83263,#8X3/8,DCT305 |
| DE81-02260A | SVC-SCREW PLAST;105486,6-18X3/8,DTO127B |
|
|

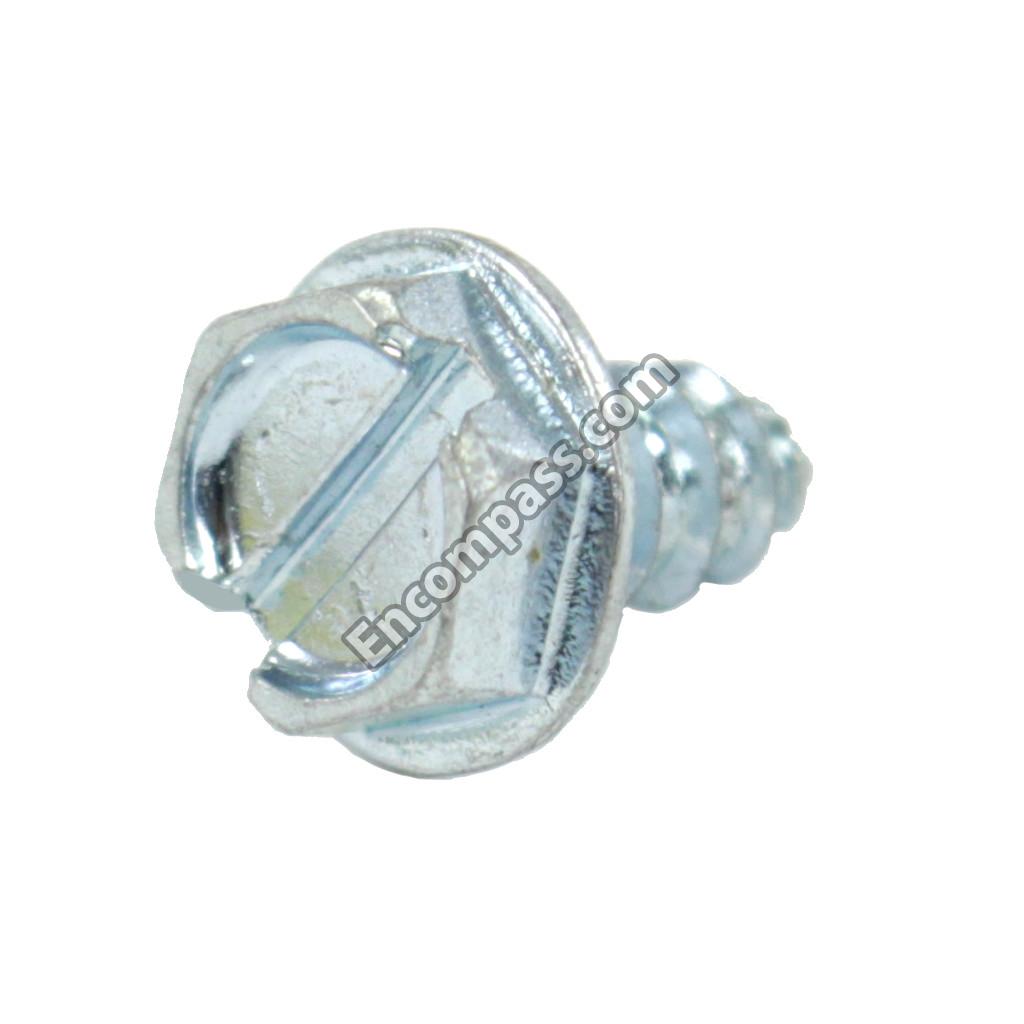

SVC-SCREW SLOT;83023,#10 X 3/8HWH,DO130 |
| DE81-02052A | SVC-SCREW;100026,"#10-32 X 2, TORX",DR30 |
| DE81-02139A | SVC-SCREW;83420,10-32 X 500,DR30D-C/LP |
| DE81-02064A | SVC-SCREW;83505,#8 X 3/8 TYPE A,DHD30M96 |
| DE81-02043A | SVC-SCREW;83696,"#10-32 X .75, PAN",DTO1 |
| DE81-02054A | SVC-SCREW;83708,#8X1/2TRX WFR HD,DOP36M8 |
| DE81-02046A | SVC-SCREW;83709,"#8X1/2TRX WFR HD,",DOP3 |
| DE81-03749A | SVC-SERVICE PANEL TOP COVER;107830,DTO13 |
| DE81-04375A | SVC-SIDE COVER COOLING FAN;108119,DTO127 |
| DE81-05918A | SVC-SMOKE ELIMINATOR TOP;105485,DR30EFS |
| DE81-08450A | SVC-SMOKE ELIMINATOR;72755,DO130 |
| DE81-05208A | SVC-SPACER DOOR LINER EO27;72793,DR30DH- |
| DG81-03793A | SVC-SUPPORT;107575,LATCH SUPPORT, LOWER |
| DG81-03792A | SVC-SUPPORT;107639,BLOWER SUPPORT |
| DE81-06024A | SVC-TAPE VHB DOUBLE SIDED;92387,DH3006 |
| DE81-07435A | SVC-TEMPERATURE SENSOR;72752,DO130 |
| DE81-10908A | SVC-TEMPERED GLASS;113479,TEMPERED GLASS |
| DE81-08861A | SVC-TOP LEFT RO227;107642,DTO127B |
| DE81-10259A | SVC-TOP REAR;107829,DTO130B |
| DE81-08451A | SVC-TOP RIGHT RO227;107641,DTO127B |
| DE81-05679A | SVC-TRIM POST DBL LH;107477-02B,DTO227B |
| DE81-05681A | SVC-TRIM POST DBL RH;107477-01B,DTO227B |
| DE81-08867A | SVC-WASHER BLK FLAT;83432,DTO127B |
| DE81-06343A | SVC-WELD CASE SIDE LEFT;701852,DTO127B |
| DE81-05690A | SVC-WELD CASE SIDE RIGHT;701851,DTO127B |
| DE81-02849A | SVC-WELD DOOR LINER 1THK;701875-04BP,DTO |
| DE81-03250A | SVC-WELD LOWER INTAKE GRILL;702068B,DTO2 |
| DE81-03251A | SVC-WELD RECEPT HOLDER LT;701895-01,DTO1 |
| DE81-03252A | SVC-WELD RECEPT HOLDER RT;701895-02,DTO1 |
| DE81-04390A | SVC-WIRE HARNESS POWER BRD;105448,DTO127 |
