Model Image
Manufacturer

Samsung

Model Number

JNM7196DK4BB

Description

Mwo : Microwaveoven

Interactive Exploded View

Parts List

Part Number Description
DE42-10018E ANTENNA-CERAMIC;16 X 12 X 10
DE42-00003A ANTENNA;C1020W-H,MGT-RHN,2465MHZ,2.7 X 6
DE99-00234A ASSEMBLY ANODE;MGT-RHN,-,-
DE94-02365Y ASSEMBLY BASE BOTTOM-MODULE;JVM1950,PVM1970,
DE98-01169A ASSEMBLY BASE BOTTOM;JVM1950,GE MD4
DE94-02379B ASSEMBLY BASE PLATE;JVM1950,PVM1970,PVM2170,
DE96-00414D DE96-00414D ASSEMBLY BODY LATCH;SMH2177, JVM 1950,ML1-MD
DE94-03258A DE94-03258A ASSEMBLY BRACKET SUPPORTER;ME17H703SH,OTR6,
DE99-00237A ASSEMBLY CATHODE;MGT-RHN,-,-
DE94-03677U ASSEMBLY CONTROL PANEL;JVM7195DKBB,GE BLACK,
DE94-03304A DE94-03304A ASSEMBLY COVER MOTOR;PVM-9195SF2SS,EGI-SECC,
DE99-00359B DE99-00359B ASSEMBLY COVER-COOK TOP LAMP;OTR 6/7,-,-,EMO
DE94-02362B DE94-02362B ASSEMBLY COVER-FRONT;GE MD4, PREMIUM,SPP,T0.
DE94-01470B DE94-01470B ASSEMBLY DOOR E;SMH7175,-,-,COATING
DE94-03683S ASSEMBLY DOOR;JVM7195DK4BB,PC,BLACK
DE94-02372B ASSEMBLY DUCT EXHAUST;JVM1950,PVM1970,PVM217
DE94-02373E ASSEMBLY DUCT-SUB;JVM7195SK1SS,SECC,T0.4,GE
DE94-02374G ASSEMBLY DUCT-UP;JVM7195SK1SS,SECC,T0.4,GE R
DE94-03679B ASSEMBLY GRILLE;JVM7195DK1BB, PVM9215DK1BB,G
DE94-03688A DE94-03688A ASSEMBLY GUIDE ROLLER;JVM7195, PVM9215,SPS,T
DE94-03125A ASSEMBLY GUIDE STIRRER AIR;PVM-9195/PVM-9215
DE94-04351A ASSEMBLY HANDLE;JVM6175DK3BB,PC,GE BLACK,201
DE92-90505Q ASSEMBLY HARD WARE;JVM1950, PVM1970, PVM2170

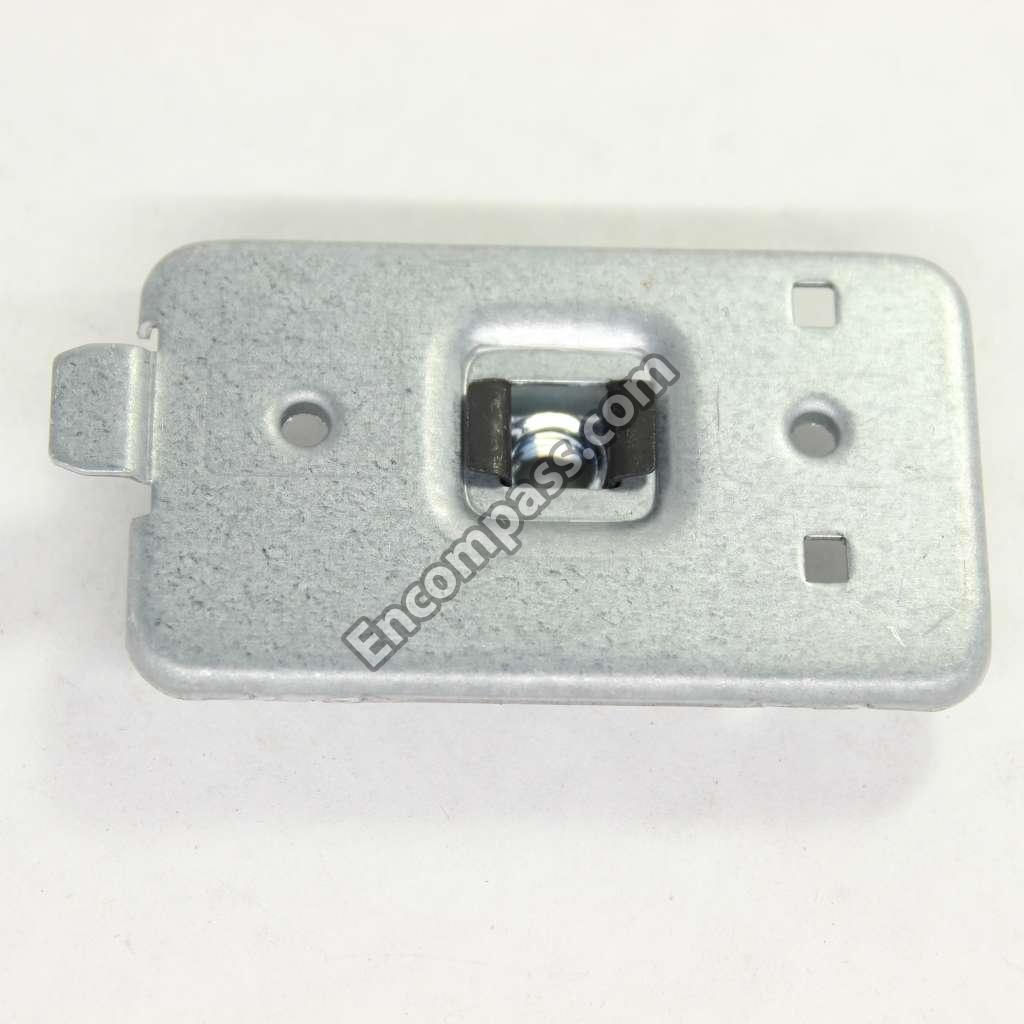

DE92-90508A DE92-90508A ASSEMBLY HOLDER-NUT;OTR6,SK5(T0.5) + S10C
DE91-70063D DE91-70063D ASSEMBLY HVD;5KV,500,#250+#250
OM75P-21-ESGN OM75P-21-ESGN ASSEMBLY MGT
DE92-03974A ASSEMBLY MODULE;FILTER REMIND LED,ME6000KM,R
DE97-00258A ASSEMBLY MOUNTING PLATE;JVM-2050/70,-,-,OTR-
DE96-00400E DE96-00400E ASSEMBLY NOISE FILTER;SN-UF12E,250V/20A,250V
DE99-00235A ASSEMBLY OUTPUT;MGT-RHN,-,-
DE94-03641A ASSEMBLY PCB AUTO;GE CONVECTION MAIN,ME6000K
DE92-03977K ASSEMBLY PCB MAIN;GE CONVECTION MAIN,ME6000K
DE94-04259A ASSEMBLY PCB SMD;GE CONVECTION MAIN,ME6000KM
DE94-02377A DE94-02377A ASSEMBLY STIRRER;85053,MHC-4,ALP T0.6,SEARS
DE91-70101F DE91-70101F ASSEMBLY THERMOSTAT;JVM-1750DP,164D5312G013,
DE96-01047A ASSEMBLY WIRE HARNESS-DISPLAY;ME18H704,120V/
DE39-40673A DE39-40673A ASSEMBLY WIRE HARNESS-EARTH;OTR6ALLMODEL,120
DE96-01072A ASSEMBLY WIRE HARNESS-MAIN;JVM7195, GE RFQ,
DE96-01073A ASSEMBLY WIRE HARNESS-PBA;GE RFQ, FILTER REM
DE96-00933A DE96-00933A ASSEMBLY WIRE HARNESS-SENSOR;PVM-1970 / PVM-
DE92-90242D ASSEMBLY-HOOD DAMPER;JVM-1870,-,JVM250BL OTR
DE97-00753A DE97-00753A ASSEMBLY-HVC;SMH9151B/XAA,0.9UF HVC. NO SCRE
DE99-00224A ASSEMBLY-ROD END;MGT-RHN,7.5*43.8
DE61-01302B BASE BOTTOM;MC17J8000CS/AA,EGI-SECC,T0.4
DE61-01302A BASE-BOTTOM;MODULAR4,EGI-SECC,T0.4
DE31-00064B DE31-00064B BLADE-FAN;MODULAR4,PP+TD40%,-,NATURAL,-,
DE66-00227A BLADE-STIRRER;MODULAR4,ALCOAT-SA1C,T0.5,
DE72-10012D BODY-ANODE;MGT-ALL,C1020T-H,T2,OD39XID35
DE60-20066A DE60-20066A BOLT-FLAT;MSWR,L100,UNF1/4
DE60-10111A DE60-10111A BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA
DE60-20022A DE60-20022A BOLT-TOGGLE;MSWR,W3/16X75,MSWR
DE61-01304B DE61-01304B BRACKET BARRIER;JVM-1950DR1BB,EGI-SECC,T
DE61-00319B BRACKET-BOTTOM LAMP;OTR-9 JVM-1860BF,EGI
DE61-01370A BRACKET-COVER MOTOR;85059,EGI-SECC,T0.8,
DE61-00115A BRACKET-HVC;SMH7175,EGI-SECC,T0.5
DE61-50263A DE61-50263A BRACKET-TCO;GI-SGCC,T0.8
DE66-20095E DE66-20095E BUTTON-LOCKING;JVM1950, PVM1970, PVM2170
2401-003139 C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO
2401-000481 C-AL;10UF,20%,50V,WT,TP,5X11MM,5MM
2401-000040 C-AL;47UF,20%,250V,TP,12.5X25MM,5MM,-40T
2401-001548 C-AL;47UF,20%,25V,TP,5X11MM,5MM,-55TO+10
2203-000206 C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0.
2203-000260 C-CER,CHIP;10NF,10%,50V,X7R,TP,2012,-55T
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-000444 C-CER,CHIP;1NF,10%,50V,X7R,TP,2012,T1.2,
2203-006960 C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO
2203-000634 C-CER,CHIP;22PF,5%,50V,C0G,TP,2012,-55TO
2203-006377 C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55
2201-000987 C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,BK,1
DE59-50002A DE59-50002A C-FILM,LEAD;10,-25TO+70,220V,+10~-5,38X2

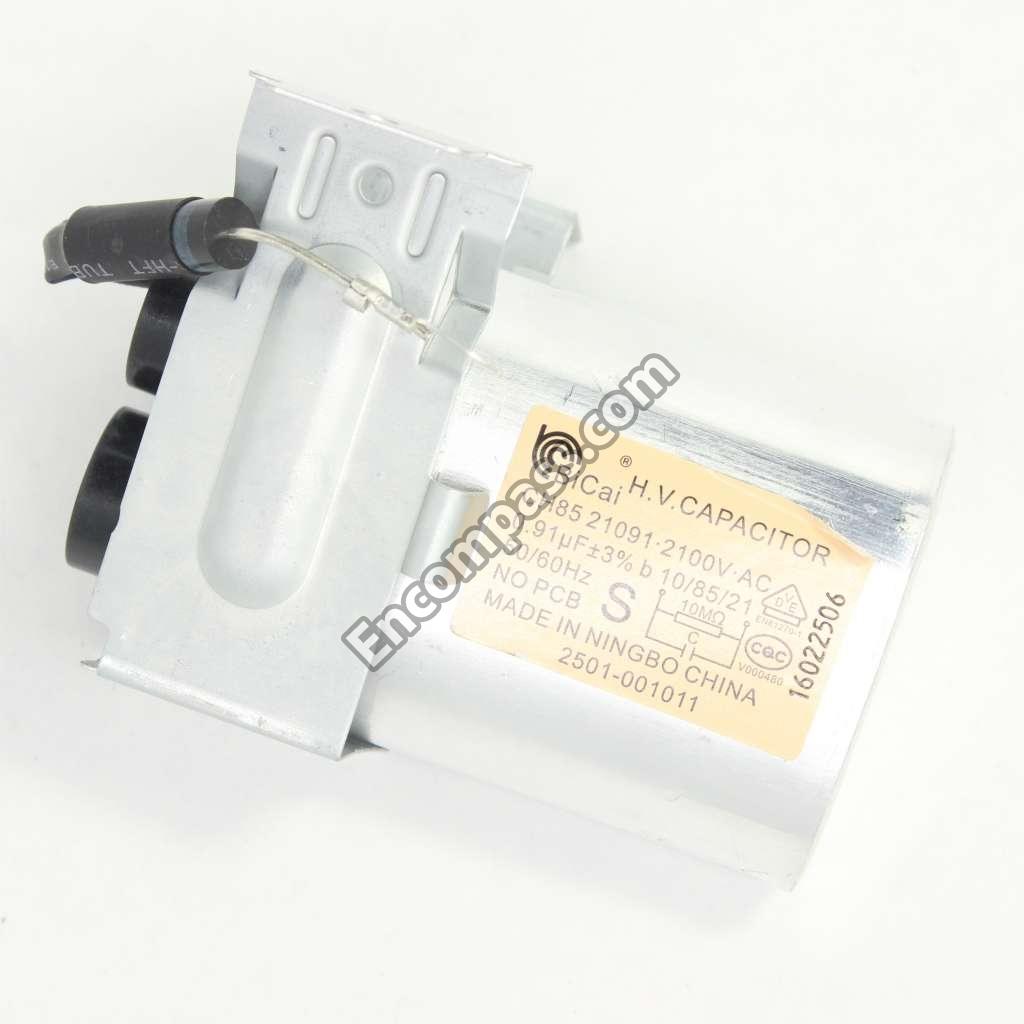

2501-001011 2501-001011 C-OIL HIGH VOLTAGE;910NF,2100V,BK,34X54X
6502-001056 CABLE CLAMP;DAWH-2NC,PA66,NTR,ID18.5
DE67-00280A CAP DOOR;JVM7195,PP+TD30%,T1.5,H36.3,HB,
DE71-60270C CAP-ANTENNA;MGT-ALL,CR-SPCE,T0.25,-,-,-,
DE02-00060A CHEMICALS-ALCOHOL;DT-3000,COLORLESS,CLEA
DE02-00135A CHEMICALS-TOLUENE;C6H5CH3,92.14
DE73-00019A CHOKE-RING;H-6,SPCCT-1/4H,T0.25X26X26,NI
DE62-00041A CHOKE;MGT-RHN,SPCCT-1/4H,ID9.0,OD14.0,T0
DE65-20029A CORD CLAMP;CORD CLAMP,EGI-SECC,94X5X0.5M
DE67-00236A DE67-00236A COUPLER;PPS+GF40%,E1040SEW,NATURAL,-,OTR
DE63-00845A DE63-00845A COVER CEILING;ME21K7010DS/AA,MICA SHEET,
DE63-00660B COVER CONNECTOR;MODULAR4,PP,T2,V-0,NATUR
DE71-60051B DE71-60051B COVER DAMPER;JVM-1870,MICA SHEET,0.22,68
DE63-00658A COVER FRONT-SUB;MODULAR4,EGI-SECC,T0.4
DE63-00657B COVER FRONT;GE MD4,CR-SPE,T0.6
DE63-00659A DE63-00659A COVER LAMP;MODULAR4,EGI-SECC,T0.4
DE63-00661A COVER MOTOR;MODULAR4,EGI-SECC,T0.6
DE63-00663B DE63-00663B COVER STIRRER;SMH2117, JVM1950,PP,GREY,M
DE63-00100A COVER-COOKTOP LAMP;OTR-9,EGI-SECC,T0.4,-
DE63-00100B COVER-COOKTOP LAMP;OTR-9,EGI-SECC,T0.4,-
DE71-00112A COVER-FILTER;MGT-ALL,EGI-SECE,T0.4,V-0
DE67-00184A CUP-K;MGT-RHN,CR-SCP2,T0.5,W60,L60,-,-
DE63-90004B CUSHION SPONGE;OTR,PUR FOAM,T10,W10,L100
DE72-40022A DE72-40022A DAMPER-MAIN;OTR,GI-SGCC,T0.5,L34,-,-,-,L
0402-001298 0402-001298 DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP
DE59-00002A DE59-00002A DIODE-H.V;MWO,2CL4512H/CL04-12A,500MA,12
0402-001795 0402-001795 DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP
0404-001595 DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A
0401-001010 DIODE-SWITCHING;1N4148W,75V,150MA,400MW,
0403-000258 DIODE-ZENER;BZX84C5V6,5.2~6V,225MW,SOT-2
0403-001499 DIODE-ZENER;MMSZ5252B,22.8~25.2V,500MW,S
DE64-00760A DE64-00760A DOOR-KEY;MODULAR-2,POM,K300,BLACK
DE67-00264A DUCT-EXHAUST;MODULAR4,GI-SGCC,T0.5
DE67-00261A DE67-00261A DUCT-REAR;MODULAR4,EGI-SECC,T0.4
DE67-00262A DUCT-UPPER FRONT;MODULAR4,EGI-SECC,T0.4
DE67-00263A DUCT-UPPER REAR;MODULAR4,EGI-SECC,T0.4
DE47-80008A FILAMENT;PI0.5,ID3.0,OD4.0,L13.4,T0.5,VT
DE01-00127A DE01-00127A FILM DOOR;JVM-1860,POLYESTER,PET,L479,T0
DE63-00666A DE63-00666A FILTER AIR;MODULAR4,AL,W172.9,L161.2,4 L

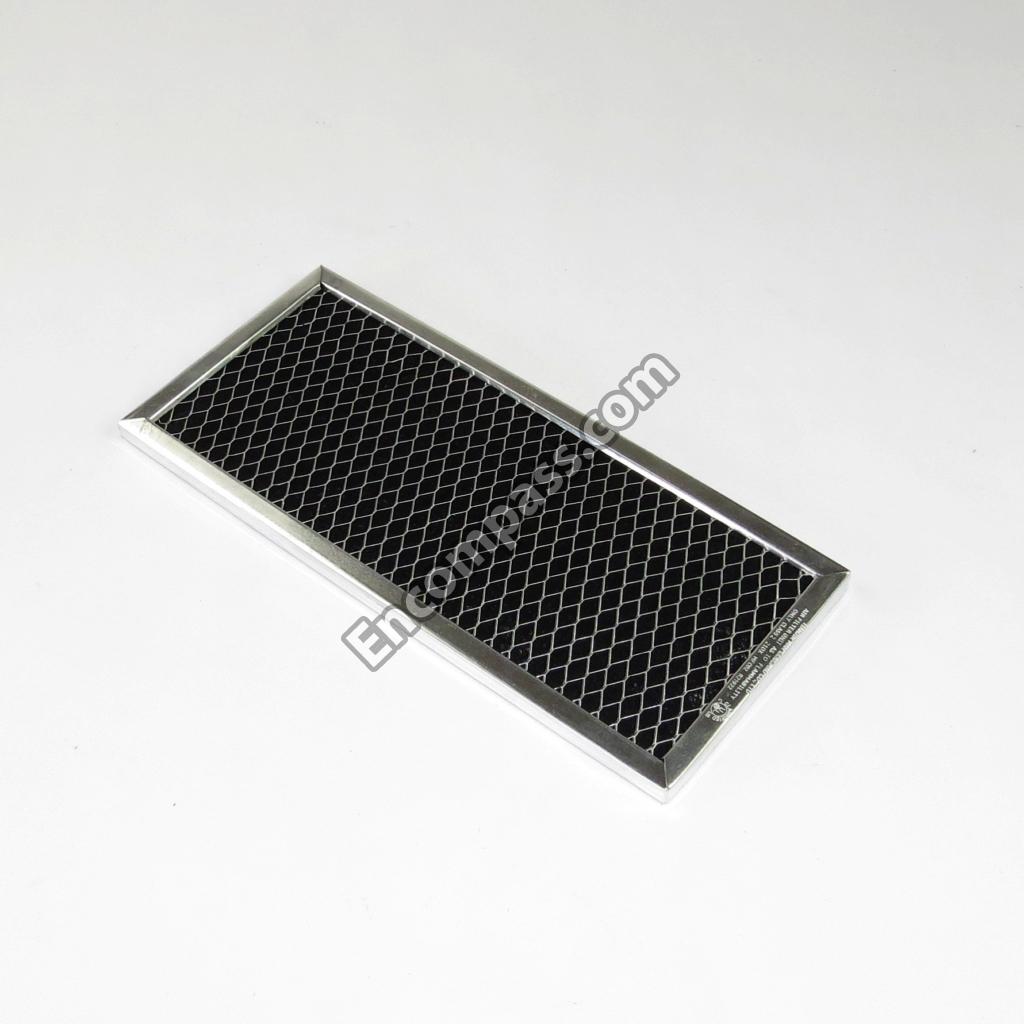

DE63-00367H DE63-00367H FILTER-CHARCOAL;SMH7175, SMH7195,CHARCOA
DE63-20015A GASKET-R.F;MGT-ALL,BRASS,T2,OD39,ID16.8,
DE67-40063A DE67-40063A GLASS-COOK TOP LAMP;GLASS,T2.8,W59,L159.
DE63-10011A GROMMET;PA66+GF15%,DACB-16,BLACK
DE61-01299A GUIDE-STIRRER AIR;MODULAR4,EGI-SECC,T0.4
DE61-01297B GUIDE-VENT AIR;JVM1950,PVM1970,PVM2170,P
3711-003843 HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,8P,
3711-004143 HEADER-BOARD TO CABLE;BOX,2P/3P,1R,5MM,S
3711-004142 HEADER-BOARD TO CABLE;BOX,3P,1R,5MM,STRA
3711-000939 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST
3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2MM,STRA
3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
3711-001154 HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,ST
3711-004349 HEADER-BOARD TO CABLE;ST,STRAIGHT,1R,3P,
DE61-01300A HOLDER LAMP;MODULAR4,EGI-SECC,T0.4
DE61-90111A DE61-90111A HOLDER-SENSOR;POM,NATURAL,HB,K300,K300
DE61-01061A DE61-01061A HOLDER-STIRRER;MD3,PPS+GF40%,T-,NATURAL,
DE61-00164A HOLDER-WIRE;OTR8,PP+TD30%,NATURAL,HB,TB5
1103-001183 IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8
1201-001125 IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D
1203-006759 IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3
1203-006245 IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1.
2702-001123 INDUCTOR-RADIAL;4.7UH,10%,6.5X7.5MM,5MM,
DE47-00006A LAMP SOCKET;250V,UL SPEC,PF,PHENOL,E17,1
4713-001165 4713-001165 LAMP-HALOGEN;120V,20W,NTR,130LM,12X40,9.

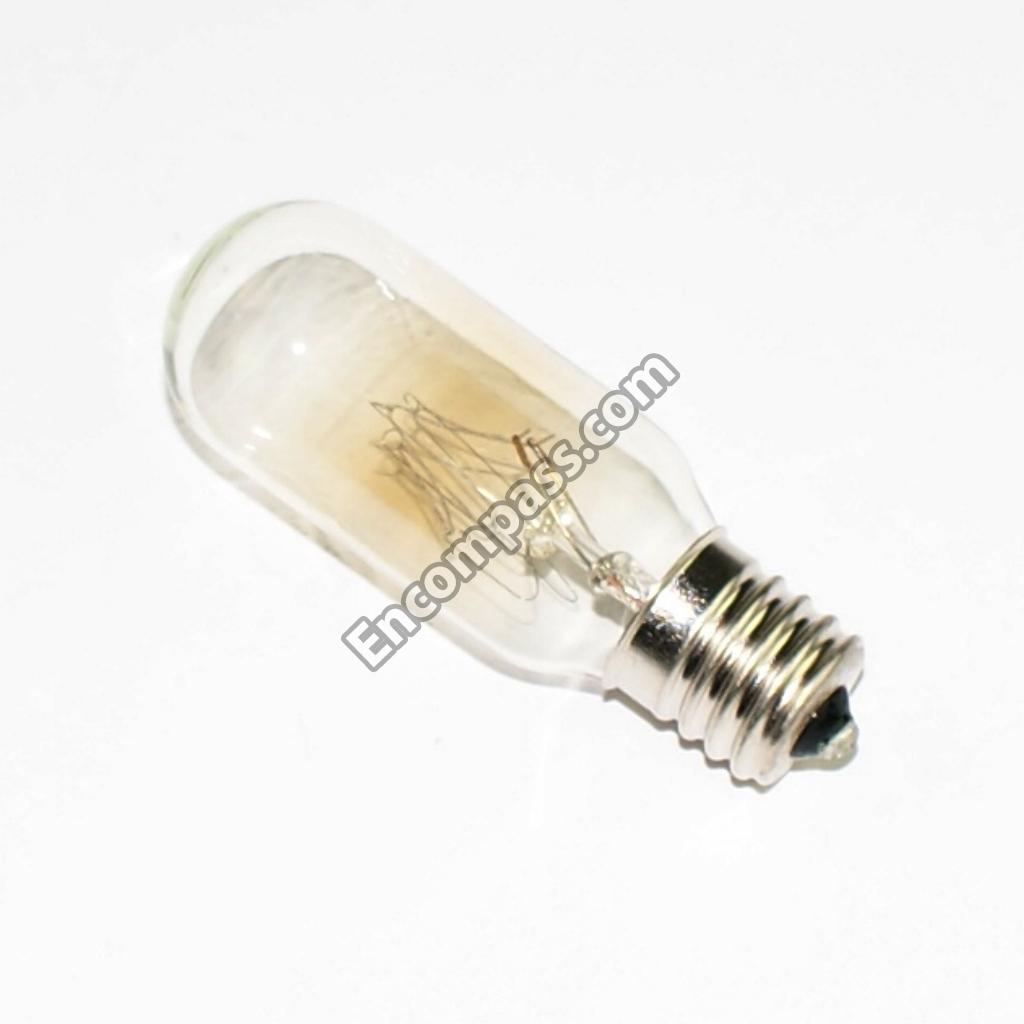

4713-001013 4713-001013 LAMP-INCANDESCENT;130V,40W,NTR,25X73MM,2
DE66-00168B DE66-00168B LATCH BODY;JVM1950, PVM1940, PVM2170,PP,
DE07-00135B LED DISPLAY;14S,7D,ME6000MM 1-LINE,WHT,C
DE66-90106B DE66-90106B LEVER SWITCH-LOWER;OTR6,POM,-,F20-03,NAT
DE73-90014A MAGNET-CATHODE;FERRITE,T13.1,PMF-2BB
DE31-10172D DE31-10172D MOTOR AC DRIVE;MC17J8000CG/AA,SSM-16HR,8
DE31-00045B DE31-00045B MOTOR AC FAN;SMF-U2070B,2,120V,60HZ,25W,
DE31-00029K DE31-00029K MOTOR AC VENTILATION;SMV-460UAL-1,2POLE,
DE60-30022A NUT TOGGLE;ZPC,ZPC2

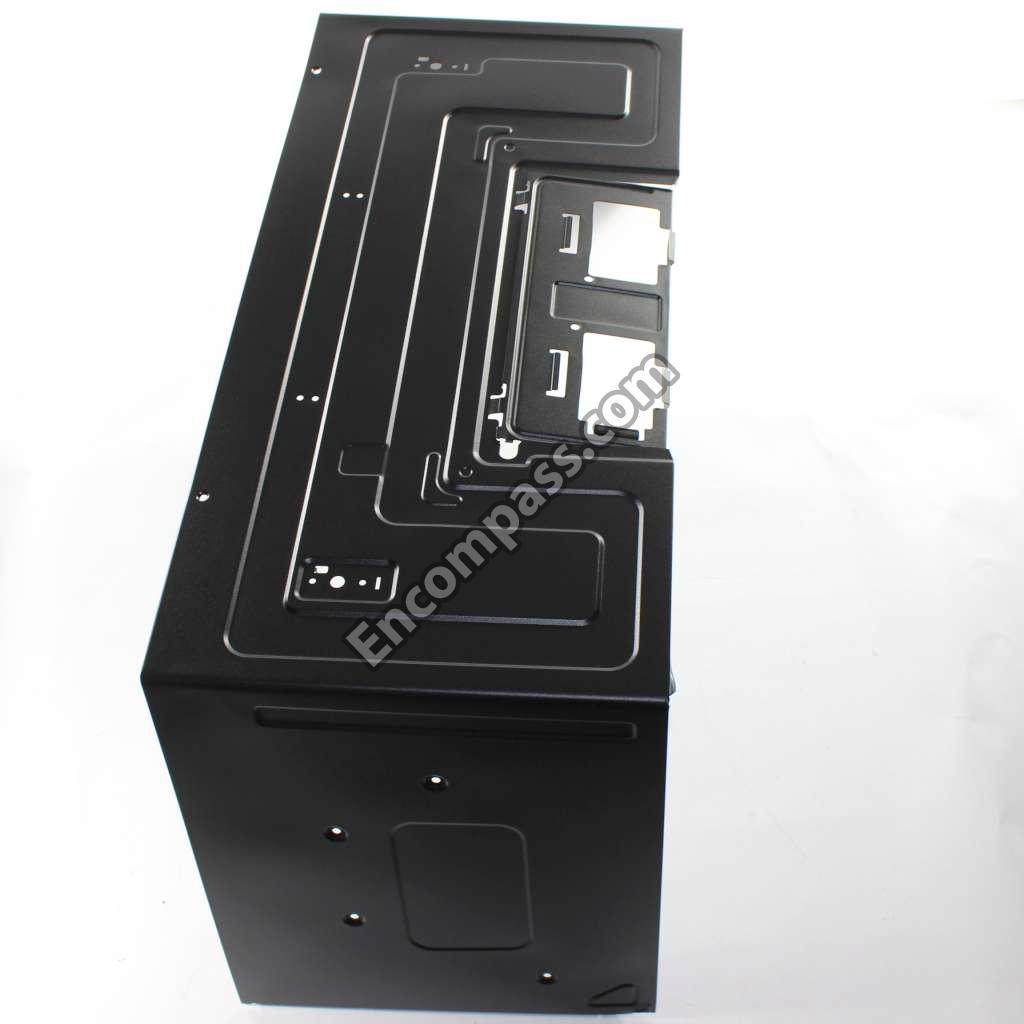

DE64-02379H DE64-02379H PANEL OUTER;MODULAR4,EGI-SECC,T0.4,W357.
DE62-20011B PIPE-EXHAUST;MGT-RHN,C1020BD-H,L7,OD12,L
DE62-20020A PIPE-TITANIUM;MGT-ALL,TI,ID1.8,OD2,L2.0,
DE61-00569A POLE-PIECE(A);MGT-RHN,SCP2-S D,NI-PLATIN
DE61-00570A POLE-PIECE(K);MGT-RHN,SCP2-S D,NI-PLATIN
DE02-00040A POWDER-EPOXY;TMP-350,EPOXY,TITANUM,MESH
DE96-00218C DE96-00218C POWER CORD-AT;SJT 3X14AWG 105C,GRY,US3S,
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-000029 R-CHIP;0OHM,5%,1/8W,TP,2012
2007-000221 R-CHIP;1.2KOHM,5%,1/8W,TP,2012
2007-000277 R-CHIP;100KOHM,1%,1/8W,TP,2012
2007-000286 R-CHIP;100OHM,1%,1/8W,TP,2012,T0.5
2007-000297 R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5
2007-000352 R-CHIP;12KOHM,1%,1/8W,TP,2012
2007-000401 R-CHIP;150OHM,5%,1/8W,TP,2012
2007-000454 R-CHIP;18KOHM,1%,1/8W,TP,2012
2007-000465 R-CHIP;1KOHM,1%,1/8W,TP,2012
2007-000474 R-CHIP;1MOHM,1%,1/8W,TP,2012,T0.5
2007-000530 R-CHIP;200KOHM,1%,1/8W,TP,2012,T0.5
2007-000543 R-CHIP;20KOHM,1%,1/8W,TP,2012,T0.55
2007-000668 R-CHIP;2KOHM,1%,1/8W,TP,2012
2007-000868 R-CHIP;4.7KOHM,1%,1/8W,TP,2012
2007-000928 R-CHIP;470OHM,1%,1/8W,TP,2012
2007-000938 R-CHIP;47KOHM,1%,1/8W,TP,2012
3501-000264 3501-000264 RELAY-POWER;12.0V,16000MA,1FORMA,6.5MS,1
DE60-10059A DE60-10059A SCREW-TAPPING;STS304,NI PLT,L8,M4,TH,+,2
6002-001173 6002-001173 SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,F
DE60-10062A SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,T
6002-001159 SCREW-TAPPING;SWRCH18A,ZPC(BLK),L20,M4,T
DE60-10067A SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH
6002-000432 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6006-001170 6006-001170 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6002-001237 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M3,P
6002-001325 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
DE60-10080A DE60-10080A SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M5,P
DE60-10045A DE60-10045A SCREW-TAPPING;SWRCH18A,ZPC(WHT),L6,M3,PH
DE60-10051A SCREW-TAPPING;SWRCH18A,ZPC(WHT),L6,M4,PH
6002-001614 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PW
DE81-01903A SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L16,M4,F
6006-001176 SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,PH
DE74-10011A SEAL-WASHER;MGT-ALL,TK721(AG+CU),T0.05,I
DE32-60011A DE32-60011A SENSOR GAS;TGS-880,-,-,-,-,-,-,-,-
DE70-90027A SHEET-ALLOY;ST-NIFE,COIL,T0.5,W34,ALLOY
DE70-90033A SHEET-BRAZE;MGT-ALL,VAGCU28,T0.35,PI0.3X
DE71-00042A SHIELD-CUP(A);MGT-ALL,CR-SCP2,T0.5,W60,L
DE71-80021A SHIELD-END;MO,T2.5,OD7.5,ID3.4,-,-,-
DE71-80022A SHIELD-TOP;MGT-ALL,MO,T2,W7.5,L1.74,-,-,
2203-006361 SMG PART
2203-006307 SMG PART
0103-003512 SMG PART
0103-003556 SMG PART
0106-001061 SMG PART
0106-001101 SMG PART
0106-001360 SMG PART
0106-001361 SMG PART
0201-001822 SMG PART
0201-003147 SMG PART
0202-001463 SMG PART
0202-001608 SMG PART
0204-002895 SMG PART
0204-004665 SMG PART
0402-001741 SMG PART
0404-001666 SMG PART
0504-000001 SMG PART
0504-001064 SMG PART
0505-001943 SMG PART
0604-001405 SMG PART
0903-001966 SMG PART
1203-004400 SMG PART
1205-004722 SMG PART
1405-001438 SMG PART
2007-000568 SMG PART
2007-000569 SMG PART
2007-001011 SMG PART
2007-001262 SMG PART
2007-007219 SMG PART
2201-002690 SMG PART
2202-002252 SMG PART
2203-006457 SMG PART
2401-003803 SMG PART
2801-005307 SMG PART
3002-001129 SMG PART
3501-001306 SMG PART
3708-001550 SMG PART
3711-004200 SMG PART
3711-007499 SMG PART
6042-001018 SMG PART
6801-001738 SMG PART
6902-001498 SMG PART
6902-001500 SMG PART
DB68-05458A SMG PART
DE01-00228A SMG PART
DE01-00288A SMG PART
DE02-00014A SMG PART
DE02-00029A SMG PART
DE02-00030A SMG PART
DE02-00049A SMG PART
DE26-00171A SMG PART
DE41-00464A SMG PART
DE42-00006A SMG PART
DE42-00007A SMG PART
DE47-00019B SMG PART
DE59-00008A SMG PART
DE60-60071A SMG PART
DE61-00161D SMG PART
DE61-00807A SMG PART
DE61-01042A SMG PART
DE61-01043A SMG PART
DE61-01288B SMG PART
DE61-01289F SMG PART
DE61-01291B SMG PART
DE61-01292D SMG PART
DE61-01293B SMG PART
DE61-01294B SMG PART
DE61-01295B SMG PART
DE61-01296B SMG PART
DE61-01306A SMG PART
DE61-01307A SMG PART
DE61-01565A SMG PART
DE61-01587B SMG PART
DE61-01603A SMG PART
DE61-50279A SMG PART
DE62-00019A SMG PART
DE62-00020A SMG PART
DE62-00039A SMG PART
DE63-00008F SMG PART
DE63-00008H SMG PART
DE63-00217R SMG PART
DE63-00217S SMG PART
DE63-00283A SMG PART
DE63-00792A SMG PART
DE63-00836A SMG PART
DE63-00907A SMG PART
DE63-90064B SMG PART
DE64-00753B SMG PART
DE64-00766F SMG PART
DE64-02379G SMG PART
DE64-02918A SMG PART
DE64-02926A SMG PART
DE64-02937A SMG PART
DE64-02940A SMG PART
DE64-02947A SMG PART
DE64-02955B SMG PART
DE64-03019B SMG PART
DE64-03058A SMG PART
DE65-00008A SMG PART
DE65-00009A SMG PART
DE66-30012H SMG PART
DE67-00310A SMG PART
DE67-40021A SMG PART
DE68-02230G SMG PART
DE68-03709D SMG PART
DE68-03843C SMG PART
DE68-03983A SMG PART
DE68-03984A SMG PART
DE68-03985B SMG PART
DE68-04041B SMG PART
DE68-04208C SMG PART
DE68-04352A SMG PART
DE68-04428A SMG PART
DE68-04433A SMG PART
DE68-30138D SMG PART
DE68-40170A SMG PART
DE68-40400E SMG PART
DE68-40729D SMG PART
DE69-00929C SMG PART
DE69-00995A SMG PART
DE69-30014D SMG PART
DE70-00347B SMG PART
DE70-00347C SMG PART
DE70-00347E SMG PART
DE70-00347K SMG PART
DE70-00347M SMG PART
DE70-00347N SMG PART
DE70-00380A SMG PART
DE70-00381A SMG PART
DE70-00382A SMG PART
DE70-00414A SMG PART
DE70-00551G SMG PART
DE70-00559A SMG PART
DE70-90142D SMG PART
DE71-30022A SMG PART
DE73-00012A SMG PART
DE73-00028A SMG PART
DE73-80020A SMG PART
DE73-90013D SMG PART
DE81-01614A SMG PART
DE90-01592D SMG PART
DE90-01594D SMG PART
DE90-01623F SMG PART
DE90-01921Y SMG PART
DE92-03981B SMG PART
DE94-01470A SMG PART
DE94-02308A SMG PART
DE94-02311A SMG PART
DE94-02363P SMG PART
DE94-02363T SMG PART
DE94-02364P SMG PART
DE94-02367J SMG PART
DE94-02369B SMG PART
DE94-02378B SMG PART
DE94-02726E SMG PART
DE94-02727D SMG PART
DE94-02728V SMG PART
DE94-03628A SMG PART
DE94-03687A SMG PART
DE94-03703A SMG PART
DE94-04241A SMG PART
DE98-01421E SMG PART
DE98-01499A SMG PART
DE99-00236B SMG PART
DE99-00271B SMG PART
DE99-00287A SMG PART
DE99-00352A SMG PART
DE99-00376A SMG PART
DE99-00377B SMG PART
DE99-00383A SMG PART
DE99-00384A SMG PART
DE61-01412A SPRING ETC-KEY;HSWR-SWRH,D8.35,L47,TURNI
DE66-00054A STRAP-INNER;MGT-ALL,C1020T-H,T2.5,AG-PLA
DE66-00055A STRAP-OUTER;MGT-ALL,C1020T-H,T2.5,AG-PLA
DE70-50027A STRIP-CU;C1020S,H,T1.85,W13.45
DE61-30129A DE61-30129A SUPPORT PCB;PA66+GF15%,KN3321G15V0,BLACK
DE34-00453L SWITCH MEMBRANE;JVM7195DK3BB,PC,120V,100
3405-001033 3405-001033 SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N
3405-001034 3405-001034 SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N
DE02-00139A TAPE DOUBLE FACE;ACRYL FOAM,T0.16,W15,WH
DE02-00168A TAPE ETC;OPP,-,W72,L1000,TRANSPARENT
DE02-00022B TAPE POLYESTER;POLYESTER,T0.15,W80,NATUR
CALL_1-800-SAMSUNG THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA
DE47-00050C DE47-00050C THERMOSTAT;AC125-250V,15/10A,140C,0C,S.O
DE47-00034D DE47-00034D THERMOSTAT;AC125/250V,15/10A,110C,0C,S.O
DE47-20007B DE47-20007B THERMOSTAT;AC125/250V,15/10A,150C,60C,NO
DE47-20034A DE47-20034A THERMOSTAT;AC125/250V,15/10A,40C,70C,NOR
0506-000175 TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100
0504-001080 TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM
0504-001008 TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM,
DE26-00126A DE26-00126A TRANS H.V;SHV-U1870C,120V,2260V,2500V,60
DE74-00023A DE74-00023A TRAY COOKING;85059,GLASS,T6
DE62-20026A TUBE-CU;C1020T-H,T0.7,OD18.6,L1800,ILLUS
DE62-20025A TUBE-CU;C1020T-H,T0.725,OD15.35,L1800,IL
DE62-20027A TUBE-CU;C1020T-H,T2.2,OD39,L1800,ILLUSIO
DE66-00149A VANE;MGT-ALL,C1020R-H,T1.85,13.45X9.5
1405-000154 VARISTOR;560V,460VDC,4500A,17.5X7.5MM,BK
DE60-40006A WASHER-BRAZE;MGT-ALL,VAGCU28,OD15.9 X ID
DE70-60025A WIRE-COPPER,OFHC;C1020W-H,PI12XROLL
DE70-60022A WIRE-CU;H-6,C1020W,COIL,PI2.7
DE66-00123A WIRE-SADDLE;JE620/610BF/WF,PA66+GF15%,KN
Main Menu x
