Manufacturer
Samsung
Model Number
LC32G57TQWNXDC
Description
32-inch G5 Odyssey Gaming Monitor With 1000r Curve
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-15647A | A/S OPEN CELL-ADHESIVE-A.C.F |
| BN81-01918A | A/S-RESIN |
|
|
ASSEMBLY BOARD P-FUNCTION JOG |
| BN96-50652B | ASSEMBLY CHASSIS FRONT P |
| BN96-50653B | ASSEMBLY COVER P-DECORATION |
| BN96-52115A | ASSEMBLY COVER P-REAR |
| BN96-52114A | ASSEMBLY COVER P-REAR BOTTOM |
| BN96-52517A | ASSEMBLY STAND P COVER NECK |
| BN96-52113A | ASSEMBLY STAND P COVER TOP |
| BN94-11861C | ASSY PCB FUNCTION |
| 6902-000609 | BAG ROLL |
| BN61-13312B | BRACKET SCREWLESS POWER CONTRO |
| BN61-13557S | BRACKET WIRE |
| BN61-13557C | BRACKET-WIRE |
| BN64-02286E | BUTTON-FUNCTION |
| 3701-001670 | CONNECTOR-DISPLAY PORT |
| 3701-001967 | CONNECTOR-HDMI |
| BN63-19214A | COVER TERMINAL SIDE |
|
|

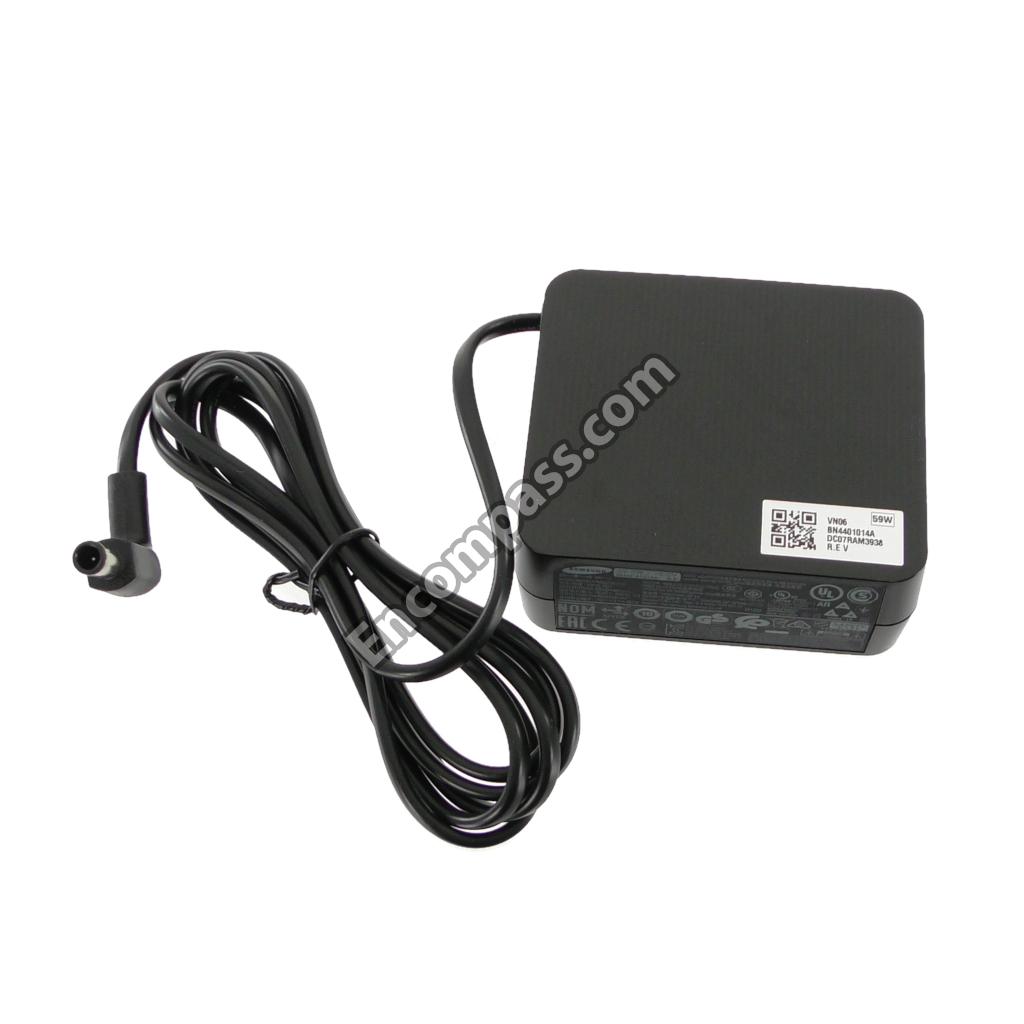

DC VSS(A) |
| BN39-01879G | DISPLAY PORT CABLE |
| BN96-52072A | FFC CABLE |
| BN96-52039A | FFC CABLE |
| BN67-00327S | FOOT-RUBBER |
| 3601-001470 | FUSE-SURFACE MOUNT |
|
|
FUSE-SURFACE MOUNT |
| BN63-12151A | GASKET-EMI |
| 3711-008646 | HEADER BOARD TO CABLE |
| 3711-005872 | HEADER-BOARD TO CABLE |
|
|
HOLDER-STAND |
|
|
JACK-DC POWER |
| 3722-003216 | JACK-PHONE |
| BN68-08142A | LABEL BOX |
| BN68-05458A | LABEL-BARCODE |
| BN68-05722A | LABEL-E PASS |
| BN68-00513A | LABEL-E, PASS |
| BN68-07103D | LABEL-RATING |
| BN68-05603E | LABEL-RESIN |
| BN39-01878N | LEAD CONNECTOR-SUB ASSEMBLY |
| BN68-09371A | LEAFLET-REGULATORY GUIDE |
| BN68-04657D | LEAFLET-REGULATORY GUIDE |
| BN68-03677A | LEAFLET-WARRANTY |
| BN94-16505F | MAIN BOARD |
| BN68-00226M | MANUAL FLYER-WARRANTY |
| BN69-21424B | PACKING ANGLE |
| BN41-02578B | PCB-FUNCTION |
|
|
POWER CORD-DT |
| BN95-06942A | PRODUCT LCD-AUO |
| 0103-004609 | RESIN ABS |
| 0103-007368 | RESIN PC |
| 0103-005036 | RESIN PC |
| 0103-011600 | RESIN PC ABS |
| 0103-011475 | RESIN PP |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| BN63-17244B | SHEET-PROTECTION COVER |
| 0202-001830 | SOLDER-CREAM |
| BN60-01656A | SPACER-CONDUCTIVE |
| BN60-01665A | SPACER-FOAM |
| BN61-04216A | SPRING ETC-STAND |
| BN61-02932E | STUD-PEM |
| 3404-001490 | SWITCH-TACT |
| BN02-00173N | TAPE SINGLE FACE |
| BN02-00611A | TAPE-DOUBLE FACE |
| BN74-00053G | TAPE-SINGLE FACE |
| BN02-00319A | TAPE-SINGLE FACE |
| BN02-00102B | TAPE-SINGLE FACE |
|
|
USB JACK |
| BN69-11504A | WRAP VINYL |
