Manufacturer
Samsung
Model Number
LH55VMTEBGBXZA
Description
55-inch Vmt-e Series Video Wall Display
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-53126A | ASSEMBLY BRACKET P-WALL;VMT-E/VHT-E,EGI-SECC |
| BN96-52294A | ASSEMBLY COVER P-REAR;LH55VHTE,PCM,BK0007,NO |
| BN96-50188A | ASSEMBLY INLET P-HARNESS;VHR-R,110MM,AC250V, |
| BN94-16729G | ASSEMBLY PCB MAIN;VMT-E |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+ |
| 6902-000341 | BAG PE;LDPE,T0.05,W70,L90,TRP,ECO. N |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 6011-001816 | BOLT-ETC;M8,L30,ZPC(BLK),SWRCH18A,WSP,PH |
| BN61-16656A | BRACKET-WALL;LH055VHR,HGI-SGHC,T1.6,NATU |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005005 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1608,-55 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006320 | C-CER,CHIP;2.2UF,10%,16V,X7R,TP,2012,T1. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2409-001168 | C-EDL;200000UF,3.3V,0.01MA,TP,6.8X11.3MM |
| 6801-001760 | CARD INFORMATION;MEXICO,SPANISH,W/P,W215 |
| 3701-001670 | CONNECTOR-DISPLAY PORT;20P,2R,MALE,ANGLE |
| 3701-001787 | CONNECTOR-DVI;29P,3R,FEMALE,ANGLE,AU,37. |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| BN63-18458A | COVER-HANDLE;LH055VHR,PC+ABS+GF15%,T2.5, |
| 2801-000258 | CRYSTAL-SMD;0.032768MHZ,20PPM,SMD,12.5PF |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-004300 | CRYSTAL-SMD;18.432MHZ,30PPM,28-ABX,13PF, |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| BN44-01022A | DC VSS-POWER BOARD;F55PV_RSM,AC/DC,240W, |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001407 | DIODE-ZENER;MMSZ5242B,12V,11.4/12.6V,500 |
| BN39-01879F | DISPLAY PORT CABLE;UHD,20P,L2000,UL20276 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| BN96-50148A | FFC;VHR-R,WRINKLE/STRAIGHT,L450,51P |
| 2901-001302 | FILTER-EMI SMD;20V,0.3A,0PF,2.0X1.2X1.3M |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
|
|
GENDER CABLE;PROTON,3P,200,UL2547,BLK,ST |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| BN62-00099A | HEAT SINK-ES;GENOA,A6063,W20,L20,BLACK,H |
| BN61-16318B | HOLDER-BOX;ALL,PP,BLACK,HB,RECYCLED PCR_ |
|
|

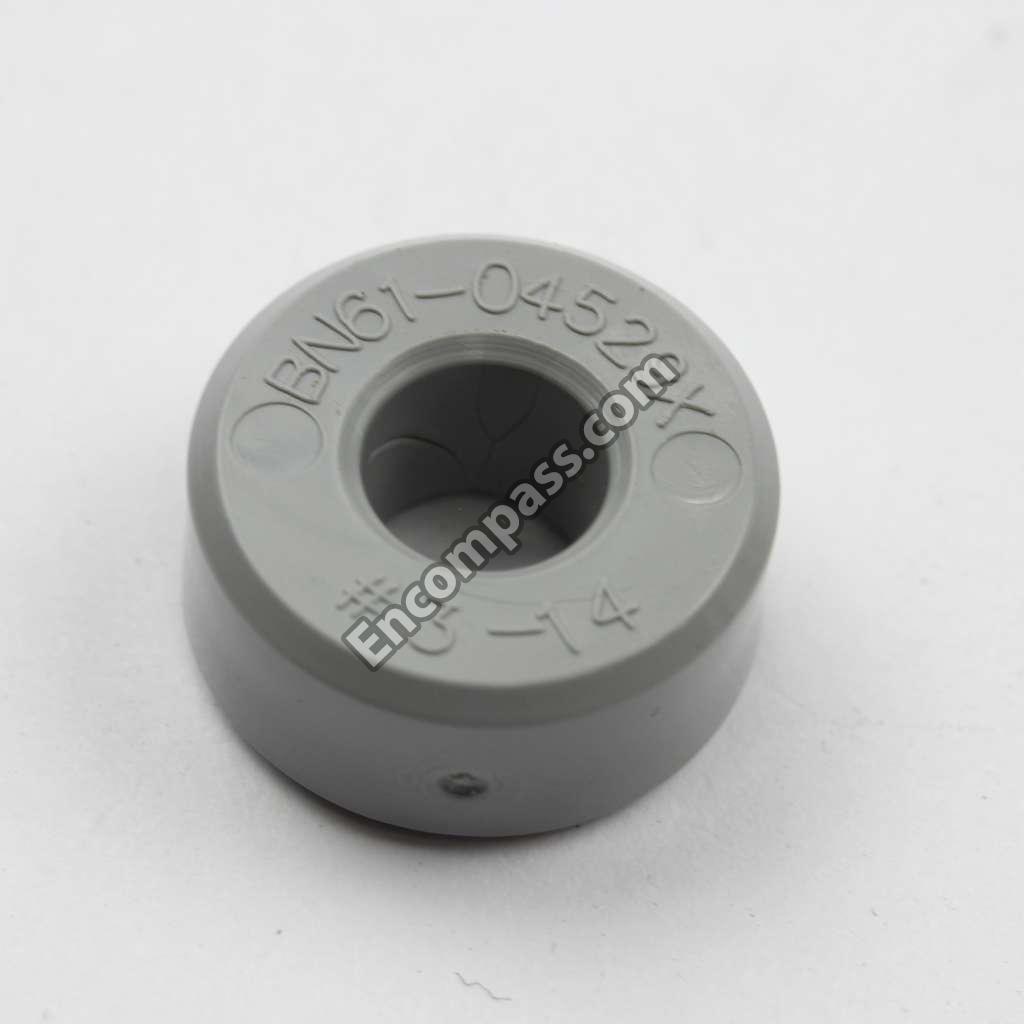

HOLDER-WALL RING;PYROPE,ABS,GRAY |
| BN13-00059A | IC ASIC;ACM12SDP1115,LFD,256P,3.3V,-10TO |
| 1001-001680 | IC-ANALOG MULTIPLEX;TC7SB3157CFU,CMOS,US |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 1301-002160 | IC-CPLD;SLG4P4190VTR,TQFN20,20P,3X2MM,21 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1105-002996 | IC-DDR3 SDRAM;K4B2G1646F-BCNB,DDR3,2GBIT |
| 1105-002494 | IC-DRAM;M12L128168A-6TG2N,SDR,128M,2MX16 |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1205-004385 | IC-ETHERNET CONTROLLER;RTL8201F-VB-CGT,Q |
| 1107-002587 | IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7 |
| 1203-008112 | IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8,4.9 |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 0909-001085 | IC-REAL TIME CLOCK;BQ32002,SOIC,8P,4.9X6 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
| 1001-001828 | IC-VIDEO SWITCH;TS3V330PWR,TSSOP,16P,6.9 |
| 1203-007728 | IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| BN63-13273A | INSULATOR-SHEET;LH55OMD,PC,BLACK,L330,W2 |
|
|
IRBLASTER CABLE;4P,L700,UL2835,BLK,IR BL |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| 3722-004127 | JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN07-01652A | LCD-LGD;LD550DUN-THB9,XTB8BX2,1211.4X682 |
| BN39-02659A | LEAD CONNECTOR-BLU;VHT-E,UL21016,12P,L20 |
| BN39-02660A | LEAD CONNECTOR-BLU;VHT-E,UL21016,14P,L65 |
| BN39-02217C | LEAD CONNECTOR-POWER;40K5500,UL21016,12P |
|
|
POWER CORD-DT;USA,3P-F,125V,10A,BLK,L150 |
| 4301-000121 | PRIMARY BATTERY MN;1.5V,4.4MAH,R03,10.5X |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000857 | R-CHIP;4.3KOHM,1%,1/10W,TP,1608 |
| 2007-008295 | R-CHIP;43KOHM,1%,1/16W,TP,1005,T0.3 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000962 | R-CHIP;5.1KOHM,1%,1/10W,TP,1608 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-007238 | R-CHIP;8.25KOHM,1%,1/10W,TP,1608 |
|
|
REMOCON-TV;2013 LFD,SAMSUNG,44KEY,3V,14Y |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW |
| 6003-000131 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,BH |
| 0204-008185 | SILICAGEL;CALCIUM CHLORIDE,CACL2,94%,20G |
| 3601-001374 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007425 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006890 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006474 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000679 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000278 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-008117 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001284 | SMG PART |
| 2007-001068 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000174 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000153 | SMG PART |
| 2007-000149 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 1001-001965 | SMG PART |
| 0406-001200 | SMG PART |
| 0404-001089 | SMG PART |
| 0103-010275 | SMG PART |
| 0202-001830 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-001976 | SMG PART |
| 0609-001346 | SMG PART |
| 0609-001485 | SMG PART |
| 0903-002105 | SMG PART |
| 0904-002306 | SMG PART |
| 1103-001646 | SMG PART |
| 1205-005275 | SMG PART |
| 6902-000609 | SMG PART |
| 6902-003275 | SMG PART |
| 6922-000013 | SMG PART |
| 6922-000421 | SMG PART |
| AA68-03727A | SMG PART |
| BN02-00074E | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00319B | SMG PART |
| BN41-02739B | SMG PART |
| BN46-00109H | SMG PART |
| BN61-02431B | SMG PART |
| BN61-02431E | SMG PART |
| BN61-07582A | SMG PART |
| BN61-14440A | SMG PART |
| BN61-14466A | SMG PART |
| BN61-16318A | SMG PART |
| BN61-17441A | SMG PART |
| BN61-17442A | SMG PART |
| BN63-19227A | SMG PART |
| BN63-19243A | SMG PART |
| BN64-04247A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-00735F | SMG PART |
| BN68-00797H | SMG PART |
| BN68-01545A | SMG PART |
| BN68-02021D | SMG PART |
| BN68-03677E | SMG PART |
| BN68-03863G | SMG PART |
| BN68-04657D | SMG PART |
| BN68-05458A | SMG PART |
| BN68-06810A | SMG PART |
| BN68-07104D | SMG PART |
| BN68-08142A | SMG PART |
| BN68-08302A | SMG PART |
| BN68-09370A | SMG PART |
| BN68-11087B | SMG PART |
| BN68-12374A | SMG PART |
| BN69-11504A | SMG PART |
| BN69-20188A | SMG PART |
| BN69-20254A | SMG PART |
| BN69-20450A | SMG PART |
| BN69-21424F | SMG PART |
| BN69-21711A | SMG PART |
| BN81-01918A | SMG PART |
| BN81-20459A | SMG PART |
| BN81-20462A | SMG PART |
| BN81-20463A | SMG PART |
| BN90-11973A | SMG PART |
| BN91-23074U | SMG PART |
| BN91-23082A | SMG PART |
| BN92-29781A | SMG PART |
| BN92-29786L | SMG PART |
| BN92-29787C | SMG PART |
| BN92-29789L | SMG PART |
| BN96-20830A | SMG PART |
| BN96-50201A | SMG PART |
| BN96-52607L | SMG PART |
| BN97-00045L | SMG PART |
| BN97-00045M | SMG PART |
| BN97-00045N | SMG PART |
| BN97-00045S | SMG PART |
| BN97-18011A | SMG PART |
| 1404-001386 | THERMISTOR-NTC;10KOHM,3975K,2.1MWC,TP,1. |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
