Manufacturer
Samsung
Model Number
LH75OMAEBGBXZA
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-39535B | ASSEMBLY BOARD P-SUB;LH46OMNSLGB,CT20SF06BA, |
| BN96-50026A | ASSEMBLY COVER P-REAR;75OMR,PC+ABS+ED20%,5VB |
| BN96-50167A | ASSEMBLY INLET P-HARNESS;UL10938 #22,500MM,A |
| BN96-50199A | ASSEMBLY MISC P-LEAD CONNECTOR;LH75OMR,W/W,H |
| BN96-53488B | ASSEMBLY OPEN CELL;BOE,75INCH,POL CHANGE,DV7 |
| BN94-17224A | ASSEMBLY PCB MAIN;OMA |
| BN96-52257A | ASSEMBLY SENSOR P-TEMP;LH85OHNDKGB,CT50SK01A |
| BN96-41263C | ASSEMBLY SMPS P-DRIVER BOARD;F85LUCR_RHSV,DC |
| BN96-41264C | ASSEMBLY SMPS P-DRIVER BOARD;F85LUDR_RHSV,DC |
| BN96-53495B | ASSEMBLY T CON P;BN96-53495B,CY-HA075HLEVZH, |
| 6902-003906 | BAG ACCESSORY;LDPE,T0.06,W200,L240,TRP,R |
| 6902-003159 | BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W2000, |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-06509A | BRACKET-VESA;EGI-SECC,T0.8,NATURAL,SECC |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-005918 | C-CER,CHIP;1UF,10%,6.3V,X7R,TP,1608,T0.8 |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2203-000998 | C-CER,CHIP;47PF,5%,50V,C0G,TP,1608,T0.8, |
| 2409-001408 | C-EDL;220000UF,3.3V,TP,6.8X11.4MM |
| 2409-001191 | C-ORGANIC,SMD;47UF,20%,20V,TP,7343(1.9T) |
| 3701-001670 | CONNECTOR-DISPLAY PORT;20P,2R,MALE,ANGLE |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 2801-000258 | CRYSTAL-SMD;0.032768MHZ,20PPM,SMD,12.5PF |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-00896A | DC VSS-POWER BOARD;F85PU_KDY,AC/DC,665W, |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
|
|

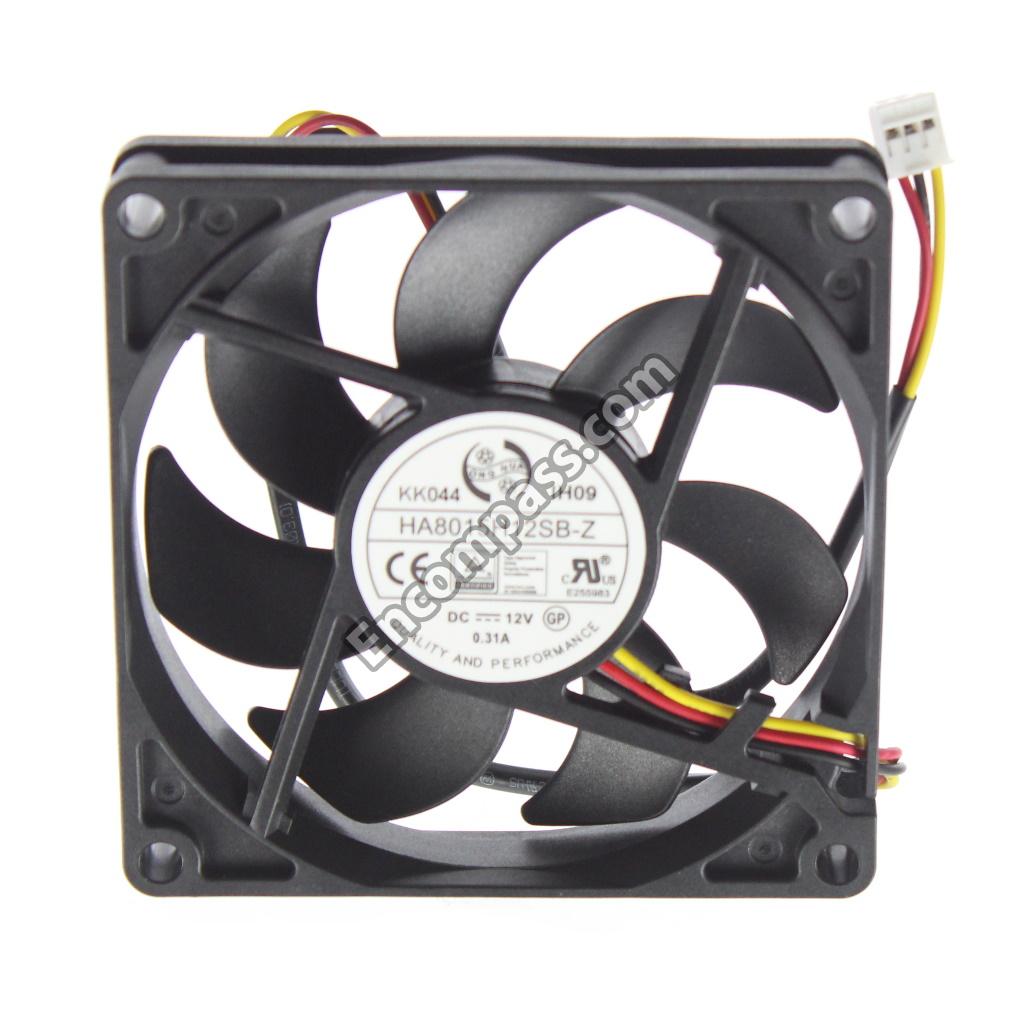

FAN-DC BRUSHLESS MOTOR;9GA0812H7D004,9GA |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |

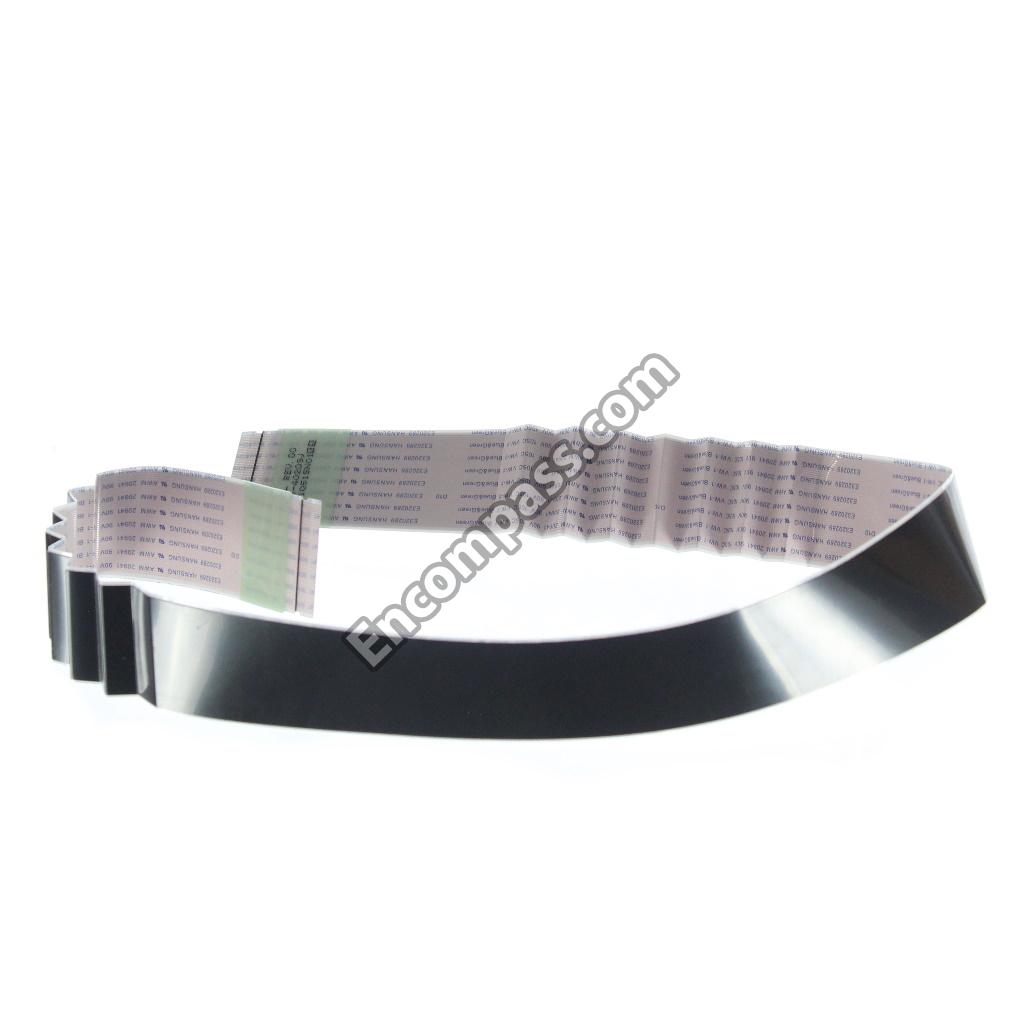

| BN96-53732A | FFC;LST9,STRAIGHT,L100,68P,BOE 75 LST9A |
| BN96-50006A | FFC;OMR75,FOLD,L300,30P,L5 |
| BN96-50012A | FFC;OMR75,FOLD,L350,30P,R5 |
| BN96-50011A | FFC;OMR75,FOLD,L400,30P,R4 |
| BN96-50005A | FFC;OMR75,FOLD,L450,30P,L4 |
|
|
FFC;UN78KU7500FXZA,WRINKLE/STRAIGHT,L600 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-007803 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
| 3711-005939 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- |
| 3711-006042 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.0MM,SM |
| BN61-16318B | HOLDER-BOX;ALL,PP,BLACK,HB,RECYCLED PCR_ |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 1301-002160 | IC-CPLD;SLG4P4190VTR,TQFN20,20P,3X2MM,21 |
| 1203-009197 | IC-DC/DC CONVERTER;RT6203E,SOP-8,8P,5X4X |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-008920 | IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2 |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-009198 | IC-DC/DC CONVERTER;TPS549A20,VQFN-CLIP,2 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1204-003775 | IC-DECODER;SDP1803,FCBGA,929P,31X31X2.19 |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1205-005952 | IC-LCD CONTROLLER;SE18S01-NT,PBGA,202P,1 |
| 1107-002587 | IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004028 | IC-OP AMP;HSOP,TP,20P,12.95X10.65MM,SING |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 0909-001085 | IC-REAL TIME CLOCK;BQ32002,SOIC,8P,4.9X6 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1209-002459 | IC-TEMP. TRANSDUCER;HDC1080,WSON,6P,3.00 |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
|
|
IRBLASTER CABLE;4P,L700,UL2835,BLK,IR BL |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| 3722-003705 | JACK-PHONE;2P/6C,AU,BLK,ANGLE,3.5PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02531A | LEAD CONNECTOR-ETC;75OMR,UL10368,6P,L50, |
| BN39-02530A | LEAD CONNECTOR-ETC;75OMR,UL21016,18P,L10 |
| BN39-02290A | LEAD CONNECTOR-POWER;UL10938,10P,L400,BL |
| BN39-02532A | LEAD CONNECTOR-SUB ASSEMBLY;UL21451,12P,L450 |
| 0601-002852 | LED;SMD(TOP VIEW),RED,WATER CLEAR,1X0.8M |
|
|
NETWORK-WLAN CLIENT;WDN221M,58X27X8.5MM |
| BN73-00024P | PAD GAP-THERMAL;D000312,RUBBER,T15,L28,H |
| 3903-001296 | POWER CORD-DT;USA,3P-F,125V,10A,BLK,L240 |
| 4301-000121 | PRIMARY BATTERY MN;1.5V,4.4MAH,R03,10.5X |
| BN95-07954A | PRODUCT LCD-BOE;CY-HA075HLEVYH,OMA,OMA 7 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000265 | R-CHIP;1.8KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOCON-TV;2013 LFD,SAMSUNG,44KEY,3V,14Y |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
| 6001-003336 | SCREW-MACHINE;CH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
| 6001-002789 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L6,M4,BH |
|
|
SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW |
| 6002-000126 | SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L10,M3,+ |
| 3601-001374 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-005057 | SMG PART |
| 2203-002687 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-001072 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000679 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007315 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001320 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001284 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000147 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 1001-001965 | SMG PART |
| 0801-000796 | SMG PART |
| 0601-002037 | SMG PART |
| 0406-001200 | SMG PART |
| 0102-002334 | SMG PART |
| 0103-004609 | SMG PART |
| 0103-005036 | SMG PART |
| 0103-007368 | SMG PART |
| 0103-009493 | SMG PART |
| 0103-009706 | SMG PART |
| 0103-010808 | SMG PART |
| 0103-011141 | SMG PART |
| 0103-011284 | SMG PART |
| 0103-011352 | SMG PART |
| 0103-011533 | SMG PART |
| 0202-001830 | SMG PART |
| 0203-006966 | SMG PART |
| 0403-001783 | SMG PART |
| 0406-001317 | SMG PART |
| 1003-002584 | SMG PART |
| 1103-001584 | SMG PART |
| 2703-004145 | SMG PART |
| 2703-005715 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-000609 | SMG PART |
| 6902-003587 | SMG PART |
| 6922-000421 | SMG PART |
| AA68-03727A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00105H | SMG PART |
| BN02-00163A | SMG PART |
| BN02-00173C | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352B | SMG PART |
| BN02-00444A | SMG PART |
| BN02-00519A | SMG PART |
| BN02-00549A | SMG PART |
| BN41-02952A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN60-00715N | SMG PART |
| BN60-01647A | SMG PART |
| BN60-01664A | SMG PART |
| BN61-02428E | SMG PART |
| BN61-09449A | SMG PART |
| BN61-10859A | SMG PART |
| BN61-11982C | SMG PART |
| BN61-16117A | SMG PART |
| BN61-16618A | SMG PART |
| BN61-16619A | SMG PART |
| BN61-16620A | SMG PART |
| BN61-16622A | SMG PART |
| BN61-16635B | SMG PART |
| BN61-16636A | SMG PART |
| BN61-16641A | SMG PART |
| BN61-16642A | SMG PART |
| BN61-18273A | SMG PART |
| BN61-18274A | SMG PART |
| BN61-18275A | SMG PART |
| BN61-18276A | SMG PART |
| BN61-18277A | SMG PART |
| BN61-18279A | SMG PART |
| BN61-18334A | SMG PART |
| BN61-18335A | SMG PART |
| BN61-18336A | SMG PART |
| BN62-00842B | SMG PART |
| BN63-07229A | SMG PART |
| BN63-17418H | SMG PART |
| BN63-17948B | SMG PART |
| BN63-18402A | SMG PART |
| BN63-18431A | SMG PART |
| BN64-03544D | SMG PART |
| BN64-04123B | SMG PART |
| BN64-04626A | SMG PART |
| BN65-00010A | SMG PART |
| BN65-00015A | SMG PART |
| BN68-00107A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-00735F | SMG PART |
| BN68-00797H | SMG PART |
| BN68-02021D | SMG PART |
| BN68-03677E | SMG PART |
| BN68-04657D | SMG PART |
| BN68-04657J | SMG PART |
| BN68-05603A | SMG PART |
| BN68-05603E | SMG PART |
| BN68-05722A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-06810A | SMG PART |
| BN68-08142A | SMG PART |
| BN68-09370B | SMG PART |
| BN68-09370D | SMG PART |
| BN68-12374A | SMG PART |
| BN68-12978A | SMG PART |
| BN69-00391P | SMG PART |
| BN69-11504A | SMG PART |
| BN69-22276J | SMG PART |
| BN69-22905A | SMG PART |
| BN69-22906A | SMG PART |
| BN69-23193A | SMG PART |
| BN69-23193C | SMG PART |
| BN69-23194A | SMG PART |
| BN69-24708A | SMG PART |
| BN74-00053E | SMG PART |
| BN81-01918A | SMG PART |
| BN81-21159A | SMG PART |
| BN81-21209A | SMG PART |
| BN81-21995A | SMG PART |
| BN81-21996A | SMG PART |
| BN90-11204A | SMG PART |
| BN90-12307B | SMG PART |
| BN91-23800E | SMG PART |
| BN91-23801A | SMG PART |
| BN92-30801C | SMG PART |
| BN92-30802P | SMG PART |
| BN92-30803A | SMG PART |
| BN92-30804G | SMG PART |
| BN96-49770B | SMG PART |
| BN96-50004A | SMG PART |
| BN96-50008A | SMG PART |
| BN96-50009A | SMG PART |
| BN96-50010A | SMG PART |
| BN96-50013A | SMG PART |
| BN96-50014A | SMG PART |
| BN96-54323B | SMG PART |
| BN96-54324A | SMG PART |
| BN96-54325A | SMG PART |
| BN96-54326A | SMG PART |
| BN96-54328A | SMG PART |
| BN96-54512G | SMG PART |
| BN96-54618A | SMG PART |
| BN96-55464A | SMG PART |
| BN97-00035Q | SMG PART |
| BN97-00035R | SMG PART |
| BN97-00059V | SMG PART |
| BN97-09686A | SMG PART |
| BN97-19131Z | SMG PART |
| BN97-19132A | SMG PART |
| 3407-000183 | SWITCH-DIP;50V,100MA,SLIDE,STANDARD |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
