Manufacturer
Samsung
Model Number
LH85WMRWLGCXZA
Description
Samsung Interactive Display 85-inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-12752A | A/S OPEN CELL-SPCB SIDE |
| BN81-16230A | A/S-ADHESIVE-A.C.F |
| BN81-01918A | A/S-RESIN |
| BN61-09308A | ADHESIVE-TP |
| BN96-44910F | ASSEMBLY ACCESSORY PEN SET |
| BN96-52310A | ASSEMBLY ACCESSORY SCREW |
| BN96-52184A | ASSEMBLY BOARD P SUB |
| BN96-52125A | ASSEMBLY BOARD P SUB |
| BN96-52183A | ASSEMBLY BOARD P TOUCH MODULE |
| BN96-51990B | ASSEMBLY CHASSIS FRONT P |
| BN96-52094C | ASSEMBLY COVER P-REAR |
| BN96-50494A | ASSEMBLY LED BAR P |
| BN96-50493A | ASSEMBLY OPEN CELL |
| BN96-52095A | ASSEMBLY SPEAKER P-FRONT |
| 6902-000609 | BAG ROLL |
| 6922-000013 | BAND PP |
| BN61-13312B | BRACKET SCREWLESS POWER CONTRO |
| BN61-15358A | BRACKET-CORNER |
| BN61-13921A | BRACKET-TOP |
| BN61-11982B | BRACKET-WALL |
| BN61-13557P | BRACKET-WIRE |
| BN61-13557K | BRACKET-WIRE |
| BN61-13557G | BRACKET-WIRE |
| BN61-13557F | BRACKET-WIRE |
| BN61-13557E | BRACKET-WIRE |
| 2409-001168 | C-EDL |
| 6801-001760 | CARD INFORMATION |
| 3711-006495 | CONNECTOR HEADER |
| 3701-001670 | CONNECTOR-DISPLAY PORT |
| 3701-001967 | CONNECTOR-HDMI |
|
|
CONNECTOR-HEADER |
| BN63-17746E | COVER TERMINAL SIDE |
| BN44-01065D | DC VSS PD BOARD |
| BN44-00553A | DC VSS-POWER BOARD |

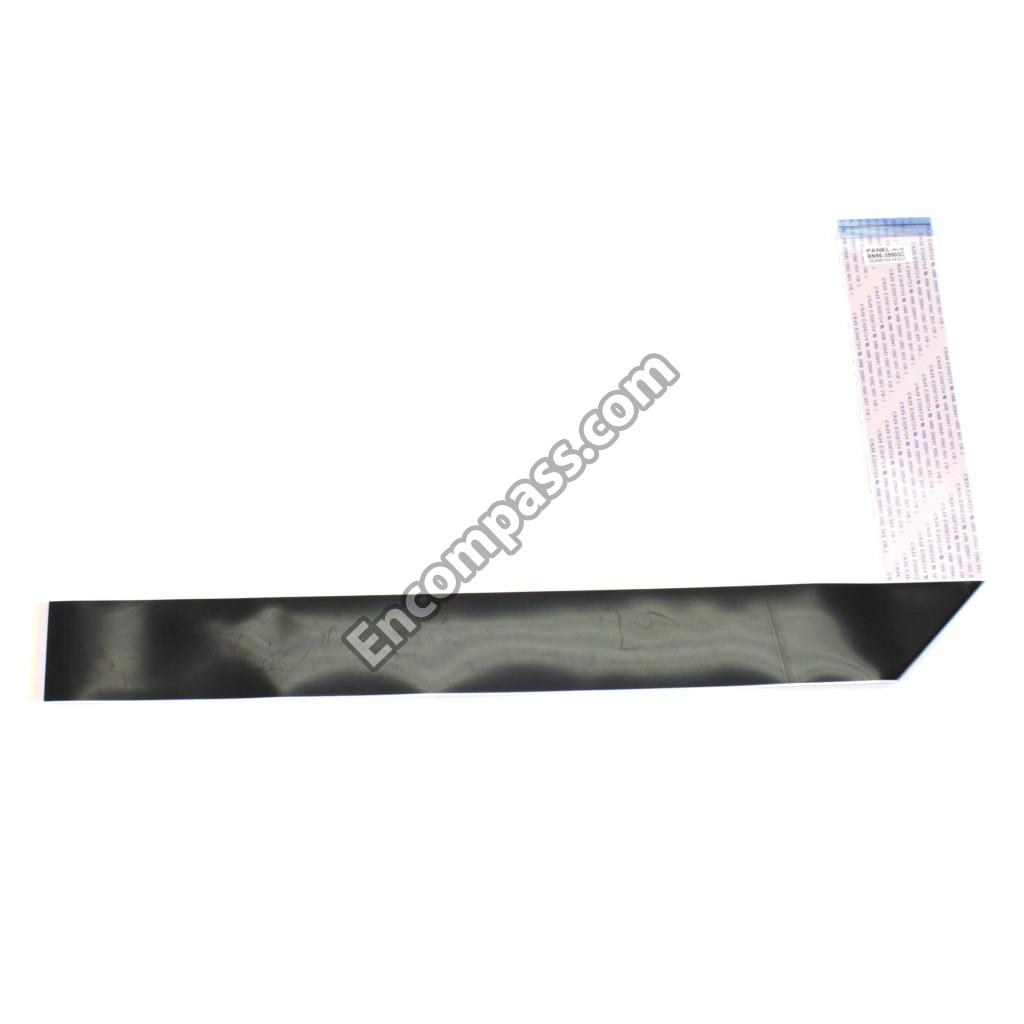

| BN96-52126A | FFC CABLE |
|
|
FFC CABLE |
|
|
FUSE-SURFACE MOUNT |
| BN63-00520A | GASKET |
| 3711-008859 | HEADER-BOARD TO CABLE |
|
|
HEADER-BOARD TO CABLE |
| 3711-008131 | HEADER-BOARD TO CABLE |
| 3711-008098 | HEADER-BOARD TO CABLE |
| 3711-007814 | HEADER-BOARD TO CABLE |
| 3711-005872 | HEADER-BOARD TO CABLE |
| BN61-16318A | HOLDER-BOX |
| 3722-004140 | JACK USB |
| 3722-003199 | JACK-MODULAR |
| 3722-003216 | JACK-PHONE |
| BN68-08142A | LABEL BOX |
| BN68-05458A | LABEL-BARCODE |
| BN68-05722A | LABEL-E PASS |
| BN68-00513A | LABEL-E, PASS |
| BN68-06708G | LABEL-RATING |
| BN68-05603E | LABEL-RESIN |

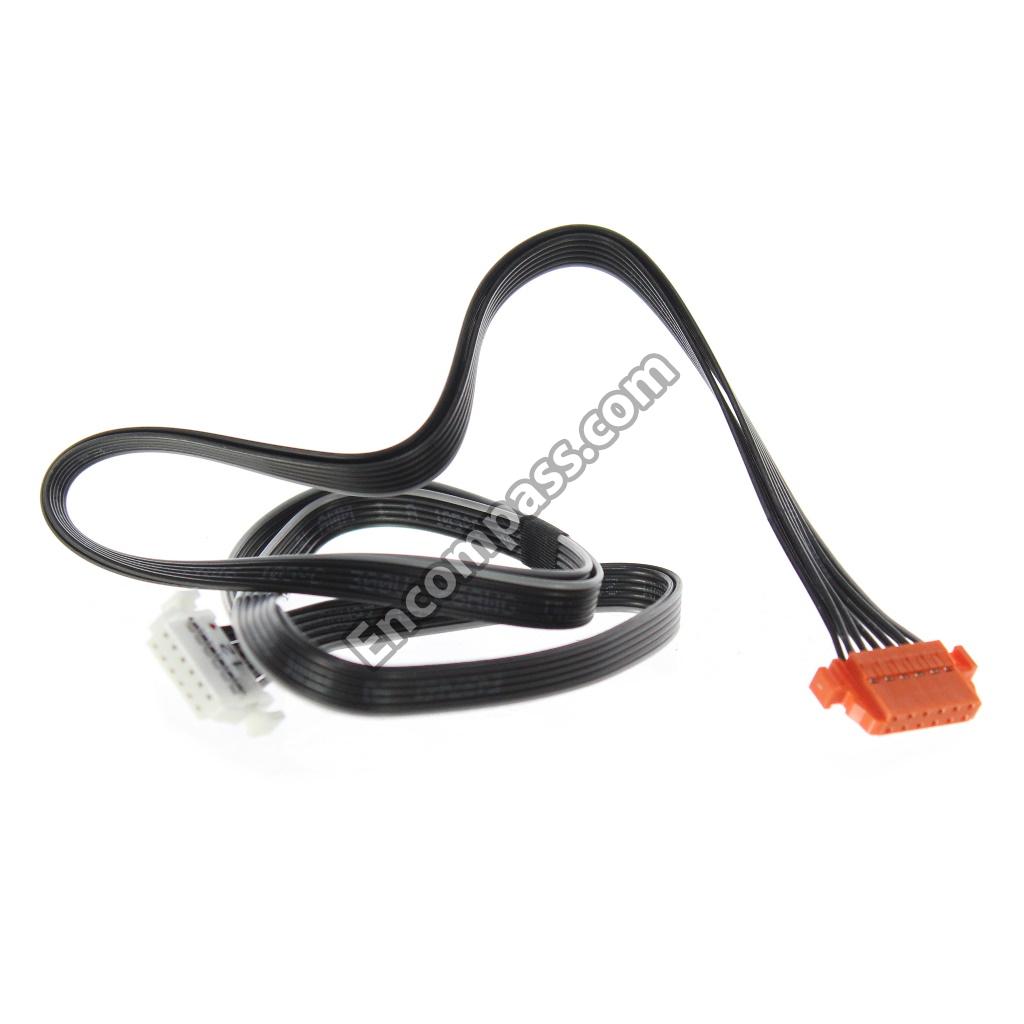

| BN39-02539A | LEAD CONNECTOR BLU |
| BN39-02642A | LEAD CONNECTOR POWER |
| BN39-02641A | LEAD CONNECTOR POWER |
| BN39-02473B | LEAD CONNECTOR SUB ASSEMBLY |
|
|
LEAD CONNECTOR-POWER |
| BN68-04657D | LEAFLET-REGULATORY GUIDE |
| 0601-002852 | LED |
| BN94-14772J | MAIN BOARD |
| AA68-03727A | MANUAL-WARRANTY CARD |
|
|

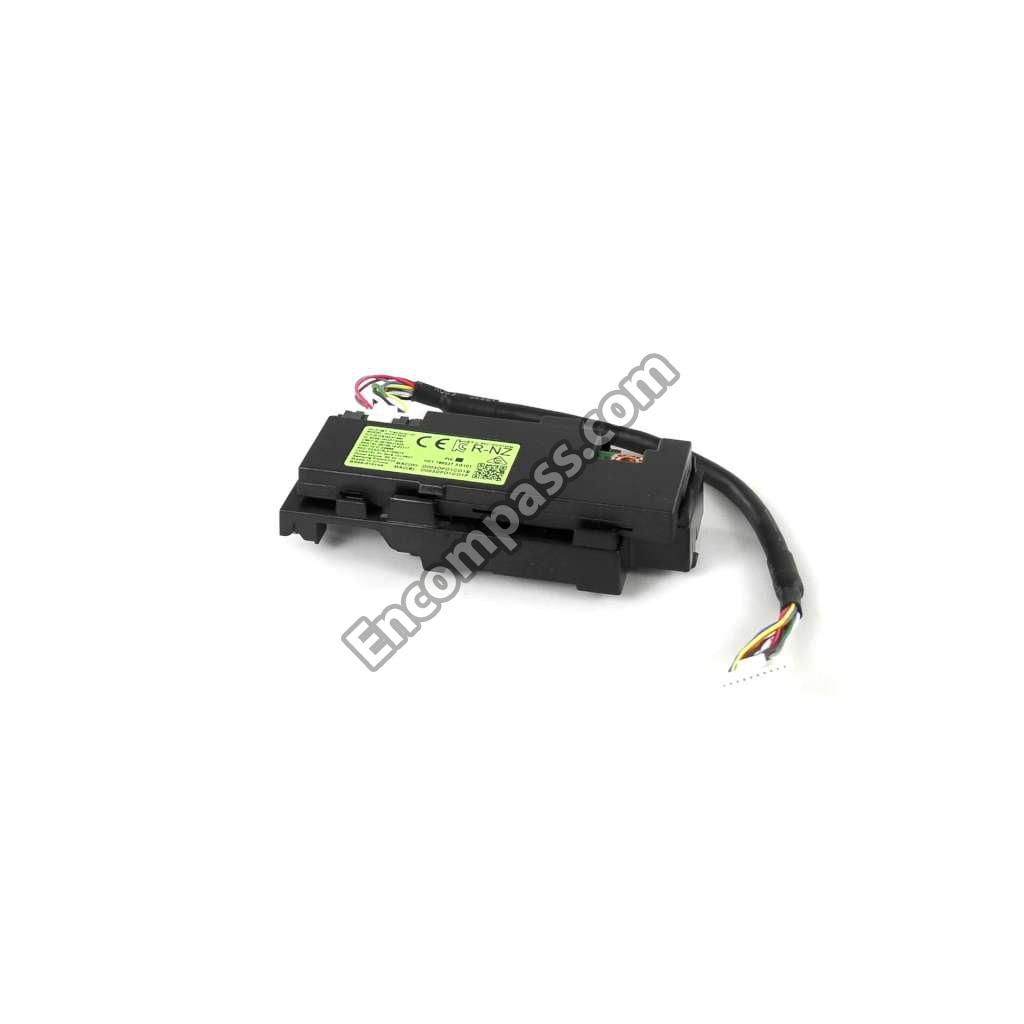

NETWORK-WLAN CLIENT |
|
|

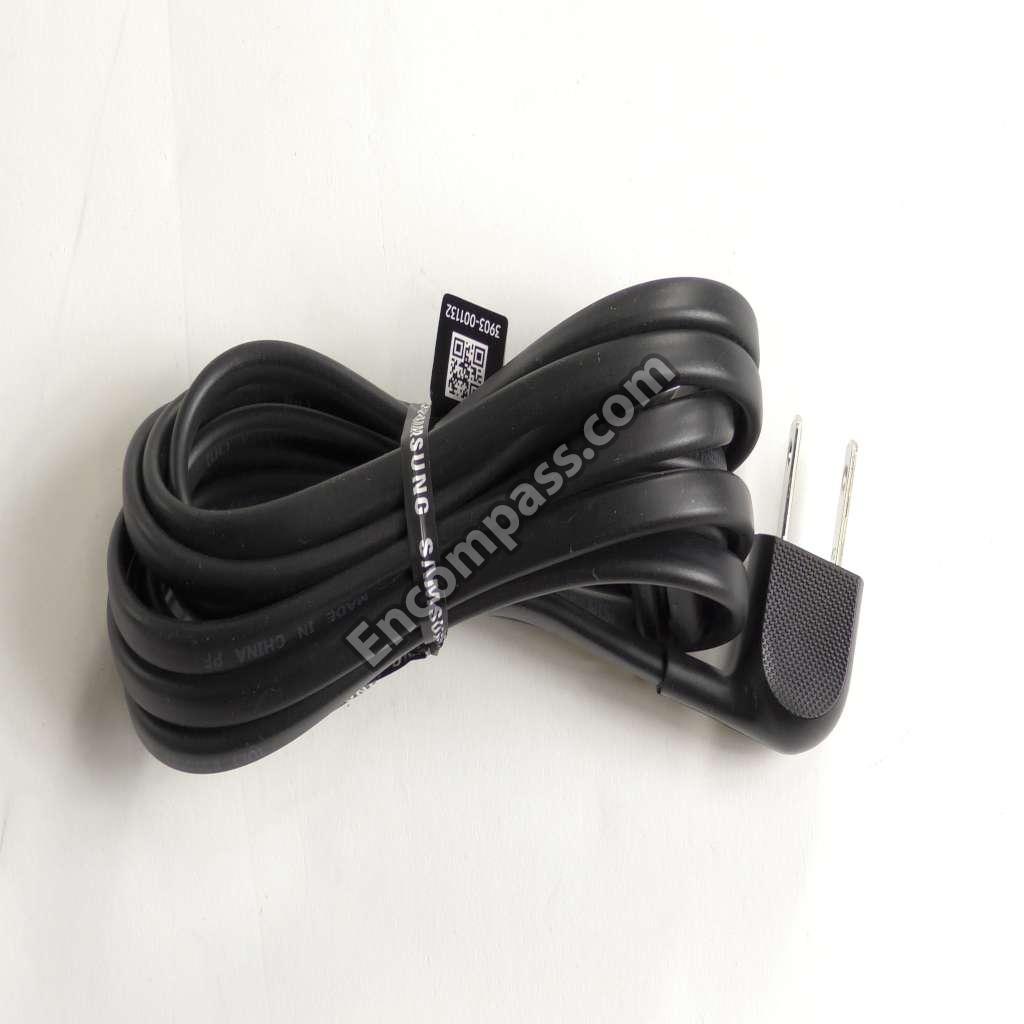

POWER CORD-DT |
| BN95-07421A | PRODUCT LCD DP-SVC |
| BN95-06813F | PRODUCT LCD-AUO |
| 2011-001587 | R-NETWORK |
| 2011-001527 | R-NETWORK |
| 2011-001448 | R-NETWORK |
| 2011-001264 | R-NETWORK |
|
|

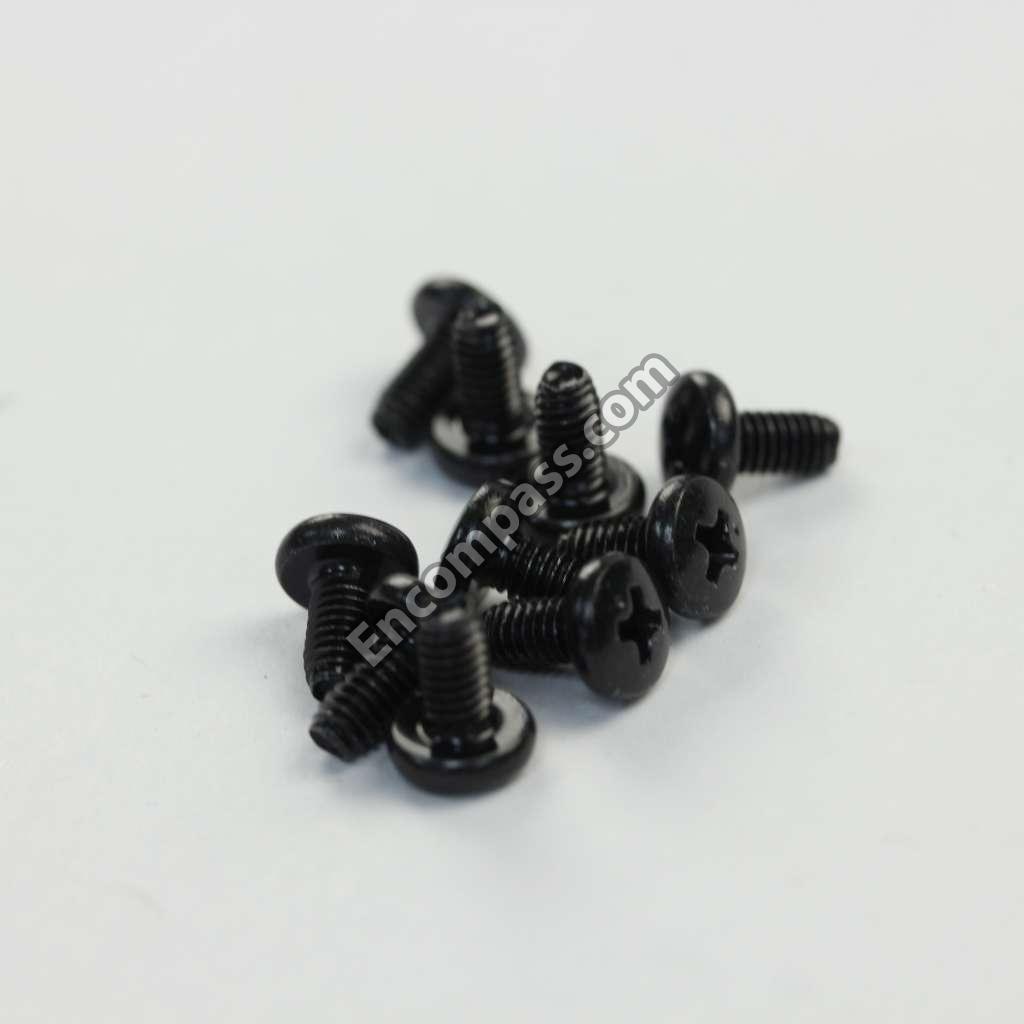

SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
| 6003-000172 | SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| 0202-001830 | SOLDER-CREAM |
| BN60-01656A | SPACER-CONDUCTIVE |
| BN60-01670A | SPACER-FOAM |
| 3407-000183 | SWITCH-DIP |
| BN02-00586C | TAPE DOUBLE FACE |
| BN02-00074F | TAPE SINGLE FACE |
| 0203-007214 | TAPE-DOUBLE FACE |
| 0203-007064 | TAPE-DOUBLE FACE |
| BN74-00053E | TAPE-SINGLE FACE |
| BN02-00352B | TAPE-SINGLE FACE |
| BN02-00319B | TAPE-SINGLE FACE |
| BN02-00102B | TAPE-SINGLE FACE |
| 1404-001731 | THERMISTOR-NTC |
| 0504-000126 | TR-DIGITAL |
| BN39-00397C | USB CABLE |
|
|
USB JACK |
| BN69-11504A | WRAP VINYL |
