Manufacturer
Samsung
Model Number
LH98QMTEPGCXZA
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-22245A | A/S-AL CAP_SVC;AL-CAP,SAMYOUNG, NXH35VB1 |
| BN81-20169A | A/S-CONTROL PCB;DV980QUM-N11,44-9771751 |
| BN96-39819A | ASSEMBLY BOARD P-FUNCTION ONE KEY;LFD PMF, P |
| BN96-52542A | ASSEMBLY BRACKET P-FRAME BOTTOM;LH98QMT,AL,B |
| BN96-52543A | ASSEMBLY BRACKET P-FRAME LEFT RIGHT;98QMT,AL |
| BN96-52544A | ASSEMBLY BRACKET P-FRAME TOP;98QMT,AL,NATURA |
| BN96-52540A | ASSEMBLY COVER P-FRONT;98QMT,AL,BLACK,EUROPE |
| BN96-52541A | ASSEMBLY COVER P-REAR;98QMT,PC+ABS+ED20%,5VB |
| BN96-52618A | ASSEMBLY INLET P-HARNESS;98QMT,UL11047 #14 B |
| BN94-16709A | ASSEMBLY PCB MAIN;QBT |
| BN96-34566E | ASSEMBLY SPEAKER P-FRONT;TV-SPK,QMF,6OHM,10W |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+ |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-17438B | BRACKET-FRAME LEFT RIGHT;98QMT,AL,T2,NAT |
| BN61-17437A | BRACKET-FRAME TOP;98QMT,AL,T2,NATURAL |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005005 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1608,-55 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2203-000998 | C-CER,CHIP;47PF,5%,50V,C0G,TP,1608,T0.8, |
| 2409-001408 | C-EDL;220000UF,3.3V,TP,6.8X11.4MM |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
| 6801-001760 | CARD INFORMATION;MEXICO,SPANISH,W/P,W215 |
| 3701-001670 | CONNECTOR-DISPLAY PORT;20P,2R,MALE,ANGLE |
| 3701-001787 | CONNECTOR-DVI;29P,3R,FEMALE,ANGLE,AU,37. |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| BN63-07153B | COVER-HANDLE;95MEC,PC+ABS+GF15%,V-1,BLAC |
| BN63-17878A | COVER-TERMINAL SIDE;85QMN,PC+ABS,5VB,BK0 |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-00318C | DC VSS-POWER BOARD;BEETHOVEN_LFD7082,AC/ |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| BN96-52643A | FFC;98QMT,WRINKLE/STRAIGHT,L800,51P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
|
|
GENDER CABLE;PROTON,3P,200,UL2547,BLK,ST |
|
|
HEADER-BOARD TO CABLE;BOX,10P,2R,2MM,ANG |
| 3711-008739 | HEADER-BOARD TO CABLE;BOX,30P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-16318B | HOLDER-BOX;ALL,PP,BLACK,HB,RECYCLED PCR_ |
| 3719-001755 | HOLDER-PCB;SPCC,T0.5,GAA01-0019,PA9T, 3 |
| BN61-15055A | HOLDER-WIFI;49QMH,ABS,BLACK,HB |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1001-002047 | IC-ANALOG MULTIPLEX;TS3USB3031,QFN,12P,1 |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,TP,2X1.25X0.95MM,-40 |
| 1301-002160 | IC-CPLD;SLG4P4190VTR,TQFN20,20P,3X2MM,21 |
| 1203-008920 | IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2 |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009069 | IC-DC/DC CONVERTER;TPS566250,SOP,8P,6.2X |
| 1203-008139 | IC-DC/DC CONVERTER;TPS56C20PWPR,HTSSOP,2 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1105-002992 | IC-DDR4 SDRAM;MT53E256M32D2DS-053 WT:B,L |
| 1105-002989 | IC-DDR4 SDRAM;MT53E384M32D2DS-053 WT:E,L |
| 1204-003752 | IC-DECODER;SDP1711,FCBGA,932P,27X27X1.79 |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002641 | IC-EMMC;SDINBDG4-8G-945D,8GBYTE,64GBX1,B |
|
|
IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P |
| 1205-005952 | IC-LCD CONTROLLER;SE18S01-NT,PBGA,202P,1 |
| 1107-002547 | IC-NOR FLASH;W25Q16JVSSIQ,SOP,8P,TR,7.90 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 0909-001085 | IC-REAL TIME CLOCK;BQ32002,SOIC,8P,4.9X6 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-005720 | INDUCTOR-SMD;1UH,20%,1608,T0.8,0.6OHM,25 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| 3722-003667 | JACK-PHONE;1P/7C,NI+SN,BLK,STRAIGHT,3.6P |
| 3722-004127 | JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 |
| 3722-003248 | JACK-USB;4P/1C,BLK,STRAIGHT,A,2.0,14.6X1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN07-01638A | LCD-BOE;DV980QUM-N11,ETDTHE1,2187.8X1242 |
| BN39-02655A | LEAD CONNECTOR-BLU;98QMT,UL21016,28P,L11 |
| BN39-02284A | LEAD CONNECTOR-BLU;QMF_98,UL21016,28P,L4 |
| BN39-02296B | LEAD CONNECTOR-POWER;QM98N,UL21016,30P,L |
| BN39-02658A | LEAD CONNECTOR-POWER;UL21016,30P,L750,BL |
| BN39-02656A | LEAD CONNECTOR-SUB ASSEMBLY;98QMT,UL21016,16 |
| BN39-02657A | LEAD CONNECTOR-SUB ASSEMBLY;98QMT,UL21016,8P |
| BN39-02323A | LEAD CONNECTOR-SUB ASSEMBLY;LH98QMF,UL21016, |
| BN39-02283A | LEAD CONNECTOR-SUB ASSEMBLY;QMF_98,UL10938,3 |
|
|
NETWORK-WLAN CLIENT;WCM730Q,78.3X29.3X7. |
| BN73-00024P | PAD GAP-THERMAL;D000312,RUBBER,T15,L28,H |
|
|

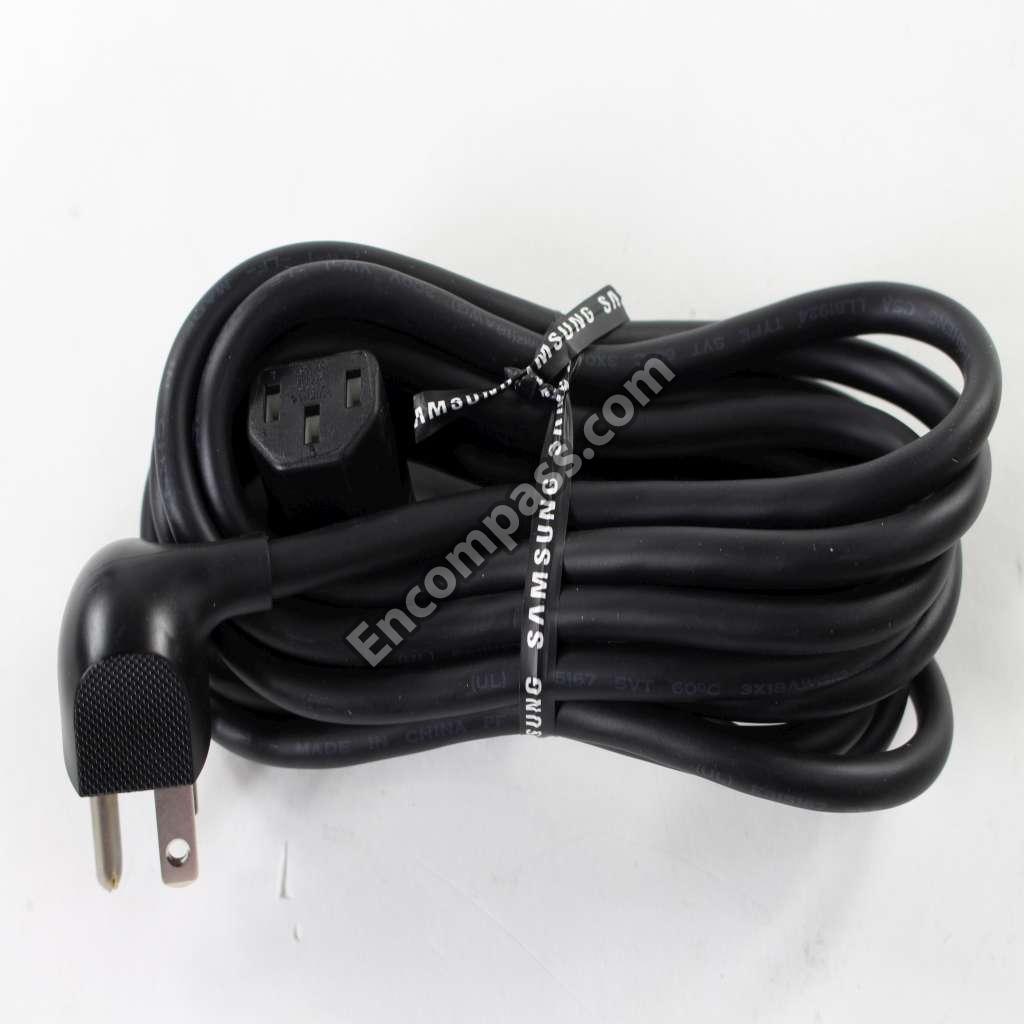

POWER CORD-DT;USA,3P-F,125V,10A,BLK,L300 |
| 4301-000121 | PRIMARY BATTERY MN;1.5V,4.4MAH,R03,10.5X |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-007008 | R-CHIP;300OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|
REMOCON-TV;2013 LFD,SAMSUNG,44KEY,3V,14Y |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
| 6001-002789 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L6,M4,BH |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
| 3601-001374 | SMG PART |
| 2801-003856 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006890 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-001072 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000233 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007315 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001320 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001288 | SMG PART |
| 2007-001284 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000174 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000147 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 1001-001965 | SMG PART |
| 0406-001200 | SMG PART |
| 0103-009706 | SMG PART |
| 0103-011141 | SMG PART |
| 0202-001830 | SMG PART |
| 0403-001783 | SMG PART |
| 1103-001584 | SMG PART |
| 6001-001609 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-000609 | SMG PART |
| 6902-000673 | SMG PART |
| 6902-001482 | SMG PART |
| 6922-000013 | SMG PART |
| 6922-000421 | SMG PART |
| AA68-03727A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352B | SMG PART |
| BN41-02819A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN60-00162Z | SMG PART |
| BN60-00672X | SMG PART |
| BN60-01380A | SMG PART |
| BN61-02428D | SMG PART |
| BN61-02932N | SMG PART |
| BN61-07463B | SMG PART |
| BN61-09307C | SMG PART |
| BN61-09308A | SMG PART |
| BN61-10258A | SMG PART |
| BN61-10997A | SMG PART |
| BN61-13921A | SMG PART |
| BN61-15056A | SMG PART |
| BN61-15358A | SMG PART |
| BN61-16318A | SMG PART |
| BN61-16684A | SMG PART |
| BN61-17436A | SMG PART |
| BN61-17438A | SMG PART |
| BN61-17440A | SMG PART |
| BN62-00834A | SMG PART |
| BN63-07556G | SMG PART |
| BN63-19224A | SMG PART |
| BN63-19224B | SMG PART |
| BN63-19224C | SMG PART |
| BN63-19225A | SMG PART |
| BN63-19237A | SMG PART |
| BN64-03613B | SMG PART |
| BN67-00327J | SMG PART |
| BN68-00107A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-00735F | SMG PART |
| BN68-00797H | SMG PART |
| BN68-02021D | SMG PART |
| BN68-03677E | SMG PART |
| BN68-04657D | SMG PART |
| BN68-05458A | SMG PART |
| BN68-05603E | SMG PART |
| BN68-06708G | SMG PART |
| BN68-06810A | SMG PART |
| BN68-08142A | SMG PART |
| BN68-09370A | SMG PART |
| BN68-09932A | SMG PART |
| BN68-11439D | SMG PART |
| BN68-12374A | SMG PART |
| BN69-00391E | SMG PART |
| BN69-11504A | SMG PART |
| BN69-12711C | SMG PART |
| BN69-17053E | SMG PART |
| BN69-19085F | SMG PART |
| BN69-20641P | SMG PART |
| BN69-20673A | SMG PART |
| BN69-21424B | SMG PART |
| BN69-21649A | SMG PART |
| BN69-21650A | SMG PART |
| BN69-21793A | SMG PART |
| BN69-21794A | SMG PART |
| BN69-21795A | SMG PART |
| BN81-01918A | SMG PART |
| BN81-20167A | SMG PART |
| BN81-20168A | SMG PART |
| BN90-11947A | SMG PART |
| BN91-23049Z | SMG PART |
| BN91-23050A | SMG PART |
| BN92-29731A | SMG PART |
| BN92-29732B | SMG PART |
| BN92-29733G | SMG PART |
| BN92-29734V | SMG PART |
| BN96-52498D | SMG PART |
| BN96-52553A | SMG PART |
| BN96-52651A | SMG PART |
| BN96-52698A | SMG PART |
| BN96-52699A | SMG PART |
| BN97-09686A | SMG PART |
| BN97-18001B | SMG PART |
| BN97-18005A | SMG PART |
| BN97-18006A | SMG PART |
| BN97-18007A | SMG PART |
| BN97-19043A | SMG PART |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
