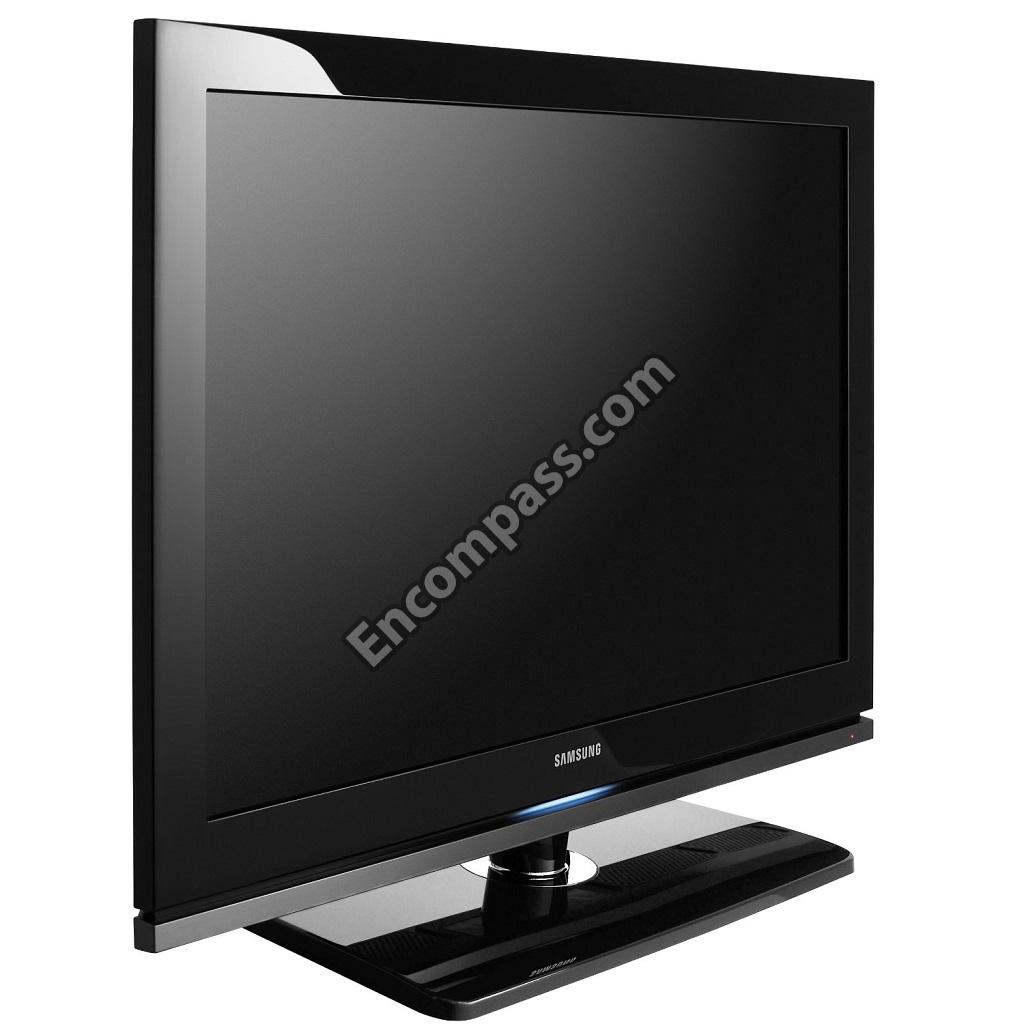

Manufacturer
Samsung
Model Number
LNT4069FX
Description
Lcd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-06004F | ASSY ACCESSORY-CABEL;LNT4069FX/XAA,-,-,- |
| BN96-06004E | ASSY ACCESSORY-MANUAL;LNT4069FX/XAA,-,-, |
| BN96-06420B | ASSY BOARD P-FUNCTION;LNT4069FX/XAA,CT50 |
| BN96-06152D | ASSY BOARD P-POWER & IR;LNT4069FX/XAA,CT |
| BN96-06205B | ASSY COVER P-FRONT;40J81,UO(NEW),PC,V0,B |
| BN96-06207A | ASSY COVER P-REAR;-,40J81,UO,HIPS,V0,-,B |
| BN96-04817B | ASSY INLET P;LNT4081FX,XAA,250MM,250MM,- |
| BN96-04802A | ASSY MISC P-BLU;BORDEAUX PLUS,BACK LIGHT |
| BN94-01545A | ASSY PCB MAIN;40,PEONY2 |
| BN94-01442A | ASSY PCB MISC-FRC;LNT4071FX/* |
|
|

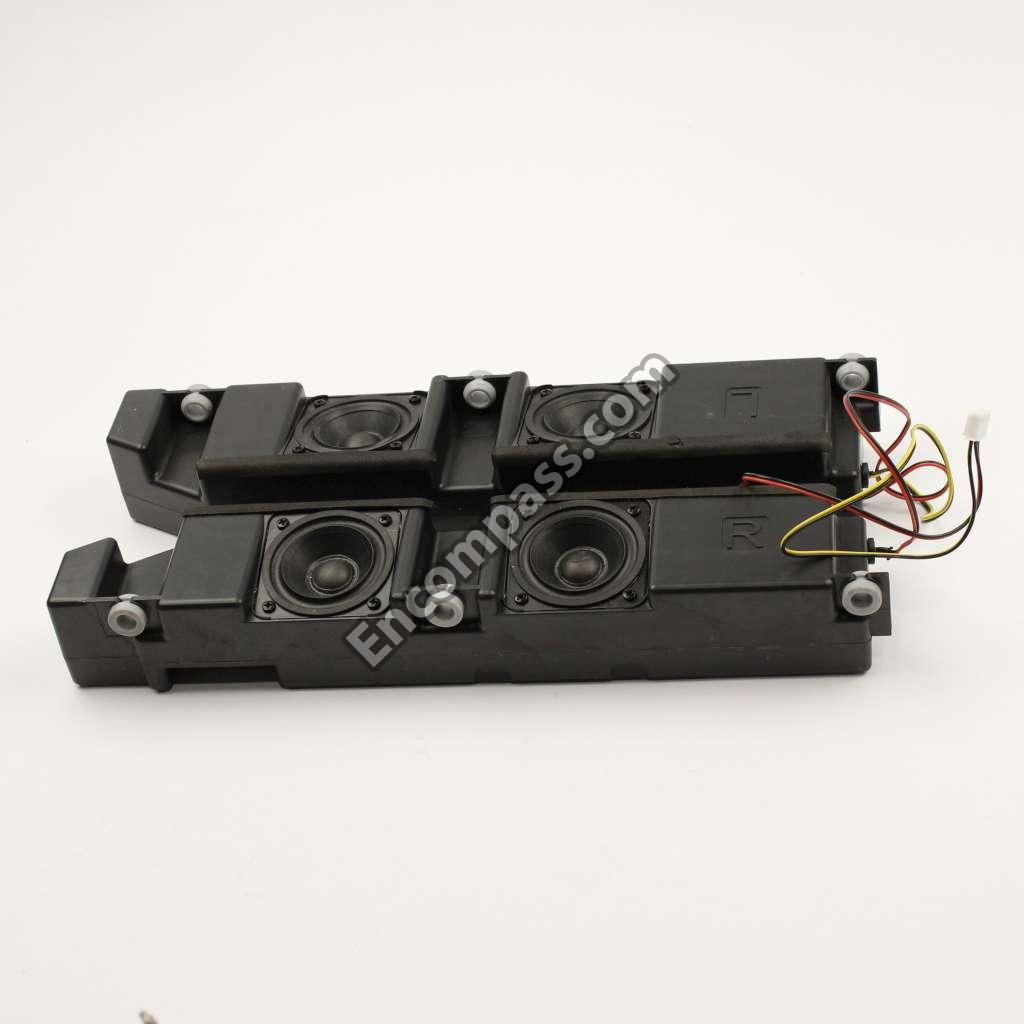

ASSY SPEAKER P;8OHM,PEONY2,40",46",10W,D |
| 4301-000121 | BATTERY-MN;1.5V,-,AAA,10.5X44.5M,HOLDER |
| 2402-001323 | C-AL,SMD;100F,20,25V,LZ,TP,6.3X8MM |
| 2402-001268 | C-AL,SMD;100UF,+-20%,25V,WT,REEL,8X6.3 |
| 2402-001128 | C-AL,SMD;100UF,20%,16V,WT,TP,6.3X5.7MM |
| 2402-001086 | C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3 |
| 2402-001178 | C-AL,SMD;10UF,20%,16V,WT,TP,4.3X4.3X5.8 |
| 2402-001259 | C-AL,SMD;220UF,20%,16V,WT,REEL,8X10 |
| 2402-001183 | C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM |
| 2402-001218 | C-AL,SMD;22UF,20%,35V,WT,TP,6.6X6.6X5.8M |
| 2402-001147 | C-AL,SMD;3.3UF,20%,50V,WT,TP,4X5.8MM |
| 2402-001160 | C-AL,SMD;330UF,20%,16V,WT,TP,1008 |
| 2402-001226 | C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 |
| 2203-006333 | C-CER,CHIP;10000NF,20%,16V,X5R,TP,3216 |
| 2409-001035 | C-ORGANIC;10UF,20%,10V,LZ,TP,5.4X4.3X4.3 |
| 2409-001029 | C-ORGANIC;120UF,20%,6.3V,WT,TP,10.3X10.3 |
| 2409-001065 | C-ORGANIC;82UF,20%,16V,WT,TP,8X6.9MM,- |
| 2409-001051 | C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, |
| 2409-001098 | C-POLYMER ,CHIP;33UF,+-20%,10V,WT,TP,3.5 |
|
|
CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA) |
|
|
CLOTH-CLEAN;RE40**,CLOTH,310,320,RHCM |
| BN27-00008A | COIL-SMD;SMD12*12*8.5,GH15/17PS,22.0UH, |
| 3701-001294 | CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU |
| 3701-001367 | CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU |
| 3701-001388 | CONNECTOR-HDMI;20P,PHOSPHOR BRONZE,ANGLE |
| 3711-005842 | CONNECTOR-HEADER;BOX,24P,2R,2.0MM,STRAIG |
| 3711-000058 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE,S |
| 3711-004484 | CONNECTOR-HEADER;BOX,5P,1R,2MM,STRAIGHT, |
| 3707-001081 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF |
| 3301-001148 | CORE-FERRITE BEAD;AB,1.6X0.8X0.8MM,-,- |
| 3301-000314 | CORE-FERRITE BEAD;AB,1.6X0.8X0.8MM,-,- |
| 3301-001324 | CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM, |
| 3301-001404 | CORE-FERRITE BEAD;AB,30OHM,20X1.25X1MM,2 |
| 3301-001145 | CORE-FERRITE BEAD;AB,4.5X1.6X1.6MM,-,- |
| BN96-06341A | COVER-BOTTOM;40J8 PEONY2,HIPS,V0,BK500,U |
| 2801-003667 | CRYSTAL-SMD;14.3182MHZ,50PPM,28-AAN,16,5 |
| 2801-004300 | CRYSTAL-SMD;18.432MHZ,30PPM,28-ABX,13PF, |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,16PF,50OH |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
| 2801-000258 | CRYSTAL-UNIT;32.768KHZ,20PPM,28-AAW,12.5 |
| 0505-002204 | FET-SILICON;RK3055E,N,60V,8A,0.15OHM,20W |
| 0505-002203 | FET-SILICON;RSS100N03,N,30V,+-10A,0.013O |
| 3711-005939 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- |
| 3711-006374 | HEADER-BOARD TO CABLE;BOX,41P,2R,1.25MM, |
| 3711-006598 | HEADER-BOARD TO CABLE;BOX,51P,2R,1.25MM, |
| AA61-20285C | HOLDER-BOX;-,3456,PP,VO,WHT,- |
| BN13-00015A | IC ASIC;SDP73,600P,1V, 2.5V, 3.3V,-10 TO |
| 1001-000164 | IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 |
|
|
IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC |
| 1001-001109 | IC-ANALOGSWITCH;FST3125M,BUSSWITCH&CMOS, |
| 1201-002136 | IC-AUDIO AMP;LM4810,MSOP,8P,3X3MM,DUAL,- |
| 1204-002708 | IC-AUDIO PROCESSOR;MSP4450K-VK-E8-500,PM |
| 1205-003304 | IC-BUFFER;ICS83026BMI-01LFT,SOIC,8P,4.9X |
| 1205-003154 | IC-CLOCK GENERATOR;6V10001PGG,TSSOP,24P, |
| 0801-002095 | IC-CMOS LOGIC;74LCX245,BUFFERS,SOP,20P,- |
| 0801-002393 | IC-CMOS LOGIC;74VHC244,BUS BUFFER,TSSOP, |
| 0801-002633 | IC-CMOS LOGIC;NC7WBD3125,2BIT BUS SWITCH |
| 0801-002780 | IC-CMOS LOGIC;SN74LVC1G17,SCHMITT-TRIGGE |
| 1204-002747 | IC-DECODER;S4LF111X01,BGA,416P,27X27MM,P |
| 1105-001674 | IC-DRAM;EM6A9320BI,4MX32BIT,FBGA,144P,12 |
| 1105-001571 | IC-DRAM;K4D551638F,4MX16X4BIT,TSOP(II),6 |
| 1103-000129 | IC-EEPROM;24C02,256*8BIT,SOP,8P,150MIL,1 |
| 1103-001385 | IC-EEPROM;24C256,256KBIT,32KX8,SOP,8P,5X |
| 1006-001266 | IC-LINE TRANSCEIVER;SP3232ECY,TSSOP,16P, |
| 1201-000166 | IC-OP AMP;358,SOP,8P,150MIL,DUAL,100V/MV |
| 1209-001685 | IC-PLL/SYNTHESIZER;MK2302S-01LF,SOIC,8P, |
| 1203-001195 | IC-POSI.ADJUST REG.;1587,TO-263,3P,393MI |
| 1203-001488 | IC-POSI.FIXED REG.;7805,T0-252,3P,-,PLAS |
| 1203-002974 | IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P |
| 1203-003696 | IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 |
| 1203-001816 | IC-POSI.FIXEDREG.;78M08,TO-252,3P,-,PLAS |
| 1203-001815 | IC-POSI.FIXEDREG.;78M09,TO-252,3P,-,PLAS |
| 1201-002430 | IC-POWER AMP;NTP-3000,QFN,56P,8X8MM,DUAL |
| 1203-004401 | IC-PWM CONTROLLER; ISL6549IBZ,SOIC,14P,8 |
| 1205-003256 | IC-RECEIVER;SII9125CTU(REV0.3),TQFP,144P |
| 1203-003059 | IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9X3 |
| 1204-002729 | IC-VIDEO PROCESS;S4LF119X01,PBGA,208P,17 |
| 1001-001440 | IC-VIDEO SWITCH;SII9185CTU,QFP,80P,3.3V, |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-002842 | IC-VOLTAGE REGULATOR;AP1117D-33A,TO-252, |
| 1203-002995 | IC-VOLTAGE REGULATOR;AP1117D-A,TO-252,3P |
| 2703-000398 | INDUCTOR-SMD;10UH,10%,3.2X2.5X2.2MM |
| 2703-002683 | INDUCTOR-SMD;2.2UH,20%,13X9.4MM |
| 2703-000417 | INDUCTOR-SMD;220UH,5%,3.2X2.5X2.2MM |
| 2703-001778 | INDUCTOR-SMD;3.3UH,20%,3.2X2.5X2.2MM |
| 2703-001426 | INDUCTOR-SMD;680UH,20%,7X7X3.2MM |
| BN44-00167C | IP BOARD;SIP400C,40"PEONY,2.0~3.0MA,6.0~ |

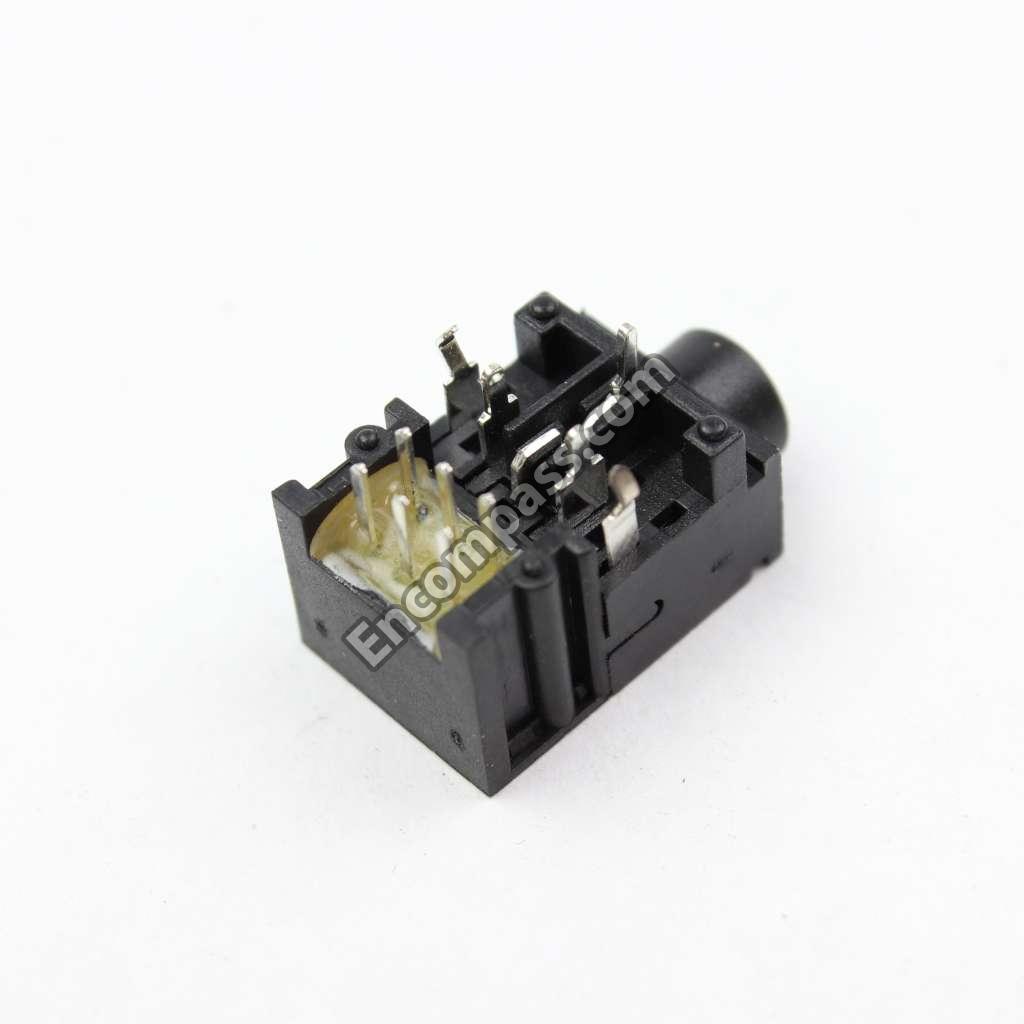

| 3722-001061 | JACK-PHONE;1P,3.6MM,AG,BLK,N |
|
|
JACK-PHONE;1P,BST,20MOHM,BLACK |
| 3722-002362 | JACK-PIN;2P,SN,WHT/RED,STRAIGHT |
| 3722-002360 | JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT |
| 3722-002543 | JACK-PIN;3P,SN,RED/WHT/YEL,ANGLE |
| 3722-002363 | JACK-PIN;3P,SN,YEL/WHT/RED,STRAIGHT |
| 3722-001734 | JACK-VHS;4P,-,SN,BLK,- |
| 3722-001163 | JACK-VHS;4P,12MM,AU,BLK,N |
|
|
LCD-PANEL;LTA400HH-L02 |
| BN39-00958A | LEAD CONNECTOR-LVDS;LNT4071FX,UL1571#30, |
| BN39-00957A | LEAD CONNECTOR-LVDS;LNT4071FX,UL20276#30 |
| BN39-00956A | LEAD CONNECTOR-LVDS;LNT4071FX,UL20276#30 |
| BN39-00716B | LEAD CONNECTOR;LE40R71BX/XEC,UL3239#24,2 |
| BN39-00802B | LEAD CONNECTOR;LE40R86BDX,UL1007#26,24PI |
| BN39-00829A | LEAD CONNECTOR;LNT4042HX/XAA,UL1061#28,5 |
| BH39-00362B | LEAD CONNECTOR;RE32**,UL1007#26,5P,150MM |
|
|
REMOTE CONTROL;BORDEAUX PLUS,TM87C,SAMSUNG28P+E |
|
|
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTITE;BH,+,B,M3,L6,CBLACK,SWRCH1 |
|
|
SCREW-TAPTITE;BH,+,B,M4,L10,YEL,SWRCH18A |
|
|
SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTITE;FH,+,B,M4,L10,ZPC(YEL),SWR |
| 0203-000214 | TAPE-OPP MASKING;RED#370W50*L50 |
| 0501-002080 | TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SOT-2 |
| 0501-000669 | TR-SMALL SIGNAL;KTA1505Y,PNP,150MW,SOT-2 |
| 0501-000445 | TR;KTC3875S-Y |
|
|
TUNER;DNVS227IH262A,DNVS227IH262A,NTSC/V |
