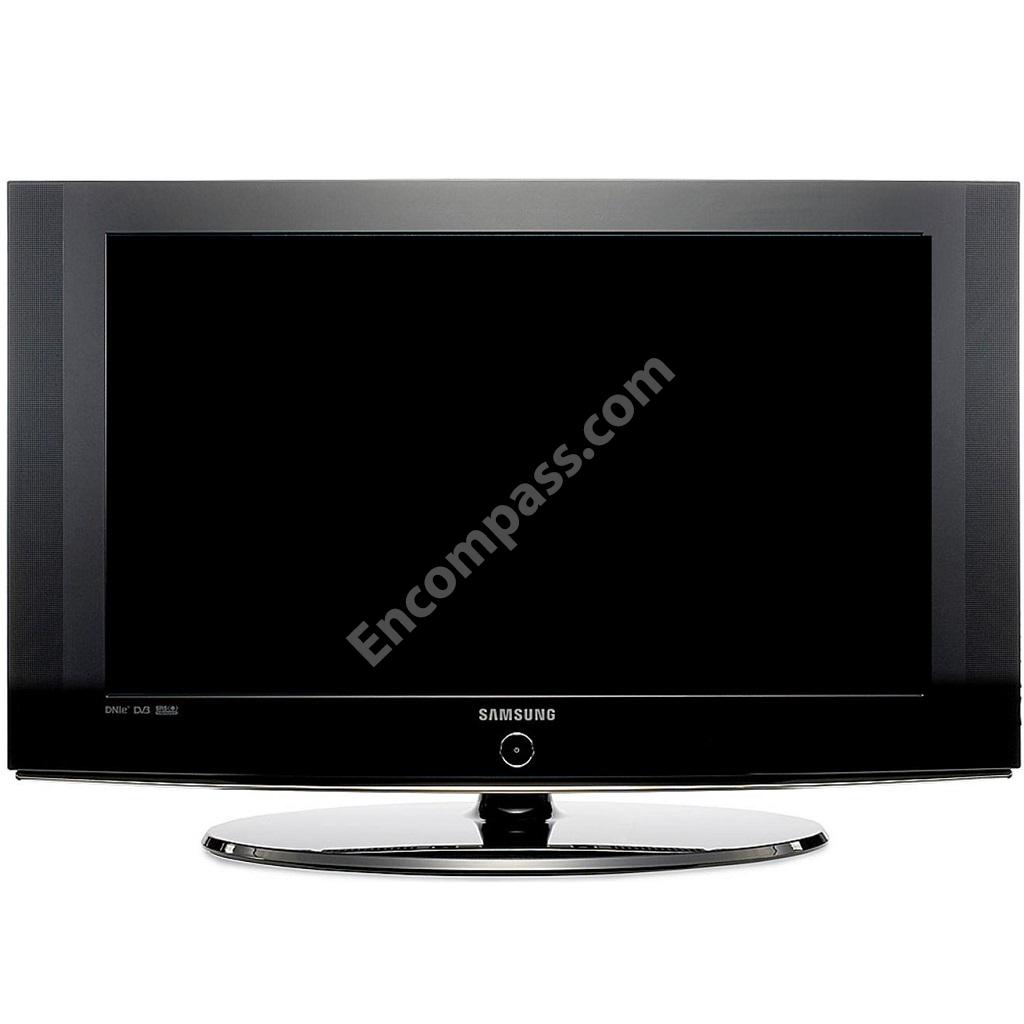

Manufacturer
Samsung
Model Number
LNT4642HX
Description
Lcd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-01319A | AS-T CON BOARD;LTA460WT-L11,00389A |
| BN81-01320A | AS-T CON BOARD;LTA460WT-L12,00452A |
|
|

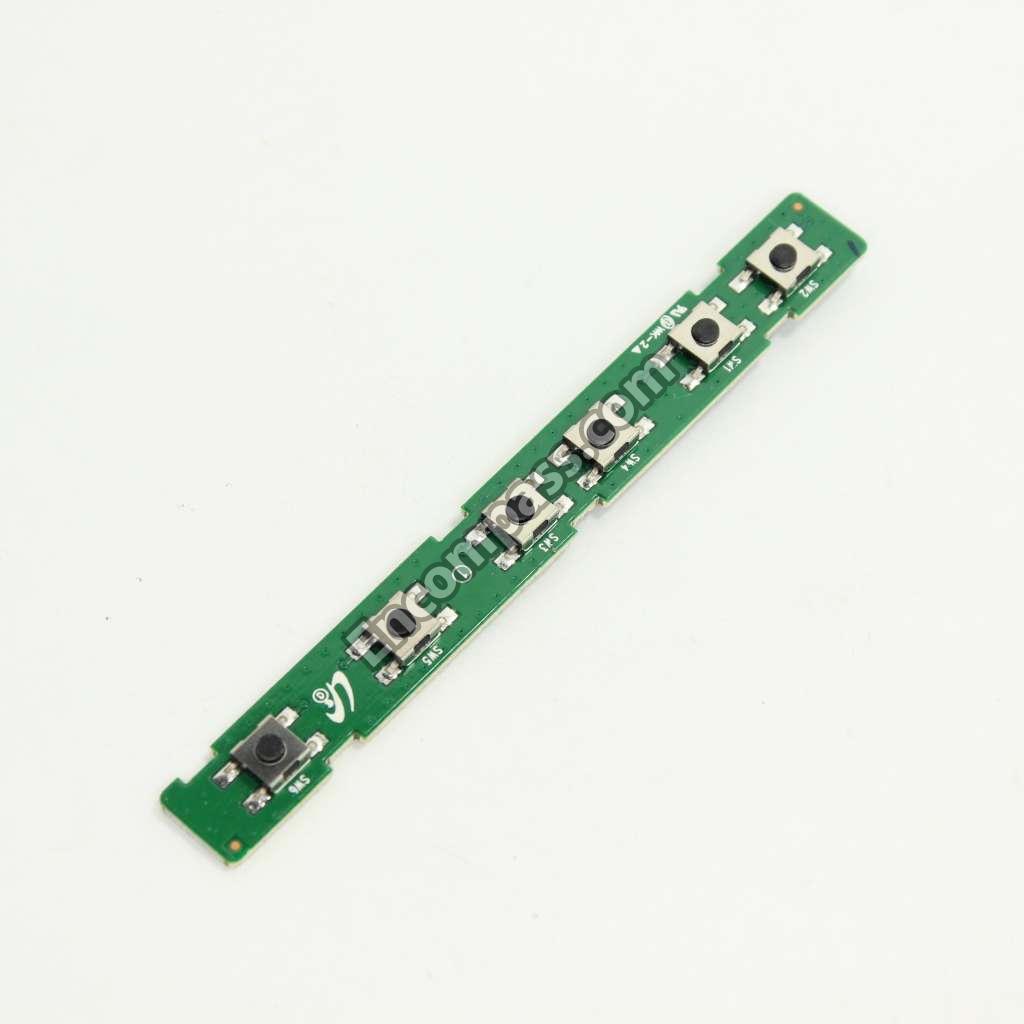

ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 |
| BN96-04884D | ASSY BOARD P-POWER & IR;LNT4642HX/XAA,CT |
| BN96-04922A | ASSY BOARD P-SIDE A/V;TULIP,CT5000-4990A |
| BN96-05040B | ASSY BOARD P-SIDE HDMI A/V;LNT4642HX/XAA |
| BN96-04738A | ASSY COVER P-FRONT;46S81,UO,PC+ABS,V0,,B |
| BN96-04739A | ASSY COVER P-REAR;46S81,UO,HIPS,V0,,BK50 |
| BN96-04938A | ASSY INLET P;LNT4661FX,XAA,250,250MM,-,- |
| BN94-01400F | ASSY PCB MAIN-AMLCD VE;LNT4642HX/* |
|
|
ASSY PCB MAIN-AMLCD VE;LNT4642HX/* |
| BN94-01188F | ASSY PCB MAIN;LNT4642HDX/* |
| BN96-04770C | ASSY SPEAKER P;8OHM,4PIN,10W,750/1250MM |
| BN96-04743A | ASSY STAND P-BASE;-,46S81,-,ABS+PMMA,HB, |
|
|

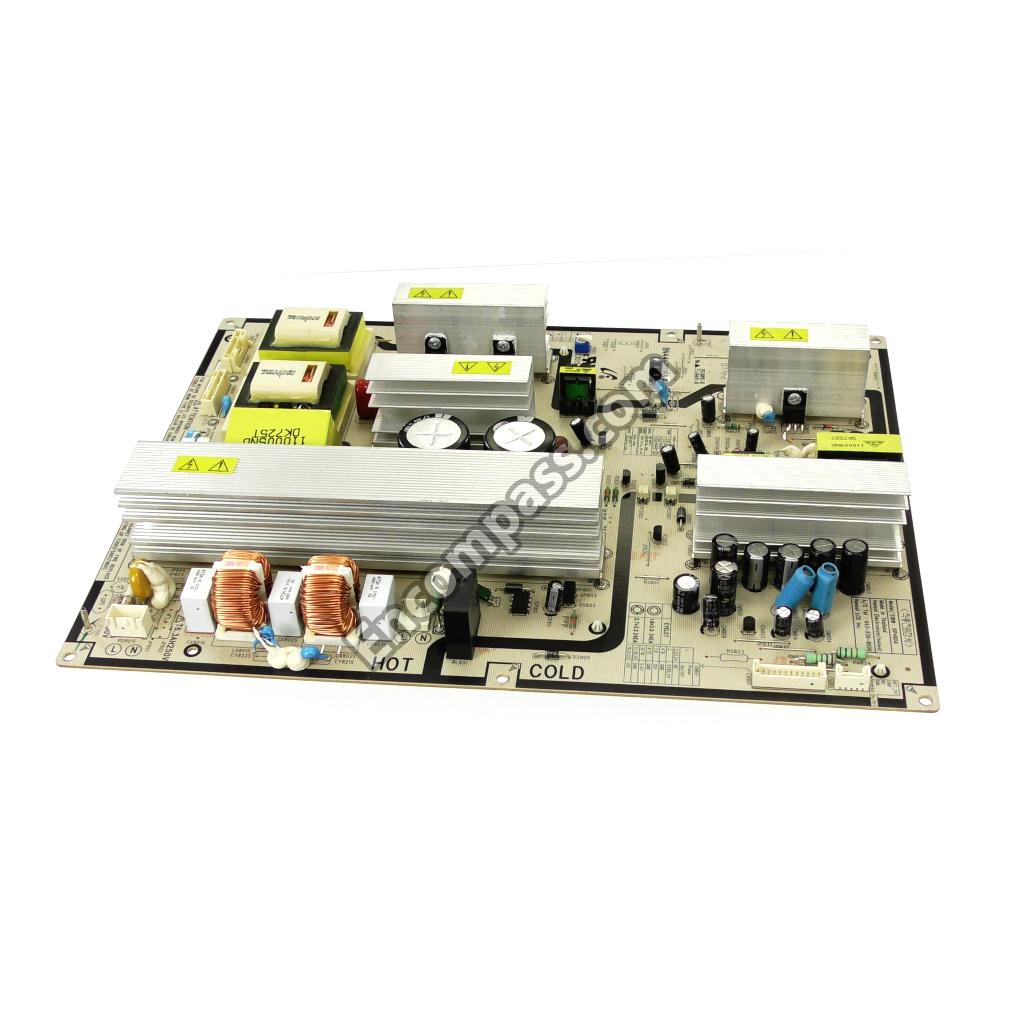

IP BOARD;SIP460A,46" TULIP,30MA,75MA,150 |
| BN64-00467D | KNOB CONTROL;MOSEL32,ABS,V0(NT),BK07 |
| BN64-00589A | KNOB POWER;32S81,PC,VIOLET |
|
|

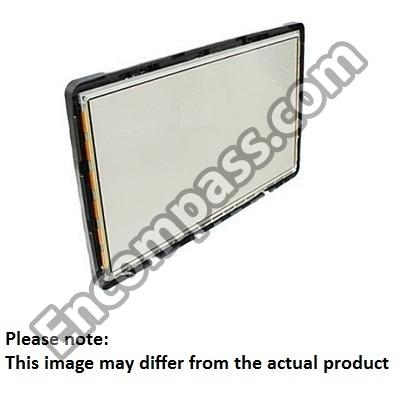

LCD-PANEL;LTA460WT-L11,SSEYTB,8BIT,46.0I |
|
|
REMOTE CONTROL |
| BN40-00097A | TUNER;DTVS227CH281A,DTVS227CH281A,ATSC/N |
| BN40-00102A | TUNER;DVTX2-6F/13F2S-F2,DVTX2-6F/13F2S-F |
