Manufacturer
Samsung
Model Number
LS27CG552ENXZA
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

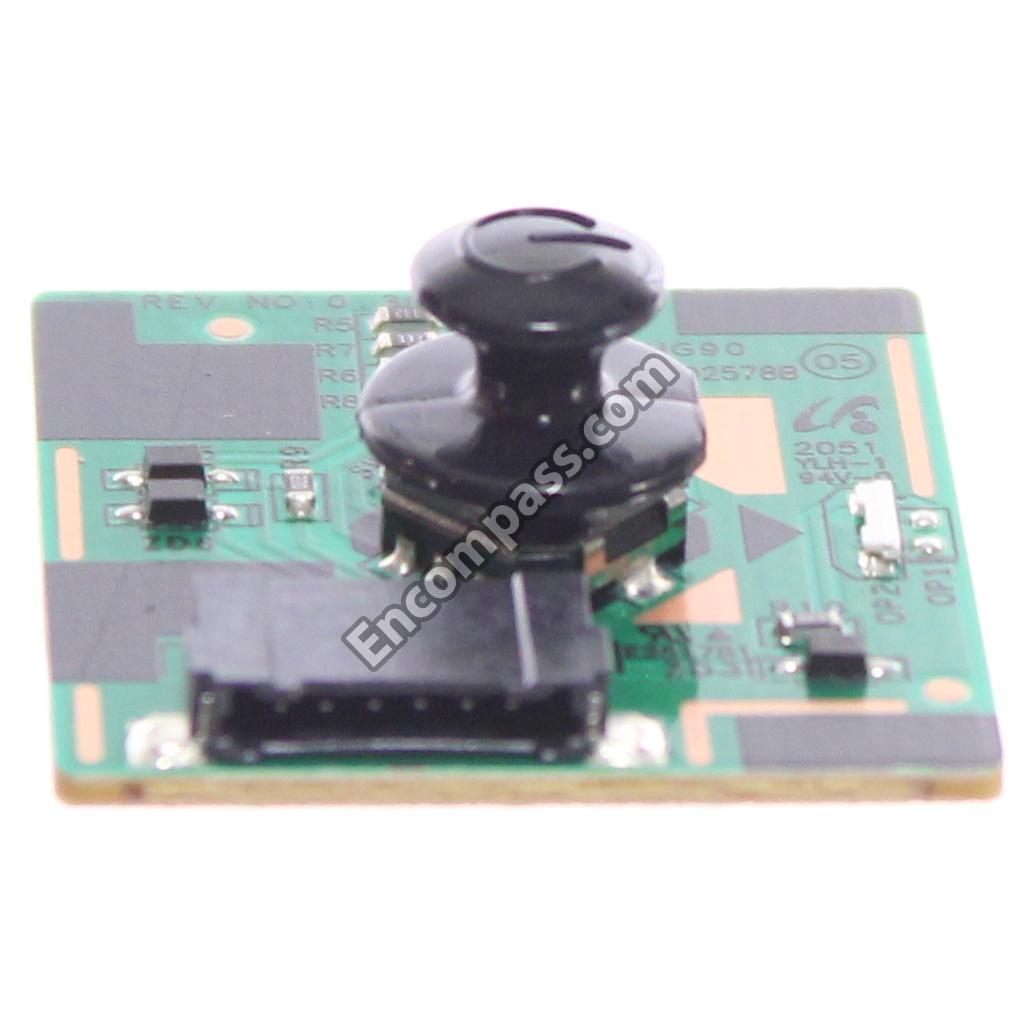

ASSEMBLY BOARD P-FUNCTION JOG;CHG90,CT15SF39 |
| BN96-50656B | ASSEMBLY CHASSIS FRONT P;27G55T,PC+ABS+MD18% |
| BN96-50651B | ASSEMBLY COVER P-DECORATION;27G55T,PC+ABS+MD |
| BN96-52110A | ASSEMBLY COVER P-REAR BOTTOM;27G55T,ABS,HB,B |
| BN96-52112A | ASSEMBLY COVER P-REAR;27G55T,ABS,HB,BK0007,W |
| BN96-51943A | ASSEMBLY OPEN CELL;CSOT,27INCH,NEW OPEN CELL |
| BN94-18277A | ASSEMBLY PCB MAIN;G55C |
| BN96-52111A | ASSEMBLY STAND P-COVER NECK;27G55T,PP+GF40%, |
| BN96-52113A | ASSEMBLY STAND P-COVER TOP;27G55T,PP+GF40%,H |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 3301-001404 | BEAD-SMD;30OHM/100MHZ,2X1.2MM,TP,10MOHM, |
| 3301-001560 | BEAD-SMD;80OHM/100MHZ,1.6X0.8X0.8MM,TP,8 |
| 3301-001594 | BEAD-SMD;90OHM,2X1.2MM,TP,190MOHM,400MA, |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557S | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L18 |
| BN61-13557R | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L25 |
| 2402-001328 | C-AL,SMD;220UF,20%,35V,TP,10X10X10MM |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006391 | C-CER,CHIP;1UF,10%,10V,X7R,TP,1608,-55TO |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006960 | C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO |
| 2203-006320 | C-CER,CHIP;2.2UF,10%,16V,X7R,TP,2012,T1. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 2409-001129 | C-POLYMER ,CHIP;100UF,20%,6.3V,WT,TP,3.5 |
| 3701-001670 | CONNECTOR-DISPLAY PORT;20P,2R,MALE,ANGLE |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3708-003313 | CONNECTOR-FPC/FFC/PIC;BK,ANGLE,12P,1.0MM |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| BN63-19214A | COVER-TERMINAL SIDE;27G55T,ABS,T1.5,HB,B |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| BN44-01013A | DC VSS(A);A4819_RDY,DC19V,AC100-240V,50- |
| 0402-002006 | DIODE-RECTIFIER;SBR6100CTL,100V,6A,TO-25 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001285 | DIODE-SWITCHING;BAV756S,90V,250MA,SOT-36 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001552 | DIODE-ZENER;DDZ16,15.69~16.51V,500MW,SOD |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| BN39-01879G | DISPLAY PORT CABLE;UHD,20P,L1500,UL20276 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| BN96-52036A | FFC;C27G55T,FOLD,L250,51P |
| BN96-52071A | FFC;G55T 27INCH,FOLD,L510,12P |
| BN67-00327S | FOOT-RUBBER;E7000,SI,GRAY,W10,L10,T3 |
| BN39-01997D | HDMI CABLE;C27HG70,19,1500MM,BLACK,HDMI |
| 3711-008646 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| 3711-005872 | HEADER-BOARD TO CABLE;TP,SMD-A,1R,5P,2.0 |
| BN62-00071A | HEAT SINK-CERAMIC;UN46C7000WFXZA,A6063,W |
|
|
HOLDER-STAND;TA550,SUM24L,NATURAL,M4,L11 |
| 1301-002160 | IC-CPLD;SLG4P4190VTR,TQFN20,20P,3X2MM,21 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-009502 | IC-DC/DC CONVERTER;TPS563202,6P,SOT563,T |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1205-006671 | IC-LCD CONTROLLER;SE21HM01-NT,HS-TFBGA,4 |
| 1003-003129 | IC-LED DRIVER;NT50505P,QFP-52,52P,10X10X |
| 1107-002574 | IC-NOR FLASH;W25Q64JVSSIQ,64MBIT,SOP,8P, |
| 1205-005551 | IC-SWITCH;ET20161,SOT23-5,5P,2.926X2.8MM |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005035 | INDUCTOR-SMD;22UH,20%,12X12MM,T6,0.059OH |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
|
|
JACK-DC POWER;6P/4C,6.5PI,SN,BLK,16.4X14 |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-01878N | LEAD CONNECTOR-SUB ASSEMBLY;U28H75,UL21016,5 |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| BN95-06943A | PRODUCT LCD-CSOT;CY-PT270KGHV1H(V),G55T, |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000312 | R-CHIP;10OHM,5%,1/4W,TP,3216 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000343 | R-CHIP;120OHM,1%,1/10W,TP,1608 |
| 2007-001433 | R-CHIP;12KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000400 | R-CHIP;150OHM,1%,1/4W,TP,3216 |
| 2007-000414 | R-CHIP;15OHM,1%,1/10W,TP,1608 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000803 | R-CHIP;36KOHM,1%,1/10W,TP,1608 |
| 2007-000839 | R-CHIP;39OHM,5%,1/10W,TP,1608 |
| 2007-000869 | R-CHIP;4.7KOHM,1%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001096 | R-CHIP;62KOHM,1%,1/10W,TP,1608 |
| 2007-001135 | R-CHIP;68OHM,5%,1/4W,TP,3216 |
| 2007-007723 | R-CHIP;75KOHM,1%,1/10W,TP,1608 |
| 2007-000127 | R-CHIP;9.1KOHM,5%,1/10W,TP,1608 |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
| 3601-001374 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006636 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-003019 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000278 | SMG PART |
| 2007-008672 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-000171 | SMG PART |
| 1001-001965 | SMG PART |
| 0404-001089 | SMG PART |
| 0403-001339 | SMG PART |
| 0101-003397 | SMG PART |
| 0103-004609 | SMG PART |
| 0103-005036 | SMG PART |
| 0103-005066 | SMG PART |
| 0103-007368 | SMG PART |
| 0103-009674 | SMG PART |
| 0103-010861 | SMG PART |
| 0103-011475 | SMG PART |
| 0103-011600 | SMG PART |
| 0103-012184 | SMG PART |
| 0202-001830 | SMG PART |
| 0203-007345 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-001976 | SMG PART |
| 1001-002144 | SMG PART |
| 1203-009865 | SMG PART |
| 2007-009923 | SMG PART |
| 2007-010307 | SMG PART |
| 6902-002963 | SMG PART |
| 6902-003339 | SMG PART |
| 6902-003587 | SMG PART |
| 6902-003955 | SMG PART |
| AA69-04626D | SMG PART |
| BN01-00695A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00173N | SMG PART |
| BN02-00175E | SMG PART |
| BN02-00319A | SMG PART |
| BN02-00508F | SMG PART |
| BN02-00611A | SMG PART |
| BN41-02578B | SMG PART |
| BN41-03194A | SMG PART |
| BN60-01656A | SMG PART |
| BN60-01665A | SMG PART |
| BN61-04216A | SMG PART |
| BN61-08997A | SMG PART |
| BN61-13319A | SMG PART |
| BN61-13332A | SMG PART |
| BN61-16456A | SMG PART |
| BN61-16524A | SMG PART |
| BN61-16859B | SMG PART |
| BN61-16960A | SMG PART |
| BN61-16963A | SMG PART |
| BN61-16969A | SMG PART |
| BN61-16991A | SMG PART |
| BN61-17225A | SMG PART |
| BN61-17409A | SMG PART |
| BN61-17434A | SMG PART |
| BN63-12151A | SMG PART |
| BN63-12327A | SMG PART |
| BN63-17699A | SMG PART |
| BN63-18831B | SMG PART |
| BN63-19195A | SMG PART |
| BN63-19210A | SMG PART |
| BN63-19211A | SMG PART |
| BN63-19212A | SMG PART |
| BN63-19215A | SMG PART |
| BN64-02286E | SMG PART |
| BN64-04329C | SMG PART |
| BN64-04358A | SMG PART |
| BN67-00558A | SMG PART |
| BN68-00226M | SMG PART |
| BN68-00513A | SMG PART |
| BN68-03677A | SMG PART |
| BN68-04657J | SMG PART |
| BN68-05603E | SMG PART |
| BN68-05722A | SMG PART |
| BN68-06922R | SMG PART |
| BN68-07103D | SMG PART |
| BN68-08142A | SMG PART |
| BN68-09371E | SMG PART |
| BN68-12276A | SMG PART |
| BN68-12374A | SMG PART |
| BN68-15181A | SMG PART |
| BN68-15181C | SMG PART |
| BN68-17207B | SMG PART |
| BN68-17208C | SMG PART |
| BN69-11504A | SMG PART |
| BN69-21424B | SMG PART |
| BN69-21550B | SMG PART |
| BN69-21774A | SMG PART |
| BN69-24708A | SMG PART |
| BN69-25718D | SMG PART |
| BN74-00053G | SMG PART |
| BN74-00053J | SMG PART |
| BN74-00120A | SMG PART |
| BN81-01918A | SMG PART |
| BN81-18656A | SMG PART |
| BN81-18657A | SMG PART |
| BN81-18659A | SMG PART |
| BN81-19644A | SMG PART |
| BN81-19648A | SMG PART |
| BN81-19649A | SMG PART |
| BN81-20749A | SMG PART |
| BN81-24694A | SMG PART |
| BN83-21819A | SMG PART |
| BN90-11779B | SMG PART |
| BN90-11876A | SMG PART |
| BN90-11877H | SMG PART |
| BN90-11878H | SMG PART |
| BN91-24852J | SMG PART |
| BN91-24854A | SMG PART |
| BN92-32590M | SMG PART |
| BN92-32591V | SMG PART |
| BN92-32592C | SMG PART |
| BN92-32658F | SMG PART |
| BN94-11861C | SMG PART |
| BN96-50516C | SMG PART |
| BN96-51971A | SMG PART |
| BN96-52253A | SMG PART |
| BN96-57434Q | SMG PART |
| BN97-00135T | SMG PART |
| BN97-12740B | SMG PART |
| BN97-21015A | SMG PART |
| BN97-21016D | SMG PART |
| BN61-02932E | STUD-PEM;ECOFIT 20,SUM24L,T3.5,L12,ZPC(B |
| 3404-001490 | SWITCH-TACT;12V,50MA,353GF,7.5X7.5X6MM,6 |
| 0501-002654 | TR-SMALL SIGNAL;2PD601ASL,NPN,250MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1608,TP,120V,10PF |
