Manufacturer
Samsung
Model Number
LS27H850QFNXZA
Description
27-inch H850 Wqhd Pls Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-39758A | ASSEMBLY BOARD P-FUNCTION JOG |
| BN96-42701C | ASSEMBLY STAND P-COVER BODY |
| BN96-42702A | ASSEMBLY STAND P-COVER TOP |
| BN64-03398A | BUTTON-CONTROL |
| BN64-03400A | BUTTON-FUNCTION |
| BH68-00344C | CARD WARRANTY |
| BN96-42663A | COVER ASSEMBLY P-FRONT |
| BN96-42628A | COVER ASSEMBLY P-REAR |
| BN96-43865A | COVER ASSEMBLY P-REAR SUB |
| BN44-00848A | DC VSS-POWER BOARD |
| BN39-01879A | DISPLAY PORT CABLE |
| BN96-44161A | FFC CABLE |
| BN96-34321N | FFC CABLE |
| BN67-00327J | FOOT-RUBBER |
| BN63-04079A | GASKET |
| BN63-07349A | GASKET-EMI |
|
|

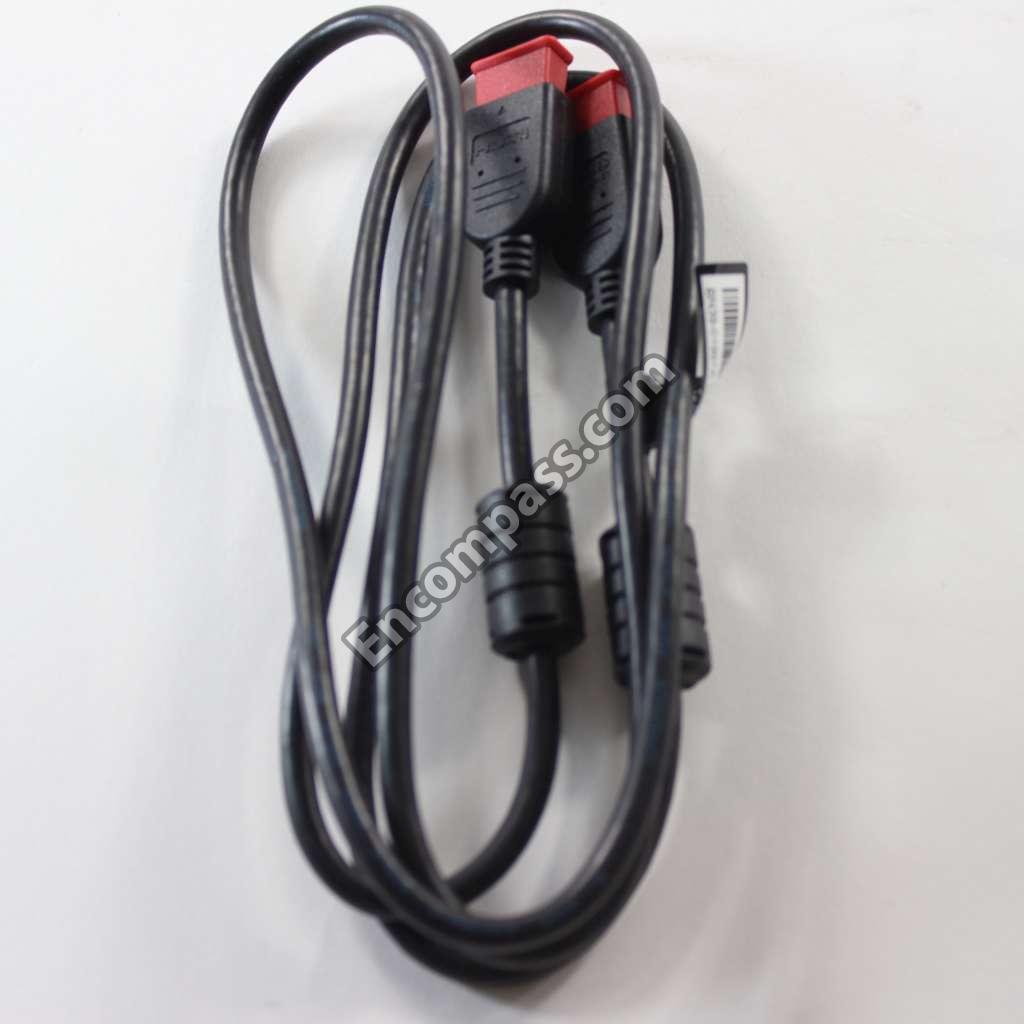

HDMI CABLE |
| 3711-008646 | HEADER BOARD TO CABLE |
| BN62-00725A | HEAT SINK-PS |
|
|
HOLDER-STAND |
| BN68-07667A | LABEL |
| BN68-03920A | LABEL BOX |
| BN68-00513F | LABEL-AMS |
| BH68-40364A | LABEL-BLANK |
| BN68-07103B | LABEL-RATING |
| AA68-00364B | LABEL-SERIAL |
| BN68-08201C | LABEL-WARNING |
| BN68-00129A | LABELSHIPPING |
|
|
LCD PANEL |
| BN39-01816D | LEAD CONNECTOR-DIMMING |
| BN39-02336A | LEAD CONNECTOR-POWER |
| BN39-01878K | LEAD CONNECTOR-SUB ASSEMBLY |
| BN68-04972G | LEAFLET-REGULATORY GUIDE |
| 0601-001896 | LED |
| BN67-00559A | LENS-LED |
| BN94-11842F | MAIN PCB ASSEMBLY |
| BH69-00457E | PACKING INNER-00, PAD |
| BN69-00391D | PAD-ANGLE |
|
|

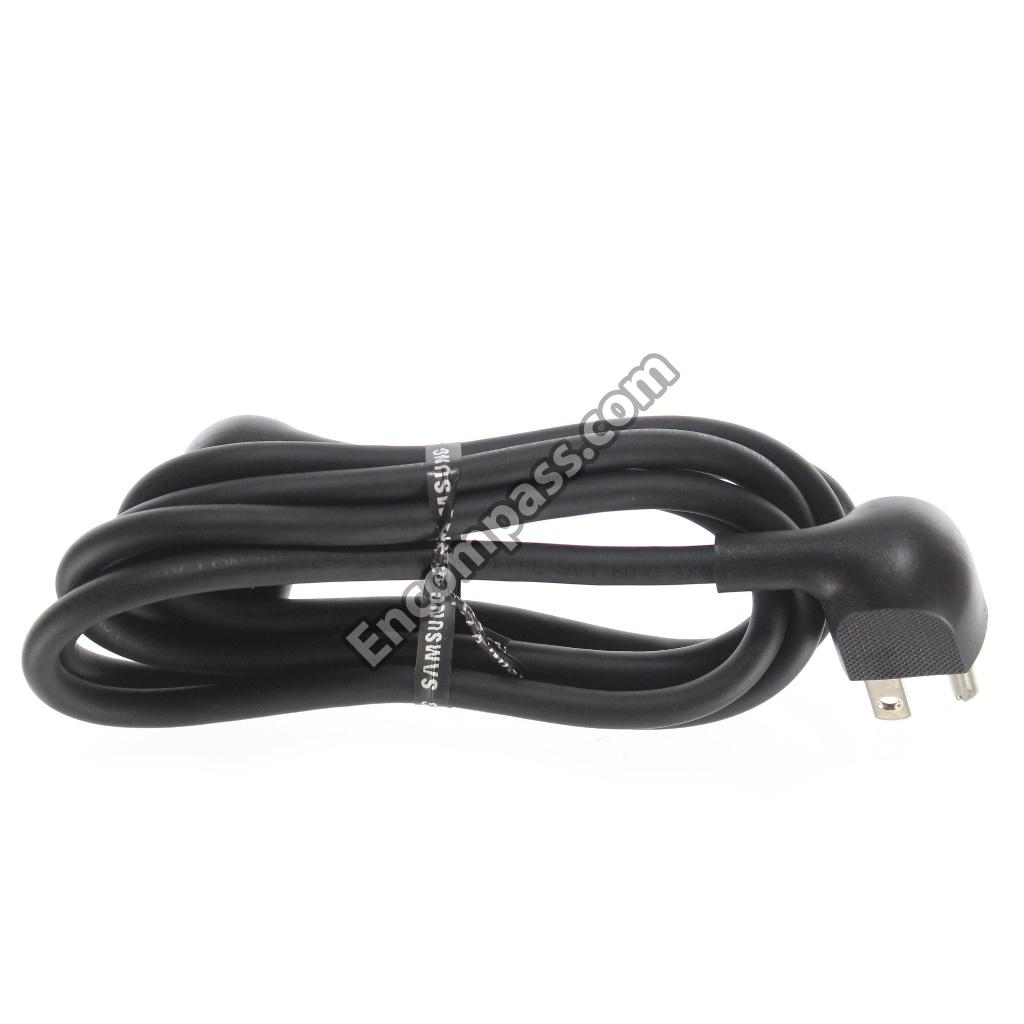

POWER CORD-DT |
|
|

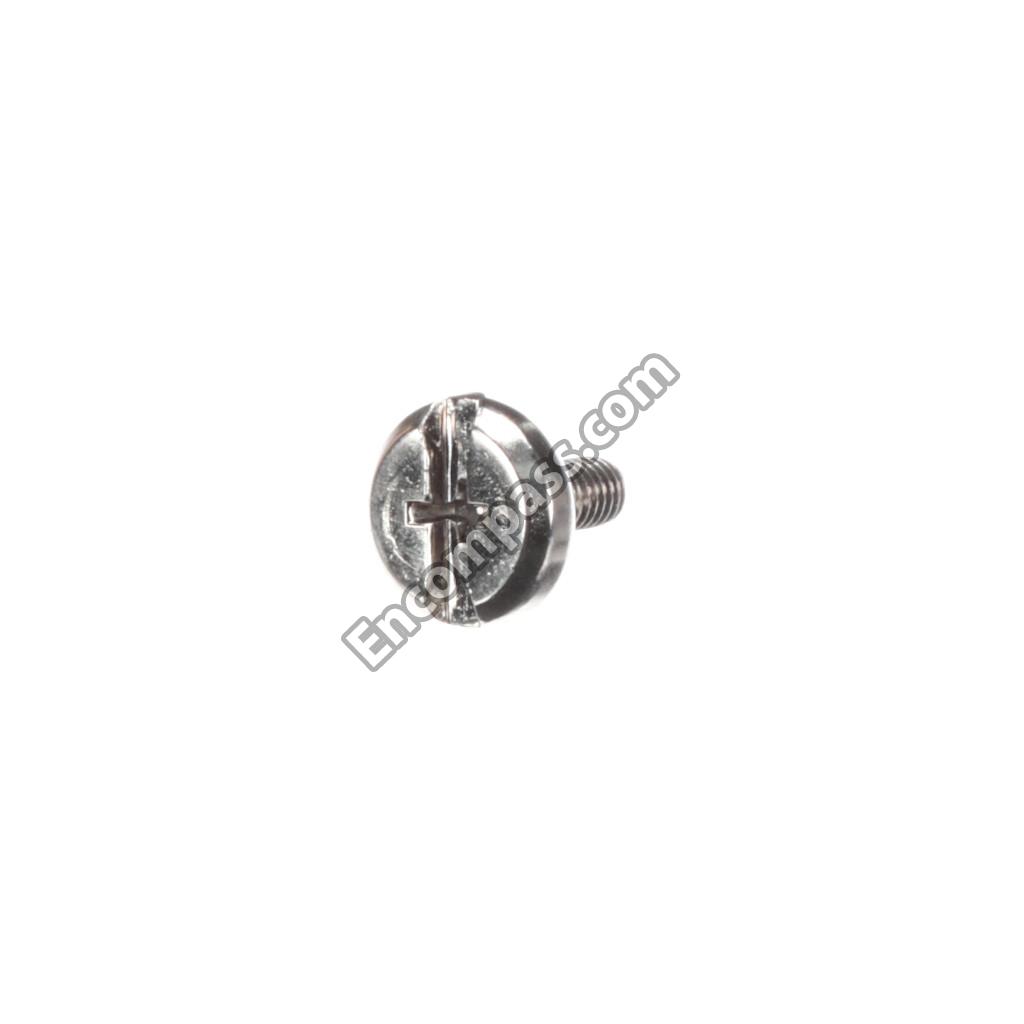

SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| 6003-000264 | SCREW-TAPTYPE |
| BN61-02429Y | STUD-PEM |
| 3404-001490 | SWITCH-TACT |
| 0203-001100 | TAPE-OPP |
| 0203-001598 | TAPE-SINGLE FACE |
| BN39-02259A | USB CABLE |
| BN69-11504A | WRAP VINYL |
