Manufacturer
Samsung
Model Number
LS32CM80GUNXZA
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| VA81-01133A | A/S-LENS COVER WHITE;COVER,LENS COVER WH |
| BN96-56950A | ASSEMBLY COVER P-REAR;32M80C,PC+ABS,5VB,WT01 |
| BN96-56426A | ASSEMBLY LED BAR P;M80C,ALUMINUM,SLIM 31.5 L |
| BN96-56427A | ASSEMBLY LED BAR P;M80C,ALUMINUM,SLIM 31.5 R |
| BN96-54965A | ASSEMBLY MISC P-CAMERA MODULE;VG-STCBU2K,W/W |
| BN96-55043A | ASSEMBLY MISC P-MODULE;LS32BM801UA,CHEMTRONI |
| BN96-54683A | ASSEMBLY OPEN CELL;CSOT,31.5INCH,NEW OPEN CE |
| BN94-18116B | ASSEMBLY PCB MAIN SUBCON;M80C,-,-,- |
| BN94-18116A | ASSEMBLY PCB MAIN;M80C |
| BN96-56717A | ASSEMBLY SPEAKER P-FRONT;TV-SPK,32M80C,2.0CH |
| BN96-57091A | ASSEMBLY STAND P-BRACKET LINK;32M80C,EGI-SEC |
| BN96-56965D | ASSEMBLY STAND P-COVER NECK;32M80C,PC+ABS,GR |
| BN96-56964D | ASSEMBLY STAND P-COVER TOP;32M80C,CR-SPCC,GR |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13557K | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2203-006960 | C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608,-55T |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-001634 | C-CER,CHIP;33NF,10%,50V,X7R,TP,1608,-55T |
| 2203-001640 | C-CER,CHIP;390PF,10%,50V,X7R,TP,1608,-55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3708-003389 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,10P,0.5MM |
| 3708-003357 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,14P,0.5MM |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-002063 | CONNECTOR-HDMI;TP,SMD-S,FEMALE,19P,0.5MM |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| BN44-01187A | DC VSS(A);A14020_BPNW,DC20V,AC100-240V,5 |
| 0402-002006 | DIODE-RECTIFIER;SBR6100CTL,100V,6A,TO-25 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001395 | DIODE-TVS;AOZ8802ADI,6V,1MAV,1VPA,TP |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001886 | DIODE-TVS;AZ1123-04F,5V,DFN2510,65W,TR |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-003769 | FET-SILICON;AO4447A,P,30V,18.5A,0.0058OH |
| 0505-002623 | FET-SILICON;AO4476AL,N,30V,15A,0.0077OHM |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-55042B | FFC;32M80C,FOLD,L200,14P,MAIN- POGO PCB |
| BN96-57069A | FFC;M80C,FOLD,L150,10P,MAIN~IOT MODULE |
| BN96-57071A | FFC;M80C,FOLD,L150,24P,MAIN- WIFI/BT MOD |
| BN96-57070A | FFC;M80C,WRINKLE/FOLD,L180,96P,MAIN- PAN |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN39-02820A | GENDER CABLE;32M80B,4P,L0,NONE,WHITE,USB |
| BN39-01997G | HDMI CABLE;C34F791,19,2000MM,GRAY,HDMI A |
| 3711-007803 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| BN61-18642A | HOLDER-STAND;32M80B,POM,BK0059,HB |
| 1001-001998 | IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC |
| 1001-002152 | IC-ANALOG MULTIPLEX;PS8822,52P,QFN,TP,6. |
| 1203-008496 | IC-BACKLIGHT DRIVER;BD9397EFV,HTSSOP-B40 |
| 1203-009652 | IC-DC/DC CONVERTER;MP8795HGLE-Z,21P,QFN- |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-009759 | IC-DC/DC CONVERTER;SYU855TTC,19P,QFN,TP, |
| 1203-009649 | IC-DC/DC CONVERTER;VPMS3BRT,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002547 | IC-NOR FLASH;W25Q16JVSSIQ,SOP,8P,TR,7.90 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1205-005551 | IC-SWITCH;ET20161,SOT23-5,5P,2.926X2.8MM |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 0904-003200 | IC-USC;GL850G-34,QFN,24P,5X5X0.75MM,12MH |
| 0904-003228 | IC-USC;KTU1131,UQFN,20P,3X3X0.55MM,TP,PL |
| 2703-005782 | INDUCTOR-SMD;1.5UH,20%,6060,T2.8,0.017OH |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005843 | INDUCTOR-SMD;1UH,20%,6060,T2.6,0.0156OHM |
| 2703-005783 | INDUCTOR-SMD;2.2UH,20%,6060,T2.8,0.026OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003263 | INDUCTOR-SMD;3.3UH,20%,10X10MM,0.0118OHM |
| 2703-005786 | INDUCTOR-SMD;3.3UH,20%,6060,T2.6,0.033OH |
| 2703-003719 | INDUCTOR-SMD;6.8UH,20%,10.7X10MM,T3.8,0. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| BN64-01567A | INLAY;ECOFIT,PS,T0.5,BLACK |
| 3722-004239 | JACK-DC POWER;TP,3P/3C,P-BRONZE,12.4X10. |
| 3722-004250 | JACK-USB;TP,24P/2C,C-ALLOY,10.0X4.6X11.9 |
| 3722-004249 | JACK-USB;TR,4P/1C,C-ALLOY,14.62X7.13X13. |
| BN39-02899A | LEAD CONNECTOR-BLU;M80C,UL21016,12P,L390 |
| BN39-02219F | LEAD CONNECTOR-SUB ASSEMBLY;32K5300,UL21016, |
| BN59-01445A | NETWORK-IOT HUB;WIC213S,18X32X4.2MM,MONI |
| BN59-01412A | NETWORK-WLAN CLIENT;WCB735M,90.83X20.91X |
|
|

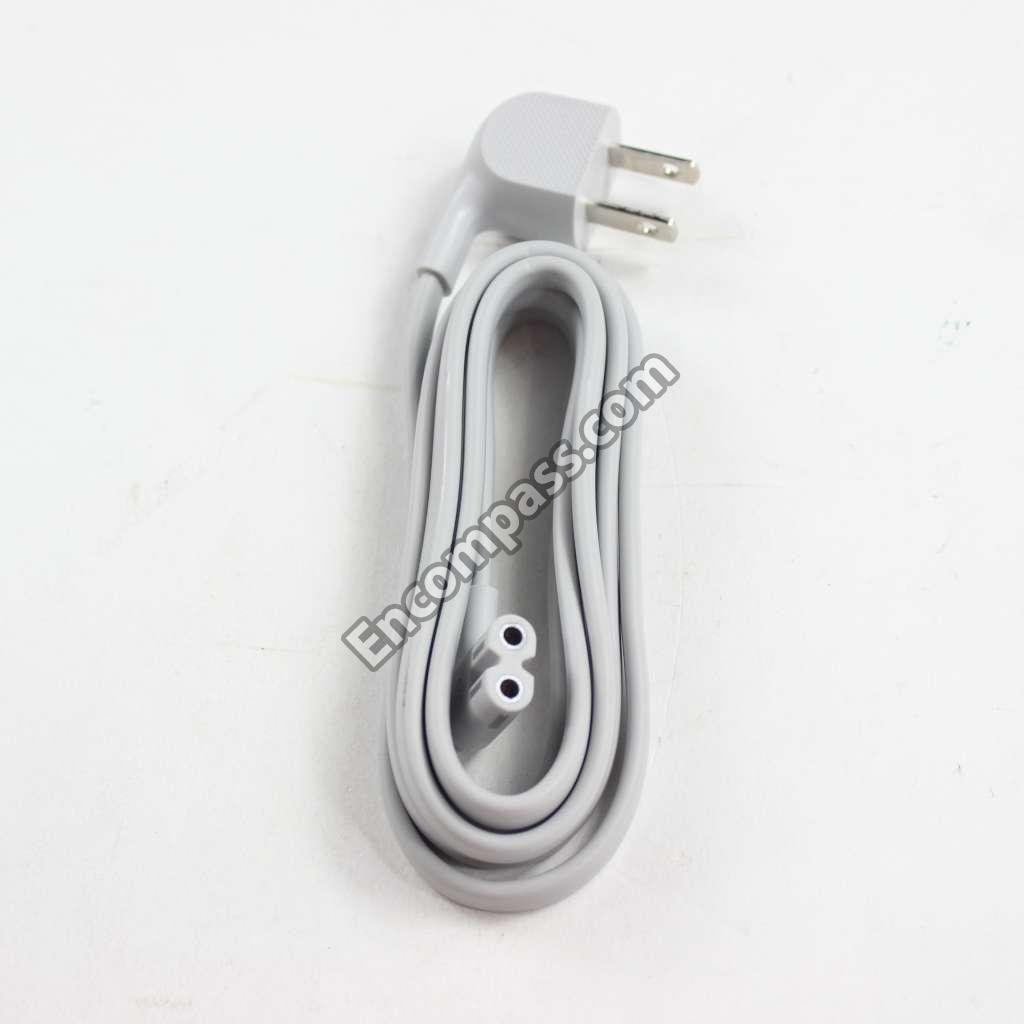

POWER CORD-DT;USA,2P-F,125V,7A,GRY,L1500 |
| BN95-09933E | PRODUCT LCD-CSOT;CY-MC315HQHV5H(V),M80C, |
| 2007-008714 | R-CHIP;0.01OHM,1%,1W,TP,6432 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-009234 | R-CHIP;0.47OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-008134 | R-CHIP;12.4KOHM,1%,1/16W,TP,1005 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007768 | R-CHIP;13KOHM,1%,1/10W,TP,1608 |
| 2007-000063 | R-CHIP;150KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000563 | R-CHIP;220KOHM,1%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000803 | R-CHIP;36KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000879 | R-CHIP;4.7OHM,1%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001196 | R-CHIP;820KOHM,5%,1/10W,TP,1608 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01434J | REMOCON-ECO SMART CONTROL;Y23 MONITOR,SA |
| 6001-002912 | SCREW-MACHINE;CH,+,M3,L3,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
| 6001-003425 | SCREW-MACHINE;SWRCH22A,ZPC(BLK),L14,M4,B |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 3601-001374 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007425 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006141 | SMG PART |
| 2203-005054 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-002443 | SMG PART |
| 2203-001239 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000679 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000550 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-008672 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-008213 | SMG PART |
| 2007-008137 | SMG PART |
| 2007-008136 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007643 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007538 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007488 | SMG PART |
| 2007-007405 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007315 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007133 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001119 | SMG PART |
| 2007-001068 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0103-010215 | SMG PART |
| 0103-011475 | SMG PART |
| 0103-012082 | SMG PART |
| 0103-012129 | SMG PART |
| 0103-012184 | SMG PART |
| 0103-012223 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001830 | SMG PART |
| 0202-002133 | SMG PART |
| 0203-007086 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-002014 | SMG PART |
| 0505-003887 | SMG PART |
| 1107-002925 | SMG PART |
| 1201-004380 | SMG PART |
| 1203-009590 | SMG PART |
| 1203-009643 | SMG PART |
| 1203-009704 | SMG PART |
| 1204-003849 | SMG PART |
| 1205-006382 | SMG PART |
| 1404-001731 | SMG PART |
| 2007-001058 | SMG PART |
| 2007-008485 | SMG PART |
| 2007-010307 | SMG PART |
| 2703-004145 | SMG PART |
| 2703-005781 | SMG PART |
| 2703-005784 | SMG PART |
| 3601-001402 | SMG PART |
| 6302-001230 | SMG PART |
| 6902-003537 | SMG PART |
| 6902-003956 | SMG PART |
| 6902-004080 | SMG PART |
| 6902-004087 | SMG PART |
| 6902-004093 | SMG PART |
| AA69-05118R | SMG PART |
| BN01-00923A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00173C | SMG PART |
| BN02-00319A | SMG PART |
| BN02-00352E | SMG PART |
| BN02-00404A | SMG PART |
| BN02-00617A | SMG PART |
| BN02-00680A | SMG PART |
| BN41-03155A | SMG PART |
| BN41-03156A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-02199A | SMG PART |
| BN46-02200A | SMG PART |
| BN60-00162K | SMG PART |
| BN60-00162V | SMG PART |
| BN60-01656A | SMG PART |
| BN60-01657A | SMG PART |
| BN61-15975A | SMG PART |
| BN61-16777A | SMG PART |
| BN61-16777B | SMG PART |
| BN61-17259A | SMG PART |
| BN61-18570A | SMG PART |
| BN61-18632A | SMG PART |
| BN61-18633A | SMG PART |
| BN61-18634A | SMG PART |
| BN61-18638A | SMG PART |
| BN61-19404A | SMG PART |
| BN61-19405A | SMG PART |
| BN61-19406A | SMG PART |
| BN61-19407A | SMG PART |
| BN61-19414A | SMG PART |
| BN61-19415A | SMG PART |
| BN61-19416A | SMG PART |
| BN61-19417A | SMG PART |
| BN61-19422A | SMG PART |
| BN61-19424A | SMG PART |
| BN61-19425A | SMG PART |
| BN61-19426A | SMG PART |
| BN61-19427A | SMG PART |
| BN61-19428A | SMG PART |
| BN61-19429A | SMG PART |
| BN61-19430A | SMG PART |
| BN61-19432A | SMG PART |
| BN62-01009A | SMG PART |
| BN63-12151A | SMG PART |
| BN63-17418N | SMG PART |
| BN63-19568B | SMG PART |
| BN63-20200A | SMG PART |
| BN63-20634D | SMG PART |
| BN63-20636D | SMG PART |
| BN63-20638A | SMG PART |
| BN63-20649D | SMG PART |
| BN63-20658A | SMG PART |
| BN63-20659A | SMG PART |
| BN63-20660A | SMG PART |
| BN63-20661A | SMG PART |
| BN63-20662D | SMG PART |
| BN63-20744A | SMG PART |
| BN63-20745A | SMG PART |
| BN63-20848A | SMG PART |
| BN64-02286F | SMG PART |
| BN64-04819A | SMG PART |
| BN64-04820A | SMG PART |
| BN67-00327M | SMG PART |
| BN68-00226M | SMG PART |
| BN68-00513A | SMG PART |
| BN68-03677A | SMG PART |
| BN68-04657D | SMG PART |
| BN68-05722A | SMG PART |
| BN68-06922R | SMG PART |
| BN68-08142A | SMG PART |
| BN68-09371B | SMG PART |
| BN68-12374A | SMG PART |
| BN68-14118A | SMG PART |
| BN68-15181A | SMG PART |
| BN68-16412C | SMG PART |
| BN69-11504A | SMG PART |
| BN69-21424F | SMG PART |
| BN69-24708A | SMG PART |
| BN69-24735A | SMG PART |
| BN69-24907B | SMG PART |
| BN69-24909A | SMG PART |
| BN81-01918A | SMG PART |
| BN81-22601A | SMG PART |
| BN81-22602A | SMG PART |
| BN81-22603A | SMG PART |
| BN81-22605A | SMG PART |
| BN81-22606A | SMG PART |
| BN81-22607A | SMG PART |
| BN90-12613B | SMG PART |
| BN90-12647A | SMG PART |
| BN90-12657M | SMG PART |
| BN91-24528A | SMG PART |
| BN91-24529M | SMG PART |
| BN92-31943A | SMG PART |
| BN92-31944C | SMG PART |
| BN92-31945M | SMG PART |
| BN92-31946C | SMG PART |
| BN96-55630Q | SMG PART |
| BN96-56553A | SMG PART |
| BN96-56554D | SMG PART |
| BN96-56555A | SMG PART |
| BN96-56966A | SMG PART |
| BN96-57028A | SMG PART |
| BN96-57029A | SMG PART |
| BN97-19516A | SMG PART |
| BN97-20633F | SMG PART |
| BN97-20633G | SMG PART |
| BN97-20703A | SMG PART |
| BN97-20704A | SMG PART |
| BN97-20705A | SMG PART |
| BN97-20707A | SMG PART |
| BN60-00162W | SPACER-FOAM;PE FOAM,L50M,GRAY,T1,W10 |
| 3404-001490 | SWITCH-TACT;12V,50MA,353GF,7.5X7.5X6MM,6 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN39-02259C | USB CABLE;M70A,16,5.1MM,1000MM,GRAY,USB |
| BN39-02894A | USB CABLE;M80C,4,150MM,LIGHT GRAY,USB A, |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
