Manufacturer
Samsung
Model Number
LS32DM702UNXGO
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-52463A | ASSEMBLY COVER P-DECORATION;32M70A,PC+ABS+MD |
| BN96-52530H | ASSEMBLY COVER P-REAR;32M70B,PC+ABS,5VB,BK00 |
| BN96-52417A | ASSEMBLY LED BAR P;M70A,ALUMINUM |
| BN96-54683A | ASSEMBLY OPEN CELL;CSOT,31.5INCH,NEW OPEN CE |
| BN94-18435K | ASSEMBLY PCB MAIN;M70D |
| BN96-52378B | ASSEMBLY SPEAKER P-FRONT;TV-SPK,27M70A,2CH,6 |
|
|

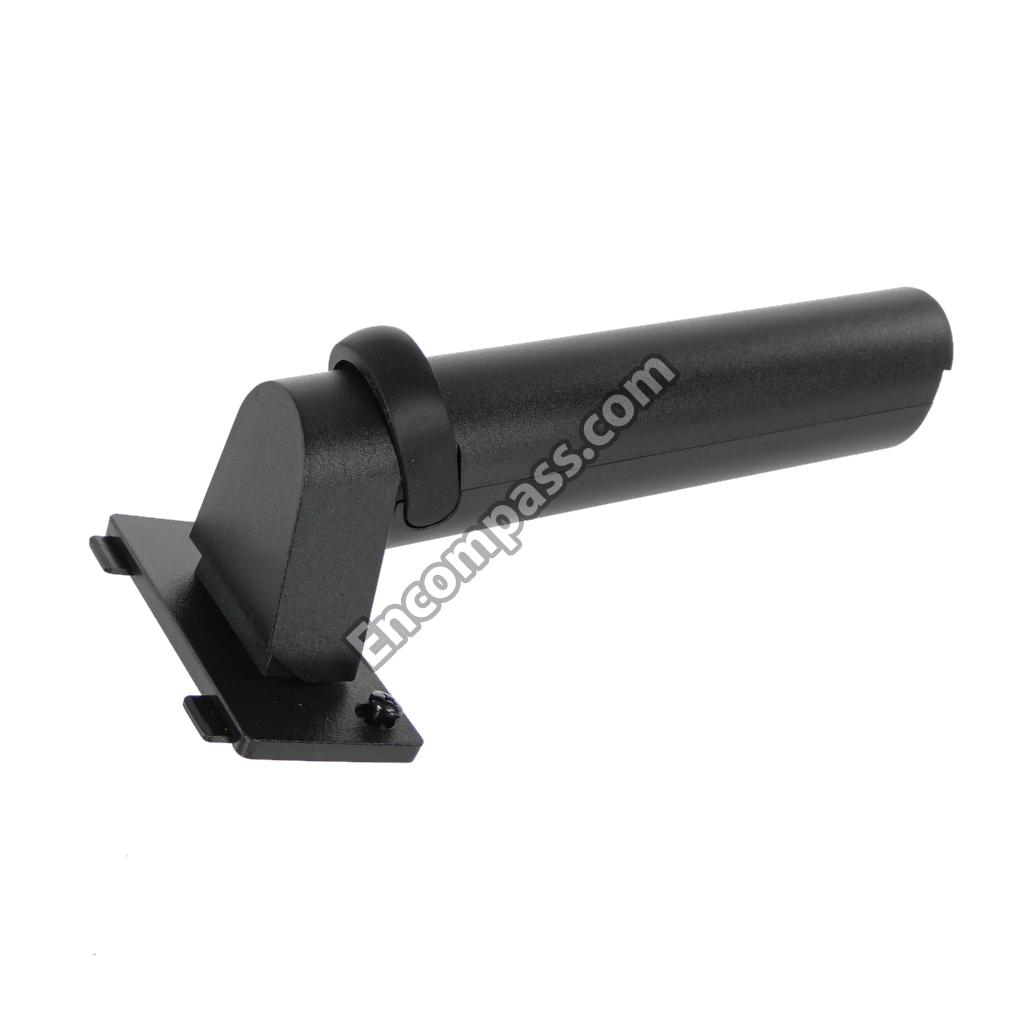

ASSEMBLY STAND P-COVER NECK;32S70A,ABS,BLACK |
| BN96-52532A | ASSEMBLY STAND P-COVER TOP;32M70A,CR-SPCC,BL |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-17478A | BRACKET-STAND LINK TOP;32M70A,EGI-SECC,T |
| BN61-17477A | BRACKET-STAND LINK;32M70A,EGI-SECC,T1.2, |
| BN61-13557B | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557K | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006960 | C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005194 | C-CER,CHIP;220PF,10%,50V,X7R,TP,1608,-55 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-000626 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1608,-55TO |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-001640 | C-CER,CHIP;390PF,10%,50V,X7R,TP,1608,-55 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| BN63-19262A | COVER-TERMINAL SIDE;32M70A,PC+ABS,T2,5VB |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01096A | DC VSS-PD BOARD;P32E8_ADY,AC/DC,154W,AC1 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001290 | DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-54956A | FFC;32M70B,FOLD,L350,24P,MAIN-FUNCTION |
| BN96-54955A | FFC;32M70B,FOLD,L390,96P,MAIN-PANEL |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BP63-00835A | GASKET-EMI;EMI SHIELDING,FABRIC,T0.13,W4 |
| BN39-01997D | HDMI CABLE;C27HG70,19,1500MM,BLACK,HDMI |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 1001-001998 | IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC |
| 1001-001680 | IC-ANALOG MULTIPLEX;TC7SB3157CFU,CMOS,US |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-009082 | IC-DC/DC CONVERTER;SYU962QFC,TR,32P,4X4X |
| 1203-009648 | IC-DC/DC CONVERTER;VPMS3BSM,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1204-003818 | IC-DECODER;SDP19403,TR,27X27X1.78MM,-10T |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1205-005968 | IC-SWITCH;AOZ1375DI,DFN,12P,3X3X0.9MM,PL |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-006614 | IC-SWITCH;ET20176H,8P,DFN8,TP,1.5X2.0X0. |
| 1205-005824 | IC-TRANSMITTER;PS176,QFN,48P,6X6X0.85MM, |
| 0904-003200 | IC-USC;GL850G-34,QFN,24P,5X5X0.75MM,12MH |
| 0904-003058 | IC-USC;RTS5450,TP,46P,6.5X4.5X0.85MM,TP, |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM |
| 2703-005035 | INDUCTOR-SMD;22UH,20%,12X12MM,T6,0.059OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003263 | INDUCTOR-SMD;3.3UH,20%,10X10MM,0.0118OHM |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-004053 | JACK-USB;24P/2C,AU,BLK,ANGLE,C,3.0,9.19X |
| 3722-003248 | JACK-USB;4P/1C,BLK,STRAIGHT,A,2.0,14.6X1 |
| BN39-02663A | LEAD CONNECTOR-BLU;32M70A,UL21016,10P,L6 |
| BN39-02665A | LEAD CONNECTOR-POWER;32M70,UL21016,14P,L |
| BN59-01411A | NETWORK-WLAN CLIENT;WCA735M,90.83X20.91X |
| BN62-00731A | PAD GAP-THERMAL;HS01-13040-SST-3535,SILI |
|
|
POWER CORD-DT;USA,3P-F,125V,10A,BLK,L150 |
| BN95-08482A | PRODUCT LCD-CSOT;CY-MB315HGHV1H,M70B,Y22 |
| 2007-008714 | R-CHIP;0.01OHM,1%,1W,TP,6432 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-008134 | R-CHIP;12.4KOHM,1%,1/16W,TP,1005 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000828 | R-CHIP;39KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001111 | R-CHIP;680KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01455A | REMOCON-ECO SMART CONTROL;2024 TV,SAMSUN |
| 6001-001547 | SCREW-MACHINE;BH,+,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
| 6001-003425 | SCREW-MACHINE;SWRCH22A,ZPC(BLK),L14,M4,B |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,BH |
| 3601-001374 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007425 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006324 | SMG PART |
| 2203-006141 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-001239 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000550 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000236 | SMG PART |
| 2007-008213 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001119 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000168 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001830 | SMG PART |
| 0203-007086 | SMG PART |
| 0203-007233 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 0902-003348 | SMG PART |
| 1105-003102 | SMG PART |
| 1201-004368 | SMG PART |
| 1201-004380 | SMG PART |
| 1203-009590 | SMG PART |
| 1203-009643 | SMG PART |
| 1203-009704 | SMG PART |
| 1203-009719 | SMG PART |
| 1203-009732 | SMG PART |
| 1205-006555 | SMG PART |
| 1404-001731 | SMG PART |
| 2007-001058 | SMG PART |
| 2703-005715 | SMG PART |
| 2703-005889 | SMG PART |
| 2801-005302 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003713 | SMG PART |
| 6902-003839 | SMG PART |
| 6902-003844 | SMG PART |
| 6902-004139 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00074E | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00404A | SMG PART |
| BN02-00644A | SMG PART |
| BN41-03019B | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-02418A | SMG PART |
| BN46-02428A | SMG PART |
| BN60-00162K | SMG PART |
| BN60-01660A | SMG PART |
| BN60-01664A | SMG PART |
| BN61-02428E | SMG PART |
| BN61-08997A | SMG PART |
| BN61-15975A | SMG PART |
| BN61-16274A | SMG PART |
| BN61-16276A | SMG PART |
| BN61-17471A | SMG PART |
| BN61-17475A | SMG PART |
| BN61-17480A | SMG PART |
| BN61-17521A | SMG PART |
| BN61-17931A | SMG PART |
| BN61-17932A | SMG PART |
| BN62-00963A | SMG PART |
| BN63-12151A | SMG PART |
| BN63-17418D | SMG PART |
| BN63-17418G | SMG PART |
| BN63-19260G | SMG PART |
| BN63-19266A | SMG PART |
| BN63-19267A | SMG PART |
| BN63-19432A | SMG PART |
| BN64-04486A | SMG PART |
| BN64-04508D | SMG PART |
| BN67-00327M | SMG PART |
| BN68-00226M | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-03677A | SMG PART |
| BN68-04657J | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-07103D | SMG PART |
| BN68-08112A | SMG PART |
| BN68-09371E | SMG PART |
| BN68-12577F | SMG PART |
| BN68-15181C | SMG PART |
| BN68-18547A | SMG PART |
| BN68-19110B | SMG PART |
| BN69-17053P | SMG PART |
| BN69-21782C | SMG PART |
| BN69-23744A | SMG PART |
| BN69-26245B | SMG PART |
| BN81-22601A | SMG PART |
| BN81-22602A | SMG PART |
| BN81-22603A | SMG PART |
| BN81-22605A | SMG PART |
| BN81-22606A | SMG PART |
| BN81-22607A | SMG PART |
| BN90-12364A | SMG PART |
| BN90-12424A | SMG PART |
| BN90-12425M | SMG PART |
| BN91-25098T | SMG PART |
| BN91-25099M | SMG PART |
| BN92-33145H | SMG PART |
| BN92-33146X | SMG PART |
| BN92-33147K | SMG PART |
| BN92-33165A | SMG PART |
| BN96-43916J | SMG PART |
| BN96-51446A | SMG PART |
| BN96-52462A | SMG PART |
| BN96-52466A | SMG PART |
| BN96-53091A | SMG PART |
| BN97-00048D | SMG PART |
| BN97-00048E | SMG PART |
| BN97-19516A | SMG PART |
| BN97-21481U | SMG PART |
| BN97-21482B | SMG PART |
| BN97-21486A | SMG PART |
| BN97-21491A | SMG PART |
| BN97-21492A | SMG PART |
| BN97-21494A | SMG PART |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN39-02259B | USB CABLE;CJ89 100W,16,5.1MM,1000MM,BLAC |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1608,TP,120V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
