Manufacturer
Samsung
Model Number
MC32F604TCT
Description
Mwo(common),1.1,1200watts,ash Umi Silver
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DE42-00003A | ANTENNA |
| DE42-10018E | ANTENNA-CERAMIC |
| DE99-00234A | ASSEMBLY ANODE |
| DE94-03047A | ASSEMBLY BASE PLATE SUB |
| DE94-03043A | ASSEMBLY BODY LATCH TOP-LEFT |
| DE94-03042A | ASSEMBLY BODY LATCH TOP-RIGHT |
| DE99-00237A | ASSEMBLY CATHODE |
| DE99-00384A | ASSEMBLY COIL |
| DE99-00383A | ASSEMBLY COIL |
| DE94-03023C | ASSEMBLY DOOR |
| DE99-00271A | ASSEMBLY GASKET |
|
|
ASSEMBLY GUIDE ROLLER |
| DE91-70061J | ASSEMBLY H.V.FUSE |
| DE94-03019A | ASSEMBLY HANDLE |
|
|

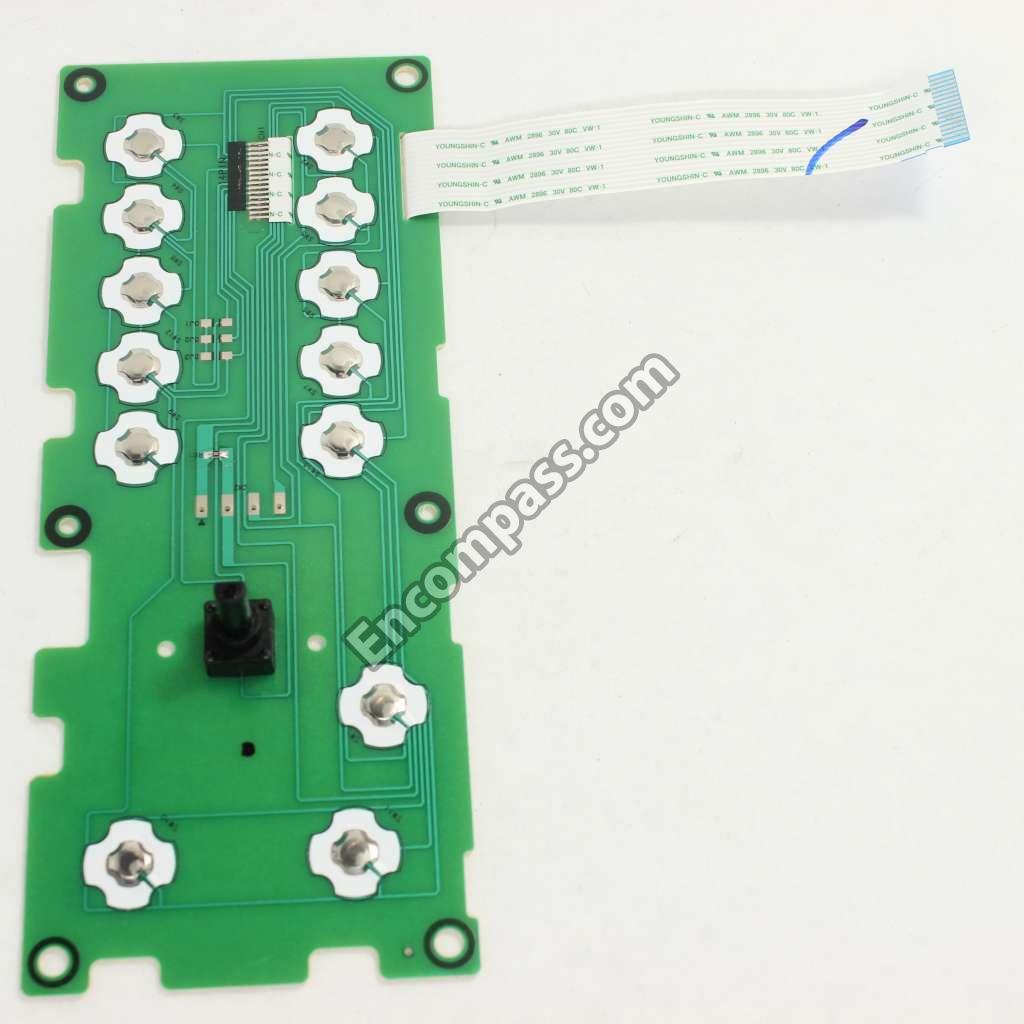

ASSEMBLY KEY MODULE |
| DE96-00399A | ASSEMBLY NOISE FILTER |
| DE96-00252A | ASSEMBLY POWER CORD |
| DE96-01015A | ASSEMBLY WIRE HARNESS-B |
| DE97-00136B | ASSEMBLY WIRE RACK |
| DE97-00136A | ASSEMBLY WIRE RACK |
| OM75S_31_ESGN | ASSEMBLY-MGT |
| DE99-00224A | ASSEMBLY-ROD END |
| DE92-90534B | ASSEMBLY-TRAY BROILER |
| DE31-00060A | BLADE-FAN |
| DE72-10012D | BODY-ANODE |
| DE60-20063A | BOLT-FLANGE |
| DE61-50106A | BRACKET-HVC |
| DE61-01371A | BRACKET-TCO |
| DE64-02691B | BUTTON SELECT-B |
| DE64-02709A | BUTTON-CLOCK |
| DE64-02690B | BUTTON-SELECT A |
| 3002-001129 | BUZZER-PIEZO |
| 2401-003107 | C-AL |
| 2401-001415 | C-AL |
| 2203-006676 | C-CER,CHIP |
| 2203-005774 | C-CER,CHIP |
| 2203-000889 | C-CER,CHIP |
| 2203-000555 | C-CER,CHIP |
| 2203-000444 | C-CER,CHIP |
| 2203-000192 | C-CER,CHIP |
| 2501-001022 | C-OIL HIGH VOLTAGE |
| DE65-20014A | CABLE CLAMP |
| DE71-60270C | CAP-ANTENNA |
| DE02-00060A | CHEMICALS-ALCOHOL |
| DE02-00040A | CHEMICALS-POWDER |
| DE02-00135A | CHEMICALS-TOLUENE |
| DE62-00041A | CHOKE |
| DE73-00019A | CHOKE-RING |
| 3708-001550 | CONNECTOR-FPC/FC/PIC |
| 3711-004200 | CONNECTOR-HEADER |
| 3711-000997 | CONNECTOR-HEADER |
|
|

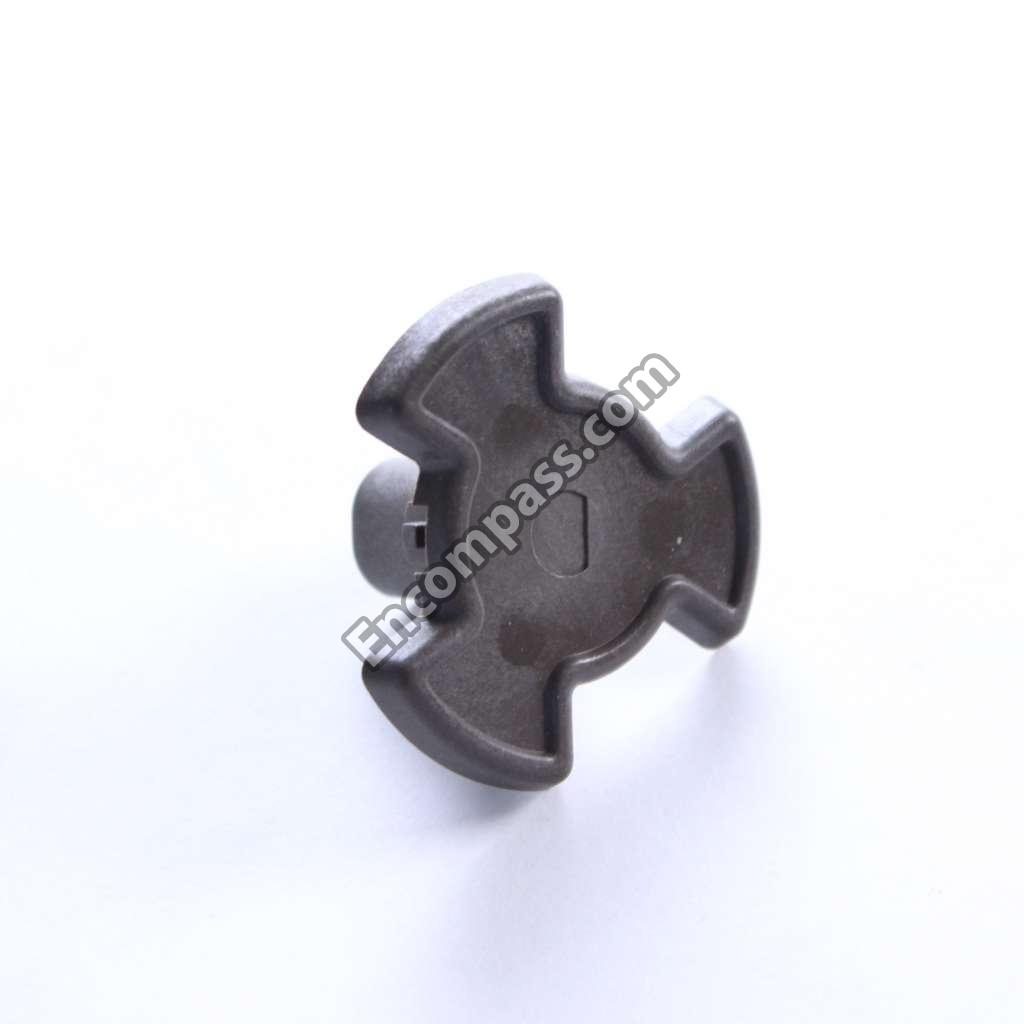

COUPLER |
| DE63-00617A | COVER BACK |
| DE71-00112A | COVER FILTER |
| DE63-00756A | COVER-AIR |
| DE63-00618A | COVER-CASING |
| DE71-00015A | COVER-CEILING |
| 2801-003933 | CRYSTAL-UNIT |
| DE67-00184A | CUP-K |
| DE63-90090B | CUSHION-DOOR |
|
|

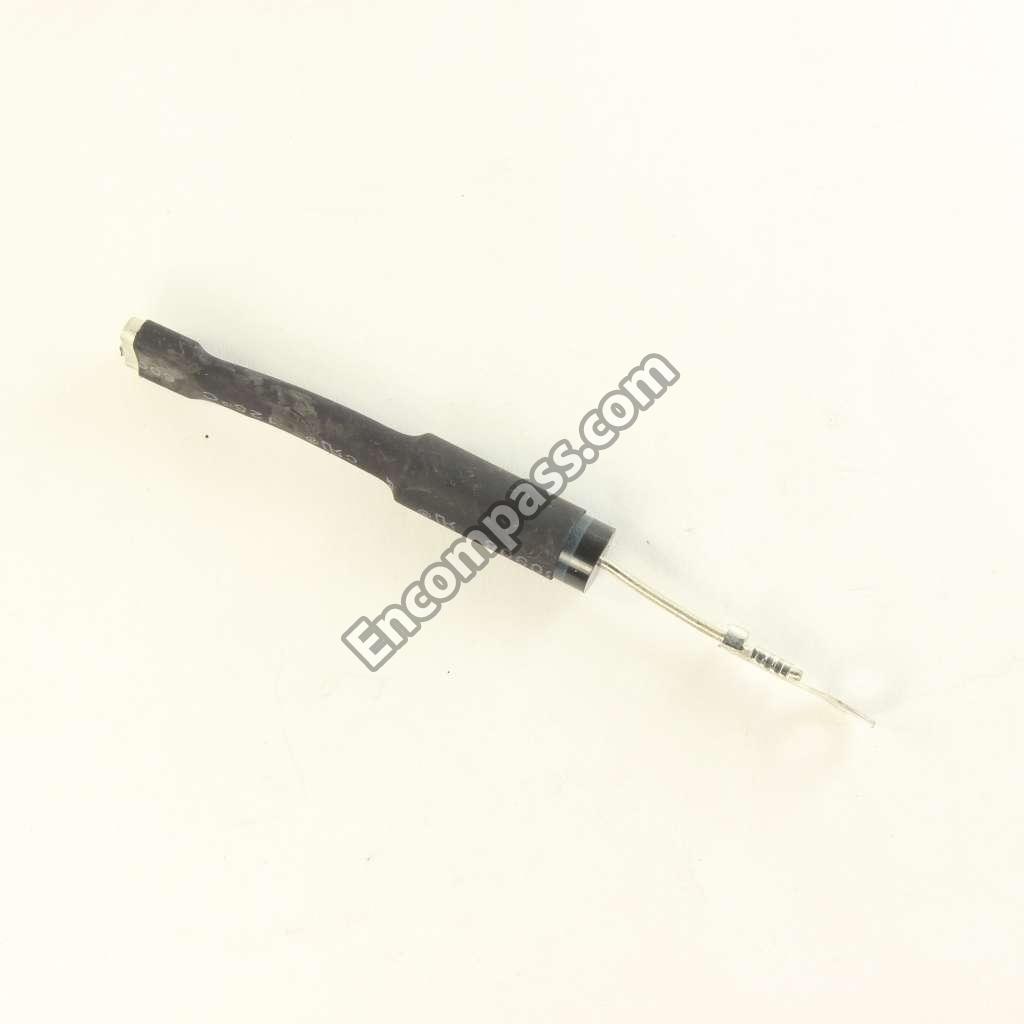

DIODE-H.V |
|
|
DIODE-RECTIFIER |
| 0401-001010 | DIODE-SWITCHING |
| 0401-001002 | DIODE-SWITCHING |
| DE64-02713A | DOOR-C |
| DE47-80008A | FILAMENT |
| DE61-40065A | FOOT |
| DE61-40022A | FOOT-RACK |
| DE61-00389A | FOOT-RACK |
| DE61-00304A | FOOT-RUBBER |
| 3601-001197 | FUSE-CARTRIDGE |
| DE63-20015A | GASKET-R.F |
| 3711-004142 | HEADER-BOARD TO CABLE |
| 3711-000999 | HEADER-BOARD TO CABLE |
| DE47-00048B | HEATER QUARTZ-CONVECTION |
| DE47-00055B | HEATER SHEATH-GRILL |
| 1203-000429 | IC-POSI.FIXED REG. |
| 1203-000188 | IC-POSI.FIXED REG. |
| 1203-004586 | IC-PWM CONTROLLER |
| DE64-02721A | KEY-DOOR LEFT |
| DE64-02722A | KEY-DOOR RIGHT |
| DE64-02710A | KNOB DIAL |
| 4713-001524 | LAMP-INCANDESCENT |
| DE73-90015E | MAGNET-A |
| DE73-90016A | MAGNET-K |
| DE31-00049B | MOTOR AC CONVECTION |
| DE31-10170B | MOTOR AC DRIVE |
| DE31-10185F | MOTOR AC FAN |
|
|
NUT-FLANGE |
| DE60-30001A | NUT-HEX |
| DE69-00919B | PAD SHEET |
| DE64-02726G | PANEL OUTER |
| DE64-02726F | PANEL OUTER |
| DE41-00406A | PCB MAIN |
| 0604-000117 | PHOTO-COUPLER |
| DE60-60008A | PIN HINGE |
| DE60-60025A | PIN-FOOT |
| DE60-60071A | PIN-STAPLE |
| DE62-20020A | PIPE-TITANIUM |
| DE61-00569A | POLE-PIECE(A) |
| DE61-00570A | POLE-PIECE(K) |
| 2001-000786 | R-CARBON |
| 2001-000780 | R-CARBON |
| 2001-000734 | R-CARBON |
| 2001-000577 | R-CARBON |
| 2001-000290 | R-CARBON |
| 2001-000009 | R-CARBON |
| 2001-000002 | R-CARBON(S) |
| 2007-000868 | R-CHIP |
| 2007-000844 | R-CHIP |
| 2007-000468 | R-CHIP |
| 2007-000300 | R-CHIP |
| 2004-000195 | R-METAL |
|
|
RELAY-MINIATURE |
| 3501-001324 | RELAY-POWER |
| DE66-30012D | ROLLER |
| 6001-001822 | SCREW-MACHINE |
| 6001-000595 | SCREW-MACHINE |
| 6001-000033 | SCREW-MACHINE |
| DE60-10193A | SCREW-TAPPING |
|
|

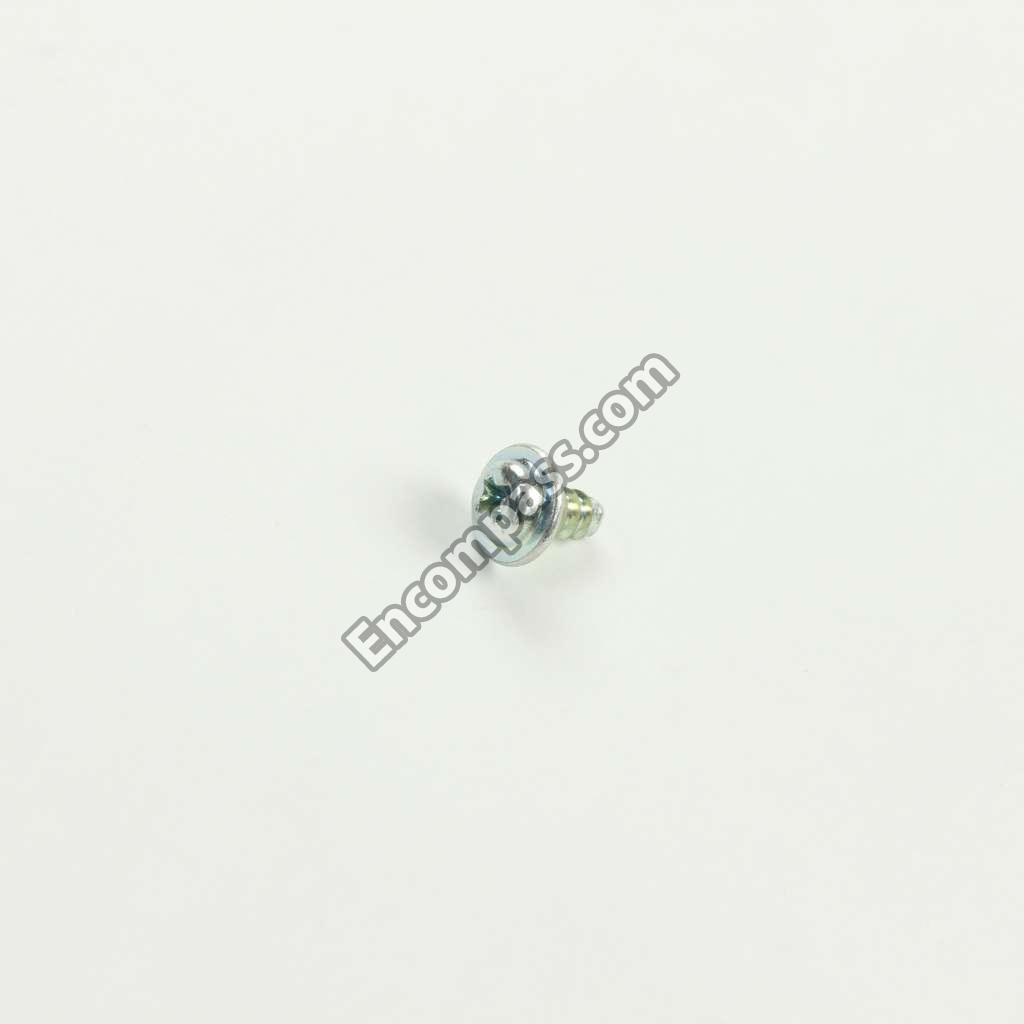

SCREW-TAPPING |
|
|
SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-001325 | SCREW-TAPPING |
| 6002-000522 | SCREW-TAPPING |
| 6002-000432 | SCREW-TAPPING |
| 6006-001176 | SCREW-TAPTYPE |
| 6003-001872 | SCREW-TAPTYPE |
| DE74-10011A | SEAL-WASHER |
|
|

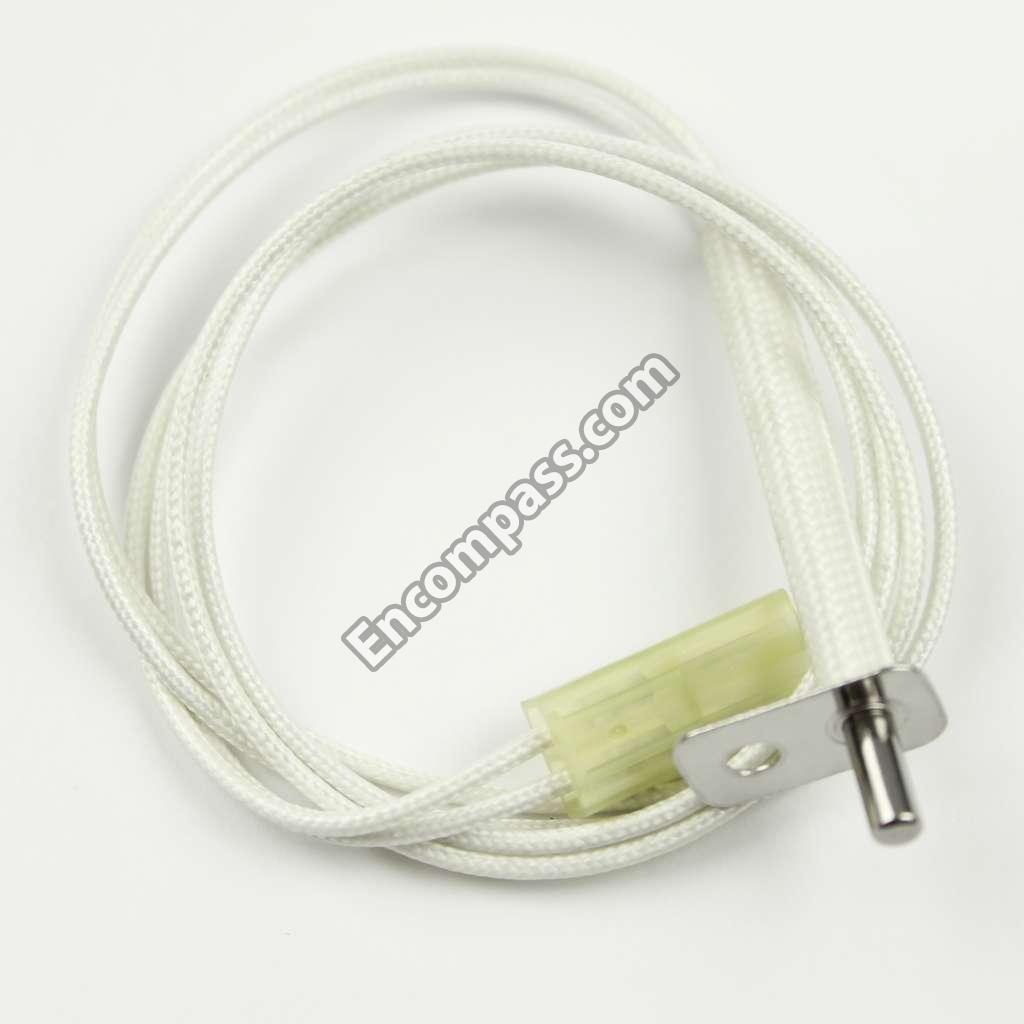

SENSOR |
| DE70-90027A | SHEET-ALLOY |
| DE70-90033A | SHEET-BRAZE |
| DE70-90018A | SHEET-DOOR |
| DE71-00042A | SHIELD-CUP(A) |
| DE71-80021A | SHIELD-END |
| DE71-80022A | SHIELD-TOP |
| 0202-001608 | SOLDER-WIRE FLUX |
| DE61-70060A | SPRING-PLATE |
| DE66-00054A | STRAP-INNER |
| DE66-00055A | STRAP-OUTER |
| DE70-50027A | STRIP-CU |
| DE61-01531A | SUPPORT HEATER |
|
|

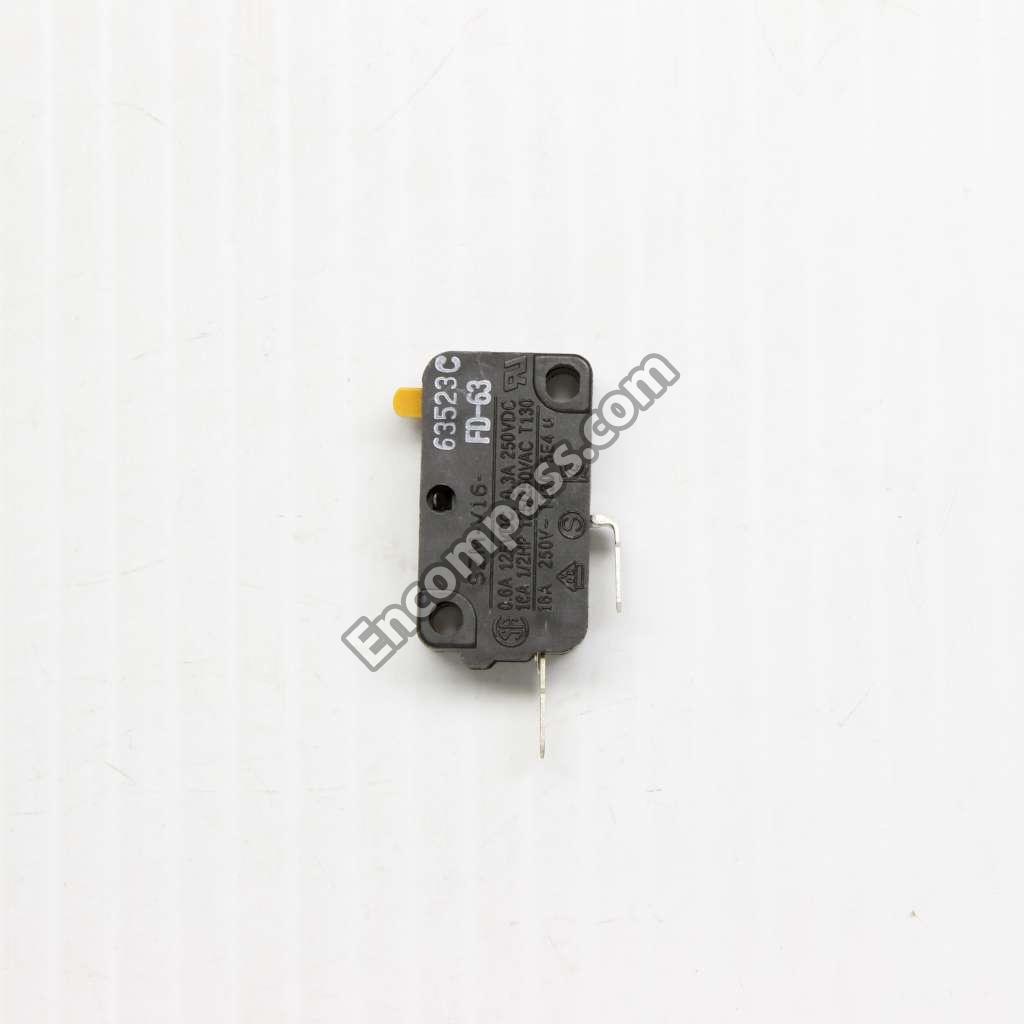

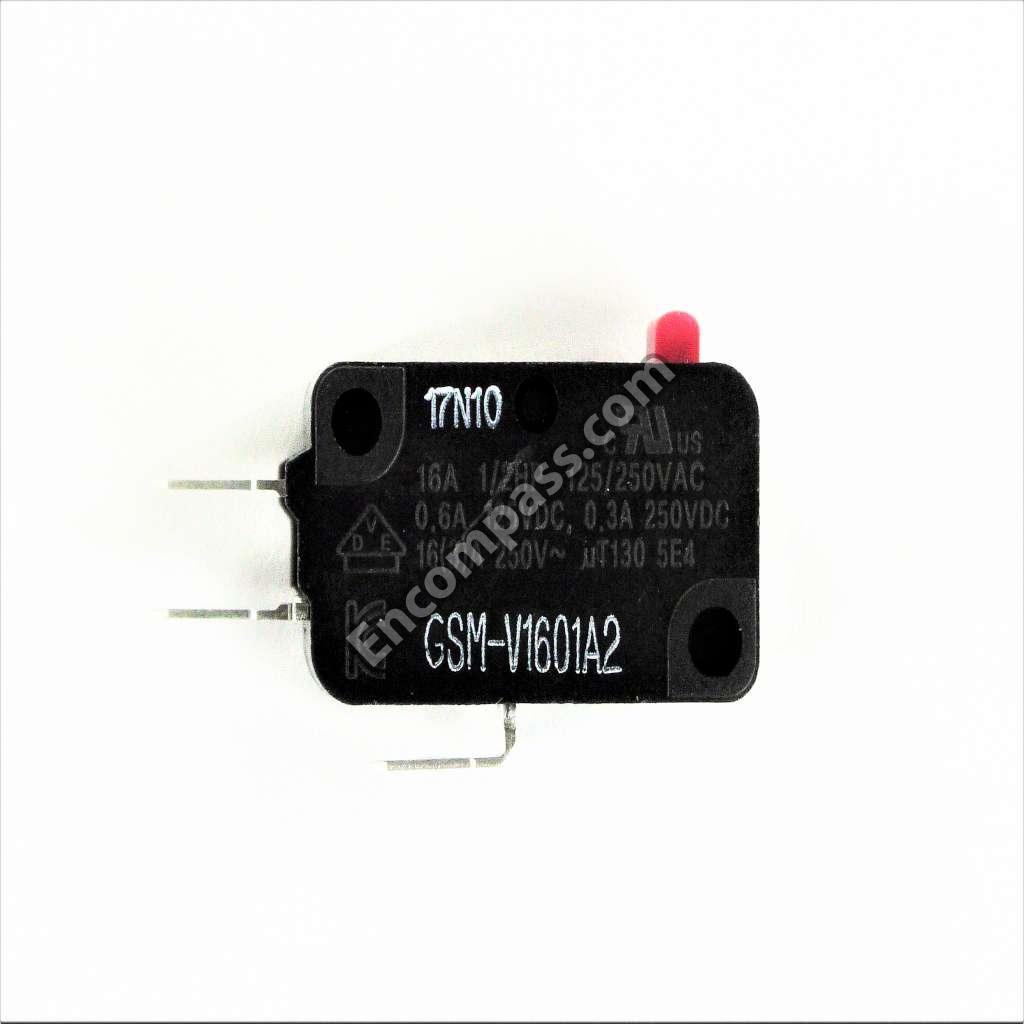

SWITCH-MICRO |
|
|
SWITCH-MICRO |
| DE02-00139A | TAPE DOUBLE FACE |
| DE02-00168A | TAPE ETC |
| 0203-001299 | TAPE-DOUBLE FACE |
| DE02-00030A | TAPE-SCOTCHPAR |
| DE02-00029A | TAPE-SCOTCHPAR |
|
|

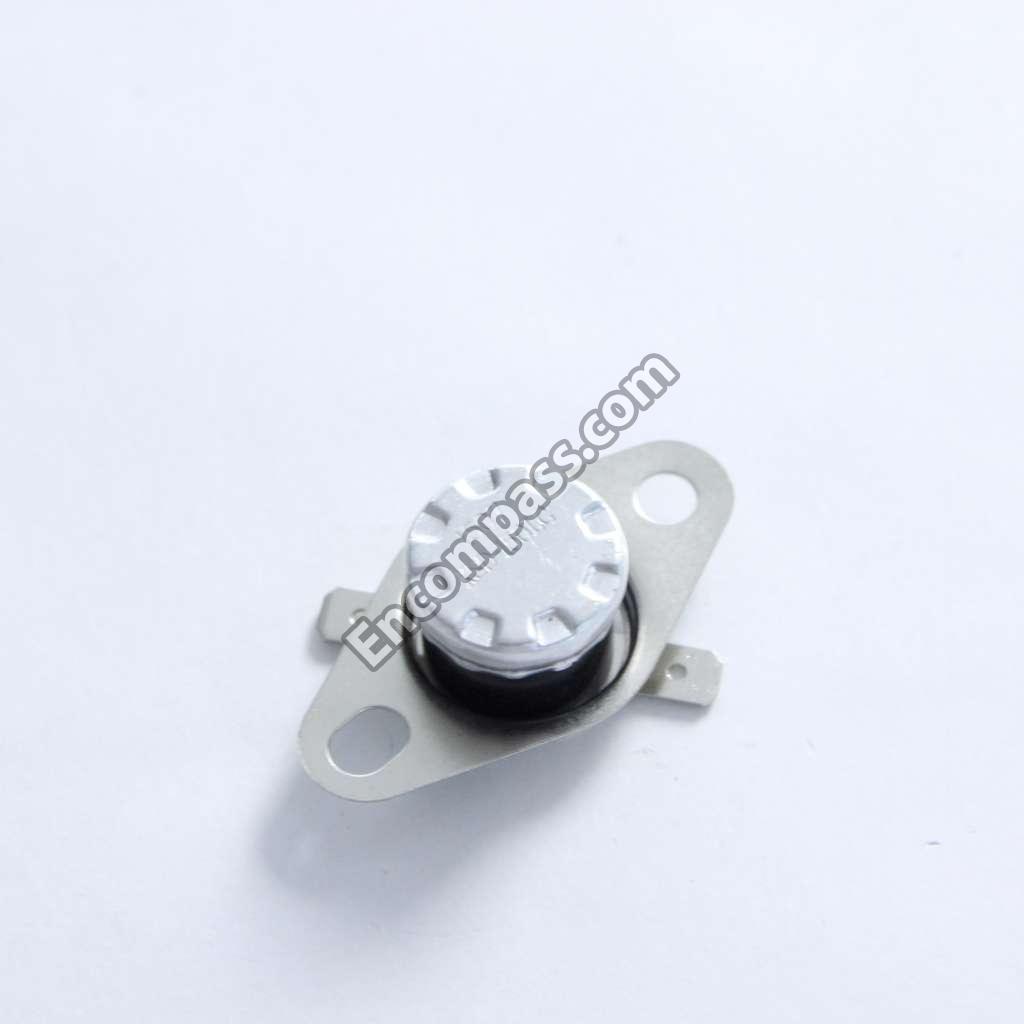

THERMOSTAT |
| 0504-001178 | TR-DIGITAL |
| 0504-001044 | TR-DIGITAL |
| DE26-00137H | TRANS SWITCHING |
| DE74-20107B | TRAY-BROILER |
|
|

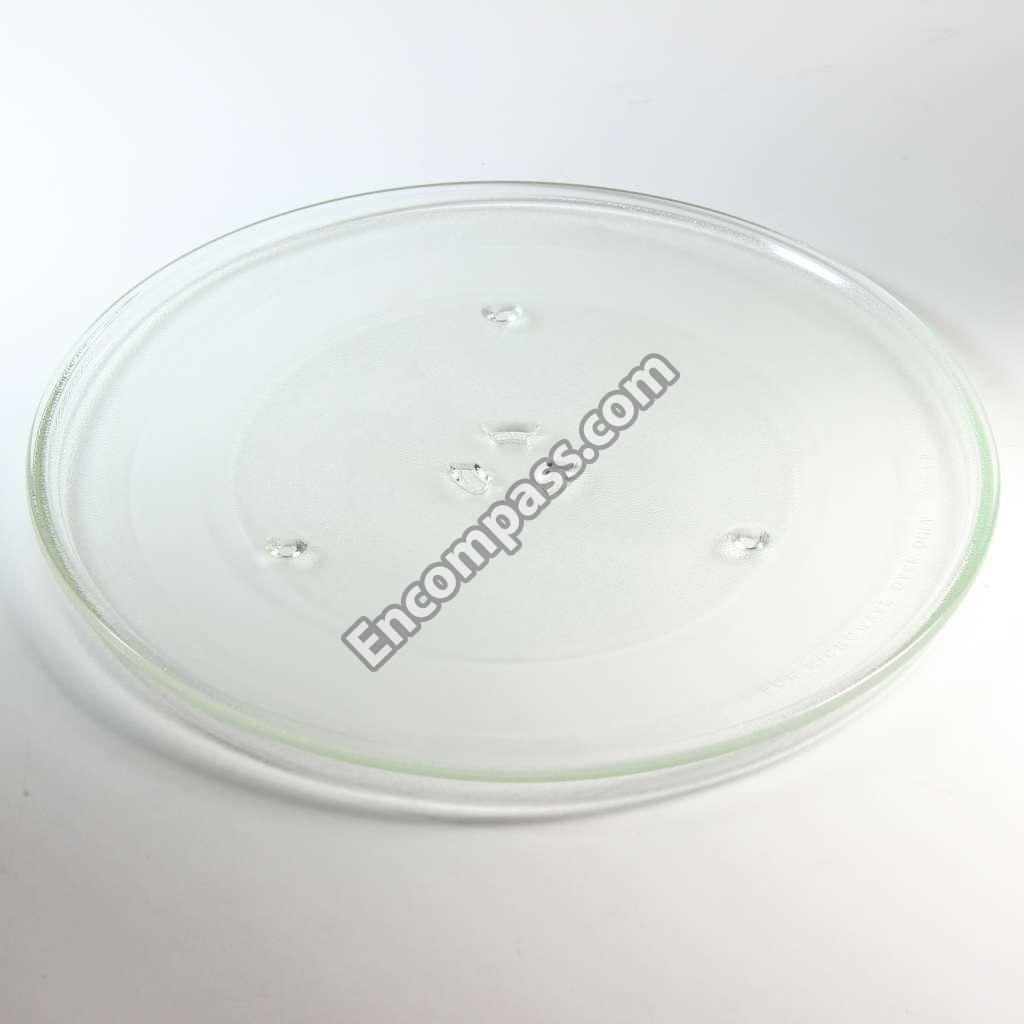

TRAY-COOKING |
| DE62-20027A | TUBE-CU |
| DE62-20026A | TUBE-CU |
| DE62-20025A | TUBE-CU |
| DE66-00149A | VANE |
| DE60-40006A | WASHER-BRAZE |
| DE60-40014B | WASHER-C MOTOR |
| DE64-02723A | WINDOW-DISPLAY |
| DE70-60025A | WIRE-COPPER,OFHC |
| DE70-60022A | WIRE-CU |
| 3812-001283 | WIRE-NO SHEATH CU |
| DE73-00026A | YOKE--A |
