Manufacturer
Samsung
Model Number
MIMH04UN
Description
Wifi Kit For Ducted Cassette
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-001334 | ADHESIVE-SILICON;SE9187L,TRP,10 CPS,330M |
| DB90-11350A | ASSEMBLY CASE-TOP;AIM-H04N |
| DB93-17067A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL; |
| DB93-17066A | ASSEMBLY CONNECTOR WIRE-DC SIGNAL; |
| DB92-04720B | ASSEMBLY PCB MAIN;R18 NDP OCF WIFI |
| DB92-03668B | ASSEMBLY PCB SUB;SUB,OCF WI-FI KIT |
| DB90-11366F | ASSY FRAME-CONTROLLER;MIM-H04UN |
| DB92-04741A | ASSY KIT;INDOOR,OCF WIFI KIT,2.4/5GHZ;SA |
| DB91-02100A | ASSY MICOM;18_SYS_SAC_OCF_WIFIKIT,STM-18 |
| DB91-02102A | ASSY MICOM;SYSTEM AC OCF WI-FI KIT,STM-1 |
| DB94-07954A | ASSY PCB SMD;R18 NDP OCF WIFIKIT,OCF WIF |
| DB94-07864A | ASSY PCB SMD;SUB,OCF WI-FI KIT,80X50MM,N |
| DB98-25048A | ASSY-PAD;(W)371(D)304,CB,SW2,NONE,AWRTH0 |
| 6902-003188 | BAG PE;LDPE,T0.05,W100,L160,TRP,RECYCLE, |
| 6902-003216 | BAG PE;LDPE,T0.05,W200,L350,TRP,RECYCLE+ |
| 3301-001594 | BEAD-SMD |
| 3301-002069 | BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,26OHM |
| DB64-03442A | BUTTON SWITCH;AIM-H04N,ABS,DA SILVER |
| 2402-001145 | C-AL, SMD |
| 2203-007544 | C-CER, CHIP |
| 2203-007456 | C-CER, CHIP |
| 2203-007306 | C-CER, CHIP |
| 2203-006698 | C-CER, CHIP |
| 2203-006158 | C-CER, CHIP |
| 2203-005249 | C-CER, CHIP |
| 2203-002285 | C-CER, CHIP |
| 2203-000888 | C-CER, CHIP |
| 2203-000627 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-010038 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1005,T0. |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,TP,1005,T0. |
| DB65-10088B | CABLE-TIE |
| DB61-07337A | CASE-BOTTOM;AIM-H04N,ABS,T2,L183,DA WHIT |
| DB61-07336A | CASE-TOP;AIM-H04N,ABS,T2,L185,DA WHITE |
| DB65-10074E | CLAMP-CABLE |
| 3709-001605 | CONNECTOR-CARD EDGE |
| 3711-009090 | CONNECTOR-HEADER |
| DB63-04177A | COVER PCB;AIM-H04N,PET,T0.3,V-0,NATURAL |
| 2801-004938 | CRYSTAL-SMD |
| 2801-004974 | CRYSTAL-SMD;0.032768MHZ,20PPM,7PF,50000O |
|
|

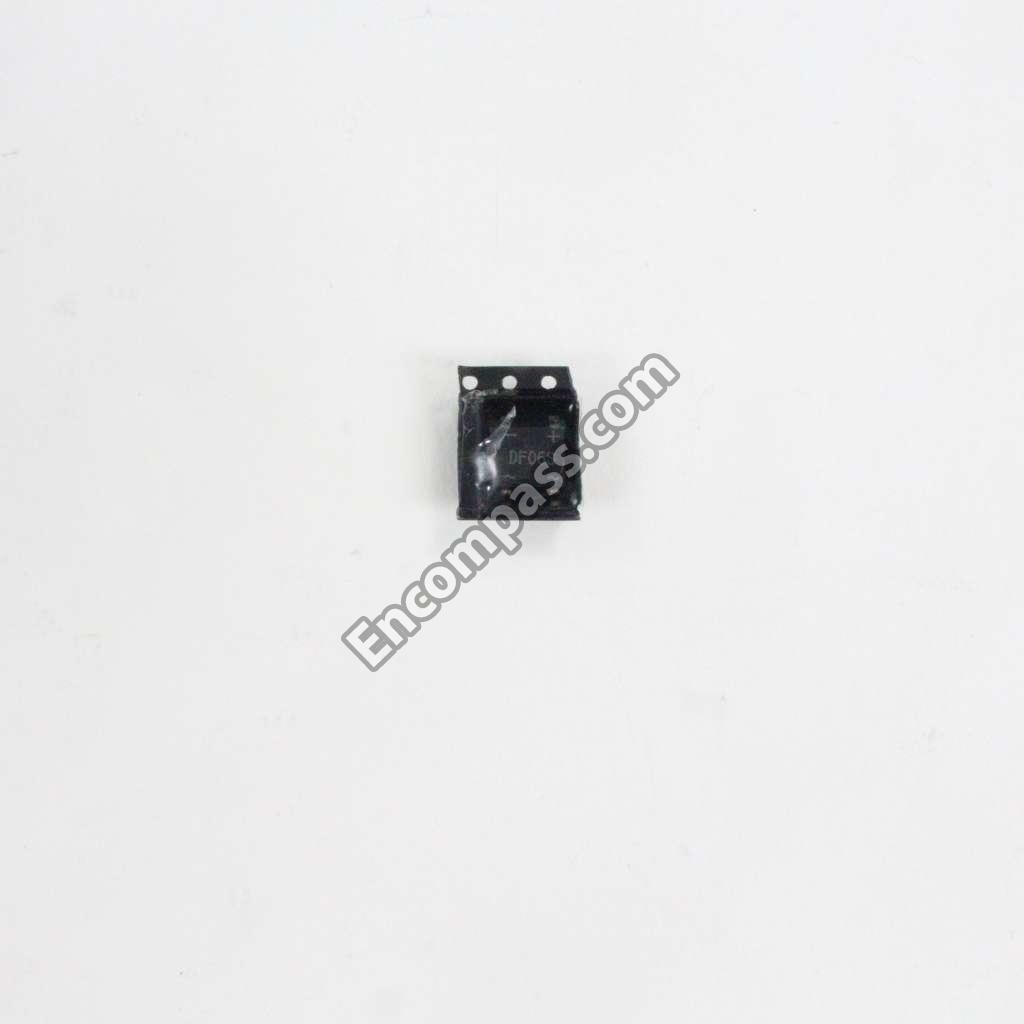

DIODE-BRIDGE |
| 0402-000553 | DIODE-SCHOTTKY |
| 0406-001239 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0406-001005 | DIODE-TVS |
| DB60-00444A | FASTENER-SPADE TERMINAL |
| 0505-001822 | FET-SILICON |
| 0505-000110 | FET-SILICON |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0.08OHM,0.5 |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
| 3711-002001 | HEADER-BOARD TO CABLE |
| 3711-005096 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,5P, |
| 3711-009165 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.0MM,SM |
| DB09-00596A | IC MICOM;1MBIT,TQFP,14X14MM,40TO+85C,38 |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1205-005827 | IC-CONTROLLER;S3FT9MF,BGA,9P,3.4X3.0X0.8 |
| 1203-005279 | IC-DC/DC CONVERTER |
| 1105-002996 | IC-DDR3 SDRAM;K4B2G1646F-BCNB,DDR3,2GBIT |
| 1103-001507 | IC-EEPROM |
| 1107-002643 | IC-EMMC;KLM4G1FETE-B041,4GBYTE,X8,BGA,15 |
| 0902-003302 | IC-MICROPROCESSOR;R18,1.15GHZ,FBGA,396P, |
| 1203-009236 | IC-POWER SUPERVISOR;AXP803,QFN,68P,8.0X8 |
| 1203-006245 | IC-VOL. DETECTOR |
| 2703-004082 | INDUCTOR-SMD |
| DB68-03382A | LABEL CAUTION;MIM-H02,ART+L/C,40,20 |
| DB68-08445A | LABEL PACKING ETC;MIM-H04EN,ART,W70,L15 |
| DB68-08018A | LABEL PACKING ETC;SOL,ART,W90,L14,ART+L/ |
| DB68-04980A | LABEL PACKING;ART,63,90 |
| DB68-07952A | LABEL RATING;ALL MODEL,PET,W45,L35,SILVE |
| DC68-02310A | LABEL-BAR CODE |
| 0601-002956 | LED |
| 0601-002423 | LED |
| 0601-002419 | LED;SMD(TOP VIEW),YEL,WATER CLEAR,1.6X0. |
| DB68-08425A | MANUAL USERS & INSTALL;MIM-H04UN,EN+FR+E |
| DB69-02443A | PAD PACKING-60;ACCESSORY-60,CB,W484,L497 |
| DB41-01430A | PCB MAIN;FR-4,4L,T1.2,97X80MM,4,R18 NDP |
| DB41-01308A | PCB SUB;FR-4,2L,T1.6,80X50MM,6,MIM-H03UN |
| 2007-008805 | R-CHIP |
| 2007-008779 | R-CHIP |
| 2007-008485 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008231 | R-CHIP |
| 2007-000869 | R-CHIP |
| 2007-000066 | R-CHIP |
| 2802-001165 | RESONATOR-CERAMIC |
|
|
SCREW-TAPPING |
| 6002-001039 | SCREW-TAPPING;PH,+,2S,M3,L6,ZPC(BLK),S |
| 0202-001338 | SOLDER-BAR |
| 0202-001933 | SOLDER-CREAM;LFM-48W TM-HP,D20~38UM,96.5 |
| 0202-001608 | SOLDER-WIRE FLUX |
| 0204-005794 | SOLVENT;S-1000,(CH3)2CHOH,100%,0.79 |
| 3404-001222 | SWITCH-TACT |
| 3404-001357 | SWITCH-TACT;12V DC,50MA,160GF,7.5X6.0X6. |
| DB02-00063A | TAPE DOUBLE FACE;AIM-H04N,ACRYL FOAM,T0. |
| 3716-001329 | TERMINAL-BLOCK |
| 3716-001162 | TERMINAL-BLOCK |
| 3716-001315 | TERMINAL-BLOCK;HOOK,2P,3.5MM,250V,12A |
| 0502-001250 | TR-POWER |
| 0501-000465 | TR-SMALL SIGNAL |
|
|

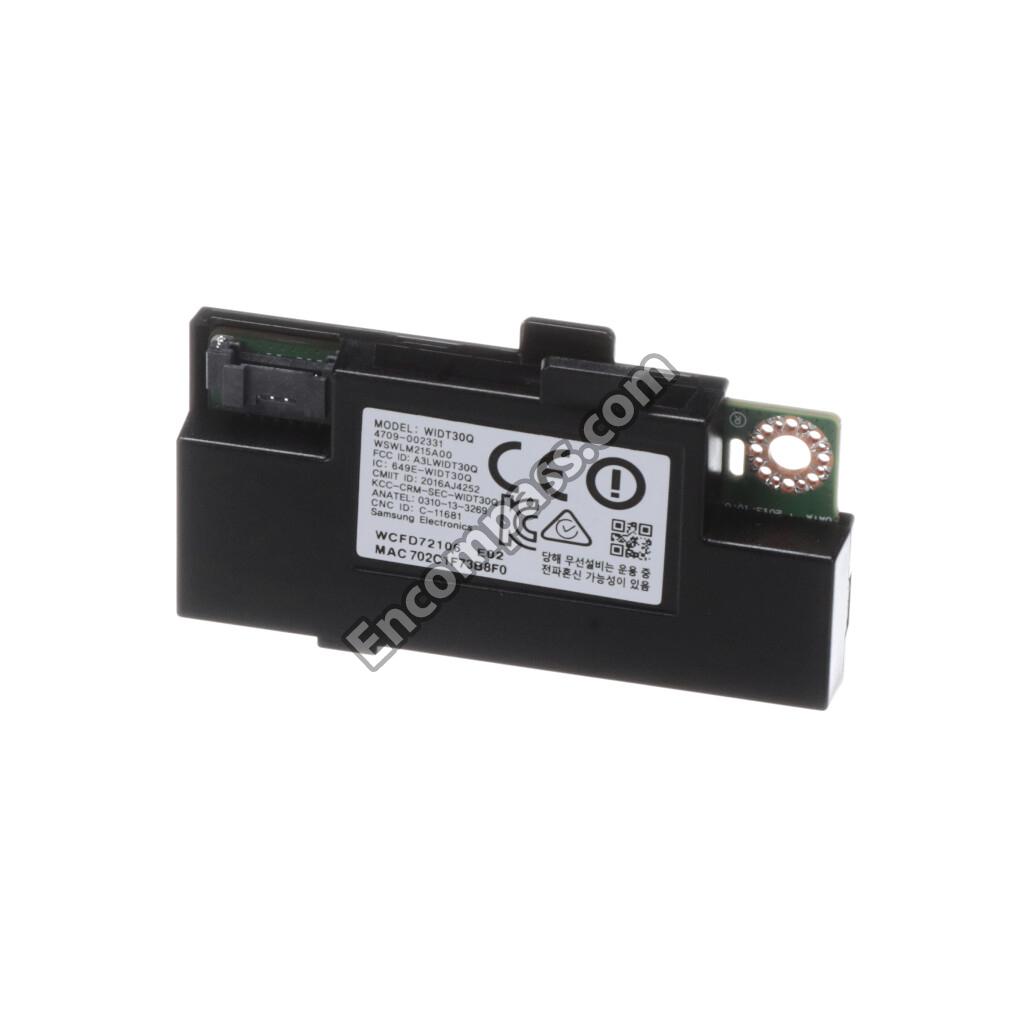

W-LAN MODULE |
| DB64-03443A | WINDOW LED;AIM-H04N,PC,T1,SC-1220R,MILK- |
