Manufacturer
Samsung
Model Number
ML-2015
Description
Ml-2015 Monochrome Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC70-00499C | ADJUST-CASSETTE_L;SCX-4521F,ABS,2.5,120. |
| JC70-00500C | ADJUST-CASSETTE_R;SCX-4521F,ABS,2.5,120. |
| JC70-00514C | ADJUST-MP L;ML-2571N,HIPS,2.5,127.8,90,B |
| JC70-00515C | ADJUST-MP R;ML-2571N,HIPS,2.5,127.8,90,B |
| 6902-000455 | BAG CONDUCTIVE;LDPE,T0.07,W200,L450,BLK, |
| 6902-000288 | BAG PE;LDPE,T0.05,W250,L450,TRP,8,2,10.5 |
| JC69-00818R | BOX-MAIN;ML-2015,PAPER,OFFSET3,308,446,3 |
| JC61-01281A | BRACKET-P-BAR_PICK_UP;ML-1610,SECC,1.00, |
|
|
BUSH-M-HR L;ML-1710,PPS,?20.45,?27.6,V0 |
|
|
BUSH-M-HR R;ML-1710,PPS,?20.45,?27.6,V0 |
|
|
BUSH-M-TR L;ML-1710,POM,?6.1,?8,BLK |
|
|
BUSH-PRESSURE R;ML-165,PPS(RBA313N),14,7 |
| 2401-000042 | C-AL;100UF,20%,16V,GP,TP,6.3X7,5 |
| 2203-000384 | C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0. |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-001683 | C-CER,CHIP;0.068NF,5%,50V,NP0,1608 |
| 2203-001607 | C-CER,CHIP;0.22NF,5%,50V,NP0,1608 |
| 2203-001408 | C-CER,CHIP;0.27NF,5%,50V,NP0,1608 |
| 2203-000783 | C-CER,CHIP;0.33NF,5%,50V,C0G,1608 |
| 2203-005819 | C-CER,CHIP;1000NF,+80-20%,16V,Y5V,TP,160 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2203-002392 | C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,1608 |
| JC66-01935A | CAM-PICKUP L;ML-2240,POM(M90-44),WHT |
| JC66-01936A | CAM-PICKUP R;ML-2240,POM(M90-44),WHT |
| JC39-00509A | CBF HARNESS-GND ZENER;SCX-4521F,UL1007,1 |
| JC39-00400A | CBF HARNESS-HVPS;ML-1610,WIRE HARNESS,UL |
| JC39-00481A | CBF HARNESS-LSU;ML-2010,#26,UL 1061,11,7 |
| JC39-00482A | CBF HARNESS-MICRO SW;ML-2010,WIRE HARNES |
| JC39-00261A | CBF HARNESS-SENSOR;ML-2150,CBF,UL 1061,4 |
| JC39-00402A | CBF HARNESS-SMPS;ML-1610,WIRE HARNESS,UL |
|
|
CBF IF-USB;ML-6100,4,UL2725,1800 +/- 50, |
|
|
CBF-POWER CORD;DT,EU,FP3/YES,IEC320 C13/ |
| JC63-00620D | COVER-JAM;ML-1610R,HIPS,2,78,227.4,HB,VI |
| JC63-00619D | COVER-MAIN;ML-1610R,HIPS,2,252,352,HB,DA |
| JC63-00712B | COVER-PAPER;SCX-4521F,SAN,2.5,269.97,139 |
| JC69-00739A | CUSHION-EPS SET(SKYL);ML-1610,EPS,505,11 |
| 0402-000129 | DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| JC96-03401G | ELA HOU-FUSER;ML-1610,SEC,-,220V,-,-,- |
| JC96-03349D | ELA UNIT-FRAME_LOW_SN;ML-2015/FEV,-,KORE |
| JC96-03592A | ELA UNIT-RX DRIVE;ML-2010,SAMSUNG,-,SNIP |
| JC96-01672A | ELA UNIT-TERMINAL TR L;ML-6060A,SEC,-,-, |
| JC31-00027A | FAN-DC_HUMMINGBIRD;ML-1710 |
| 2901-001178 | FILTER-EMI SMD;25V,2A,100000PF,2X1.25X1M |
| JC61-00836A | FOOT-FRONT;ML-1750,NBR,D7,11.5 |
| JC66-00810A | GEAR-EXIT_DRV17;ML-1610,POM M90-44,0.8,1 |
| JC66-00809A | GEAR-FEED 35/19;ML-1610,POM M90-44,A:0.8 |
| JC66-00808A | GEAR-FEED DR 41;ML-1610,POM M90-44,0.8,4 |
|
|
GEAR-FUSER DR 63/35;ML-1610,POM,A:0.8,B: |
|
|
GEAR-FUSER Z37;ML-1710,PPS OFL4036,0.8,3 |
|
|

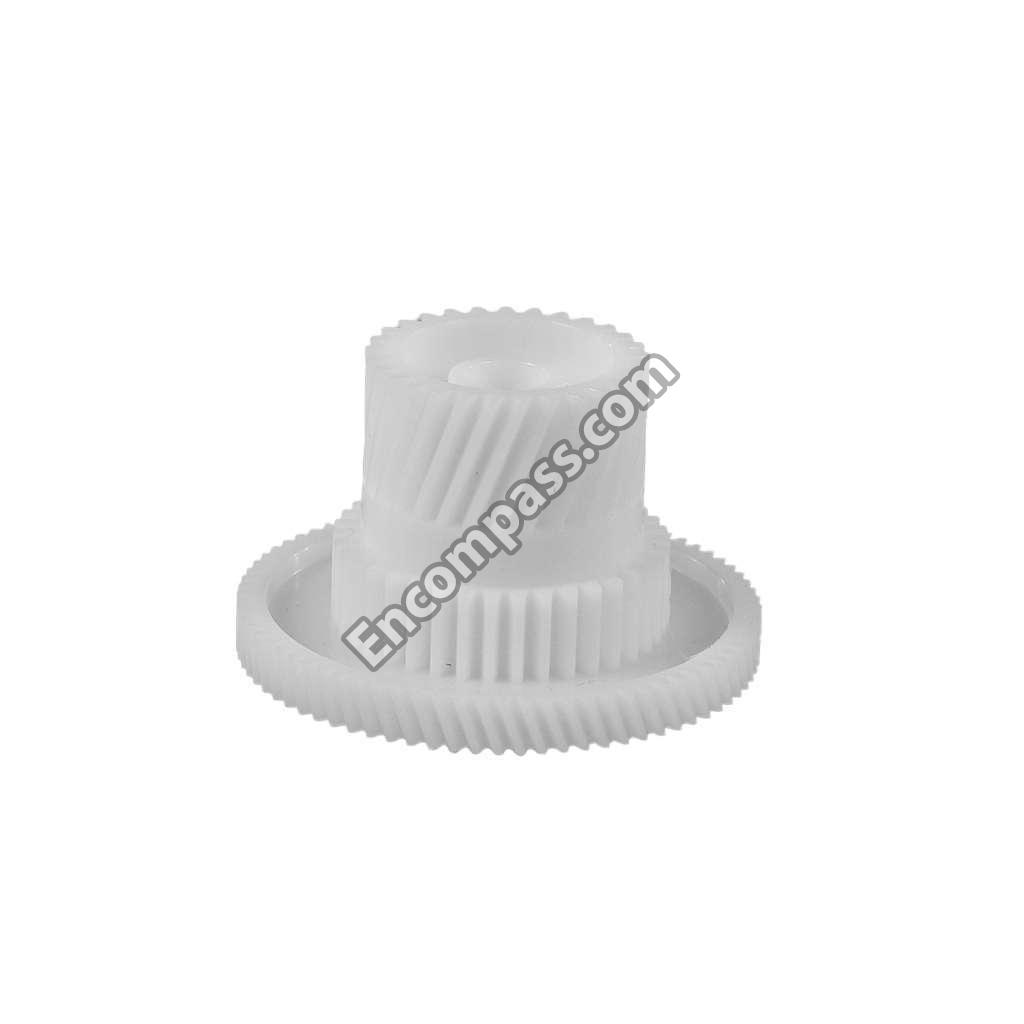

GEAR-OPC DR 76/38/29;ML-1610,POM,LARGE:0 |
| JC66-00012A | GEAR-OPC R;SF-5100,POM M90-44,0.6,Z40,BL |
|
|
GEAR-PICK_UP A;ML-1610,POM,0.8,33,WHITE, |
|
|
GEAR-PICK_UP B;ML-1610,POM,0.8,33,WHITE, |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
|
|
GEAR-RDCN 113/83;ML-1610,POM M90-44,A:0. |
| JC66-00804A | GEAR-RDCN 139/83;ML-1610,POM,A:0.6,B:0.5 |
| JC66-00813A | GEAR-TRANSFER;ML-1610,POM M90-44,0.6,24, |
| JC63-00622A | GROUND-P-OPC;ML-1610,SUS 304,0.2,42.7,20 |
| JC61-02580A | GUIDE-CLAW;ML-2240,PTFE,14,14,11,PATH |
| JC61-01161A | GUIDE-M-PAPER PATH;ML-1610,ABS HB,140,30 |
|
|
GUIDE-SUB STACKER;ML-2571N,HIPS,2,86,106 |
| JC39-01036A | HARNESS-FUSER JOINT;ML-1610ND,1PIN,190,W |
| JC39-01020B | HARNESS-FUSER;ML-1610,UL3122,2P,150MM/26 |
| 3711-002812 | HEADER-BOARD TO CABLE;BOX,11P,1R,2MM,STR |
| 3711-002001 | HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,STR |
| 3711-003942 | HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA |
| 3711-003409 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA |
| 3711-002810 | HEADER-BOARD TO CABLE;BOX,9P,1R,2MM,STRA |
| JC61-01548A | HOLDER-M-CAM;CLP-300,POM (DE8903),18.5,2 |
| JC61-01172A | HOLDER-M-EXIT F/DOWN;ML-1610,PC,T2.0,W18 |
|
|
HOLDER-M-EXIT R;ML-1610,PC,1.5,10,20,BLK |
| JC61-00583A | HOLDER-PTL;ML-1710,PC,BLK,V0 |
|
|
HOUSING-M-PICK_U;ML-1610,POM,35,NATURAL, |
|
|
HOUSING-M-PICK_UP B;ML-1610,ABS HB,35,G7 |
| JC44-00154A | HVPS;24V,21.6V~27.6V,MAX 5KV,MAX-2KV |
| 1205-002339 | IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150 |
| 0801-002446 | IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T |
| 0801-000794 | IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0 |
| 1103-001228 | IC-EEPROM;93C66,4KBIT,256X16,SOP,8P,5X4M |
| 1006-001224 | IC-LINE TRANSCEIVER;74LVX161284,TSSOP,48 |
| 1003-001535 | IC-MOTOR DRIVER;A3977SLP,TSSOP,28P,9.6X4 |
| 1203-003700 | IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P, |
| 1203-001455 | IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| JC70-00307A | IPR-P-EARTH TRANSFER;ML-1710,SECC,1.0T,W |
| JC70-10232A | IPR-PLATE SAW;ML-80,SUS304 CSP 1/2H,T0.1 |
| 3722-001101 | JACK-USB;4P/1C,AU,IVR,ANGLE,B TYPE |
| JC64-00184D | KEY-ONLINE;ML-1610R,ABS,L29*H21.5*PHI21, |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-01584A | LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JC68-00573A | LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM, |
| 4713-001202 | LAMP-HALOGEN;230V,600W,6X284MM |
| JC66-00814A | LEVER-ACTUATOR FEED SENSOR;ML-1610,PC,22 |
| JC66-00816A | LEVER-M-ACTUATOR JAM;ML-1610,PC,18.5,61, |
| JC66-00822A | LEVER-M-ACTUATOR_EMPTY;ML-1610,ABS,27,13 |
|
|
LEVER-M-KICKER P/U;ML-1610,POM,13.5,31.7 |
| JC97-02176E | MEA UNIT-COVER FRONT;ML-1610R,-,-,-,-,-, |
| JC97-03454A | MEA UNIT-COVER SMPS;ML-2010,SEC,-,-,-,-, |
| JC97-02327C | MEA UNIT-FRAME PATH;ML-2010,SAMSING,-,-, |
|
|
MEA UNIT-HOLDER_PAD;ML-1610,SAMSUNG,-,-, |
| JC97-02239C | MEA UNIT-MP TRAY;ML-2571N,SEC,-,-,- |
|
|
MEA UNIT-PICK UP GEAR;ML-1610,SAMSUNG,KO |
| JC97-02329P | MEA-COVER MAIN;ML-2015/XEV,-,-,-,-,-,- |
| JC31-00037D | MOTOR STEP-MAIN;M55SP-2NK/SP-55RD-100,ML |
| JC74-00011A | MPR-PAD KNOCK UP MP;ML-6060A,CR+CORK,NTR |
|
|
PAD;CLP-300,CB,1,39.5,6.5,GRAY |
| JC92-01706A | PBA MAIN-P1284;ML-2015,SEC,KOREA,122.75X |
|
|
PLATE-M-KNOCK_UP;ML-1610,HIPS HB,T2,W80, |
| JC61-01263C | PLATE-MP;ML-2571N,HIPS,2.5,278.2,123,V.W |
| JC61-01170A | PLATE-P-CHANNEL;ML-1610,SECC,1.2,8,12.9 |
|
|
PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL |
| JC72-40232A | PMO-CAP AGITATOR;ML-80,PP,BLK |
| JC72-01004A | PMO-IDLE KNOCK UP MP;ML-2150,POM,M90-44, |
| JC72-00825A | PMO-IMPELLER_DRV;ML-6200,NYLON66,V0,BLK |
|
|
PMO-SUB STACKER;ML-1400,PC,32*4.8*25.5,H |
| 2007-000123 | R-CHIP;1.5KOHM,5%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000116 | R-CHIP;120OHM,5%,1/10W,TP,1608 |
| 2007-000091 | R-CHIP;12KOHM,5%,1/10W,TP,1608 |
| 2007-007521 | R-CHIP;14.7KOHM,1%,1/10W,TP,1608 |
| 2007-008567 | R-CHIP;15.4KOHM,1%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000094 | R-CHIP;22KOHM,5%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-000076 | R-CHIP;330OHM,5%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000083 | R-CHIP;3KOHM,5%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-001044 | R-CHIP;56OHM,5%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2011-001011 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001094 | R-NETWORK;39OHM,5%,1/16W,L,CHIP,8P,TP,3. |
| 2005-000168 | R-WIRE WOUND,NON;0.22OHM,5%,2W,AA,BK,4X1 |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| JC66-00826A | ROLLER-EXIT F/DOWN;ML-1610,SUM22L+EPDM,1 |
|
|
ROLLER-HEAT;ML-1710,AL 5052+PFA,20.3,247 |
| JC66-01312A | ROLLER-IDLE;SCX-4521F,PFA,7,L11,WHITE |
| JC66-00934A | ROLLER-M-EXIT FR;ML-1610,TEFLON,6.5,L22. |
| JC66-00600A | ROLLER-PRESSURE;ML-1710,SUM24L+LSR+PFA,2 |
| JC66-00725A | ROLLER-TRANSFER;SCX-4100,NBR+ECO+SUM24L+ |
|
|
RUBBER-PICK_UP;ML-2240,EPDM,27.5,38.8,37 |
| 6001-000568 | SCREW-MACHINE;PH,+,M3,L8,NI PLT,SWRCH18A |
| 6002-000440 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR |
| 6003-000261 | SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC66-00720A | SHAFT-P-CORE;ML-1750,SECC 1.2T,203 |
|
|
SHAFT-P-PICK_UP;ML-1610,SECC,264,T1.2 |
|
|
SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9 |
| JC63-00711A | SHEET-MP;SCX-4521F,PET,0.188,215,56.58,B |
| JC63-02014A | SHEET-PEEK FUSER;ML-2240,PEEK,0.2 |
| JC63-00632A | SHIELD-P-ENGINE;ML-1610,SECC,0.8,306.7,1 |
| JC44-00087A | SMPS-V2C;SCX-4521F,*,AC/DC,220V~230VAC,5 |
|
|
SOLENOID-MP_R2;SCX-4720F,DC24V,300MMA,2P |
| JC61-00064A | SPRING ETC-CLAW;ML-5200A,SUS 304 WPB,F0. |
| JC61-00025A | SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS |
| JC61-70911A | SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP |
| JB61-00107A | SPRING ETC-LEVER SENSOR;SF-430,SUS304,0. |
| JC61-01258A | SPRING ETC-TORSION DEVE_L;ML-1610,SUS304 |
| JC61-01259A | SPRING ETC-TORSION DEVE_R;ML-1610,SUS304 |
|
|
SPRING ETC-TORSION DOC (CC2-F);SCX-1110F |
| JC61-70940A | SPRING ETC-TR(12);ML-5500,0.5,5,13,SUS30 |
| 6107-001168 | SPRING-CS;PW-2,PI0.95,D5.95,L16,ID5.0,OD |
| 6107-001818 | SPRING-CS;SUS304,GROUND ENDS,PI0.6,D12.6 |
| 6107-001167 | SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I |
| 6107-001163 | SPRING-CS;SUS304-WPB,PI0.4,D3.9,L13,ID3. |
| 0203-000007 | TAPE-FILAMENT;T0.15,L55M,TRP,FILAMENT |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| JC59-00023A | UNIT-LSU;ML-1610,16,20PPM,1 LIGHT SOURCE |
