Manufacturer
Samsung
Model Number
ML-4050ND
Description
Ml-4050n Monochrome Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC66-01315A | ACTUATOR-CHECK_PAPER;ML-4050N,PC,T1.0,W4 |
|
|
AS-UNIT_FEED1;ML-3560,-,-,110V/220V,SVC, |
| JC71-00042A | BAR-P_CROSS BOTTOM;ML-2150,SECC T1.0 |
| 3301-000319 | BEAD-SMD;11OHM,2X1.25X0.9MM,TP |
| 3301-000317 | BEAD-SMD;120OHM,2012,TP,-,- |
| 3301-001655 | BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH |
| 6601-001346 | BEARING-BALL;6809 2Z,ID45,OD58,L7,GCR5,0 |
| 6601-001389 | BEARING-BALL;L-1280ZZH P0P25LY13,ID8,OD1 |
| JC66-10202A | BEARING-PICK UP;ML-80,POM |
| 6602-001084 | BELT-TIMING GEAR;30S2M224,RUB(CR),T1.36, |
| JC61-02593A | BRACKET-MAIN;ML-4050,PC,2.5,38.3,50.7,NA |
| JC61-01257A | BRACKET-P-MOTOR_DUP;ML-3560,SECC,1.00,W4 |
| JC61-00755A | BRACKET-P-SHAFT MP;ML-2150,SECC,1.20 |
| JC67-00104A | BRUSH-CARBON;ML-3560,SM190,D9,9.5 |
| JC67-00204A | BRUSH-PICK;ML-3560,AL,0.2,28,75,SUS FIBE |
| JC61-00665A | BUSH-M-FEED, DUP;ML-2150,POM, SW01,4.0,7 |
| JC61-00652A | BUSH-M-RETARD;ML-2150,POM (DE-8903),?6,B |
| JC61-00669A | BUSH-M-ROLLER REGI U;ML-2150,POM CE20,?6 |
| JC61-01262A | BUSH-M_EXIT D7;ML-3560,POM(M90-44),?7.1, |
| JC61-01260A | BUSH-M_HR;ML-3560,PPS,?40,?45.2,11.7,BLK |
| JC61-01745A | BUSH-PRESSURE;ML-4550,PPS,1399X 115554,? |
| JC72-00382B | BUSH;ML-1710,POM(DERLIN 8903),WHITE |
| 2402-001042 | C-AL,SMD;100UF,20%,16V,GP,TP,6.6X6.6X5.4 |
| 2402-001049 | C-AL,SMD;10UF,20%,16V,GP,TP,3.3X3.3X5.4 |
| 2402-000209 | C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM |
| 2402-001106 | C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M |
| 2402-000173 | C-AL,SMD;4.7UF,20%,35V,GP,TP,4.3X4.3X5.4 |
| 2401-004058 | C-AL;330UF,20%,35V,TP,10X16MM,5MM |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-000681 | C-CER,CHIP;0.027NF,5%,50V,C0G,1608 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,1608 |
| 2203-000783 | C-CER,CHIP;0.33NF,5%,50V,C0G,1608 |
| 2203-002709 | C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2203-000491 | C-CER,CHIP;2.2NF,10%,50V,X7R,1608 |
| 2203-002392 | C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608,- |
| 2201-000017 | C-CERAMIC,DISC;1NF,10%,50V,Y5P,-,5X3.5MM |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| JC66-00377A | CAM-M-PICK_UP;ML-1710,POM(DELIN 8903),WH |
| JC66-00893A | CAM-M-SHAFT;ML-3560,POM,T1.5,?10.95*8.3* |
| JC67-00107A | CAP-M-CONNECTOR_DUP;ML-3560,HIPS,T2,W46. |
| JC67-00102A | CAP-M-FUSER LOCK;ML-3560,PC, NH-1023XD,T |
| JC67-00039A | CAP-M-GEAR;ML-2150,POM,BLK |
| JC67-00037A | CAP-M-GUIDE SIDE,L;ML-2150,POM,BLK |
| JC67-00036A | CAP-M-WIRE PTL LOWER;ML-2150,POM,BLK |
| JC67-00035A | CAP-M-WIRE PTL UPPER;ML-2150,PC(NH-1023) |
| JC67-00047A | CAP-M_BUSHING ACTUATOR;ML-2150,POM |
| JC67-00284A | CAP-TONER L;SCX-6555N,PP,1.0,33,6,BLK |
| JC67-00211A | CAP-WNIC_HOLE;ML-4050N,ABS,T1.5,W11.7,L4 |
| JC39-00464A | CBF HARNESS-COVEROPEN;ML-3560,CBF,UL 106 |
| JC39-00445A | CBF HARNESS-DC_MOTOR;ML-3560,CBF,UL 1061 |
| JC39-00438A | CBF HARNESS-DEV MOTOR;ML-3560,CBF,UL 106 |
| JC39-00450A | CBF HARNESS-D_JOINT;ML-3560,CBF,UL 1061, |
| JB39-00017A | CBF HARNESS-EARTH (TX MOTOR);SF-3100,UL |
| JC39-00465A | CBF HARNESS-EXIT;ML-3560,CBF,UL 1061,3,2 |
| JC39-00575A | CBF HARNESS-FAN;CLP-600,CBF-HARNESS,UL10 |
| JC39-00479A | CBF HARNESS-FEED;ML-3560,CBF,UL 1061,3,2 |
| JC39-00456A | CBF HARNESS-FUSER;ML-3560,CBF,UL 3122,2, |
| JC39-00478A | CBF HARNESS-FUSEROPEN;ML-3560,CBF,UL 106 |
| JC39-00249A | CBF HARNESS-LCD;ML-2150,WIRE,UL2877,8,40 |
| JB39-00103A | CBF HARNESS-LIU GND;SCX-1110F,WIRE,UL100 |
| JC39-00451A | CBF HARNESS-MP_EMPTY;ML-3560,CBF,UL 1061 |
| JC39-00182A | CBF HARNESS-MP_SEN.;SCX-5100,WIRE HARNES |
| JB39-40532A | CBF HARNESS-OPE;SF3000,CBF,UL1007,1,100, |
| JC39-00251A | CBF HARNESS-PANEL;ML-2150,CBF,UL 1061,6, |
| JC39-00181A | CBF HARNESS-PTL;SCX-5100,WIRE HARNESS,UL |
|
|
CBF HARNESS-SCF;SCX-6345N,CBF,UL1061,11, |
| JC39-00261A | CBF HARNESS-SENSOR;ML-2150,CBF,UL 1061,4 |
| JC39-00458A | CBF HARNESS-THERM;ML-3560,CBF,UL 1061,3, |
| JC39-00441A | CBF HARNESS-TRAY OUT;ML-3560,CBF,UL 1061 |
| JC39-40511A | CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV |
|
|
CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125 |
| JC66-00868A | CLUTCH-M-HUB;ML-3560,POM,WHT,CLUTCH HUB |
| 3702-001158 | CONNECTOR-RIBBON;60,FEMALE,STRAIGHT,AU |
| JC63-00726A | COVER-M-REAR GUIDE UP;ML-3560,PET+GF30%, |
| JC63-00702C | COVER-M_CONTROL BOX;ML-4050N,ABS,T2.5,W2 |
| JC63-00696C | COVER-M_FRAME EXIT;ML-4050N,ABS,T2.5,W75 |
| JC63-00685C | COVER-M_FRONT INNER;ML-4050N,HIPS,T2.5,W |
| JC63-00684C | COVER-M_LEFT;ML-4050N,ABS,T2.5,W425.0,L3 |
| JC63-00695D | COVER-M_MP;ML-4050N,ABS,T2.5,W182.3,L398 |
| JC63-01101B | COVER-M_OPEN;ML-4050N,ABS,T2.5,W395.9,L2 |
| JC63-00693C | COVER-M_REAR_DUP;ML-4050N,HIPS,T2.5,W91. |
| JC63-00701C | COVER-M_RIGHT;ML-4050N,ABS,T2.5,W425.0,L |
| JC95-01016A | COVER-REAR ASSY;ML-4551ND,SEC,-,-,-,-,- |
| JC63-01912B | COVER-REAR;ML-4050,ABS SR-0320,2.5,300.8 |
| JC63-00699C | COVER-TOP;ML-4050N,ABS,T2.5,W396.0,L426. |
| 2801-000111 | CRYSTAL-SMD;0.032768MHZ,20PPM,28-AAW,12. |
| 0402-000129 | DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0401-000005 | DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T |
| 0407-000123 | DIODE-SWITCHING;DAN202K,80V,100MA,SOT-23 |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| JC93-00172A | DRIVE MAIN;ML-4050N,XOG/SEC,WORLD WIDE,D |
| JC93-00170A | DRIVE-DEVE;ML-4050N,XOG/SEC,WORLD WIDE,D |
| JC67-00189A | DUCT-FAN_MAIN;ML-4550,ABS HB,BLK |
| JC67-00106A | DUCT-M-FAN_DUP;ML-3560,HIPS,2,W76.8,L197 |
| JC96-03403A | ELA HOU BASE-HOLDER;ML-3560,XEROX,-,110V |
| JC96-02127A | ELA HOU-CST SENSOR HAWK16;ML-7250,XEROX, |
| JC96-03960B | ELA HOU-FRAME_LSU_LO;ML-4050N,SEC,-,110V |
| JC96-01579A | ELA HOU-MOTOR GND;SF-5100,HANSUNG,WORLD, |
|
|
ELA HOU-SMPS_HVPS_V1;ML-4550,XEROX/SEC,- |
| JC96-01772A | ELA HOU-VARISTOR;ML-6060,NEC/SEC,110/220 |
| JC96-03655A | ELA UNIT-CARBON&SP;ML-3560,SEC,USA,BRUSH |
| JC96-04015B | ELA UNIT-CASSETTE;ML-4050N,SEC,110V/220V |
| JC96-04403A | ELA UNIT-CHECK_SENSOR;ML-4050N,SEC/XEROX |
| JC96-03412E | ELA UNIT-DUPLEX;ML-3561NDR,SEC,-,110V/22 |
| JC96-04060A | ELA UNIT-ELECTRODE R;ML-4550,-,-,-,-,-,- |
|
|
ELA UNIT-FEED2 IDLE;ML-3560,XEROX,-,110V |
| JC96-03420A | ELA UNIT-FEED2;ML-3560,XEROX,-,110V/220V |
|
|
ELA UNIT-FEED3X5;ML-3560,XEROX,WORLD,110 |
| JC96-04400A | ELA UNIT-FRAME_BASE;ML-4050N,SEC/XEROX,- |
|
|

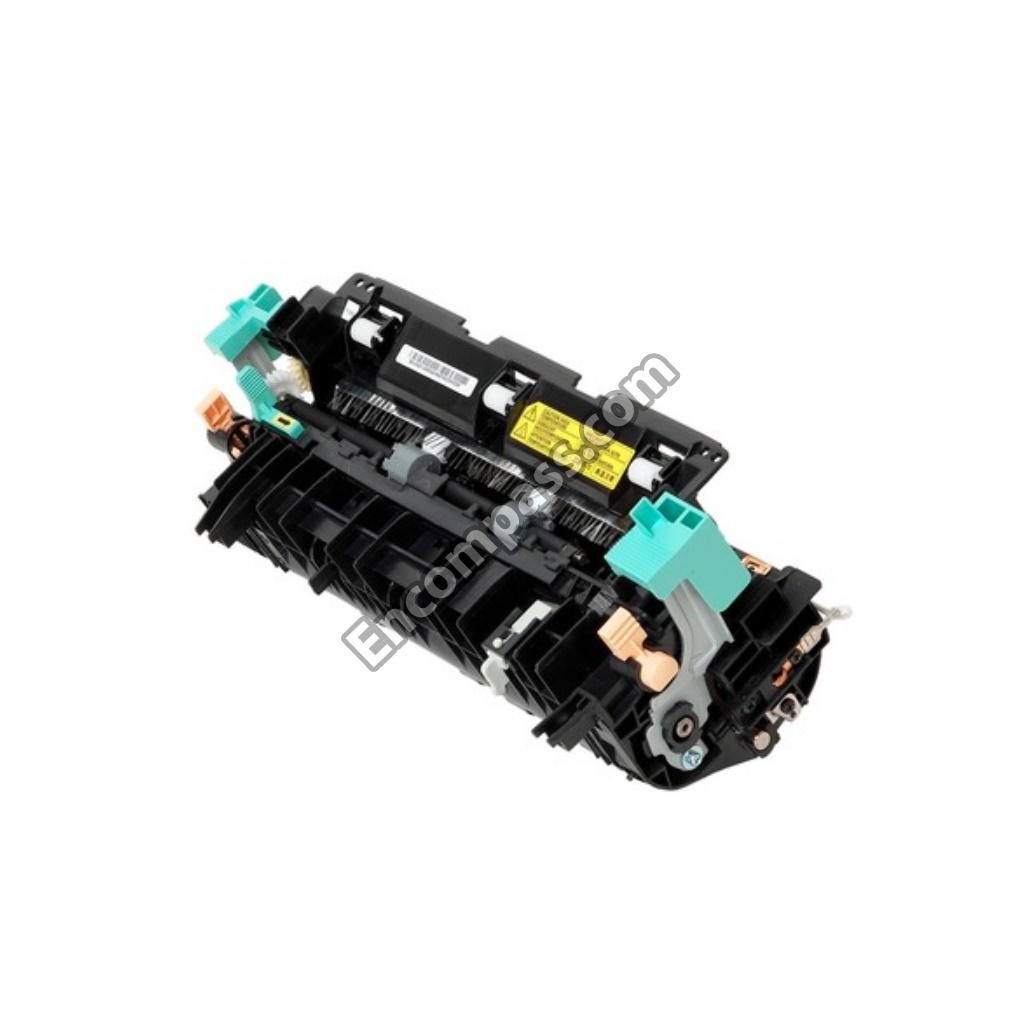

ELA UNIT-FUSER;ML-4050,-,-,FUSER,110V,-, |
|
|
ELA UNIT-HEAT;ML-4550,-,-,FUSER,110V,-,- |
| JC96-01729A | ELA UNIT-HOLDER TR R;ML-6060A,SAMSUNG,-, |
| JC96-03959C | ELA UNIT-REGI SE;ML-4550,SE,110V/220V,-, |
|
|
ELA UNIT-ROLLER P/UP MP;ML-3560,XEROX/SE |
|
|
ELA UNIT-ROLLER_DUP;SCX-5235ND,XEROX,-,- |
|
|
ELA UNIT-ROLLER_IDLE;ML-4550,SEC,220V,11 |
| JC71-00056A | ELECTRODE-P-FU_L_08;ML-3560,T0.8,20.2,32 |
| JC71-00057A | ELECTRODE-P-FU_R_08;ML-3560,T0.8,20.2,32 |
| JC90-00983A | EXIT-SOLENOID;ML-4050N,XOG/SEC,WORLD WID |
| JC31-00004A | FAN-DC_HAWK;ML-6060 |
|
|
FAN;AD0424HB-C56,CLP-600,PBT+GF,3PIN,NO |
| JC31-00070A | FAN;AD0824MS-A76GL,ML-4550,PBT,3PIN,NO S |
| JC01-00022A | FILM-LOCKER;SCX-4500,PET,0.05,10,15 |
| 2901-001178 | FILTER-EMI SMD;25V,2A,100000PF,2X1.25X1M |
| JC61-40001A | FOOT-ML80;ML-80,NBR,GRAY |
| JG61-40001A | FOOT-SF4000;SF4000,CR RUBBER,W14XL14,BLK |
| JC61-01254A | FRAME-M-DUPLEX;ML-3560,ABS+GF20,GR4020,H |
| JC61-01220C | FRAME-M_CASSETTE;ML-4050N,HIPS,HR-1360T, |
|
|
FRAME-PICK_UP;ML-4050,SEC,WORLD,WORLD WI |
| JC66-40911A | GEAR-DP,IDLE;ML-165,POM,1,Z21,WHITE,NW-0 |
| JC66-01262A | GEAR-FEED;ML-4550,POM M90-44,0.8,26,PURP |
| JC66-01155B | GEAR-FUSER RDCN OUT V;ML-4551N,NYLON,1,2 |
| JC66-01266A | GEAR-FUSER;ML-4550,PPS,1305D TFE15,M1,Z4 |
|
|
GEAR-IDLE 23 FUSER;ML-3560,299X 117946,1 |
| JC66-01154A | GEAR-IDLE 25 FUSER;ML-3560,POM,1,Z25,D27 |
| JC66-00854A | GEAR-M-EXIT DUP Z21;ML-3560,POM,1,21,WHT |
| JC66-00674A | GEAR-M-EXIT Z17;ML-2550,M90-44,1,17,F5,B |
| JC66-00862A | GEAR-M-FEED DRV;ML-3560,POM,A:0.8,B:0.8, |
|
|
GEAR-M-FUSER IDLE 1;ML-3560,POM,1,43,WHT |
| JC66-00861A | GEAR-M-MP DRV;ML-3560,POM,0.8,31,WHT,26. |
| JC66-00856A | GEAR-M-RDCN EXIT;ML-3560,POM,A:1,B:1,27/ |
| JC66-00424A | GEAR-MP HOLDER_CAM;ML-2150,POM,0.8,37,13 |
| JC66-00423A | GEAR-MP PICK_UP;ML-2150,POM,0.8,37,22.7, |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC66-00420A | GEAR-REGI Z25;ML-2150,POM,0.8,25,5.6,NTR |
| JC63-01206A | GROUND-CASSETTE;ML-4550,SUS 301-CSP,0.2, |
| JC63-01757A | GROUND-OPC;ML-4050,SUS301-CSP,T0.2,W26.7 |
| JC63-00836A | GROUND-P-TOP_COVER;ML-3560,C5210P 1/2H,0 |
| JC61-02302A | GUIDE-CLAW POLY;ML-4050N,PI,PPS+GF40%,1 |
| JC61-01733A | GUIDE-FEED1_PATH;ML-4550,PC,W193.9,L51.2 |
| JC61-00658A | GUIDE-M-DUPLEX;ML-2150,PC,CLEAR |
| JC61-01218A | GUIDE-M-FRONT;ML-3560,PET+GF30%,FR530,2, |
| JC61-00267B | GUIDE-M-LOCK A;ML-2150,HIPS,HB,C75064 |
| JC61-01227A | GUIDE-M-PAPER SIZE;ML-3560,POM,2.5,71.5, |
| JC61-01255A | GUIDE-M-UPPER_DUP;ML-3560,PC+ABS,T3,W233 |
| JC61-01697A | GUIDE-M_ALIGN_DPX;ML-4550,PBT+GF30,T2.0, |
| JC61-01224C | GUIDE-M_EXTENSION CST;ML-4050N,HIPS,2,56 |
| JC61-01221C | GUIDE-M_HANDLE;ML-4050N,ABS,2.5,103.7,39 |
|
|
GUIDE-M_REAR;ML-3560,HIPS,2.5,98,100.3,B |
| JC61-01225B | GUIDE-M_SIDE LOCK;ML-3560,ABS,2.5,72.8,1 |
| JC61-00751A | GUIDE-P-REAR PAPER CST;ML-2150,SUS-301,T |
| JC61-01222A | GUIDE-P-SIDE_L;ML-3560,SECC,1.2,127,129 |
| JC61-01244A | GUIDE-P-SIDE_R;ML-3560,SECC,1.2,130,120. |
| JC61-01724A | GUIDE-PAPER;ML-4550,PC+ABS,2.5,48.7,242. |
| JC61-00691A | GUIDE-PLATE PAPER;ML-2150,SECC,T0.6 |
| JC61-00674A | GUIDE-P_REGI LOWER;ML-2150,SECC,1.2 |
| JC61-00670A | GUIDE-P_REGI PLATE;ML-2150,SECC,1.2 |
| JC61-00675A | GUIDE-P_REGI UPPER;ML-2150,SECC,1.2T |
| JC39-00619A | HARNESS-CART;ML-4550,CBF,UL 1061,20,400, |
| JC39-00623A | HARNESS-FAN_MAIN;ML-4550,CBF,UL 1061,3,1 |
| JC39-00625A | HARNESS-HVPS;ML-4550,CBF,UL 1617/3239,10 |
| JC39-00624A | HARNESS-INLET;ML-4550,CBF,UL 1617 / UL10 |
| JC39-00669A | HARNESS-PAPER_MARGIN;ML-4050N,UL1061,3,1 |
| JC39-01193A | HARNESS-REAR_FAN_JOINT;ML-4550,UL/CSA,6/ |
| JC39-00620A | HARNESS-SENSOR;ML-4550,CBF,UL 1061,6,500 |
| JC39-00621A | HARNESS-SMPS;ML-4550,CBF,UL 1061,28,300, |
| JC39-00622A | HARNESS-SMPS_HVPS;ML-4550,CBF,UL 1061,14 |
| 3711-005982 | HEADER-BOARD TO BOARD;BOX,60P,2R,0.8MM,S |
| 3711-003035 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,STR |
| 3711-002000 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,STR |
| 3711-002001 | HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,STR |
| 3711-003981 | HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR |
| 3711-003408 | HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA |
| 3711-003968 | HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,ST |
| 3711-004349 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA |
| 3711-003409 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA |
| 3711-002807 | HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,STRA |
| 3711-002809 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,STRA |
| 3711-002810 | HEADER-BOARD TO CABLE;BOX,9P,1R,2MM,STRA |
| JC61-01805A | HOLDER-ACTUATOR;ML-4050N,ABS+GF(20),T2.0 |
| JC61-01735A | HOLDER-FAN;ML-4550,PC,W89.3,PHI61,BLACK, |
| JC61-01741A | HOLDER-IDLE_FRONT;ML-4550,PC,2.5,55.5,56 |
| JC61-01739A | HOLDER-IDLE_REAR;ML-4550,ABS,2.5,29.5,73 |
| JC61-00673A | HOLDER-M-BUSHING EXIT;ML-2150,POM,BLK |
| JC61-00785A | HOLDER-M-IDLE ROLLER;ML-2150,PC,BLK |
| JC61-01215A | HOLDER-M-LEVER_L;ML-3560,PC,NH1023XD,T1. |
| JC61-01216A | HOLDER-M-LEVER_R;ML-3560,PC,NH1023XD,T1. |
|
|
HOLDER-M-PAD;ML-2150,PC,BLK |
| JC61-01228A | HOLDER-M-PAD_HOUSING;ML-3560,ABS,2.5,48, |
| JC61-00705A | HOLDER-M-PICKUP MP;ML-2150,POM,BLK,HB |
| JC61-01214A | HOLDER-M-PR SHAFT;ML-3560,PPS, EW-2120G |
| JC61-01611A | HOLDER-P-DAMPER;ML-3560,SECC,1.6,25,32.1 |
| JC61-02698A | HOLDER-PAD;ML-5050ND,POM,2.5,51,18.5,BLA |
| JC61-00685A | HOUSING-M-PICK UP MP;ML-2150,PC+ABS,WHT |
|
|
HOUSING-M-RETARD;ML-2150,POM(M90-44),BLK |
|
|
HVPS;24V,21.6V~27.6V,MAX 5KV,MAX-2KV |
| JB13-00004A | IC ASIC-OPE;HT48C50-1-SPPF,SF-3100,48P,+ |
| JC13-00028A | IC ASIC-SPGPV3;SPGPV3,ML-2550_VE,496PIN, |
| 0803-003263 | IC-CMOS LOGIC;74LCX07,HEX BUFFER,SOIC,14 |
| 0801-002446 | IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T |
| 0801-002379 | IC-CMOS LOGIC;74LCX16245,TRANSCEIVER,TSS |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC- |
| 1203-003739 | IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM, |
| 1105-001384 | IC-DRAM;K4S561632,256MBIT,4X4MX16,TSOP(I |
| 1006-001224 | IC-LINE TRANSCEIVER;74LVX161284,TSSOP,48 |
| 0903-001411 | IC-MICROCONTROLLER;S3F443FX,LQFP,64P,12X |
| 1003-001535 | IC-MOTOR DRIVER;A3977SLP,TSSOP,28P,9.6X4 |
| 1107-001590 | IC-NOR FLASH;S29GL064M,64MBIT,8MX8/4MX16 |
| 1203-002454 | IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL |
| 1205-002762 | IC-TRANSCEIVER;BCM5241A1KMLG,MLP,32P,5X5 |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| JC70-00457A | ICT-STUD PAPER GUIDE, DP;ML-2150,SUM24L, |
| JC70-00195A | IPR-BRACKET SENSOR;ML-7250,SECC,1.0T |
| JC70-00192A | IPR-PLATE SENSOR;ML-7250,SUS301,0.2T |
| JC70-00339A | IPR-P_GROUND PLATE PAPER;ML-2150,SUS304 |
| JC70-00111A | IPR-SPRING MIRROR (A);ML-5200A,STSC301-C |
| JC70-00512A | IPR-TERMINAL GND_DUP;ML-3560,SUS304,W20. |
| 3722-002376 | JACK-MODULAR;8P/8C,STANDARD,Y,ANLGE,YEL/ |
| 3722-002303 | JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE |
| JC64-00047A | KEY-M-SAVE MODE;ML-2150,MILKY WHITE |
| JC64-00265B | KEY-M_BUTTON;ML-4050N,ABS,85.0*53.8,HB,D |
| JC64-00190B | KNOB-M_REAR;ML-3560,HIPS,2.5,24.7,44.7,H |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-01584A | LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JC68-00780A | LABEL(P)-CAUTION PRINTING;COMMON,WHITE P |
| JC68-00573A | LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM, |
| JC47-00010A | LAMP-PTL;90-20-210-167,ML-2150,4.1 X 9.4 |
| JC07-00005A | LCD-PANEL;VHC1625SLYC9-1,ML-2150,16X2,36 |
| 0601-001459 | LED;ROUND,GRN,3MM,570NM |
| 0601-000003 | LED;ROUND,RED/GRN,3.1MM,650/563NM,3.8X5. |
| JC66-00902C | LEVER-STACKING;ML-4050N,PC/ABS,T1.2,W16. |
| JC64-00191A | LOCKER-M-DUP;ML-3560,POM,WHITE,HB |
| JC97-03914A | LSU;ML-4550,SEC,45PPM,600DPI,DUAL BEAM |
| JC97-01088A | MEA RACK-BUSHING AGI;ML-6000,SEC,KOR,POM |
|
|
MEA RACK-EXIT ROLLER;ML-1605,SUMSUNG,KOR |
| JC97-01692A | MEA UNIT- ROLLER CLEAN;ML-2150,SAMSUNG,C |
| JC97-02388C | MEA UNIT-COVER RIGHT;ML-4050N,SEC,-,110V |
| JC97-03527A | MEA UNIT-COVER_LEFT;ML-4551N,-,-,110/220 |
| JC97-02231F | MEA UNIT-COVER_MP;ML-4551N,-,-,110/220V, |
| JC97-02663A | MEA UNIT-EXIT F_UP;ML-4550,SUM+EPDM,SHAF |
|
|
MEA UNIT-FUSER_GU_R;ML-4550,-,-,-,-,-,- |
|
|
MEA UNIT-GEAR IDLE;ML-3560,XOG/SEC,USA,M |
| JC97-01738A | MEA UNIT-GEAR P/UP MP CARDINA;ML-2150,GE |
| JC97-02226A | MEA UNIT-GEAR PICK UP;ML-3560,XOG/SEC,US |
|
|
MEA UNIT-HOLDER PAD;ML-5050ND,DELL,-,-,- |
| JC97-02230C | MEA UNIT-KNOCK_UP MP;ML-4050N,SEC,-,110V |
|
|
MEA UNIT-P/UP_HOUSING;ML-3560,XEROX,WORL |
| JC97-02649A | MEA UNIT-PICK UP MP;ML-4550,XEROX/SEC,-, |
|
|
MEA UNIT-ROLL EXIT DU;ML-3560,XEROX,USA, |
| JC97-01401A | MEA UNIT-TERMINAL:TR;ML-5000A,SAMSUNG,KO |
| JC97-03422A | MEA UNIT-TR_SUB;ML-4050,XEROX,-,-,-,- |
|
|
MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR |
| JC75-10965A | MEC-ROLLER_SUPPLY;ML-7000,SEC,L224 |
| JC31-00039A | MOTOR BLDC-DEVE;1406RPM-1809RPM,24V,2.0A |
| JC31-00040A | MOTOR BLDC-MAIN;1307.2RPM-1916.0RPM,24V, |
|
|

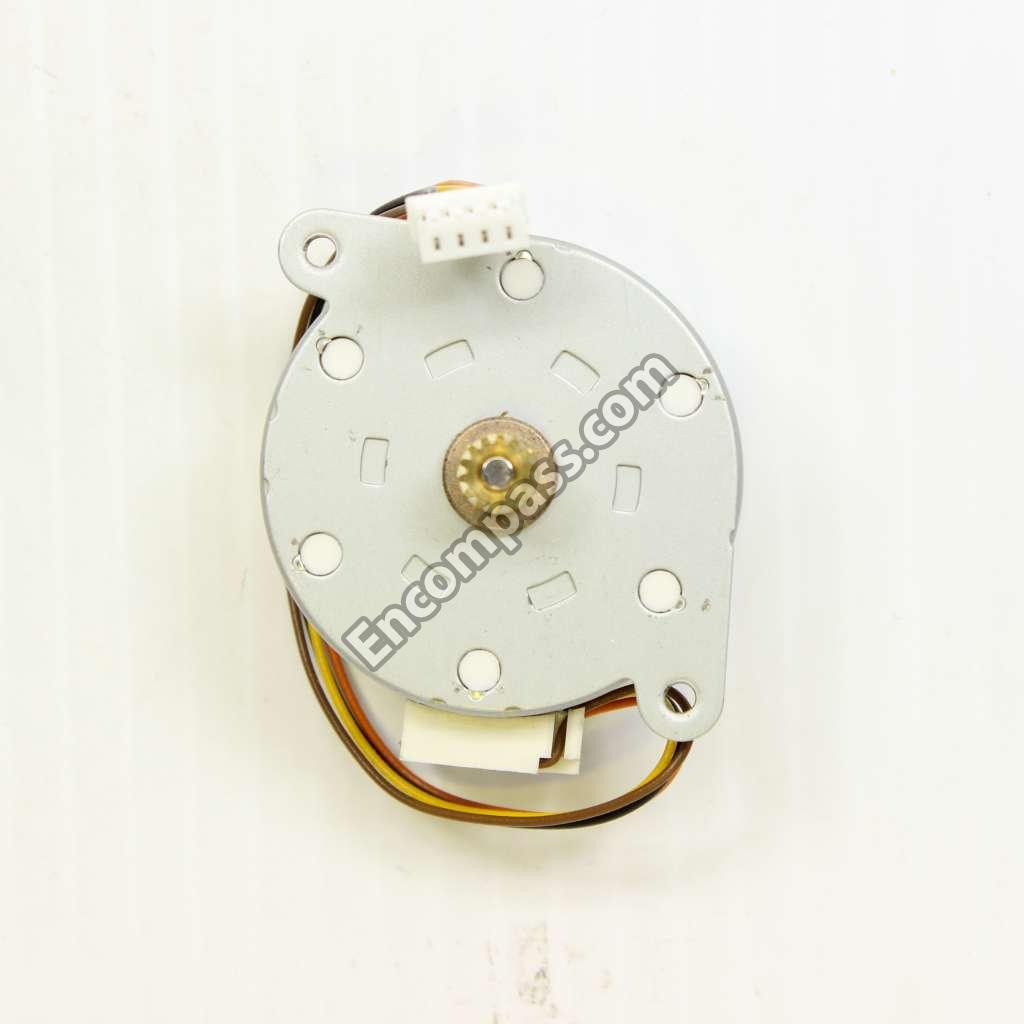

MOTOR STEP;PM42L-048SY,ML-7250,650MA,600 |
| JC74-00011A | MPR-PAD KNOCK UP MP;ML-6060A,CR+CORK,NTR |
| 6021-001194 | NUT-SQUARE;M3,PASS,SWCH+ZN COATING,SQUAR |
| JC92-01475A | PBA MAIN-PTL1;ML-2150,SEC,KOREA,PTL1 B'D |
| JC92-01336A | PBA SUB-CASSETTE;ML-1650,KOREA/EXPORT,-, |
| JC92-01730A | PBA SUB-COVER OEPN;ML-3560,SEC,KOREA,-,- |
| JC92-01542A | PBA SUB-DIMM MODULE;CLP-500,KOREA,KOREA, |
| JC92-01512B | PBA SUB-EXIT SENSOR;ML-3560,SEC,KOREA,EX |
|
|
PBA SUB-FEED SENSOR;ML-3560,SEC,KOREA,FE |
| JC92-01261C | PBA SUB-FUSER SW;ML-3560,SEC,KOREA,FUSER |
| JC92-01704A | PBA SUB-JOINT;ML-3560,SEC,USA,KESTREL,JO |
|
|
PBA SUB-MP SEN;SCX-5100,XEROX,USA,MP SEN |
| JC92-01825B | PBA SUB-PANEL;ML-4550,SEC,EXPORT,PANEL,- |
| JC92-01516A | PBA SUB-PTL2;ML-2150,SEC,KOREA,PTL2,-,-, |
| JC92-01883A | PBA-DPX;ML-4050N,SEC,-,KESTREL2,40PPM,DP |
| JC92-01874A | PBA-EMPTY;ML-4050N,SEC,-,KESTREL2,40PPM, |
| JC92-01873A | PBA-MAIN;ML-4050N,SEC,EXPORT,KESTREL2,40 |
| JC92-01807C | PBA-TONER CONNECTOR;ML-4550,SEC,-,-,-,-, |
| 0604-001210 | PHOTO-INTERRUPTER;TR,200MW,DIP-4,ST |
|
|
PHOTO-INTERRUPTER;TR,90%,150MW,DIP-4,BK |
| 0604-000165 | PHOTO-INTERRUPTER;TR,BK |
| JC61-01251C | PLATE-M_KNOCKUP MP;ML-4050N,ABS,T2.2,W11 |
| JC72-01362A | PMO- M CAM_PICK_UP;ML-3560,POM,NTR,HB,M9 |
| JC72-01365A | PMO-ACTUATOR EMPTY MP;ML-3560,PC,42.5*15 |
| JC72-00991A | PMO-ACTUATOR EMPTY;ML-2150,POM,BLK |
| JC72-01358A | PMO-ACTUATOR EXIT;ML-3560,PC+GF20%,HF320 |
| JC72-01366A | PMO-ACTUATOR FEED DUP;ML-3560,PBT+GF30,5 |
| JC72-01310A | PMO-ACTUATOR OUTFULL;ML-2150,POM,VO,BLK |
| JC72-00998A | PMO-ACTUATOR REGISHUTTER;ML-2150,ABS G/F |
| JC72-41191B | PMO-BEARING SHAFT;ML-2150,POM,BLK,DE8903 |
| JC72-41050A | PMO-BUSHING AGITATOR;ML-7000,POM(M90-44) |
| JC72-00463A | PMO-CAP CONNECTOR L;ML-6060A,POM,BLACK |
| JC72-00465A | PMO-CAP CONNECTOR U;ML-6060A,POM,V0,BLAC |
| JC72-41292B | PMO-CAP TR;ML-3560,POM,45.4*6.6,HB,M90-4 |
| JC72-01356A | PMO-DUMMY_DEVE;ML-3560,ABS,68.4*31.6,HF0 |
| JC72-00317A | PMO-GUIDE DEVE L;ML-6060A,POM,2715C |
| JC72-00318A | PMO-GUIDE DEVE R;ML-6060A,POM,2715C |
| JC72-00444A | PMO-HOLDER COLLIMATOR;ML-1710,PC,TRANSPA |
| JC72-41006A | PMO-HOLDER EXIT ROLL;ML-165,PC,BLK,HB |
| JC72-00993A | PMO-HUB OUT RETARD;ML-2150,POM,M90-44,BL |
|
|
PMO-IDLE PICK UP MP;ML-2150,POM,HB,WHITE |
| JC72-41210A | PMO-LOCKER PLATE;ML-6000,POM,WHT,HB |
| JC72-01361A | PMO-M IDLE-PICK UP;ML-3560,POM,29.8,M90- |
| JC72-01355A | PMO-REMOVE_LOCK_CST;ML-3560,POM,36*30.4, |
| JC72-41007A | PMO-ROLLER FD F;ML-165,POM,BLACK |
| JC72-01005B | PMO-SIDE GUIDE MP(L);ML-2150/XRX,HIPS,HB |
| JC72-01006B | PMO-SIDE GUIDE MP(R);ML-2150/XRX,HIPS,HB |
| JC72-00995A | PMO-STACKER LOCKER;ML-2150,PC,V0,0810P |
| JC72-01367C | PMO-STACKER_RX;ML-4050N,ABS,W93.8*L53.5* |
| JC72-01359A | PMO-STRIPE;ML-3560,PE BOX 7033,T1X215.83 |
| JC66-00899A | PULLEY-18_DUP;ML-3560,POM,HB,WHITE,?4.1 |
| JC66-00900A | PULLEY-M-18-DUMMY_DUP;ML-3560,POM,HB,WHI |
| JC66-00898A | PULLEY-M-30-DUMMY_DUP;ML-3560,POM,HB,WHI |
| JC66-00897A | PULLEY-M-30_DUP;ML-3560,POM,HB,WHITE,ID6 |
| 2001-000019 | R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M |
| 2001-000281 | R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000362 | R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000591 | R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-007482 | R-CHIP;1.24KOHM,1%,1/10W,TP,1608 |
| 2007-000123 | R-CHIP;1.5KOHM,5%,1/10W,TP,1608 |
| 2007-000079 | R-CHIP;1.8KOHM,5%,1/10W,TP,1608 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-007467 | R-CHIP;12.1KOHM,1%,1/16W,TP,1005 |
| 2007-007521 | R-CHIP;14.7KOHM,1%,1/10W,TP,1608 |
| 2007-008567 | R-CHIP;15.4KOHM,1%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000075 | R-CHIP;220OHM,5%,1/10W,TP,1608 |
| 2007-000094 | R-CHIP;22KOHM,5%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000616 | R-CHIP;24KOHM,5%,1/10W,TP,1608 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-000729 | R-CHIP;300OHM,5%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-000076 | R-CHIP;330OHM,5%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000118 | R-CHIP;390OHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-000086 | R-CHIP;5.6KOHM,5%,1/10W,TP,1608 |
| 2007-001010 | R-CHIP;51KOHM,5%,1/10W,TP,1608 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-000121 | R-CHIP;820OHM,5%,1/10W,TP,1608 |
| 2011-000816 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-000002 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,32 |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
| 2005-000168 | R-WIRE WOUND,NON;0.22OHM,5%,2W,AA,BK,4X1 |
| JC61-01252A | RAIL-M-LEFT_DUP;ML-3560,POM,T2.0,W7.4,L1 |
| JC61-01253A | RAIL-M-RIGHT_DUP;ML-3560,POM,T2.0,W10.0, |
| 3501-000203 | RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6 |
| 6044-000107 | RING-C;ID2.5,OD6,T0.4,PASS,STS304 |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| 6044-000231 | RING-E;ID5.0,OD11.0,T0.6,PASS,STS304 |
| JC73-40902A | RMO-SEAL AGITATOR;ML-7000,SANTOPRENE,NTR |
| JC66-00883B | ROLLER-EXIT_F/DOWN;ML-5050ND,EPDM+SUM22, |
| JC66-00896A | ROLLER-M-IDLE_ DUP;ML-3560,POM,OD9.6,14. |
| JC66-00647A | ROLLER-M_REGI IDLE L25;ML-2150,POM,12.4, |
| JC66-00648A | ROLLER-M_REGI IDLE S25;ML-2150,POM,?11.9 |
| JC66-00931A | ROLLER-PRESSURE;ML-3560,STKM+LTV+PFA TUB |
|
|
ROLLER-TRANSFER;ML-3560,NBR FOAM,F17.8,B |
| JC72-40981A | ROLLER;ML-165,POM,WHT,HB |
| JC72-20902A | ROLLER;ML-5000A,TEFLON,WHT |
|
|
RPR-FRICTION PAD MP;ML-2150,NBB,53*9.8*T |
|
|
RPR-FRICTION PAD;ML-1510,NBB,1T 8.9*47,5 |
|
|
RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE |
|
|
RUBBER-BELT_FEED;ML-3560,EP+NR,5,L=62,30 |
| JC73-00210A | RUBBER-EXIT_DUP;ML-3560,EPDM,D18.7X11.2, |
|
|
RUBBER-FEED1;ML-3560,IR,30,17.85,35,YELL |
| JC73-00225A | RUBBER-IDLE;ML-3560,EP+NR,6.5,D=26.8,30, |
|
|
RUBBER-PICK UP MP;ML-3560,IR,27,D29.8,35 |
|
|
RUBBER-PICK_UP;ML-3560,IR(EPDM),28(28.1) |
| JC73-00207A | RUBBER-RETARD;ML-3560,IR,30,19.5,35,YELL |
| JC73-00205A | RUBBER-ROLLER_FEED2;ML-3560,CR+NR,25,D=1 |
| 6001-000130 | SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
| 6001-000568 | SCREW-MACHINE;PH,+,M3,L8,NI PLT,SWRCH18A |
| 6006-001193 | SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S |
| 6002-000440 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
| 6003-000152 | SCREW-TAPTYPE;PH,+,-,B,M2,L10,ZPC(WHT),S |
| 6006-001078 | SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT) |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S |
| 6003-000266 | SCREW-TAPTYPE;PWH,+,-,S,M3,L6,ZPC(WHT),S |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC66-00911A | SHAFT-FEED1;ML-3560,SUM22+NI,214.5,6 |
| JC66-00444A | SHAFT-IDLE ROLL, DUP;ML-2150,SUM24L,25,2 |
| JC66-00912A | SHAFT-IDLE_FEED2;ML-3560,SUM22+NI,52,6 |
| JC66-01273A | SHAFT-IDLE_FEED;ML-4550,SUM22+NI,58,6 |
| JC66-01265A | SHAFT-PICK UP MP;ML-4550,SUM22+NI/PC+ABS |
| JC66-00910A | SHAFT-PICK UP;ML-3560,SUM22+NI,196,6 |
| JC66-00446A | SHAFT-REGI UPPER;ML-2150,SUM22,6 |
|
|
SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9 |
| JC63-00706A | SHEET-FRAME_DUP;ML-3560,PC,0.3,152.6,10. |
| JC63-01301A | SHEET-GEAR_COVER;ML-4050N,PC,T0.5,W55.0, |
| JC63-01260A | SHIELD-CTRL;ML-4050N,SECC,T0.8,W195.1,L1 |
| JC64-00271A | SHUTTER-PATH_FEED;ML-4550,POM,26.5,47.6, |
| JC64-00270A | SHUTTER-TENSION;ML-4550,SUS 304 WPB(NI-C |
| JC44-00123A | SMPS-V1;ML-4550,STOCK-V1,FLYBACK,143W,11 |
| JC33-00008A | SOLENOID-DUPLEX;SCX-5312F,24VDC,53*30*27 |
|
|
SOLENOID-MAIN;DLH-34L008-07,ML-2150,24V, |
|
|
SOLENOID-MP;ML-3560,24V,80 OHM,41.4X21.7 |
| JC72-01390A | SPONGE-REGI_PLATE;ML-4550,POLYURETHANE F |
| JC61-00003A | SPRING ETC--CAM MP;ML-6100,SUS304-WPB,0. |
| JC61-70903A | SPRING ETC-ACTUATOR;ML-165,SUS304,PI0.2, |
| JC61-00064A | SPRING ETC-CLAW;ML-5200A,SUS 304 WPB,F0. |
| JC61-70927A | SPRING ETC-DEV_L;ML-7000,D0.6,5.6,20.5,N |
| JC61-01277A | SPRING ETC-DUP;ML-3560,SUS304,CD0.6,ID3. |
| JC61-00391A | SPRING ETC-DUPLEX COVER;ML-9400W,SUS304W |
| JC61-70965A | SPRING ETC-EMPTY;ML-6000,SUS304-WPB,PI0. |
| JC61-70911A | SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP |
| JC61-70932A | SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16. |
| JC61-00414A | SPRING ETC-GUIDE PAPER;ML-9400W,SUS304WP |
| JC61-70929A | SPRING ETC-HV LARGE;ML-5000A,SUS304-WPB, |
| JB61-00107A | SPRING ETC-LEVER SENSOR;SF-430,SUS304,0. |
| JC61-70918A | SPRING ETC-LEVER;ML-165,SUS304 WPB,PI0.5 |
| JG61-70531A | SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB |
| JC61-00387A | SPRING ETC-PAD;ML-9400W,SUS304WPB,PI0.5, |
| JC61-00455A | SPRING ETC-PLATE K/UP;SCX-5100,SUS304,24 |
| JC61-01774A | SPRING ETC-SEPERATION;ML-4550,SUS304WPB, |
| JC61-70915A | SPRING ETC-SOLENOID DP;ML-165,SUS304-WPB |
|
|
SPRING-CS;SUS304,PI0.5,D6.7,L17.5,ID6.2, |
| 6107-001155 | SPRING-ES;SWP-B,PI0.55,L25,OD4.4 |
| 6107-001159 | SPRING-TS;SUS304,PI0.45,D3.85,L20,W10,ID |
| 6107-001160 | SPRING-TS;SUS304,PI0.45,D5.45,L19.8,W14. |
| 6107-001165 | SPRING-TS;SUS304-WPB,PI0.2,D4,ID3.8,OD4. |
| 6107-001158 | SPRING-TS;SUS304-WPB,PI0.4,D6.7,ID6.5,OD |
| 6107-001170 | SPRING-TS;SWP-B,PI0.9,D6.0,ID5.2,OD7.0 |
|
|
STOPPER-M-FAN80;ML-2150,ABS HB,26.4,BLAC |
| JC61-00656A | STOPPER-M-HINGE OPEN;ML-2150,ABS VO,19,L |
| JC61-01250A | STOPPER-M-KNOCK UP MP_L;ML-3560,POM,T2.5 |
| JC61-01249A | STOPPER-M-KNOCK UP MP_R;ML-3560,POM,T2.5 |
| 3405-001069 | SWITCH-MICRO;125V,5A,30GF,SPDT |
| 3405-001073 | SWITCH-MICRO;125V,5A,40GF,SPDT |
| 3405-001048 | SWITCH-MICRO;125V,5A,64GF,SPDT |
| 3404-000165 | SWITCH-TACT;12V,50MA,160GF,6X6X5,SPST |
| 0203-001100 | TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75, |
| JC65-00013A | TERMINAL-P-FUSER;ML-3560,C5210P ZINC COA |
| JC65-00008A | TERMINAL-P-TR_KESTREL;ML-3560,C5210P,T0. |
| JC65-00004A | TERMINAL-P_DEVE;ML-2060,SUS304WPB,PI 0.9 |
| JC65-00006A | TERMINAL-P_HV CARDINAL;ML-2060,SUS304 1/ |
| JC65-00007A | TERMINAL-P_PTL 2;ML-2150,PB(C5210P),T0.2 |
| JC65-00002A | TERMINAL-P_PTL L;ML-2060,PB(C5210P),T0.2 |
| JC65-00003A | TERMINAL-P_PTL R;ML-2060,PB(C5210P),T0.2 |
| JC65-00001A | TERMINAL-P_PTL;ML-2060,SUS301 3/4H,T0.2 |
| JC65-00009A | TERMINAL-SPRING_TR;ML-3560,STS304WPB,D0. |
| 0506-001069 | TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT |
| 0502-001048 | TR-POWER;KSD1691,NPN,1.3W,TO-126,BK,160 |
| 0504-000144 | TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92, |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000342 | TR-SMALL SIGNAL;KSC1623-Y,NPN,200MW,SOT- |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| JC63-00691C | TRAY-M_EXTEND_MP;ML-4050N,HIPS,T2.5,W147 |
| JC63-00694C | TRAY-M_LINK MP(L);ML-4050N,ABS,T2.0,W23. |
| JC63-00689C | TRAY-M_LINK MP(R);ML-4050N,ABS,T2.0,W23. |
| 6031-001255 | WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5, |
| JC64-00194A | WINDOW-M-LCD;ML-3560,PC,T1.5,W51.0,L84.7 |
