Manufacturer
Samsung
Model Number
ML-5050G
Description
Ml-5050g Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 6902-000332 | BAG CONDUCTIVE;LDPE,T0.07,W250,L500,BLK, |
| 6902-000437 | BAG PE;HDPE,T0.015,W900,L800,TRP,8,4PE M |
| 3301-000344 | BEAD-RADIAL;200OHM,3.5X0.6X6.5MM,7000MA, |
| 3301-000317 | BEAD-SMD;120OHM,2012,TP,-,- |
| JC66-10200A | BEARING-EXIT FU L;ML-80,POM,-,-,- |
| JC66-10203A | BEARING-H/R L;ML-80,PPS,-,-,- |
| JC66-10207A | BEARING-H/R R;ML-80,PPS,-,-,- |
| JC66-10205A | BEARING-PRESSURE R;ML-80,PPS |
| 2401-000183 | C-AL;1000UF,20%,35V,WT,TP,12.5X25,5 |
|
|

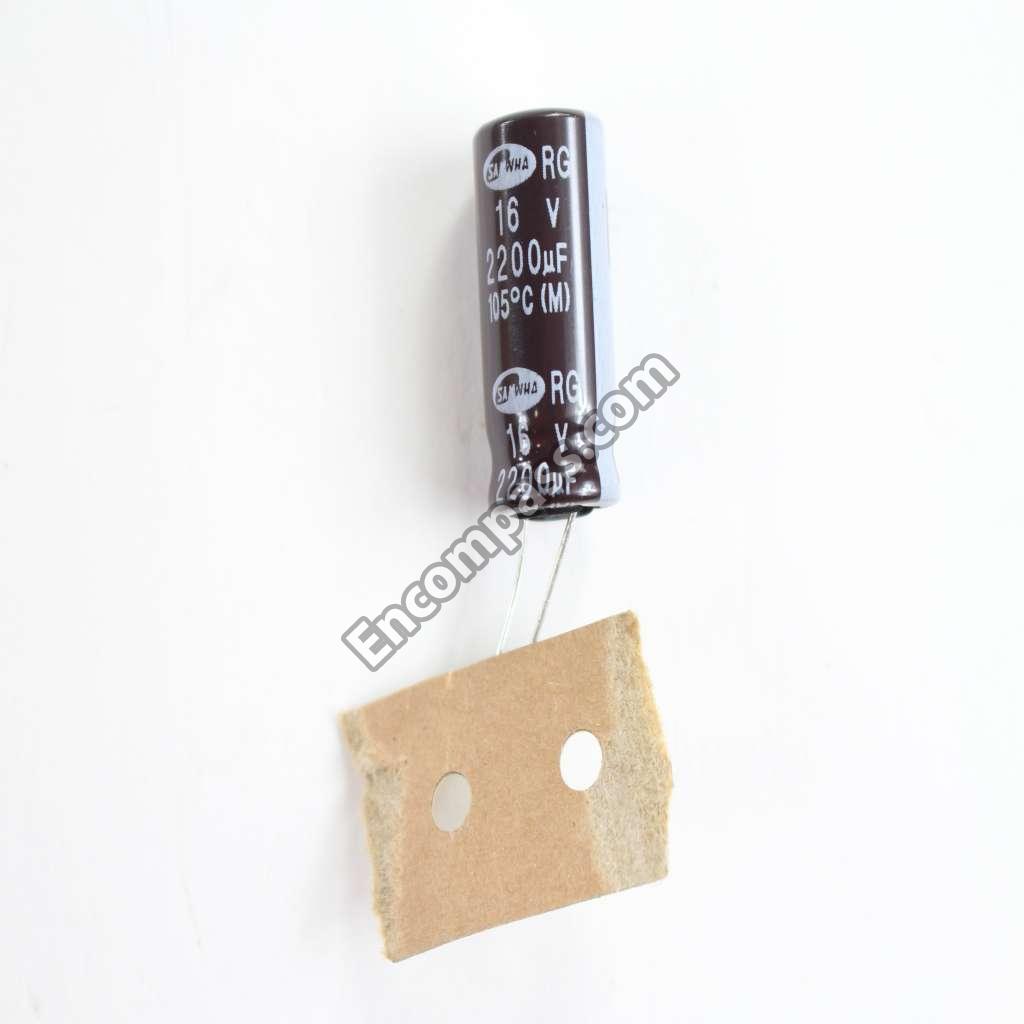

C-AL;2200UF,20%,16V,WT,TP,12.5X25,5 |
| 2401-001082 | C-AL;330NF,20%,50V,GP,TP,5X11,5 |
| 2401-002075 | C-AL;4.7UF,20%,50V,GP,TP,5X11,5 |
| 2401-001476 | C-AL;47UF,20%,10V,GP,TP,6.3X5MM,2.5 |
| 2401-002300 | C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM |
| 2203-000634 | C-CER,CHIP;0.022NF,5%,50V,C0G,2012 |
| 2203-001158 | C-CER,CHIP;0.068NF,5%,50V,NP0,2012 |
| 2203-000239 | C-CER,CHIP;0.1NF,5%,50V,C0G,2012 |
| 2203-000595 | C-CER,CHIP;0.22NF,5%,50V,C0G,2012 |
| 2203-000938 | C-CER,CHIP;0.47NF,5%,50V,C0G,2012 |
| 2203-000192 | C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012 |
| 2203-000260 | C-CER,CHIP;10NF,10%,50V,X7R,2012 |
| 2203-000455 | C-CER,CHIP;1NF,5%,50V,C0G,2012 |
| 2203-000609 | C-CER,CHIP;22NF,10%,50V,X7R,TP,2012 |
| 2201-000391 | C-CERAMIC,DISC;0.022NF,5%,50V,SL,5X3MM,5 |
| 2201-000004 | C-CERAMIC,DISC;0.1NF,10%,2000V,SL,8X5MM, |
| 2201-000138 | C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,4X4MM,5 |
| 2201-000469 | C-CERAMIC,DISC;0.33NF,10%,500V,Y5P,5.5X3 |
| 2201-000724 | C-CERAMIC,DISC;0.47NF,0.1,3000V,Y5P,8X5M |
| 2201-000558 | C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,5X3MM, |
| 2201-000119 | C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,8X3 |
| 2201-000019 | C-CERAMIC,DISC;10NF,+80-20%,500V,Y5V,-,1 |
| 2201-000017 | C-CERAMIC,DISC;1NF,10%,50V,Y5P,-,5X3.5MM |
| 2201-000326 | C-CERAMIC,DISC;2.2NF,10%,50V,Y5P,7X3MM,5 |
| 2301-000010 | C-FILM,LEAD-PEF;100NF,5%,100V,TP,11.5X12 |
| 2301-000276 | C-FILM,LEAD-PEF;47NF,10%,400V,TP,16.5X10 |
| 2404-000128 | C-TA,CHIP;10UF,20%,16V,-,TP,6032,- |
| 2404-000151 | C-TA,CHIP;1UF,20%,16V,-,TP,3216 |
| JC39-40564A | CBF HARNESS-20P;ML-5000A,FLAT,UL1061,60M |
| JC39-40548A | CBF HARNESS-24P;ML-5000A,FLAT,UL1061,140 |
| JC39-40573A | CBF HARNESS-2P,INLET;ML-5000A,*,UL1617,U |
| JC39-40557A | CBF HARNESS-2P;ML-5000A,FLAT,UL1061,110M |
| JC39-40551A | CBF HARNESS-3P,2WIRE;ML-5000A,FLAT,UL106 |
| JC39-40550A | CBF HARNESS-3P,2WIRE;ML-5000A,FLAT,UL312 |
| JC39-40561A | CBF HARNESS-3P;ML-5000A,FLAT,UL1061,170M |
| JC39-40565A | CBF HARNESS-4P;ML-5000A,FLAT,UL1061,85MM |
| JC39-40566A | CBF HARNESS-5P/6P;ML-5000A,*,UL1061,350M |
| JC39-40556A | CBF HARNESS-6P;ML-5000A,FLAT,UL1061,210M |
| JC39-40617A | CBF HARNESS-7P;ML-5000A,FLAT,UL1061,260M |
| JC39-40567A | CBF HARNESS-7P;ML-5000A,FLAT,UL1061,420M |
| JC39-40585A | CBF HARNESS-P_SWITCH;ML-5000A,FLAT,UL106 |
| JC39-40572A | CBF HARNESS-RING_TER;ML-5000A,*,LL33909, |
|
|
CBF HARNESS;-,POWER CORD,-,2.5M,BLK,#16 |
| JC39-40511A | CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV |
| JC39-30002A | CBF IF;1810,GRY |
| JC27-60101D | COIL FILTER;-,-,-,- |
| JC27-60100A | COIL FILTER;-,-,110MOHM,- |
| JC27-60101A | COIL FILTER;-,300UH,-,- |
| JC27-60101B | COIL FILTER;-,9UH,-,- |
| 2801-000002 | CRYSTAL-UNIT;6.94407MHZ,50PPM,28-AAM,20P |
| 0402-000104 | DIODE-BRIDGE;D3SBA60,600V,4A,SIP-4,ST |
| 0402-000129 | DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP |
| 0402-000314 | DIODE-RECTIFIER;D10SC4M,40V,10A,ITO-220, |
| 0402-000304 | DIODE-RECTIFIER;STPR1020CF,200V,5A,ISOWA |
|
|
DIODE-RECTIFIER;UF4007,1000V,1A,DO-41,TP |
| 0401-000005 | DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| JC96-00325H | ELA HOU-DRUM OPC;MLE-5000,SAMSUNG,KOREA |
| JC96-01199A | ELA UNIT-FRAME UPPER;ML-5000A,SAMSUNG,US |
| JC96-01968A | ELA UNIT-PTL;ML-5000A,SAMSUNG,USA,220V,- |
| JC96-01370A | ELA UNIT-SHELD PCU;ML-5000A,XEROX,110V/2 |
| JC96-01291A | ELA UNIT-S_PCU 110;ML-5000A,SAMSUNG,USA, |
| JC31-00012A | FAN-DC;AD0624MSA70GL(R1)DOL,ML-5000,PBT+ |
| 2901-000235 | FILTER-EMI SMD;50V,0.3A,150PF,4.5X3.2X1. |
| 2901-000229 | FILTER-EMI SMD;50V,0.3A,22000PF,4.5X3.2X |
| 2902-001011 | FILTER-LINE;-,-,- |
| JK61-40902A | FOOT-RUBBER;TN-5630T,SSEC,NR,-,BLK,70HB, |
| 3601-000157 | FUSE-CARTRIDGE;125V,8A,SLOW-BLOW,GLASS,5 |
| 3602-000001 | FUSE-CLIP;30MOHM |
| JC66-40934A | GEAR-ADJUST RACK;ML-5000A,POM,WHT,-,- |
| JC66-40905A | GEAR-DEV;ML-80,POM,BLK,0.6,20 |
| JC66-40939A | GEAR-DRIVE1;ML5000,POM,WH,M0.4/0.8,Z100/ |
| JC66-40940A | GEAR-DRIVE2;ML5000,POM,WH,M0.4/0.8,Z124/ |
| JC66-40956A | GEAR-EXIT18;ML5000,POM,BLK,M1,Z18 |
| JC66-40209A | GEAR-EXIT;ML-80,POM,WHT |
| JC66-00002A | GEAR-FEED24;ML-5000A,POM,NTR,0.8,24 |
| JC66-40379A | GEAR-FUSER;ML-80,NYLON,BLK,M1,Z26 |
| JC66-40942A | GEAR-IDLE1(31);ML5000,POM,NTR,M0.8,Z31 |
| JC66-40945A | GEAR-IDLE2(19);ML5000,RAL4032,NTR,M1,Z19 |
| JC66-40946A | GEAR-IDLE3(14);ML5000,POM,BLK,M1,Z14 |
| JC66-40372A | GEAR-OPC DRIVE;ML-80,POM,BLK,M0.8,Z69 |
| JC66-40944A | GEAR-PICK UP(41);ML5000,POM,NTR,M0.8,Z41 |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC66-40908A | GEAR-RDCN 25/32;ML-80,POM(SW01)NTR,WHITE |
| 3711-000217 | HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM |
| 3711-000190 | HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM |
| 3711-002001 | HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,STR |
| 3711-003204 | HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR |
| 3711-000814 | HEADER-BOARD TO CABLE;BOX,2P,1R,2.5MM,AN |
| 3711-003408 | HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA |
| 3711-003968 | HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,ST |
| 3711-000961 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST |
| 3711-002807 | HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,STRA |
| JC62-30908A | HEAT SINK-SMPS;ML-5000,AL,ANODIZING |
| JC13-10001A | IC ASIC-CONTROL;ML-85G,KG6114,PQFP,100P, |
| 0801-001090 | IC-CMOS LOGIC;74HC14,SCHMITT INVERTER,SO |
| 0801-000722 | IC-CMOS LOGIC;74HC245,TRANSCEIVER,DIP,20 |
| 0801-000528 | IC-CMOS LOGIC;74HCT574,D FLIP-FLOP,DIP,2 |
| 1103-001045 | IC-EEPROM;27E512,512KBIT,64KX8,DIP,28P,3 |
| 1103-000178 | IC-EEPROM;93C46,64X16,DIP,8P,10.16X6.35M |
| 4701-001020 | IC-FREQ-ATTENUATOR;5-80MHZ,15DB,-,0.03W |
| 0903-000219 | IC-MICROCOMPUTER;88C4316,8BIT,DIP,64P,-, |
| 1003-001165 | IC-MOTOR DRIVER;SMA7029M,ANGLE,15P,31MIL |
| 1203-001491 | IC-POSI.ADJUST REG.;30RV31,T0-220,4P,-,P |
| 1203-000002 | IC-POSI.ADJUST REG.;431,TO-92,3P,-,PLAST |
| 0803-001097 | IC-TTL;7407,BUFFER/DRIVER,DIP,14,300MIL, |
| 0803-001211 | IC-TTL;74LS14,SCHMITT INVERTER,DIP,14,30 |
| 1203-000623 | IC-VOL. DETECTOR;7045,SOT-89,3P,PLASTIC, |
| 1202-000103 | IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL, |
| JC70-40915A | ICT-SHAFT PICK UP;ML-5000A,SUM24L,-,-,-, |
| JC70-11055A | IPR-BRKT HOLDER K UP;ML-5000A,SUS304 WPB |
| JC70-11016A | IPR-GND KNOCKUP;ML-5000A,SUS304 CSP1/2 |
| JC70-11003A | IPR-GROUND PLATE,FU;ML-5000A,SUS304,T0.2 |
| JC70-11012A | IPR-GROUND PLT PAPER;ML-5000A,SUS304CSP1 |
| JC70-11017A | IPR-PLATE KNOCKUP;ML-5000A,SECC,-,T1.2,- |
| JC70-10232A | IPR-PLATE SAW;ML-80,SUS304 CSP 1/2H,T0.1 |
| JC70-10230A | IPR-SHAFT FEED IDLER;ML-80,SUM24L,NI |
| JC70-11013A | IPR-SHIELD EMI;ML-5000A,SPCC,-,T0.6,-,-, |
| JC70-11014A | IPR-SHIELD PCU;ML-5000A,SECC,T0.8 |
| JC70-11015A | IPR-SHIELD SIMM;ML-5000A,SECC,-,T0.8,-,- |
| JC70-11066A | IPR-SPRING IDLE,FU;ML-5000A,SUS304CSP1/2 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JC68-00573A | LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM, |
| JC68-30928A | LABEL(R)-CAU_HOT_FU;ML-5000A,TEFRON,-,T0 |
| 4713-001081 | LAMP-HALOGEN;115V,-,400W,YEL,-,-,6X278.5 |
| JC97-01126A | MEA ETC-ROLLER EXIT;ML-5000A,XR,USA,-,-, |
| JC97-01204A | MEA MAIN-HOLDER P/R;ML-5000A,SEC,KOR,-,- |
| JC97-01118A | MEA RACK-PLATE DEV L;MLE-5000,LEXMARK,US |
| JC97-01129A | MEA UNIT-CLUTCH;ML-5000A,XR,USA,-,-,-,- |
| JC97-01244A | MEA UNIT-FRAME SUP;ML-5000A,XEROX,USA,11 |
| JC97-01245A | MEA UNIT-GEAR FEED;ML-5000A,XEROX,USA,11 |
| JC97-01160A | MEA UNIT-HOLDER TR L;ML-5000A,SAMSUNG,US |
| JC97-01112A | MEA UNIT-HOLDER TR;ML-5000A,SAMSUNG,USA, |
| JC97-01127A | MEA UNIT-KNOCK UP;ML-5000A,XR,USA,-,-,-, |
| JC97-01130A | MEA UNIT-PICK UP;ML-5000A,XR,USA,-,-,-,- |
| JC97-01133B | MEA UNIT-SEPERATE L;ML-5000A,XEROX,CHINA |
| JC97-01134B | MEA UNIT-SEPERATE R;ML-5000A,XEROX,CHINA |
| JC97-01132A | MEA UNIT-SEPERATE;ML-5000A,XR,USA,-,-,-, |
| JC97-01410A | MEA UNIT-TERMINAL:L;ML-5000A,SAMSUNG,KOR |
| JC97-01401A | MEA UNIT-TERMINAL:TR;ML-5000A,SAMSUNG,KO |
| JK75-10008A | MEC-BARCODE;ECR |
| JC75-10968B | MEC-EXIT,F/DOWN;ML-4500,SAMSUNG,NTR,-,-, |
| JC75-10981A | MEC-PRESSURE ROLLER;ML-5000A,KT,TUBE |
| JC75-10963A | MEC-ROLLER TRANSFER;MLE-5000,LEXMARK,NTR |
| 3101-001130 | MOTOR-STEP;7.5DEG,24V,701PPS,1400G.CM,PM |
| JC74-10901A | MPR-WASHER SUPPLY;POLY,ID4.1*OD11*T0.13, |
| JC71-20903A | NEX-ROLLER HEAT;ML-5000A,A5052,T1.0,PFA+ |
| 2804-001176 | OSCILLATOR-CLOCK;28.6925MHZ,100PPM,10 TT |
| JC92-00999A | PBA MAIN-ENGINE;ML-5000A,STA,USA,110V,*, |
| JC92-01002B | PBA PWR-HVPS;MLE-5000,LEXMARK,USA,187X13 |
| JC92-01001A | PBA SUB-JOINT;ML-5000A,STA,USA,*,*,80.6X |
| JC92-01044A | PBA SUB-OPTIC PE;ML-5000A,XEROX,USA,*,*, |
| JC92-01017A | PBA SUB-SENSOR;ML-5000A,STA,USA,*,*,250X |
| JC41-10555A | PCB-ENGINE_LEX;ML-5000A/G,FR,1L,T1.6MM,2 |
| JC41-10547A | PCB-P-EMPTY;ML-5000A,*,*,T1.6MM,100X100M |
| JC41-10535A | PCB-PTL;ML-5000A,FR-1,1L,T1.6MM,216X9M |
| JC41-10540A | PCB-SENSOR_B'D;ML-5000A,*,*,T1.6MM,990X2 |
| JC41-10539A | PCB-SWITCH_B'D;ML-5000A,*,*,T1.6MM,500X3 |
| JC72-20901A | PEX-ROLLER EXIT F_UP;ML-5000A,TEFLON,PI1 |
| 0604-001032 | PHOTO-COUPLER;TR,50-60%,200MW,DIP-4,ST |
| 0604-001207 | PHOTO-COUPLER;TRIAC,-,-,DIP-6,ST |
| 0604-001033 | PHOTO-INTERRUPTER;TR,-,150MW,DIP-4,ST |
| 0604-001144 | PHOTO-INTERRUPTER;TR,25%,100MW,DIP-4,BK |
| JC72-41134A | PMO-ACTUATOR C/O;ML-5000,ABS,BLK,HB,- |
| JC72-41151A | PMO-ACTUATOR EMPTY;ML-5000A,ABS,HB,GR-40 |
| JC72-41130A | PMO-ACTUATOR_EXIT;ML-5000A,ABS,V0,BLK |
| JC72-00271A | PMO-ADJUST AUTO(L);CF-5800,HIPS,HB,HR136 |
| JC72-00272A | PMO-ADJUST AUTO(R);CF-5800,HIPS,HB,HR136 |
| JC72-00242A | PMO-ADJUST MAN(L);CF-5800,HIPS,V0,HR1360 |
| JC72-00241A | PMO-ADJUST MAN(R);CF-5800,HIPS,V0,HR1360 |
| JG72-40849A | PMO-BUSHING SHAFT;SF6000,POM,BLK,VO,VH 0 |
| JC72-00278A | PMO-BUTTON;ML-5000A,HIPS,HB,BL15,HR1360 |
| JC72-40232A | PMO-CAP AGITATOR;ML-80,PP,BLK |
| JC72-41244A | PMO-CAP PICK UP;ML-5000A,POM,BLK |
| JC72-41173A | PMO-CAP PLTE G/DEV L;ML-5000A,POM,BLK |
| JC72-41135A | PMO-CAP PLTE G/DEV R;ML-5000A,POM,BLK |
| JC72-41089B | PMO-COVER BOTTOM;ML-5000A,HIPS,C8726,V0, |
| JC72-41139A | PMO-COVER CO;ML-5000,ABS,BLK,HB,- |
| JC72-00254A | PMO-COVER EXIT;ML-5000A,HIPS,V0,IV30,HR1 |
| JC72-00215B | PMO-COVER FRONT;ML-5050G,HIPS,IV30,-,V0 |
| JC72-41176A | PMO-COVER QUENCHING;ML-5000A,PC,WHT |
| JC72-00259A | PMO-COVER REAR;ML-5000A,HIPS,IV30,V0,HR1 |
| JC72-00252A | PMO-COVER SIDE(L);ML-5000A,HIPS,V0,IV30, |
| JC72-00253A | PMO-COVER SIDE(R);ML-5000A,HIPS,V0,IV30, |
| JC72-00262A | PMO-COVER STACKER;ML-5000A,HIPS,V0,IV30, |
| JC72-00255A | PMO-COVER TOP;ML-5000A,HIPS,IV30,V0,HR13 |
| JC72-41138A | PMO-COVER WIRE FU;ML-5000,ABS,BLK,VO,- |
| JC72-00238A | PMO-DUCT CAP;CF-5800,HIPS,HR1360,V0,IV30 |
| JC72-41178A | PMO-EXIT_DOWN_L;ML-5000A,POM,BLK |
| JC72-41179A | PMO-EXIT_DOWN_S;ML-5000A,POM,BLK |
| JC72-41141A | PMO-FRAME BASE UPPER;ML-5000A,ABS(GF20%) |
| JC72-00263A | PMO-FRAME STACKER;ML-5000A,HIPS,V0,IV30, |
| JC72-00032A | PMO-FRAME-FUSER;ML-5000A,PBT+GF30%,BLACK |
| JC72-41243A | PMO-GUIDE BOSS DEVE;ML-5000A,POM,BLK,-,- |
| JC72-41128A | PMO-GUIDE CLAW;ML-5000A,PEEK,V0,TEFRON,B |
| JC72-41164A | PMO-GUIDE PAPER,FEED;ML-5000A,POM,BLK,-, |
| JC72-00264A | PMO-GUIDE STACKER;ML-5000A,HIPS,IV30,V0, |
| JC72-41144A | PMO-HOLDER PLATE SAW;ML-5000A,PC,BLK |
| JC72-41153A | PMO-HOLDER SPR P/UP;ML-5000A,ABS,BLK,HB, |
| JC72-41156A | PMO-HOLDER SPRING;ML-5000A,ABS,BLK,HB,GR |
| JC72-41177A | PMO-HOLDER_EXIT_DOWN;ML-5000A,PC,BLK |
| JC72-41129A | PMO-HOLDER_P/R BEARI;ML-5000A,ABS GF20,B |
| JC72-41154A | PMO-HOUSING PICK UP;ML-5000A,ABS,GR-4020 |
| JC72-41143A | PMO-KEY DEVE;ML-5000A,POM,BLK |
| JC72-41263A | PMO-LED;ML-5000A,PC,TRP,HB,- |
| JC72-40261C | PMO-ROLLER FEED IDLE;ML-5000A,POM(CE20), |
| JC72-41155A | PMO-SEPERATE PAPER;ML-5000A,ABS,GR-4020, |
| JC72-00025A | PMO-SHAFT FEED GEAR;ML-5000A,PC,BLACK,-, |
| JC72-00265A | PMO-STACKER;ML-5000A,HIPS,V0,HR1360,IV30 |
| JC72-41170A | PMO-STOPPER;ML-5000A,NYLON 66,HB,BLK |
| JC72-00240A | PMO-TRAY MAN PAPER;CF-5800,HIPS,IV30,V0, |
| JC72-00256A | PMO-TRAY TX;ML-5000A,HIPS,IV30,V0,HR1360 |
| JC72-10922A | PPR-INSULATOR PCU;ML-5000A,PVC SHEET,TRP |
| JC72-10933A | PPR-SHEET G/P(2);ML-5000A,PC,NTR |
| 2001-001070 | R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4 |
| 2001-000118 | R-CARBON(S);180OHM,5%,1/2W,AA,TP,2.4X6.4 |
| 2001-001150 | R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6. |
| 2001-000436 | R-CARBON;0OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000221 | R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000105 | R-CARBON;1.5KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000027 | R-CARBON;100OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000281 | R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000331 | R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000111 | R-CARBON;150OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000362 | R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000429 | R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000006 | R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000515 | R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000003 | R-CARBON;330OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000660 | R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000723 | R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000734 | R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000786 | R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000812 | R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000816 | R-CARBON;5.6OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000832 | R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000864 | R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000903 | R-CARBON;620OHM,5%,1/4W,AA,TP,2.4X6.4MM |
|
|
R-CHIP;100OHM,5%,1/8W,TP,2012 |
| 2007-000300 | R-CHIP;10KOHM,5%,1/8W,TP,2012 |
| 2007-000308 | R-CHIP;10OHM,5%,1/8W,TP,2012 |
| 2007-000401 | R-CHIP;150OHM,5%,1/8W,TP,2012 |
| 2007-000468 | R-CHIP;1KOHM,5%,1/8W,TP,2012 |
| 2007-000477 | R-CHIP;1MOHM,5%,1/8W,TP,2012 |
| 2007-000493 | R-CHIP;2.2KOHM,5%,1/8W,TP,2012 |
| 2007-000511 | R-CHIP;2.4KOHM,5%,1/8W,TP,2012 |
| 2007-000572 | R-CHIP;220OHM,5%,1/8W,TP,2012 |
| 2007-000781 | R-CHIP;33OHM,5%,1/8W,TP,2012 |
| 2003-000468 | R-METAL OXIDE(S);10OHM,5%,1W,AA,TP,3.3X9 |
| 2003-000540 | R-METAL OXIDE(S);1KOHM,5%,2W,AF,TP,4X12M |
| 2003-000547 | R-METAL OXIDE(S);1OHM,5%,3W,AA,TP,6X16MM |
| 2003-000659 | R-METAL OXIDE(S);33OHM,5%,1W,AA,TP,3.3X9 |
| 2003-000746 | R-METAL OXIDE(S);56OHM,5%,2W,AF,TP,4X12M |
| 2004-000109 | R-METAL;1.07KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-000345 | R-METAL;15KOHM,1%,1/8W,AA,TP,1.8X3.2MM |
| 2004-000432 | R-METAL;1KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-000433 | R-METAL;1KOHM,1%,1/8W,AA,TP,1.8X3.2MM |
| 2004-000699 | R-METAL;3.3KOHM,1%,1/8W,AA,TP,1.8X3.2MM |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000156 | RING-C;ID5,OD11,T0.6,PASS,STSC |
| JC73-40913A | RMO-RUBBER-KICKER;ML-5000A,URE,PI5XT1.5, |
| JC72-20902A | ROLLER;ML-5000A,TEFLON,WHT |
| JC73-10929A | RPR-PAD SEPERATE PA;ML-5000A,CR+CORK,-,- |
| JC73-10931A | RPR-RUBBER FEED;ML-5000A,CR,70,BLK |
| JC73-10926A | RPR-RUBBER FOOT;ML-5000A,CR70,31*10.2*T1 |
| JC73-10932A | RPR-RUBBER PICK/UP;ML-5000A,EPDM,30,BLK |
| 6001-000568 | SCREW-MACHINE;PH,+,M3,L8,NI PLT,SWRCH18A |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
| 6003-000003 | SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(BLK),S |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6003-000119 | SCREW-TAPTYPE;BH,+,B,M3,L8,ZPC(BLK),SWRC |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC70-40914A | SHAFT-ICT-PIN P/UP SHAFT;ML-5000A,SUM24L |
|
|
SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9 |
| 3704-000235 | SOCKET-IC;28P,DIP,SN,2.54MM |
| JC33-10004A | SOLENOID-UNIT;ML-5000A,ESD2430,DC24V,0.3 |
| JC61-00064A | SPRING ETC-CLAW;ML-5200A,SUS 304 WPB,F0. |
| JC61-00004A | SPRING ETC-CLUTCH;ML-5000A,STS304WPB,0.3 |
| JC61-70931A | SPRING ETC-COVER OPEN;ML-5000A,-,D4.5,-, |
| JC61-70972A | SPRING ETC-CS (P/R);ML-5000A,SUS304WPB,- |
| JC61-70937A | SPRING ETC-EXIT,F_DOWN;ML-5000A,-,D3.0,- |
| JC61-70936A | SPRING ETC-EXIT,F_UP;ML-5000A,-,D3.0,-,L |
| JC61-70950A | SPRING ETC-EXTENSION;ML-5000A,SUS304WPB |
| JC61-70932A | SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16. |
| JC61-70929A | SPRING ETC-HV LARGE;ML-5000A,SUS304-WPB, |
| JC61-70930A | SPRING ETC-HV SMALL;ML-5000A,PI0.3,L12.5 |
| JC61-70934A | SPRING ETC-KNOCK,UP;ML-5000A,-,-,-,-,-,- |
| JC61-70935A | SPRING ETC-SEPERATE P/UP;ML-5000A,SUS304 |
| JC61-70924A | SPRING ETC-SHUTTER;MLE-5000,SWPB 0.7,SWP |
| JC61-70960A | SPRING ETC-SPRING ETC CLUTCH;ML-5000A,SU |
| JC61-70959A | SPRING ETC-SPRING ETC FEED;ML-5000A,SUS3 |
| JC61-70967A | SPRING ETC-TR R;ML-5000A,SUS304 WPB,D4.5 |
| JC61-70958A | SPRING ETC-TR;ML-5000A,SUS304 WPB,PI0.55 |
| JC61-30901A | SUPPORT-PUSH LATCH;ML-5000,POM,-,-,-,BLK |
| 3405-000125 | SWITCH-MICRO;125V,5A,50GF,SPDT |
| 3404-000116 | SWITCH-TACT;12V,50MA,160GF,6X6X3.6MM,SPS |
| 1404-001128 | THERMISTOR-NTC;2.11KOHM,5%,4100K,0.4MW/C |
| 1404-000167 | THERMISTOR-NTC;5OHM,10%,3150K,18.7MW/C,T |
| 1401-000108 | THYRISTOR-TRIAC;100A,600V,-,5V/US,TO-220 |
| 0502-000245 | TR-POWER;KSB1151-Y,PNP,1300MW,TO-126,160 |
| 0504-000144 | TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92, |
| JC26-30504A | TRANS POWER-S/W;ML-5000A,110V,500UH |
| 1405-000111 | VARISTOR;1800V,4500A,17.5X15MM,TP |
| 1405-000147 | VARISTOR;470V,4500A,17X12MM,BK |
| 6031-000023 | WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK |
| 6031-000019 | WASHER-PLAIN;POLY,ID6.1,OD8.5,T0.1,BLK |
