Manufacturer
Samsung
Model Number
ML-6512ND
Description
Ml-6512nd Monochrome Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC66-02614A | ACTUATOR-FEED_DUPLEX;ML-6510ND,PC+GF,2.5 |
| JC66-02623A | ACTUATOR-FEED_REGI;ML-6510ND,PC+GF,W21.8 |
|
|

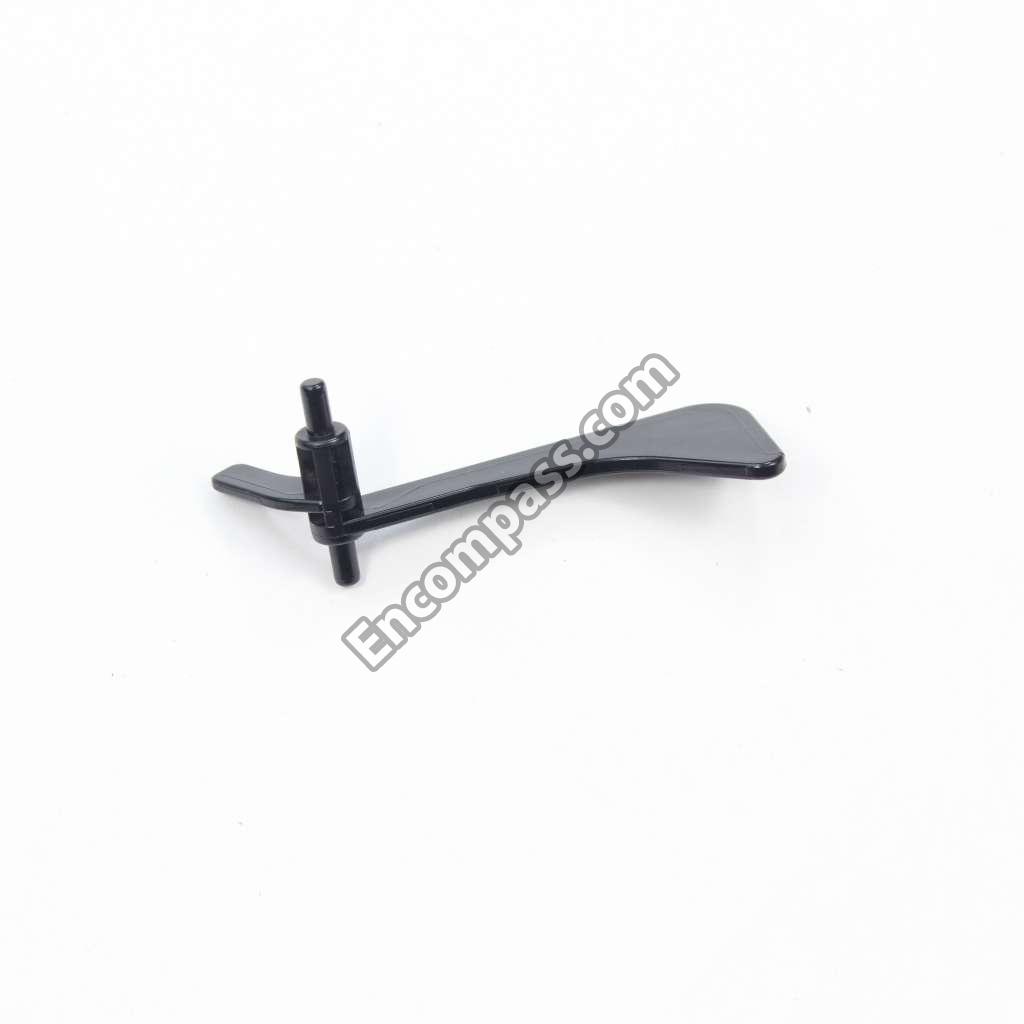

ACTUATOR-PAPER_EMPTY;ML-6510ND,PC,2,24.1 |
| JC66-02622A | ACTUATOR-REGI;ML-6510ND,PC+GF,W20.8,L50. |
| JC66-02625A | ACTUATOR;ML-6510ND,NYLON+GF25,W14.75,BLA |
|
|
BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON |
| 3301-001495 | BEAD-SMD;120OHM,2012,2500MA,TP,115OHM/10 |
| 3301-001655 | BEAD-SMD;33OHM,3216,3000MA,TP,16OHM/39MH |
| 3301-001594 | BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,- |
| 6601-001385 | BEARING-BALL;679ZZ,ID9.0,OD14,L4.5,SRL |
|
|
BEARING-BALL;688ZZ,ID8,OD16,L5,SUJ2 |
| 6601-001580 | BEARING-BALL;MR106-2RS,ID6,OD10,L3,EC3 4 |
| 6601-001726 | BEARING-BALL;SB6706ZZ,ID30,OD37,T4.0 |
| 6602-001084 | BELT-TIMING GEAR;30S2M224,RUB(CR),T1.36, |
| JC67-00496A | BRUSH-ANTISTATIC;CLP-660,AL+SUS FIBER,22 |
| JC67-00125A | BRUSH-EXIT;SCX-6345N/XRX,AL0.4T, SUS FIB |
| JC67-00507A | BRUSH-PICK_MP;ML-6510ND,SUS FIBER,23,68. |
| JC61-01694A | BUSH-46D;SCX-6345N,BRONZE POWDER,?4.6,?6 |
| JC61-00424A | BUSH-4;ML-9400W,BEARING,?4,NTR |
| JC61-00884A | BUSH-6_D(L);SCX-6320F,BRONZE POWDER(KAB- |
| JC61-00423A | BUSH-6_D;ML-9400W,BEARING,?6,NTR |
| JC61-00426A | BUSH-8/5;ML-9400W,BEARING,?8,OD12.0,L6.0 |
| JC61-00699A | BUSH-D6/L4;CLP-500,FE+CU+ZN-SLEARATE,?6, |
| JC61-01428A | BUSH-DRY;SCX-6345N/XRX,BRONZE SINTERED(K |
| JC61-03883A | BUSH-HR;ML-6510ND,PPS,27,30 |
| JC61-00665A | BUSH-M-FEED, DUP;ML-2150,POM, SW01,4.0,7 |
| 2402-001042 | C-AL,SMD;100UF,20%,16V,GP,TP,6.6X6.6X5.4 |
| 2402-001049 | C-AL,SMD;10UF,20%,16V,GP,TP,3.3X3.3X5.4 |
| 2402-000117 | C-AL,SMD;10UF,20%,35V,GP,TP,5.3X5.3X5.4 |
| 2402-000209 | C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM |
| 2402-001106 | C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M |
| 2402-000173 | C-AL,SMD;4.7UF,20%,35V,GP,TP,4.3X4.3X5.4 |
| 2402-001155 | C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM |
| 2401-002463 | C-AL;470UF,20%,16V,GP,TP,10X12.5,5 |
| 2203-000384 | C-CER,CHIP;0.015NF,5%,50V,C0G,TP,1608,0. |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,1608 |
| 2203-000783 | C-CER,CHIP;0.33NF,5%,50V,C0G,1608 |
| 2203-001124 | C-CER,CHIP;0.68NF,10%,50V,X7R,1005 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006960 | C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012 |
| 2203-002709 | C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2203-000491 | C-CER,CHIP;2.2NF,10%,50V,X7R,1608 |
| 2203-006460 | C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608,- |
| 2203-002392 | C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608,- |
| 6502-001130 | CABLE CLAMP;DACS-3N,14*5,NYLON66,BLACK |
| JC67-00284A | CAP-TONER L;SCX-6555N,PP,1.0,33,6,BLK |
|
|
CARTRIDGE-WTB;ML-6510ND,SEC,WORLD WIDE,3 |
| JC90-01026A | CASSETTE;ML-6512ND,SEC (FLAT TYPE) |
| JB39-00128A | CBF HARNESS-P1284 FG;SF-430,UL1007,#18,1 |
| JC39-00435A | CBF HARNESS-SMPS;ML-3560,CBF,UL 1061,28, |
|
|
CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125 |
| JC47-00023A | CLUTCH-FEED;ML-5050,DC24V,167MA |
|
|
CLUTCH-P_ONE WAY;SCX-6345N/XRX,OWC612GXR |
|
|
CLUTCH-SPUR;CLX-9350,5.0KGF,Z32,M1.0,OD3 |
| 3708-001455 | CONNECTOR-FPC/FFC/PIC;30P,0.5MM,SMD-A,AU |
| 3711-007520 | CONNECTOR-HEADER;BOX,2P,1R,2.0MM,STRAIGH |
| 3711-007521 | CONNECTOR-HEADER;BOX,3P,1R,2.0MM,STRAIGH |
| 3711-006454 | CONNECTOR-HEADER;BOX,7P,1R,1.27MM,STRAIG |
| JC67-00463A | COUPLER-BELT_3X5;ML-6510ND,POM,BLACK |
| JC67-00126A | COUPLER-TORQUELIMITER;SCX-6345N/XRX,OTLV |
| JC63-01942C | COVER-CASSETTE;ML-6510ND,ABS,2.5,317.3,1 |
| JC95-01328A | COVER-FRONT;ML-5510ND,SEE |
| JC95-01330A | COVER-LEFT;ML-5510ND,SEE |
| JC63-02868A | COVER-OPE_HARNESS;ML-6510ND,HIPS,2.5,88. |
| JC63-02867A | COVER-OPE_LOWER;ML-6510ND,HIPS,2.5,42.8, |
| JC95-01322A | COVER-OPTION;ML-6510ND,XAA |
| JC95-01295A | COVER-REAR;ML-6510ND,SEC |
| JC95-01329A | COVER-RIGHT;ML-5510ND,SEE |
| JC63-02860A | COVER-TOP;ML-6510ND,HIPS,2.5,461.0,515.0 |
| JC63-02861A | COVER-TOP_DUMMY;ML-6510ND,HIPS,2.5,141.6 |
| JC69-02276A | CUSHION-MAIN_CAP;ML-6510,EPS,675,605,77, |
| 0402-000129 | DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0407-000123 | DIODE-SWITCHING;DAN202K,80V,100MA,SOT-23 |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| JC93-00227A | DRIVE EXIT;ML-6510ND,XEROX,USA,110V/220V |
| JC93-00232A | DRIVE FUSER-RELEASE;ML-6510ND,XEROX,USA, |
| JC93-00226A | DRIVE FUSER;ML-6510ND,XEROX,USA,110V/220 |
|
|
DRIVE MAIN;ML-6510ND,XEROX,USA,110V/220V |
| JC93-00228A | DRIVE-DUPLEX;ML-6510ND,XEROX,USA,110V/22 |
| JC93-00229A | DRIVE-FEED;ML-6510ND,XEROX,USA,110V/220V |
| JC93-00301A | DRIVE-MOTOR STEP;ML-6510ND,XEROX,USA,110 |
| JC93-00225A | DRIVE-PICK UP;ML-6510ND,XEROX,USA,110V/2 |
| JC90-01018B | DUPLEX;ML-6510ND,SEE |
| JC96-01772A | ELA HOU-VARISTOR;ML-6060,NEC/SEC,110/220 |
| JC90-01017A | EXIT-ROLLER DUPLEX;ML-6510ND,XEROX |
| JC90-01013B | EXIT;ML-6510ND,XAA |
| JC31-00086A | FAN-DC;CLX-8380ND/XAA,PBT+GF,UL10272 AWG |
| JC31-00141A | FAN;D08K-24PU 21B(AX),65G |
| JC31-00108A | FAN;SCX-5135ND |
| JC44-00191A | FDB-MULTI TRIAC V1;ML-6510ND,MULTI TRIAC |
| 0505-002507 | FET-SILICON;FDC5614P,P,-60V,-3A,0.105OHM |
| 0505-001326 | FET-SILICON;SI2308DS,N,60V,2A,0.22OHM,1. |
| JC01-00022A | FILM-LOCKER;SCX-4500,PET,0.05,10,15 |
| JC39-01360A | FLAT CABLE;ML-6510ND,50,120MM,AWM20624,1 |
| JC61-03955A | FOOT-UPPER;ML-6510ND,EP-80G,GRAY,PART |
| JC93-00277A | FRAME-BOARD FUSER DRIVE;ML-6510ND,XRX |
| JC93-00269A | FRAME-DUCT WASTE TONER;ML-6510ND,SEC,WOR |
| JC93-00240A | FRAME-PICKUP;ML-6510ND,XEROX |
|
|
FRAME-REGI;ML-6510ND,XEROX |
|
|
FRAME-ROLLER TRANSFER;ML-6510ND,XAA |
| JC93-00258A | FRAME-SHAFT;ML-6510ND,XRX |
| JC91-01032A | FUSER-GUIDE EXIT UPPER;ML-6510ND,SEC,WOR |
|
|
FUSER;ML-6510ND |
| JC66-02642A | GEAR-COUPLING-OPC;ML-6510ND,POM,0.5,69,3 |
| JC66-02641A | GEAR-COUPLING;ML-6510ND,POM,0.8,33,28.09 |
| JC66-02640A | GEAR-DEVE_DRIVE;ML-6510ND,POM,0.8,31,26. |
| JC66-02650A | GEAR-DRV SUPPLY;ML-6510ND,POM,A0.6/B0.8, |
| JC66-02633A | GEAR-DRV_OPC;ML-6510ND,POM,0.5,47,25.008 |
| JC66-02638A | GEAR-DRV_TONER_1;ML-6510ND,POM,A0.8/B0.8 |
| JC66-02639A | GEAR-DRV_TONER_2;ML-6510ND,POM,A0.8/B0.8 |
| JC66-00038A | GEAR-EXIT F/DOWN;ML-4500,POM,0.8,GREEN |
| JC66-01754A | GEAR-FEED IDLE C;CLX-6200FX,POM,M0.5,Z19 |
| JC66-01755A | GEAR-FEED IDLE D;CLX-6200FX,POM,M0.5,Z23 |
| JC66-01262A | GEAR-FEED;ML-4550,POM M90-44,0.8,26,PURP |
| JC66-02615A | GEAR-FUSER;ML-6510ND,PPS,1,51,53 |
| JC66-01045A | GEAR-IDLE ITB Z43;CLP-300,POM,0.5,Z43,WH |
| JC66-01376A | GEAR-IDLE OPC;CLP-660,POM(M90-44),M0.5,Z |
| JC66-02825A | GEAR-IDLE WTB;ML-6510ND,POM,1.0,19,BLACK |
|
|
GEAR-IDLE_LIFT;ML-6510ND,POM,1.5,23,34.5 |
| JC66-02075A | GEAR-JOINT;ML-2855ND,POM,0.5,23,BLACK,12 |
| JC66-00854A | GEAR-M-EXIT DUP Z21;ML-3560,POM,1,21,WHT |
| JC66-00674A | GEAR-M-EXIT Z17;ML-2550,M90-44,1,17,F5,B |
| JC66-00861A | GEAR-M-MP DRV;ML-3560,POM,0.8,31,WHT,26. |
| JC66-01018A | GEAR-M_EXIT LOWER;SCX-6345N/XRX,POM,0.8, |
| JC66-01017A | GEAR-M_EXIT UPPER;SCX-6345N/XRX,POM,0.8, |
| JC66-00940A | GEAR-M_IDLE PU;SCX-6345N/XRX,POM,0.7,22, |
| JC66-00941A | GEAR-M_ONE WAY;SCX-6345N/XRX,POM,0.7,21, |
| JC66-01020A | GEAR-M_PINION 24;SCX-6345N/XRX,POM,1,24, |
|
|
GEAR-M_PU JOINT;SCX-6345N/XRX,POM,0.7,21 |
| JC66-01676A | GEAR-PICKUP DRIVE;SCX-6555N,POM,1,25,BLK |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC66-02626A | GEAR-PR;ML-6510ND,PA66,1,34,36 |
| JC66-01051A | GEAR-RDCN DEVE;CLP-300,POM,A:0.5,B:0.8,Z |
| JC66-02652A | GEAR-RDCN_3X5;ML-6510ND,POM,A0.5/B1.0,A4 |
| JC66-02649A | GEAR-RDCN_FEED;ML-6510ND,POM,A0.5/B0.8,A |
| JC66-02645A | GEAR-RDCN_FORWARD;ML-6510ND,POM,A0.5/B1. |
| JC66-02634A | GEAR-RDCN_FUSER;ML-6510ND,PA,A0.5/B1.0,A |
| JC66-02646A | GEAR-RDCN_MAG;ML-6510ND,POM,A0.8/B0.5,A4 |
| JC66-02644A | GEAR-RDCN_REGI;ML-6510ND,POM,A0.5/B1.0,A |
| JC66-02953A | GEAR-TURBINE RDCN;ML-6510ND,POM,0.6,21 / |
| JC66-02954A | GEAR-TURBINE;ML-6510ND,POM,0.6,21,WHITE, |
| JC66-02126A | GEAR-WORM WHEEL;CLX-9350,NYLON,M0.8/1.0, |
| JC66-02125A | GEAR-WORM;CLX-9350,NYLON,M0.6/0.8,Z19,OD |
| JC66-02676A | GEAR-WTB LEVELING;ML-6510ND,POM,1,25,BLA |
| JC61-02646A | GUIDE-LOCK_REAR;ML-5050ND,POM,2.5,24,42. |
| JC61-03910A | GUIDE-REAR;ML-6510ND,ABS,BLACK,PATH |
| JC64-00420C | HANDLE-REAR COVER;ML-6510ND,ABS,HB |
| JC39-01381A | HARNESS-DPX_MOT;ML-6510ND,HARNESS,UL 102 |
| JC39-01181A | HARNESS-DUPLEX REGI SENSOR;CLX-9350,UL10 |
| JC39-01399A | HARNESS-EXIT_MOT_JOINT;ML-6510ND,HARNESS |
| JC39-01377A | HARNESS-FDB;ML-6510ND,HARNESS,UL 10272,1 |
| JC39-01390A | HARNESS-FUSER_AC;ML-6510ND,HARNESS,UL 16 |
| JC39-01379A | HARNESS-FUSER_EXIT_MOT;ML-6510ND,HARNESS |
| JC39-01393A | HARNESS-FUSER_FR;ML-6510ND,HARNESS,UL 16 |
| JC39-01394A | HARNESS-FUSER_FU;ML-6510ND,HARNESS,UL 10 |
| JC39-01410A | HARNESS-FUSER_INSIDE_SEN;ML-6510ND,HARNE |
| JC39-01376A | HARNESS-HVPS;ML-6510ND,HARNESS,UL 10272, |
| JC39-01391A | HARNESS-HVPS_12PIN;ML-6510ND,HARNESS,UL |
| JC39-01389A | HARNESS-INLET;ML-6510ND,HARNESS,UL 1617, |
| JC39-01409A | HARNESS-JOINT;ML-6510ND,HARNESS,UL10272, |
| JC39-01349A | HARNESS-LSU;ML-6510ND,HARNESS,UL10272,32 |
| JC39-01383A | HARNESS-MP;ML-6510ND,HARNESS,UL 10272,5, |
| JC39-01400A | HARNESS-PANEL;ML-6510ND,HARNESS,UL 10272 |
| JC39-01398A | HARNESS-P_SIZE_JOINT;ML-6510ND,HARNESS,U |
| JC39-01375A | HARNESS-SCF;ML-6510ND,HARNESS,UL 10272,1 |
| JC39-01095A | HARNESS-SMPS FAN;CLX-9350ND,UL10272,3P,7 |
| JC39-01386A | HARNESS-SMPS_FAN;ML-6510ND,HARNESS,UL 10 |
| JC39-01374A | HARNESS-STACKER;ML-6510ND,HARNESS,UL 102 |
| JC39-01378A | HARNESS-TONER_BLDC;ML-6510ND,HARNESS,UL |
| JC39-01385A | HARNESS-TONER_CRUM_IF;ML-6510ND,HARNESS, |
| JC39-01384A | HARNESS-TONER_FAN;ML-6510ND,HARNESS,UL 1 |
| JC39-01388A | HARNESS-TONER_SEN;ML-6510ND,HARNESS,UL 1 |
| JC39-01392A | HARNESS-WTB_JOINT;ML-6510ND,HARNESS,UL 1 |
| 3711-005861 | HEADER-BOARD TO BOARD;BOX,40P,2R,0.8MM,S |
| 3711-000178 | HEADER-BOARD TO CABLE;1WALL,2P,1R,3.96MM |
| 3711-006435 | HEADER-BOARD TO CABLE;BOX,10P,1R,1.5MM,S |
| 3711-006436 | HEADER-BOARD TO CABLE;BOX,11P,1R,1.5MM,S |
| 3711-003340 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,STR |
| 3711-006442 | HEADER-BOARD TO CABLE;BOX,28P,2R,1.5MM,S |
| 3711-003981 | HEADER-BOARD TO CABLE;BOX,28P,2R,2MM,STR |
| 3711-006444 | HEADER-BOARD TO CABLE;BOX,34P,2R,1.5MM,S |
| 3711-000922 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-006432 | HEADER-BOARD TO CABLE;BOX,5P,1R,1.5MM,ST |
| 3711-005912 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.54MM,S |
| JC61-03905A | HOLDER-CONNECTOR_TONER;ML-6510ND,ABS,W31 |
| JC61-03840A | HOLDER-FAN_LSU;ML-6510ND,ABS,W97.5,L57.4 |
| JC61-03835A | HOLDER-FAN_SMPS;ML-6510ND,ABS+PC,W105.5, |
| JC61-03834A | HOLDER-FDB_LOWER;ML-6510ND,PC,W167.32,L1 |
| JC61-03946A | HOLDER-FOOT_LOWER;ML-6510ND,PC,W17.8,L7. |
| JC61-03909A | HOLDER-LOCKER;ML-6510ND,HIPS,T2.5,W200.1 |
| JC61-00785A | HOLDER-M-IDLE ROLLER;ML-2150,PC,BLK |
| JC61-01288A | HOLDER-M_IDLE ONE WAY;SCX-6345N/XRX,POM, |
| JC61-01625A | HOLDER-M_REAR_LEVER;SCX-5530FN,PC,NH-102 |
| JC61-03841A | HOLDER-ROLLER_CST;ML-6510ND,POM,W22,L27. |
| JC44-00196A | HVPS;24V,21.6V~27.6V,MAX 5KV, MAX-2KV |
| JC13-00020A | IC ASIC-ENGINE CONTROL;LPEC1,CLP-500,128 |
| JC13-00042B | IC ASIC-NCRUM2;S3CC921,ML-1650,8,2.7V-3. |
| 1001-000170 | IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP |
| 1205-002339 | IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150 |
| 0803-003263 | IC-CMOS LOGIC;74LCX07,HEX BUFFER,SOIC,14 |
| 0801-002403 | IC-CMOS LOGIC;74LCX08,AND GATE,TSSOP,14P |
| 0801-002446 | IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T |
| 0801-002379 | IC-CMOS LOGIC;74LCX16245,TRANSCEIVER,TSS |
| 0801-002095 | IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP |
| 0801-002326 | IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1 |
| 0801-000794 | IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0 |
| 1006-001250 | IC-LINE DRIVER;DS90LV017A,SOIC,8P,150MIL |
| 1006-001151 | IC-LINE TRANSCEIVER;90LV019,SOP,14P,157M |
| 1003-001535 | IC-MOTOR DRIVER;A3977SLP,TSSOP,28P,9.6X4 |
| 1201-000167 | IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V |
| 1203-001519 | IC-POSI.ADJUST REG.;LM317,SOT223,3P,274 |
| 1203-001455 | IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P |
| 1203-002454 | IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL |
| 1203-005024 | IC-PWM CONTROLLER;ISL88550AIRZ,TQFN,28P, |
| 0904-002093 | IC-USC;ISP1761BE,32BIT,LQFP,128P,20X14MM |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| JC70-10232D | IPR-E-PLATE SAW(MCK2);SCX-6320F,SUS304CS |
| JC70-00064A | IPR-PIN ROLLER EXIT;SUS304,SF-5100,L23,P |
| 3722-002591 | JACK-MODULAR;8P/8C,N,ANGLE,N,AU,1PORT |
| 3722-001051 | JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE |
| 3722-002303 | JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE |
| 3722-001174 | JACK-USB;4P/2C,SN,BLK,ANGLE,A TYPE |
| JC66-00976A | JOINT-M_RETARD;SCX-6345N/XRX,POM,T1.2,18 |
| JB64-00114E | KEY-POWER;ML-6510ND,ABS,WAVE GRAY+MILKY |
| JC64-00564B | KEY-STOP;ML-6510ND,ABS,28*26.5,HB,WAVE G |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-01584A | LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100 |
| JC68-00780A | LABEL(P)-CAUTION PRINTING;COMMON,WHITE P |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| 4713-001521 | LAMP-HALOGEN;115V,1300W,13X9.8X276 |
| JC07-00012A | LCD;VHF12642FL3W,ML-5050ND,128X64 DOTS,7 |
| 0601-001226 | LED;SMD(TOP VIEW),RED,1.2X0.8MM,660NM,1. |
| 0601-002432 | LED;SMD,GRN/YEL,1.6X1.50X0.55MM,574/591N |
| JC66-02837A | LEVER-ALIGN_DUPLEX;ML-6510ND,POM,GREEN |
| JC66-01966A | LEVER-EXPANDER;ML-5050ND,POM,12.60,27.2, |
| JC66-02627A | LEVER-PICK_UP;ML-6510ND,POM,W66,L29.5,GR |
| JC66-02621A | LEVER-STACKING;ML-6510ND,PC,BLACK |
| JC64-00547A | LOCKER-REAR L;ML-6510ND,POM,BLACK |
| JC64-00548A | LOCKER-REAR R;ML-6510ND,POM,BLACK |
| JC97-03777A | LSU;ML-6510ND,SEC,SINGLE,A4(LTR),600,L2, |
|
|
MEA UNIT-ROLLER PU;SCX-6345N/XRX,XEROX,- |
|
|
MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR |
|
|
MOTOR BLDC;2220 RPM,1400GF.CM,DC24V,2.1A |
|
|
MOTOR DC;NF213G-1020515,DC24V,CLX-8380ND |
| JC31-00045A | MOTOR GEARED-P LIFT;2.1RPM,1.5N.M,1/1513 |
| JC31-00110B | MOTOR STEP;M35SP-12N,CLX-9350,0.5A,24V,- |
| JC90-01014A | MP-LOWER RETARD;ML-6510ND,XEROX |
| JC90-01012A | MP-PICK UP;ML-6510ND,XEROX |
| JC90-01016B | MP-TRAY;ML-6510ND,SEC |
| JC90-01020A | MP;ML-6510ND,XEROX |
| JC97-03868D | OPE;ML-6512ND,XAA |
|
|
PAD-MP(PLUS);EPU,SCX-5315F,0.9T,W31*L11. |
| JC92-02057A | PBA-COVER_OPEN SENSOR;ML-4050/XRX,XEROX, |
| JC92-02345A | PBA-CRUM;ML-5510ND,SEC,CRUM |
| JC92-02163A | PBA-DEVE CRUM JOINT;CLX-9350,SEC,-,-,-,- |
|
|
PBA-ENGINE;ML-5510ND,SEC,LPEC3,5V/24V |
| JC92-02282A | PBA-JOINT;ML-5510ND,SEC,A3983SLP,24V/3.3 |
| JC92-02280B | PBA-MAIN;ML-6510ND,SEC,SPGPV4,5V/24V |
| JC92-02285A | PBA-OPE;ML-5510ND,SEC,S3C828BXZZ-TW8B,5V |
| JC92-01963A | PBA-TCRUM_IF;SCX-6555N,SEC,EXPORT,-,-,-, |
| JC92-02284A | PBA-USB HOST;ML-5510ND,SEC,USB |
| JC92-02340A | PBA-WASTE SENSOR TX;ML-5510ND,SEC,5V/3.3 |
| JC92-02376A | PBA-ZENER;ML-5510ND,XEROX |
| 0603-001021 | PHOTO TR;NPN,20V,5V,20MA,75MW,TP |
| 0604-001325 | PHOTO-INTERRUPTER;TR,BULK |
| JC61-03206A | PLATE-LEVER;CLX-9350,SECC,1.6T,73,60 |
| JC72-41191B | PMO-BEARING SHAFT;ML-2150,POM,BLK,DE8903 |
| JC72-00444A | PMO-HOLDER COLLIMATOR;ML-1710,PC,TRANSPA |
| JC72-00983A | PMO-LOCKER CST;ML-1710,POM(DELIN 900P),W |
| JB72-00845A | PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8 |
| JC72-01367E | PMO-STACKER_RX;ML-6510ND,ABS,HB,WAVE GRA |
| JC66-00899A | PULLEY-18_DUP;ML-3560,POM,HB,WHITE,?4.1 |
| JC66-00900A | PULLEY-M-18-DUMMY_DUP;ML-3560,POM,HB,WHI |
| 2001-000429 | R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000490 | R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2007-008433 | R-CHIP;0.33OHM,1%,1W,TP,6432 |
| 2007-000122 | R-CHIP;1.2KOHM,5%,1/10W,TP,1608 |
| 2007-000079 | R-CHIP;1.8KOHM,5%,1/10W,TP,1608 |
| 2007-002431 | R-CHIP;1.8OHM,5%,1/16W,TP,1005 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000305 | R-CHIP;10MOHM,5%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000116 | R-CHIP;120OHM,5%,1/10W,TP,1608 |
| 2007-008567 | R-CHIP;15.4KOHM,1%,1/10W,TP,1608 |
| 2007-000104 | R-CHIP;150KOHM,5%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-000092 | R-CHIP;15KOHM,5%,1/10W,TP,1608 |
| 2007-008505 | R-CHIP;17.8KOHM,1%,1/10W,TP,1608 |
| 2007-000132 | R-CHIP;180KOHM,5%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-000124 | R-CHIP;2.2KOHM,5%,1/10W,TP,1608 |
| 2007-000512 | R-CHIP;2.4KOHM,5%,1/10W,TP,1608 |
| 2007-000094 | R-CHIP;22KOHM,5%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000616 | R-CHIP;24KOHM,5%,1/10W,TP,1608 |
| 2007-007525 | R-CHIP;3.4KOHM,1%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-000745 | R-CHIP;30OHM,5%,1/4W,TP,3216 |
| 2007-009913 | R-CHIP;31.6KOHM,0.1%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000783 | R-CHIP;33OHM,5%,1/4W,TP,3216 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000083 | R-CHIP;3KOHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-000077 | R-CHIP;470OHM,5%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-000144 | R-CHIP;5.1KOHM,5%,1/16W,TP,1005 |
| 2007-000086 | R-CHIP;5.6KOHM,5%,1/10W,TP,1608 |
| 2007-008133 | R-CHIP;56.2KOHM,1%,1/10W,TP,1608 |
| 2007-001045 | R-CHIP;56OHM,5%,1/4W,TP,3216 |
| 2007-007222 | R-CHIP;6.04KOHM,1%,1/10W,TP,1608 |
| 2007-000099 | R-CHIP;62KOHM,5%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001134 | R-CHIP;68OHM,5%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-000088 | R-CHIP;7.5KOHM,5%,1/10W,TP,1608 |
| 2007-000121 | R-CHIP;820OHM,5%,1/10W,TP,1608 |
| 2008-000166 | R-FUSIBLE;56OHM,5%,1/4W,AA,TP,2.6X6.7MM |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001474 | R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 3501-000203 | RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6 |
| 6044-000107 | RING-C;ID2.5,OD6,T0.4,PASS,STS304 |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| 6044-000121 | RING-E;ID2,OD5,T0.4,PASS,STSC |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| 6044-000231 | RING-E;ID5.0,OD11.0,T0.6,PASS,STS304 |
| 6044-000129 | RING-E;ID6,OD12,T0.8,ZPC,STSC |
| JC73-40902A | RMO-SEAL AGITATOR;ML-7000,SANTOPRENE,NTR |
| JC66-02727A | ROLLER-HEAT;ML-6510ND,AL3304,49.45,270,G |
| JC61-03945A | ROLLER-IDLE_BELT;ML-6510ND,POM,W15.9,L8, |
| JC66-02718A | ROLLER-PRESSURE;ML-6510ND,SUM22L,50,226. |
| JC66-02729A | ROLLER-TRANSFER;ML-6510ND,EPDM/NBR, SUM |
| JC72-40981A | ROLLER;ML-165,POM,WHT,HB |
| JC72-20902A | ROLLER;ML-5000A,TEFLON,WHT |
|
|
RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE |
| JC73-00295A | RUBBER-PICK_UP;ML-2855ND,IR(EPDM),30,15, |
| JC73-00216A | RUBBER-ROLLER PU;SCX-6345N/XRX,EPDM+IR 3 |
| 6502-001132 | SADDLE;CS4N,11.6X8.8,NYLON66,BLACK |
| 6009-001665 | SCREW-HEX;HWH,+,M3,L6,ZPC(WHT),SWRCH18A, |
| 6009-001664 | SCREW-HEX;HWH,+,M3,L8,ZPC(WHT),SWRCH18A, |
| 6001-000130 | SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
| 6006-001193 | SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S |
| 6006-001038 | SCREW-MACHINE;PH,+,WSP,M4,L10,ZPC(WHT),S |
| 6009-001717 | SCREW-SPECIAL;HW,TORXPLUS 8IP,M3,L8.0,NI |
| 6002-000440 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6003-001474 | SCREW-TAPTYPE;BH,+,B,M3,L30,ZPC(WHT),SWR |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
| 6006-001078 | SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT) |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC62-00759A | SEAL-FILTER RIGHT;ML-6510ND,POLYURETHANE |
| JC32-00009A | SENSOR-CTD;KUA0057B,SCX-6555N,0TO+50C,0~ |
| JC32-00005A | SENSOR-HUMIDITY;CHS-CSC-20,CLP-660,0~50C |
| JC66-02731A | SHAFT-CAM;ML-6510ND,SUM22,317.65,6 |
| JC66-00661A | SHAFT-EXIT IDLE;SCX-6320F,SUM24L,PI 3.95 |
| JC70-40914A | SHAFT-ICT-PIN P/UP SHAFT;ML-5000A,SUM24L |
| JC66-00444A | SHAFT-IDLE ROLL, DUP;ML-2150,SUM24L,25,2 |
|
|
SHAFT;ML-5000A,SUS304,17.2,1.9,PI1.9 |
| JC66-00939A | SHAFT;SCX-6345N/XRX,SUS303,L8,OD2,NTR |
|
|
SMPS-V1;CLP-600,PSP TYPE5-V1,AC-DC,270W, |
| JC61-70959B | SPRING ETC--FEED;ML-5200A,SUS 304 WPB,F0 |
| JC61-00064A | SPRING ETC-CLAW;ML-5200A,SUS 304 WPB,F0. |
| JC61-70932A | SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16. |
| JC61-00387A | SPRING ETC-PAD;ML-9400W,SUS304WPB,PI0.5, |
| JC61-70935A | SPRING ETC-SEPERATE P/UP;ML-5000A,SUS304 |
| 6107-001237 | SPRING-ES;SUS304-WPB,P0.5,D4.5,L42,ID4,O |
| 6107-002624 | SPRING-ES;SWP B,PI1.5,L41.6,OD9.5,12,RIG |
| 6107-001259 | SPRING-ES;SWP-B,PI0.35,D4.25,L33.8,ID3.9 |
| 6107-001155 | SPRING-ES;SWP-B,PI0.55,L25,OD4.4 |
| 6107-001268 | SPRING-TS;SUS304 WPB,PI0.9,D8.9,L7,ID8.0 |
| 6107-001159 | SPRING-TS;SUS304,PI0.45,D3.85,L20,W10,ID |
| 6107-001160 | SPRING-TS;SUS304,PI0.45,D5.45,L19.8,W14. |
| 6107-001261 | SPRING-TS;SUS304-WPB,PI0.35,D5.15,L12/12 |
| 6107-002784 | SPRING-TS;SWP B,0.2,4.6,1 |
| 6107-001667 | SPRING-TS;SWP,SILVER COATING,PI0.75,ID3. |
| JC61-00832C | STOPPER-KNOCK UP;ML-S6510A/XRX,ABS,HF066 |
|
|
STOPPER-M-FAN80;ML-2150,ABS HB,26.4,BLAC |
| JC61-00656A | STOPPER-M-HINGE OPEN;ML-2150,ABS VO,19,L |
| JC61-03892A | STOPPER-PAPER_MP;ML-6510ND,POM,2.5,12.5, |
| 3405-001069 | SWITCH-MICRO;125V,5A,30GF,SPDT |
| JC34-00001A | SWITCH-SIGNAL;LEVER TYPE,PBT, POM, BSP,D |
| 3404-001222 | SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S |
| 0203-001100 | TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75, |
| JC65-00017A | TERMINAL-P-GND DUP;SCX-5530FN,C5210W,PI0 |
|
|
THERMISTOR-NTC ASSY;10KOHM,3435K,3MW/C |
| 1404-001453 | THERMISTOR-NTC ASSY;7KOHM,3370K |
| 1404-001567 | THERMISTOR-NTC ASSY;7KOHM,3370K,0.3MW/C, |
| 1404-001565 | THERMISTOR-NTC ASSY;7KOHM,3370K,0.3MW/C, |
| 1404-001065 | THERMISTOR-PTC;0.11OHM,13.2VAC,40A,1.5A, |
| 0506-001069 | TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT |
| 0506-001070 | TR-ARRAY;MBT3906DW1T1,PNP,2,150MW,SOT-36 |
| 0502-001258 | TR-POWER;FJT44,NPN,SOT-223,TP,40-200 |
| 0504-000144 | TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92, |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| JC63-02096C | TRAY-EXTENSION_MP;ML-6510ND,HIPS,2.0,212 |
| 6031-001255 | WASHER-PLAIN;NYLON,CUTTING,ID5,OD9,T0.5, |
| 6031-000023 | WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK |
