Model Image
Manufacturer

Samsung

Model Number

ML2251N

Description

Ml-2251n Monochrome Laser Printer

Interactive Exploded View

Parts List

Part Number Description
JC70-00300A ADJUST-M-CASSETTE_L: ML-1400,ABS,-,BL
JC70-00301A ADJUST-M-CASSETTE_R: ML-1400,ABS,-,BL
JC70-00478A ADJUST-M-MP L: ML-2250,ABS,133,67,-
JC70-00479A ADJUST-M-MP R: ML-2250,ABS,133,67,-
JC66-10901A JC66-10901A BEARING-PRESSURE/R: ML-165,PPS,5,14.8
JC69-00569F BOX(P)-MAIN_HB2: ML-2251N/XAA,SW, A,A1,45
JC61-00913A BRACKET-P-FEED R2: SCX-4920,SECC,1.0,80,5
JC61-00601A BRACKET-P-INLET: ML-1400,SECC,1,128,23,
JC61-00916A BRACKET-P-MOTOR MAIN R2: SCX-4920,SECC,1.
JC61-00902A BUSH-M-F/DOWN R2: SCX-4920,POM,-,BLK,
JC61-00585A BUSH-M-FEED IDLE: ML-1400,POM(M90-44),-
JC61-00888A JC61-00888A BUSH-M-HR L_R2: SCX-4920,PPS(RBA313N),35,
JC61-00887A JC61-00887A BUSH-M-HR R_R2: SCX-4920,PPS(RBA313N),35,
JC61-00586A BUSH-M-PICK_UP L: ML-1400,POM(M90-44),-
JC61-00587A BUSH-M-PICK_UP R: ML-1400,POM(M90-44),-
JC61-00588A JC61-00588A BUSH-M-TR L: ML-1400,POM(M90-44),-,BL
2402-001042 C-AL,SMD
2402-000176 C-AL,SMD: 10UF,20%,16V,GP,5353,1.4MM,TP
2402-001106 C-AL,SMD: 33UF,20%,50V,WT,TP,8.3X8.3X10
2203-000681 C-CERAMIC,CHIP
2203-000783 C-CERAMIC,CHIP
2203-000206 C-CERAMIC,CHIP: 100NF,10%,50V,X7R,2012,
2203-000257 C-CERAMIC,CHIP: 10NF,10%,50V,X7R,1608,T
2203-000384 C-CERAMIC,CHIP: 15PF,5%,50V,CH,1608,TP
2203-000440 C-CERAMIC,CHIP: 1NF,10%,50V,X7R,1608,TP
2203-002392 C-CERAMIC,CHIP: 220NF,+80-20%,50V,Y5V,TP,
2203-001607 C-CERAMIC,CHIP: 220PF,5%,50V,CH,1608,1.6M
2203-002398 C-CERAMIC,CHIP: 22NF,10%,50V,X7R,TP,1608,
2203-000626 C-CERAMIC,CHIP: 22PF,5%,50V,CH,1608,TP
2203-001683 C-CERAMIC,CHIP: 68PF,5%,50V,CH,1608,1.6MM
2203-000041 C-CERAMIC,CHIP: TC,10PF,+-0.25PF,50V,COG,
2404-000284 C-TA,CHIP
6502-001093 CABLE CLAMP: DAWS-3NE,ID11*L34.8,NYLON6
6501-000004 CABLE_TIE: DA-80,NONE,T1,W2.5,L80,NTR,NYL
JC66-00711A CAM-M-PICK UP MP: ML-2250,POM,28*24*17,
JC66-00377A CAM-M-PICK_UP: ML-1400,POM(M90-44),-,NT
JC67-00068A CAP-M-SUB ACTUATOR: ML-2250,HIPS,20,60,
JC39-00184A CBF HARNESS-ADF_DET SEN.: SCX-5100,WIRE H
JC39-00240B CBF HARNESS-ENGINE: ML-1750,CBF,UL1061,26
JC39-00353A CBF HARNESS-FUSER 110V: SCX-4920N,CBF,UL3
JC39-00375A CBF HARNESS-LSU GND: SCX-4920N,CBF,UL1007
JC39-00396A CBF HARNESS-LSU: ML-2250,#26,UL 1061 / UL
JC39-00355A CBF HARNESS-MOTOR: SCX-4920N,CBF,UL1061,4
JC39-00365A CBF HARNESS-MPF SEN: SCX-4720F,CBF,UL1061
JC39-00348A CBF HARNESS-OPE: SCX-4920N,CBF,UL1061,5PI
JC39-00373A CBF HARNESS-PTL: ML-2250,CBF,UL1061,2P,37
3903-000085 3903-000085 CBF-POWER CORD: DT,US,BP3/YES,I(IEC C13/C
3711-003942 CONNECTOR-HEADER: BOX,2P,1R,2MM,STRAIGHT,
3711-004349 CONNECTOR-HEADER: BOX,3P,1R,2MM,STRAIGHT,
3711-004379 CONNECTOR-HEADER: BOX,4P,1R,2MM,STRAIGHT,
3711-000988 CONNECTOR-HEADER: BOX,5P,1R,2.0MM,ANGLE,S
3711-000015 CONNECTOR-HEADER: BOX_LATCH,2P,1R,2.5MM,S
3702-001121 CONNECTOR-RIBBON: 60P,MALE,STRAIGHT,AUF
3301-000317 CORE-FERRITE BEAD: AB,2X1.25X0.9MM,-
JC63-00439A COVER-M-FACE UP H2: ML-2250,ABS,2.5,279.2
JC63-00433A COVER-M-FRONT H2: ML-2250,ABS,2.5,357,181
JC63-00363A COVER-M-FUSER R2: SCX-4920,PET+GF30%,68,5
JC63-00436A COVER-M-MIDDLE H2: ML-2250,HIPS,2.5,335.7
JC63-00438A COVER-M-REAR H2: ML-2250,ABS,2.5,318.5,26
JC63-00431A COVER-M-REAR OPEN: ML-2250,HIPS,2.5,323,1
JC63-00432A COVER-M-SIDE L_H2: ML-2250,HIPS,2.5,348.2
JC63-00430A COVER-M-SIDE R_H2: ML-2250,HIPS,2.5,348.2
JC63-00434A COVER-M-SMPS REAR: ML-2250,HIPS,2.5,287.2
JC63-00441A COVER-M-SUB CASSETTE H2: ML-2250,HIPS,2.5
JC63-00540A COVER-M_TOP H2(N): ML-2251N,ABS,2.5,335.7
2801-003582 CRYSTAL-UNIT: 30MHZ,50PPM,28-AAA,18PF,80O
0407-000101 DIODE-ARRAY: DA204K,20V,100MA,C2-3,SOT-2
0402-000129 DIODE-RECTIFIER: 1N4003,200V,1A,DO-41
0404-000112 DIODE-SCHOTTKY: RB420D,25V,100MA,SOT-23,T
0401-000122 DIODE-SWITCHING: 1SS355,40V,100MA,150MW,4
JC96-03130A ELA HOU-FRAME_110V HB2: ML-2250,SEC,FRA

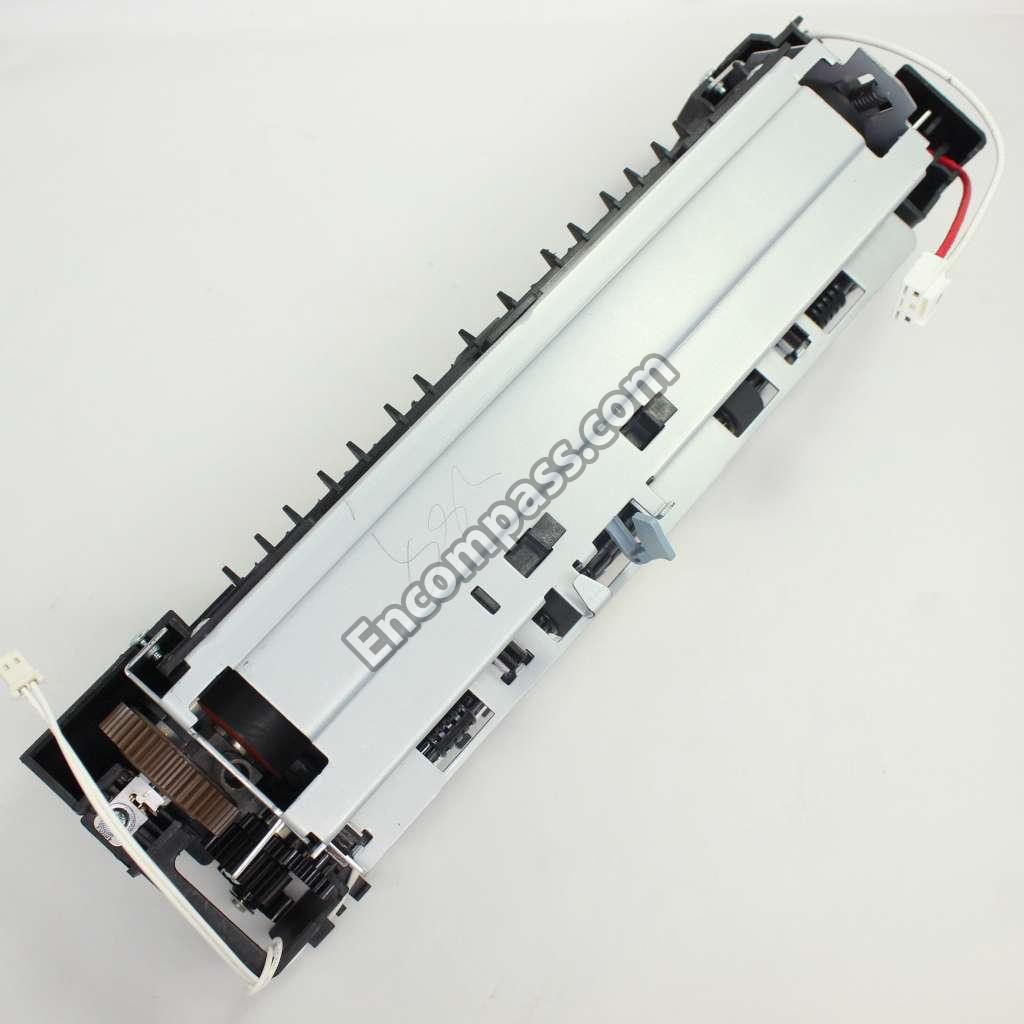

JC96-03105B JC96-03105B ELA HOU-FUSER
JC96-02699D ELA HOU-NPC3_PRT: ML-2250,SEC,NPC,10/100B
JC96-03111B ELA HOU-SMPS
JC96-03132A ELA UNIT-MP: ML-2250,SEC,MP,-,-
JC96-03078A ELA UNIT-RX DRIVE: SCX-4920N,DELL,DRIVE
JC31-00025A FAN-DC: AD0624MSA70GL(R1)DOL,MLC-500,PBT+
2901-001178 FILTER-EMI SMD: 25V,2A,100000PF,2X1.25X
JC61-00835A FOOT-BACK: ML-1750,NBR,D13.6,10.5,-
JC61-00836A FOOT-FRONT: ML-1750,NBR,D7,12,-
JC61-00906A FRAME-M-BASE R2: SCX-4920,ABS,V0,BLK,
JC61-00923A FRAME-M-MP: ML-2250,ABS,-,2.5,79.5,31
JC61-00890A FRAME-P-FUSER R2: SCX-4920,SECC,-,1.2
JC66-00381A GEAR-AGITATOR: ML-1400,POM,0.6,22,-,-
JC66-00384A GEAR-DEVE ROLLER: ML-1400,DELIN 500CL,0.8
JC66-00038A GEAR-EXIT F/DOWN: ML-4500,POM,WHT,-
JC66-00393A GEAR-FEED 1: ML-1400,POM(M90-44),-,NT
JC66-00394A GEAR-FEED 2: ML-1400,POM(M90-44),-,NT

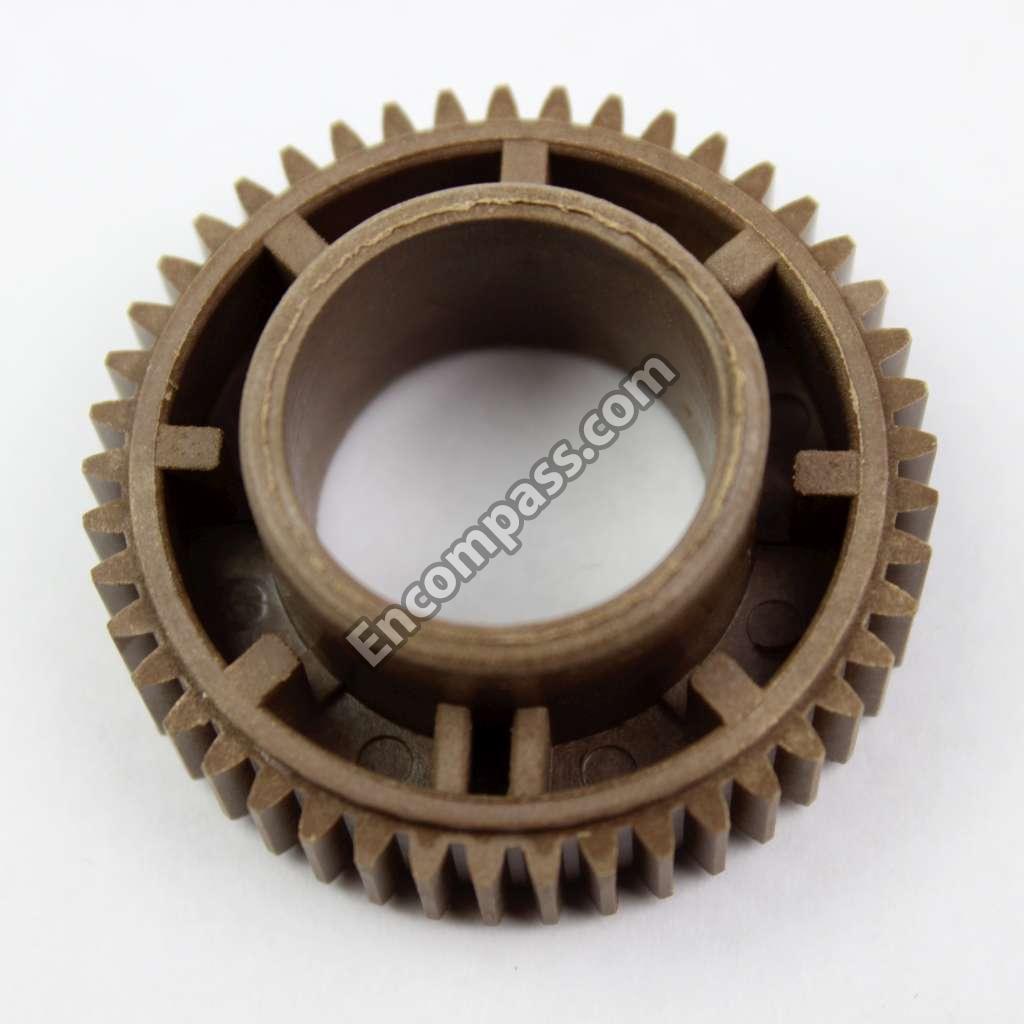

JC66-00695A JC66-00695A GEAR-FUSER R2: SCX-4920,PPS(OFL4036),0.8,
JC66-00396A JC66-00396A GEAR-IDLE 23: ML-1400,POM(M90-44),0.8,23,
JC66-00386A GEAR-OPC L: ML-1400,POM,0.6,30,6.3 / 10,-
JC66-00012A GEAR-OPC R: SF-5100,POM(M90-44),BLK,M0.6,
JC66-00704A GEAR-PICK UP A_R2: SCX-4920,PPS,0.8,33,
JC66-00705A GEAR-PICK UP B_R2: SCX-4920,PPS,0.8,33,
JG66-40003A GEAR-PINION: SF4000,POM,WHT,M1,Z16
JC66-00706A GEAR-RDCN 113/33: SCX-4920,POM,0.4/0.6,11
JC66-00397A GEAR-RDCN 25/15: ML-1400,POM(M90-44),25
JC66-00388A GEAR-RDCN 53/26: ML-1400,POM(M90-44),53
JC66-00389A JC66-00389A GEAR-RDCN 57/18: ML-1400,POM(M90-44),57
JC66-00392A GEAR-RDCN 90/31: ML-1400,POM(M90-44),90
JC66-00395A GEAR-TRANSFER: ML-1400,POM(M90-44),-,
JC63-00403A GROUND-P-TERMINAL TR: SCX-4920,SUS301,0.4
JC61-00918B GUIDE-M-EXTENSION L2: ML-2250,HIPS,150,
JC61-00937A GUIDE-M-KNOCK UP: ML-1750,POM,60,15,-
JC61-00594A GUIDE-M-TR RIB: ML-1400,PC+ABS,-,BLK,
JC61-00607A GUIDE-P-TR : ML-1400,SECC,0.5,241,95,-
JC61-00829A JC61-00829A HOLDER-BEARING EXIT F/DOWN: SCX-4216F,POM
JC61-00912A HOLDER-M-ACT MANUAL R2: SCX-4920,ABS,47
JC61-00580A HOLDER-M-PAD: ML-1400,PC(NH-1023),-,-
JC61-00924A HOLDER-M-PAD_MP: ML-2250,PC+ABS,47,34,-
JC61-00886A HOLDER-M-PLATE CLAW R2: SCX-4920,PPS+GF40
JC61-00907A HOLDER-M-PTL R2: SCX-4920,PC,2,15.8,15.3,
JC61-00926A HOLDER-M-SENSOR_MP: ML-2250,ABS,25,32.4
JC61-00908A HOLDER-M-TERMINAL R2: SCX-4920,ABS,60,4
JC61-00910A HOUSING-M-PICK UP2_R2: SCX-4920,PC,53,2
JC61-00909A HOUSING-M-PICK UP_R2: SCX-4920,PC,20,30
JC61-00911A HOUSING-M-TERMINAL R2: SCX-4920,ABS,58.
JC61-00925A HOUSING-M_PICK UP_MP: ML-2250,PC,20,30,
JC13-00014C IC ASIC-SPGPM(3): SPGPM_D,SCX-6320F,256PI
JC13-00015A IC ASIC-WIRELESS LAN: NETONE,ML-8550N,180
1205-002339 IC-CLOCK GENERATOR: CY25811SC,SOIC,8P,150
0801-002446 IC-CMOS LOGIC: 74LCX14,SCHMITT INVERTER,T
0801-002095 IC-CMOS LOGIC: 74LCX245,BUFFERS,SOP,20P,-
0801-000794 IC-CMOS LOGIC: 7S08,AND GATE,SOP,5P,64MIL
0801-002143 IC-CMOS LOGIC: 7S32,OR GATE,SOP,5P,49.3MI
0801-002591 IC-CMOSLOGIC: 74LVX273,DFLIP-FLOP,TSSOP,2
1105-001464 IC-DRAM: K4S641632F,4MX16BIT,TSOP(II),54P
1105-001390 IC-DRAM: K4S641632F,4X1MX16BIT,TSOP(II)
1103-001279 IC-EEPROM: 24256,4KX8BIT,SOP,8P,150MIL,
1103-001228 IC-EEPROM: FM93C66LM8,256X16BIT,SOP,8P,15
1006-001224 IC-LINE TRANSCEIVER: 74LVX161284,TSSOP,48
1003-001535 IC-MOTOR DRIVER: A3977SLP,TSSOP,28P,9.6X4
1203-002220 IC-POSI.ADJUST REG.: LD1117,DPAK,3P,240MI
1203-001455 IC-POSI.FIXED REG.: 1117,DPAK,3P,265MIL,P
1202-000164 IC-VOLTAGE COMP.: 393,SOP,8P,150MIL,DUAL,
JC70-00307A IPR-P-EARTH TRANSFER: ML-1400,SECC,1.0T
JC70-00314A JC70-00314A IPR-PLATE PAD: ML-1400,SUS304-CSP,0.1,-
3722-001319 JACK-MODULAR: 8P/8C,AU30U,BLK,NO
3722-001101 JACK-USB: 4P/2C,8.38MM,AU,IVR,#22-28
JC64-00039A KEY-M-ON LINE: ML-1400,PMMA,-,TRP,-
4713-001182 LAMP-HALOGEN: 115V,600W,-,6X284MM
0601-001619 LED: CBI,RED/GRN,3MM,635/568NM,6.35X7X6MM
0601-000003 LED: ROUND,RED/GRN,3.1MM,650/563
JC67-00026A LENS LED-M-LED: ML-1400,PMMA,CLEAR,-,
BN94-01666B LENS-PTL: ML-1400,PC,NTR,-,-
JC97-01917A MEA ETC-TR: SCX-4920N,DELL,TR ASS'Y,-
JC97-01034A JC97-01034A MEA RACK-EXIT ROLLER: ML-1605,SUMSUNG,KOR
JC97-01927A MEA UNIT-ACT FEED: SCX-4920N,DELL,ACT F
JC97-01928A MEA UNIT-ACT MANUAL: SCX-4920N,DELL,ACT
JC97-01925A MEA UNIT-BRACKET FEED: SCX-4920N,DELL,B
JC97-01955A MEA UNIT-CASSETTE HB2: ML-2250,SEC,CASS
JC97-01788A JC97-01788A MEA UNIT-CLUTCH: ML-1710,SAMSUNG,-,-,
JC97-01954A MEA UNIT-COV REAR H2: ML-2250,SEC,COVER
JC97-01950A MEA UNIT-COVER FRONT: ML-2250,SEC,COVER
JC97-01952A MEA UNIT-COVER MID H2: ML-2250,SEC,COVE
JC97-01929A MEA UNIT-GEAR PICK UP: SCX-4920N,DELL,G
JC97-01931A JC97-01931A MEA UNIT-HOLDER PAD: SCX-4920N,DELL,HOL
JC97-01926A JC97-01926A MEA UNIT-PICK UP: SCX-4920N,DELL,PICK U
JC97-01930A MEA UNIT-ROLLER EXIT: SCX-4920N,DELL,RO
JC97-01966A MEA UNIT-SHIELD: ML-2250,SEC,SHIELD ASS
JC97-02015A MEA-COVER TOP H2N: ML-2251N,SEC,COVER T
JC97-02034A JC97-02034A MEA-PICK UP_MP: ML-2250,SEC,PICK UP-MP
JC75-00095A JC75-00095A MEC- BRUSH ANTISTATIC: ML-6060A,SEC,NTR
JC75-00049A MEC-TERMINAL: SF-5100,SAMSUNG,IVR
JC31-00037A MOTOR STEP-MAIN: M55SP-2NK,SCX-4920N,1.2A
JC92-01595A PBA MAIN-CONTROLLER: ML-2250,XAA,110V,-
JC92-01439A PBA MAIN-PANEL: ML-1400,SEC,PANEL B`D,-
JC92-01849A PBA SUB-EXIT SENSOR: SCX-4920N,SEC,KOREA,
JC92-01466A PBA SUB-NPC3_PRT: ML-2151N, , ,10
JC92-01621A PBA SUB-PTL: ML-2250,SEC,KOREA,PTL,-,
0604-001415 0604-001415 PHOTO-INTERRUPTER: TR,90%,150MW,DIP-4,BK
JC61-00604B PLATE-E_SAW: SF-755P,SUS304-CSP,0.15,16,2
JC61-00606A PLATE-P-CHANNEL: ML-1400,SECC,1,-,-
JC72-01323A PMO-ACT FEED R2: SCX-4920,ABS,BLK,60*12*1
JC72-01324A PMO-ACT MANUAL R2: SCX-4920,ABS,BLK,50*20
JC72-00974A PMO-ACTUATOR CVR OPEN: ML-1400,ABS,BLK,
JC72-00975A PMO-ACTUATOR EMPTY: ML-1400,ABS,BLK,-,H
JC72-01319A JC72-01319A PMO-ACTUATOR EXIT R2: SCX-4920,PC+GF20%,B
JC72-00382B PMO-BUSHING FEED: ML-1710,DELRIN8903,WHIT
JC72-41051A PMO-BUSHING RIGHT: ML-6000,POM(M90-44),BL
JC72-00102A JC72-00102A PMO-BUSHING_TR(L): SF-5100,POM ,BLK,-
JC72-40232A PMO-CAP AGITATOR: ML-80,PP,BLK,-
JC72-00978A PMO-COLLAR_SPRING: ML-1400,POM(M90-44),NT
JC72-00971A PMO-EXTENSION SMALL: ML-1400,HIPS(HR-1360
JC72-41006A PMO-HOLDER EXIT ROLL: ML-165,PC,BLK,HB,-
JC72-00982A PMO-IDLE PICK_UP: ML-1400,POM(M90-44),NTR
JC72-00983A PMO-LOCKER CST: ML-1400,POM,BLK,-,-,-
JC72-01338A PMO-M-ACT EMPTY MP: ML-2250,ABS,BLK,55.3*
JC72-00984A JC72-00984A PMO-PLATE GUIDE DEVE_L: ML-1400,POM(M90-4
JC72-00985A JC72-00985A PMO-PLATE GUIDE DEVE_R: ML-1400,POM(M90-4
JC72-00972A PMO-PLATE_LOCKER: ML-1400,POM(M90-44),WHT
JC72-00761A PMO-ROLLER CAM.MP: SCX-5100,POM,WHT,-
JC72-41007A PMO-ROLLER FD F: ML-165,POM,BLK,HB,-
JC72-01325B JC72-01325B PMO-STACKER RX H2: ML-2250,ABS ,WHITE,-
2001-000935 R-CARBON: 68OHM,5%,1/4W,AA,TP,2.4X6.4MM
2007-000729 R-CHIP
2007-000123 R-CHIP: 1.5KOHM,5%,1/16W,DA,TP,1608
2007-000074 R-CHIP: 100OHM,5%,1/16W,DA,TP,1608
2007-000090 R-CHIP: 10KOHM,5%,1/16W,DA,TP,1608
2007-002901 R-CHIP: 12.1KOHM,1%,1/16W,DA,TP,1608
2007-000116 R-CHIP: 120OHM,5%,1/16W,DA,TP,1608
2007-000091 R-CHIP: 12KOHM,5%,1/16W,DA,TP,1608
2007-000403 R-CHIP: 150OHM,5%,1/8W,DA,TP,3216
2007-000067 R-CHIP: 15KOHM,1%,1/16W,DA,TP,1608
2007-000078 R-CHIP: 1KOHM,5%,1/16W,DA,TP,1608
2007-000472 R-CHIP: 1KOHM,5%,1/8W,DA,TP,3216
2007-000475 R-CHIP: 1MOHM,1%,1/16W,DA,TP,1608
2007-000106 R-CHIP: 220KOHM,5%,1/16W,DA,TP,1608
2007-000094 R-CHIP: 22KOHM,5%,1/16W,DA,TP,1608
2007-000071 R-CHIP: 22OHM,5%,1/16W,DA,TP,1608
2007-000669 R-CHIP: 2KOHM,1%,1/16W,DA,TP,1608
2007-000683 R-CHIP: 3.3KOHM,1%,1/16W,DA,TP,1608
2007-000082 R-CHIP: 3.3KOHM,5%,1/16W,DA,TP,1608
2007-000096 R-CHIP: 30KOHM,5%,1/16W,DA,TP,1608
2007-000076 R-CHIP: 330OHM,5%,1/16W,DA,TP,1608
2007-000134 R-CHIP: 33KOHM,5%,1/16W,DA,TP,1608
2007-000113 R-CHIP: 33OHM,5%,1/16W,DA,TP,1608
2007-007726 R-CHIP: 35.7OHM,1%,1/16W,DA,TP,1608
2007-000084 R-CHIP: 4.7KOHM,5%,1/16W,DA,TP,1608
2007-000097 R-CHIP: 47KOHM,5%,1/16W,DA,TP,1608
2007-000965 R-CHIP: 5.1KOHM,5%,1/16W,DA,TP,1608
2007-000086 R-CHIP: 5.6KOHM,5%,1/16W,DA,TP,1608
2007-001073 R-CHIP: 6.8KOHM,5%,1/8W,DA,TP,3216
2007-007445 R-CHIP: 9.09KOHM,1%,1/16W,DA,TP,1608
2011-001094 R-NETWORK: 39OHM,+-5%,1/16W,L,PLCC,8P,TP
2005-000168 R-WIRE WOUND,NON: 0.22OHM,5%,2W,AA,BK,4X1
6044-000125 RING-E: ID4,OD9,T0.6,PASS,STSC
JC73-40915A RMO-RUBBER EXIT: SF-5800P,EPDM,12.2PI,BLK
JC73-00017A RMO-RUBBER_EXIT: SF-5100,EPDM,11.8X13.8X2
JC66-00378A ROLLER-EXIT F/DOWN: ML-1400,PC(NH-1023),1
JC66-00598A ROLLER-FEED : ML-1710,SUM24L+EPDN,3/14.5,
JC66-00526A JC66-00526A ROLLER-FEED ROLLER 1: ML-1510,SUM24L+EPDM
JC66-00729A ROLLER-HEAT: SCX-4720F,AL + PFA COAT,24.7
JC66-00380A ROLLER-M-EXIT F/UP: ML-1400,PC(NH-1023),1
JC66-00529A JC66-00529A ROLLER-M-IDLE FEED: ML-1510,POM,13,13,-
JC66-00600B ROLLER-PRESSURE_CHINA: ML-1710/XIL,SPONGE
JC66-00700A ROLLER-SUPPLY R2: SCX-4920,SUM24L+SILICON
JC66-00703A ROLLER-TRANSFER R2: SCX-4920,SUM24L+NBR,1
JC73-00140A JC73-00140A RPR-FRICTION PAD: ML-1510,NBB,1T 10*45,60
JC73-00141A JC73-00141A RPR-PAD CASSETTE: ML-1510,NBB,1T 10*45,52
JC73-00194A JC73-00194A RUBBER-PICK UP MP: SCX-4720F,EPDM + IR,
6006-001193 SCREW-ASSY MACH: WSP,PH,+,M3,10,ZPC(YEL),
6001-000568 SCREW-MACHINE: PH,+,M3,L8,NI PLT,SM20C,-
6002-000175 SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL),SM2
6003-000282 6003-000282 SCREW-TAPTITE: BH,+,B,M3,L8,ZPC(BLK),SWCH
6003-000269 6003-000269 SCREW-TAPTITE: BH,+,S,M3,L6,ZPC(YEL),SWRC
6003-000196 SCREW-TAPTITE: PWH,+,B,M3,L10,NI PLT,SWRC
6003-000264 SCREW-TAPTITE: PWH,+,B,M3,L6,ZPC(YEL),SWR
JC66-00527A SHAFT-FEED IDLE: ML-1510,SUM24L,225,8,-
JC66-00398A SHAFT-FEED: ML-1400,POM+GF20%,-,-,-
JC66-00720A SHAFT-P-CORE: ML-1750,SECC 1.6T,220,-,-
JC66-00399A SHAFT-P-PICK_UP: ML-1400,SECC,-,-,0.8
JC44-00068A SMPS-V1(XAA): ML-2250,AC/DC,45.7W,100-1
JC33-00014A SOLENOID-FEED ROCKY2:, SCX-4920,DC24V,
JC33-00010A SOLENOID-HB (MANUAL):, ML-1510,DC24V,-
JC33-00015A SOLENOID-MP:, ML-2250,DC24V,-,-,300M
JC72-01231A JC72-01231A SPONGE-ROLLER PICK_UP: ML-1510,URETHAN FO
JG61-70549A SPRING-CIS(C2): SF4400,SUS304WPB,PI0.8,D1
JC61-00064A SPRING-CLAW: ML-5200A,SUS 304 WPB,0.2,D
6107-001167 SPRING-CS: SUS304-WPB,PI0.25,D3.25,L9.6
6107-001166 SPRING-CS: SUS304-WPB,PI0.65,D12.65,L55
6107-001168 SPRING-CS: SWP-B,PI1,D4.9,L16,-,D3.9,
6107-001047 SPRING-ES: PI0.45,D2.75,L24.2,SUS304
6107-001237 SPRING-ES: SUS304-WPB,P0.5,D4.5,L42,-
JC61-70911A SPRING-EXIT ROLL FD: ML-165,SUS304 WPB,PI
JC61-70932A SPRING-GUIDE DEVE: ML-5000A,SUS304 WPB,PI
JG61-70531A SPRING-LOCKER,PLATE: SF6000,STS304WPB,PI0
JC61-00047A SPRING-TR L HAWK: ML-6060A,SUS 304 WPB,
JC61-70958A SPRING-TR: ML-5000A,SUS304 WPB,PI0.5,D4.5
6107-001164 6107-001164 SPRING-TS: SUS304-WPB,PI0.15,D3.75,L12,
6107-001165 SPRING-TS: SUS304-WPB,PI0.2,D4,-,ID
6107-001171 SPRING-TS: SWP-A,0.8,D14.2,-,ID13.6
6107-001170 SPRING-TS: SWP-B,PI0.8,D6,-,ID5.2,O
JC61-00915A STOPPER-M-PICK UP_R2: SCX-4920,POM(M90-44
3404-000165 SWITCH-TACT: 12V,50MA,160GF+-50GF,6X6MM,S
0504-000111 TR-DIGITAL
0501-000457 TR-SMALL SIGNAL
0501-000150 TR-SMALL SIGNAL: 2SA1037AK,PNP,-50V,-50V,
0501-000279 TR-SMALL SIGNAL: KSA1182,PNP,-35V,-30V,-5
0501-000338 TR-SMALL SIGNAL: KSC1623,NPN,60V,50V,150M
JC63-00445A TRAY-M-CASE_MP: ML-2250,ABS,262.5,130,-
JC63-00446A TRAY-M-COVER_MP: ML-2250,HIPS,260,127,-
JC63-00447A TRAY-M-EXIT_MP: ML-2250,HIPS,264,119,
JC63-00444A JC63-00444A TRAY-M-LINK_MP: ML-2250,PC,2,74.6,9.3,-
JC59-00018B UNIT-LSU HUMMINGBIRD2: SCX-4920,-,600DP
6031-000023 WASHER-PLAIN:, ID5.9,OD10.0,T0.5,BLK,POL
Main Menu x
