Manufacturer
Samsung
Model Number
ML2571N
Description
Ml-2571n Black & White Workgroup Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC66-01257A | ACTUATOR-EMPTY: ML-2571N,PC,38.2,126, |
|
|
ACTUATOR-FEED SENSOR: ML-2571N,PC,22.2, |
| JC66-01242A | ACTUATOR-M_JAM: ML-2571N,PC,49,75,BLK |
| JC70-00527A | ADJUST-CASSETTE_L: ML-2571N,ABS,2.5T,124. |
| JC70-00528A | ADJUST-CASSETTE_R: ML-2571N,ABS,2.5T,124. |
| JC70-00514C | ADJUST-MP L: ML-2571N,HIPS,2.5,127.8,90,B |
| JC70-00515C | ADJUST-MP R: ML-2571N,HIPS,2.5,127.8,90,B |
| 6902-000455 | BAG CONDUCTIVE: LDPE,T0.2,W200,L410,BLK |
| 6902-000437 | BAG PE: HDPE,T0.015,W900,L800,TRP,8,4PE M |
|
|
BEARING-PRESSURE/R: ML-165,PPS,5,14.8 |
| JC69-00978K | BOX-MAIN: ML-2571N/XAA,OFFSET3,A-1,344,41 |
|
|
BUSH-M-HR L_R2: SCX-4920,PPS(RBA313N),35, |
|
|
BUSH-M-HR R_R2: SCX-4920,PPS(RBA313N),35, |
| 2402-001106 | C-AL,SMD: 33UF,20%,50V,WT,TP,8.3X8.3X10 |
| 2402-000173 | C-AL,SMD: 4.7UF,20%,35V,4.3X4.3X5.4MM, |
| 2203-000783 | C-CERAMIC,CHIP |
| 2203-000257 | C-CERAMIC,CHIP: 10NF,10%,50V,X7R,1608,T |
| 2203-000384 | C-CERAMIC,CHIP: 15PF,5%,50V,CH,1608,TP |
| 2203-000440 | C-CERAMIC,CHIP: 1NF,10%,50V,X7R,1608,TP |
| 2203-000491 | C-CERAMIC,CHIP: 2.2NF,10%,50V,X7R,1608, |
| 2203-002392 | C-CERAMIC,CHIP: 220NF,+80-20%,50V,Y5V,TP, |
| 2203-001607 | C-CERAMIC,CHIP: 220PF,5%,50V,CH,1608,1.6M |
| 2203-002398 | C-CERAMIC,CHIP: 22NF,10%,50V,X7R,TP,1608, |
| 2203-000626 | C-CERAMIC,CHIP: 22PF,5%,50V,CH,1608,TP |
| 2203-005384 | C-CERAMIC,CHIP: 4700NF,+80-20%,10V,Y5V,TP |
| 2203-000041 | C-CERAMIC,CHIP: TC,10PF,+-0.25PF,50V,COG, |
| JC66-01258A | CAM-PICK_UP: ML-2571N,POM,22.8,21.5,NTR,- |
| JC39-00401A | CBF HARNESS-FUSE: ML-1610,WIRE HARNESS,UL |
| JC39-00404A | CBF HARNESS-FUSER JOINT |
| JC39-00403A | CBF HARNESS-FUSER(110V) |
| JC39-00400A | CBF HARNESS-HVPS |
| JC39-00482A | CBF HARNESS-MICRO SW: ML-2010,WIRE HARNES |
| JC39-00405A | CBF HARNESS-MOTOR |
|
|
CBF-POWER CORD: DT,US,BP3/YES,I(IEC C13/C |
| 3711-003035 | CONNECTOR-HEADER: BOX,14P,2R,2MM,STRAIGHT |
| 3711-003942 | CONNECTOR-HEADER: BOX,2P,1R,2MM,STRAIGHT, |
| 3711-003968 | CONNECTOR-HEADER: BOX,3P,1R,2.5MM,STRAIGH |
| 3711-002001 | CONNECTOR-HEADER:, 20P,2R,2MM,STRAIGHT,S |
| 3301-000319 | CORE-FERRITE BEAD: AB,2.0X1.25X0.9MM,1000 |
| 3301-000317 | CORE-FERRITE BEAD: AB,2X1.25X0.9MM,- |
| JC63-01103A | COVER-M_JAM: ML-2571N,HIPS,2.5,83,222,HB, |
| JC63-01119A | COVER-M_PAPER: ML-2571N,ABS,2.5,270,138,H |
| JC63-01106A | COVER-M_SIDE L: ML-2571N,HIPS,2,288,239,- |
| JC63-01105A | COVER-M_SIDE R: ML-2571N,HIPS,2,288,239,- |
| JC63-01107A | COVER-M_SMPS: ML-2571N,PC/ABS,2,312.5,231 |
| 0407-000122 | DIODE-ARRAY: 1SS226,80V,300MA,C2-3,SOT-23 |
| 0402-000129 | DIODE-RECTIFIER: 1N4003,200V,1A,DO-41 |
| 0404-000112 | DIODE-SCHOTTKY: RB420D,25V,100MA,SOT-23,T |
|
|
ELA HOU-FUSER: ML-2571N,SAMSUNG,LAMP,11 |
| JC96-04023A | ELA UNIT-FRAME_LOWER: ML-2571N,SAMSUNG, |
|
|
ELA UNIT-HOLDER TR L: ML-6060A,SAMSUNG,SE |
| JC96-04065A | ELA UNIT-LSU: ML-2570,-,25PPM,600DPI,SI |
| JC96-04033A | ELA UNIT-RX DRIVE: ML-2571N,SAMSUNG,ORI |
| JC96-01672A | ELA UNIT-TERMINAL TR L: ML-6060A,SEC,220V |
| 3103-001085 | FAN-DC: 24V,80MA,4800RPM,0.131MMH20 |
| JC31-00027A | FAN-DC_HUMMINGBIRD:, ML-1710,-,- |
| JC61-00836A | FOOT-FRONT: ML-1750,NBR,D7,12,- |
| JC66-00810A | GEAR-EXIT_DRV17 |
| JC66-00808A | GEAR-FEED DR 41 |
| JC66-01247A | GEAR-FEED: ML-2571N,POM,0.8,28,WHITE,24 |
|
|
GEAR-FUSER DRIVER: ML-2571N,POM,0.6/0.8,8 |
|
|
GEAR-FUSER: ML-2571N,PPS(OFL4036),0.8,45, |
|
|
GEAR-OPC DR 76/38/29 |
| JC66-00012A | GEAR-OPC R: SF-5100,POM(M90-44),BLK,M0.6, |
| JC66-01245A | GEAR-PICK UP A: ML-2571N,POM,0.8,47,WHI |
| JC66-01246A | GEAR-PICK UP B: ML-2571N,POM,0.8,47,WHI |
| JG66-40003A | GEAR-PINION: SF4000,POM,WHT,M1,Z16 |
|
|
GEAR-RDCN 113/83 |
| JC66-00804A | GEAR-RDCN 139/83 |
| JC66-00813A | GEAR-TRANSFER |
| JC63-00622A | GROUND-P-OPC |
| JC61-01721A | GUIDE-CLAW: ML-2571N,PEEK,2,13.5,17.4,GRE |
| JC61-01710A | GUIDE-PAPER PATH: ML-2571N,ABS HB,T2.5,15 |
|
|
GUIDE-SUB STACKER: ML-2571N,HIPS,2,86,106 |
| JC39-00614A | HARNESS-LSU: ML-2510,CBF,UL1061,14PIN,750 |
| JC39-00613A | HARNESS-SMPS: ML-2510,CBF,UL1061,9PIN,75M |
| JC61-01719A | HOLDER-EXIT R: ML-2571N,PC,1.5,10,20,BLAC |
| JC61-01718A | HOLDER-IDLE ROLLER: ML-2571N,POM,26,12. |
| JC61-01711A | HOLDER-PAD: ML-2571N,PC/ABS,2.5,48,20.8,B |
| JC61-01747A | HOLDER-SPRING: ML-2571N,PET+GF30%,1.5,11. |
| JC61-01716A | HOUSING-PICK UP A: ML-2571N,PC+ABS,28,2 |
| JC61-01717A | HOUSING-PICK UP B: ML-2571N,PC+ABS,-,37 |
| JC44-00079A | HVPS-SKYLARK |
| JC13-00028A | IC ASIC-SPGPV3: SPGPV3,ML-2550_VE,496PIN, |
| 1205-002339 | IC-CLOCK GENERATOR: CY25811SC,SOIC,8P,150 |
| 0801-002446 | IC-CMOS LOGIC: 74LCX14,SCHMITT INVERTER,T |
| 0801-002379 | IC-CMOS LOGIC: 74LCX16245,16BIT TRANCEIVE |
| 1105-001535 | IC-DRAM: M12L128168A-7T,4X2MX16BIT,TSOP |
| 1103-001279 | IC-EEPROM: 24256,4KX8BIT,SOP,8P,150MIL, |
| 1107-001475 | IC-FLASH MEMORY: 29DW323DB,4MX8/2MX16BIT, |
| 1006-001224 | IC-LINE TRANSCEIVER: 74LVX161284,TSSOP,48 |
| 1003-001535 | IC-MOTOR DRIVER: A3977SLP,TSSOP,28P,9.6X4 |
| 0904-001989 | IC-USC: ISP1582BS,HVQFN56,56P,8X8X0.85M |
| 1202-000164 | IC-VOLTAGE COMP.: 393,SOP,8P,150MIL,DUAL, |
| JC70-00307A | IPR-P-EARTH TRANSFER: ML-1400,SECC,1.0T |
| JC70-10232A | IPR-PLATE SAW: ML-80,SUS304-CSP,T0.1,- |
| 3722-002376 | JACK-MODULAR: 8P/8C,STANDARD,Y,ANLGE,YEL/ |
| 3722-002303 | JACK-USB |
| JC68-01584A | LABEL(P)-BLANK 90*25: CLP-510,SEE,ART 100 |
|
|
LAMP-HALOGEN: 115V,750W,-,8X284MM |
|
|

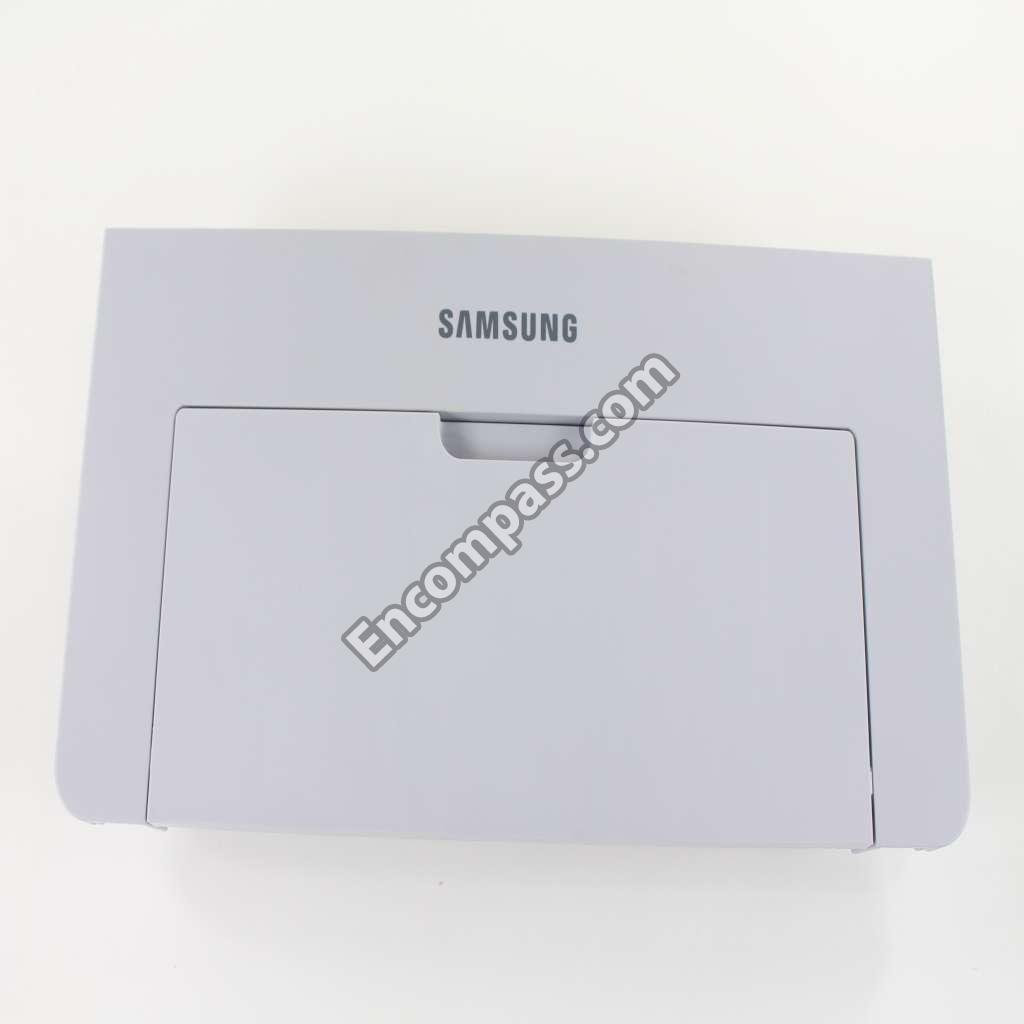

MEA UNIT-COVER FRONT: ML-2571N,SAMSUNG, |
| JC97-02731A | MEA UNIT-COVER JAM: ML-2571N,SEC,-,-, |
| JC97-02686A | MEA UNIT-COVER REAR: ML-2571N,SAMSUNG,- |
| JC97-02732A | MEA UNIT-COVER SIDE L: ML-2571N,SEC,-,- |
| JC97-02655A | MEA UNIT-COVER TOP: ML-2571N,SAMSUNG,-, |
|
|
MEA UNIT-HOLDER_PAD: ML-2571N,SAMSUNG,- |
| JC97-02670A | MEA UNIT-KNOCK_UP: ML-2571N,SAMSUNG,-,- |
| JC97-02239C | MEA UNIT-MP TRAY: ML-2571N,SEC,-,-,- |
| JC97-02664A | MEA UNIT-PAPER PATH: ML-2571N,SAMSUNG,- |
| JC97-02665A | MEA UNIT-PICK UP GEAR: ML-2571N,SAMSUNG,- |
| JC31-00068A | MOTOR STEP: M55SP-3NK,ML-2571N,1.3A,1037P |
| JC74-00011A | MPR-PAD KNOCK UP MP: ML-6060A,CR+CORK,10* |
|
|
PAD-FRICTION: ML-2571N,NBB,T1.0,W8.5,L29, |
| JC92-01805A | PBA MAIN-CONTROLLER: ML-2571N,SEC,KOREA,- |
| JC72-20902A | PEX-ROLLER F/UP(2): ML-5000A,TE |
| JC61-01709A | PLATE-KNOCK_UP: ML-2571N,PC/ABS,T2.5,W82. |
| JC61-01263C | PLATE-MP: ML-2571N,HIPS,2.5,278.2,123,V.W |
| JC61-01726A | PLATE-P_CHANNEL: ML-2571N,SECC,1.2,18.5,1 |
| JC72-00382B | PMO-BUSHING FEED: ML-1710,DELRIN8903,WHIT |
|
|
PMO-BUSHING_TR(L): SF-5100,POM ,BLK,- |
| JC72-40232A | PMO-CAP AGITATOR: ML-80,PP,BLK,- |
| JC72-00444A | PMO-HOLDER COLLIMATOR: ML-5200A,PC GF20%, |
| JC72-00825A | PMO-IMPELLER_DRV: ML-6200,PC,BLK,V0,- |
|
|
PMO-SUB STACKER: ML-1400,PC,30*40*2,H |
| 2007-000123 | R-CHIP: 1.5KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000074 | R-CHIP: 100OHM,5%,1/16W,DA,TP,1608 |
| 2007-000090 | R-CHIP: 10KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000309 | R-CHIP: 10OHM,5%,1/16W,DA,TP,1608 |
| 2007-002901 | R-CHIP: 12.1KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000091 | R-CHIP: 12KOHM,5%,1/16W,DA,TP,1608 |
| 2007-007521 | R-CHIP: 14.7KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000402 | R-CHIP: 150OHM,5%,1/16W,DA,TP,1608 |
| 2007-000078 | R-CHIP: 1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000475 | R-CHIP: 1MOHM,1%,1/16W,DA,TP,1608 |
| 2007-000105 | R-CHIP: 200KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000094 | R-CHIP: 22KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000071 | R-CHIP: 22OHM,5%,1/16W,DA,TP,1608 |
| 2007-000082 | R-CHIP: 3.3KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000096 | R-CHIP: 30KOHM,5%,1/16W,DA,TP,1608 |
| 2007-007239 | R-CHIP: 31.6KOHM,1%,1/10W,TP,1608 |
| 2007-000076 | R-CHIP: 330OHM,5%,1/16W,DA,TP,1608 |
| 2007-000134 | R-CHIP: 33KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000113 | R-CHIP: 33OHM,5%,1/16W,DA,TP,1608 |
| 2007-000084 | R-CHIP: 4.7KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000107 | R-CHIP: 470KOHM,5%,1/16W,DA,TP,1608 |
| 2007-002916 | R-CHIP: 475KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000965 | R-CHIP: 5.1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000086 | R-CHIP: 5.6KOHM,5%,1/16W,DA,TP,1608 |
| 2007-001139 | R-CHIP: 7.5KOHM,1%,1/16W,DA,TP,1608 |
| 2011-000002 | R-NETWORK: 22OHM,5%,1/16W,L,CHIP,8P,ST |
| 2011-000881 | R-NETWORK: 33OHM,5%,1/16W,L,CHIP,8P,TP |
| 2011-001094 | R-NETWORK: 39OHM,+-5%,1/16W,L,PLCC,8P,TP |
| 2005-000168 | R-WIRE WOUND,NON: 0.22OHM,5%,2W,AA,BK,4X1 |
| 6044-000159 | RING-C: ID3,OD7,T0.6,PASS,STSC |
|
|
ROLLER-EXIT F/DOWN: ML-2571N,SUM22+EPDM,1 |
|
|
ROLLER-FEED: ML-2571N,SUM22+NI+EPDM,5/17. |
|
|
ROLLER-HEAT: ML-2571N,AL 5052+ PFA COAT,2 |
|
|
ROLLER-M-IDLE FEED: ML-1510,POM,13,13,- |
| JC66-01253A | ROLLER-PICK_UP IDLE: ML-2571N,POM,31.2, |
| JC66-00600A | ROLLER-PRESSURE: ML-1710,SPONGE+PFA,22,23 |
|
|
ROLLER-TRANSFER: SCX-4200,NBR+ECO,15,218M |
|
|
RUBBER-PICK_UP: ML-2571N,EPDM+IR,OD29,ID2 |
| 6001-000568 | SCREW-MACHINE: PH,+,M3,L8,NI PLT,SM20C,- |
| 6002-000440 | SCREW-TAPPING: RWH,+,2,M3,L8,ZPC(BLK),SWR |
|
|
SCREW-TAPTITE: BH,+,B,M3,L8,ZPC(BLK),SWCH |
|
|
SCREW-TAPTITE: BH,+,S,M3,L6,ZPC(YEL),SWRC |
| 6003-000196 | SCREW-TAPTITE: PWH,+,B,M3,L10,NI PLT,SWRC |
| JC66-01252A | SHAFT-FEED: ML-2571N,POM,53.8,8,NTR,- |
| JC66-00720A | SHAFT-P-CORE: ML-1750,SECC 1.6T,220,-,- |
|
|
SHAFT-P-PICK_UP |
| JC63-00290A | SHEET-HOLDER PAD: ML-1750,PC,0.178T,50,28 |
| JC63-00722A | SHEET-HVPS |
| JC63-00711A | SHEET-MP: SCX-4521F,PET,T0.188,223.0,60.8 |
| JC63-01109A | SHIELD-P_ENGINE: ML-2571N,SECC,T0.8,145,3 |
|
|
SMPS-WHITNEY+ (V1): SCX-4521F,*,AC/DC,1 |
|
|
SOLENOID-MP_R2:, SCX-4720F,DC24V,-,- |
| JC60-00023A | SPACER-GEAR: ML-2571N,POM, M90-44,17,-, |
| JB61-00107A | SPRING ETC-LEVER SENSOR: SF-430,SUS304,0. |
| JC61-01258A | SPRING ETC-TORSION DEVE_L |
| JC61-01259A | SPRING ETC-TORSION DEVE_R |
| JC61-00064A | SPRING-CLAW: ML-5200A,SUS 304 WPB,0.2,D |
| 6107-001167 | SPRING-CS: SUS304-WPB,PI0.25,D3.25,L9.6 |
| 6107-001163 | SPRING-CS: SUS304-WPB,PI0.4,D3.9,L13, |
| 6107-001297 | SPRING-CS: SWP,PI0.6,D12.6,L50,-,ID12 |
| 6107-001296 | SPRING-ES: SUS304-WPB,PI0.4,D2.8,L17.2, |
| JC61-70911A | SPRING-EXIT ROLL FD: ML-165,SUS304 WPB,PI |
| JC61-00056A | SPRING-PR(7300): ML-7300,PIANO WIRE,1.0,6 |
|
|
SPRING-TORSION DOC (CC2-F): SCX-1110F/XRX |
| JC61-00047A | SPRING-TR L HAWK: ML-6060A,SUS 304 WPB, |
| JC61-70940A | SPRING-TR(12): ML-5500,SUS304-WPB,0.5,4.5 |
| JC61-01714A | STOPPER-PICK_UP L: ML-2571N,POM,D17,L20 |
| JC61-01713A | STOPPER-PICK_UP R: ML-2571N,POM,D17,L20 |
| CALL_1-800-SAMSUNG | THERMISTOR-NTC ASSY: 7KOHM,3370K,0.3MW/ |
| 0502-000245 | TR-POWER |
| 0501-000457 | TR-SMALL SIGNAL |
| 0501-000279 | TR-SMALL SIGNAL: KSA1182,PNP,-35V,-30V,-5 |
| 6031-000023 | WASHER-PLAIN:, ID5.9,OD10.0,T0.5,BLK,POL |
