Manufacturer
Samsung
Model Number
NJ035MHXCA
Description
Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB97-04102A | ASSEMBLY ACCESSORY-GUARD SAFETY |
| DB94-00811A | ASSEMBLY BOSS |
| DB97-01229C | ASSEMBLY BRACKET BUSHING |
| DB90-02224C | ASSEMBLY CABI IN |
| DB93-03717E | ASSEMBLY CONTROL IN |
| DB94-00826A | ASSEMBLY DRAIN PAN |
| DB94-01270H | ASSEMBLY DRAIN-HOSE |
| DB94-00846A | ASSEMBLY DRAIN-HOSE |
| DB94-01903B | ASSEMBLY DRAIN-HOSE INSTALL |
| DB96-05977B | ASSEMBLY EVAP-UNIT |
| DB94-01031A | ASSEMBLY FAN IN PARTS |
| DB94-00812A | ASSEMBLY FAN TURBO |
| DB94-01258C | ASSEMBLY HOSE DRAIN-JOINT |
| DB98-11915B | ASSEMBLY LABEL AC POWER |
| DB98-13199B | ASSEMBLY LABEL CAUTION |
| DB98-11915F | ASSEMBLY LABEL DC COMM |
| DB98-11915E | ASSEMBLY LABEL DC POWER |
| DB97-04077A | ASSEMBLY PACKING IN PARTS |
| DB94-00847B | ASSEMBLY PARTITION-EVAP |
| DB95-01947C | ASSEMBLY THERMISTOR-EVA IN |
| DB95-01958B | ASSEMBLY THERMISTOR-EVA OUT |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB97-04665A | ASSY ACCESSORY IN PARTS;HP,INV,2.6KW, |
| DB90-02223A | ASSY BASE-CUSHION;TH060EAM,MINI 4WAY CAS |
| DB90-02368A | ASSY CABI IN PARTS;TH060EAV,4WAYMINI |
| DB90-02222A | ASSY CABINET-BASE;TH060EAM,MINI 4WAY CAS |
| DB90-02221A | ASSY CABINET-SIDE A;TH060EAM,MINI 4WAY C |
| DB90-02220A | ASSY CABINET-SIDE B;TH060EAM,MINI 4WAY C |
| DB96-05970C | ASSY COLLECTOR;MH026FMEA,FJM MINI4WAY |
| DB93-12396A | ASSY CONTROL IN PARTS;HP,INV,3.5KW,R410A |
| DB93-14659A | ASSY CONTROL IN SUB;NJ030MHXCA |
| DB97-03919A | ASSY CUSHION BOTTOM;MINI4WAY-P/T |
| DB94-00913A | ASSY DRAIN PARTS;-,N,R410A,TH060EA |
| DB96-05983B | ASSY EVAP PARTS;MH026FMEA,FJM MINI 4WAY |
| DB97-18789A | ASSY MANUAL;NJ030MHXCA,FJM MINI 4WAY |
| DB91-01340A | ASSY MICOM;FJM MINI 4WAY MICOM,STM-10AD- |
| DB97-18777B | ASSY PRINT IN PARTS;HP,INV,R410A,NJ035MH |
| DB96-05971C | ASSY TUBE EVAP IN;MH026FMEA,FREE JOINT M |
| DB96-05424A | ASSY TUBE-BEND SPECIAL;KH035EAV,1-W/C BL |
| DB96-05973A | ASSY TUBE-JUMP L;TH035EAV,4WAYMINI_12K |
| DB96-05972A | ASSY TUBE-JUMP S;TH035EAV,4WAYMINI_12K |
| DB98-33584A | ASSY-INSTALLATION MANUAL;HP,INV,3.5KW,FR |
| DB98-30902A | ASSY-LABEL CAUTION DIP;MINI 4-WAY,PLUS3 |
| DB98-33823A | ASSY-LABEL WARNING;R410,AVXCSH022EE |
| 6902-000532 | BAG PE |
| 6902-000254 | BAG PE |
| 6902-000092 | BAG PE |
| 6902-003742 | BAG PE;HDPE,T0.02,W250,L400,TRP,RECYCLE+ |
| 6902-000175 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W550,L50 |
| 6902-003735 | BAG PE;LDPE,T0.05,W100,L150,TRP,RECYCLE, |
| 6902-000688 | BAG PE;LDPE,T0.05,W300,L300,WHT,RECYCLE+ |
| 6922-000003 | BAND |
| DB61-02491A | BASE-BOLT;SH060EAV,SWCH18A,20,41.3,4WAY |
| DB69-01267A | BASE-CUSHION;SH060EAV,EPS,572.5, |
| DB61-02494A | BRACKET COVER-PIPE;SH060EAV,SGCC-M,0.7,7 |
| DB61-00960C | BRACKET-BUSHING |
| DB61-02623A | BRACKET-CUSHION BASE;SH060EAV,SGCC-M,1.2 |
| DB61-02481A | BRACKET-DRAIN A;SH060EAV,GI-SGCC,T1.6,46 |
| DB61-02482A | BRACKET-DRAIN B;SH060EAV,GI-SGCC,T1.6,36 |
| DB61-02483A | BRACKET-DRAIN C;SH060EAV,GI-SGCC,T1.6,36 |
| DB61-02499A | BRACKET-EARTH WIRE;SH060EAV,GI-SGCC,T1,W |
| DB61-02495A | BRACKET-MOTOR IN |
| DB61-02492A | BRACKET-PUMP |
| DB61-02493A | BRACKET-WASHER FAN |
| 3002-001129 | BUZZER-PIEZO |
| 2401-004219 | C-AL |
| 2401-002300 | C-AL |
| 2401-002463 | C-AL |
| 2401-000151 | C-AL |
| 2203-000444 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-000192 | C-CER, CHIP |
| 2203-001562 | C-CERAMIC, CHIP |
| 2201-000987 | C-CERAMIC, DISC |
| 2301-001912 | C-FILM, LEAD |
| 2301-001220 | C-FILM, LEAD-PPF |
| DB64-01431A | CABINET-BASE;SH060EAV,GI-SGCC,0.8,25,573 |
| DB64-01429A | CABINET-SIDE A;SH060EAV,GI-SGCC,T0.7, |
| DB64-01430A | CABINET-SIDE B;SH060EAV,GI-SGCC,T0.7, |
| DB65-10088C | CABLE TIE |
| DB65-00191A | CABLE TIE |
| 6501-001052 | CABLE TIE |
| DB65-10088D | CABLE-TIE |
| DB67-00963A | CAP-VARISTOR;VERDI-PJT,SHP2,1.0,11.5,14. |
| DB61-02486B | CASE CONTROL |
| DB65-10074B | CLAMP-CABLE |
| DB65-10063A | CLAMP-THERMO |
| DB27-00019A | COIL CHOKE |
| DB39-00755H | CONNECT WIRE-AC POWER VOLT CABLE |
| DB39-01179D | CONNECT WIRE-DC POWER COMMUNICATION |
| DB39-00153E | CONNECT WIRE-EARTH |
| DB39-00153D | CONNECT WIRE-EARTH |
| DB39-01312A | CONNECT WIRE-MINI-4WAY MOTOR SUB |
| 3711-003405 | CONNECTOR-HEADER |
| 3711-003404 | CONNECTOR-HEADER |
| 3711-000940 | CONNECTOR-HEADER |
| 3711-000796 | CONNECTOR-HEADER |
| 3711-000262 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 3711-000176 | CONNECTOR-HEADER |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001534 | COPPER TUBE;C1220T,O,7,0.7,ROLL, |
| 0102-001602 | COPPER TUBE;C1220T,O,8.0,0.55,ROLL |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001542 | COPPER TUBE;C1220T,O,9.52,0.7,ROLL, |
| 0102-001543 | COPPER TUBE;C1220T,O,9.52,0.8,ROLL, |
| 0102-000252 | COPPER-TUBE |
| DB90-04697A | COVER ASSEMBLY CONTROL |
| DB90-01010A | COVER ASSEMBLY-DRAIN |
| DB90-02225A | COVER ASSEMBLY-PIPE |
| DB63-01367B | COVER-CONTROL |
| DB63-00309A | COVER-DRAIN PUMP |
| DB63-00360B | COVER-FLARE |
| DB69-01311A | CUSHION-BTM;4-WAY (MINI),EPS,W657,L6 |
| DB69-01310A | CUSHION-TOP;4-WAY (MINI),EPS,W632,L3 |
|
|
DIODE-BRIDGE |
| 0402-001194 | DIODE-RECTIFIER |
|
|
DIODE-SWITCHING |
| 0406-001257 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0403-001285 | DIODE-ZENER |
| 0403-000252 | DIODE-ZENER |
| DB67-00637A | DRAIN HOSE-HOSE;TH060EAV,EPDM,1.5, |
| DB67-00923A | DRAIN HOSE-JOINT B |
| DB67-00805B | DRAIN HOSE-JOINT B |
| DB67-00285A | DRAIN HOSE-SOCKET |
| DB67-00626A | DRAIN PAN-PAN;-,ABS,I BLACK, |
| DB69-01268A | DRAIN-CUSHION;SH060EAV,EPS,WHITE |
| DB75-00356B | EVAPORATOR;TH035EAV,ASSY,2,10,1390,SLIT, |
| DB60-30010B | FASTENER-NUT FLARE |
| DB60-30010A | FASTENER-NUT FLARE |
| DB62-03914A | FIN EVAP;A3102,L210,SLIT,1.4,NGS, |
| DB01-00100A | FOIL-AL NEO GREEN |
| 3602-001012 | FUSE-BLOCK |
| 3601-000170 | FUSE-CARTRIDGE |
| 3601-001209 | FUSE-RADIAL LEAD |
| DB63-01407A | GROMMET-MOTOR |
| DB63-01372A | GUARD-SAFTY |
| DB61-02490A | GUIDE-EVAP |
| 3711-005716 | HEADER-BOARD TO CABLE |
|
|
HEADER-BOARD TO CABLE |
| 3711-001000 | HEADER-BOARD TO CABLE |
| 3711-000939 | HEADER-BOARD TO CABLE |
| 3711-000794 | HEADER-BOARD TO CABLE |
| 3711-000577 | HEADER-BOARD TO CABLE |
| 3711-000203 | HEADER-BOARD TO CABLE |
| 3711-000178 | HEADER-BOARD TO CABLE |
| 3711-000015 | HEADER-BOARD TO CABLE |
| DB62-03581A | HEAT SINK;DPM,AL,1.3,15,15,WHT,HEIGHT : |
| DB61-02527A | HOLDER-EVAP |
|
|
HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-02496A | HOLDER-SIDE CABI |
| DB67-00336E | HOSE DRAIN-PVC |
| DB09-00338A | IC MICOM |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1103-001175 | IC-EEPROM |
| 1203-000274 | IC-POSI.FIXED REG. |
| 1203-002545 | IC-PWM CONTROLLER |
| 1203-003334 | IC-RESET |
| DB62-01559A | INSULATION-COVER DRAIN |
| DB62-03875A | INSULATION-COVER PIPE IN;TH60EAV,PUR FOA |
| DB62-03876A | INSULATION-COVER PIPE OUT;PU FOAM,T3,W12 |
| DB62-03877A | INSULATION-CUSHION BASE A;TH60EAV,PUR FO |
| DB62-03878A | INSULATION-CUSHION BASE B;TH60EAV,PUR FO |
| DB62-03879A | INSULATION-CUSHION BASE C;TH60EAV,PUR FO |
| DB62-03879B | INSULATION-CUSHION BASE D;TH60EAV,PUR FO |
| DB62-04045A | INSULATION-CUSHION BASE LOW;TH060EAV,PUR |
| DB62-03879D | INSULATION-CUSHION LOW;TH60EAV,LEX FOAM, |
| DB62-01959D | INSULATION-CUSHION PIPE IN |
| DB62-04783A | INSULATION-DRAIN-HOSE |
| DB62-03880A | INSULATION-PARTITION HOLE;TH60EAV,PE FOA |
| DB62-03879C | INSULATION-PARTITION TOP;TH60EAV,PE FOAM |
| DB62-03879E | INSULATION-PARTITION UP;TH60EAV,PE FOAM, |
| DB72-00400W | INSULATION-TUBE INLET |
| DB72-00400Y | INSULATION-TUBE OUTLET |
| DB68-10120J | LABEL BAR CODE;ALL,YUPO,W60,L78,LABEL |
| DB98-34254B | LABEL BAR CODE;PET,FAC |
| DB98-05725B | LABEL INSTRUCTION |
| DB98-14683C | LABEL INSTRUCTION;ART,1WAY CST, DRAIN HO |
| DB68-02988B | LABEL PACKING;ALL,THERMAL PAPER,W65,L150 |
| DB68-00175T | LABEL RATING;PET,W55,L170,SILVER |
| DB68-00175P | LABEL SHEET |
| DB68-01350A | LABEL-BAR CODE |
| DB68-01193A | LABEL-BAR CODE-BOX;ART,W236,L340,CH01Z |
| 0601-001377 | LED |
| 0601-001375 | LED |
| 0601-001373 | LED |
| DB93-04102D | MAIN PCB ASSEMBLY-IN |
|
|

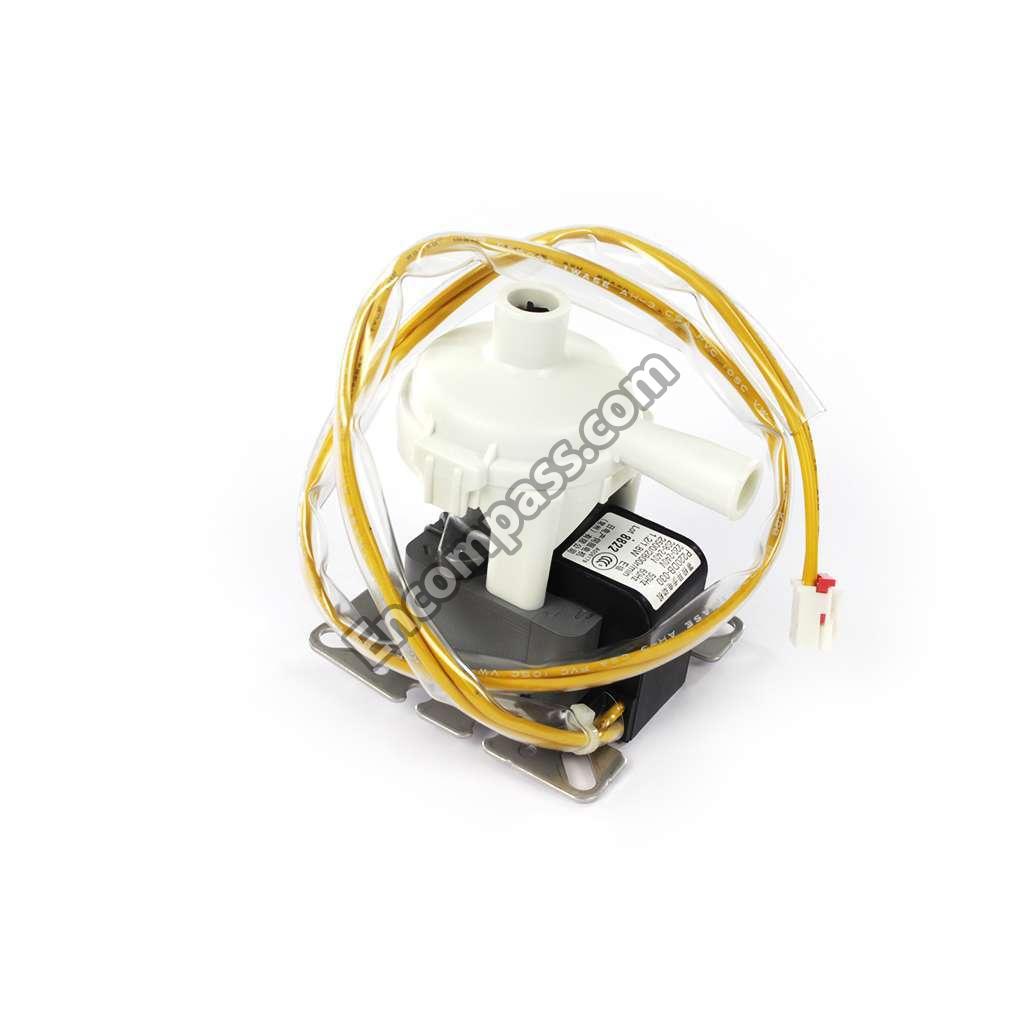

MOTOR DRAIN-DRAIN PUMP |
| DB31-00305D | MOTOR FAN |
| DB61-02501A | MOUNT-TIE |
| DB67-00276B | NIPPLE;C3604,5/8-18UNF |
| DB67-00183A | NIPPLE;C3604,6.35 |
| DC67-00116A | NIPPLE;PULSATOR(10KG),POM,CHINA |
| DB60-30028A | NUT-FLANGE |
| DB60-30004A | NUT-FLANGE |
| DB81-00476A | O RING |
| DB98-24163A | PACKING CASE-IN |
| DB69-03012A | PAD PACKING INSTALL;CB,W240,L191,SW1,MIN |
| DB69-03015A | PAD PACKING INSTALL;PAPER,MINI4WAY |
| DB69-01653U | PAD PACKING;4 WAY MINI,PP,640,620,SET, |
| DB67-00627A | PARTITION-EVAP;SH060EAV,GI-SGCC,0.7,23,2 |
| DB41-00827A | PCB MAIN-IN;MINI 4WAY,FR-4,2,T1.6,70 X 2 |
| 0604-001038 | PHOTO-COUPLER |
| 0604-001003 | PHOTO-COUPLER |
| DB70-00626A | PLATE-EVAP LF;GI-SGCC,T0.8,W14.7,L190.5, |
| DB70-00627A | PLATE-EVAP RH;GI-SGCC,T0.8,W29.4,L196.7, |
| DB63-00014A | PLUG-RUBBER |
| 2007-001071 | R-CHIP |
| 2007-001067 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-000938 | R-CHIP |
| 2007-000931 | R-CHIP |
| 2007-000872 | R-CHIP |
| 2007-000766 | R-CHIP |
| 2007-000613 | R-CHIP |
| 2007-000493 | R-CHIP |
| 2007-000477 | R-CHIP |
| 2007-000468 | R-CHIP |
| 2007-000300 | R-CHIP |
|
|
R-CHIP |
| 2007-000030 | R-CHIP |
| 2007-000023 | R-CHIP |
| 3501-001248 | RELAY-MINIATURE |
|
|
RELAY-MINIATURE |
| 2802-001179 | RESONATOR-CERAMIC |
| DB73-00322A | RUBBER-CABINET BASE |
| DB73-00306A | RUBBER-CAP DRAIN |
| DB73-00419A | RUBBER-CAP;AVXC1H020B1,PVC,T1.5,20,P-100 |
| DB73-00022C | RUBBER-PUMP |
| DB73-00307B | RUBBER-WIRE HOLE |
| DB60-10009A | SCREW-FAN MOTOR;-,ZPC(WHT),SWRCH |
| 6001-001683 | SCREW-HEX |
|
|
SCREW-SPECIAL |
| 6002-000635 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000536 | SCREW-TAPPING |
| 6002-000527 | SCREW-TAPPING |
| 6002-000240 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000234 | SCREW-TAPPING |
| 6002-000231 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| DB62-11392A | SEAL PLATE |
| DB62-05810C | SEAL-DRAIN ASSEMBLY |
| DB62-05810A | SEAL-DRAIN ASSEMBLY |
| DB66-01010A | SHAFT FAN-BOSS IN |
| DB66-01011A | SHAFT FAN-BOSS OUT |
| DB63-02323A | SHEET-COVER CONTROL;AVXCMH060B3,AL,0.3,1 |
| DB74-00030A | SLEEVE;AKM-2800,TUBE-VINYL,L20 |
| 0202-001022 | SOLDER-SILVER |
| 0202-001860 | SOLDER-SILVER;BMRO-025008-CO20-2.4,L700, |
| DB69-00137A | SPRING ETC |
| DB81-00635A | SPRING ETC-SENSOR |
| 3502-000115 | SSR |
| 0101-002935 | STEEL PLATE;GI,SGCC,1.2MM,700MM,Z14,NC |
| 0101-003199 | STEEL PLATE;GI,SGCC,1.5,Z14,NC |
|
|

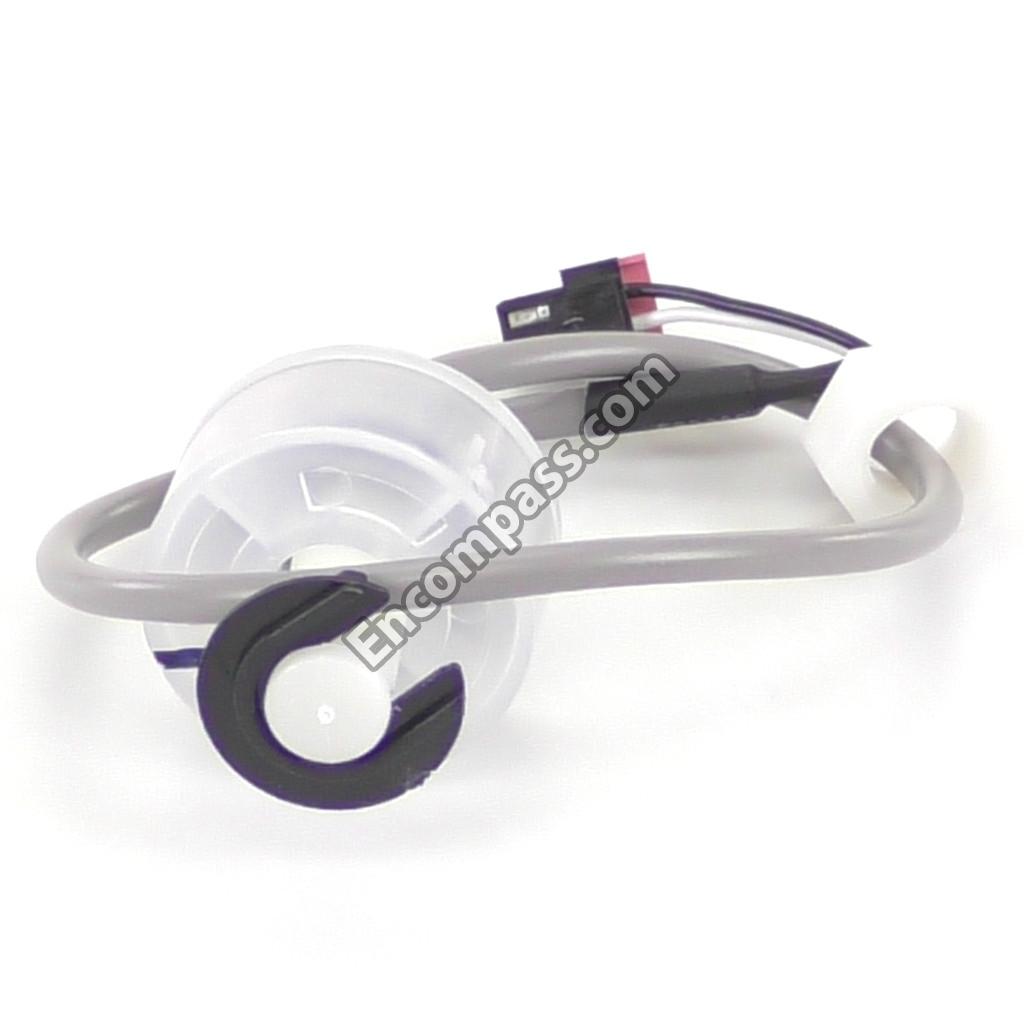

SWITCH FLOAT |
| DB34-00009A | SWITCH-DIGITAL |
| 3407-000121 | SWITCH-DIP |
| 3406-001098 | SWITCH-ROTARY;DC24V,25A,6P,L14MM,STRAIGH |
| 0203-000007 | TAPE-FILAMENT |
| 0203-000214 | TAPE-OPP |
| 0203-001060 | TAPE-SINGLE FACE;OPP,T0.065,W72,N/A,CLEA |
| DB65-00182A | TERMINAL BLOCK |
| DB65-00029Z | TERMINAL BLOCK |
| DB65-00029M | TERMINAL BLOCK |
| 1404-001274 | THERMISTOR-NTC;22OHM,1.4A,3100K,17MWC,8M |
| DB32-00067D | THERMISTOR-WIRE IN PCB |
| 0506-000175 | TR-ARRAY |
| 0504-000001 | TR-DIGITAL |
| 0501-002296 | TR-SMALL SIGNAL |
| 0501-000534 | TR-SMALL SIGNAL |
| DB26-00065A | TRANS SWITCHING |
| DB62-03263P | TUBE HAIR PIN;TH060EAV,C1220T-O,T0.25,OD |
| DB62-03263N | TUBE HAIR PIN;TH060EAV,C1220T-O,T0.25,OD |
| DB62-03986A | TUBE-BONNET;CASSETTE,C1220T-O,T0.7,OD6.3 |
| DB62-06119A | TUBE-SL;C1220T-O,OD7,L,TW0.23,HF0.12,SL |
| DB62-30369A | TUBE-U BEND |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| DB62-04210A | TUBE-Y JOINT;TH035EAV,C1220T-O,T0.8,OD9. |
| 1405-000160 | VARISTOR |
| DB71-00058A | WIRE-SADDLE |
