Model Image
Manufacturer

Samsung

Model Number

NP305E5AA03US

Description

Laptop Np305e5a-a03us

Interactive Exploded View

Parts List

Part Number Description
BA44-00299A BA44-00299A ADAPTOR
BA42-00326A ANTENNA-WLAN
BA42-00325A ANTENNA-WLAN

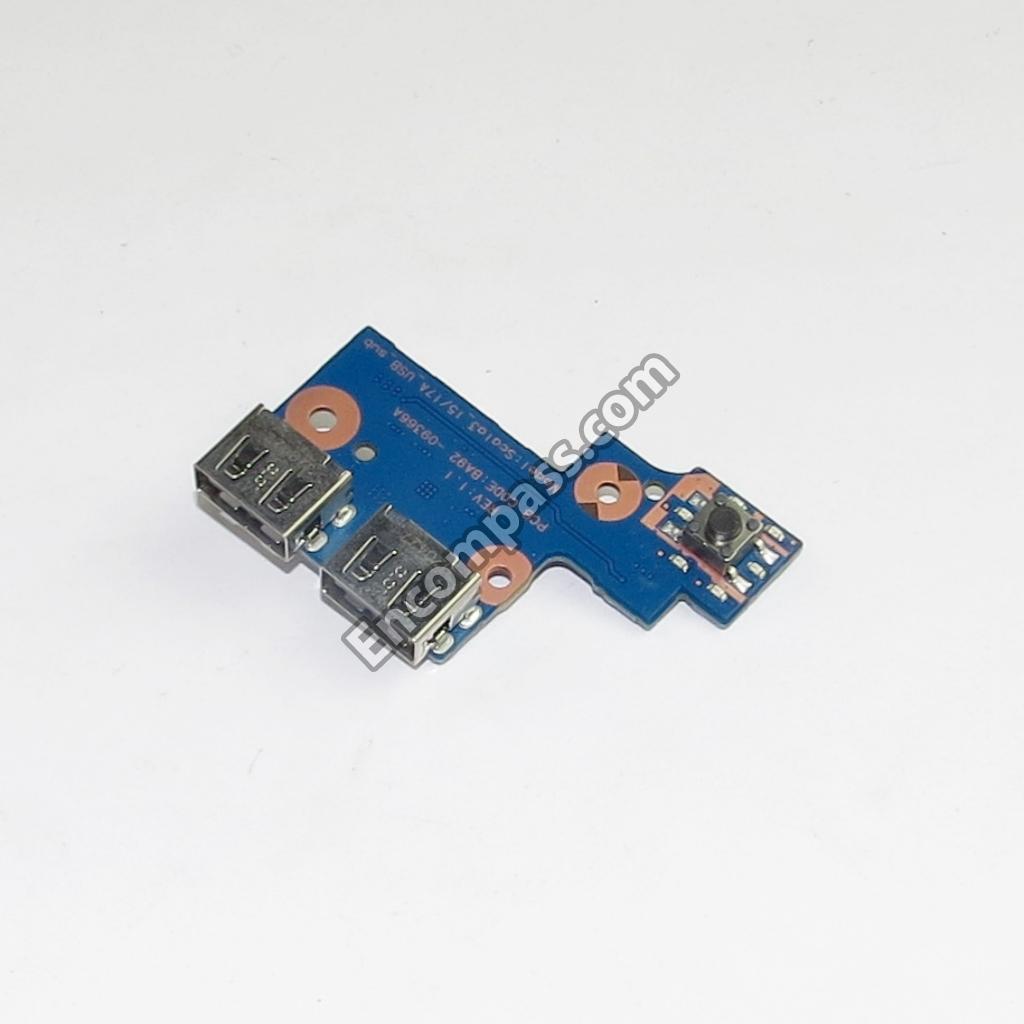

BA92-09366A BA92-09366A ASSY BOARD-SUB_USB
BA92-08418A ASSY BOARD-WLAN_BT

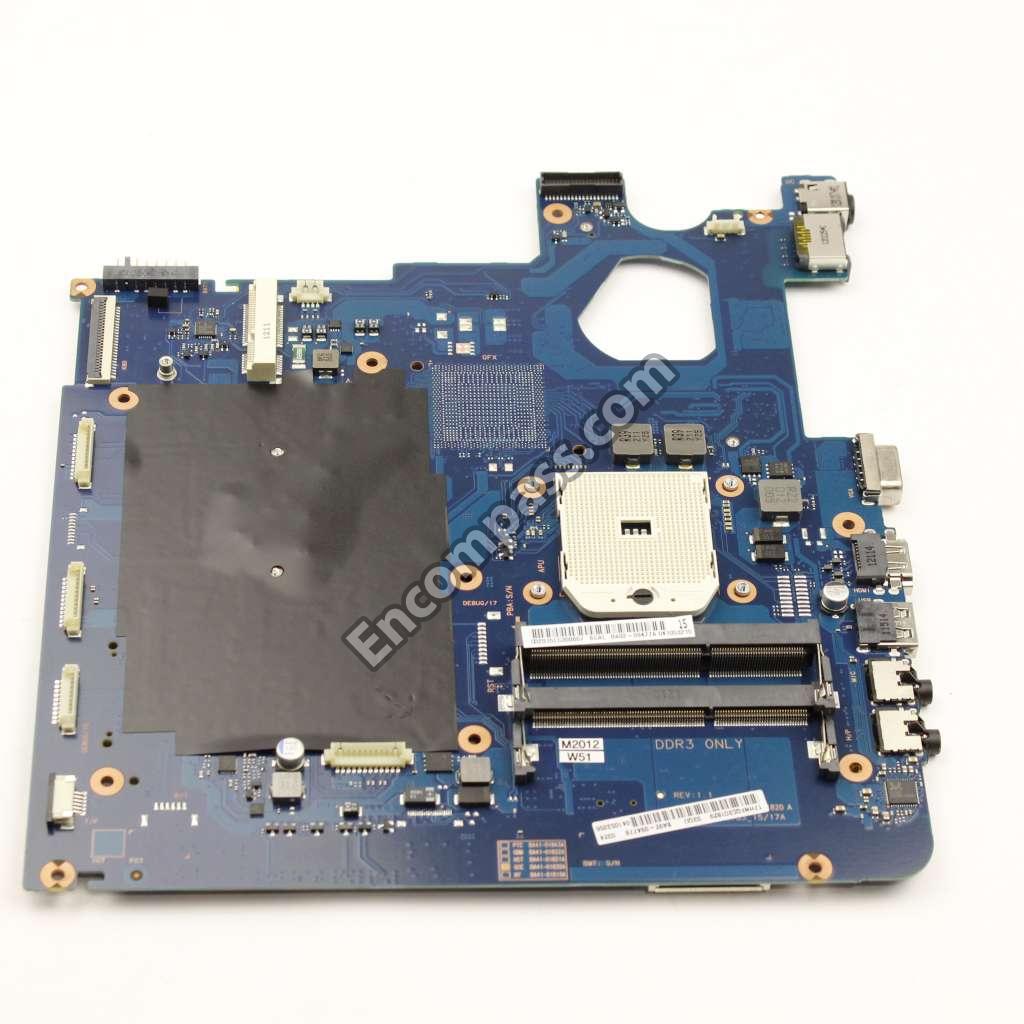

BA81-17565A BA81-17565A ASSY MOTHER BD-TOP
BA96-05825A ASSY SPEAKER
BA81-06583A BADGE-SAMSUNG
BA43-00282A BA43-00282A BATTERY
3301-001721 BEAD-SMD
3301-001649 BEAD-SMD

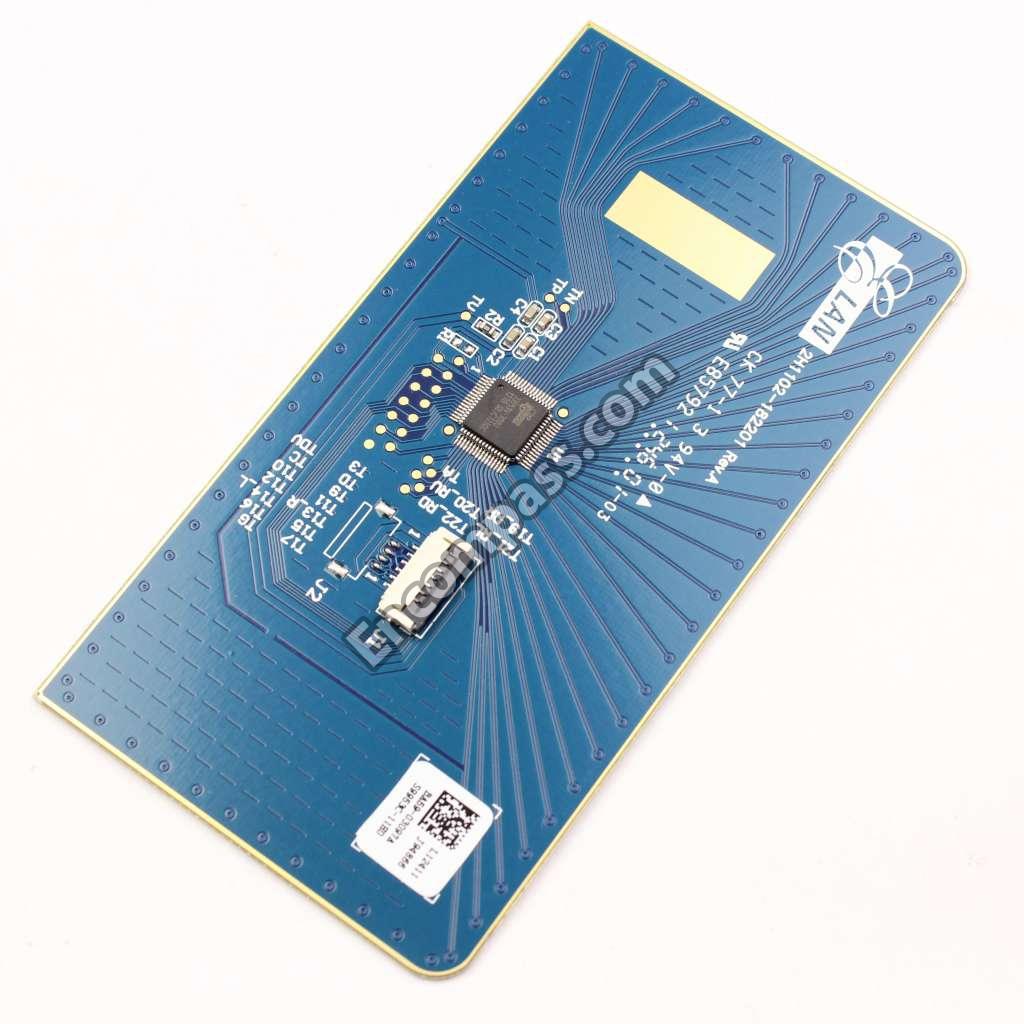

BA59-03097A BA59-03097A BOARD-TOUCHPAD
BA61-01582A BRACKET-LCD_L
BA61-01593A BRACKET-LCD_R
BA61-01473A BRACKET-ODD
2402-001042 C-AL, SMD
2203-006399 C-CER, CHIP
2203-006378 C-CER, CHIP
2203-006377 C-CER, CHIP
2203-006348 C-CER, CHIP
2203-006260 C-CER, CHIP
2203-006170 C-CER, CHIP
2203-006166 C-CER, CHIP
2203-006090 C-CER, CHIP
2203-006048 C-CER, CHIP
2203-006000 C-CER, CHIP
2203-005655 C-CER, CHIP
2203-002720 C-CER, CHIP
2203-002711 C-CER, CHIP
2203-002050 C-CER, CHIP
2203-001140 C-CER, CHIP
2203-001103 C-CER, CHIP
2203-000715 C-CER, CHIP
2203-000627 C-CER, CHIP
BA39-01127A CBF HARNESS-HDD
BA39-01131A CBF HARNESS-ODD
BA39-00946A CBF HARNESS-USB_SUB-BOARD
BA39-01134A CBF-LCD/CAMERA
3903-000447 3903-000447 CBF-POWER CORD
3709-001756 CONNECTOR-CARD EDGE
3709-001661 CONNECTOR-CARD EDGE
3709-001653 CONNECTOR-CARD EDGE
3709-001595 CONNECTOR-CARD EDGE
3709-001506 CONNECTOR-CARD EDGE
3709-001742 CONNECTOR-CARD SLOT
3709-001614 CONNECTOR-CARD SLOT
3701-001777 CONNECTOR-DSUB
3708-002892 CONNECTOR-FPC/FFC/PIC
3708-002883 CONNECTOR-FPC/FFC/PIC
3701-001782 CONNECTOR-HDMI
0404-001020 DIODE-SCHOTTKY
0401-000191 DIODE-SWITCHING
0401-000132 DIODE-SWITCHING
0403-001047 DIODE-ZENER
BA59-03573A DVD-SUPERMULTI
BA59-03722A DVD-SUPERMULTI
BA59-03215A DVD-SUPERMULTI
BA59-03116B DVD-SUPERMULTI
BA59-03711A DVD-SUPERMULTI
BA31-00107B FAN-CPU
BA31-00107A BA31-00107A FAN-CPU
0505-002598 FET-SILICON
0505-001883 FET-SILICON
0505-001089 FET-SILICON
BA41-01621A FFC-TP
BA59-03163E HDD
BA59-03163D HDD
BA59-03163C HDD
BA59-03163B BA59-03163B HDD
BA59-03163A HDD
BA59-02924B HDD
BA59-02924A HDD
BA59-02473B HDD
BA59-02473A HDD
3711-007940 HEADER-BATTERY
3711-007777 HEADER-BOARD TO CABLE
3711-007689 HEADER-BOARD TO CABLE
3711-007616 HEADER-BOARD TO CABLE
3711-007614 HEADER-BOARD TO CABLE
3711-007597 HEADER-BOARD TO CABLE
3711-007591 HEADER-BOARD TO CABLE
BA62-00659B HEAT SINK-CPU
BA62-00659A HEAT SINK-CPU
BA62-00605A HEAT SINK-PCH
BA61-01637A HINGE-L
BA61-01594A HINGE-L
BA61-01591A HINGE-L
BA61-01638A HINGE-R
BA61-01595A HINGE-R
BA61-01592A HINGE-R
0801-002628 IC-CMOS LOGIC
1205-003967 IC-CODEC
1105-002368 IC-DRAM MODULE
1105-002364 IC-DRAM MODULE
1105-002363 IC-DRAM MODULE
1105-002294 IC-DRAM MODULE
1105-002259 IC-DRAM MODULE
1105-002211 1105-002211 IC-DRAM MODULE
1105-002209 IC-DRAM MODULE
1205-004159 IC-ETHERNET CONTROLLER
1107-001709 IC-FLASH MEMORY
0904-002646 IC-I/O CONTROLLER
1205-004287 IC-INTERFACE
0904-002705 IC-MEMORY CONT.
0902-002858 IC-MICROPROCESSOR
1107-001991 IC-NOR FLASH
1107-001969 IC-NOR FLASH
1107-001600 IC-NOR FLASH
1203-006342 IC-POSI.ADJUST REG.
1203-006083 IC-POSI.ADJUST REG.
1203-005591 IC-POSI.ADJUST REG.
1203-006793 IC-PWM CONTROLLER
1203-005849 IC-PWM CONTROLLER
1203-005735 IC-PWM CONTROLLER
1203-005536 IC-PWM CONTROLLER
1209-001887 IC-SENSOR
1205-003683 IC-SWITCH
1205-003913 IC-SWITCH
1205-002596 IC-SWITCH
2703-003003 INDUCTOR-SMD
BA81-15503A INSULATOR-FRONT_PC
BA81-15061A INSULATOR-HDD_MB
BA81-08240A INSULATOR-HDMI
BA81-15075A INSULATOR-HINGE_R
BA81-15469A INSULATOR-TOUCHPAD
3722-003305 3722-003305 JACK-DC POWER
3722-003354 JACK-MODULAR
3722-003341 JACK-PHONE
3722-003317 JACK-USB
3722-003270 JACK-USB
BA81-14197A BA81-14197A KNOB-BATTERY
BA68-05382A LABEL ENERGY-WARRANTY
BA68-03159A LABEL SERVICE-WARRANT
BA68-07900A LABEL-AR5B225
BA68-07626A LABEL-LOGO
BA68-07623A LABEL-LOGO
BA68-05474A LABEL-LOGO_WIN7
BA68-20039A LABEL-PPID_E

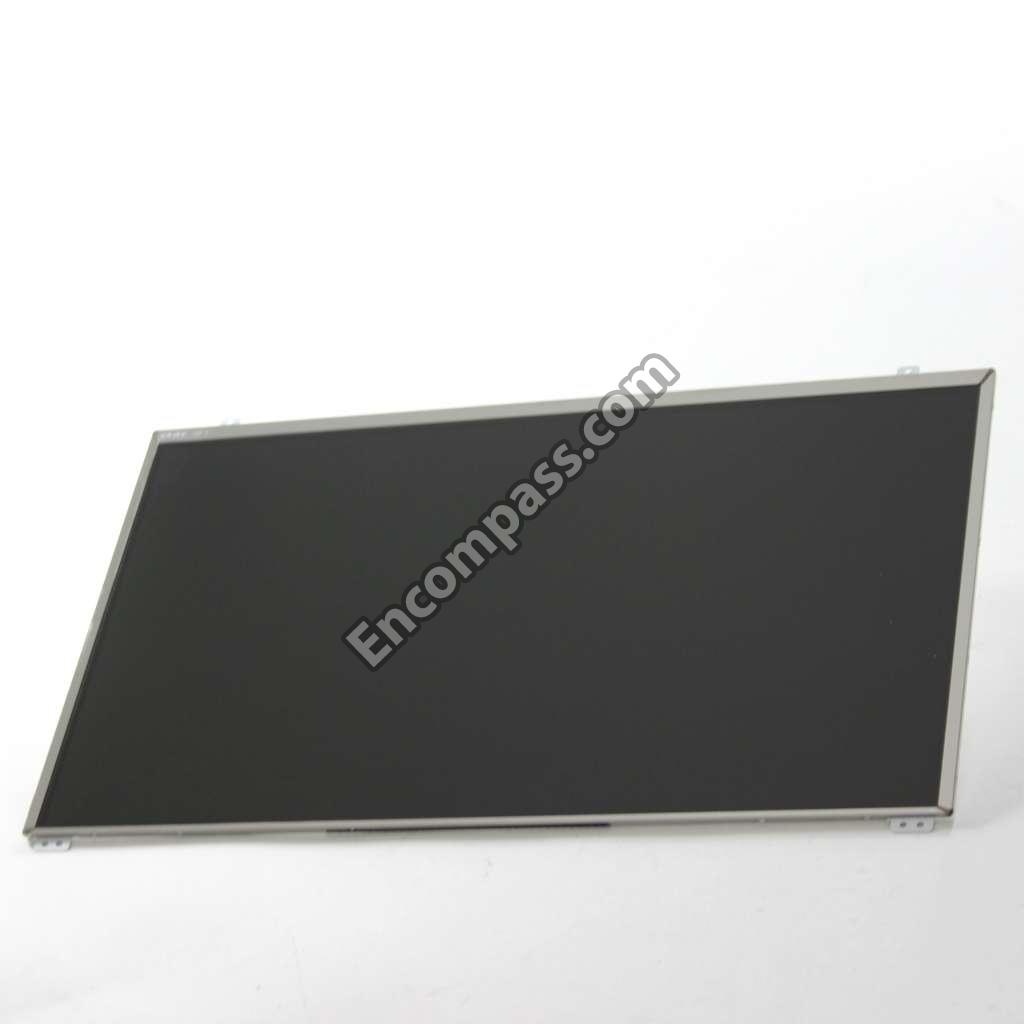

BA59-03157A BA59-03157A LCD PANEL-156HD
BA81-14201A LINK-BATTERY
BA81-11683A MAGNET-LCD
3003-001158 MIC-CONDENSOR
BA59-03225A MODULE-CAMERA
BA69-40003A PACKING-HANDLE
BA81-11174A PROTECTOR-LCD_FRONT_CAMERA_SILK
2007-009218 R-CHIP
2007-008676 R-CHIP
2007-008597 R-CHIP
2007-008576 R-CHIP
2007-008438 R-CHIP
2007-008429 R-CHIP
2007-008330 R-CHIP
2007-008304 R-CHIP
2007-008301 R-CHIP
2007-008298 R-CHIP
2007-008294 R-CHIP
2007-008293 R-CHIP
2007-008223 R-CHIP
2007-008175 R-CHIP
2007-008167 R-CHIP
2007-008133 R-CHIP
2007-008026 R-CHIP
2007-008015 R-CHIP
2007-007942 R-CHIP
2007-007785 R-CHIP
2007-007668 R-CHIP
2007-007617 R-CHIP
2007-007585 R-CHIP
2007-007548 R-CHIP
2007-007463 R-CHIP
2007-007456 R-CHIP
2007-007445 R-CHIP
2007-007441 R-CHIP
2007-007382 R-CHIP
2007-007274 R-CHIP
2007-007237 R-CHIP
2007-007046 R-CHIP
2007-002899 R-CHIP
2007-001153 R-CHIP
2007-001139 R-CHIP
2007-000999 R-CHIP
2007-000969 R-CHIP
2007-000882 R-CHIP
2007-000729 R-CHIP
2007-000695 R-CHIP
2007-000503 R-CHIP
2007-000448 R-CHIP
2007-000309 R-CHIP
2007-000239 R-CHIP
2007-000077 R-CHIP
2007-000067 R-CHIP
2007-000043 R-CHIP
2007-000029 R-CHIP
BA81-16225A RUBBER-FOOT
BA81-15496A RUBBER-LCD_FRONT
BA81-15793A RUBBER-LCD_FRONT-MID
BA81-12715A RUBBER-LCD_FRONT-MID
BA67-00396A RUBBER-WASHER
6001-002714 SCREW-MACHINE
6001-002253 SCREW-MACHINE
6001-001650 SCREW-MACHINE
6001-001649 SCREW-MACHINE
6001-001625 SCREW-MACHINE
6001-001570 SCREW-MACHINE
6001-001480 SCREW-MACHINE
3704-001603 SOCKET-IC
0202-001498 SOLDER-WIRE FLUX
BA61-00780A SPRING ETC-BATT
3404-001311 SWITCH-TACT
0203-001869 TAPE-KAPTONE
0501-000465 TR-SMALL SIGNAL
0501-000462 TR-SMALL SIGNAL
BA75-03415A UNIT-BEZEL_ODD
BA75-03497A UNIT-BRACKET_HDD
BA75-03532A UNIT-BRACKET_LCD-L
BA75-03556A UNIT-BRACKET_LCD-R
BA75-03407A UNIT-DOOR_HDD

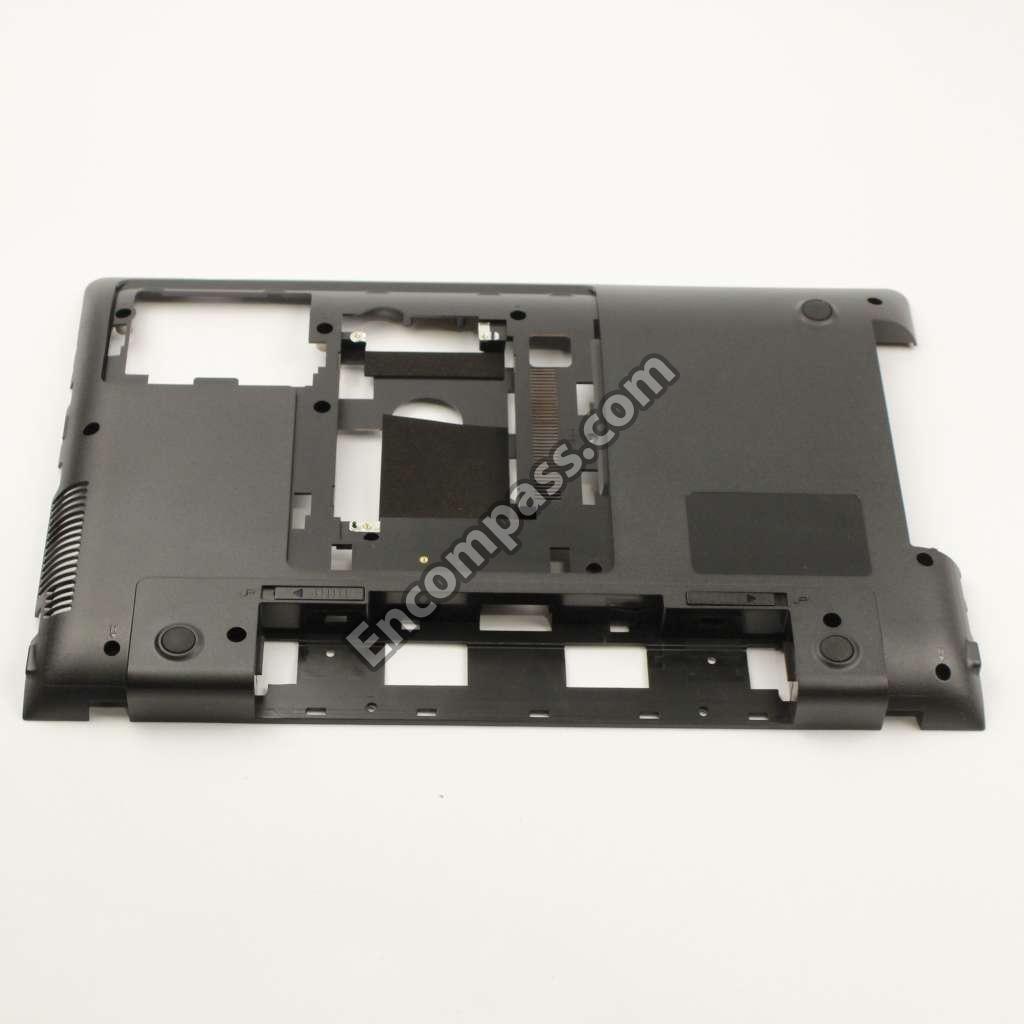

BA75-03406A BA75-03406A UNIT-HOUSING_BOTTOM
BA75-03554A BA75-03554A UNIT-HOUSING_LCD-BACK
BA75-03401B UNIT-HOUSING_LCD-FRONT
BA75-03405A BA75-03405A UNIT-HOUSING_TOP
