Manufacturer
Samsung
Model Number
NP510R5EA01UB
Description
Intel Core I5 Processor With Turbo Boost Technolog
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTOR;0335A1960,AD-6019R,19VDC,3.16A |
|
|
ADAPTOR;AD-4019S,AD-4019S,19VDC,2.1A,1 |
| BA42-00463A | ANTENNA-WLAN;81.EHD15.GAR,RAMOS-15,2.4-6 |
|
|
ANTENNA-WLAN;81.EHD15.GAS,RAMOS-15,2.4-6 |
|
|

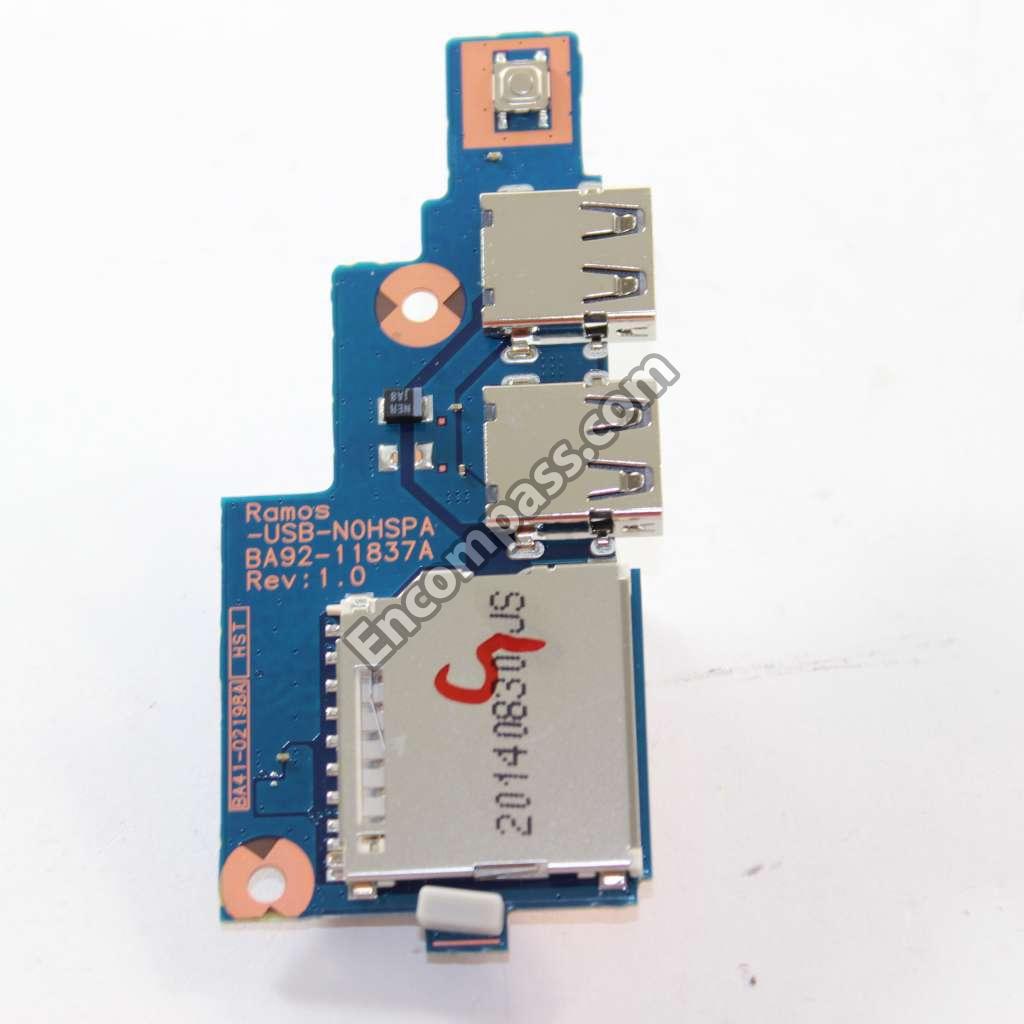

ASSY BD USB-TOP;RAMOS-15/14,USB_3IN1_PWR |
| BA92-11551A | ASSY BOARD-TP_SUB BOARD;RAMOS-14/15,TP_S |
| BA92-12483A | ASSY MOTHER BD-TOP;RAMOS-14M,I5_3230M,4 |
| BA96-06407A | ASSY SPEAKER-LEFT;RAMOS-14,25MM,RED/BL |
| BA96-06408A | ASSY SPEAKER-RIGHT;RAMOS-14,113MM,RED/ |
| BA64-00795A | BADGE-SAMSUNG;NIKE2-15H,NI,T0.08,W75.0,L |
|
|

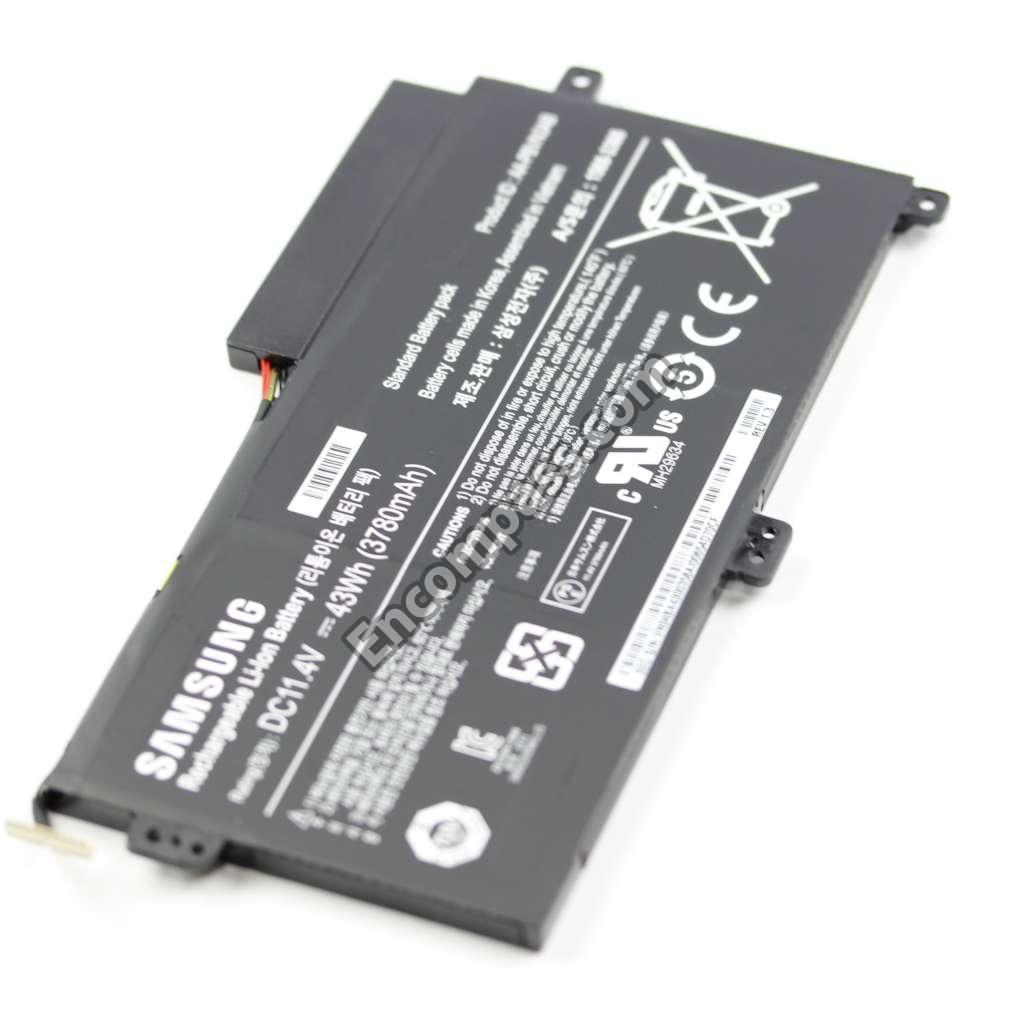

BATTERY;P31PD4-02-N01,RAMOS,LI-ION,1P3S, |
| 3301-001649 | BEAD-SMD;180OHM,1608,TP,226OHM/389MHZ |
|
|
BOARD-TOUCHPAD;PETRONAS,S9953C-11H0,TO |
| BA61-01439A | BRACKET-CPU;AEGIS,AL,T1.2,W40,L23MM,SILV |
| BA81-18414A | BRACKET-KINGSTONE;RAMOS-15,SUS 430,L24.2 |
| BA81-03753A | BRACKET-LCD_L;TORINO2,SR,H1.9,BLACK, |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-006090 | C-CER,CHIP;10000NF,10%,6.3V,X5R,TP,2012 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-007486 | C-CER,CHIP;1000NF,10%,50V,X5R,TP,1608 |
| 2203-006399 | C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006166 | C-CER,CHIP;100NF,10%,25V,X5R,TP,1005 |
| 2203-002720 | C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-005221 | C-CER,CHIP;15NF,10%,50V,X7R,TP,1608 |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005 |
| 2203-006170 | C-CER,CHIP;220NF,10%,16V,X7R,TP,1608 |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608 |
| 2203-006377 | C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,0.8 |
| 2203-002050 | C-CER,CHIP;47NF,10%,50V,X7R,TP,1608 |
| 2409-001173 | C-ORGANIC,SMD;15UF,20%,25V,TP,6.6X6.6X4. |
| 2409-001159 | C-ORGANIC,SMD;220UF,20%,2.5V,TP,3.5X2.8X |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1. |
| 2409-001129 | C-POLYMER ,CHIP;100UF,20%,6.3V,WT,TP,3.5 |
| BA39-01297B | CBF HARNESS-USB_NON-HSPA;RAMOS-15,TEFLON |
|
|
CBF-POWER CORD;DT,US,EP3,IEC320 C5,125/1 |
| 3709-001661 | CONNECTOR-CARD EDGE;9P,2.5MM,SMD-A,AU,2 |
| 3709-001741 | CONNECTOR-CARD SLOT;204P,0.6MM,SMD-A,AUF |
| 3708-002998 | CONNECTOR-FPC/FFC/PIC;12P,0.5MM,SMD-A,AU |
| 3708-002933 | CONNECTOR-FPC/FFC/PIC;30P,1.0MM,SMD-A,SN |
| 3708-002892 | CONNECTOR-FPC/FFC/PIC;6P,1.0MM,SMD-A,SNB |
| 3701-001775 | CONNECTOR-HDMI;19P,2R,FEMALE,ANGLE,AU |
| 0404-001084 | DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T |
| 0404-001020 | DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T |
| 0407-000112 | DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0401-000191 | DIODE-SWITCHING;MMBD4148,100V,200MA,SOT- |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
|
|
FAN-CPU;NIKE14,PLASTIC,LEADFREE,,25G,5V, |
| 0505-001064 | FET-SILICON |
| 0505-001089 | FET-SILICON;AO3409L,P30V2.6A,0.097/0 |
| 0505-002598 | FET-SILICON;AP2317GN,P20V4.2A,0.052O |
| 0505-001883 | FET-SILICON;RHU002N06,N,60V,200MA,3.3OHM |
| BA41-02169A | FFC-TOUCHPAD;RAMOS,1.0,SN,6PIN,T0.13,108 |
| BA41-02172A | FFC-TOUCHPAD_LED;RAMOS-15,1.0,FILM,12PIN |
| BA39-01106B | HARNESS-HDD;RAMOS-14/15,TEFLON,12P,60, |
| BA39-01302A | HARNESS-LCD_CAMERA;RAMOS-15,WIRE,30P,L |
| BA59-02980A | HDD;750GB,HTS547575A9E384,S16,383,H16,C6 |
| BA59-03479A | HDD;750GB,MQ01ABD075,S63,H16,C16383,9.5M |
| BA59-03162E | HDD;750GB,ST750LM022,S16,383,H16,C63,9.5 |
| BA59-03162B | HDD;750GB,ST750LM022,S16,383,H16,C63,9.5 |
| BA59-02926B | HDD;750GB,WD7500BPVT-35HXZT3,S16,383,H16 |
| 3711-007689 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-007753 | HEADER-BOARD TO CABLE;BOX,2P,1R,1.0MM,SM |
| 3711-007693 | HEADER-BOARD TO CABLE;BOX,2P,1R,1.25MM,S |
| 3711-007549 | HEADER-BOARD TO CABLE;BOX,9P,1R,1.5MM,SM |
| BA62-00797A | HEAT SINK-CPU;RAMOS-14 INT,AL,12.5MM,100 |
| BA62-00605B | HEAT SINK-PCH;MCLAREN, XIDAN,AL,T1,W38,L |
|
|

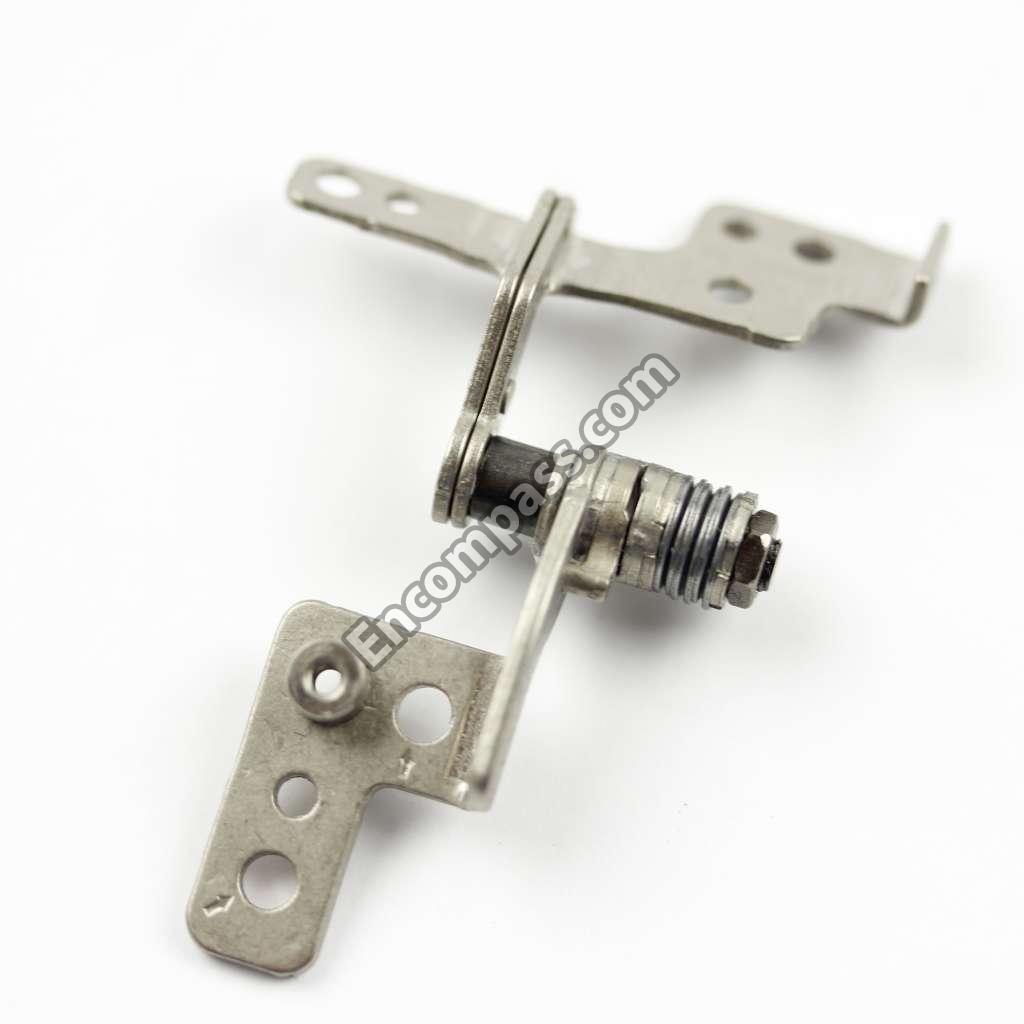

HINGE-L;RAMOS15M,STAINLESS,T1.5,W40,L40, |
| BA61-02016A | HINGE-R;RAMOS15M,STAINLESS,T1.5,W40,L40, |
| 1205-004168 | IC-CLOCK GENERATOR;SLG3NB145,TQFN,16P,3X |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC- |
| 1205-004291 | IC-CODEC;ALC269Q-VC2-GR,QFN,48P,6X6MM,PL |
| 1105-002387 | IC-DRAM MODULE;IC-DRAM M471B5773EB0-CK0, |
| 1105-002377 | IC-DRAM MODULE;M471B5173BH0-CK0,DDR3 160 |
| 1105-002391 | IC-DRAM MODULE;M471B5273CH0-CK0,IC-DRAM |
| 1105-002376 | IC-DRAM MODULE;M471B5273EB0-CK0,DDR3 160 |
| 1105-002392 | IC-DRAM MODULE;M471B5773CHS-CK0,IC-DRAM |
| 1105-002328 | IC-DRAM MODULE;M471B5773DH0-CK0,DDR3 2G |
| 1205-004159 | IC-ETHERNET CONTROLLER;RTL8111E-VL-CG,QF |
| 1203-007245 | IC-PWM CONTROLLER;ISL95836HRTZ-T,TQFN,40 |
| 1203-007109 | IC-PWM CONTROLLER;RT8207LZQW,QFN,24P,4X4 |
| 1203-007237 | IC-PWM CONTROLLER;TPS51219RTER,QFN,16P |
| 1203-007236 | IC-PWM CONTROLLER;TPS51461RGER,QFN,24P,4 |
| 1209-001887 | IC-SENSOR;EMC2112-BP-TR,QFN,20P,4X4MM,PL |
| 1205-003683 | IC-SWITCH;G546A2RD1D,SON,8P,3X3MM,PLASTI |
| 1202-001091 | IC-VOLTAGE COMP.;LMV331,SOT-23,5P,2.9X1. |
| BA81-18737A | INSULATOR-TOUCHPAD;RAMOS-15M,DOMESTIC,SL |
|
|
JACK-DC POWER;3P,5.6PI,AUF,BLK |
| 3722-003647 | JACK-MODULAR;8P/8C,INVERTED,YES,ANGLE, |
| 3722-003474 | JACK-PHONE;5P,AUF,BLK,ANGLE |
| 3722-003240 | JACK-USB;4P/1C,AU,BLK,ANGLE-OFFSET,A,1 |
| 3722-003330 | JACK-USB;9P,AUF,BLUE,ANGLE,A |
| BA68-05382A | LABEL ENERGY-WARRANTY;BRIGHTON,ENG,PET |
| BA68-08426A | LABEL-6235ANHHMW;MCLAREN-15,PET,T0.09, |
| BA68-06891A | LABEL-LOGO_I5_CPU;N/P ALL,SEC,PET,T0.1,W |
| BA68-08890A | LABEL-LOGO_WIN8_STANDARD;N/P ALL,WINDOWS |
| BA68-20039A | LABEL-PPID_E;BLADE,PAPER,W50.8,L12.7 |
| BA59-03604A | LCD PANEL-HD_200N_N/G;B156XW04 V6,156 HD |
| 0601-002391 | LED;SMD,RED/GRN,1.6X1.5X0.55MM,574~639NM |
| BA68-08500A | MANUAL-GUIDE_PL;MCLAREN-15,SEC,ALL,EXPOR |
| BA59-03753A | MODULE-CAMERA;SC-10HDD12636P,CM100HP06S1 |
| BA59-03574A | MODULE-CAMERA;SC-10HDD12636X,NCM-161F / |
| BA59-03294A | MODULE-WLAN_BT;INTEL CENTRINO ADVANCED-N |
| BA69-40003A | PACKING-HANDLE;S3725,LDPE,HANDLE,T3,W17, |
| 2007-000239 | R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-002900 | R-CHIP;11KOHM,1%,1/10W,TP,1608 |
| 2007-007467 | R-CHIP;12.1KOHM,1%,1/16W,TP,1005 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005 |
| 2007-008070 | R-CHIP;130OHM,1%,1/10W,TP,1608 |
| 2007-008693 | R-CHIP;130OHM,1%,1/16W,TP,1005 |
| 2007-007937 | R-CHIP;17.4KOHM,1%,1/10W,TP,1608 |
| 2007-000448 | R-CHIP;180OHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-000503 | R-CHIP;2.2OHM,5%,1/10W,TP,1608 |
| 2007-007803 | R-CHIP;2.37KOHM,1%,1/10W,TP,1608 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-000536 | R-CHIP;200OHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-008330 | R-CHIP;22.6OHM,1%,1/16W,TP,1005 |
| 2007-007302 | R-CHIP;24.9OHM,1%,1/10W,TP,1608 |
| 2007-008007 | R-CHIP;3.24KOHM,1%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-008576 | R-CHIP;3.65KOHM,1%,1/10W,TP,1608 |
| 2007-008106 | R-CHIP;3.92KOHM,1%,1/10W,TP,1608 |
| 2007-008304 | R-CHIP;300KOHM,1%,1/16W,TP,1005 |
| 2007-000763 | R-CHIP;330OHM,1%,1/10W,TP,1608 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005 |
| 2007-008309 | R-CHIP;37.4OHM,1%,1/16W,TP,1005 |
| 2007-008223 | R-CHIP;39.2KOHM,1%,1/10W,TP,1608 |
| 2007-007549 | R-CHIP;4.99KOHM,1%,1/10W,TP,1608 |
| 2007-007737 | R-CHIP;43.2OHM,1%,1/10W,TP,1608 |
| 2007-007585 | R-CHIP;430KOHM,1%,1/16W,TP,1005 |
| 2007-007797 | R-CHIP;44.2OHM,1%,1/10W,TP,1608 |
| 2007-000077 | R-CHIP;470OHM,5%,1/10W,TP,1608 |
| 2007-008293 | R-CHIP;475OHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000969 | R-CHIP;5.1OHM,1%,1/10W,TP,1608 |
| 2007-007878 | R-CHIP;5.62KOHM,1%,1/10W,TP,1608 |
| 2007-008026 | R-CHIP;56OHM,1%,1/16W,TP,1005 |
| 2007-000111 | R-CHIP;6.8OHM,5%,1/10W,TP,1608 |
| 2007-008299 | R-CHIP;61.9OHM,1%,1/16W,TP,1005 |
| 2007-007456 | R-CHIP;619OHM,1%,1/16W,TP,1005 |
| 2007-008296 | R-CHIP;680KOHM,1%,1/16W,TP,1005 |
| 2007-008438 | R-CHIP;715OHM,1%,1/16W,TP,1005 |
| 2007-001153 | R-CHIP;750OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001167 | R-CHIP;75OHM,5%,1/10W,TP,1608 |
| 2007-008676 | R-CHIP;80.6KOHM,1%,1/16W,TP,1005 |
| 2007-007735 | R-CHIP;91OHM,1%,1/10W,TP,1608 |
| BA67-00474A | RUBBER-FOOT;RAMOS14/15,SR,D11,W11*L2 |
| BA81-15496D | RUBBER-FRONT;RAMOS14,TPU,D4*T1.4MM,HS90, |
| BA81-12715N | RUBBER-FRONT_MID;RAMOS15,DOMESTIC,P COOL |
| BA81-07371J | RUBBER-TOP;RAMOS15,TPU,W2*L7*T1.1MM,3M98 |
| 6001-001650 | SCREW-MACHINE;BH,+,M2,L3,NI PLT,SWRCH18A |
| 6001-002736 | SCREW-MACHINE;BH,+,M2,L6,ZPC(BLK),SWRCH1 |
| 6001-001649 | SCREW-MACHINE;CH,+,M2,L4,NI PLT,SWRCH18A |
| 6001-001480 | SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
| 3710-003343 | SOCKET-BOARD TO CABLE;30P,2R,1MM,SMD-A,A |
| 0202-001498 | SOLDER-WIRE FLUX;SR34 SUPER LFM-48,D1, |
| 3404-001052 | SWITCH-TACT;12V,50MA,160GF,5.2X5.2X0.8MM |
|
|
TAPE ETC-TOUCHPAD;RAMOS15,STP-03XM,T0. |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| BA75-04358A | UNIT-BRACKET_HDD;RAMOS-14,SESC,SUS,W62.7 |
| BA75-04538A | UNIT-DOOR_HDD;RAMOS-15M,DOMESTIC,PC/ABS, |
|
|

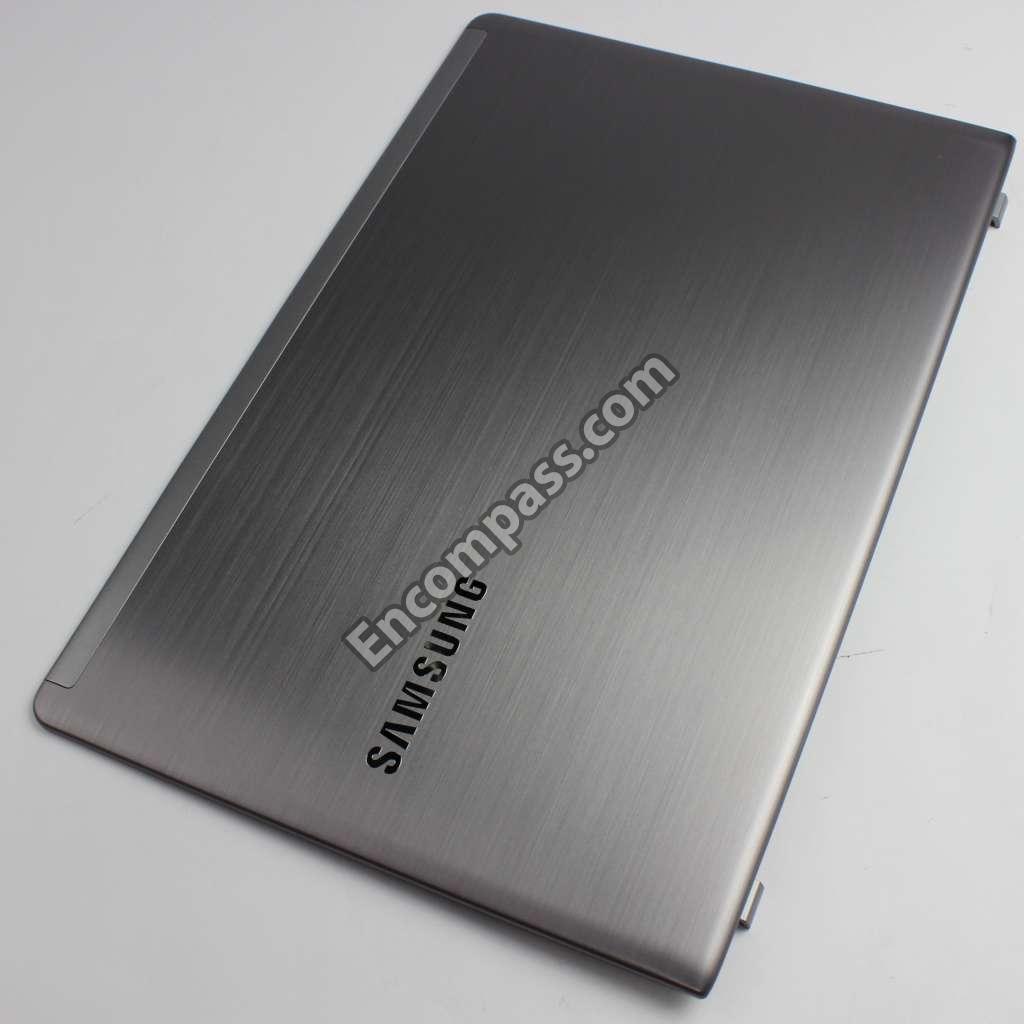

UNIT-HOUSING_BACK_LCD;RAMOS-15M,DOMESTIC |
|
|

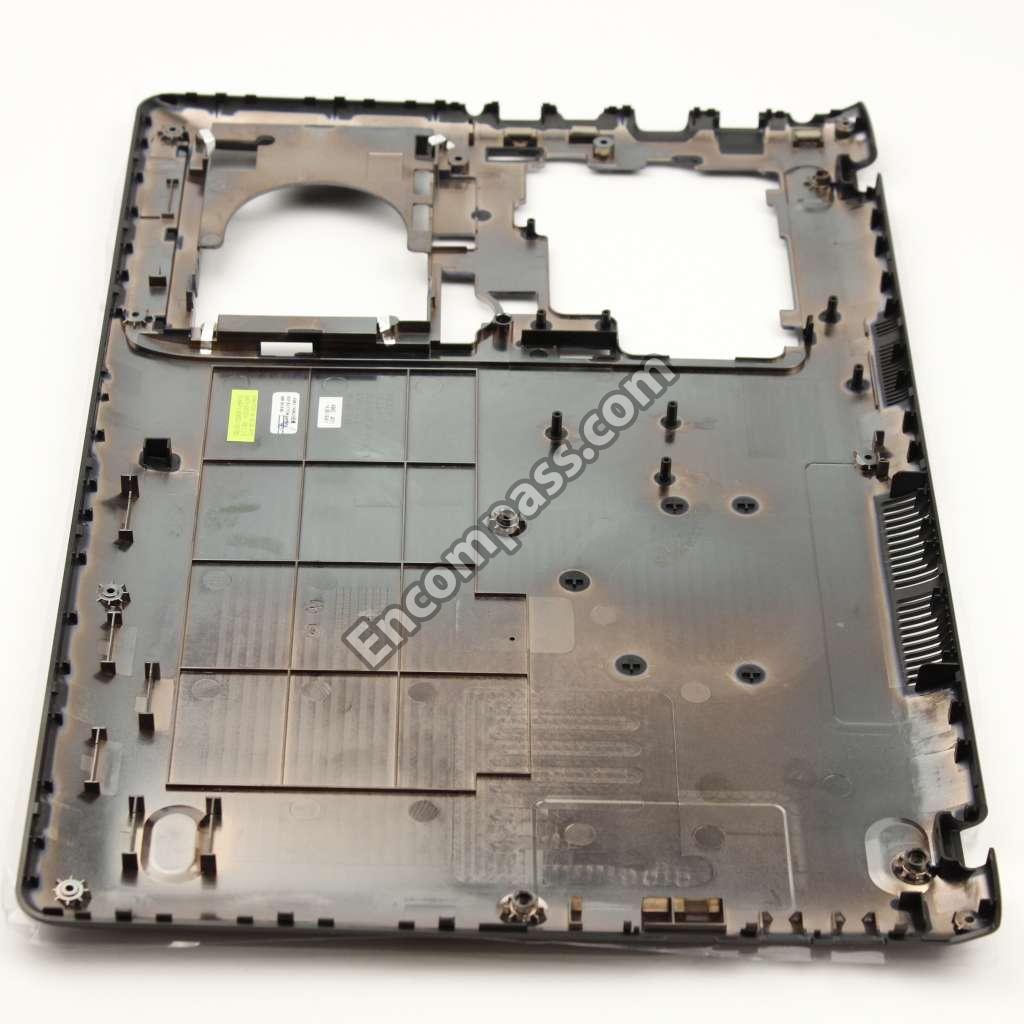

UNIT-HOUSING_BOTTOM;RAMOS-15M,SESC,PC/AB |
|
|

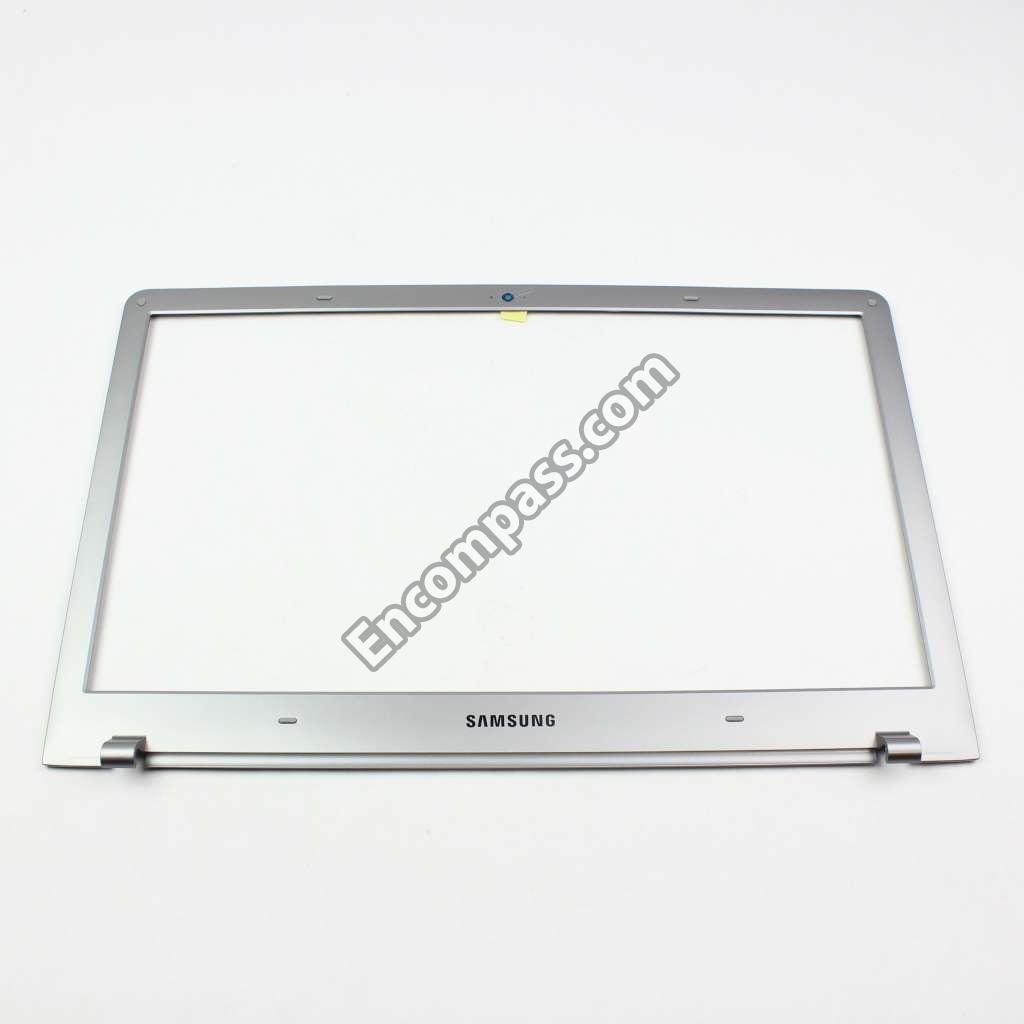

UNIT-HOUSING_FRONT_LCD;RAMOS-15 BBY,DOME |
|
|

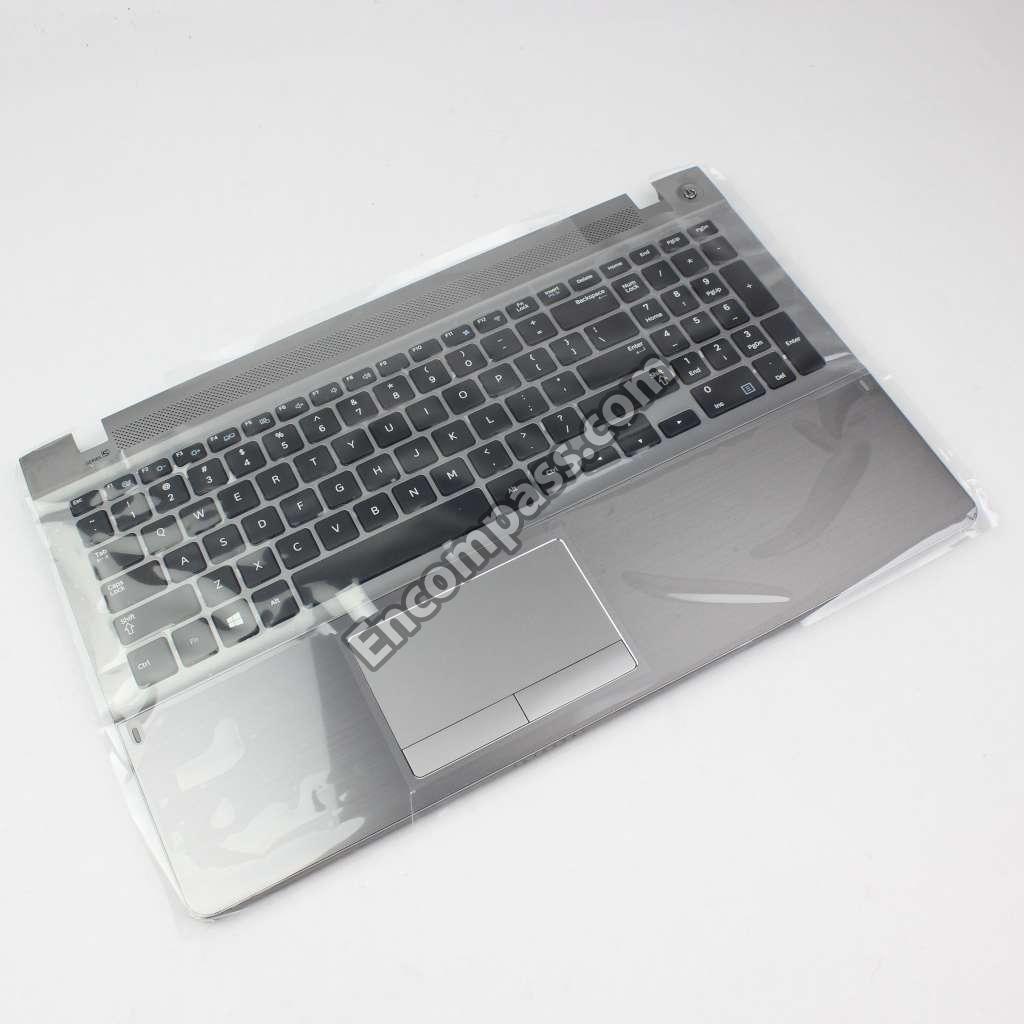

UNIT-HOUSING_TOP-US;RAMOS-15M,SESC,PC/AB |
| BA39-01052A | WIRE HARNESS-BATTERY;PRINCETON12,AWG28,U |
