Manufacturer
Samsung
Model Number
NP750QUAK01US
Description

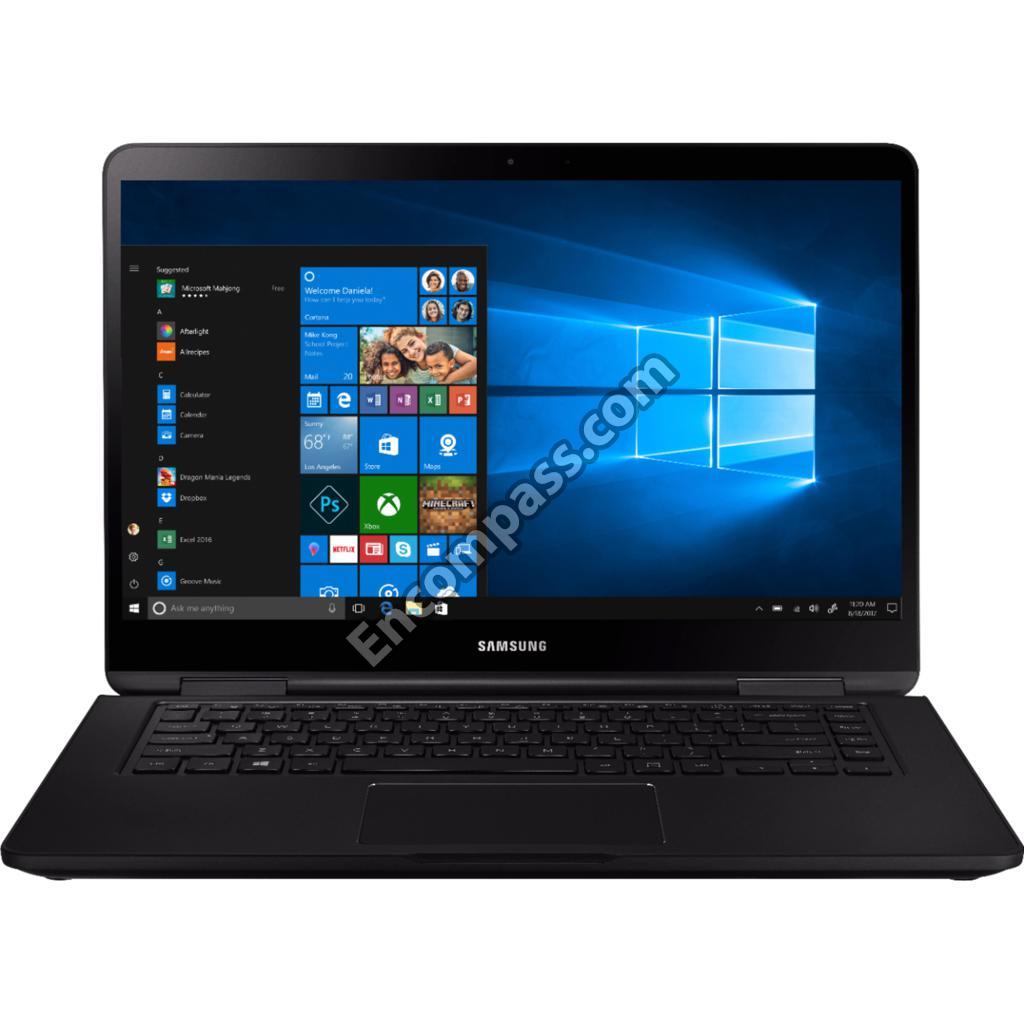

Notebook 7 Spin 15.6-inch Touch-screen Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

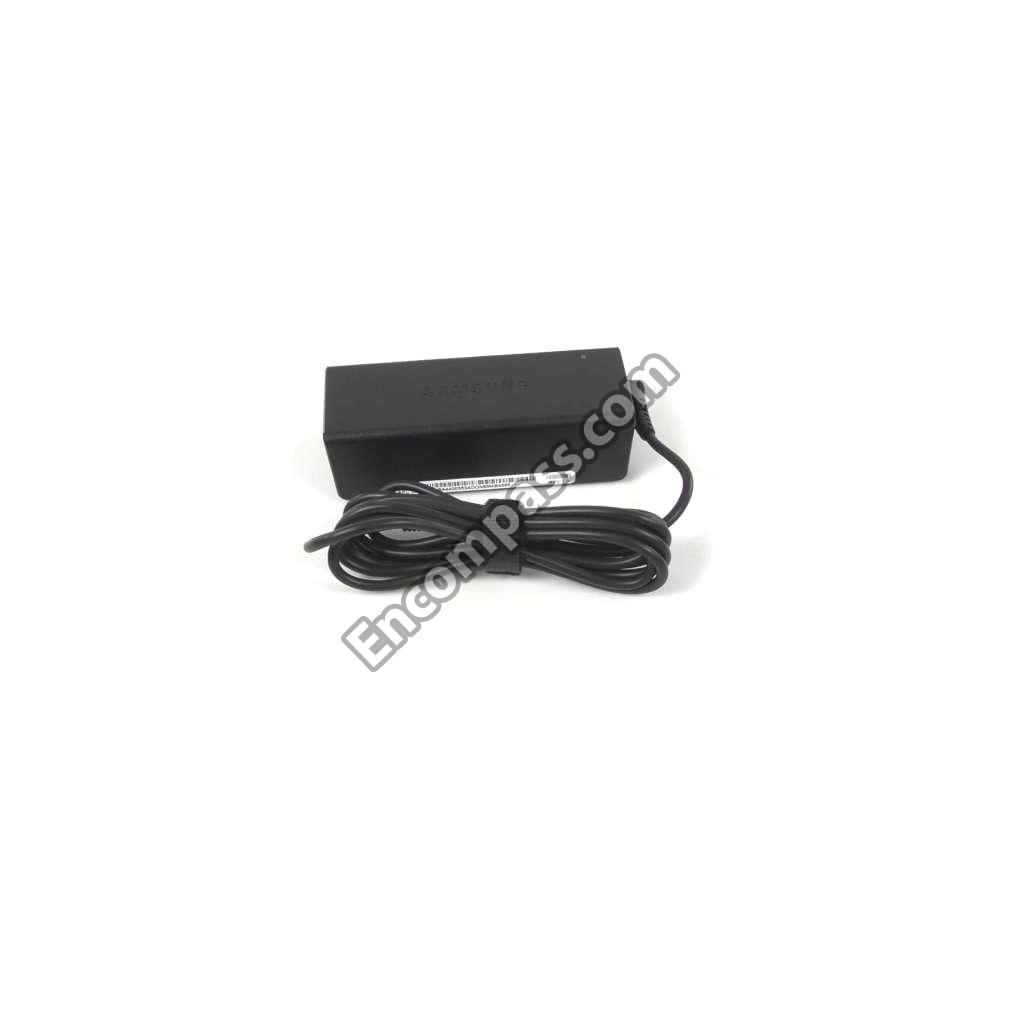

ADAPTOR;PD-65ABH,PD-65ABH,DC5V |
| BA92-18847A | ASSEMBLY BD WLAN-TOP;LAWRENCE-15 R |
| BA98-01597A | ASSEMBLY BRACKET-HDD;LAWRENCE-15,S |
| BA97-10475A | ASSEMBLY CASE FRONT-TOP;LAWRENCE-1 |
| BA98-01591A | ASSEMBLY CASE REAR-CQ;LAWRENCE-15, |
| BA98-01678A | ASSEMBLY CASE-DUMMY-HDD;LAWRENCE-1 |
| BA98-01104A | ASSEMBLY COVER-DUMMY-HDD;NABOO-24, |
| BA98-01596A | ASSEMBLY KEY-EYELID;LAWRENCE-15,SE |
|
|
ASSEMBLY LCD SUBINS;LAWRENCE-15 RV |
| BA92-19025A | ASSEMBLY MOTHER BD-TOP;LAWRENCE-15 |
| BA98-01763A | ASSEMBLY SHIELD-CAN_MEMORY;LAWRENC |
| BA96-07251A | ASSEMBLY SPEAKER-SPEAKER L;LAWRENC |
| BA96-07251B | ASSEMBLY SPEAKER-SPEAKER R;LAWRENC |
| BA97-10473A | ASSEMBLY TOUCHPAD-INS;LAWRENCE-15, |
| BA97-10520A | ASSEMBLY TOUCHPAD-INS_SVC;LAWRENCE |
| BA61-03749A | BRACKET-PORT_MAIN;LAWRENCE-15, |
| BA61-03748A | BRACKET-PORT_SUB;LAWRENCE-15,S |
|
|
CAP-KEYBOARD |
|
|
CASE-LOWER;LAWRENCE-15,PC,BLAC |
| 3711-008188 | CONNECTOR-BATTERY |
| BA31-00185A | FAN-CPU |
| BA41-02664A | FFC-HDD;LAWRENCE-15,0.1,FFC,T0 |
| BA41-02666A | FFC-MAIN TO SUB;LAWRENCE-15,0. |
| BA41-02665A | FFC-TOUCHPAD;LAWRENCE-15,0.1,F |
| BA59-04282A | HDD-SSD |
| BA61-03754A | HOLDER-FINGER_POWER;LAWRENCE-1 |
| 3722-004090 | JACK-EAR PHONE |
|
|

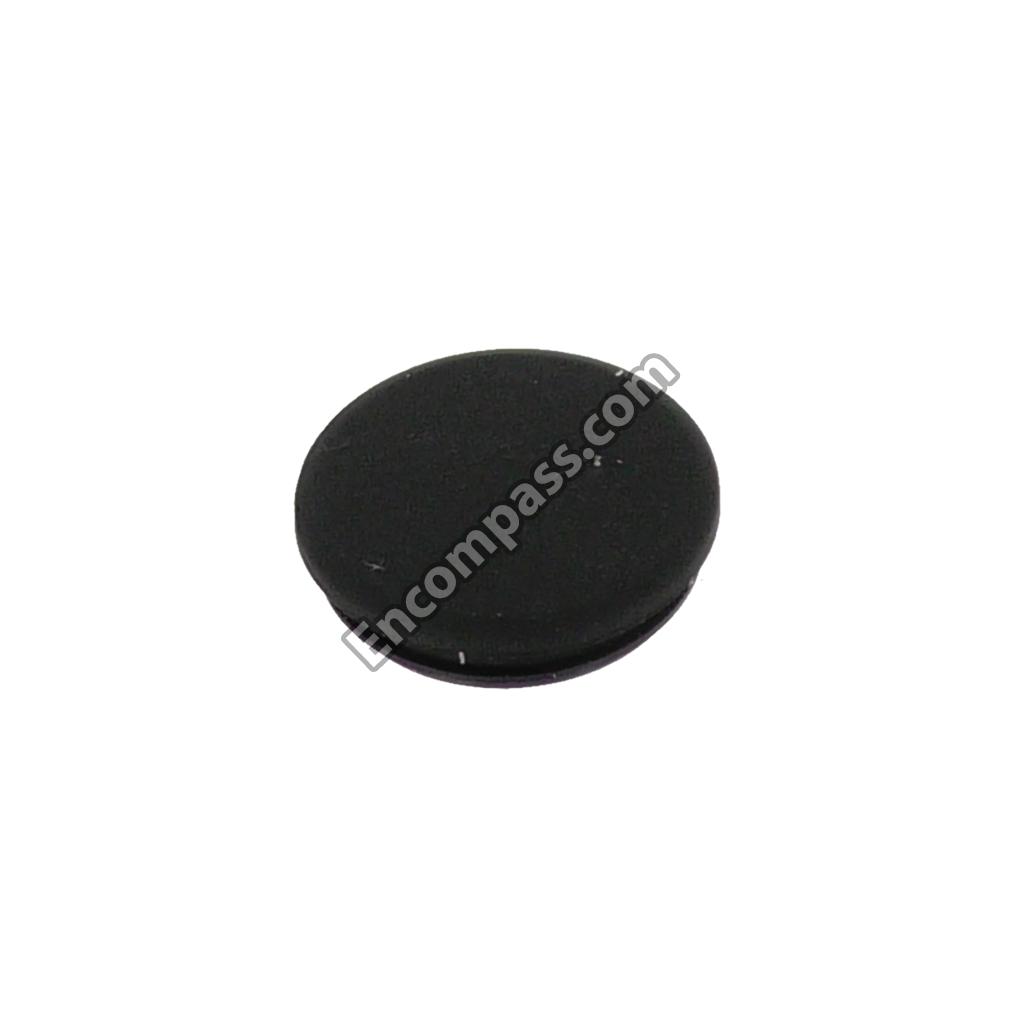

RUBBER-FOOT;LAWRENCE-15,SI |
| BA67-01189A | RUBBER-FRONT;LAWRENCE-15,TPU,T |
| 6001-003313 | SCREW-MACHINE |
| 6001-003312 | SCREW-MACHINE |
| 6001-002795 | SCREW-MACHINE |
| 6001-001925 | SCREW-MACHINE |
| 6001-001650 | SCREW-MACHINE |
| 6001-001560 | SCREW-MACHINE |
| 6001-001480 | SCREW-MACHINE |
| BA63-01039A | SHIELD-CLICKPAD |
| 3710-003891 | SOCKET-BOARD TO CABLE |
| BA59-04340A | UNIT-FINGERPRINT SENSOR;LAWREN |
| 3722-004122 | USB JACK |
| 3722-004096 | USB JACK |
| 3722-003270 | USB JACK |
| 1405-001406 | VARISTOR |
