Manufacturer
Samsung
Model Number
NP900X3NK03US
Description

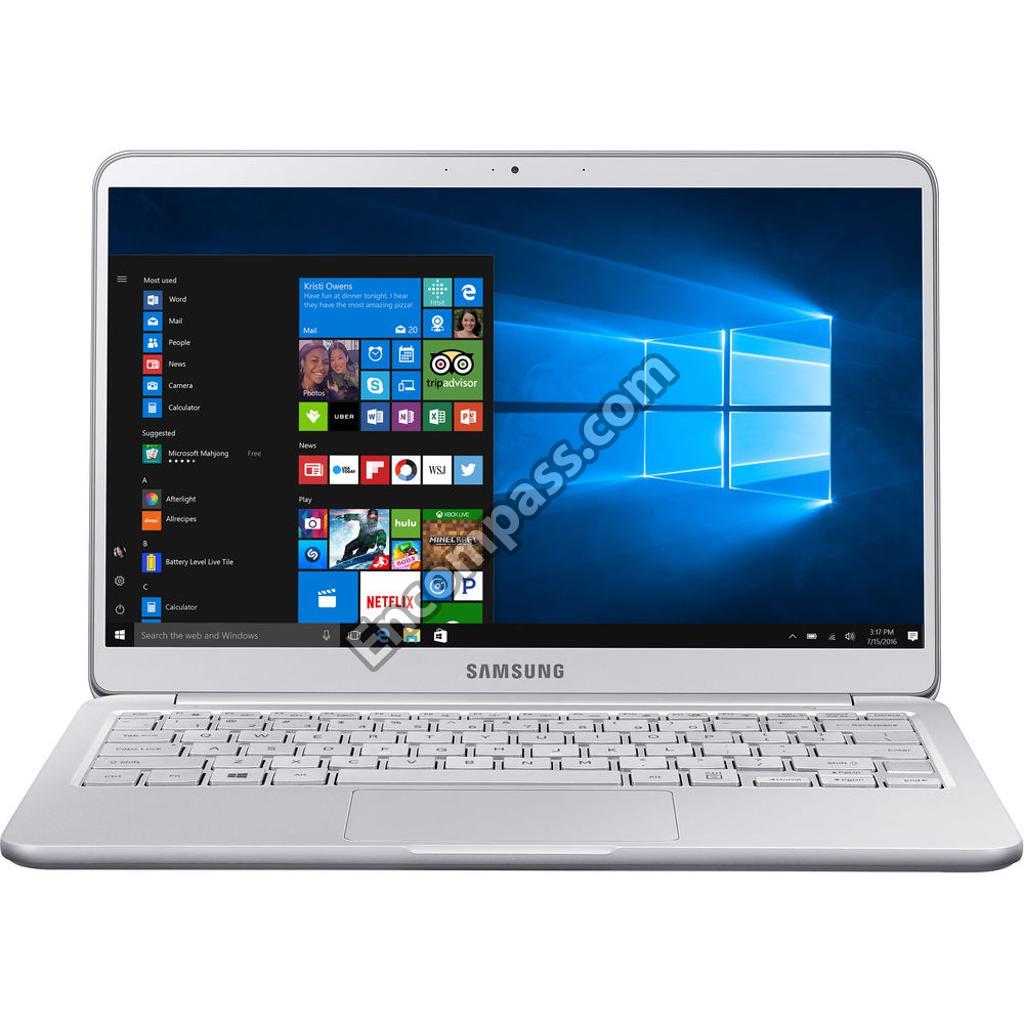

Notebook 9 13.3-inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

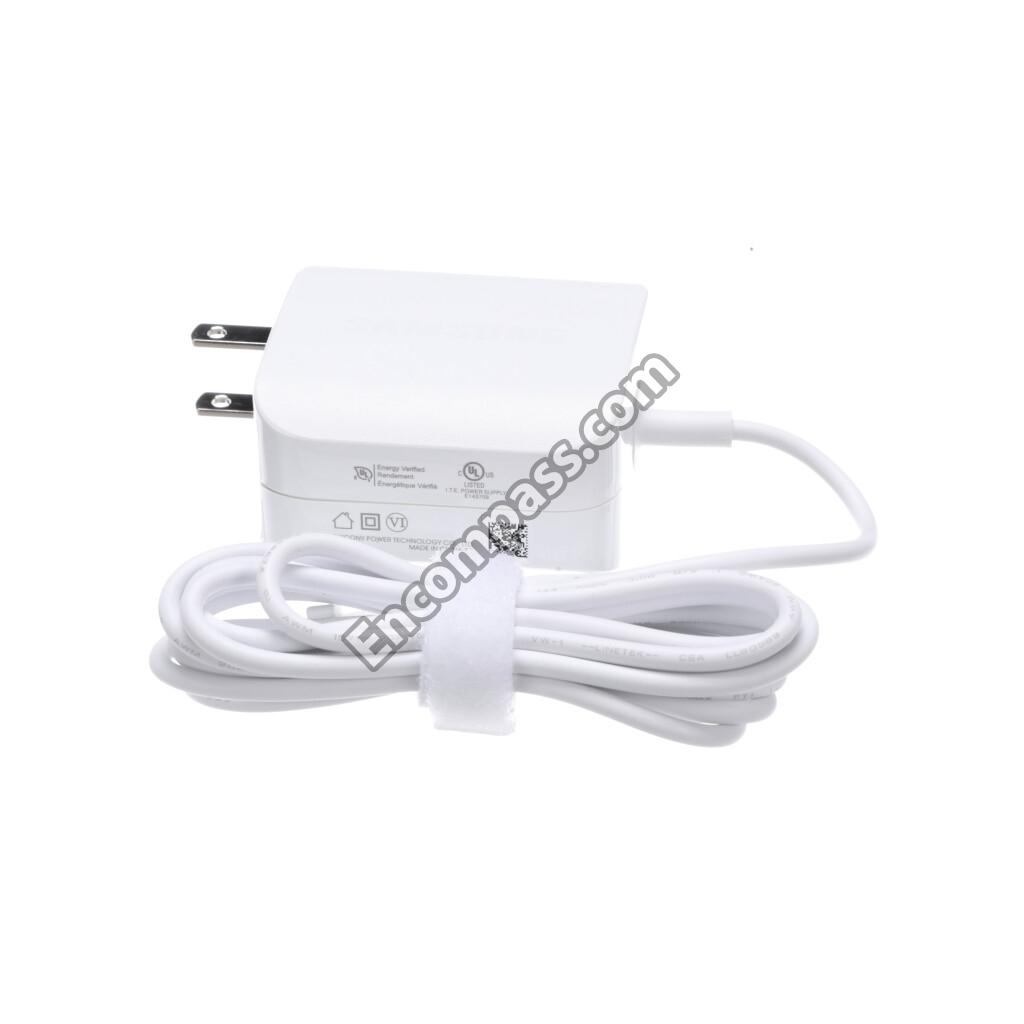

ADAPTOR |
| BA97-09250A | ASSEMBLY CASE FRONT-TOP |
| BA98-00937A | ASSEMBLY CASE REAR |
| BA97-09254A | ASSEMBLY CASE-FRONT TOUCHPAD |
| BA98-00941A | ASSEMBLY KEY-POWER |
| BA96-07133A | ASSEMBLY LCD SUBOUT-KOR |
| BA92-17221A | ASSEMBLY MOTHER BD-TOP |
| BA96-07102A | ASSEMBLY SPEAKER (LEFT) |
| BA96-07102B | ASSEMBLY SPEAKER (RIGHT) |
| BA92-16895A | BOARD ASSEMBLY WLAN-TOP |
| BA61-03226A | BRACKET-PORT L |
| BA61-03227A | BRACKET-PORT R |
|
|
CAP-KEYBOARD |
| 3711-008188 | CONNECTOR-BATTERY |
| BA31-00168A | FAN |
| BA41-02545A | FFC-TOUCH PAD |
| BA59-04111A | HDD-SSD |
| 3722-003858 | JACK-DC POWER |
| 3722-004064 | JACK-PHONE |
| 6001-003263 | SCREW-MACHINE |
| 6001-002737 | SCREW-MACHINE |
| 6001-001925 | SCREW-MACHINE |
| 6001-001650 | SCREW-MACHINE |
| 6002-001550 | SCREW-TAPPING |
| 3710-003986 | SOCKET-BOARD TO CABLE |
| BA59-04162A | UNIT-FINGERPRINT SENSOR |
| 3722-004065 | USB JACK |
| 3722-004062 | USB JACK |
