Manufacturer
Samsung
Model Number
NP930SBE
Description
Notebook 9 Pen 13-inch
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTOR;W065R046Q,PD-65AWNUS,DC5V-9V-15V |
| BA98-01829A | ASSEMBLY ACCE-TWEEZER KIT (TIP WHITE);AIRFOR |
| BA92-19218A | ASSEMBLY BD SUB-UFS_TOP;AIRFORCE-13 WHL NPC, |
| BA92-19120A | ASSEMBLY BD WLAN-TOP;AIRFORCE-13 WHL NPC,WLA |
| BA98-01653A | ASSEMBLY CASE REAR;AIRFORCE-13,SEC,AL,BLUE |
| BA97-10509A | ASSEMBLY CASE-FRONT_TOUCHPAD;AIRFORCE-13,SEC |
| BA98-01655A | ASSEMBLY HOLDER-PEN;AIRFORCE-13,SEC,PC,BLUE |
| BA98-01656A | ASSEMBLY KEY-POWER;AIRFORCE-13,SEC,AL,BLUE |
|
|

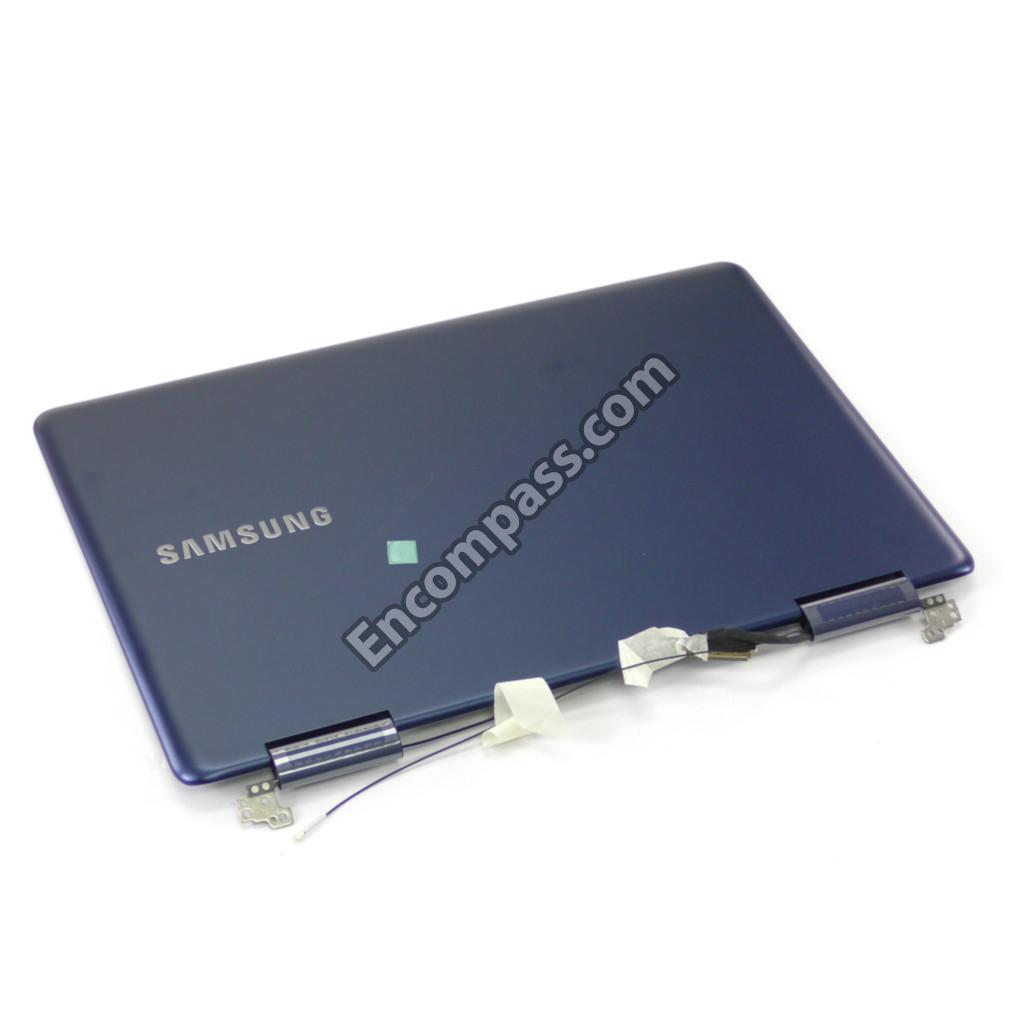

ASSEMBLY LCD SUBINS;AIRFORCE-13 WHL NPC,PLS, |
| BA98-01657A | ASSEMBLY RUBBER-FOOT;AIRFORCE-13,SEC,SI,SILV |
| BA96-07257A | ASSEMBLY SPEAKER-LEFT;AIRFORCE-13,SESC,LEFT, |
| BA96-07257B | ASSEMBLY SPEAKER-RIGHT;AIRFORCE-13,SESC,RIGH |
|
|
ASSEMBLY STYLUS PEN-AIRFORCE-13/15;AIRFORCE- |
| BA59-04360A | ASSEMBLY US FP-FINGERPRINT MODULE;AIRFORCE-1 |
| BA96-07308A | ASSEMBLY USB GENDER-A TO C DONGLE;AIRFORCE-1 |
| BA61-03773A | CASE-LOWER;AIRFORCE-13,PC,BLUE |
| BA39-01452A | CBF HARNESS-POWER CABLE;AIRFORCE-13,WIRE |
| BA63-02239A | COVER-UFS_TRAY;AIRFORCE-13,PC,SILVER |
| BA31-00168A | FAN;EPIC-13,,5V,,3.78MMH20,0.0486932M^3 |
| BA41-02672A | FFC-TOUCHPAD;AIRFORCE-13,0.1,FFC,T0.3,56 |
| BA41-02692A | FPC;AIRFORCE-13,,FCCL,L111.25XW14.41MM, |
| BA41-02691A | FPC;AIRFORCE-13,,FCCL,L121.76XW31.44MM, |
| BA59-04348A | HDD-SSD-NVME;512GB,MZVLB512HAJQ-000KN,~4 |
| BA62-01017A | HEAT SINK-CPU;AIRFORCE-13WHL,CU |
| BA61-03783A | HOLDER-ANTENNA_CABLE;AIRFORCE-13,ABS+PC, |
| BA61-03782A | HOLDER-PEN_DOWN;AIRFORCE-13,ABS+PC,BLACK |
| BA02-02478A | TAPE DOUBLE FACE-BRKT_HOLDER-ANT;AIRFORC |
