Manufacturer
Samsung
Model Number
NP930XCJK01US
Description
Computer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BA44-00341A | ADAPTOR;W065R032L,AD-6519AUS,19VDC,3.42A |
| BA42-00663A | ANTENNA-WIFI/BT ANTENNA;02112140-07029,O |
| BA92-20236A | ASSEMBLY BD SUB-WPS_TOP;ODIN-13,WPS BD |
| BA92-20147A | ASSEMBLY BD USB-TOP;ODIN-13,USB BD |
| BA97-10914A | ASSEMBLY CASE FRONT-TOP_SVC;ODIN-13 CML,SEC, |
| BA97-10915A | ASSEMBLY CASE-FRONT_TOUCHPAD;ODIN-13 CML,SEC |
| BA98-02094A | ASSEMBLY CASE-REAR;ODIN-13,SEC,MG,SILVER |
| BA98-02095A | ASSEMBLY HINGE-L;ODIN-13,SEC |
| BA98-02096A | ASSEMBLY HINGE-R;ODIN-13,SEC |
| BA98-02123A | ASSEMBLY KEY-POWER;ODIN-13,SEC,AL+URETHANE,P |
|
|
ASSEMBLY LCD SUBINS-AURA_SILVER-TOP;ODIN-13, |
| BA96-07379A | ASSEMBLY LCD SUBINS;ODIN-13,PLS,13.3-INCH ,FHD(19 |
| BA92-20419A | ASSEMBLY MOTHER BD-TOP;ODIN-13,II7_10510U,8G |
| BA92-21066A | ASSEMBLY MOTHER BD-TOP_SVC;ODIN-13,II7_10510 |
| BA96-07400A | ASSEMBLY SPEAKER-LEFT;ODIN-13,SESC,LEFT,27MM |
| BA96-07400B | ASSEMBLY SPEAKER-RIGHT;ODIN-13,SESC,RIGHT,49 |
| BA59-04432A | ASSEMBLY US FP-FINGERPRINT MODULE;ODIN-13,"C |
| BA81-15718A | BADGE-SAMSUNG;NIKE-TAB,NI,W55*L8.2,T0.05 |
| 3301-001649 | BEAD-SMD;180OHM/100MHZ,1.6X0.8MM,TP,226O |
| BA61-04096A | BRACKET-PORT-L;ODIN-13,STS304,T0.5 |
| BA61-04097A | BRACKET-PORT-R;ODIN-13,STS304,T0.5 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006166 | C-CER,CHIP;100NF,10%,25V,X5R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002720 | C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608,T0.8 |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608,T0.8, |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2203-006399 | C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5 |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005,-55 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608,-55 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0. |
| 2203-008158 | C-CER,CHIP;47NF,10%,50V,X5R,TP,1005,T0.8 |
| 2203-001683 | C-CER,CHIP;68PF,5%,50V,C0G,TP,1608,-55TO |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 2409-001129 | C-POLYMER ,CHIP;100UF,20%,6.3V,WT,TP,3.5 |
| 3711-008188 | CONNECTOR-BATTERY;9P,1.5MM,AU,BLK,SMD-S, |
| 3709-001931 | CONNECTOR-CARD EDGE;20P,1.1/0.91MM,SMD-A |
| 3709-001837 | CONNECTOR-CARD SLOT;C-ALLOY,75P,0.5MM,AU |
|
|

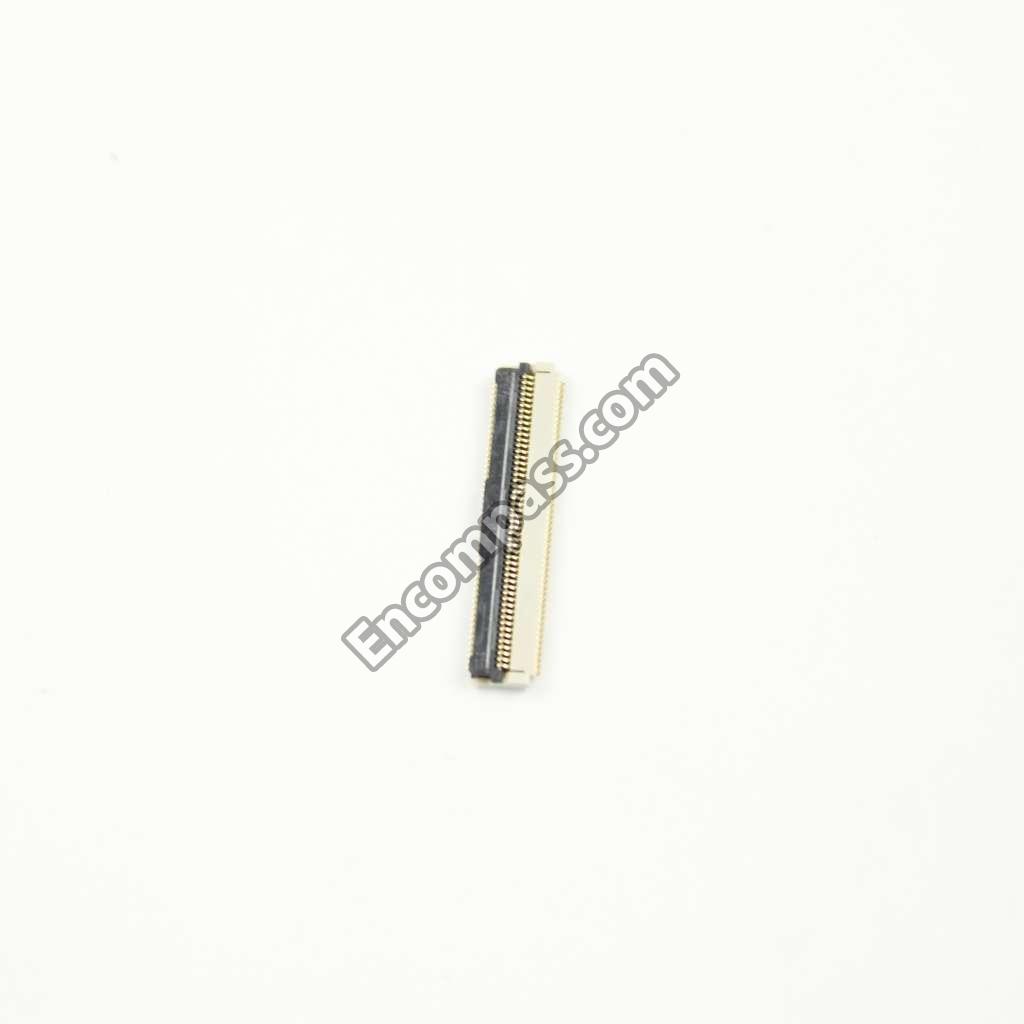

CONNECTOR-FPC/FFC/PIC;100P,0.2MM,SMD-A,A |
| 3708-002882 | CONNECTOR-FPC/FFC/PIC;6P,0.5MM,SMD-A,SN, |
| BA63-02403A | COVER HINGE;ODIN-13,ABS+PC,SILVER |
| BA63-02386B | COVER-UFS_TRAY;ODIN-13,AL,PRISM SILVER,A |
| 0409-001088 | DIODE-LIMITER;AP2331,-,200MA,SOT-23,TP |
| 0404-001084 | DIODE-SCHOTTKY;BAT54A,30V,200MA,SOT-23,T |
| 0407-000112 | DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| 0401-001168 | DIODE-SWITCHING;LBAS21HT1G,250V,200MA,SO |
| 0406-001820 | DIODE-TVS;AZ1023-04F,4.5V,6V,7.5V,0.5MAV |
| BA31-00199C | FAN-CPU_L;ODIN-13,DC5V,300MA,9.8MMH20,0. |
| BA31-00199D | FAN-CPU_R;ODIN-13,DC5V,300MA,9.8MMH20,0. |
| 0505-002775 | FET-SILICON;AON7403,P,-30V,29A,0.014/0.0 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-001883 | FET-SILICON;RHU002N06,N,60V,200MA,3.3OHM |
| 0505-002956 | FET-SILICON;SIZ300DT,N,30/30V,14.9A,0.02 |
| BA41-02762A | FFC-COIL FFC;ODIN-13,FFC,100X7.5MM,1L |
| BA41-02761A | FFC-TOUCHPAD FFC;ODIN-13,FFC,100X7.5MM,1 |
| BA41-02770A | FPC;ODIN,FCCL,132.3X50.07MM,AMOTEC,2L |
| BA41-02768A | FPC;ODIN-13_MTS,FCCL,L156.33XW26.875MM,A |
| BA59-04416A | HDD-SSD-NVME;512GB,MZVLB512HBJQ-000KS,~4 |
| BA59-04413A | HDD-SSD-NVME;512GB,SSDPEKNW512G8,~4MM,M. |
| BA62-01040A | HEAT SINK-CPU;ODIN-13 CML,CU |
| 1001-002033 | IC-ANALOG MULTIPLEX;SM5508,WLCSP,16P,1.7 |
| 0801-003538 | IC-CMOS LOGIC;74AUP1G07GM,BUFFER,XSON6,6 |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,TP,2X1.25X0.95MM,-40 |
| 1107-002538 | IC-NOR FLASH;GD25Q127CSIG,128MBIT,SOP,8P |
| 1107-002417 | IC-NOR FLASH;W25Q80DVSNIG,8MBIT,-,SOIC,8 |
| 1201-003272 | IC-OP AMP;-,SOT,TP,5P,2.0X2.1X0.95,1,-,P |
| 1203-008464 | IC-PWM CONTROLLER;ISL95808HRZ-T,DFN,-,2X |
| 1203-008840 | IC-PWM CONTROLLER;ISL95857AIRTZ-T,TQFN,4 |
| 1205-004761 | IC-SWITCH;APL3523QBITRG,TDFN,14P,2X3MM,P |
| 1205-005195 | IC-SWITCH;APL3529AQBI-TRG,TDFN,8P,2X2X0. |
|
|

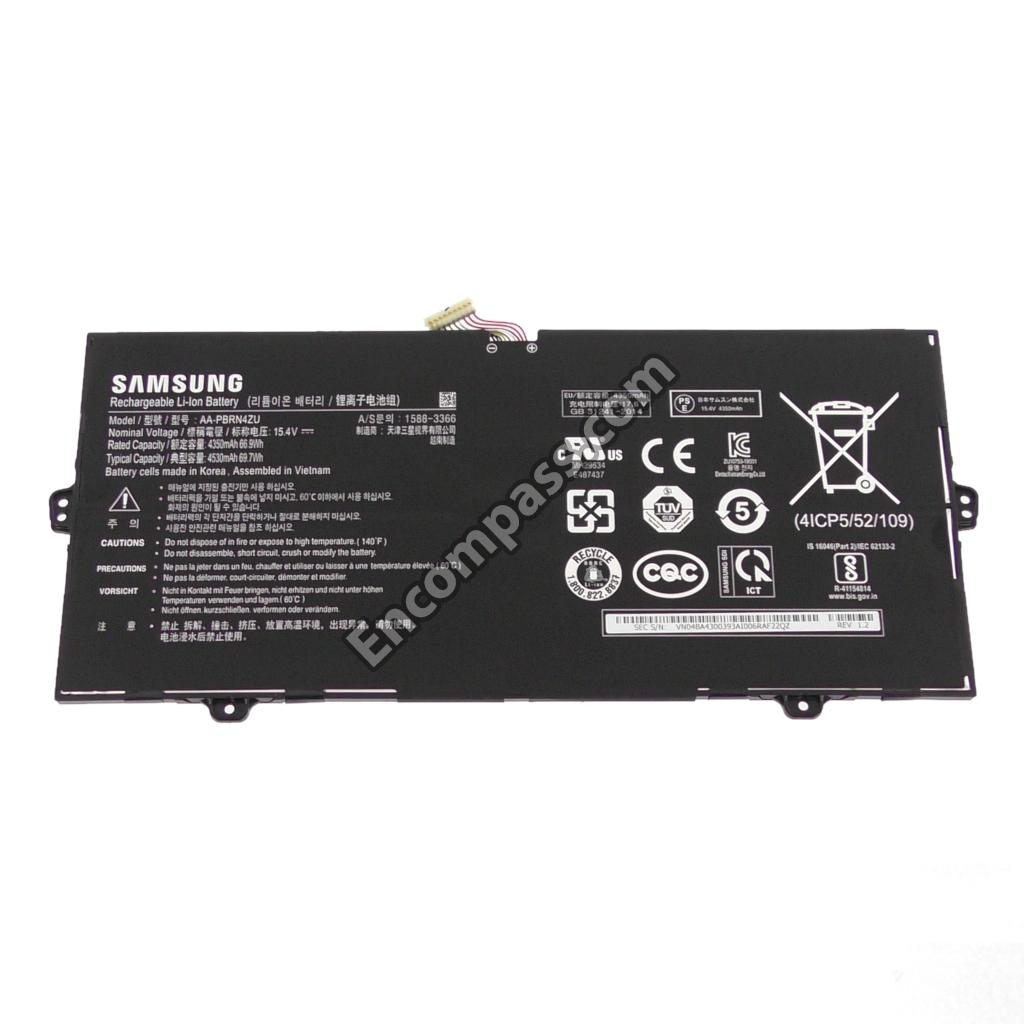

INCELL BATTERY PACK-AA-PBRN4ZU,66.9WH;AA |
| 3722-003858 | JACK-DC POWER;4P,3PI,AUF,BLK,9.3X10.7X5. |
| 3722-004064 | JACK-PHONE;6P/4C,AU,BLK,ANGLE,3.5PI,9.30 |
| 3722-004122 | JACK-USB;9P/2C,AU,BLU,ANGLE,A,3.0,15.95X |
| BA68-01297B | LABEL CAUTION;NPC,PAPER,T0.1,W60,L31,LAB |
| BA68-01297A | LABEL CAUTION;NPC,PET,T0.05,W60,L11,LABE |
| BA68-04365A | LABEL ENERGY-STAR;ALL,PET,T0.1,W14.7,L15 |
| BA68-10150L | LABEL-LOGO;ALL,ART,T0.08,W110,L120 |
| BA68-12674A | LABEL-LOGO_CPU_I7;ALL_MODEL,PC+PET,T0.1, |
| BA68-20039A | LABEL-PPID_E;BLADE,PET,T0.2,W9,L50.8,PPI |
| BA68-20039B | LABEL-PPID_HDD_EPASS;NPC,PAPER,T0.2,W8,L |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-008333 | R-CHIP;1.91KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-012194 | R-CHIP;113OHM,1%,1/20W,TP,0603,T0.23 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008437 | R-CHIP;121OHM,1%,1/16W,TP,1005 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-008697 | R-CHIP;2.49KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-009925 | R-CHIP;2.7OHM,1%,1/16W,TP,1005,- |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-008330 | R-CHIP;22.6OHM,1%,1/16W,TP,1005 |
| 2007-000570 | R-CHIP;220OHM,1%,1/10W,TP,1608 |
| 2007-009120 | R-CHIP;24.9KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007274 | R-CHIP;27.4KOHM,1%,1/10W,TP,1608 |
| 2007-009978 | R-CHIP;3.24KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-008304 | R-CHIP;300KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008297 | R-CHIP;33.2KOHM,1%,1/16W,TP,1005 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-011776 | R-CHIP;36OHM,1%,1/20W,TP,0603,- |
| 2007-000882 | R-CHIP;4.7OHM,5%,1/10W,TP,1608 |
| 2007-007549 | R-CHIP;4.99KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-007585 | R-CHIP;430KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007797 | R-CHIP;44.2OHM,1%,1/10W,TP,1608 |
| 2007-008706 | R-CHIP;45.3OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008293 | R-CHIP;475OHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008429 | R-CHIP;499OHM,1%,1/16W,TP,1005 |
| 2007-000969 | R-CHIP;5.1OHM,1%,1/10W,TP,1608 |
| 2007-008026 | R-CHIP;56OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000111 | R-CHIP;6.8OHM,5%,1/10W,TP,1608 |
| 2007-007619 | R-CHIP;60.4OHM,1%,1/10W,TP,1608 |
| 2007-008299 | R-CHIP;61.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008302 | R-CHIP;80.6OHM,1%,1/16W,TP,1005,T0.35 |
| BA67-01292B | RUBBER-FOOT;ODIN-13,SI,GRAY |
| 6001-001650 | SCREW-MACHINE;CH,+,-,M2,L3,NI PLT,SWRCH1 |
| 6001-002749 | SCREW-MACHINE;CH,+,-,M2,L3,ZPC(BLK),SWRC |
| 6001-003312 | SCREW-MACHINE;CH,+,-,M2,L4,NI PLT,SWRCH1 |
| 6001-003313 | SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC |
| 6001-001626 | SCREW-MACHINE;CH,+,-,M2,L4,ZPC(WHT),SWRC |
| 6002-001550 | SCREW-TAPPING;CH,+,M1.2,L1,ZPC(BLK),SWRC |
| GH98-36937A | SMG PART |
| GH62-00042A | SMG PART |
| 6001-002262 | SMG PART |
| 6001-002261 | SMG PART |
| 3711-008841 | SMG PART |
| 2801-003856 | SMG PART |
| 2703-005505 | SMG PART |
| 2703-005428 | SMG PART |
| 2703-005419 | SMG PART |
| 2703-003182 | SMG PART |
| 2409-001400 | SMG PART |
| 2203-010134 | SMG PART |
| 2203-009787 | SMG PART |
| 2203-009733 | SMG PART |
| 2203-009618 | SMG PART |
| 2203-009328 | SMG PART |
| 2203-008572 | SMG PART |
| 2203-008527 | SMG PART |
| 2203-008199 | SMG PART |
| 2203-008097 | SMG PART |
| 2203-008094 | SMG PART |
| 2203-007796 | SMG PART |
| 2203-007781 | SMG PART |
| 2203-007449 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007210 | SMG PART |
| 2203-006839 | SMG PART |
| 2203-006825 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006400 | SMG PART |
| 2203-006305 | SMG PART |
| 2203-005779 | SMG PART |
| 2203-005482 | SMG PART |
| 2203-005393 | SMG PART |
| 2203-005382 | SMG PART |
| 2203-002487 | SMG PART |
| 2203-002443 | SMG PART |
| 2203-001126 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-011043 | SMG PART |
| 2007-010202 | SMG PART |
| 2007-009920 | SMG PART |
| 2007-009866 | SMG PART |
| 2007-009801 | SMG PART |
| 2007-009408 | SMG PART |
| 2007-009157 | SMG PART |
| 2007-008774 | SMG PART |
| 2007-008542 | SMG PART |
| 2007-008420 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-007946 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007741 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007489 | SMG PART |
| 2007-007488 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007195 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007108 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007100 | SMG PART |
| 2007-001325 | SMG PART |
| 2007-001313 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001119 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000566 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000147 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000070 | SMG PART |
| 1404-001694 | SMG PART |
| 1404-001152 | SMG PART |
| 1205-005457 | SMG PART |
| 1203-009237 | SMG PART |
| 1203-008996 | SMG PART |
| 1203-008475 | SMG PART |
| 1203-008249 | SMG PART |
| 1202-001128 | SMG PART |
| 1201-004168 | SMG PART |
| 1201-002903 | SMG PART |
| 1009-001076 | SMG PART |
| 1001-001481 | SMG PART |
| 0601-001905 | SMG PART |
| 0505-003529 | SMG PART |
| 0505-003403 | SMG PART |
| 0406-001787 | SMG PART |
| 0406-001633 | SMG PART |
| 0404-001088 | SMG PART |
| 0401-001110 | SMG PART |
| 0202-002253 | SMG PART |
| 0203-000381 | SMG PART |
| 0203-002173 | SMG PART |
| 0406-001649 | SMG PART |
| 0406-001768 | SMG PART |
| 0406-001771 | SMG PART |
| 0406-001792 | SMG PART |
| 0406-001800 | SMG PART |
| 0406-001813 | SMG PART |
| 0406-001818 | SMG PART |
| 0406-001827 | SMG PART |
| 0406-001835 | SMG PART |
| 0505-001049 | SMG PART |
| 0505-003300 | SMG PART |
| 0505-003753 | SMG PART |
| 0801-002998 | SMG PART |
| 0801-003515 | SMG PART |
| 0902-003339 | SMG PART |
| 0904-003086 | SMG PART |
| 0904-003139 | SMG PART |
| 1003-003046 | SMG PART |
| 1103-001641 | SMG PART |
| 1105-003060 | SMG PART |
| 1107-002263 | SMG PART |
| 1203-008677 | SMG PART |
| 1203-008877 | SMG PART |
| 1203-008984 | SMG PART |
| 1203-009091 | SMG PART |
| 1203-009118 | SMG PART |
| 1203-009125 | SMG PART |
| 1203-009126 | SMG PART |
| 1203-009298 | SMG PART |
| 1203-009300 | SMG PART |
| 1203-009301 | SMG PART |
| 1203-009306 | SMG PART |
| 1203-009310 | SMG PART |
| 1203-009314 | SMG PART |
| 1203-009346 | SMG PART |
| 1205-005957 | SMG PART |
| 1205-006018 | SMG PART |
| 1205-006157 | SMG PART |
| 1205-006229 | SMG PART |
| 1209-002034 | SMG PART |
| 1209-002219 | SMG PART |
| 2007-008359 | SMG PART |
| 2007-008621 | SMG PART |
| 2007-009165 | SMG PART |
| 2007-009875 | SMG PART |
| 2007-010701 | SMG PART |
| 2007-010706 | SMG PART |
| 2203-008159 | SMG PART |
| 2203-008483 | SMG PART |
| 2203-009667 | SMG PART |
| 2409-001212 | SMG PART |
| 2409-001307 | SMG PART |
| 2409-001315 | SMG PART |
| 2409-001327 | SMG PART |
| 2703-003191 | SMG PART |
| 2703-003344 | SMG PART |
| 2703-003348 | SMG PART |
| 2703-003420 | SMG PART |
| 2703-004397 | SMG PART |
| 2703-004635 | SMG PART |
| 2703-005002 | SMG PART |
| 2703-005187 | SMG PART |
| 2703-005242 | SMG PART |
| 2703-005677 | SMG PART |
| 2703-005771 | SMG PART |
| 2801-005519 | SMG PART |
| 2801-005523 | SMG PART |
| 2901-001642 | SMG PART |
| 3301-001272 | SMG PART |
| 3701-002025 | SMG PART |
| 3708-003286 | SMG PART |
| 3708-003315 | SMG PART |
| 3708-003318 | SMG PART |
| 3708-003338 | SMG PART |
| 3711-009512 | SMG PART |
| 3722-004160 | SMG PART |
| 4709-002803 | SMG PART |
| 6801-002060 | SMG PART |
| 6922-000291 | SMG PART |
| BA02-00240A | SMG PART |
| BA02-00342A | SMG PART |
| BA02-00549A | SMG PART |
| BA02-00865A | SMG PART |
| BA02-01564A | SMG PART |
| BA02-01744A | SMG PART |
| BA02-02418A | SMG PART |
| BA02-02469A | SMG PART |
| BA02-02575A | SMG PART |
| BA02-02597A | SMG PART |
| BA02-02719A | SMG PART |
| BA02-02720A | SMG PART |
| BA02-02739A | SMG PART |
| BA02-02740A | SMG PART |
| BA02-02743A | SMG PART |
| BA02-02743B | SMG PART |
| BA02-02744A | SMG PART |
| BA02-02768A | SMG PART |
| BA02-02769A | SMG PART |
| BA02-02770A | SMG PART |
| BA02-02771A | SMG PART |
| BA02-02772A | SMG PART |
| BA02-02782A | SMG PART |
| BA02-02798A | SMG PART |
| BA02-02801A | SMG PART |
| BA02-02812A | SMG PART |
| BA02-02813A | SMG PART |
| BA02-02814A | SMG PART |
| BA02-02815A | SMG PART |
| BA02-02831A | SMG PART |
| BA02-02869A | SMG PART |
| BA02-02880A | SMG PART |
| BA02-02950A | SMG PART |
| BA09-00038A | SMG PART |
| BA34-00013A | SMG PART |
| BA39-01484A | SMG PART |
| BA41-02765A | SMG PART |
| BA41-02766A | SMG PART |
| BA41-02767A | SMG PART |
| BA46-16711A | SMG PART |
| BA46-17789A | SMG PART |
| BA46-35787A | SMG PART |
| BA46-35805A | SMG PART |
| BA46-38058C | SMG PART |
| BA46-38234A | SMG PART |
| BA46-38566A | SMG PART |
| BA46-38661A | SMG PART |
| BA46-38695A | SMG PART |
| BA46-38760A | SMG PART |
| BA46-38818A | SMG PART |
| BA46-38825A | SMG PART |
| BA59-04423A | SMG PART |
| BA59-04441A | SMG PART |
| BA59-04453A | SMG PART |
| BA59-04453B | SMG PART |
| BA59-04511A | SMG PART |
| BA61-03365A | SMG PART |
| BA61-03613A | SMG PART |
| BA61-03866A | SMG PART |
| BA61-03959A | SMG PART |
| BA61-04064A | SMG PART |
| BA61-04065A | SMG PART |
| BA61-04086A | SMG PART |
| BA61-04087A | SMG PART |
| BA61-04088A | SMG PART |
| BA61-04089A | SMG PART |
| BA61-04090A | SMG PART |
| BA61-04091A | SMG PART |
| BA61-04092A | SMG PART |
| BA61-04093A | SMG PART |
| BA61-04094A | SMG PART |
| BA61-04095A | SMG PART |
| BA61-04120A | SMG PART |
| BA61-04178A | SMG PART |
| BA62-01001A | SMG PART |
| BA62-01045A | SMG PART |
| BA62-01046A | SMG PART |
| BA63-01342A | SMG PART |
| BA63-01726A | SMG PART |
| BA63-02171A | SMG PART |
| BA63-02354A | SMG PART |
| BA63-02420A | SMG PART |
| BA63-02421A | SMG PART |
| BA63-02422A | SMG PART |
| BA63-02423A | SMG PART |
| BA63-02433A | SMG PART |
| BA63-02442A | SMG PART |
| BA63-02467A | SMG PART |
| BA64-01097A | SMG PART |
| BA64-01098A | SMG PART |
| BA64-01106A | SMG PART |
| BA64-01109A | SMG PART |
| BA67-00787A | SMG PART |
| BA67-01014A | SMG PART |
| BA67-01116A | SMG PART |
| BA67-01212A | SMG PART |
| BA67-01216A | SMG PART |
| BA67-01303A | SMG PART |
| BA67-01312A | SMG PART |
| BA67-01322A | SMG PART |
| BA67-01326A | SMG PART |
| BA67-01333A | SMG PART |
| BA68-00386A | SMG PART |
| BA68-07343A | SMG PART |
| BA68-10191W | SMG PART |
| BA68-11938N | SMG PART |
| BA68-12690D | SMG PART |
| BA68-40005L | SMG PART |
| BA69-00426F | SMG PART |
| BA69-00683A | SMG PART |
| BA69-01082A | SMG PART |
| BA69-01110A | SMG PART |
| BA69-01264B | SMG PART |
| BA69-01722D | SMG PART |
| BA69-01734A | SMG PART |
| BA69-01735B | SMG PART |
| BA69-01736C | SMG PART |
| BA69-01806A | SMG PART |
| BA69-01819A | SMG PART |
| BA69-40072E | SMG PART |
| BA81-11672B | SMG PART |
| BA81-13227B | SMG PART |
| BA92-20147B | SMG PART |
| BA92-20236B | SMG PART |
| BA92-20419B | SMG PART |
| BA96-07377A | SMG PART |
| BA97-00212P | SMG PART |
| BA97-00232J | SMG PART |
| BA97-10288A | SMG PART |
| BA97-10913A | SMG PART |
| BA97-10916A | SMG PART |
| BA97-10917A | SMG PART |
| BA97-11439B | SMG PART |
| BA98-02091A | SMG PART |
| BA98-02092A | SMG PART |
| BA98-02093A | SMG PART |
| BA98-02115A | SMG PART |
| BA98-02116A | SMG PART |
| BA98-02172A | SMG PART |
| BA98-02172B | SMG PART |
| BA98-02192A | SMG PART |
| BA99-00105H | SMG PART |
| GH62-00033A | SMG PART |
| GH62-00034A | SMG PART |
| GH62-00048A | SMG PART |
| GH62-00054A | SMG PART |
| GH62-00062A | SMG PART |
| 3404-001440 | SWITCH-TACT;12VDC,50MA,160GF,4.4X4.4X0.5 |
| BA02-02895A | TAPE DOUBLE FACE-REAR;ODIN-13,PET,TESA 4 |
| 0203-001869 | TAPE-KAPTONE;PP,T0.06,W10,L33M,GOLD,ROLL |
| 1404-001576 | THERMISTOR-NTC;470KOHM,4500K,1MWC,TP,1X0 |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
