Manufacturer
Samsung
Model Number
NP950QDBKA4US
Description
Galaxy Book Pro 360
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| GH44-03172A | ADAPTOR-EP-TA865;EP-TA865,DC5-20V,3A/3.2 |
| BA42-00697A | ANTENNA-AUX;02112140-07492,MARS-15,700MH |
| BA42-00696A | ANTENNA-MAIN;02112140-07491,MARS-15,700M |
| BA96-07916A | ASSEMBLY BATTERY-SVC;MARS-15,SEC,LI68_4IN,SE |
| BA92-21696A | ASSEMBLY BD AUDIO-TOP;MARS-15,AUDIO BD |
| BA98-02832A | ASSEMBLY BRACKET-POWER_KEY;MARS-13,SEV,STS,N |
| BA98-02810C | ASSEMBLY CASE REAR;MARS-15,SEC,AL,GOLD |
|
|

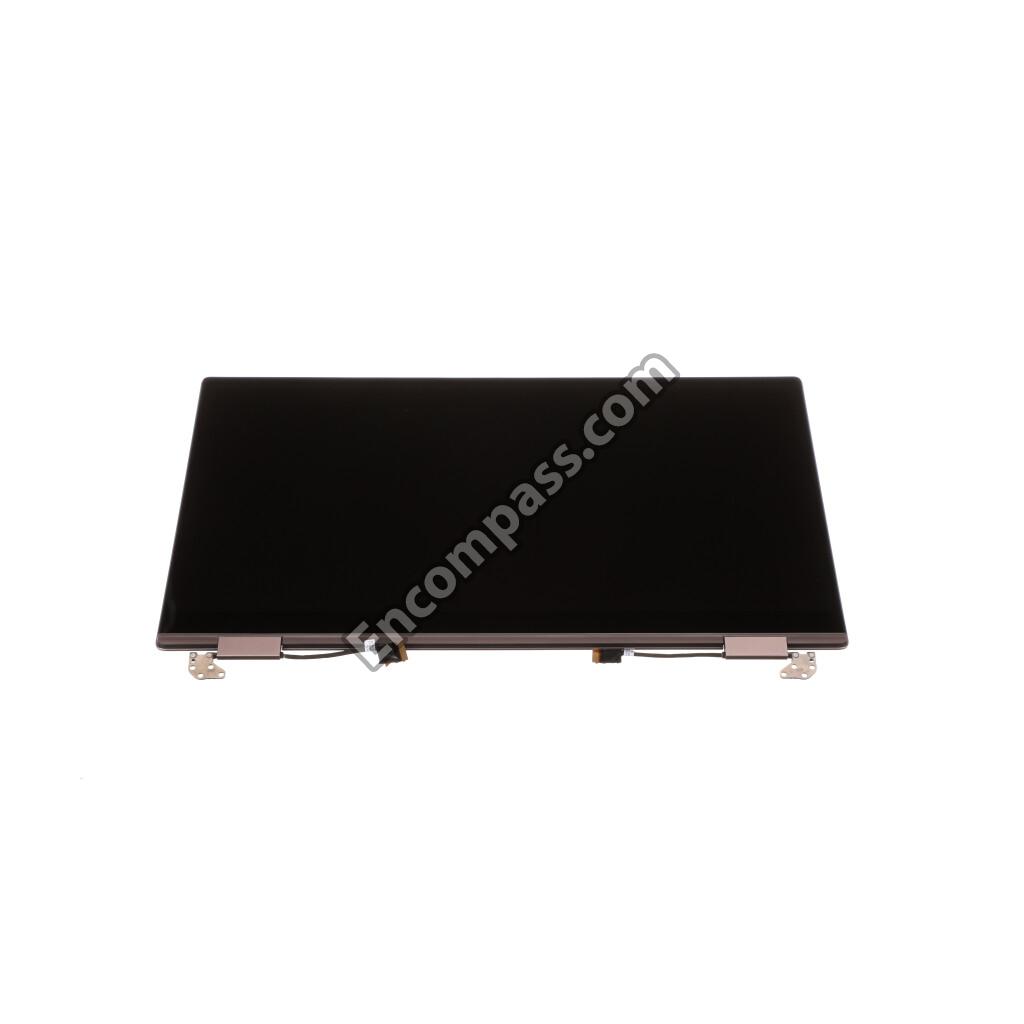

ASSEMBLY LCD SUBINS-GOLD-TOP;MARS-15,OLED,15 |
| BA92-22340A | ASSEMBLY MOTHER BD-TOP SVC;MARS-15 TGL NPC,I |
| BA98-02834C | ASSEMBLY RUBBER-FOOT;MARS-13,SEC,SI,GOLD |
| BA98-03054C | ASSEMBLY RUBBER-FOOT_BACK;MARS-15,SEC,SI,GOL |
| BA96-07676A | ASSEMBLY SPEAKER-LEFT;MARS-15,SEV,LEFT,49MM, |
| BA96-07676B | ASSEMBLY SPEAKER-RIGHT;MARS-15,SEV,RIGHT,15M |
| BA98-02871A | ASSEMBLY STYLUS PEN-NP930DQBA;NP930DQBA,WACO |
| BA97-11203C | ASSEMBLY TOUCHPAD-SVC;MARS-15,SEC,GOLD |
| BA96-07690A | ASSEMBLY US FP-FINGERPRINT MODULE;MARS-13,CA |
| BA63-02625C | COVER-LOWER;MARS-15,PC,GOLD,V2 |
| GH39-02089A | DATA LINK CABLE-EP-DW767JWE;3.3MM,1800MM |
| BA31-00204A | FAN-L;MARS-15,400MA,4300RPM,DC5V,7.8MMH2 |
| BA31-00204B | FAN-R;MARS-15,400MA,4300RPM,DC5V,7.8MMH2 |
| BA59-04589A | HDD-SSD-NVME;512GB,MZVLQ512HBLU-00BKN,~4 |
| BA62-01072A | HEAT SINK-CPU;MARS-15,CU |
