Manufacturer
Samsung
Model Number
NP950XEDKA1US
Description
Computer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| GH44-03172A | ADAPTOR-EP-TA865;EP-TA865,DC5-20V,3A/3.2 |
| BA96-07916A | ASSEMBLY BATTERY-SVC;MARS-15,SEC,LI68_4IN,SE |
| BA92-23021A | ASSEMBLY BD USB-TOP;VENUS2-15 EXT,USB SUBBOA |
| BA98-02844A | ASSEMBLY BRACKET-POWER;VENUS-15,SEC,STS |
| BA97-12270A | ASSEMBLY CASE FRONT-TOP_SVC;VENUS2-15 ADL FH |
| BA97-12371B | ASSEMBLY CASE FRONT-TOUCHPAD_SVC;VENUS2-15 A |
| BA98-03159B | ASSEMBLY CASE-REAR_INT;VENUS2-15INT,SEC,MG,B |
| BA98-02841C | ASSEMBLY HINGE-L;VENUS-15,SEC |
| BA98-02841A | ASSEMBLY HINGE-L;VENUS-15,SEC,STAINLESS,NATU |
| BA98-02842C | ASSEMBLY HINGE-R;VENUS-15,SEC |
| BA98-02842A | ASSEMBLY HINGE-R;VENUS-15,SEC,STAINLESS,NATU |
|
|

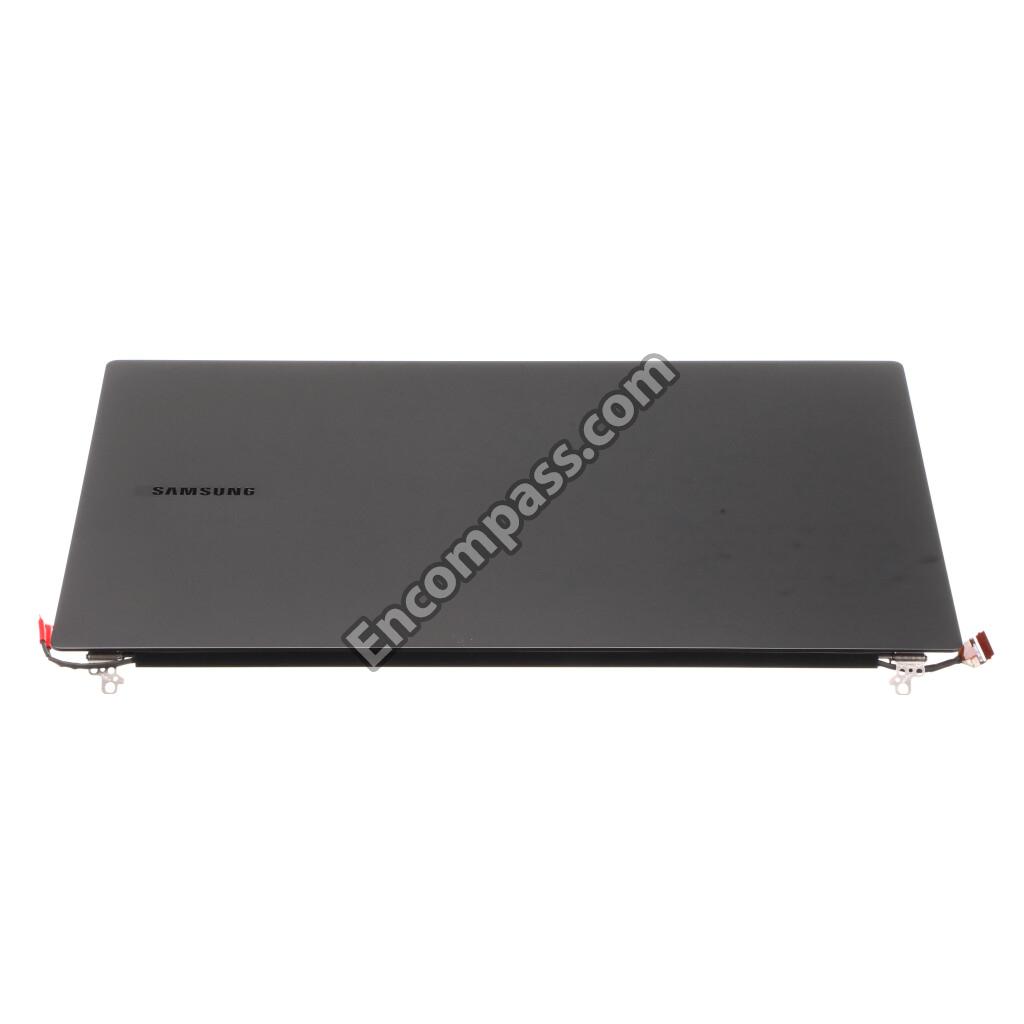

ASSEMBLY LCD SUBINS;VENUS2-15 ADL FHD,OLED,1 |
| BA92-23328A | ASSEMBLY MOTHER BD-TOP;VENUS2-15 ADL FHD INT |
| BA92-23480A | ASSEMBLY MOTHER BD-TOP_SVC;VENUS2-15I,I7,16G |
| BA98-03038A | ASSEMBLY RUBBER-FOOT_DOWN;VENUS,SEC,SILICONE |
| BA98-03037A | ASSEMBLY RUBBER-FOOT_UP;VENUS,SEC,SILICONE,B |
| BA96-07789B | ASSEMBLY SPEAKER-LEFT;VENUS2-15,SESC,LEFT,40 |
| BA96-07790B | ASSEMBLY SPEAKER-RIGHT;VENUS2-15,SESC,RIGHT, |
| BA96-08345A | ASSEMBLY US FP-FINGERPRINT MODULE;MARS2-15,C |
| 3301-001649 | BEAD-SMD;180OHM/100MHZ,1.6X0.8MM,TP,226O |
| BA61-04544A | BRACKET-PORT-R;STS,VENUS-15,304 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006166 | C-CER,CHIP;100NF,10%,25V,X5R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002720 | C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2203-006399 | C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5 |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005,-55 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0. |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 2409-001129 | C-POLYMER ,CHIP;100UF,20%,6.3V,WT,TP,3.5 |
| BA39-01535A | CBF HARNESS-POWER CABLE;VENUS2-15 ADL NP |
| 3711-008188 | CONNECTOR-BATTERY;9P,1.5MM,AU,BLK,SMD-S, |
| 3709-001930 | CONNECTOR-CARD EDGE;C-ALLOY,20P,1.1MM/0. |
| 3708-003058 | CONNECTOR-FPC/FFC/PIC;6P,0.4MM,SMD-A,NI, |
| 3708-002882 | CONNECTOR-FPC/FFC/PIC;6P,0.5MM,SMD-A,SN, |
| 3701-002011 | CONNECTOR-HDMI;-,A,FEMALE,AU,0.5MM,BLK,S |
| BA63-02600B | COVER HINGE;VENUS-15,ABS+PC,BLACK |
| GH39-02089A | DATA LINK CABLE-EP-DW767JWE;3.3MM,1800MM |
| 0409-001088 | DIODE-LIMITER;AP2331,-,200MA,SOT-23,TP |
| 0404-001020 | DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T |
| 0407-000112 | DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| BA31-00213A | FAN-_L;VENUS2-15 ADL INT,SUS301,DC5V,400 |
| BA31-00212A | FAN-_R;VENUS2-15 ADL INT,SUS301,DC5V,400 |
| 0505-003842 | FET-SILICON;NX7002BKW,N,60V,240MA,2.8OHM |
| 0505-002166 | FET-SILICON;SI2307CDS,P,30V,3.2A,0.063OH |
| BA41-02906A | FFC-TP FFC;VENUS-15 TGL FHD EXT,FFC,115X |
| BA41-02958A | FPC-MAIN TO SUB FPC;VENUS2-15 MTS FPC,FC |
| BA81-17439A | GASKET-BODY;NEWTON,GASKET,T0.12,W12*L20M |
| BA59-04589A | HDD-SSD-NVME;512GB,MZVLQ512HBLU-00BKN,~4 |
| BA59-04571A | HDD-SSD-NVME;512GB,SDBPNPZ-512G-1004,2.3 |
| 3711-007754 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.0MM,SM |
| BA62-01089A | HEAT SINK;VENUS2-15 ADL INT,AL |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,TP,2X1.25X0.95MM,-40 |
| 1203-008909 | IC-DC/DC CONVERTER;SYU281AAC,SOT23,5P,2. |
| 1107-002417 | IC-NOR FLASH;W25Q80DVSNIG,8MBIT,-,SOIC,8 |
| 3722-004204 | JACK-PHONE;AU,BLK,SMD-A,3.5PI,10.5*14.1* |
| 3722-004224 | JACK-USB;TP,24P/2C,C-ALLOY,11.2X7.9X3.86 |
| 3722-004216 | JACK-USB;TP,24P/2C,C-ALLOY,11.6X8.09X3.9 |
| 3722-004213 | JACK-USB;TP,9P/2C,P-BRONZE,16X14.95X6.22 |
| BA68-04365A | LABEL ENERGY-STAR;ALL,PET,T0.1,W14.7,L15 |
| BA68-13135A | LABEL-EVO;NP950XEDA,CR/POLYESTER,T0.0127 |
| BA68-20039B | LABEL-PPID_HDD_EPASS;NPC,PAPER,T0.2,W8,L |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-012194 | R-CHIP;113OHM,1%,1/20W,TP,0603,T0.23 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-000503 | R-CHIP;2.2OHM,5%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-008330 | R-CHIP;22.6OHM,1%,1/16W,TP,1005 |
| 2007-009120 | R-CHIP;24.9KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007099 | R-CHIP;2MOHM,5%,1/16W,TP,1005,T0.35 |
| 2007-008304 | R-CHIP;300KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008297 | R-CHIP;33.2KOHM,1%,1/16W,TP,1005 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000882 | R-CHIP;4.7OHM,5%,1/10W,TP,1608 |
| 2007-007549 | R-CHIP;4.99KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008708 | R-CHIP;40.2OHM,1%,1/16W,TP,1005 |
| 2007-007585 | R-CHIP;430KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007797 | R-CHIP;44.2OHM,1%,1/10W,TP,1608 |
| 2007-008706 | R-CHIP;45.3OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008429 | R-CHIP;499OHM,1%,1/16W,TP,1005 |
| 2007-000969 | R-CHIP;5.1OHM,1%,1/10W,TP,1608 |
| 2007-008026 | R-CHIP;56OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007619 | R-CHIP;60.4OHM,1%,1/10W,TP,1608 |
| 2007-008299 | R-CHIP;61.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008676 | R-CHIP;80.6KOHM,1%,1/16W,TP,1005 |
| 6001-001650 | SCREW-MACHINE;CH,+,-,M2,L3,NI PLT,SWRCH1 |
| 6001-003313 | SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC |
| 6001-001560 | SCREW-MACHINE;CH,+,-,M2.0,L2.5,NI PLT,SW |
| 6002-001550 | SCREW-TAPPING;CH,+,M1.2,L1,ZPC(BLK),SWRC |
| GH62-00042A | SMG PART |
| 6001-002261 | SMG PART |
| 3711-008841 | SMG PART |
| 3711-008421 | SMG PART |
| 3710-004109 | SMG PART |
| 3301-001901 | SMG PART |
| 2801-005389 | SMG PART |
| 2703-005806 | SMG PART |
| 2703-005705 | SMG PART |
| 2703-005505 | SMG PART |
| 2703-005428 | SMG PART |
| 2703-005201 | SMG PART |
| 2703-003182 | SMG PART |
| 2409-001400 | SMG PART |
| 2203-010134 | SMG PART |
| 2203-009733 | SMG PART |
| 2203-009618 | SMG PART |
| 2203-008749 | SMG PART |
| 2203-008572 | SMG PART |
| 2203-008199 | SMG PART |
| 2203-008123 | SMG PART |
| 2203-008097 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007781 | SMG PART |
| 2203-007693 | SMG PART |
| 2203-007503 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007210 | SMG PART |
| 2203-006872 | SMG PART |
| 2203-006846 | SMG PART |
| 2203-006839 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006305 | SMG PART |
| 2203-005057 | SMG PART |
| 2203-002487 | SMG PART |
| 2203-002443 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-012197 | SMG PART |
| 2007-010856 | SMG PART |
| 2007-009866 | SMG PART |
| 2007-009804 | SMG PART |
| 2007-009212 | SMG PART |
| 2007-009182 | SMG PART |
| 2007-008774 | SMG PART |
| 2007-008736 | SMG PART |
| 2007-008516 | SMG PART |
| 2007-008419 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007489 | SMG PART |
| 2007-007488 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007195 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007100 | SMG PART |
| 2007-001325 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001119 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000147 | SMG PART |
| 2007-000139 | SMG PART |
| 2007-000070 | SMG PART |
| 1404-001694 | SMG PART |
| 1209-002645 | SMG PART |
| 1203-008910 | SMG PART |
| 1203-008475 | SMG PART |
| 1202-001120 | SMG PART |
| 1001-002037 | SMG PART |
| 1001-001755 | SMG PART |
| 0801-003639 | SMG PART |
| 0505-003403 | SMG PART |
| 0505-003234 | SMG PART |
| 0505-002088 | SMG PART |
| 0406-001717 | SMG PART |
| 0404-001088 | SMG PART |
| 0201-003485 | SMG PART |
| 0202-002253 | SMG PART |
| 0406-001768 | SMG PART |
| 0406-001771 | SMG PART |
| 0406-001792 | SMG PART |
| 0406-001813 | SMG PART |
| 0406-001818 | SMG PART |
| 0406-001827 | SMG PART |
| 0406-001835 | SMG PART |
| 0406-001876 | SMG PART |
| 0502-001442 | SMG PART |
| 0502-001443 | SMG PART |
| 0505-001049 | SMG PART |
| 0505-002779 | SMG PART |
| 0505-003300 | SMG PART |
| 0601-003903 | SMG PART |
| 0902-003419 | SMG PART |
| 0904-002833 | SMG PART |
| 1003-003196 | SMG PART |
| 1006-001574 | SMG PART |
| 1009-001070 | SMG PART |
| 1105-003180 | SMG PART |
| 1107-002867 | SMG PART |
| 1201-004363 | SMG PART |
| 1203-008677 | SMG PART |
| 1203-009124 | SMG PART |
| 1203-009126 | SMG PART |
| 1203-009522 | SMG PART |
| 1203-009523 | SMG PART |
| 1203-009609 | SMG PART |
| 1203-009611 | SMG PART |
| 1203-009612 | SMG PART |
| 1203-009628 | SMG PART |
| 1203-009662 | SMG PART |
| 1205-006157 | SMG PART |
| 1205-006227 | SMG PART |
| 1205-006430 | SMG PART |
| 1205-006433 | SMG PART |
| 1205-006523 | SMG PART |
| 1209-002034 | SMG PART |
| 2007-007529 | SMG PART |
| 2007-008621 | SMG PART |
| 2007-009358 | SMG PART |
| 2007-010701 | SMG PART |
| 2007-010706 | SMG PART |
| 2203-008483 | SMG PART |
| 2402-001418 | SMG PART |
| 2409-001327 | SMG PART |
| 2703-004397 | SMG PART |
| 2703-005540 | SMG PART |
| 2703-005757 | SMG PART |
| 2703-005849 | SMG PART |
| 2703-005850 | SMG PART |
| 2703-005876 | SMG PART |
| 2703-005886 | SMG PART |
| 2801-005519 | SMG PART |
| 2801-005521 | SMG PART |
| 2804-002073 | SMG PART |
| 2901-001642 | SMG PART |
| 3708-003315 | SMG PART |
| 3708-003354 | SMG PART |
| 3708-003362 | SMG PART |
| 3709-001946 | SMG PART |
| 4709-003016 | SMG PART |
| 6801-002301 | SMG PART |
| 6902-002849 | SMG PART |
| 6902-002996 | SMG PART |
| 6902-002998 | SMG PART |
| 6902-003424 | SMG PART |
| 6902-003429 | SMG PART |
| BA02-00240A | SMG PART |
| BA02-01744A | SMG PART |
| BA02-02575A | SMG PART |
| BA02-02597A | SMG PART |
| BA02-02869A | SMG PART |
| BA02-02889A | SMG PART |
| BA02-03038A | SMG PART |
| BA02-03054A | SMG PART |
| BA02-03115A | SMG PART |
| BA02-03138A | SMG PART |
| BA02-03139A | SMG PART |
| BA02-03219A | SMG PART |
| BA02-03220A | SMG PART |
| BA02-03239A | SMG PART |
| BA02-03364A | SMG PART |
| BA02-03411A | SMG PART |
| BA02-03412A | SMG PART |
| BA02-03413A | SMG PART |
| BA02-03415A | SMG PART |
| BA02-03416A | SMG PART |
| BA02-03418A | SMG PART |
| BA02-03423A | SMG PART |
| BA02-03434A | SMG PART |
| BA02-03438A | SMG PART |
| BA02-03439A | SMG PART |
| BA02-03452A | SMG PART |
| BA02-03487A | SMG PART |
| BA02-03488A | SMG PART |
| BA02-03513A | SMG PART |
| BA02-03514A | SMG PART |
| BA02-03516A | SMG PART |
| BA02-03535A | SMG PART |
| BA02-03556A | SMG PART |
| BA02-03557A | SMG PART |
| BA02-03558A | SMG PART |
| BA02-03563A | SMG PART |
| BA02-03568A | SMG PART |
| BA02-03584A | SMG PART |
| BA02-03585A | SMG PART |
| BA02-03647A | SMG PART |
| BA09-00046A | SMG PART |
| BA39-01540A | SMG PART |
| BA41-02956D | SMG PART |
| BA41-02957C | SMG PART |
| BA42-00704A | SMG PART |
| BA42-00705A | SMG PART |
| BA43-00398A | SMG PART |
| BA46-16711A | SMG PART |
| BA46-17789A | SMG PART |
| BA46-38234A | SMG PART |
| BA46-38818A | SMG PART |
| BA46-39852A | SMG PART |
| BA46-39861A | SMG PART |
| BA46-40219A | SMG PART |
| BA46-40287A | SMG PART |
| BA46-40302A | SMG PART |
| BA46-40366A | SMG PART |
| BA46-40491A | SMG PART |
| BA59-04596B | SMG PART |
| BA59-04685A | SMG PART |
| BA59-04718A | SMG PART |
| BA61-03613A | SMG PART |
| BA61-03866A | SMG PART |
| BA61-03959A | SMG PART |
| BA61-04120A | SMG PART |
| BA61-04311A | SMG PART |
| BA61-04526A | SMG PART |
| BA61-04540A | SMG PART |
| BA61-04661A | SMG PART |
| BA61-04804B | SMG PART |
| BA61-04805A | SMG PART |
| BA61-04806B | SMG PART |
| BA61-04808B | SMG PART |
| BA61-04809A | SMG PART |
| BA61-04810A | SMG PART |
| BA61-04811A | SMG PART |
| BA61-04812B | SMG PART |
| BA61-04813B | SMG PART |
| BA61-04814A | SMG PART |
| BA61-04823A | SMG PART |
| BA61-04871A | SMG PART |
| BA62-00999A | SMG PART |
| BA62-01045A | SMG PART |
| BA62-01080A | SMG PART |
| BA63-01342A | SMG PART |
| BA63-01726A | SMG PART |
| BA63-02127A | SMG PART |
| BA63-02397A | SMG PART |
| BA63-02605A | SMG PART |
| BA63-02610A | SMG PART |
| BA63-02611A | SMG PART |
| BA63-02630A | SMG PART |
| BA63-02665A | SMG PART |
| BA63-02716A | SMG PART |
| BA64-01123G | SMG PART |
| BA64-01145B | SMG PART |
| BA67-01013A | SMG PART |
| BA67-01322A | SMG PART |
| BA67-01469B | SMG PART |
| BA67-01470B | SMG PART |
| BA67-01474B | SMG PART |
| BA67-01495A | SMG PART |
| BA67-01521A | SMG PART |
| BA67-01522A | SMG PART |
| BA67-01548A | SMG PART |
| BA68-10225E | SMG PART |
| BA68-13096A | SMG PART |
| BA68-13124B | SMG PART |
| BA68-13164B | SMG PART |
| BA68-13169C | SMG PART |
| BA69-01031A | SMG PART |
| BA69-01255A | SMG PART |
| BA69-01264K | SMG PART |
| BA69-01722K | SMG PART |
| BA69-01792D | SMG PART |
| BA69-01858A | SMG PART |
| BA69-01868A | SMG PART |
| BA69-01896A | SMG PART |
| BA69-01910A | SMG PART |
| BA69-01965B | SMG PART |
| BA69-01990A | SMG PART |
| BA81-14637A | SMG PART |
| BA92-23021B | SMG PART |
| BA92-23328B | SMG PART |
| BA96-08357A | SMG PART |
| BA97-12256T | SMG PART |
| BA97-12264A | SMG PART |
| BA97-12277B | SMG PART |
| BA97-12295N | SMG PART |
| BA97-12370B | SMG PART |
| BA97-12503A | SMG PART |
| BA97-13081M | SMG PART |
| BA98-03155B | SMG PART |
| BA98-03156A | SMG PART |
| BA98-03157B | SMG PART |
| BA98-03230A | SMG PART |
| BA98-03359A | SMG PART |
| BA99-27089D | SMG PART |
| GH62-00039A | SMG PART |
| GH62-00048A | SMG PART |
| GH69-12860J | SMG PART |
| GH69-23278A | SMG PART |
| GH69-25062F | SMG PART |
| GH69-25062G | SMG PART |
| GH69-25901B | SMG PART |
| GH69-29196A | SMG PART |
| GH69-30687B | SMG PART |
| GH69-36024A | SMG PART |
| GH69-36024B | SMG PART |
| GH69-36024C | SMG PART |
| GH69-36841A | SMG PART |
| GH69-38007A | SMG PART |
| GH69-38007B | SMG PART |
| GH90-66290A | SMG PART |
| BA02-03420A | TAPE DOUBLE FACE-REMOVABLE TOUCHPAD;VENU |
| BA02-03230A | TAPE ETC-ACETATE-BATTERY;VENUS-15,POLYES |
| BA02-03295A | TAPE INSULATION-FIX_CABLE;HERMES-14,PET, |
| 0203-001869 | TAPE-KAPTONE;PP,T0.06,W10,L33M,GOLD,ROLL |
