Manufacturer
Samsung
Model Number
NPR480JAB2US
Description
Laptop Np-r480-jab2us
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTOR |
| BA42-00236A | ANTENNA-WLAN |
| BA92-06023A | ASSY BOARD-SUB_USB |
|
|
ASSY MOTHER BD-TOP |
| BA96-04431A | ASSY SPEAKER |
| BA43-00198A | BATTERY |
| BA59-02579A | BD-COMBO |
| 3301-001649 | BEAD-SMD |
|
|

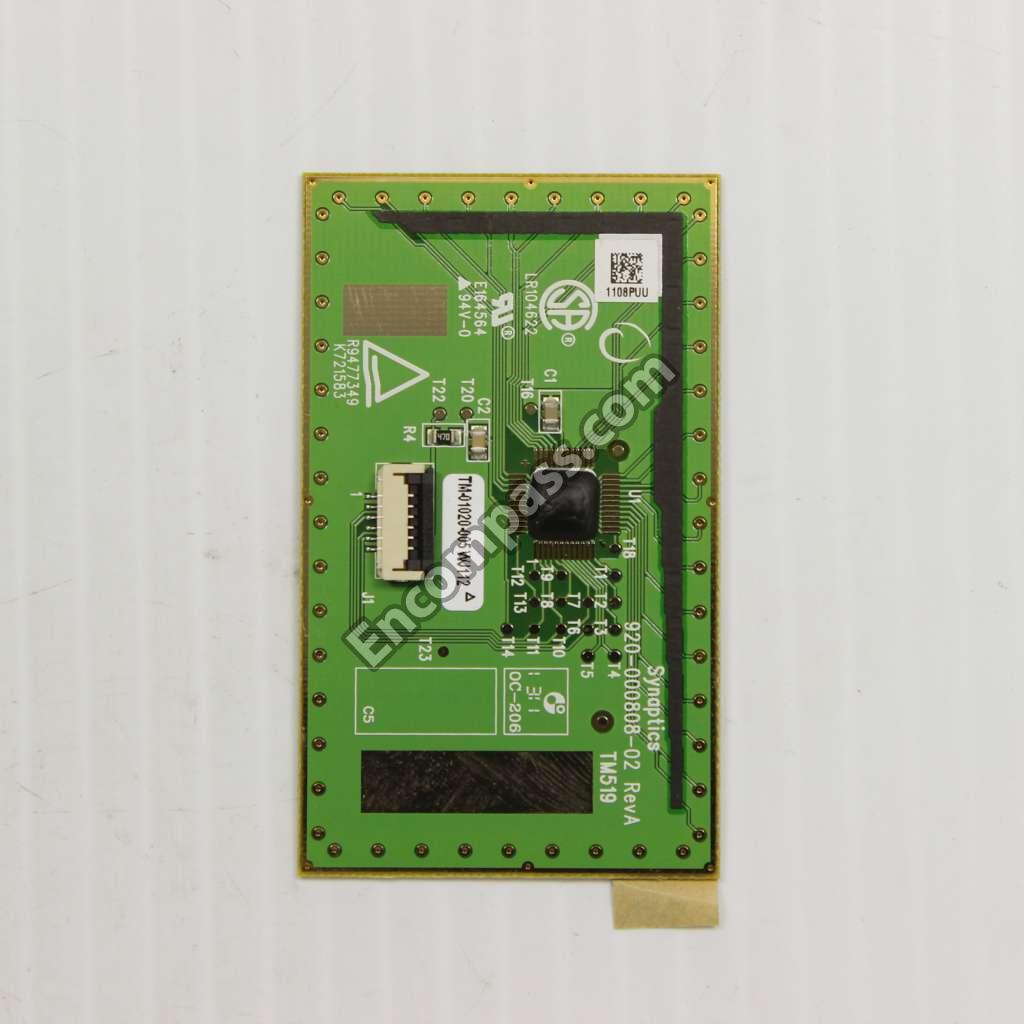

BOARD-TOUCHPAD |
| BA81-08644A | BRACKET-HINGE_L |
| BA81-08747A | BRACKET-LCD_L |
| BA81-08748A | BRACKET-LCD_R |
| BA81-04551A | BRACKET-ODD |
| 2402-001042 | C-AL, SMD |
| 2203-006399 | C-CER, CHIP |
| 2203-006377 | C-CER, CHIP |
| 2203-006348 | C-CER, CHIP |
| 2203-006170 | C-CER, CHIP |
| 2203-006166 | C-CER, CHIP |
| 2203-006090 | C-CER, CHIP |
| 2203-006048 | C-CER, CHIP |
| 2203-006000 | C-CER, CHIP |
| 2203-002720 | C-CER, CHIP |
| 2203-002711 | C-CER, CHIP |
| 2203-002050 | C-CER, CHIP |
| 2203-001683 | C-CER, CHIP |
| 2203-001652 | C-CER, CHIP |
| 2203-001140 | C-CER, CHIP |
| 2203-001103 | C-CER, CHIP |
| 2203-000627 | C-CER, CHIP |
| 2203-000575 | C-CER, CHIP |
| 2409-001159 | C-ORGANIC, SMD |
| BA81-09173A | CARD-DUMMY_EXPRESS |
| BA39-00950A | CBF HARNESS-LCD+CAMERA |
| BA39-00937A | CBF HARNESS-LCD+CAMERA |
| BA39-00936A | CBF HARNESS-LCD+CAMERA |
| BA39-00935A | CBF HARNESS-LCD+CAMERA |
| BA39-00799A | CBF HARNESS-SUB_BOARD |
| BA39-00798A | CBF HARNESS-SUB_BOARD |
|
|
CBF-POWER CORD |
| 3709-001535 | CONNECTOR-CARD EDGE |
| 3709-001506 | CONNECTOR-CARD EDGE |
| 3709-001610 | CONNECTOR-CARD SLOT |
| 3709-001609 | CONNECTOR-CARD SLOT |
| 3709-001492 | CONNECTOR-CARD SLOT |
| 3701-001515 | CONNECTOR-DSUB |
| 3708-002402 | CONNECTOR-FPC/FFC/PIC |
| 3708-002166 | CONNECTOR-FPC/FFC/PIC |
| 3701-001597 | CONNECTOR-HDMI |
| 3711-002050 | CONNECTOR-HEADER |
| 3710-002798 | CONNECTOR-SOCKET |
| 0404-001084 | DIODE-SCHOTTKY |
| 0404-001020 | DIODE-SCHOTTKY |
| 0401-000191 | DIODE-SWITCHING |
| 0401-000132 | DIODE-SWITCHING |
| BA81-08640A | DOOR-HDD |
| BA81-08716A | FAN-CPU |
| BA81-08715A | FAN-CPU |
| 0505-002598 | FET-SILICON |
| 0505-002526 | FET-SILICON |
| 0505-002386 | FET-SILICON |
| 0505-001883 | FET-SILICON |
| 0505-001844 | FET-SILICON |
| 0505-001089 | FET-SILICON |
| 0505-001064 | FET-SILICON |
| 0505-000272 | FET-SILICON |
| BA41-01047A | FFC-TOUCHPAD |
| BA41-01046A | FFC-TOUCHPAD |
| BA59-02885A | HDD |
| BA59-02759A | HDD |
| BA59-02675A | HDD |
| BA59-02624A | HDD |
| BA59-02598A | HDD |
| BA59-02576A | HDD |
| 3711-007023 | HEADER-BATTERY |
| 3711-003057 | HEADER-BOARD TO CABLE |
| 3711-002162 | HEADER-BOARD TO CABLE |
| 3711-000456 | HEADER-BOARD TO CABLE |
| 3711-000386 | HEADER-BOARD TO CABLE |
| BA62-00511A | HEAT SINK-CPU |
| BA62-00510A | HEAT SINK-CPU |
| BA81-10762A | HINGE-L |
| BA81-07004A | HINGE-L |
| BA81-06675A | HINGE-L |
| BA81-10763A | HINGE-R |
| BA81-07005A | HINGE-R |
| BA81-06676A | HINGE-R |
| 0904-002453 | IC-BUS CONTROLLER |
| 1006-001427 | IC-BUS TRANSCEIVER |
| 1205-003533 | IC-CLOCK GENERATOR |
| 1205-003159 | IC-CLOCK GENERATOR |
| 1205-003156 | IC-CLOCK GENERATOR |
| 0801-002628 | IC-CMOS LOGIC |
| 1205-003769 | IC-CODEC |
| 1105-002217 | IC-DRAM |
| 0904-002484 | IC-DRAM CONTROLLER |
| 1105-002224 | IC-DRAM MODULE |
| 1105-002186 | IC-DRAM MODULE |
| 1105-002183 | IC-DRAM MODULE |
| 1105-002162 | IC-DRAM MODULE |
| 1105-002147 | IC-DRAM MODULE |
| 1105-002121 | IC-DRAM MODULE |
| 1105-002114 | IC-DRAM MODULE |
| 1105-002111 | IC-DRAM MODULE |
| 1105-002055 | IC-DRAM MODULE |
| 1205-003904 | IC-ETHERNET CONTROLLER |
| 1107-001709 | IC-FLASH MEMORY |
| 0904-002378 | IC-I/O CONTROLLER |
| 0902-002508 | IC-MICROPROCESSOR |
| 1107-001991 | IC-NOR FLASH |
| 1107-001969 | IC-NOR FLASH |
| 1107-001600 | IC-NOR FLASH |
| 1203-006083 | IC-POSI.ADJUST REG. |
| 1203-005864 | IC-PWM CONTROLLER |
| 1203-005849 | IC-PWM CONTROLLER |
| 1203-005735 | IC-PWM CONTROLLER |
| 1203-005536 | IC-PWM CONTROLLER |
| 1209-001887 | IC-SENSOR |
| 1205-002596 | IC-SWITCH |
|
|
JACK-DC POWER |
| 3722-003035 | JACK-MODULAR |
| 3722-002588 | JACK-PHONE |
| 3722-002767 | JACK-USB |
|
|
KEYBOARD |
| BA81-06380A | KNOB-BATTERY_L |
| BA81-06381A | KNOB-BATTERY_R |
| BA81-08628A | KNOB-TOUCHPAD |
| BA68-06360A | LABEL-BLURAY |
| BA68-03765A | LABEL-LOGO_PENTIUM |
| BA68-05474A | LABEL-LOGO_WIN7 |
| BA68-20039A | LABEL-PPID_E |
| BA81-09170A | LABEL-SHEET_R480 |
| BA68-05858A | LABEL-ZAIZEN |
| BA59-02517A | LCD PANEL-14.0HD |
| BA59-02658A | LCD PANEL-14HD |
| 0601-002391 | LED |
| BA81-02795A | LINK-BATTERY_L |
| BA81-07310A | LINK-BATTERY_R |
| 3003-001158 | MIC-CONDENSOR |
| BA59-02668A | MODULE-CAMERA |
| BA59-02573A | MODULE-WLAN |
| BA59-02572A | MODULE-WLAN |
| BA69-40003A | PACKING-HANDLE |
| 2007-008708 | R-CHIP |
| 2007-008597 | R-CHIP |
| 2007-008429 | R-CHIP |
| 2007-008330 | R-CHIP |
| 2007-008304 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008293 | R-CHIP |
| 2007-008223 | R-CHIP |
| 2007-008167 | R-CHIP |
| 2007-008026 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-008007 | R-CHIP |
| 2007-007992 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007792 | R-CHIP |
| 2007-007642 | R-CHIP |
| 2007-007519 | R-CHIP |
| 2007-007444 | R-CHIP |
| 2007-007302 | R-CHIP |
| 2007-007274 | R-CHIP |
| 2007-007237 | R-CHIP |
| 2007-007226 | R-CHIP |
| 2007-007046 | R-CHIP |
| 2007-002918 | R-CHIP |
| 2007-002910 | R-CHIP |
| 2007-002899 | R-CHIP |
| 2007-001139 | R-CHIP |
| 2007-000969 | R-CHIP |
| 2007-000729 | R-CHIP |
| 2007-000695 | R-CHIP |
| 2007-000570 | R-CHIP |
| 2007-000503 | R-CHIP |
| 2007-000077 | R-CHIP |
| 2007-000043 | R-CHIP |
| BA81-08821A | RUBBER-ESATA |
| BA81-06960A | RUBBER-FOOT |
| BA81-04694A | RUBBER-FOOT_REAR |
| BA81-09262A | RUBBER-FRONT |
| BA81-09203C | RUBBER-FRONT |
| BA81-09163A | RUBBER-FRONT |
| BA81-07632A | RUBBER-FRONT |
| 6001-001650 | SCREW-MACHINE |
| 6001-001625 | SCREW-MACHINE |
| 6001-001570 | SCREW-MACHINE |
| 6001-001480 | SCREW-MACHINE |
| 6001-001413 | SCREW-MACHINE |
| 3704-001153 | SOCKET-IC |
| 3710-002797 | SOCKET-INTERFACE |
| 3710-002796 | SOCKET-INTERFACE |
| 0202-001498 | SOLDER-WIRE FLUX |
| BA61-00780A | SPRING ETC-BATT |
| BA61-00932A | SUPPORT-FIRMWARE |
| 3404-001382 | SWITCH-TACT |
| 3404-001311 | SWITCH-TACT |
| 0203-001869 | TAPE-KAPTONE |
| 1404-001089 | THERMISTOR-PTC |
| 0501-000465 | TR-SMALL SIGNAL |
| 2603-000115 | TRANS-MATCHING |
| BA75-02034A | UNIT-BACKPLATE_CPU |
| BA75-02416A | UNIT-BRKT_HDD |
|
|

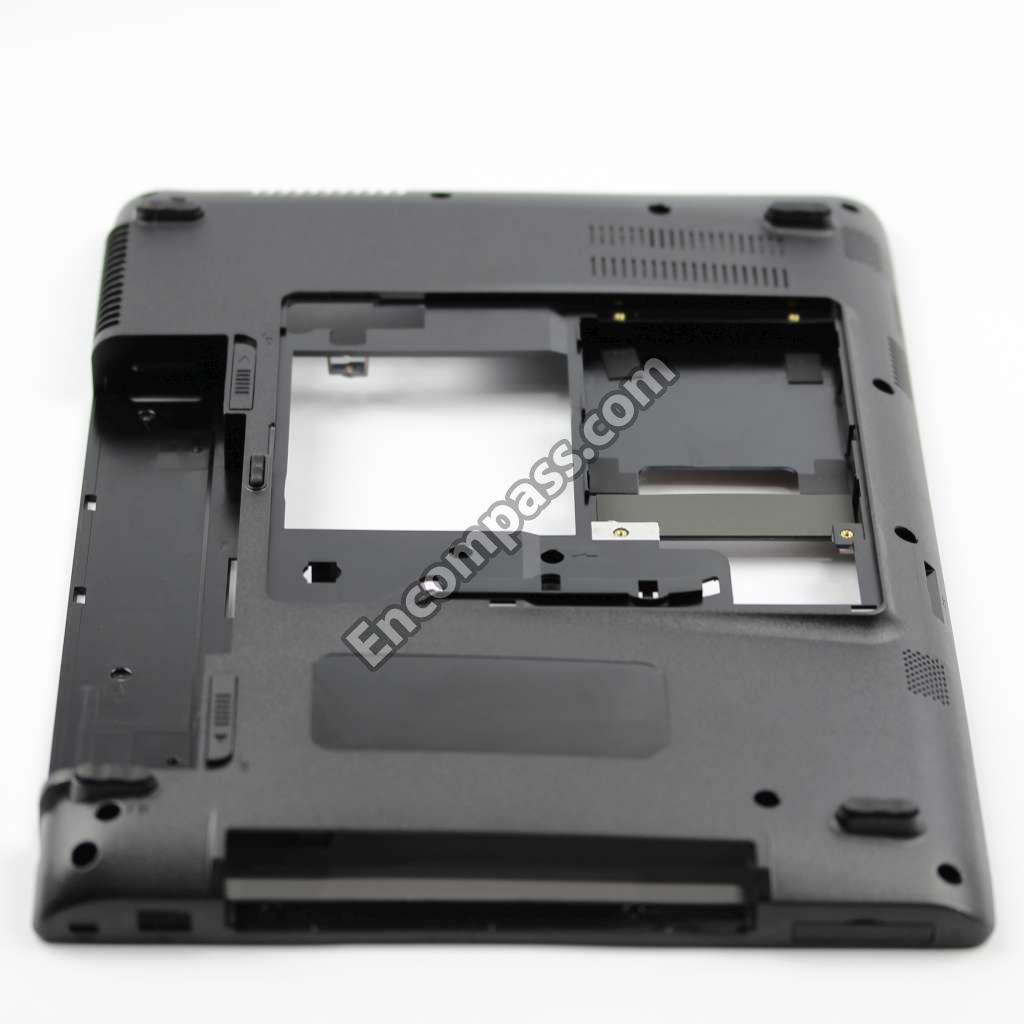

UNIT-HOUSING_BOTTOM |
| BA75-02399A | UNIT-HOUSING_LCD-BACK |
| BA75-02490B | UNIT-HOUSING_LCD-FRONT |
|
|
UNIT-HOUSING_TOP |
|
|
UNIT-HOUSING_TOP_SVC |
| BA39-00660A | WIRE HARNESS |
