Manufacturer
Samsung
Model Number
NPRV511A01US
Description
Laptop Np-rv511-a01us
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

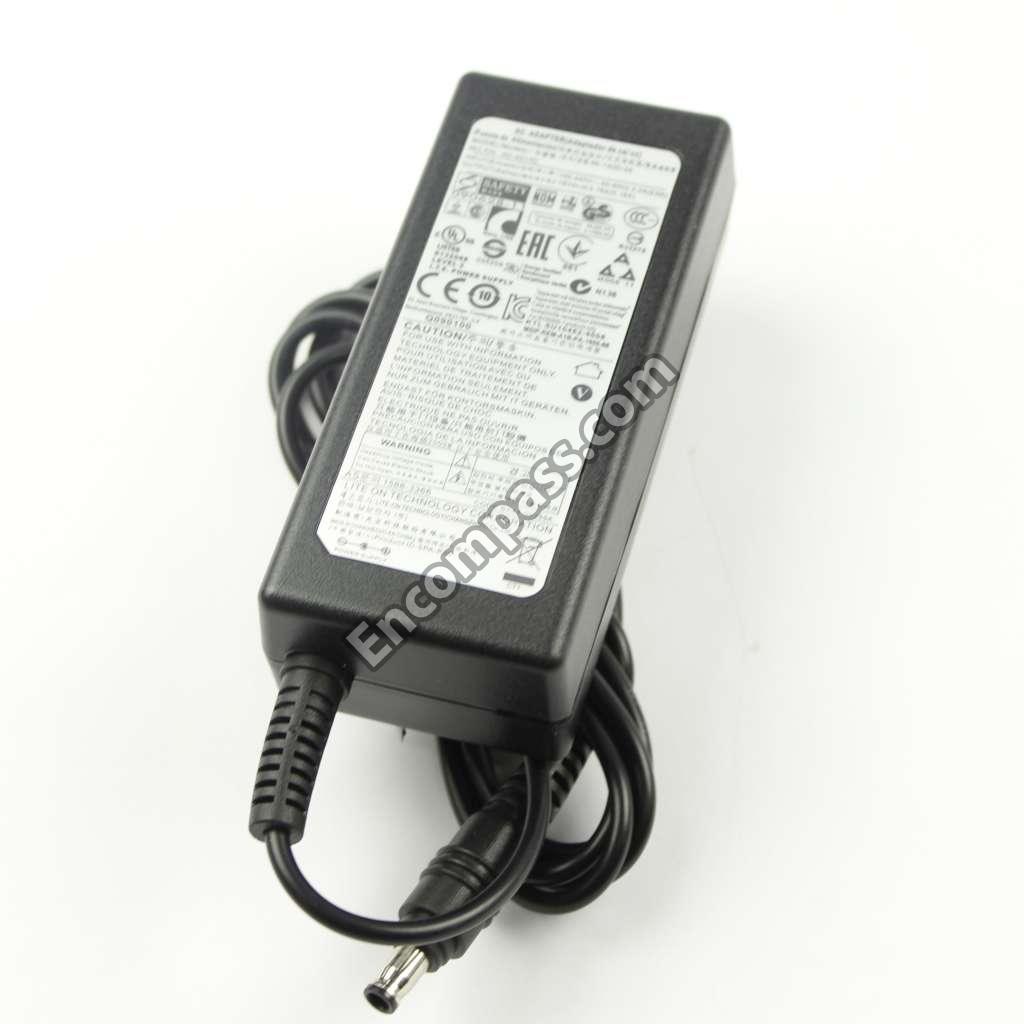

ADAPTOR |
| BA42-00305A | ANTENNA-WIMAX |
| BA42-00283A | ANTENNA-WIMAX |
| BA92-07335A | ASSY BOARD-ODD_SUB |
| BA92-07336A | ASSY BOARD-TOUCHPAD_SUB |
| BA92-07488A | ASSY BOARD-USB_TOP |
| BA92-07699A | ASSY MOTHER BD-TOP |
| BA96-05202A | ASSY SPEAKER |
| BA81-06583A | BADGE-SAMSUNG |
|
|

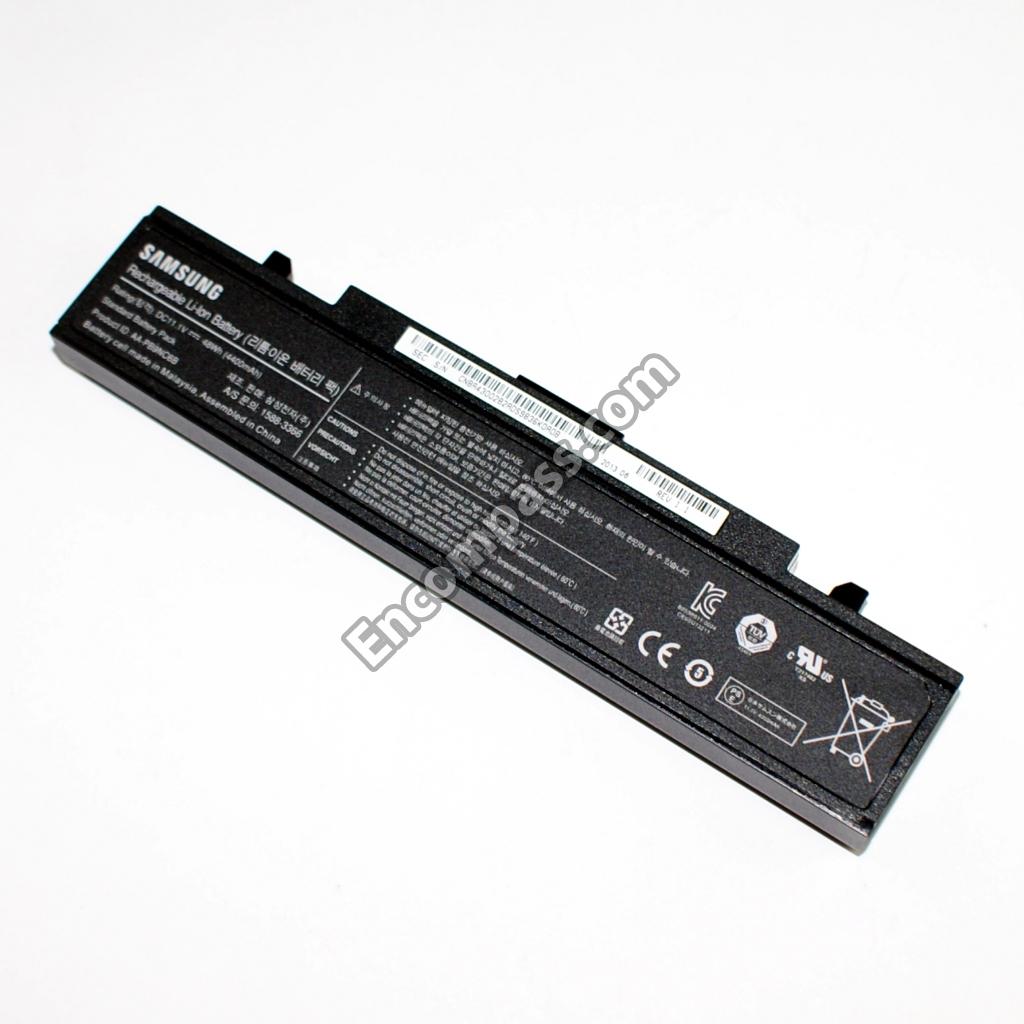

BATTERY |
| 3301-001649 | BEAD-SMD |
| BA59-02857A | BOARD-TOUCHPAD |
| BA59-02856A | BOARD-TOUCHPAD |
|
|
BRACKET-LCD_L |
|
|
BRACKET-LCD_R |
| BA81-10885A | BRACKET-ODD |
| 2402-001042 | C-AL, SMD |
| 2203-006399 | C-CER, CHIP |
| 2203-006377 | C-CER, CHIP |
| 2203-006348 | C-CER, CHIP |
| 2203-006260 | C-CER, CHIP |
| 2203-006166 | C-CER, CHIP |
| 2203-006090 | C-CER, CHIP |
| 2203-006048 | C-CER, CHIP |
| 2203-006000 | C-CER, CHIP |
| 2203-002720 | C-CER, CHIP |
| 2203-002050 | C-CER, CHIP |
| 2203-001103 | C-CER, CHIP |
| 2203-000715 | C-CER, CHIP |
| 2203-000627 | C-CER, CHIP |
| 2203-000575 | C-CER, CHIP |
| BA39-00930A | CBF HARNESS-HDD |
| BA39-00926A | CBF HARNESS-HDD |
|
|
CBF HARNESS-LCD+CAMERA |
| BA39-01035A | CBF HARNESS-USB |
|
|
CBF-POWER CORD |
| 3709-001661 | CONNECTOR-CARD EDGE |
| 3709-001656 | CONNECTOR-CARD EDGE |
| 3709-001654 | CONNECTOR-CARD EDGE |
| 3709-001535 | CONNECTOR-CARD EDGE |
| 3709-001526 | CONNECTOR-CARD SLOT |
| 3701-001741 | CONNECTOR-DSUB |
| 3701-001587 | CONNECTOR-DSUB |
| 3708-002922 | CONNECTOR-FPC/FFC/PIC |
| 3708-002883 | CONNECTOR-FPC/FFC/PIC |
| 3708-002582 | CONNECTOR-FPC/FFC/PIC |
| 3708-002402 | CONNECTOR-FPC/FFC/PIC |
| 3708-002166 | CONNECTOR-FPC/FFC/PIC |
| 3701-001597 | CONNECTOR-HDMI |
| 0404-001020 | DIODE-SCHOTTKY |
| 0401-000191 | DIODE-SWITCHING |
| 0401-000132 | DIODE-SWITCHING |
| 0403-001047 | DIODE-ZENER |
| BA59-02895A | DVD-MULTI |
| BA59-03573A | DVD-SUPERMULTI |
| BA59-03215A | DVD-SUPERMULTI |
| BA59-03116B | DVD-SUPERMULTI |
| BA59-02834A | DVD-SUPERMULTI |
| BA59-03711A | DVD-SUPERMULTI |
| BA31-00098C | FAN-CPU |
| BA31-00098B | FAN-CPU |
| BA31-00098A | FAN-CPU |
| 0505-002598 | FET-SILICON |
| 0505-002526 | FET-SILICON |
| 0505-002386 | FET-SILICON |
| 0505-001883 | FET-SILICON |
| 0505-001089 | FET-SILICON |
| 0505-001064 | FET-SILICON |
| BA41-01418A | FFC-ODD |
| BA41-01415A | FFC-T/P_SUB-BD |
| BA41-01430A | FFC-TOUCHPAD |
| BA81-01293A | GASKET-LED_BOARD |
| BA59-03163E | HDD |
| BA59-03163D | HDD |
| BA59-03163C | HDD |
|
|
HDD |
| BA59-03163A | HDD |
| BA59-02924A | HDD |
| BA59-02786A | HDD |
| BA59-02760A | HDD |
| BA59-02625A | HDD |
| BA59-02597A | HDD |
| BA59-02473B | HDD |
| BA59-02473A | HDD |
| 3711-007023 | HEADER-BATTERY |
| 3711-007689 | HEADER-BOARD TO CABLE |
| 3711-007597 | HEADER-BOARD TO CABLE |
| 3711-007591 | HEADER-BOARD TO CABLE |
| 3711-002046 | HEADER-BOARD TO CABLE |
| 3711-000456 | HEADER-BOARD TO CABLE |
| 3711-000386 | HEADER-BOARD TO CABLE |
| BA62-00546C | HEAT SINK-CPU |
| BA62-00546B | HEAT SINK-CPU |
| BA62-00546A | HEAT SINK-CPU |
| BA62-00548A | HEAT SINK-PCH |
| BA61-01341A | HINGE-L |
| BA61-01339A | HINGE-L |
| BA61-01342A | HINGE-R |
| BA61-01340A | HINGE-R |
| 1006-001427 | IC-BUS TRANSCEIVER |
| 1205-003928 | IC-CLOCK GENERATOR |
| 1205-003896 | IC-CLOCK GENERATOR |
| 0801-002628 | IC-CMOS LOGIC |
| 1205-003967 | IC-CODEC |
| 1203-006143 | IC-DC/DC CONVERTER |
| 1105-002259 | IC-DRAM MODULE |
|
|
IC-DRAM MODULE |
| 1105-002209 | IC-DRAM MODULE |
| 1105-002146 | IC-DRAM MODULE |
| 1205-004159 | IC-ETHERNET CONTROLLER |
| 0904-002560 | IC-I/O CONTROLLER |
| 0904-002612 | IC-MEMORY CONT. |
| 0902-002657 | IC-MICROPROCESSOR |
| 1107-001977 | IC-NOR FLASH |
| 1107-001915 | IC-NOR FLASH |
| 1203-006342 | IC-POSI.ADJUST REG. |
| 1203-006151 | IC-POSI.ADJUST REG. |
| 1203-006083 | IC-POSI.ADJUST REG. |
| 1203-006056 | IC-POSI.ADJUST REG. |
| 1203-006381 | IC-PWM CONTROLLER |
| 1203-006321 | IC-PWM CONTROLLER |
| 1203-006238 | IC-PWM CONTROLLER |
| 1203-005849 | IC-PWM CONTROLLER |
| 1203-005536 | IC-PWM CONTROLLER |
| 1203-005332 | IC-PWM CONTROLLER |
| 1209-001887 | IC-SENSOR |
| 1205-003683 | IC-SWITCH |
| BA81-08240A | INSULATOR-HDMI |
| BA81-13274A | INSULATOR-TOUCHPAD |
|
|

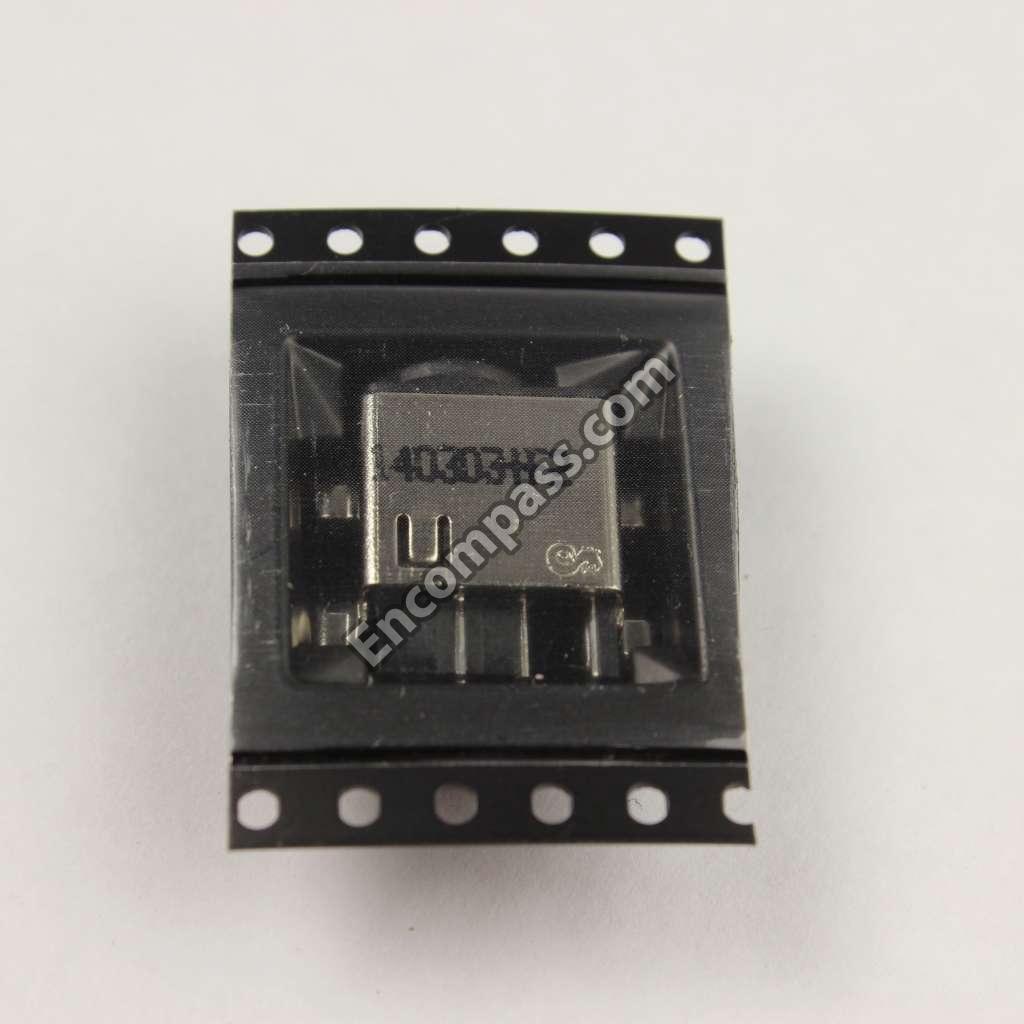

JACK-DC POWER |
| 3722-003085 | JACK-MODULAR |
| 3722-002588 | JACK-PHONE |
| 3722-002767 | JACK-USB |
| 3722-002002 | JACK-USB |
| BA81-06380A | KNOB-BATTERY_L |
| BA81-06381A | KNOB-BATTERY_R |
| BA68-05382A | LABEL ENERGY-WARRANTY |
| BA68-03159A | LABEL SERVICE-WARRANT |
| BA68-05724A | LABEL-LOGO_I3_CPU |
| BA68-05474A | LABEL-LOGO_WIN7 |
| BA68-20039A | LABEL-PPID_E |
| BA68-06771A | LABEL-SHEET |
| BA59-03217A | LCD PANEL-15.6HD |
| BA59-02779A | LCD PANEL-156HD |
| BA59-02495A | LCD PANEL-156HD |
| 0601-002391 | LED |
| BA81-12905A | LINK-BATTERY_L |
| BA81-12904A | LINK-BATTERY_R |
| 3003-001158 | MIC-CONDENSOR |
| BA59-02851A | MODULE-CAMERA |
| BA59-02839A | MODULE-CAMERA |
| BA59-02836A | MODULE-WIMAX_COMBO |
| BA69-40003A | PACKING-HANDLE |
| 2007-008676 | R-CHIP |
| 2007-008429 | R-CHIP |
| 2007-008330 | R-CHIP |
| 2007-008309 | R-CHIP |
| 2007-008304 | R-CHIP |
| 2007-008301 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008296 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008293 | R-CHIP |
| 2007-008223 | R-CHIP |
| 2007-008148 | R-CHIP |
| 2007-008133 | R-CHIP |
| 2007-008096 | R-CHIP |
| 2007-008070 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007735 | R-CHIP |
| 2007-007617 | R-CHIP |
| 2007-007520 | R-CHIP |
| 2007-007519 | R-CHIP |
| 2007-007463 | R-CHIP |
| 2007-007302 | R-CHIP |
| 2007-007274 | R-CHIP |
| 2007-007265 | R-CHIP |
| 2007-007046 | R-CHIP |
| 2007-002912 | R-CHIP |
| 2007-001153 | R-CHIP |
| 2007-001139 | R-CHIP |
| 2007-000969 | R-CHIP |
| 2007-000729 | R-CHIP |
| 2007-000695 | R-CHIP |
| 2007-000503 | R-CHIP |
| 2007-000309 | R-CHIP |
| 2007-000077 | R-CHIP |
| 2007-000057 | R-CHIP |
| 2007-000052 | R-CHIP |
| BA81-11018A | RUBBER-FOOT |
| BA67-00308A | RUBBER-HDD |
| BA67-00334A | RUBBER-LCD_FRONT |
| BA81-12715A | RUBBER-LCD_FRONT-MID |
| 6001-001650 | SCREW-MACHINE |
| 6001-001649 | SCREW-MACHINE |
| 6001-001625 | SCREW-MACHINE |
| 6001-001570 | SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 3710-003343 | SOCKET-BOARD TO CABLE |
| 3704-001246 | SOCKET-IC |
| 3710-002634 | SOCKET-INTERFACE |
| 0202-001498 | SOLDER-WIRE FLUX |
| BA61-00780A | SPRING ETC-BATT |
| BA61-01304A | SUPPORT-RHE |
| 3404-001311 | SWITCH-TACT |
| 3404-001052 | SWITCH-TACT |
| 0203-001869 | TAPE-KAPTONE |
| 0501-000465 | TR-SMALL SIGNAL |
| BA75-02849A | UNIT-BEZEL_ODD |
| BA75-02841A | UNIT-DOOR_HDD |
|
|

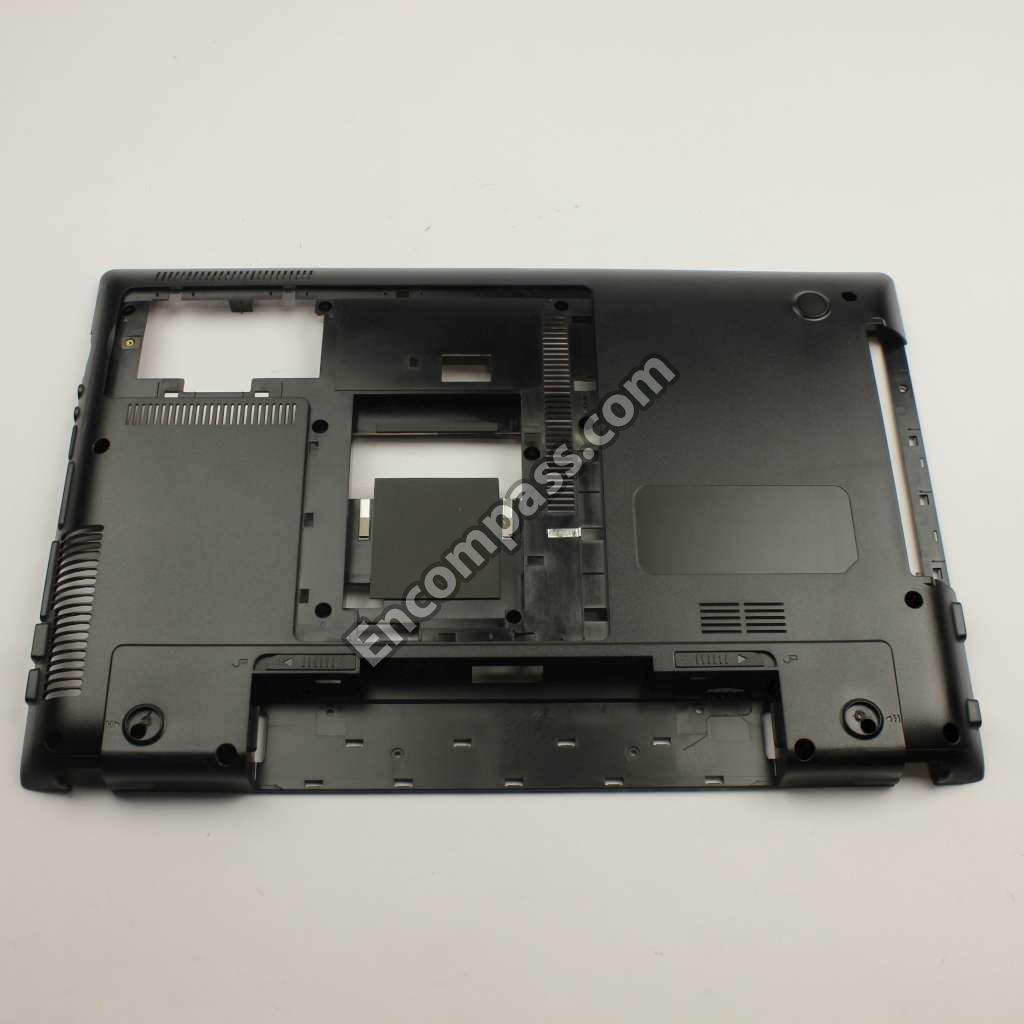

UNIT-HOUSING_BOTTOM |
| BA75-02906C | UNIT-HOUSING_LCD-BACK |
| BA75-02855A | UNIT-HOUSING_LCD-FRONT |
| BA75-02862A | UNIT-HOUSING_TOP_US |
