Manufacturer
Samsung
Model Number
NSE6DB850012AA
Description
Mwo : Microwaveoven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DG94-03534A | ASSEMBLY BRACKET HEATER;NE63T**,NX60T**,ELEC |
|
|
ASSEMBLY BRACKET LATCH;NE63T**,NX60T**,NY63T |
|
|
ASSEMBLY BRACKET LATCH;NX60T8711**, NE63T871 |
|
|
ASSEMBLY BRACKET SUB;NE58F9710WS,SLIDE-IN PJ |
| DG94-03717A | ASSEMBLY BRACKET-REAR;NE63T**,NX60T**,ELEC M |
| DG94-06254A | ASSEMBLY BRACKET;NS*6D*,BRACKET COVER COATIN |
| DG94-05928C | ASSEMBLY CONTROL BOX;NSE6D*8500**AA/C,BLACK, |
| DG94-05996C | ASSEMBLY CONTROL PANEL SUB;NSE6D*8500**AA/C, |
| DG94-06239A | ASSEMBLY COOKTOP CASE;NSE6D*8**0 |
| DG94-06257B | ASSEMBLY COOKTOP;NSE6D*8500**AA,5 SERIES |
| DG94-03530E | ASSEMBLY COVER ADIABATIC-TOP;NE9100D,RADIANT |
| DG94-06253A | ASSEMBLY COVER AIR;NS*6D*,MATTE COATING |
| DG94-03561A | ASSEMBLY COVER CASING;NX60T8711**, NE63T8711 |
| DG94-05864A | ASSEMBLY COVER;T-PJT(EXCEPT 6311,6111,6515) |
| DG94-06031C | ASSEMBLY DOOR SUB;NE9100D,WHT,5 SERIES, WITH |
| DG94-05960C | ASSEMBLY DOOR;NE/NX9100D,WHT,5 SERIES |
| DG94-06033A | ASSEMBLY DRAWER;NE/NX9100D,WHITE,SLIDER |
| DG94-05951C | ASSEMBLY HANDLE;NE/NX9100D,WHT |
| DG94-00358E | ASSEMBLY HINGE;30-INCH SINGLE |
| DG94-06231A | ASSEMBLY HOLDER PCB;7,5 SERIES GAS/RADIANT |
| DG94-06244A | ASSEMBLY KNOB SELECT;NSG6DG87* 85*,EBONY BLA |
| DG94-05990C | ASSEMBLY KNOB;NSE6D*8*****AA/C,RADIANT,DUAL |
| DG94-05990B | ASSEMBLY KNOB;NSE6D*8*****AA/C,RADIANT,SINGL |
| DG94-05990D | ASSEMBLY KNOB;NSE6D*8*****AA/C,RADIANT,TRIPP |
|
|

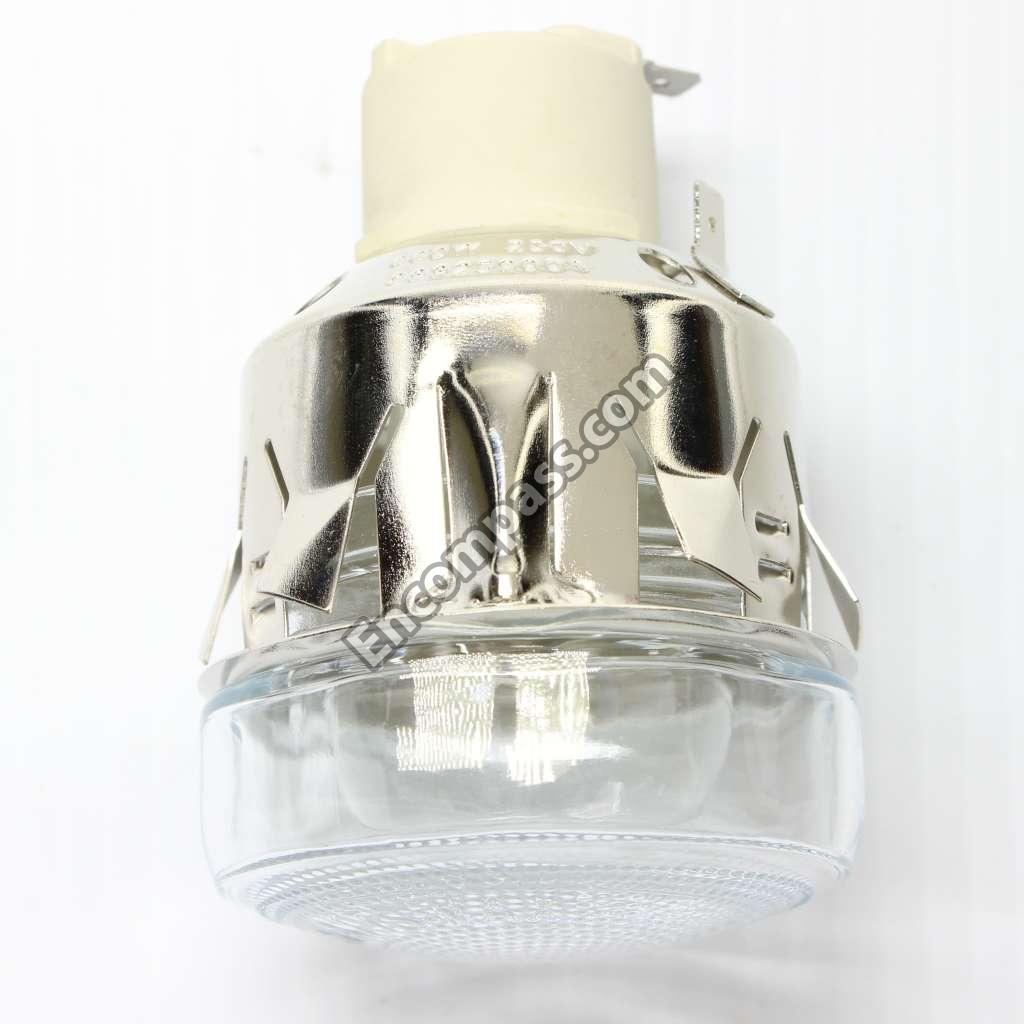

ASSEMBLY LAMP BULB;NE58K9500SG/AA,LH-01,120V |
| DG92-01200A | ASSEMBLY MODULE;COOKTOP ON LED MODULE,NE9000 |
| DG96-00779D | ASSEMBLY MOTOR;NE9100D,ELEC |
| DG94-06038A | ASSEMBLY PANEL DRAWER;NE/NX9100D,GLASS,T3.2, |
| DG94-03472A | ASSEMBLY PANEL OUTER-COATING;NE63T9***,NX90T |
| DG94-03647A | ASSEMBLY PANEL OUTER;NX63T****,NE63T****,GI- |
| DG94-06050A | ASSEMBLY PCB EEPROM;4,NE/NX9100D,ASSEMBLY PCB SU |
| DG92-01424A | ASSEMBLY PCB MAIN;MAIN,NE/NX9100D,135X242MM, |
| DG94-06037B | ASSEMBLY PEDESTAL;NE9100D,5,3,1 SERIES |
| DG97-00213A | ASSEMBLY SCREW;N*6*A****,T-PJT,M3X14 |
| DG97-00215A | ASSEMBLY SCREW;N*6*A****,T-PJT,M3X7 |
| DG97-00214A | ASSEMBLY SCREW;N*6*A****,T-PJT,M4X6 |
|
|

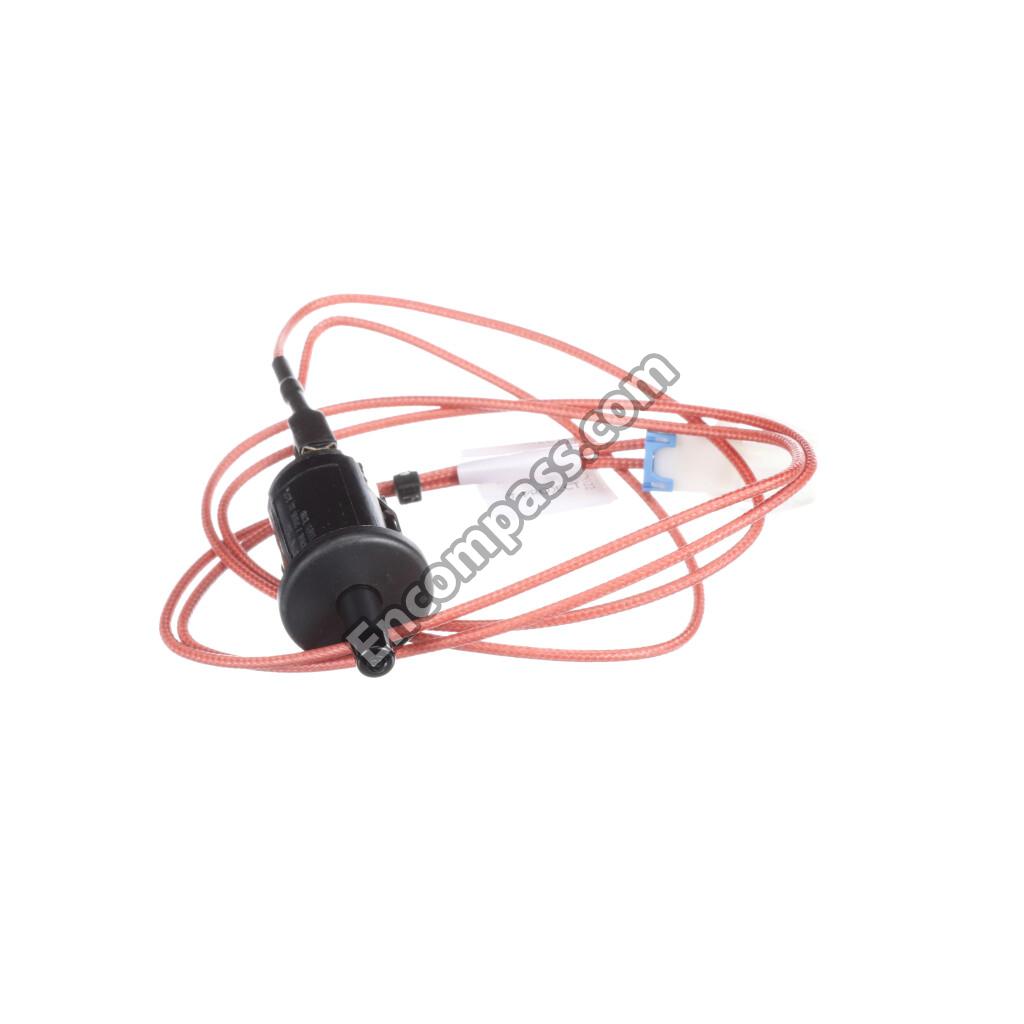

ASSEMBLY SENSOR;NE63T**,NX60T**,NY63T**,T-PJ |
| DG94-00362B | ASSEMBLY SUPPORT HINGE;NE/NX9100D,SPHC T1.6, |
| DG98-02152A | ASSEMBLY TRAY PACKING;NX9850,TRAY RACK PACKI |
| DG94-03531B | ASSEMBLY VENT-MAIN;NE63T**NX60T**,MATT EPOXY |
| DG94-03532A | ASSEMBLY VENT;NE63T**,NX60T**,ELEC MODEL,DUA |
| DG96-00997A | ASSEMBLY WIRE HARNESS-COOKTOP;NE63T8511S,240 |
| DG96-00804A | ASSEMBLY WIRE HARNESS-DC SIGNAL;NX60T8751SS/ |
|
|
ASSEMBLY WIRE HARNESS-DC SIGNAL;NZ9300K, BLU |
| DG96-01152A | ASSEMBLY WIRE HARNESS-DISPLAY;NSE6DG8500,240 |
| DG96-01161A | ASSEMBLY WIRE HARNESS-MAIN;RAD 7/ ALL 5SERIE |
| DG96-01099A | ASSEMBLY WIRE HARNESS-SUB;NSI6DG8500SR,240VA |
| 6902-000336 | BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO |
|
|
BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA |
| DG61-02757A | BRACKET BARRIER;NE9100D,GI-SGCC,T0.4,W71 |
| DG61-01952A | BRACKET COOK TOP;ELECTRIC OVEN NE63T**** |
| DG61-02007A | BRACKET ELEC;OVEN NE63T****,T PJT , ELEC |
|
|
BRACKET HEATER-CONVECTION;FTQ386LWUX,STA |
| DG61-02745A | BRACKET HEATER-RADIANT;NE9100D,GI-SGCC,T |
| DG61-02746A | BRACKET HEATER-RADIANT;NE9100D,GI-SGCC,T |
| DG61-02841A | BRACKET HEATER-RADIANT;NZ9100D,GI-SGCC,T |
|
|

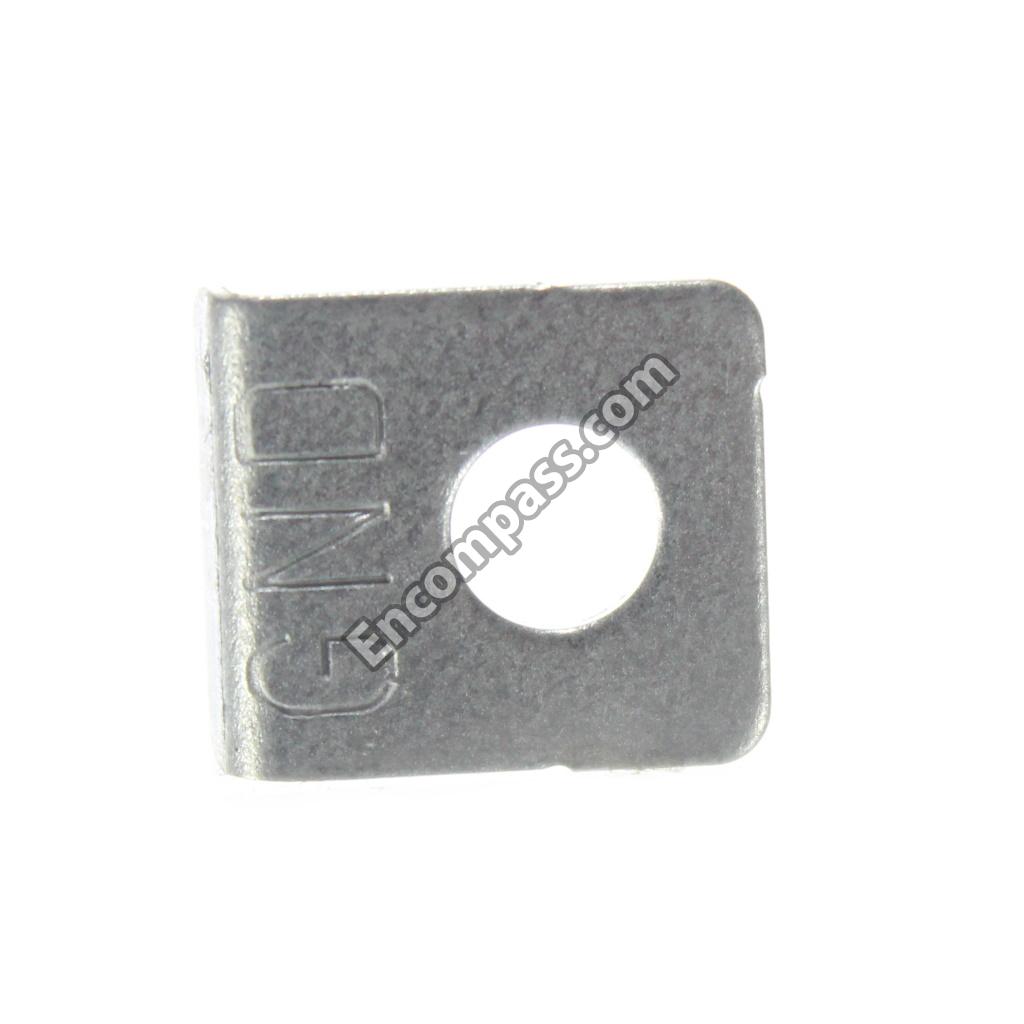

BRACKET-GROUND;FTQ386LWUX,GI-SGCC,T0.8,W |
| DG61-00142B | BRACKET-HEATER;NE63******,GI-SGCC,T1.2,W |
| DG61-00661A | BRACKET-LATCH REAR;NX583G0VBSR,GI-SGCC,T |
| DG61-00732A | BRACKET-LATCH SUB;NX583G0VBSR,GI-SGCC,T1 |
| DG61-00660B | BRACKET-LATCH;TPJT,GI-SGCC,T1,W50.6,L92, |
| DG61-00206A | BRACKET-MULTI CONNECTOR;FTQ386LWUX,GI-SG |
| 3002-001139 | BUZZER-PIEZO;80DB,9V,2KHZ,BK |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 6502-001117 | CABLE CLAMP;DALF-94-2,SI,150C TEMP |
|
|

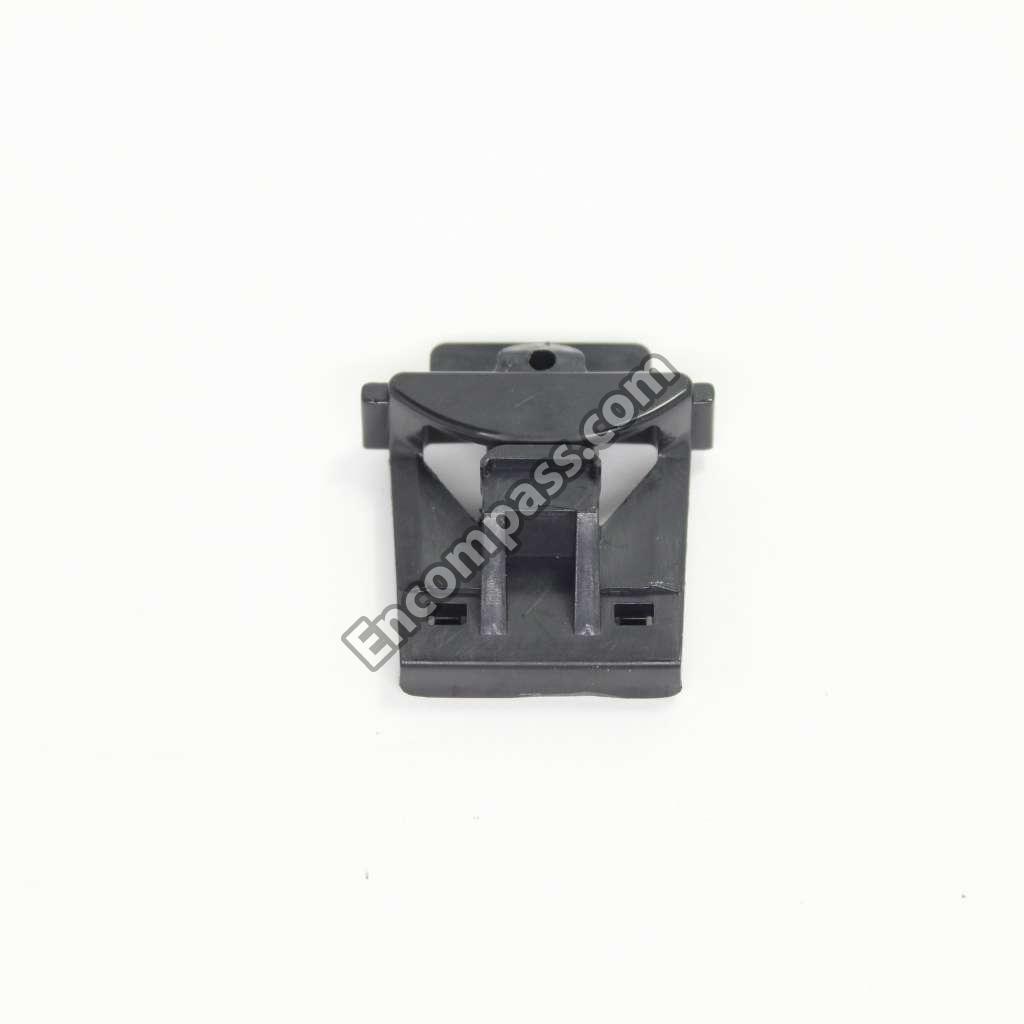

CAM-DOOR LATCH;FX710BGS,PA66+GF30%,-,BLA |
| DG63-00677A | COVER BACK;NE63T****,GI-SGCD,T0.4,-,-,-, |
| DG63-00725B | COVER HEATER-TOP;NE5000A,GI-SGCC,T0.5 |
| DG63-00693A | COVER HEATER;NE63T**,NX60T**,ALCOAT-SA1C |
| DG63-00674A | COVER PCB-LCD;NY63T8751,NX60T8751,8711,N |
| DG63-00682A | COVER WIRE;NE63T****,NY63T****,GI-SGCC,T |
| DG69-00005A | CUSHION-TOP PLATE;CR FOAM,T1.5,W8,L2140, |
| 0402-001224 | DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60 |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0406-001689 | DIODE-TVS;SMH14A,15.6V,17.9V,1MAV,40A,TP |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.6V,5.32/5.88V,50 |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
|
|
FAN CONVECTION-MAIN;FSE1310AST,ALCOAT-SA |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7 |
| DG63-00720A | GASKET;NE63T8***, NX60T8****,GLASS FIBER |
| DG64-00948A | GLASS DOOR-IN;NX9000T,GLASS,T4,W526,L341 |
| DG64-00092B | GLASS-INNER;NX583G0VBSR,GLASS,T4,W526.0, |
| DG63-00107A | GROUND-TERMINAL BLOCK;FTQ386LWUX,CU,T0.8 |
|
|
HEATER MICA-WARMING;AC240V,MICA, WARMING |
|
|

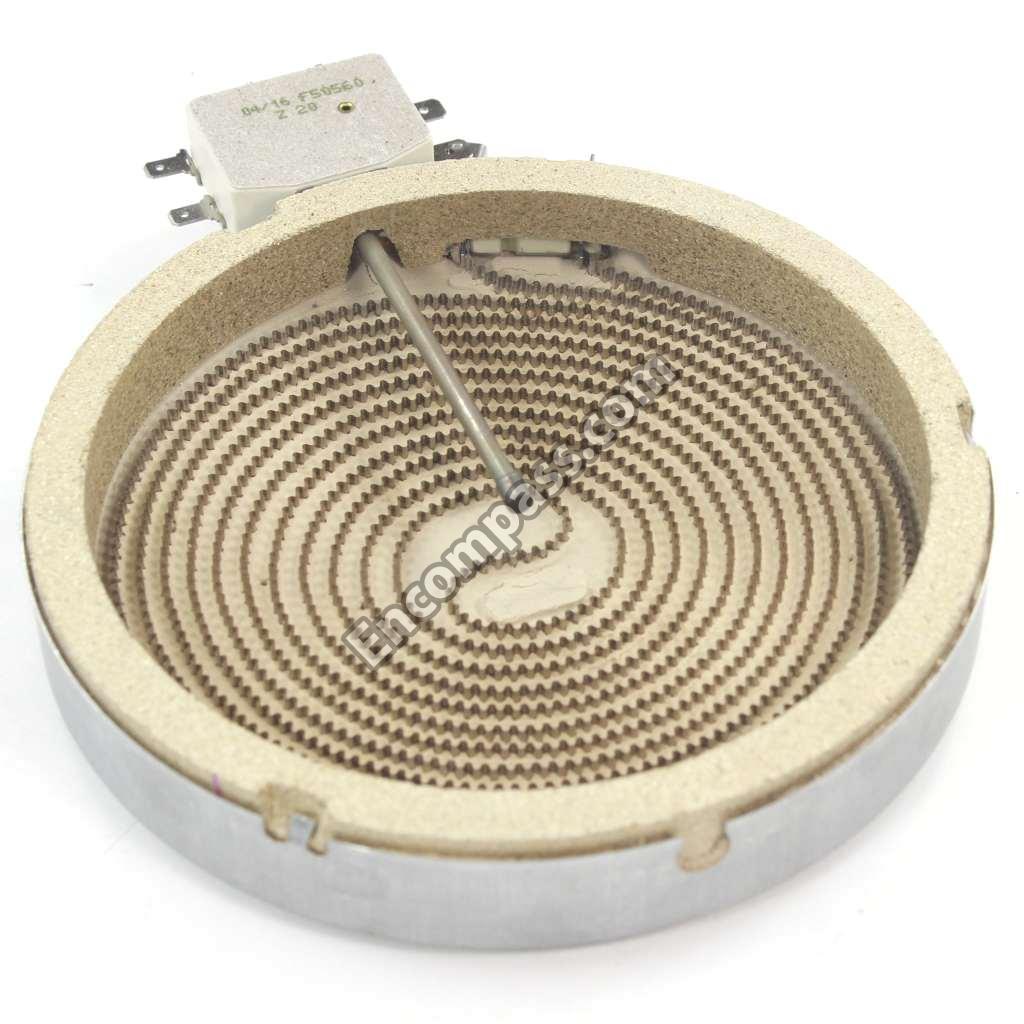

HEATER RADIANT-DUAL;AC240V,6-INCH /9-INCH ,1400W/3 |
|
|
HEATER RADIANT-SINGLE;AC240V,6-INCH ,1200W,56 |
|
|

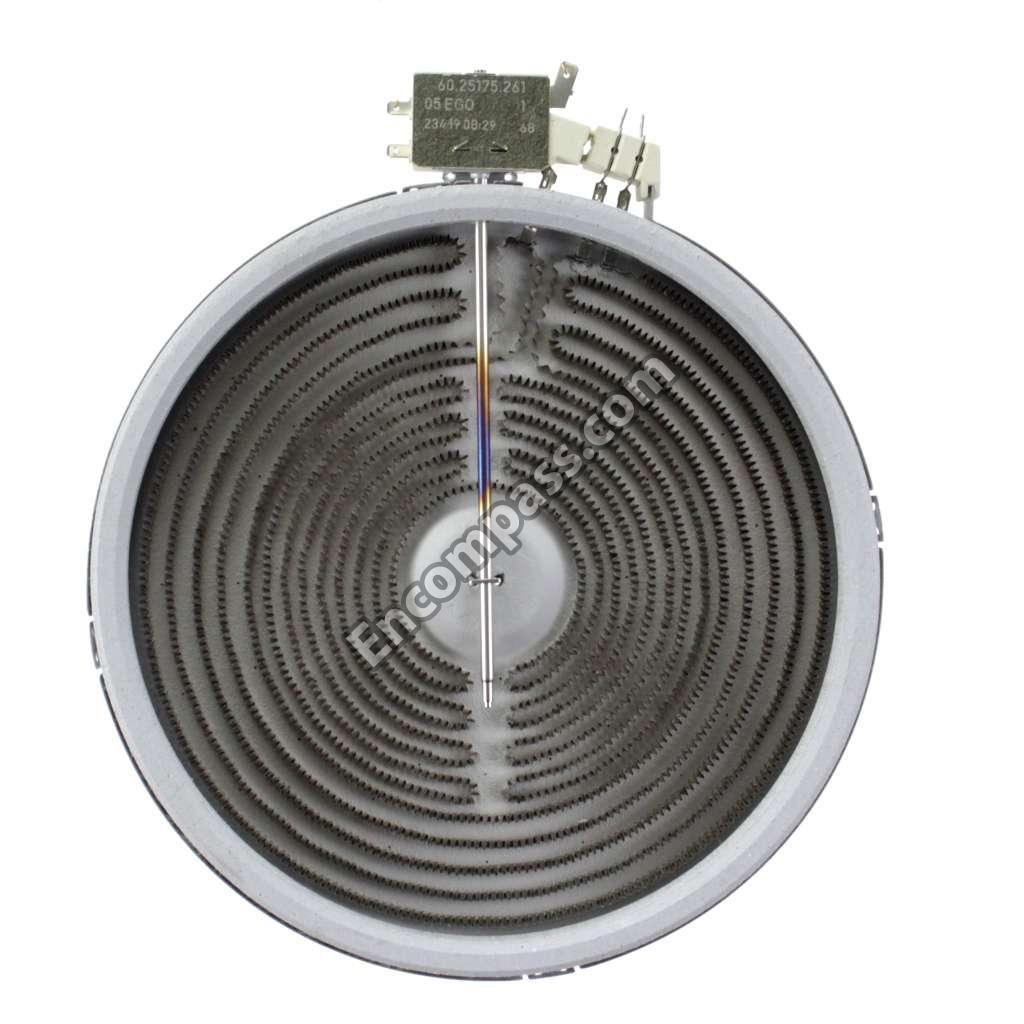

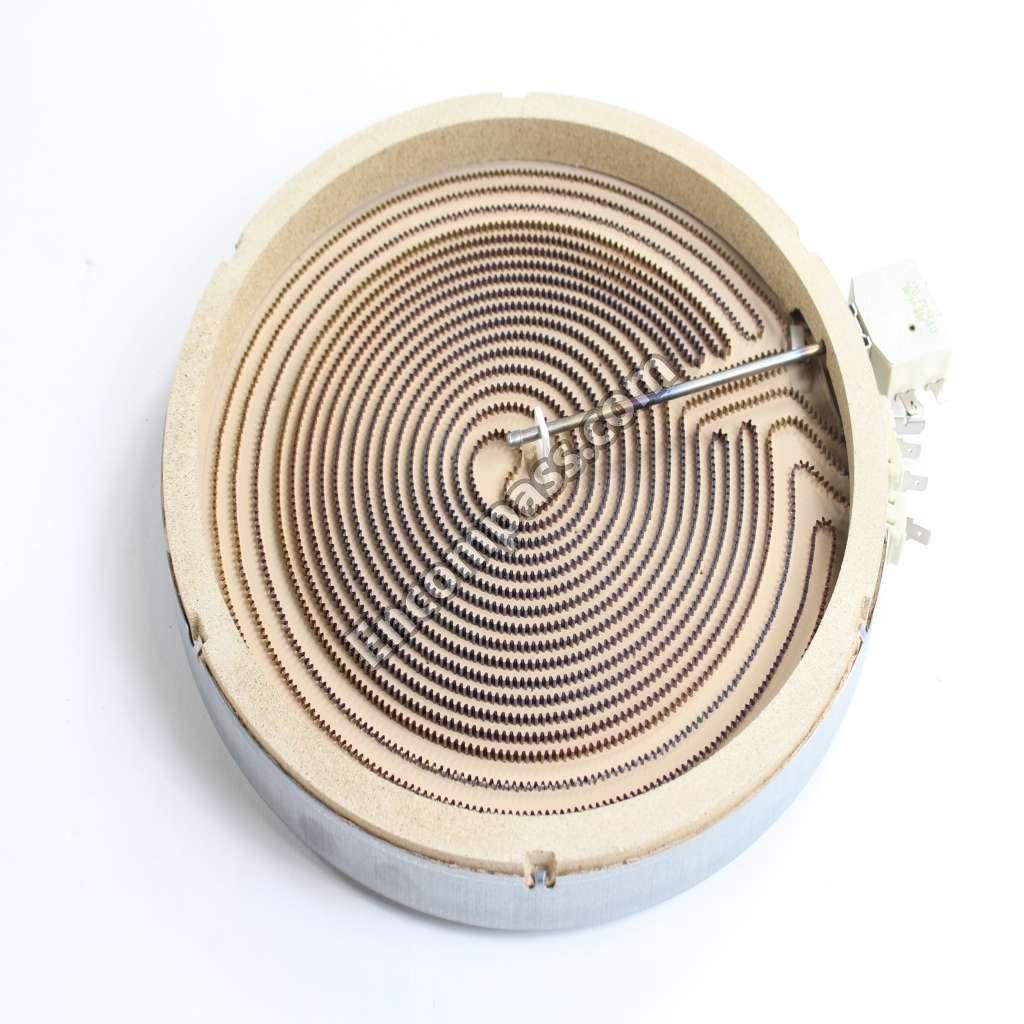

HEATER RADIANT-TRIPLE;AC240V,6-INCH /9-INCH /12-INCH ,1 |
| DG47-00071C | HEATER SHEATH-BOTTOM;AC240V,CAULING TYPE |
| DG47-00017C | HEATER SHEATH-CONVECTION;AC240V,800W,SUS |
|
|

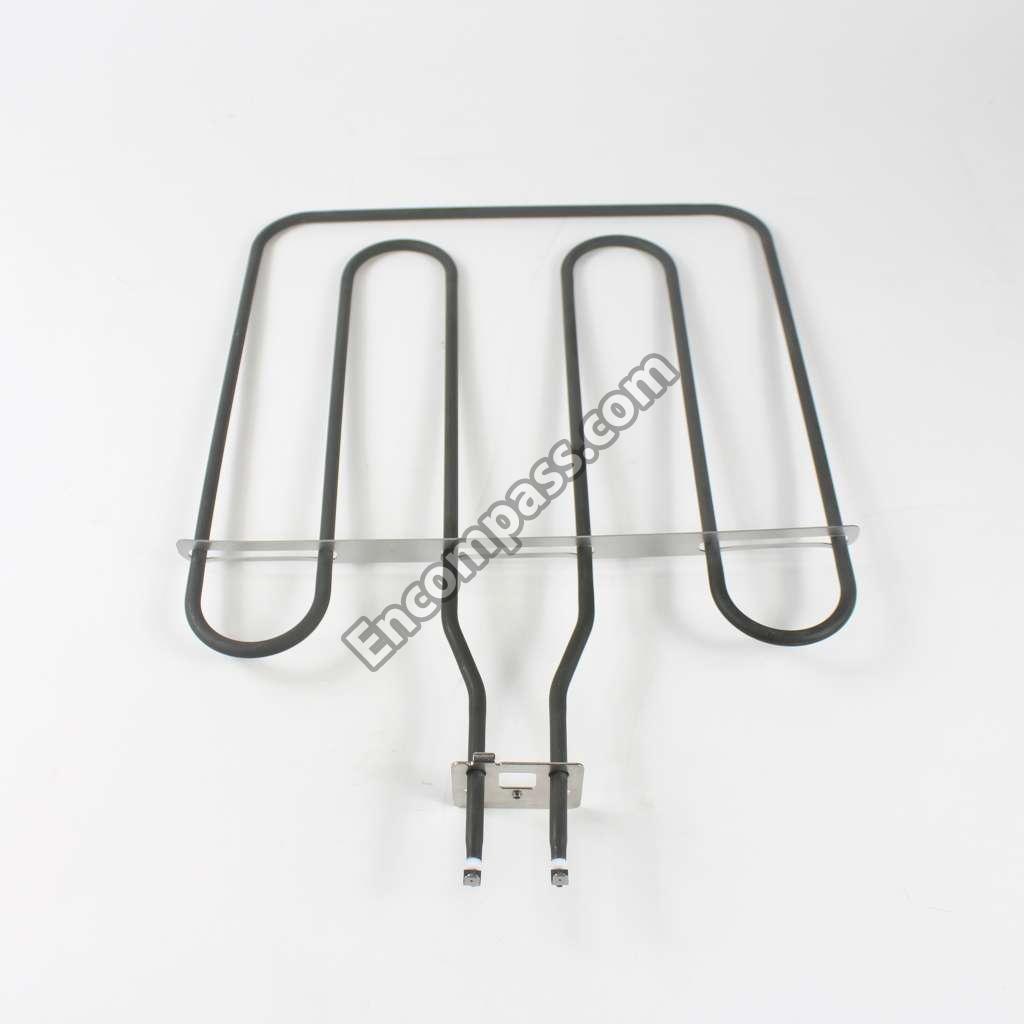

HEATER SHEATH-GRILL;AC240V,BKT TYPE(FIXE |
| DG61-02805A | HOLDER HANDLE-LEFT;NE/NX9100D,PET+GF30%, |
| DG61-02806A | HOLDER HANDLE-RIGHT;NE/NX9100D,PET+GF30% |
| DG61-02791A | HOLDER KNOB;NSE6DG8500MTAA,PC,T1.9,EBONY |
| DG61-01919A | HOLDER PCB-MAIN;NE,NX(8751**,8711**),NY8 |
| 1001-001942 | IC-ANALOG SWITCH;SC1143DG,SO-8,8P,4.9X3. |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 1201-001125 | IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252) |
| 1203-000294 | IC-POSI.FIXED REG.;7808,TO-220,3P,PLASTI |
| 1203-001211 | IC-VOL. DETECTOR;7027,SOT-89,3P,PLASTIC, |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1202-001090 | IC-VOLTAGE COMP.;KIA75S393F,5P,TSV,TP,2. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| DG68-00102B | LABEL CAUTION;30 OVEN,SECA,TETRON SILVER |
| DG68-00099A | LABEL INSTRUCTION;EVN-30(FTQ386LWUX),SEA |
| DG47-00069A | LAMP-ETC;SP-2157-BLPS,D12.5X47.1MM,BK,1. |
| DG66-00071A | LATCH-ROD;NE63T**,NX60T**,NY63T**,SWRCH1 |
|
|

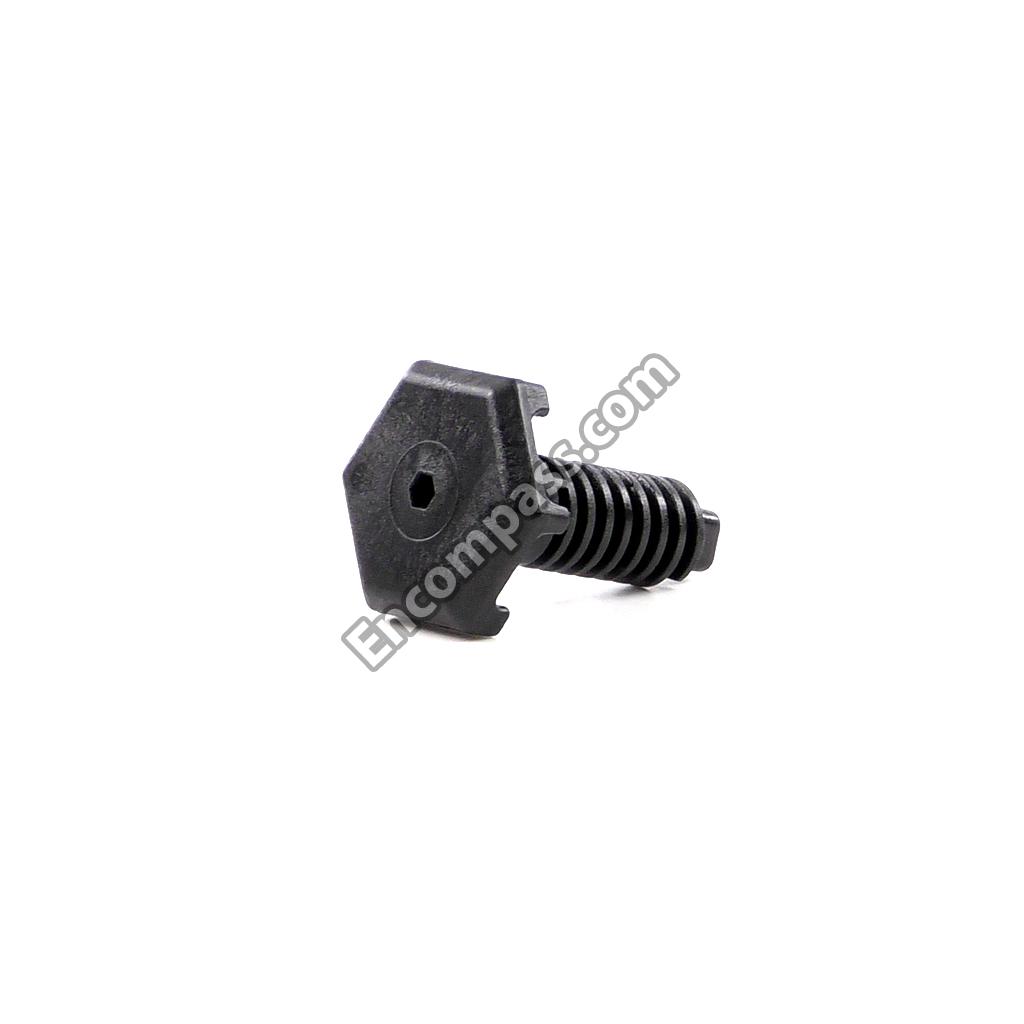

LEG LEVELING;NE59N6630SS/AA,PA66+GF30%,H |
| DG61-01956A | LEG LEVELING;T-PJT NE63T****,NX60T****,N |
|
|

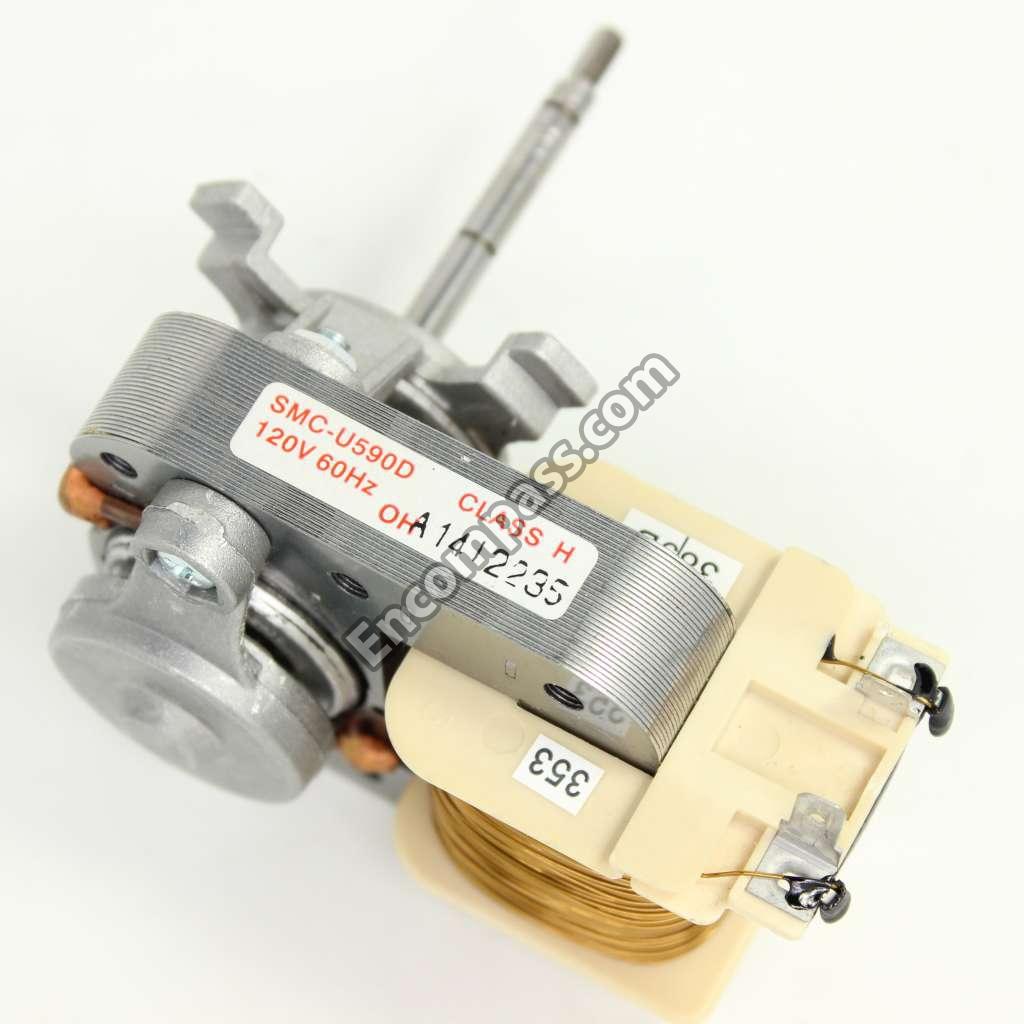

MOTOR AC CONVECTION;30-INCH OVEN,SMC-U590D, |

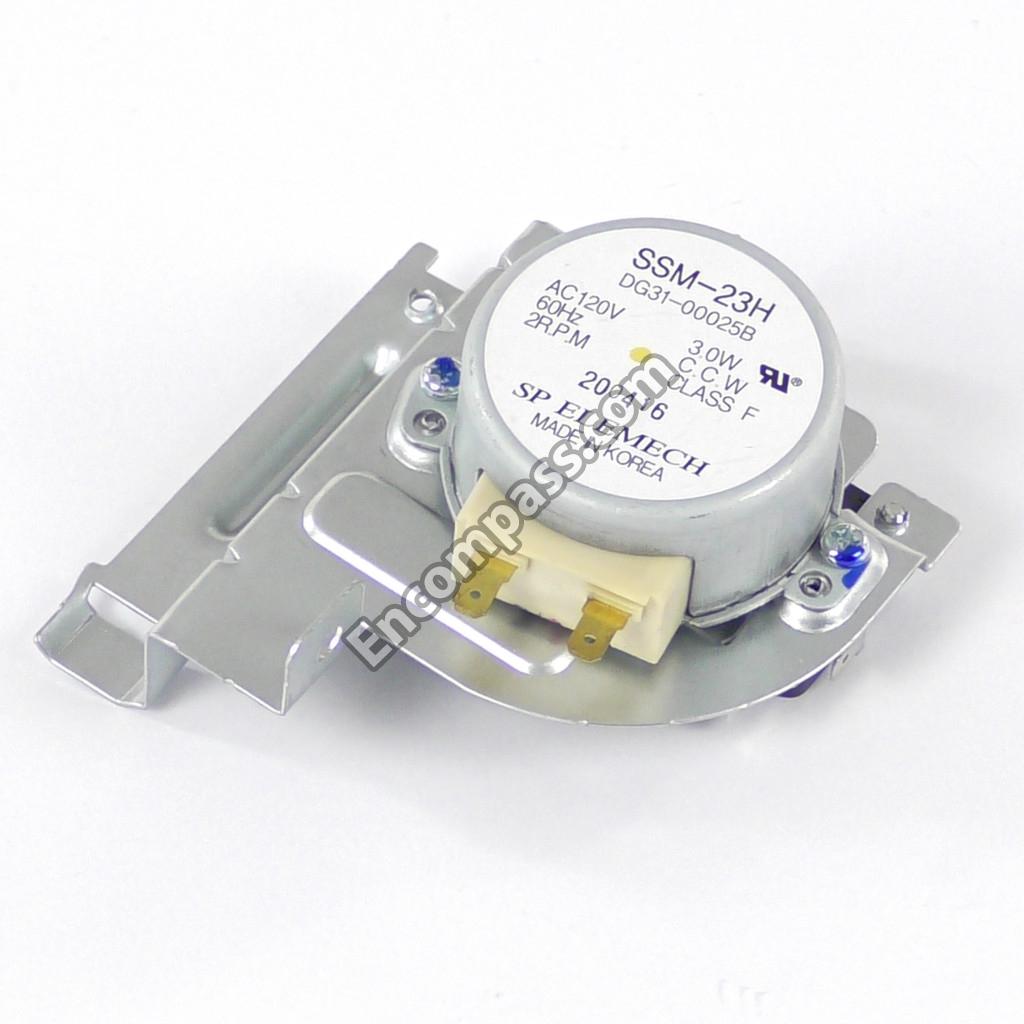

| DG31-00025B | MOTOR AC DRIVE;8POLE,120V,60HZ,35MA,3W,2 |
|
|
NUT-HEXAGON CAP;SWRCH10A,NI PLT,M4,LEFT |
| DE60-60030A | PIN-STAPLE;NE5000A,MSWR,-,-,-,- |
| 2007-010245 | R-CHIP;0.01OHM,1%,2W,TP,6432 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000238 | R-CHIP;1.5KOHM,1%,1/8W,TP,2012 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000286 | R-CHIP;100OHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-000297 | R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000312 | R-CHIP;10OHM,5%,1/4W,TP,3216 |
| 2007-000308 | R-CHIP;10OHM,5%,1/8W,TP,2012,T0.5 |
| 2007-000352 | R-CHIP;12KOHM,1%,1/8W,TP,2012 |
| 2007-000394 | R-CHIP;150KOHM,1%,1/4W,TP,3216 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000490 | R-CHIP;2.2KOHM,1%,1/8W,TP,2012 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-000530 | R-CHIP;200KOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-000537 | R-CHIP;200OHM,1%,1/4W,TP,3216 |
| 2007-000670 | R-CHIP;2KOHM,1%,1/4W,TP,3216 |
| 2007-000677 | R-CHIP;3.01KOHM,1%,1/8W,TP,2012 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-000762 | R-CHIP;330OHM,1%,1/8W,TP,2012 |
| 2007-000944 | R-CHIP;47KOHM,5%,1/4W,TP,3216 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-000945 | R-CHIP;47OHM,1%,1/8W,TP,2012 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|

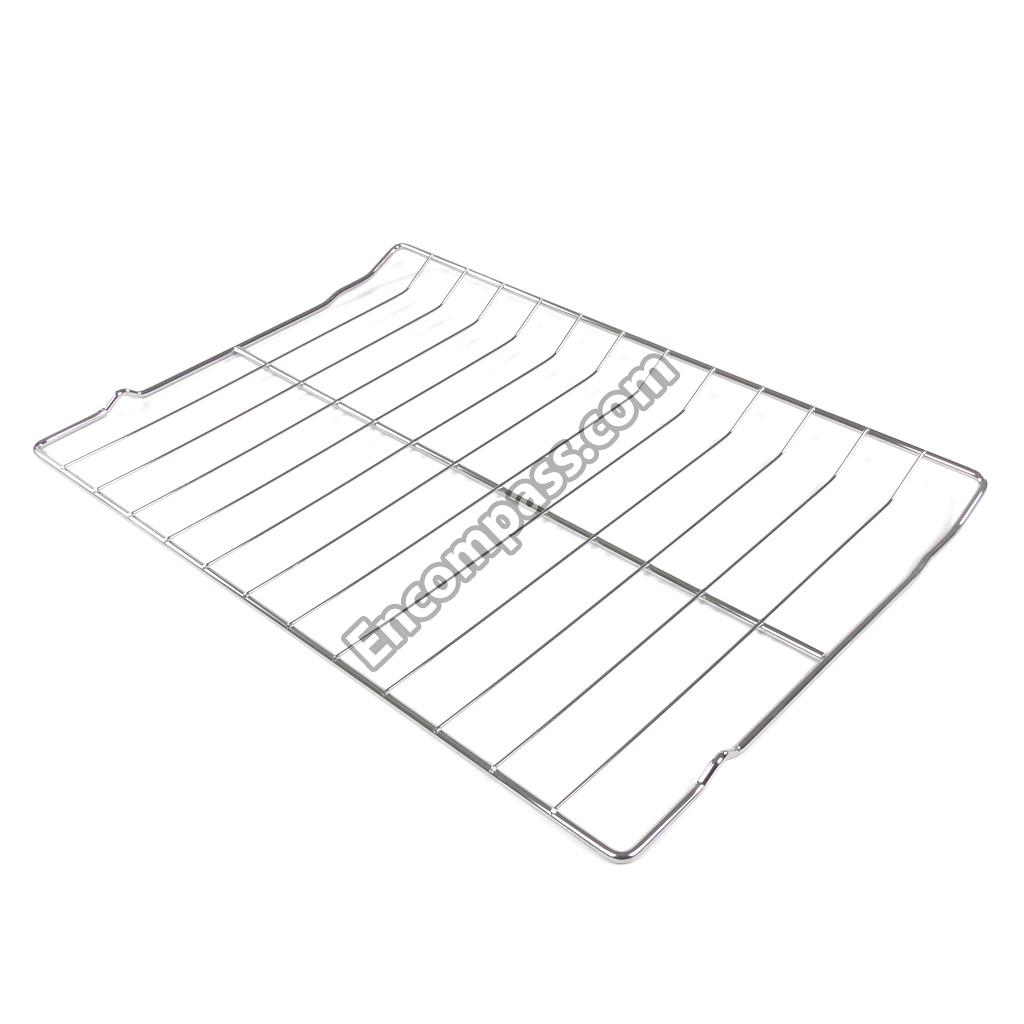

RACK WIRE;NE59N6630SS,NE5000N,MSWR,-,W62 |
|
|
REGULATOR ENERGY;PER001-02D,18A,D-CUT,DU |
|
|

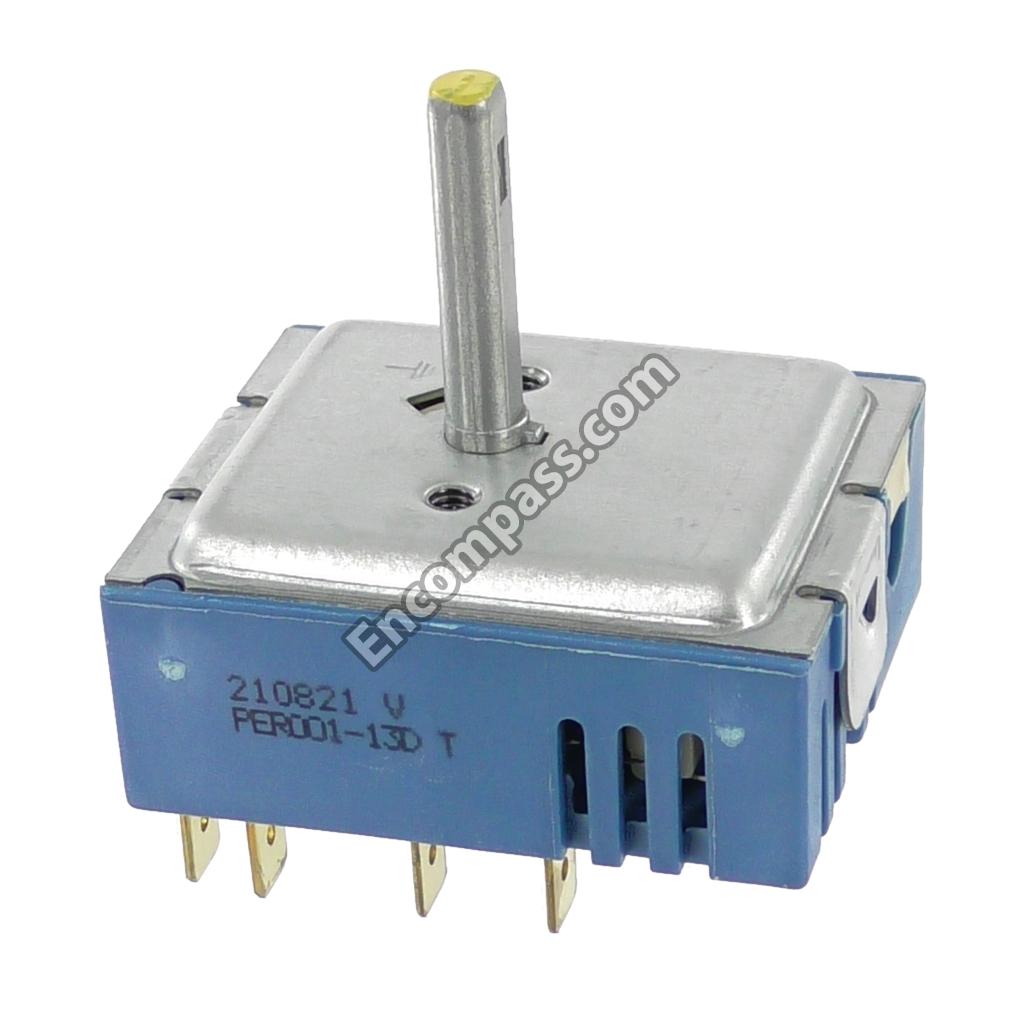

REGULATOR ENERGY;PER001-13D,15A,D-CUT,TR |

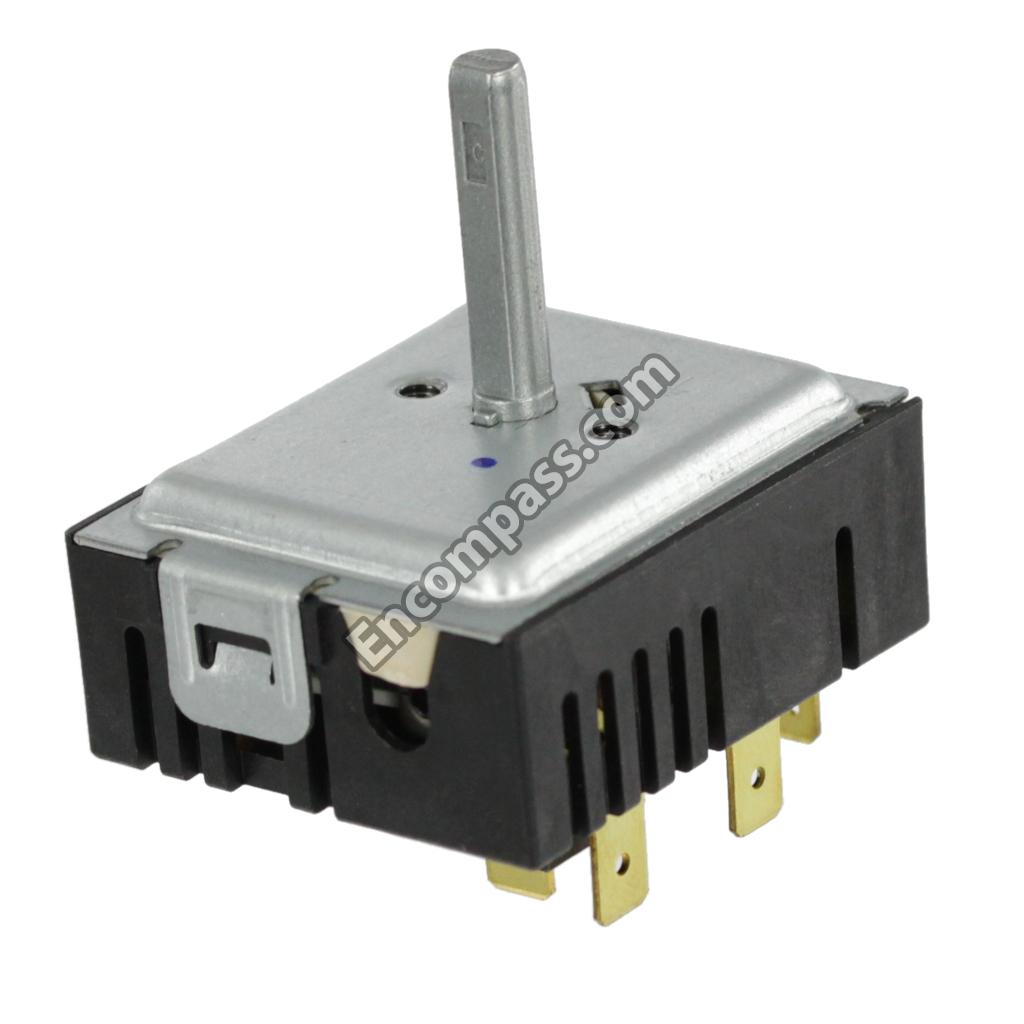

| DG44-01012A | REGULATOR ENERGY;PER002-01D,6.0A,D-CUT,S |
|
|
RELAY-POWER;12V,400MW,16000MA,1FORMA,15M |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| DG67-00227A | RUBBER RING;BEST MODEL,SILICON RUBBER,T1 |
|
|
RUBBER-CUSHION;FTQ386LWUX,SILICON RUBBER |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(BLK),L10,M4,P |
| 6001-003299 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L16,M5,T |
| 6001-000618 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L8,M4,PH |
|
|
SCREW-SPECIAL;TH,+,WP,M5,L10,ZPC(BLK),SW |
|
|
SCREW-TAPPING;STS410,NI PLT,L10,M4,TH,+, |
| 6002-001425 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,T |
| 6002-000440 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M3,PW |
| 6002-000413 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH |
| 6002-000432 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
| DE60-00003A | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
| DE60-10193A | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L25,M4,T |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L10,M5,H |
|
|

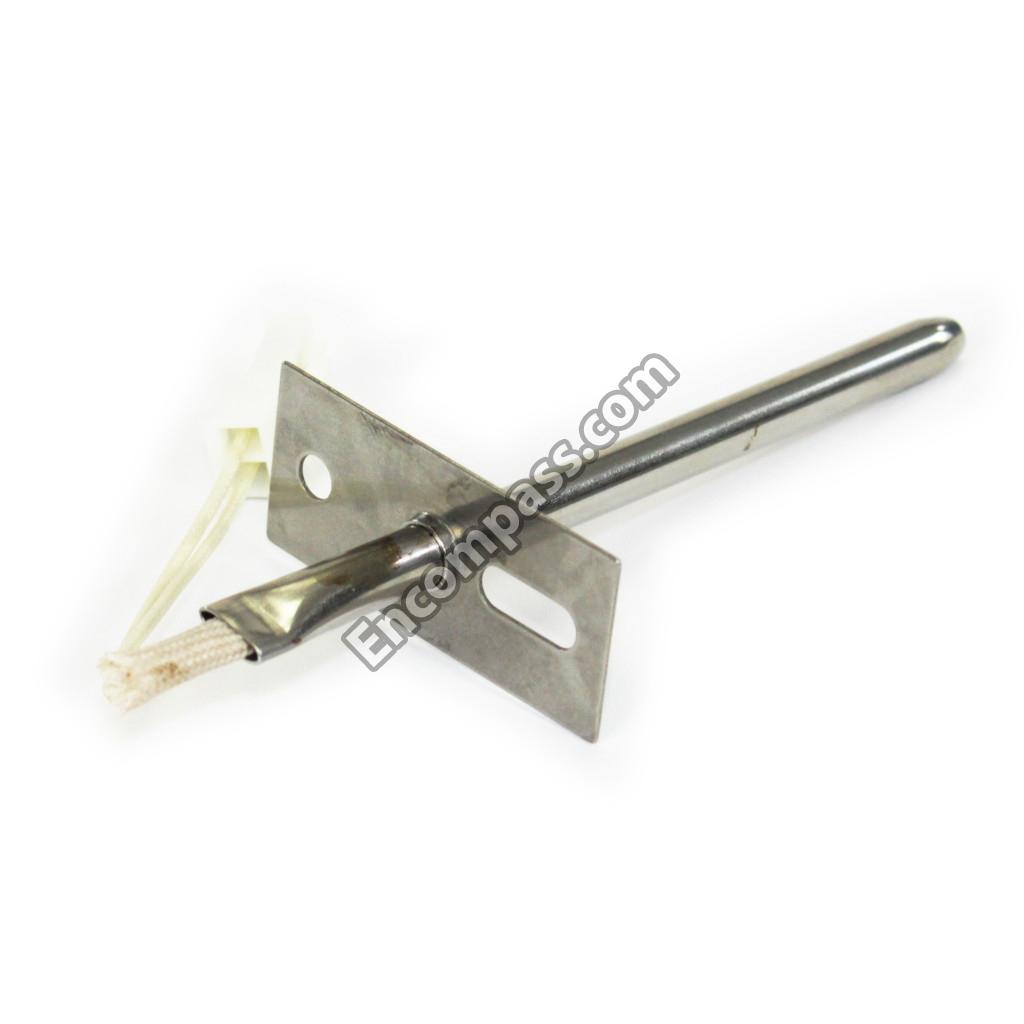

SENSOR-THERMISTOR;PT1000-SOV9,12V,PLATIU |
|
|
SLIDER-INNER;FCQ321HTUX,PBT,BLACK,KP211, |
|
|
SLIDER-OUTER;FCQ321HTUX,PBT,T1.2,BLACK,B |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-006842 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-008117 | SMG PART |
| 2007-007946 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007573 | SMG PART |
| 2007-007405 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 0106-001192 | SMG PART |
| 0106-001577 | SMG PART |
| 0106-001578 | SMG PART |
| 0201-000326 | SMG PART |
| 0201-001528 | SMG PART |
| 0201-001970 | SMG PART |
| 0201-001982 | SMG PART |
| 0201-002023 | SMG PART |
| 0201-003400 | SMG PART |
| 0202-001463 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001976 | SMG PART |
| 0204-004665 | SMG PART |
| 0204-005225 | SMG PART |
| 0204-008356 | SMG PART |
| 0402-001472 | SMG PART |
| 0402-001741 | SMG PART |
| 0406-001906 | SMG PART |
| 0502-001250 | SMG PART |
| 0504-000001 | SMG PART |
| 0504-001064 | SMG PART |
| 0505-001943 | SMG PART |
| 0601-001986 | SMG PART |
| 0604-001405 | SMG PART |
| 0903-002203 | SMG PART |
| 0903-002266 | SMG PART |
| 1003-002158 | SMG PART |
| 1203-009429 | SMG PART |
| 1203-009642 | SMG PART |
| 1205-004505 | SMG PART |
| 1205-006575 | SMG PART |
| 1404-001481 | SMG PART |
| 1404-001544 | SMG PART |
| 1404-001872 | SMG PART |
| 1405-001239 | SMG PART |
| 2007-000441 | SMG PART |
| 2007-000508 | SMG PART |
| 2007-000641 | SMG PART |
| 2007-000700 | SMG PART |
| 2007-000764 | SMG PART |
| 2007-001011 | SMG PART |
| 2007-001015 | SMG PART |
| 2007-001132 | SMG PART |
| 2007-001190 | SMG PART |
| 2007-007336 | SMG PART |
| 2007-008485 | SMG PART |
| 2007-009922 | SMG PART |
| 2201-002335 | SMG PART |
| 2201-002429 | SMG PART |
| 2201-002688 | SMG PART |
| 2201-002709 | SMG PART |
| 2201-002711 | SMG PART |
| 2203-010033 | SMG PART |
| 2203-010495 | SMG PART |
| 2203-010496 | SMG PART |
| 2301-002011 | SMG PART |
| 2301-002481 | SMG PART |
| 2301-002484 | SMG PART |
| 2401-004553 | SMG PART |
| 2401-006180 | SMG PART |
| 2402-001517 | SMG PART |
| 3301-002113 | SMG PART |
| 3501-001306 | SMG PART |
| 3501-001323 | SMG PART |
| 3502-001075 | SMG PART |
| 3502-001087 | SMG PART |
| 3601-001288 | SMG PART |
| 3708-003265 | SMG PART |
| 3708-003344 | SMG PART |
| 3711-000261 | SMG PART |
| 3711-000262 | SMG PART |
| 3711-000357 | SMG PART |
| 3711-002046 | SMG PART |
| 3711-008881 | SMG PART |
| 3711-008909 | SMG PART |
| 3711-009166 | SMG PART |
| 3711-009169 | SMG PART |
| 3711-009233 | SMG PART |
| 3711-009393 | SMG PART |
| 3711-009394 | SMG PART |
| 3711-009395 | SMG PART |
| 3712-001769 | SMG PART |
| 3712-001770 | SMG PART |
| 3712-001972 | SMG PART |
| 4709-003216 | SMG PART |
| 4715-001217 | SMG PART |
| 6009-002193 | SMG PART |
| 6021-002125 | SMG PART |
| 6041-001084 | SMG PART |
| 6041-001085 | SMG PART |
| 6502-001149 | SMG PART |
| 6812-000145 | SMG PART |
| 6902-003459 | SMG PART |
| 6902-004215 | SMG PART |
| 6922-000009 | SMG PART |
| DA02-00092A | SMG PART |
| DA26-00062A | SMG PART |
| DA27-00062A | SMG PART |
| DB27-00011A | SMG PART |
| DE60-00001A | SMG PART |
| DE60-20061A | SMG PART |
| DE68-04077A | SMG PART |
| DE92-04720A | SMG PART |
| DE92-04729A | SMG PART |
| DE92-04731A | SMG PART |
| DG01-00246A | SMG PART |
| DG01-00247A | SMG PART |
| DG01-00248A | SMG PART |
| DG01-00249A | SMG PART |
| DG01-00295A | SMG PART |
| DG01-00296A | SMG PART |
| DG01-00300A | SMG PART |
| DG02-01003A | SMG PART |
| DG02-01003B | SMG PART |
| DG07-01012A | SMG PART |
| DG31-00026D | SMG PART |
| DG34-00046A | SMG PART |
| DG41-00063A | SMG PART |
| DG41-00064A | SMG PART |
| DG60-00041A | SMG PART |
| DG60-00042A | SMG PART |
| DG61-00121C | SMG PART |
| DG61-00150B | SMG PART |
| DG61-00227A | SMG PART |
| DG61-00291A | SMG PART |
| DG61-00779A | SMG PART |
| DG61-00783A | SMG PART |
| DG61-00803A | SMG PART |
| DG61-00808A | SMG PART |
| DG61-00894A | SMG PART |
| DG61-01874A | SMG PART |
| DG61-01875A | SMG PART |
| DG61-01876A | SMG PART |
| DG61-01877A | SMG PART |
| DG61-01896A | SMG PART |
| DG61-01900B | SMG PART |
| DG61-01908A | SMG PART |
| DG61-01909B | SMG PART |
| DG61-01911D | SMG PART |
| DG61-01924A | SMG PART |
| DG61-01925A | SMG PART |
| DG61-01926A | SMG PART |
| DG61-01928A | SMG PART |
| DG61-01938A | SMG PART |
| DG61-01957A | SMG PART |
| DG61-01968A | SMG PART |
| DG61-01972A | SMG PART |
| DG61-01990A | SMG PART |
| DG61-01994C | SMG PART |
| DG61-02070A | SMG PART |
| DG61-02076A | SMG PART |
| DG61-02242A | SMG PART |
| DG61-02739A | SMG PART |
| DG61-02741A | SMG PART |
| DG61-02742A | SMG PART |
| DG61-02743A | SMG PART |
| DG61-02744A | SMG PART |
| DG61-02747A | SMG PART |
| DG61-02748A | SMG PART |
| DG61-02751A | SMG PART |
| DG61-02766B | SMG PART |
| DG61-02769A | SMG PART |
| DG61-02774B | SMG PART |
| DG61-02778A | SMG PART |
| DG61-02780A | SMG PART |
| DG61-02797A | SMG PART |
| DG61-02816B | SMG PART |
| DG61-02817B | SMG PART |
| DG61-02818A | SMG PART |
| DG61-02819A | SMG PART |
| DG61-02840B | SMG PART |
| DG62-00008B | SMG PART |
| DG62-00021A | SMG PART |
| DG62-00292B | SMG PART |
| DG62-00298A | SMG PART |
| DG62-00302Q | SMG PART |
| DG62-00304D | SMG PART |
| DG62-00305A | SMG PART |
| DG62-00384A | SMG PART |
| DG63-00077C | SMG PART |
| DG63-00148A | SMG PART |
| DG63-00241A | SMG PART |
| DG63-00678B | SMG PART |
| DG63-00685A | SMG PART |
| DG63-00686A | SMG PART |
| DG63-00702A | SMG PART |
| DG63-00721A | SMG PART |
| DG63-00932B | SMG PART |
| DG63-00946A | SMG PART |
| DG63-00955A | SMG PART |
| DG63-00956A | SMG PART |
| DG64-00915A | SMG PART |
| DG64-00924C | SMG PART |
| DG64-00983A | SMG PART |
| DG64-01037B | SMG PART |
| DG64-01038B | SMG PART |
| DG64-01268A | SMG PART |
| DG64-01270A | SMG PART |
| DG64-01271A | SMG PART |
| DG64-01273A | SMG PART |
| DG64-01280A | SMG PART |
| DG64-01282A | SMG PART |
| DG64-01283A | SMG PART |
| DG64-01287A | SMG PART |
| DG64-01288C | SMG PART |
| DG64-01292A | SMG PART |
| DG64-01293A | SMG PART |
| DG64-01294A | SMG PART |
| DG64-01307C | SMG PART |
| DG64-01315A | SMG PART |
| DG66-00067A | SMG PART |
| DG67-00219A | SMG PART |
| DG67-00310C | SMG PART |
| DG67-00311C | SMG PART |
| DG67-00312A | SMG PART |
| DG67-00313A | SMG PART |
| DG68-00100B | SMG PART |
| DG68-00101B | SMG PART |
| DG68-00279C | SMG PART |
| DG68-00424A | SMG PART |
| DG68-00493A | SMG PART |
| DG68-00785A | SMG PART |
| DG68-01034A | SMG PART |
| DG68-01085A | SMG PART |
| DG68-01592A | SMG PART |
| DG68-01623A | SMG PART |
| DG68-01625A | SMG PART |
| DG68-01627A | SMG PART |
| DG68-01635B | SMG PART |
| DG69-00054A | SMG PART |
| DG69-00063A | SMG PART |
| DG69-00102A | SMG PART |
| DG69-00166D | SMG PART |
| DG69-00166H | SMG PART |
| DG69-00188A | SMG PART |
| DG69-00376A | SMG PART |
| DG69-00491A | SMG PART |
| DG69-00493A | SMG PART |
| DG69-00506A | SMG PART |
| DG69-00508A | SMG PART |
| DG69-00509A | SMG PART |
| DG69-00618A | SMG PART |
| DG69-00782A | SMG PART |
| DG69-00782B | SMG PART |
| DG69-00784A | SMG PART |
| DG69-00784B | SMG PART |
| DG69-00791A | SMG PART |
| DG81-00480A | SMG PART |
| DG90-01015L | SMG PART |
| DG90-01482C | SMG PART |
| DG90-01491A | SMG PART |
| DG90-01500A | SMG PART |
| DG90-01504B | SMG PART |
| DG90-01506B | SMG PART |
| DG90-01508B | SMG PART |
| DG92-01412A | SMG PART |
| DG92-01421A | SMG PART |
| DG94-03469A | SMG PART |
| DG94-03517J | SMG PART |
| DG94-03519B | SMG PART |
| DG94-03521A | SMG PART |
| DG94-03525B | SMG PART |
| DG94-03527C | SMG PART |
| DG94-03528C | SMG PART |
| DG94-03533A | SMG PART |
| DG94-03621B | SMG PART |
| DG94-03689D | SMG PART |
| DG94-03706B | SMG PART |
| DG94-05939A | SMG PART |
| DG94-05940A | SMG PART |
| DG94-05942A | SMG PART |
| DG94-05944A | SMG PART |
| DG94-05965C | SMG PART |
| DG94-05968A | SMG PART |
| DG94-05970A | SMG PART |
| DG94-05974A | SMG PART |
| DG94-05991A | SMG PART |
| DG94-05998A | SMG PART |
| DG94-06015A | SMG PART |
| DG94-06019A | SMG PART |
| DG94-06021A | SMG PART |
| DG94-06035A | SMG PART |
| DG94-06226B | SMG PART |
| DG94-06235A | SMG PART |
| DG94-06236A | SMG PART |
| DG94-06240A | SMG PART |
| DG94-06241A | SMG PART |
| DG94-06269B | SMG PART |
| DG94-06270B | SMG PART |
| DG94-06294A | SMG PART |
| DG94-06295A | SMG PART |
| DG94-06323A | SMG PART |
| DG96-01135C | SMG PART |
| DG98-02091A | SMG PART |
| DG98-02576A | SMG PART |
| DG98-02576B | SMG PART |
| DG98-02578A | SMG PART |
| DG98-02578B | SMG PART |
| DG98-02601A | SMG PART |
| DG98-02604D | SMG PART |
| DG98-02607A | SMG PART |
| 0202-001338 | SOLDER-BAR;LEED-FREE SOLDER BAR,W20L350H |
|
|
SPACER-SIDE PANEL;FTQ386**, FTQ352**, FC |

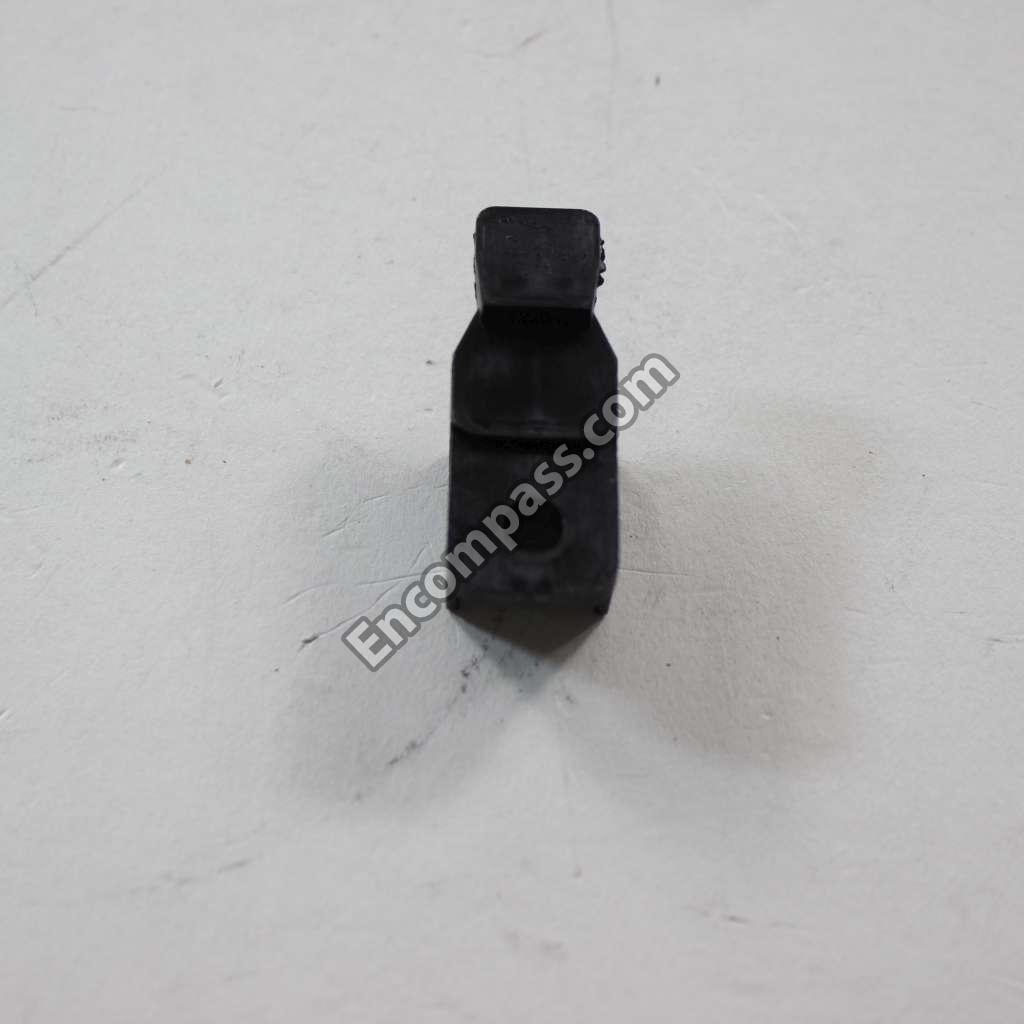

| DG61-02811A | STOPPER-KNOB;NS*6D*8*00**AA,POM,T1.8,W15 |
| DG61-02820A | SUPPORT FRAME-BOTTOM;NX9100D,PBT+GF15%,T |
|
|

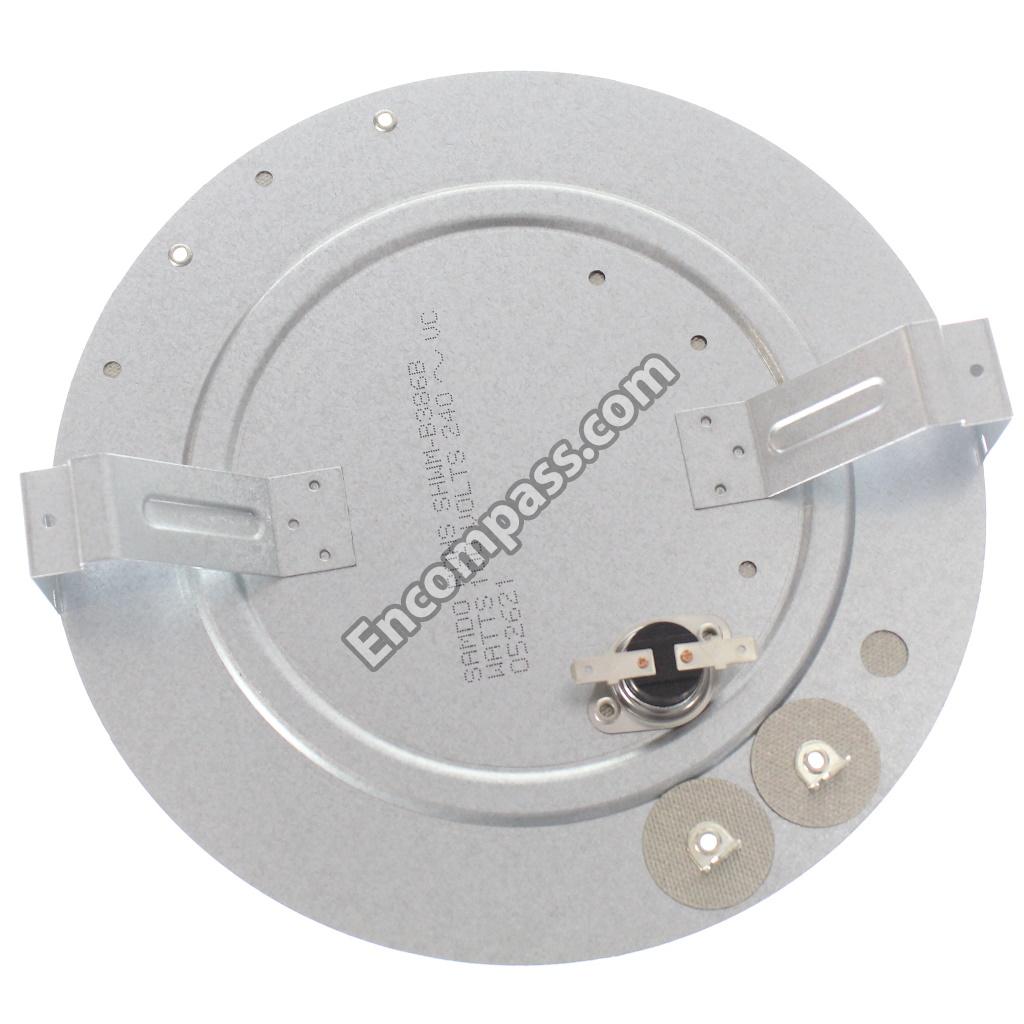

SUPPORT HEATER;FCQ321HSUX,SK5,0.5,A-2 PR |
|
|
SUPPORT-WARMING HEATER;FSE1310AST,SK5,T0 |
|
|

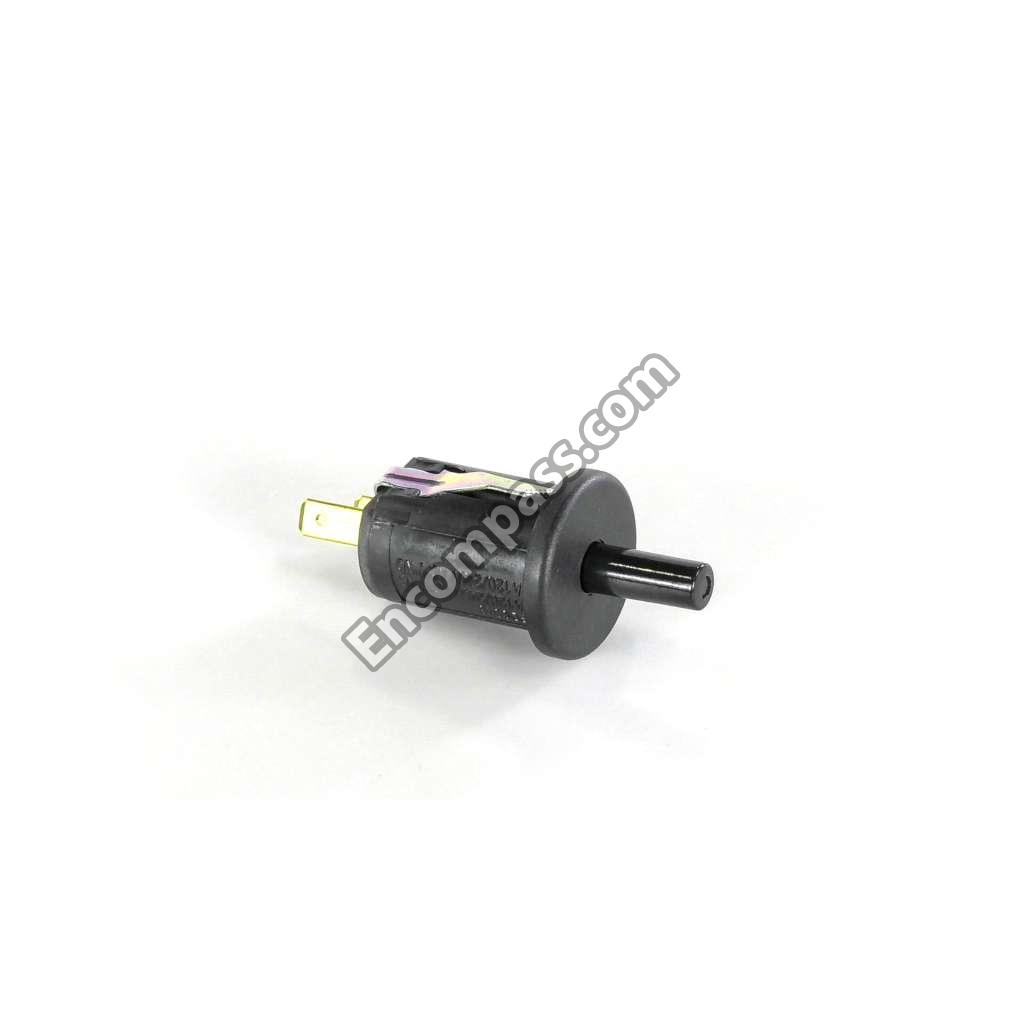

SWITCH-DOOR PLUNGER;120/240 VAC,BLACK,FT |
|
|

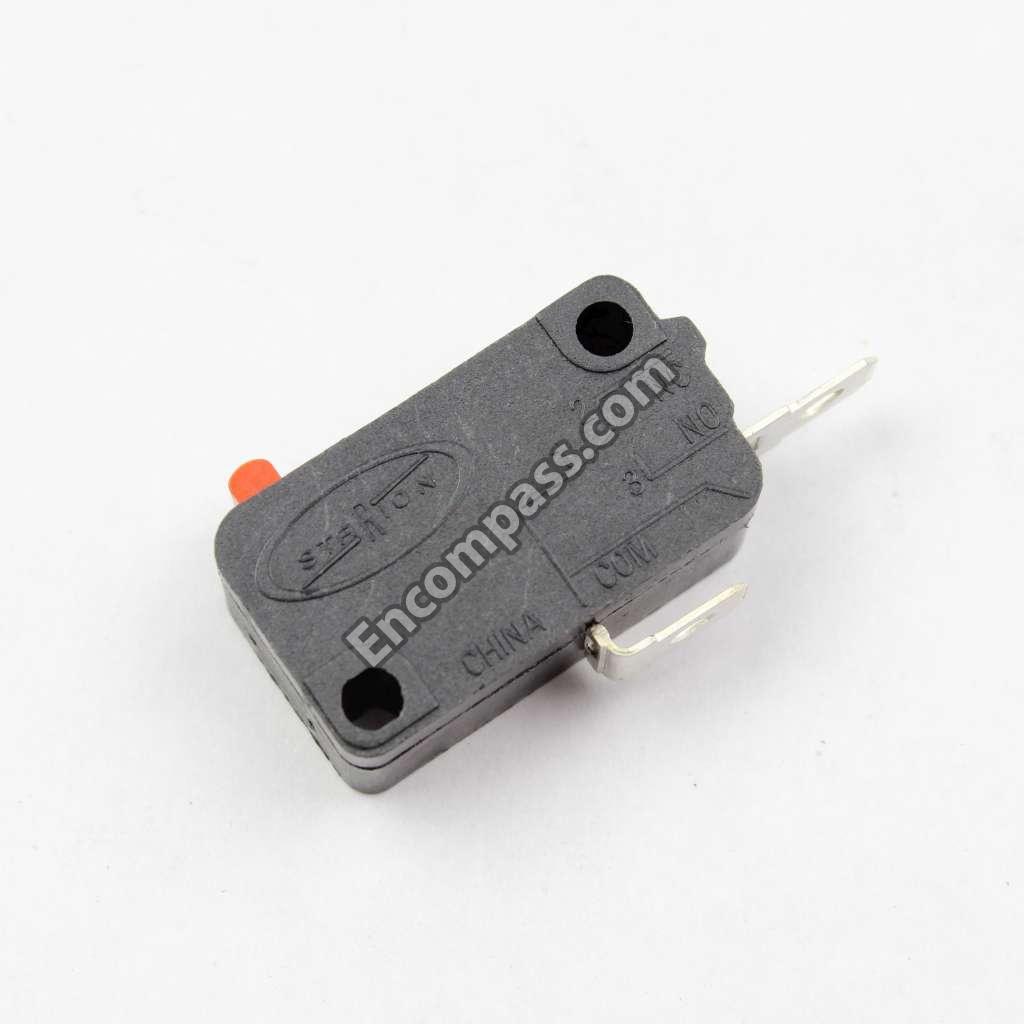

SWITCH-MICRO;AC250V,1A,200GF,1P,-25TO+13 |
| 0203-001815 | TAPE DOUBLE FACE;3M #4016,PU FOAM,T1.6,W |
| DE02-00029B | TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N |
| DE02-00027A | TAPE OPP;OPP,W50 |
| 0203-000444 | TAPE-AL FOIL;AL,T0.07,W50,L100M,CLEAR |
| 0203-001825 | TAPE-DOUBLE FACE;#4660,T0.4,W10,L30M,WHI |
| 0203-001109 | TAPE-SINGLE FACE;OPP,T0.075,W75,L800M,CL |
|
|
TERMINAL BLOCK;NE9000T, NQ7000C, NZ5000A |
|
|
THERMOSTAT;AC125/250V,15/10A,150C,0C,S.O |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0502-001266 | TR-POWER;KTA1532T,PNP,900MW,TSM,TP,200/- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| DG63-00700A | TRAY OVEN;NX9850,NE9850,STS304,T0.5,L490 |
| DG67-00314A | WIRE-PROTECTOR;NZ9100D,PA66,T2,101F,-,-, |
|
|

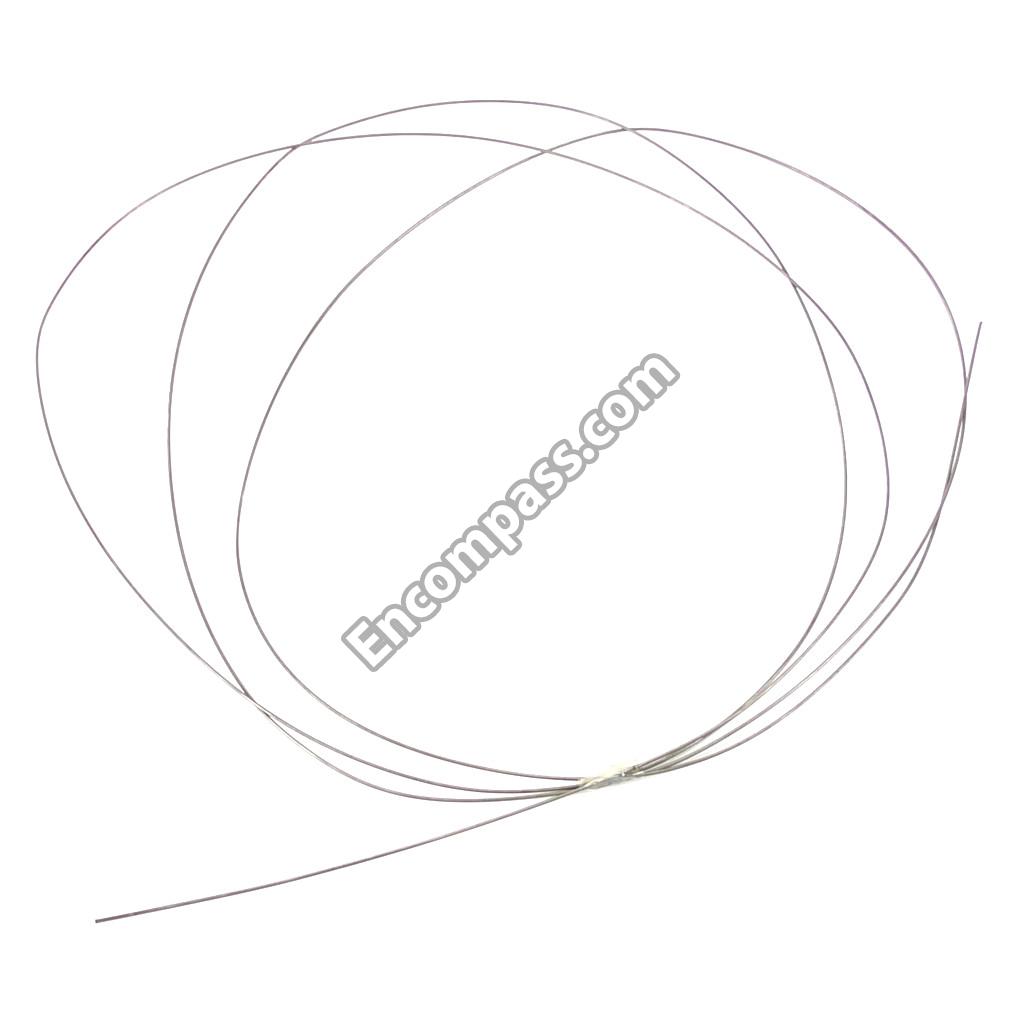

WIRE-STEEL;T-PJT,MSWR,D2800,T1.2,-,-,-,S |
