Manufacturer
Samsung
Model Number
NX60A6111SS
Description
6.0 Cu. Ft. Smart Freestanding Gas Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DG94-03956A | ASSY BRACKET A/GUIDE;NX5000T,SPP,T0.8,BL |
| DG94-03558B | ASSY BRACKET BAKE;NX60T8711**,T-PJT GAS |
|
|
ASSY BRACKET SUB;NE58F9710WS,SLIDE-IN PJ |
| DG94-03926A | ASSY BRACKET-TOP;T-FS / GAS, ELEC,GI-SGC |
|
|
ASSY BURNER;NX7000T,T-PJT F/S, BIG, 10K |
| DG94-03610A | ASSY CAVITY BURNER;NX60T8751**,GAS FLEX( |
| DG94-03713A | ASSY CAVITY FLOOR-COATING;NX60T8***,DARK |
| DG94-04021A | ASSY CHASSIS PANEL-MANIFOLD;NX60A6311SS, |
| DG94-03952K | ASSY CONTROL BOX-MODULE;NX5000T,STSS 430 |
| DG94-04035A | ASSY CONTROL PANEL SUB;NX60A6311SS/6111S |
| DG94-04117C | ASSY COOKTOP FRAME-MODULE;NX60A61**,BLK, |
| DG94-04079A | ASSY DOOR SUB;NE/NX5000A,STS,SINGLE BASE |
| DG94-04081A | ASSY DOOR-MODULE;NE/NX5000A,STS,SINGLE B |
| DG90-01185A | ASSY DRAWER MAIN-MODULE;NX60A61**SS,STS4 |
| DG94-04105C | ASSY DRAWER;NX60A6***SS,NE60A6***SS,STS4 |
|
|
ASSY ELECTRODE;FX710BGS/XAA,AC18KV,,,930 |
|
|
ASSY ELECTRODE;NX9000T,AC18KV,,,1100MM,S |
| DG96-00790A | ASSY ELECTRODE;NX9000T,AC18KV,,,1150MM,S |
| DG96-00788A | ASSY ELECTRODE;NX9000T,AC18KV,,,650MM,SI |
| DG96-00791A | ASSY ELECTRODE;NX9000T,AC18KV,,,900MM,FI |
|
|
ASSY GRATE SIDE;NX60T5***,CAST IRON,BLK, |
|
|
ASSY HANDLE;NV51R5510,AL6063,STSS |
| DG94-00358G | ASSY HINGE;NE/NX5000A,SINGLE BASE |
|
|
ASSY HOLDER NOZZLE-BROIL;GAS OVEN FST,13 |
| DG94-03511B | ASSY HOLDER NOZZLE;NX60T8751**,GAS ALL, |
|
|

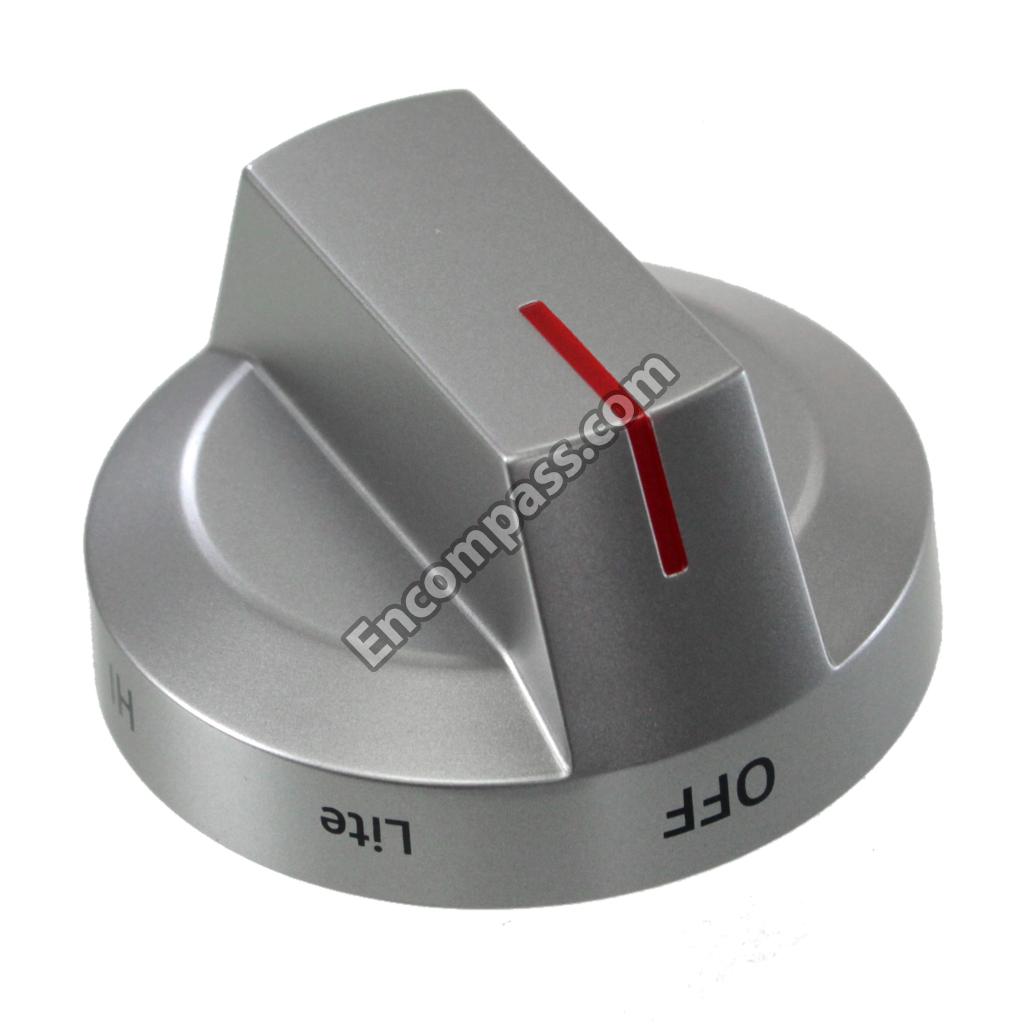

ASSY KNOB;NX60A6311SS/ NX60A6111SS,PC-AB |
|
|
ASSY LAMP BULB;NE58K9500SG/AA,LH-01,120V |
|
|
ASSY MODULE SPARK;NX583G0VBSR,AC110/240V |
|
|
ASSY NOZZLE KIT;NX60A6111SS/AA |
|
|

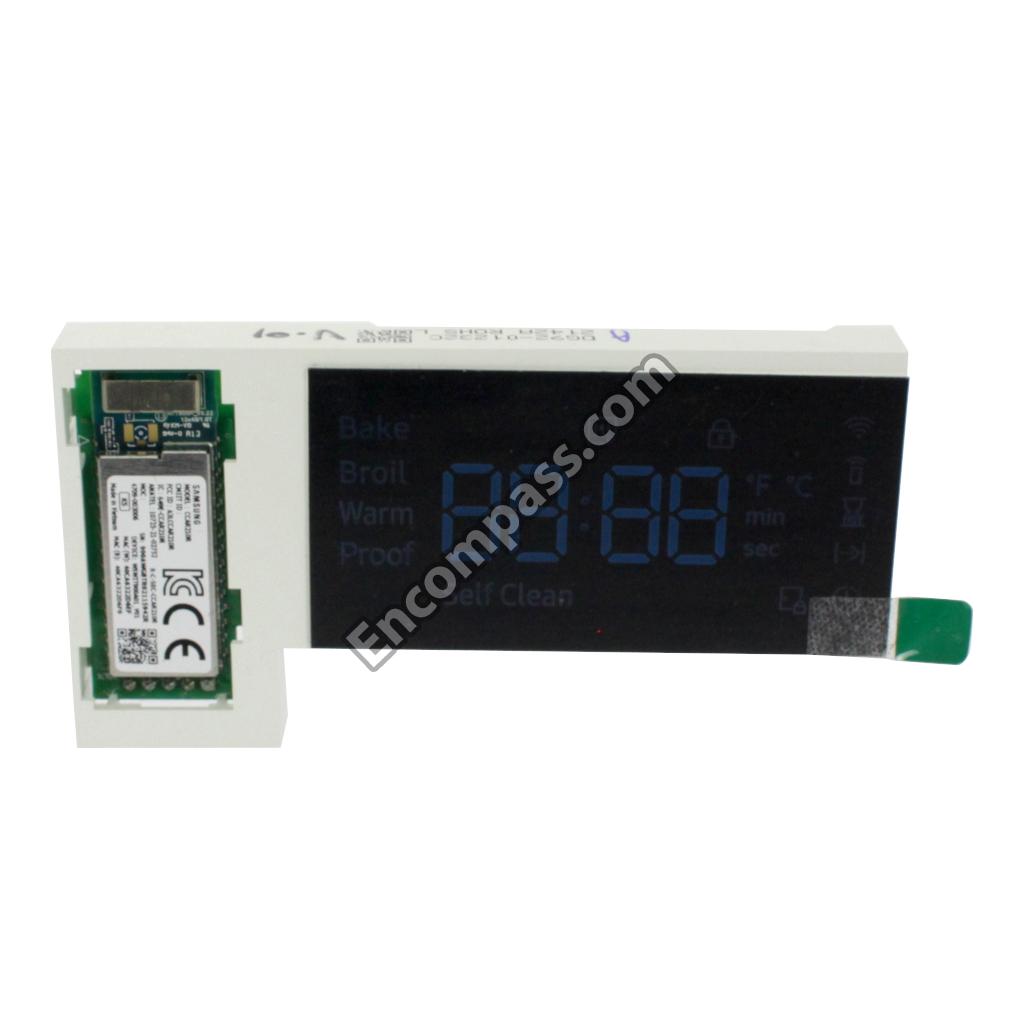

ASSY PBA MODULE-DISPLAY;T-FS_DISPLAY,NX5 |
| DG94-04041D | ASSY PCB EEPROM;EEP_04,DG92-01234D,NX500 |
| DG94-04106A | ASSY PEDESTAL;NE63A61**, NX60A61**,SLIDE |
|
|
ASSY SENSOR;NE63T**,NX60T**,NY63T**,T-PJ |
| DG94-04095A | ASSY SHIELD REAR;T-FS,GI-SGCC,BLACK EPOX |
|
|

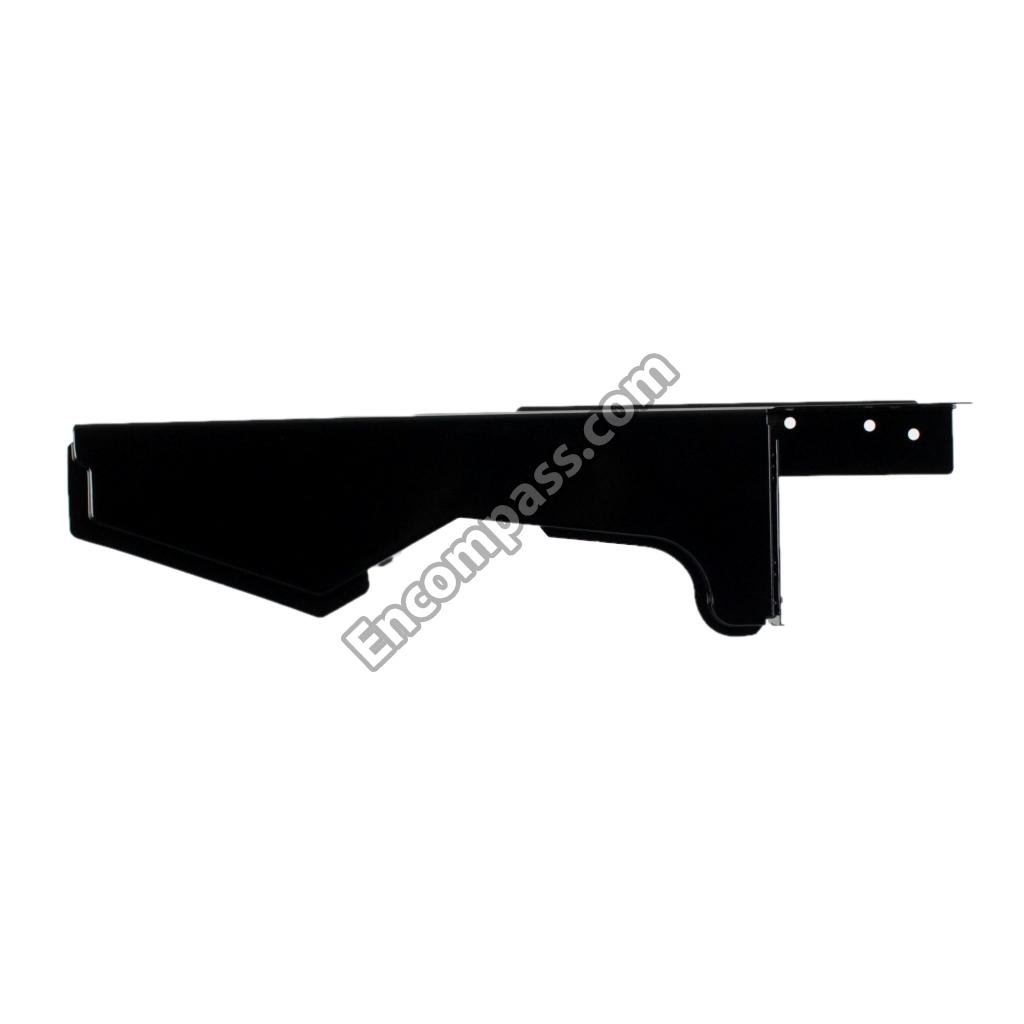

ASSY SUPPORT BACK GUARD-LEFT;NE63A6711SS |
|
|

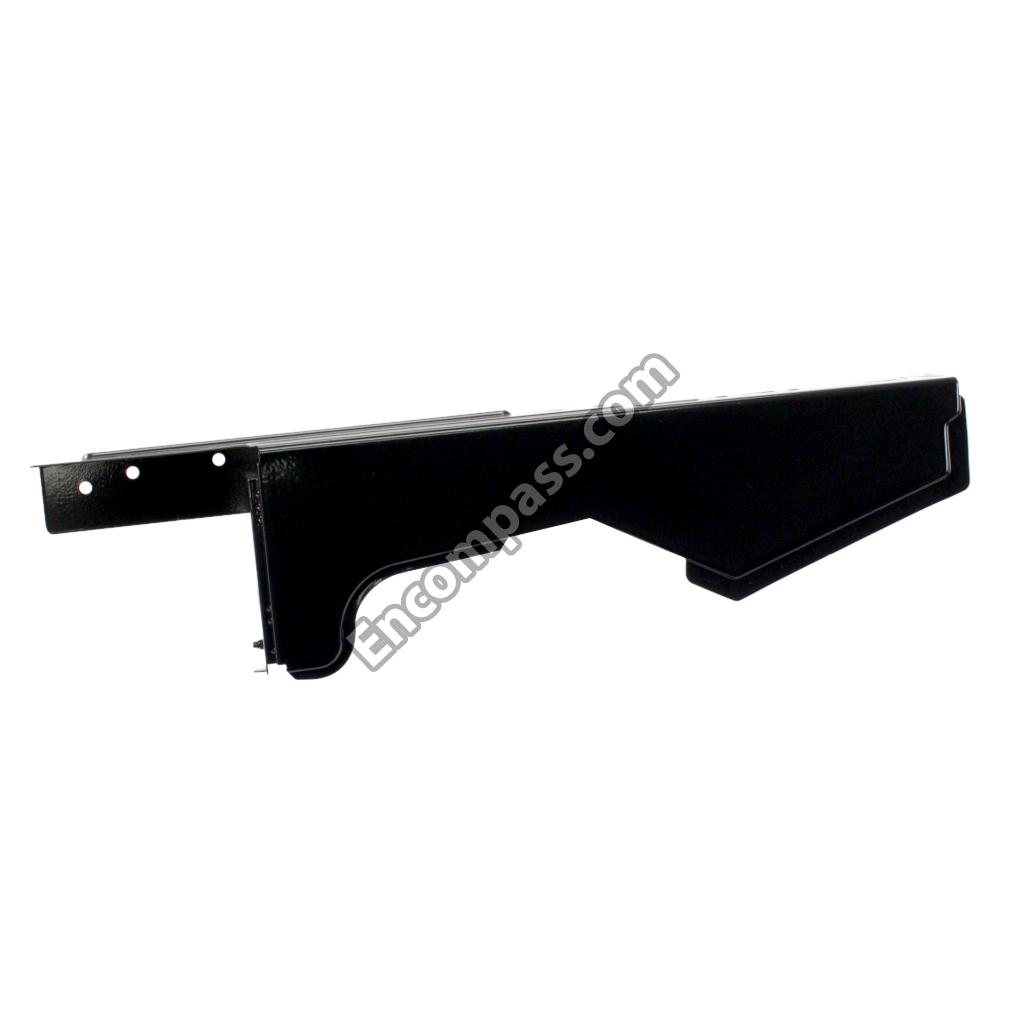

ASSY SUPPORT BACK GUARD-RIGHT;NE63A6711S |
|
|

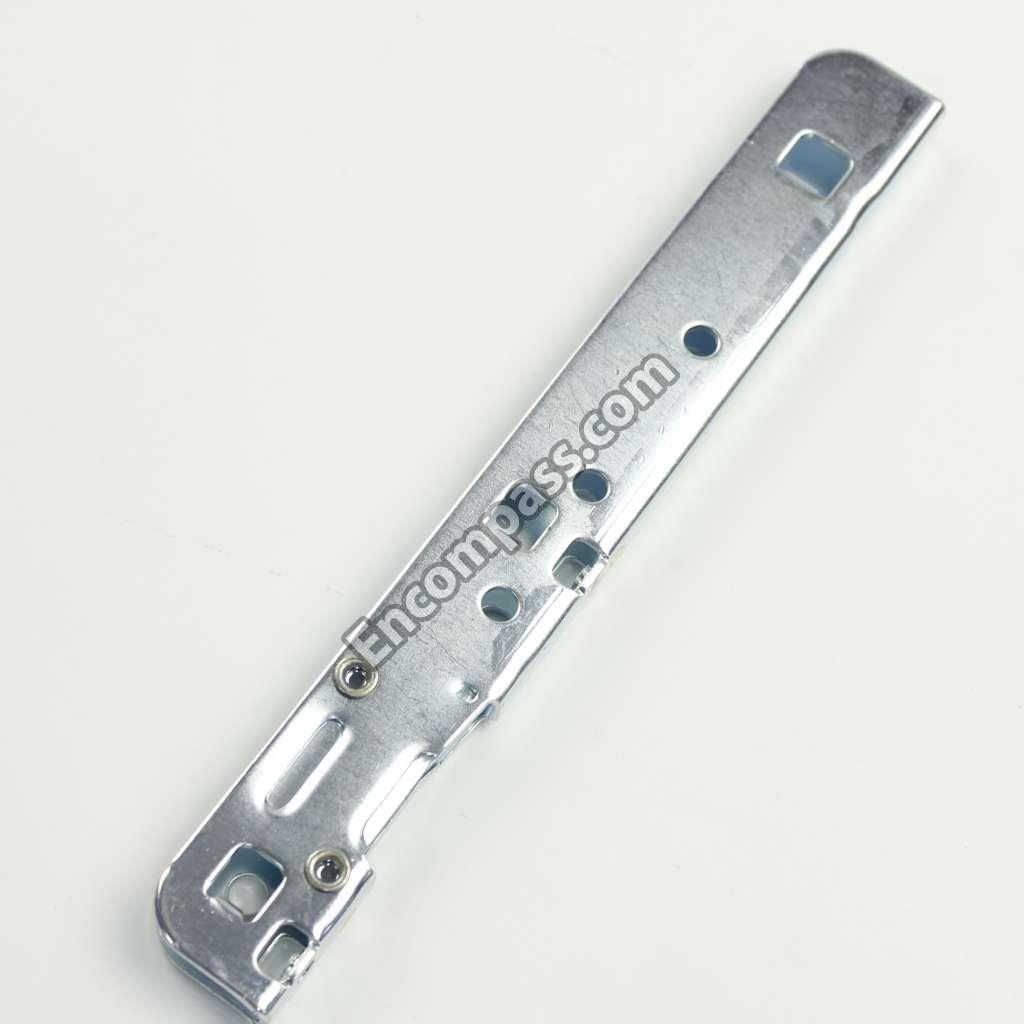

ASSY SUPPORT-HINGE;FER300**,SPHC T1.6, P |
|
|
ASSY SWITCH IGNITION;NX5000A,AC125V,5,5P |
| DG96-00850E | ASSY TOUCH;NX5000T,352*88.28,GAS BASE BL |
| DG94-03512A | ASSY TUBE-BAKE;NX60T8***,INNER 7.525 PI, |
| DG94-03514A | ASSY TUBE-BROIL;NX60T8751**,INNER 7.525 |
| DG94-03750A | ASSY TUBE;NX60T****, GAS OVEN,FLEXIBLE T |
|
|
ASSY TUBE;NX60T8751**,INNER 10.3 PI, OUT |
| DG94-03516A | ASSY TUBE;NX60T8751**,INNER 7.525 PI, OU |
|
|
ASSY VALVE-REGULATOR;NX9000T,REGULATOR, |
|
|
ASSY VALVE-SAFETY;NX9000T,SAFETY VALVE S |

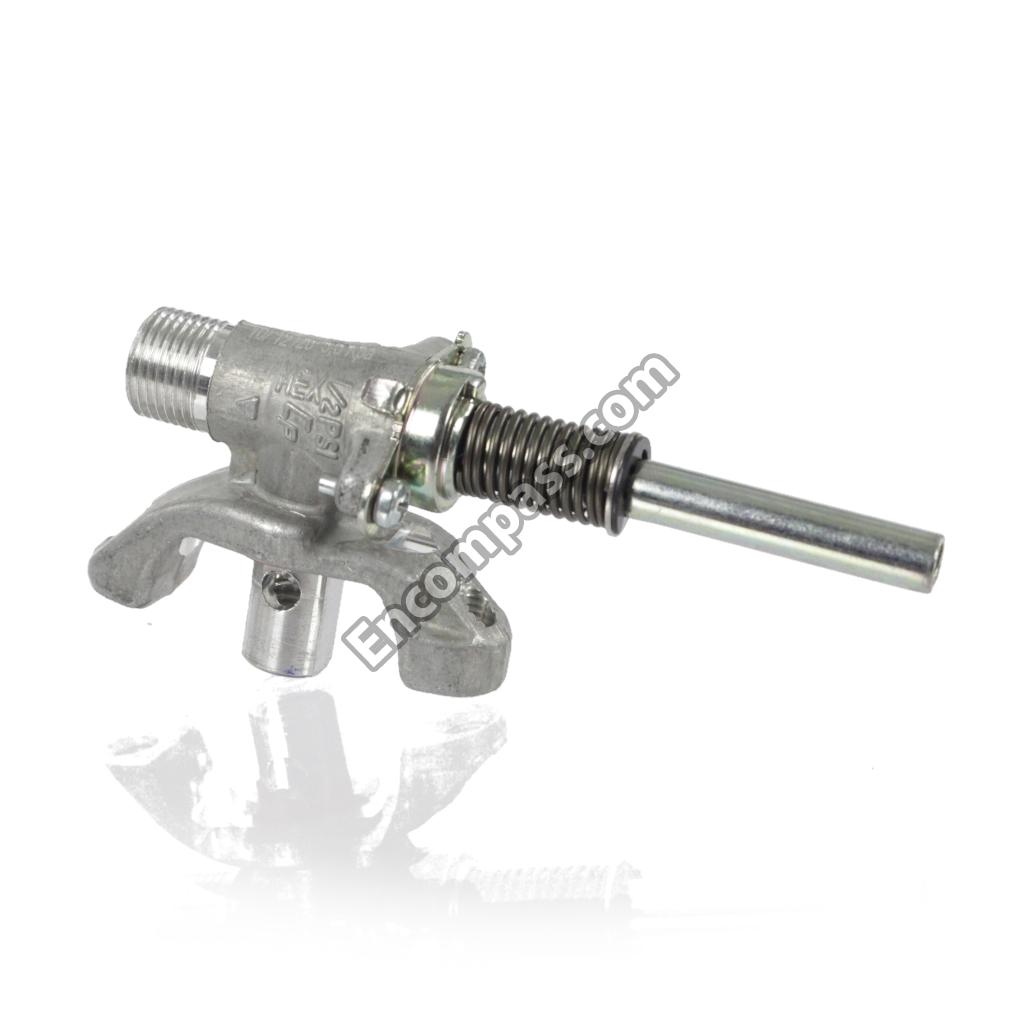

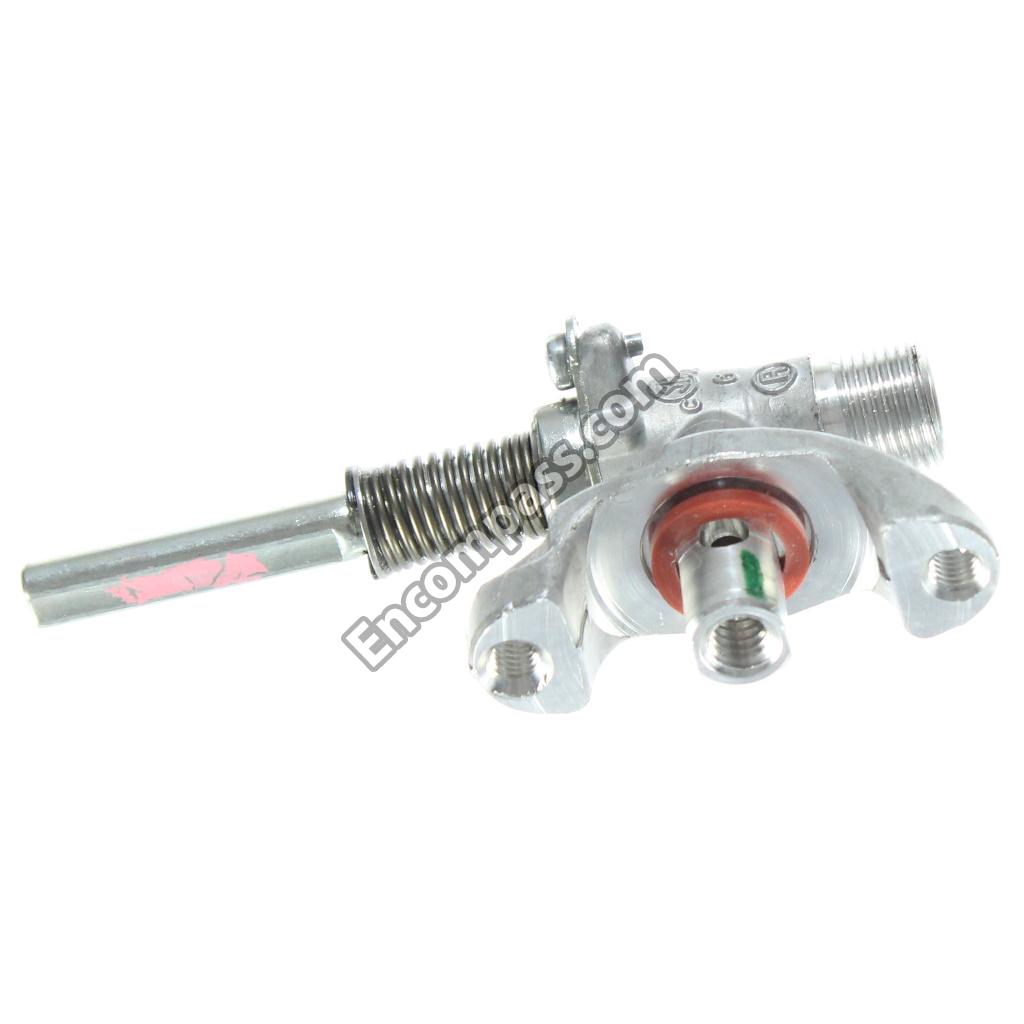

| DG94-03637A | ASSY VALVE;NX9000T,AL,BLUE, 72-80, SPRIN |
|
|
ASSY VALVE;NX9000T,AL,GREEN, 45-49, SPRI |
|
|
ASSY VALVE;NX9000T,AL,PINK, 26-28, SPRIN |
| DG94-03638A | ASSY VALVE;NX9000T,AL,VIOLET, 42-46, SPR |
| DG94-03635A | ASSY VALVE;NX9000T,AL,YELLOW, 43-45, SPR |
| DG96-00837A | ASSY WIRE HARNESS-MAIN;NX60A5111*,120VAC |
|
|

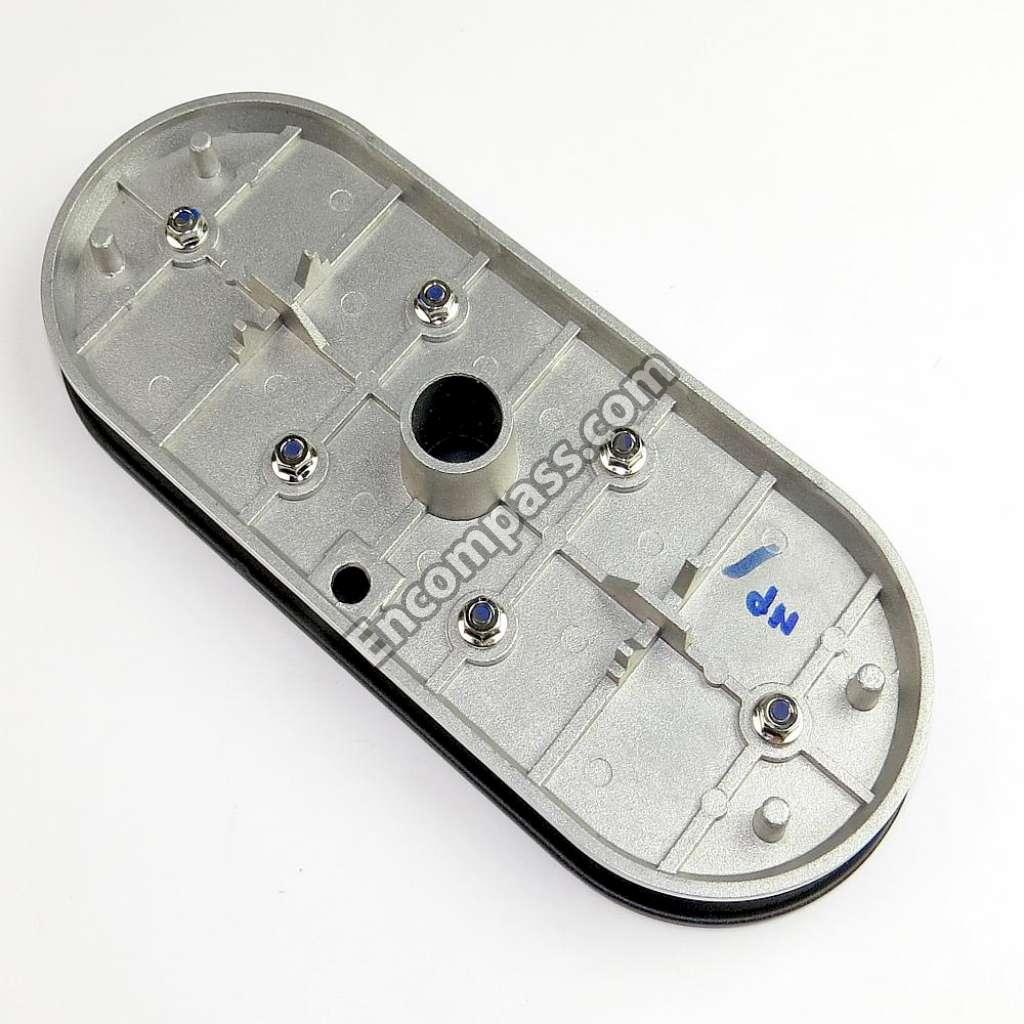

ASSY-BURNER HEAD FISH(B);FX510BGS,CR-SPE |
|
|
BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA |
| DG61-01912A | BRACKET BROIL;NX60T8***,ALCOAT-SA1C,T0.8 |
| DG61-01915A | BRACKET COVER-BOTTOM;NX60T8***,ALCOAT-SA |
| DG61-00515B | BRACKET-SPRING COOKTOP;SK5,T0.4,W89,P20, |
|
|
BRACKET-SPRING ELECTRODE;FX710BGS,STS430 |
| DG62-00056D | BURNER BROIL;NX9000T,ALCOAT-SA1C,13.5K, |
|
|

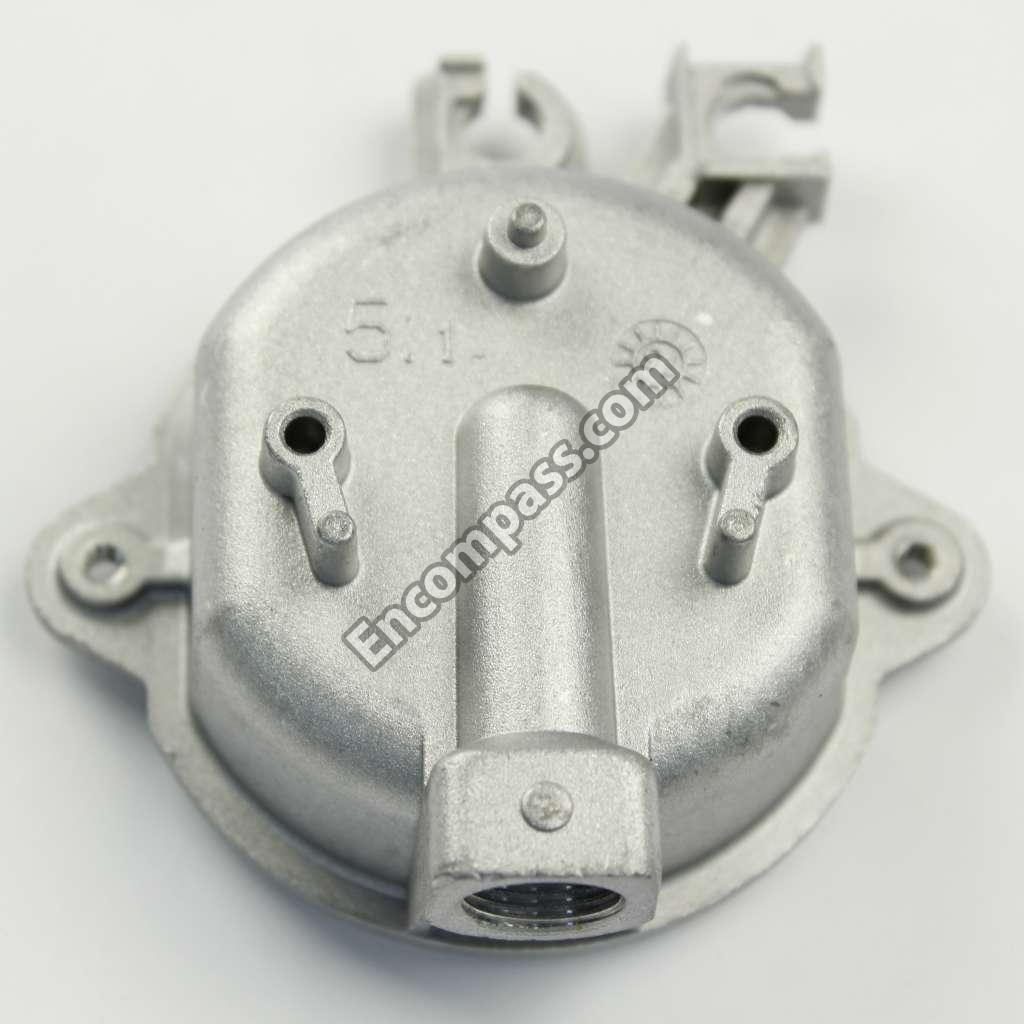

BURNER CUP;NX9000T,ALDC12,AUX, 5K BTU, 1 |
| DG62-00059D | BURNER CUP;NX9000T,ALDC12,M13 INLET SEMI |
|
|
BURNER HEAD RIGHT;NX58F5300SS,ALCD12,POW |
| DG62-00066E | BURNER-BAKE;NX9000T,ALCOAT-SA1C,18K BTU, |
|
|

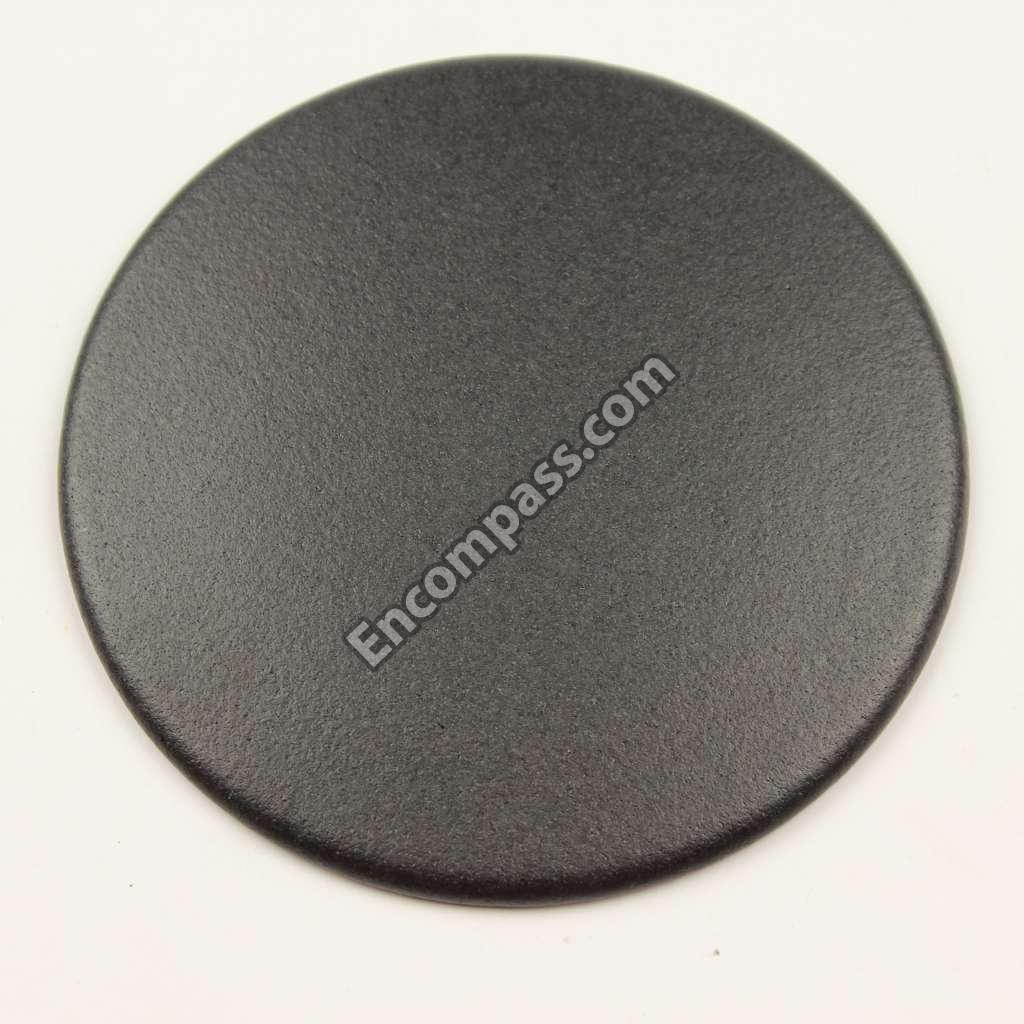

BURNER-CAP(R);NX58H5650WS,CR-SPE,PI94.5, |
|
|
BURNER-CAP(SR);NX58H5650WS,CR-SPE,PI68.5 |
|
|
BURNER-CAP;NX583G0VBSR,CR-SPE,PI42.4,MAT |
|
|
BURNER-CUP POWER;NX583G0VBSR,ALDC12,PI22 |
|
|

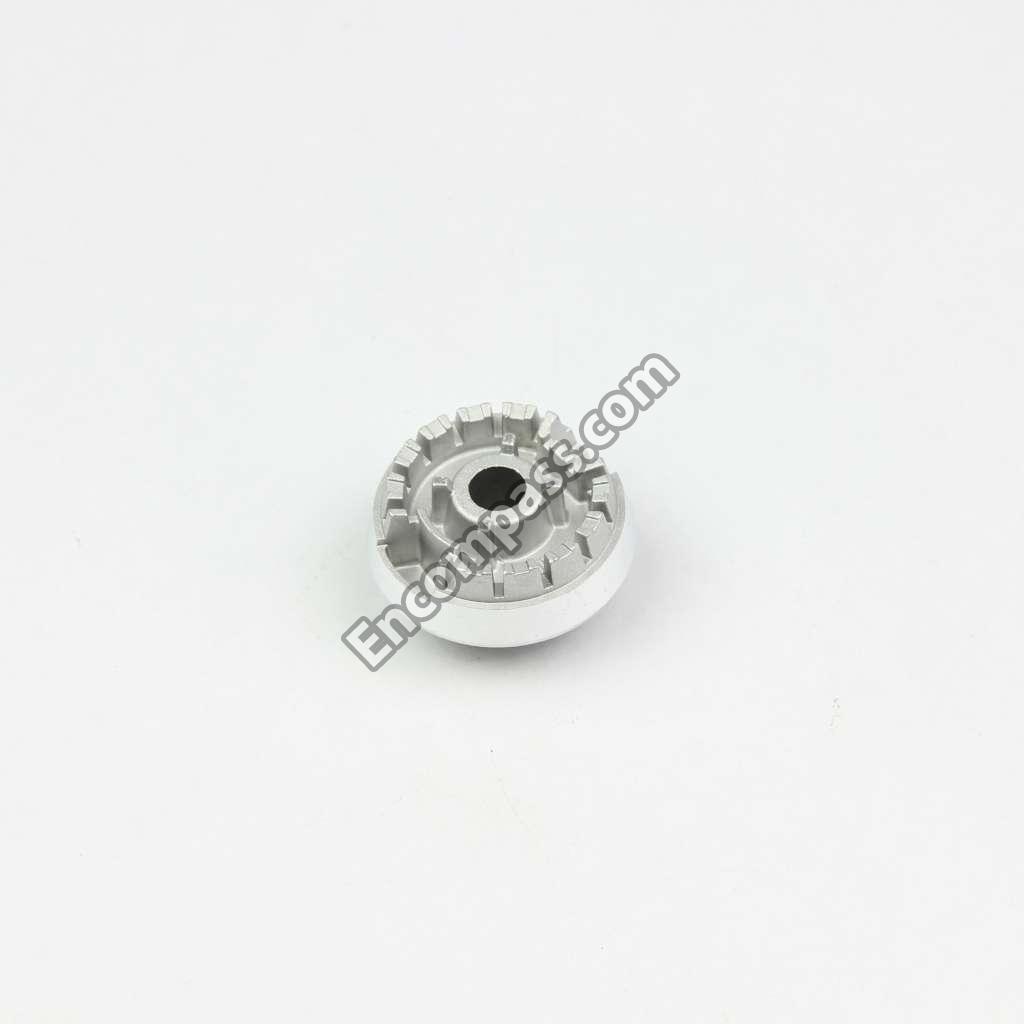

BURNER-HEAD(AUX);NX583G0VBSR,ALDC12,PI44 |
|
|
BURNER-HEAD;NX583G0VBSR,ALDC12,PI68.35,S |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2401-000481 | C-AL;10UF,20%,50V,WT,TP,5X11MM,5MM |
| 2401-000040 | C-AL;47UF,20%,250V,TP,12.5X25MM,5MM,-40T |
| 2203-006457 | C-CER,CHIP |
| 2203-000206 | C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0. |
| 2203-000239 | C-CER,CHIP;100PF,5%,50V,C0G,TP,2012,-55T |
| 2203-000260 | C-CER,CHIP;10NF,10%,50V,X7R,TP,2012,-55T |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-000444 | C-CER,CHIP;1NF,10%,50V,X7R,TP,2012,T1.2, |
| 2203-006960 | C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO |
| 2301-001220 | C-FILM,LEAD-PPF;100NF,10%,275VAC,BK,18X6 |
| 6502-001117 | CABLE CLAMP;DALF-94-2,SI,150C TEMP |
| DG63-00728A | COVER BACK-SUB;T-FS / GAS, ELEC,GI-SGCC, |
| DG63-00723A | COVER WIRE-LEFT;NX60T5***,NE63T5***,GI-S |
| DG63-00724A | COVER WIRE-RIGHT;NX60T5***,NE63T5***,GI- |
| DG63-00260A | COVER-POWER CORD;FX710BGS,GI-SGCC,T1,W10 |
|
|
DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0404-001595 | DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A |
| 0406-001005 | DIODE-TVS |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
| 6042-001015 | EYELET;ID1.2,OD1.6,L3.0,NI+SN PLT,BRASS |
| DG63-00720A | GASKET;NE63T8***, NX60T8****,GLASS FIBER |
| DG63-00731A | GASKET;NX60A6711/6511/6311/6111,SILICON |
| DG64-00092B | GLASS-INNER;NX583G0VBSR,GLASS,T4,W526.0, |
| 3711-003843 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,8P, |
| 3711-004484 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
|
|
HEATER IGNITER;-,AC120V,SU |
| DG61-01866A | HOLDER HANDLE;NX9000T,PBT+GF15%,BLACK,HB |
|
|
HOLDER PCB;NX5000T,PC,T2,NATURAL,V-0,S-3 |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 1201-001125 | IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-000294 | IC-POSI.FIXED REG.;7808,TO-220,3P,PLASTI |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| DG68-00102B | LABEL CAUTION-DOOR;30 OVEN,SECA,TETRON S |
|
|
LEG LEVELING;NE59N6630SS/AA,PA66+GF30%,H |
| DG61-01956A | LEG LEVELING;T-PJT NE63T****,NX60T****,N |
| DG62-00098A | NOZZLE-AUX LP;FX710BGS,BRASS,C3604BD |
|
|
NOZZLE-BAKE LP;FX710BGS,BRASS,C3604BD |
|
|
NOZZLE-BROIL LP;FX710BGS,BRASS,C3604BD |
|
|
NOZZLE-SEMI RAPID LP;FX710BGS,BRASS,C360 |
|
|

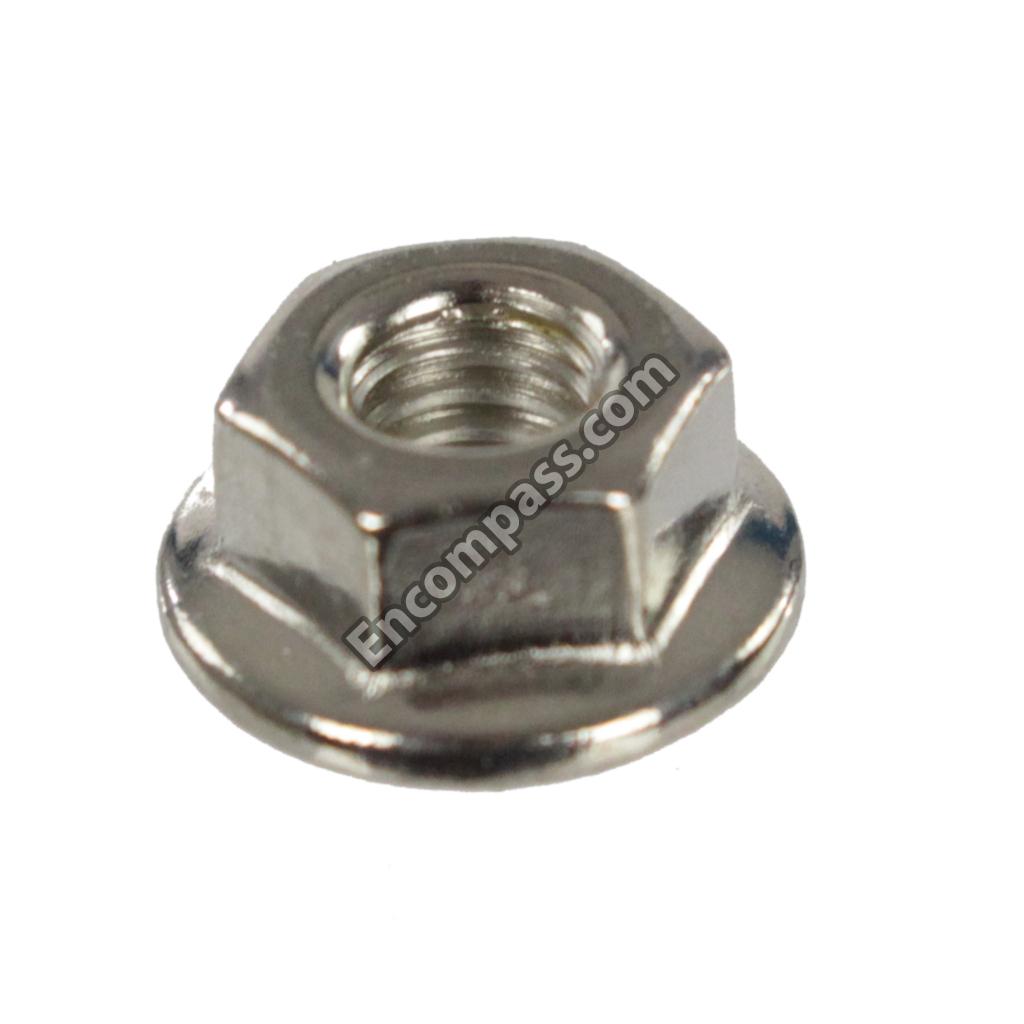

NUT FLANGE;MSWR |
| DE60-60030A | PIN-STAPLE;MSW |
| DG61-02036A | PLATE GRIDDLE;NX60T5***,GC250,T5,W179,L5 |
|
|
POWER CORD-AT;SPT-2 3X16AWG 105C,GRY,US3 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2007-000238 | R-CHIP;1.5KOHM,1%,1/8W,TP,2012 |
| 2007-000286 | R-CHIP;100OHM,1%,1/8W,TP,2012,T0.5,GENER |
| 2007-000297 | R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5,GENER |
| 2007-000352 | R-CHIP;12KOHM,1%,1/8W,TP,2012 |
| 2007-000454 | R-CHIP;18KOHM,1%,1/8W,TP,2012 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-000474 | R-CHIP;1MOHM,1%,1/8W,TP,2012,T0.5,GENERA |
| 2007-000530 | R-CHIP;200KOHM,1%,1/8W,TP,2012,T0.5,GENE |
| 2007-000670 | R-CHIP;2KOHM,1%,1/4W,TP,3216 |
| 2007-000668 | R-CHIP;2KOHM,1%,1/8W,TP,2012 |
| 2007-000868 | R-CHIP;4.7KOHM,1%,1/8W,TP,2012 |
| 2007-000961 | R-CHIP;5.1KOHM,1%,1/8W,TP,2012 |
| 2007-001041 | R-CHIP;56KOHM,5%,1/4W,TP,3216 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|
RACK WIRE;NE59N6630SS,NE5000N,MSWR,W629, |
| 3501-001324 | RELAY-POWER;12.0V,16000MA,1FORMA,6.5MS,1 |
| 2802-001164 | RESONATOR-CERAMIC;8MHZ,0.5%,0.4%,TP,10X8 |
|
|
RUBBER-CUSHION;FTQ386LWUX,SILICON RUBBER |
|
|
SCREW-MACHINE;PWH,+,M4,L10,ZPC(BLK),SWRC |
|
|
SCREW-MACHINE;PWH,+,WT,M5,L10,ZPC(WHT),S |
| 6001-000033 | SCREW-MACHINE;TH,+,M4,L10,PASS,STS304 |
| 6001-002267 | SCREW-MACHINE;TH,+,WP,M5,L57,ZPC(BLK),SW |
|
|
SCREW-SPECIAL;TH,+,WP,M5,L10,ZPC(BLK),SW |
| 6002-000440 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR |
| 6002-000234 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
| 6002-000432 | SCREW-TAPPING;TH,+,2,M4,L10,ZPC(WHT),SWR |
|
|
SCREW-TAPPING;TH,+,2S,M4,L10,NI PLT,STS4 |
| DE60-10065A | SCREW-TAPPING;TH,+,2S,M4,L6,NI PLT,SWRCH |
| 6002-000413 | SCREW-TAPPING;TH,+,2S,M4,L8,ZPC(BLK),SWR |
|
|
SCREW-TAPPING;TH,+,WT,2,M4,L10,ZPC(WHT), |
|
|
SENSOR-THERMISTOR;PT1000-SOV9,12V,PLATIU |
|
|
SLIDER-INNER;FCQ321HTUX,PBT,BLACK,KP211, |
|
|
SLIDER-OUTER;FCQ321HTUX,PBT,T1.2,BLACK,B |
|
|
SPACER-SIDE PANEL;FTQ386**, FTQ352**, FC |
|
|
SWITCH-DOOR PLUNGER;120/240 VAC,BLACK,FT |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| DE65-20005A | WIRE-SADDLE;2N,PA66 |
|
|
WIRE-STEEL;A-1 PROJECT,MSWR-SWRM,1.2,2,8 |
