Manufacturer
Samsung
Model Number
PN43D490A1DXZA
Description
43-inch Plasma 490 Series Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-RF MODULE;BLUETOOTH MODULE, |
| BN96-16729D | ASSY BOARD P-TOUCH FUNCTION&IR;PN43D490, |
| BN96-16791A | ASSY BRACKET P-STAND LINK;PD450/490 43,S |
|
|
ASSY BRACKET P-WALL;PD450/490,SECC,T0.2 |
| BN96-13325G | ASSY CABLE P;PS42D450,FFC CABLE,175MM,51 |
| BN96-16773A | ASSY COVER P-FRONT;PD490 43,PMMA+ABS,HB, |
| BN96-16782G | ASSY COVER P-REAR;PD490 43,ASIA |
|
|

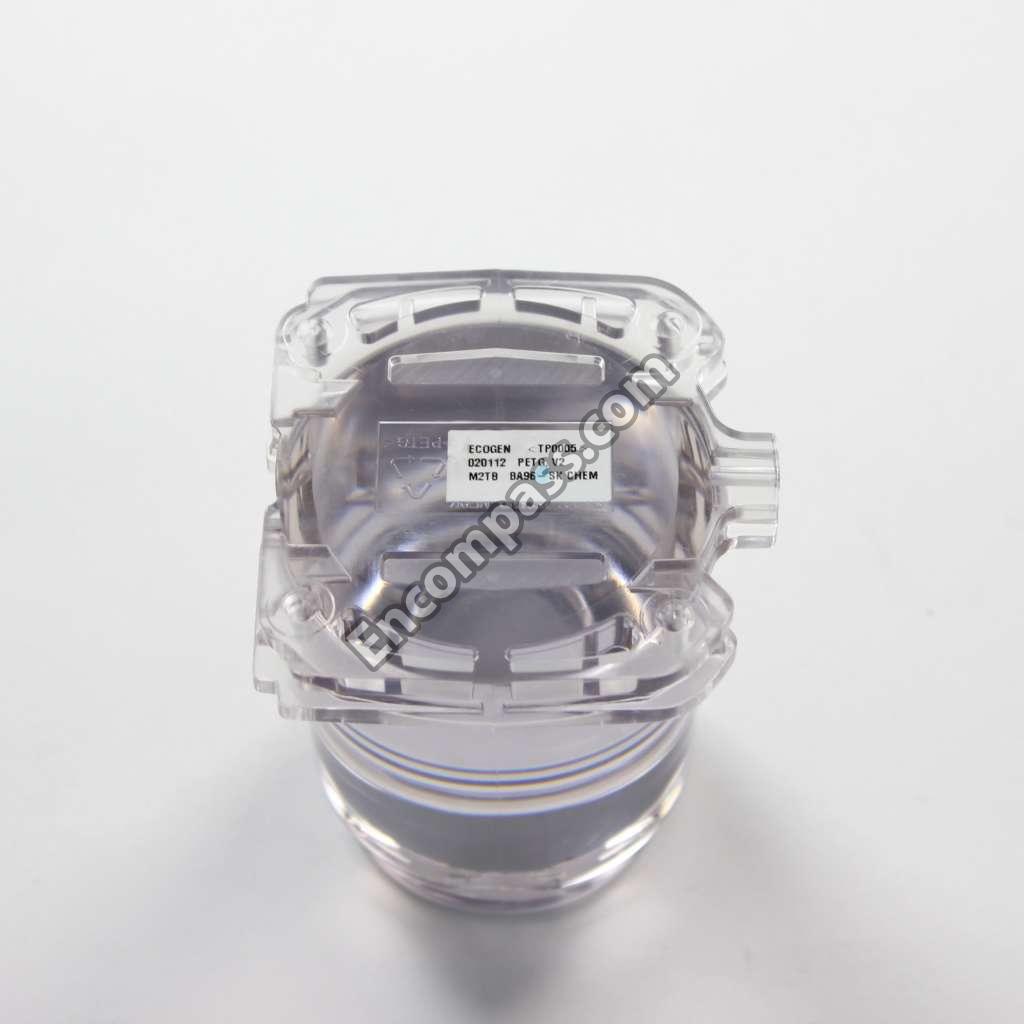

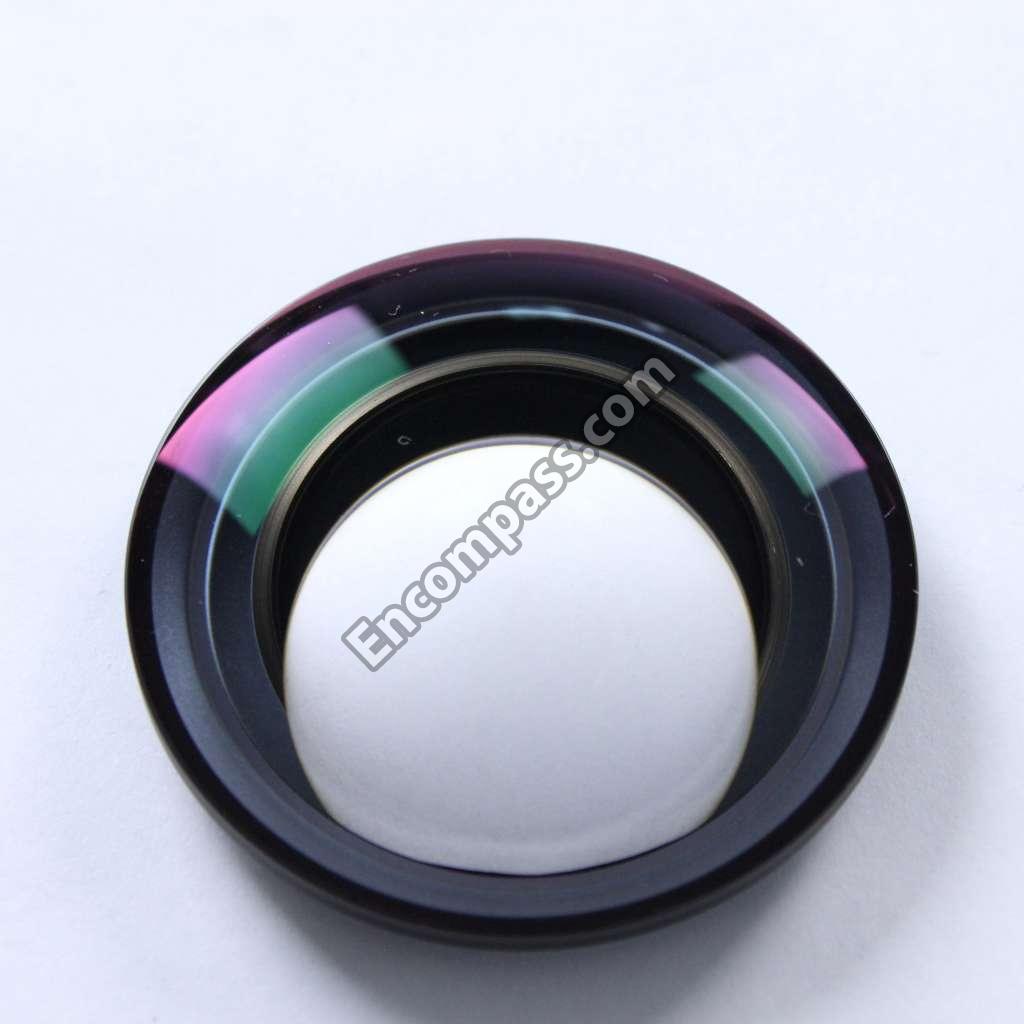

ASSY GUIDE P-NECK;40,LC650,PETG,HB,TP000 |
|
|

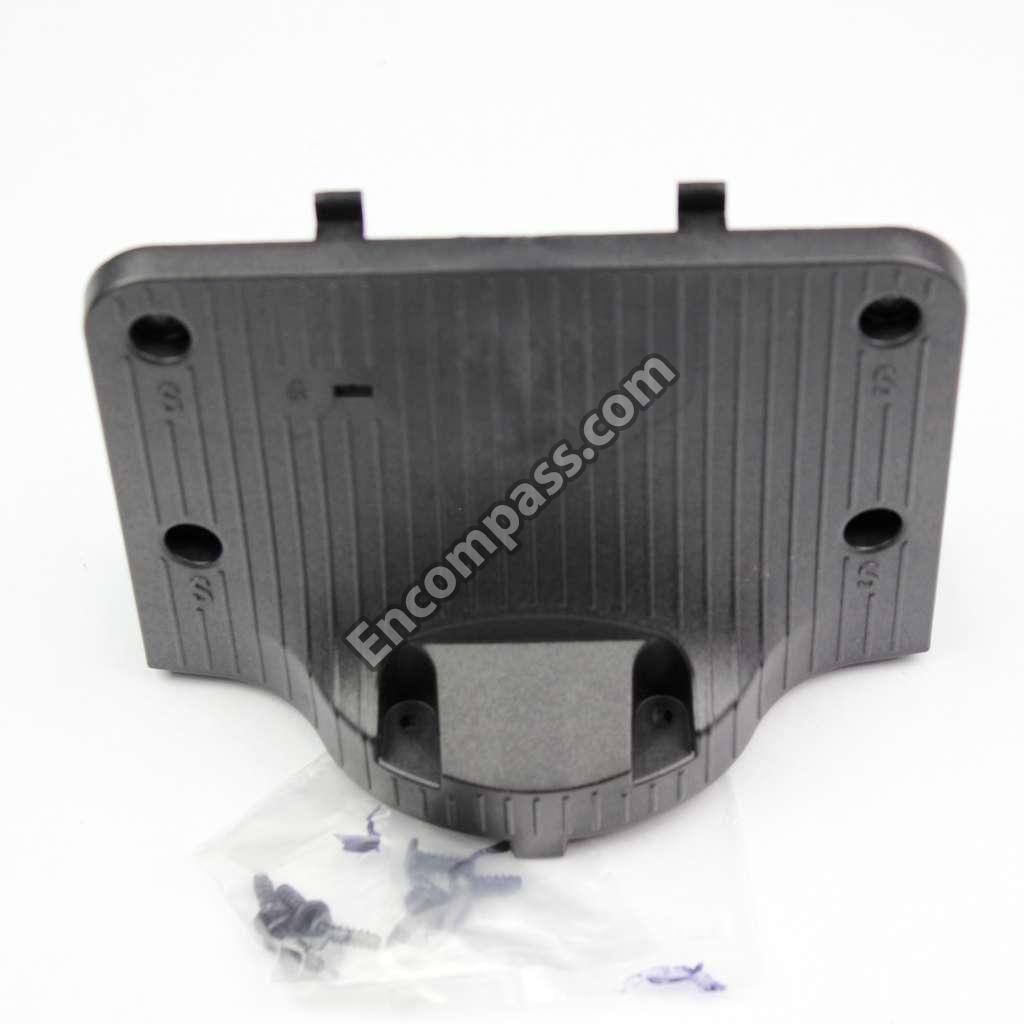

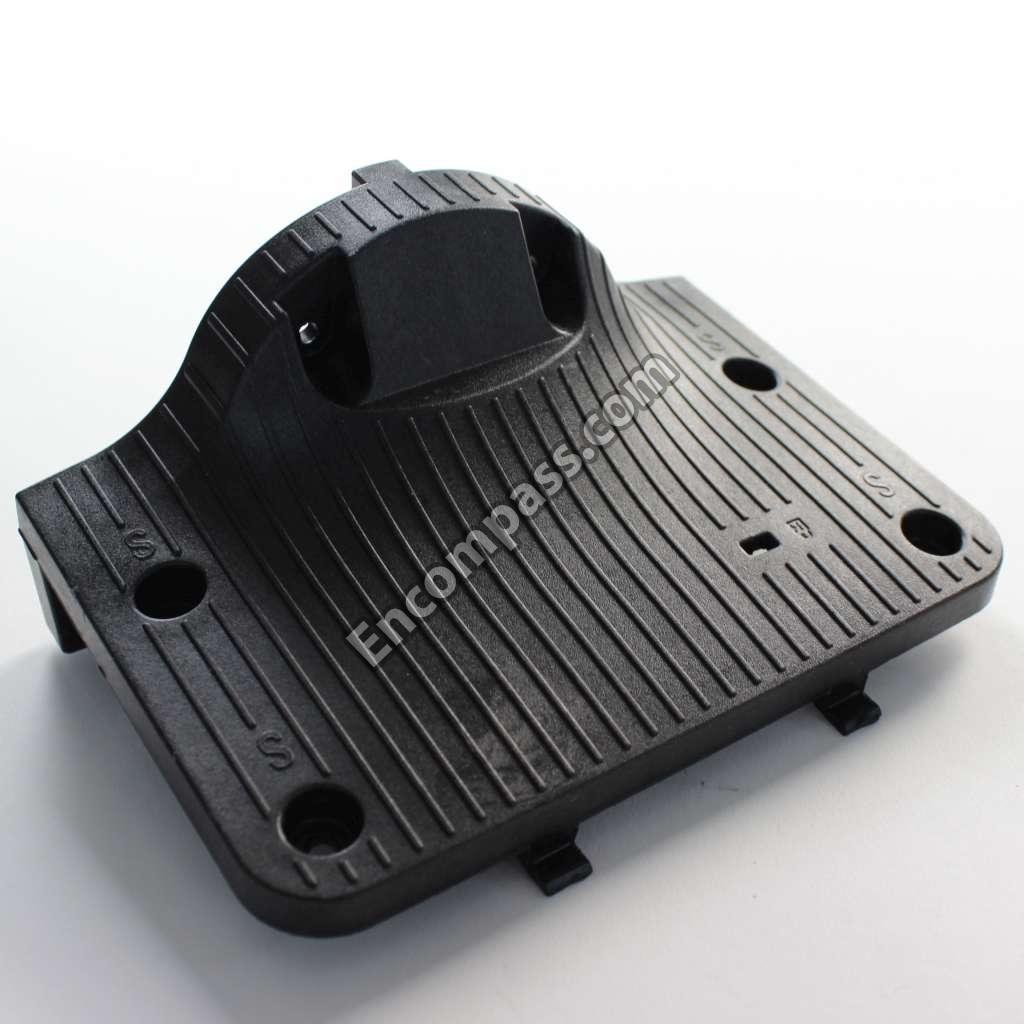

ASSY GUIDE P-STAND;PD450/490 43,PC G/F 2 |
| BN96-16508A | ASSY PDP P-E-BUFFER BOARD;S42AX-YB11,PL4 |
| BN96-16509A | ASSY PDP P-F-BUFFER BOARD;S42AX-YB11,PL4 |
|
|
ASSY PDP P-LOGIC BOARD;S42AX-YB11,PL42AF |
|
|

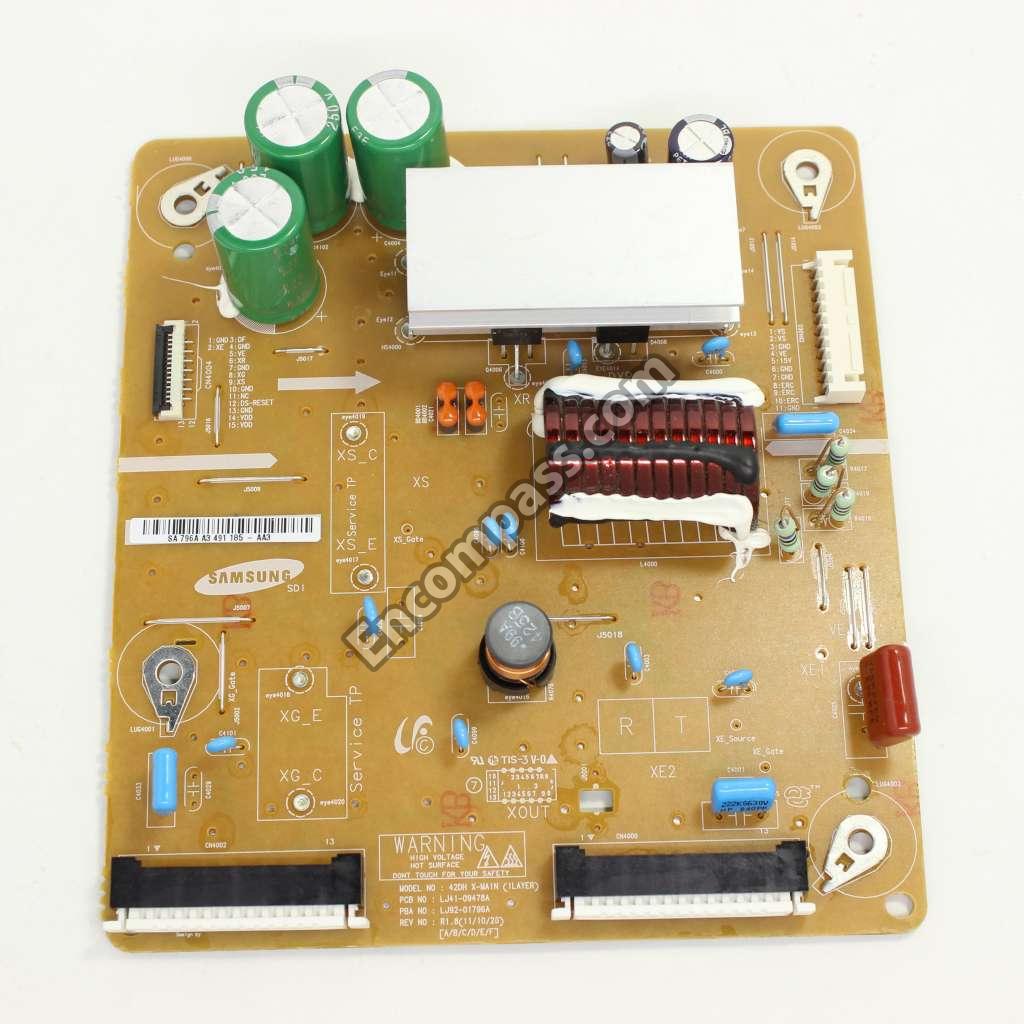

ASSY PDP P-X-MAIN BOARD;S42AX-YB11,PL42A |
| BN96-16511A | ASSY PDP P-Y-MAIN BOARD;S42AX-YB11,PL42A |
|
|

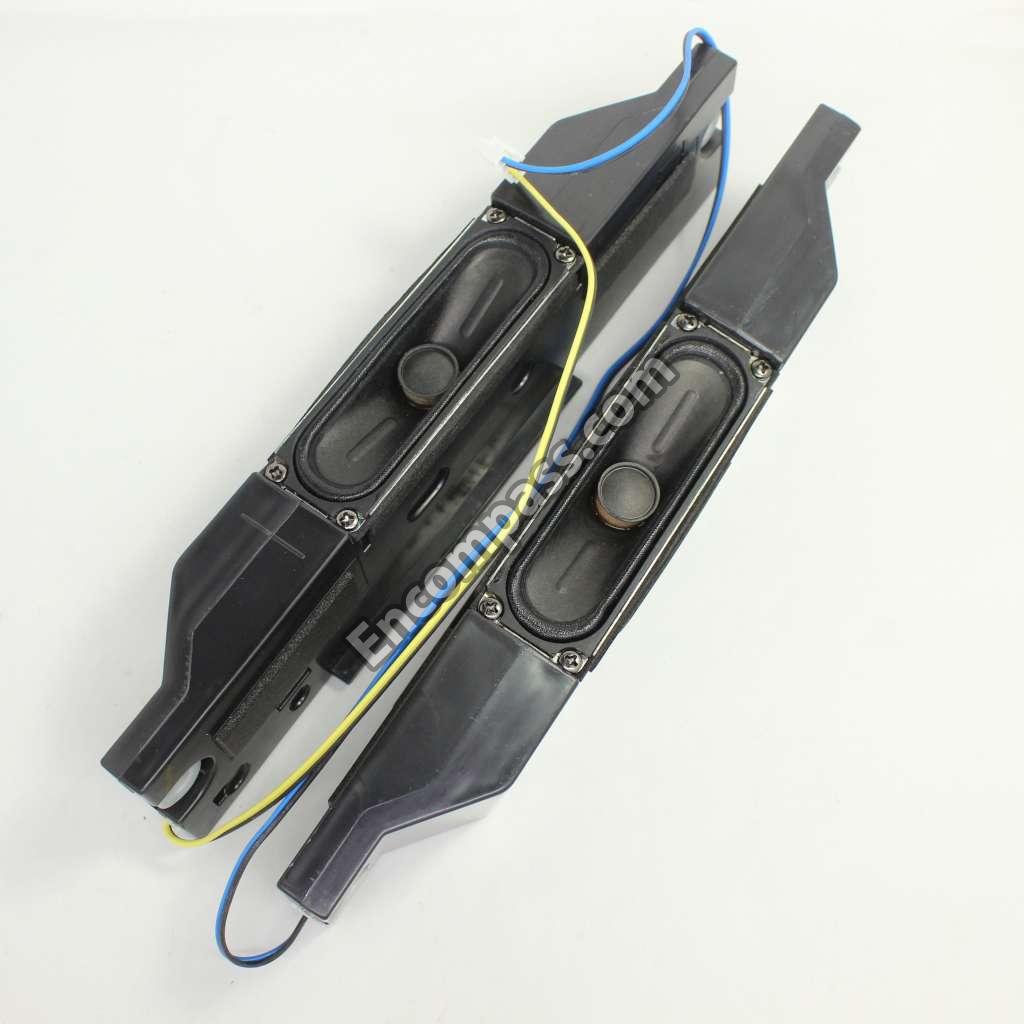

ASSY SPEAKER P;6OHM,4PIN,10W,PDP NORMAL |
|
|

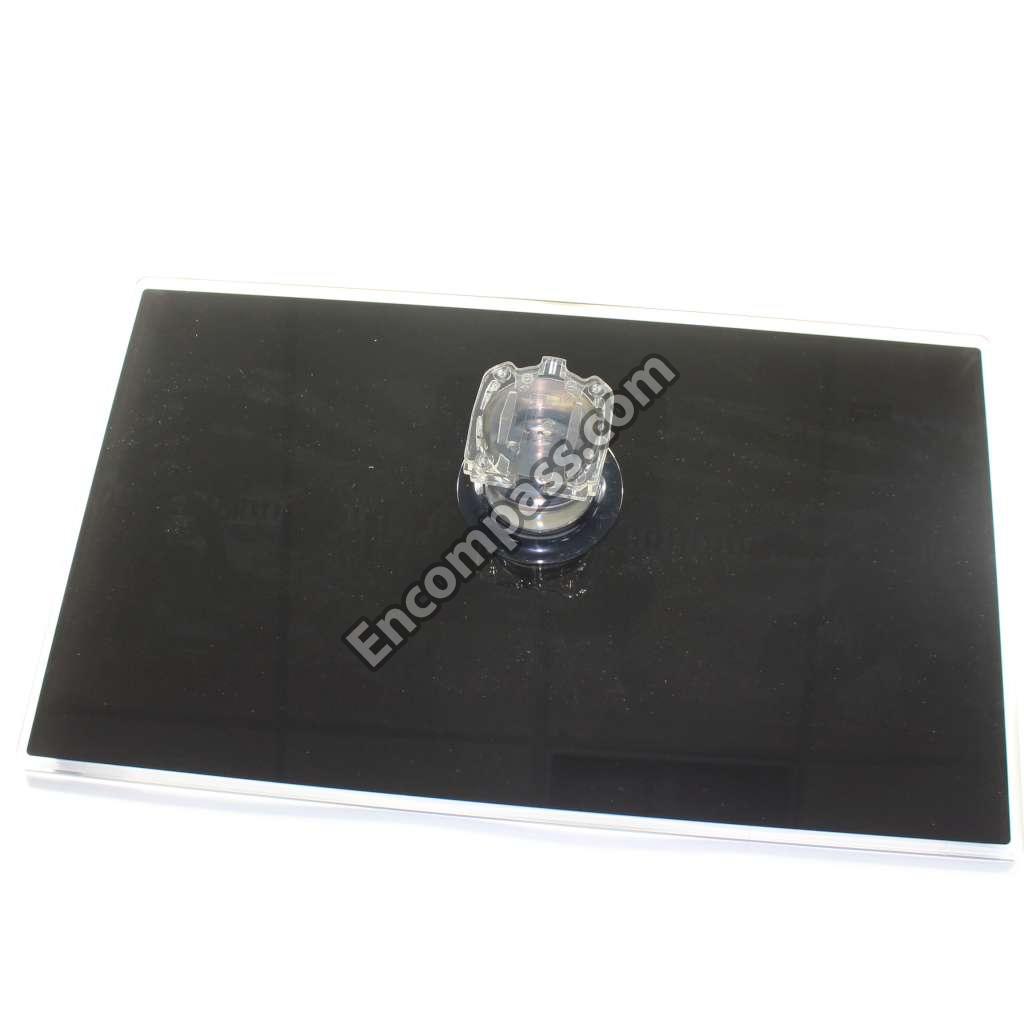

ASSY STAND P-BASE;UD6000,55,TEMPERED GLA |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
|
|

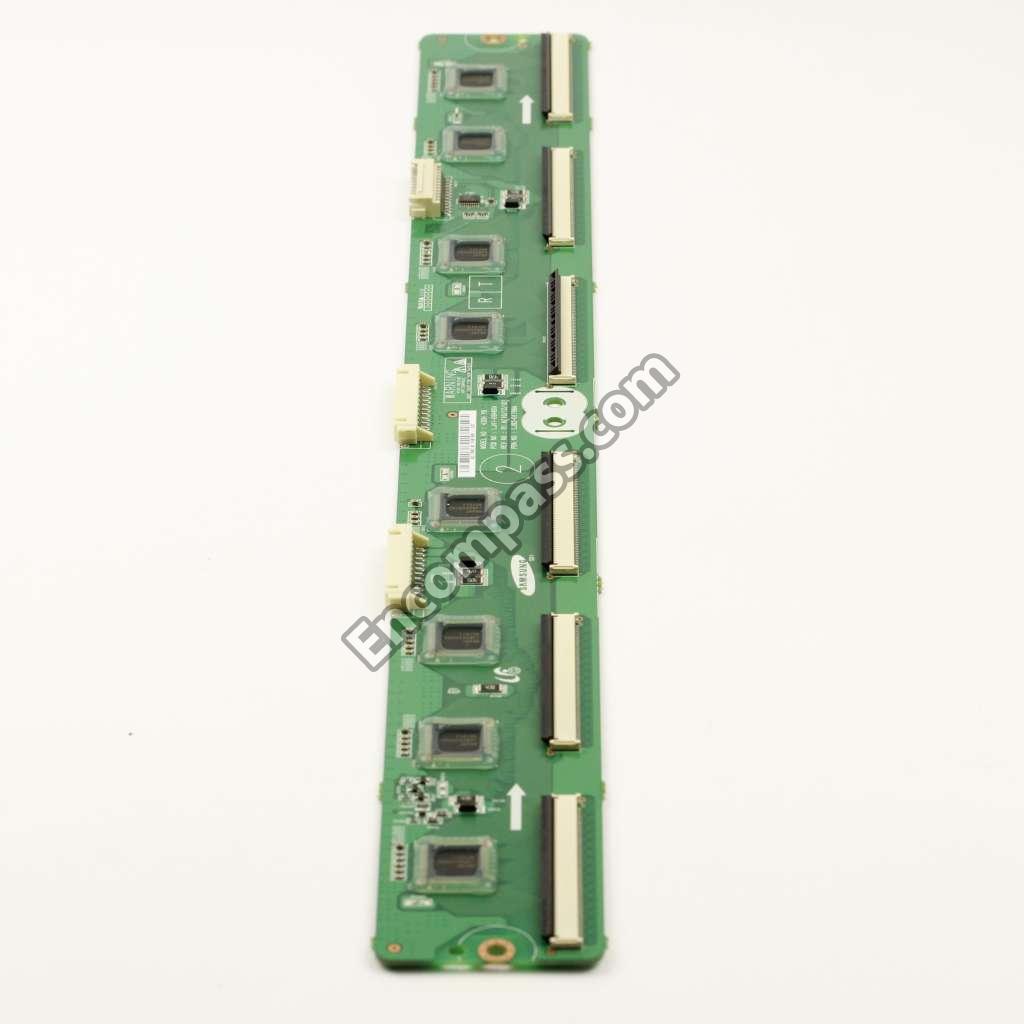

BOTTOM Y SCAN DRIVE BOARD |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000491 | C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
| 2203-006378 | C-CER,CHIP;4700NF,10%,6.3V,X5R,TP,1608 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|
CBF-POWER CORD;DT,US,EP3,IEC320 C13-RA,1 |
| 3701-001746 | CONNECTOR-DSUB;15P,3ROW,FEMALE,STARAIGHT |
| 3708-002930 | CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| BN63-07786A | COVER-BOTTOM;PD550 50",HIPS,HB,BLK |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
|
|
DISPLAY PANEL (VERSION N102) |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
|
|
GUIDE-STAND;42PD490,PC,G/F 20% |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
| 3711-007775 | HEADER-BOARD TO CABLE;BOX,7P,1R,1.25MM,S |
| BP62-00017A | HEAT SINK-ES;SP-50L2HX,A6063S,T2.0,26.2, |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
| BN13-00042A | IC ASIC;SDP1005,PARMA,404P,3.3V,-25TO+85 |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-006619 | IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 |
| 1105-002191 | IC-DDR2 SDRAM;W9725G6JB-18,DDR2 SDRAM,25 |
| 1105-002194 | IC-DDR3 SDRAM;K4B1G1646G-BCH9,DDR3 SDRAM |
| 1204-003240 | IC-DECODER;SEMS20-LF,HSBGA,572P,20X20MM, |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006337 | IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. |
| 1201-003153 | IC-POWER AMP;NTP-7411S,MLF,48P,7X7MM,DUA |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
| 3722-003227 | JACK-PIN;10P,NI,RED/WHT/RED/BLU/GRN,STRA |
| 3722-003225 | JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A |
| BN39-01285K | LEAD CONNECTOR;PN43D450,FALT CONNECTOR,U |
| BN39-01447A | LEAD CONNECTOR;PS43D490,FALT CONNECTOR,U |
|
|

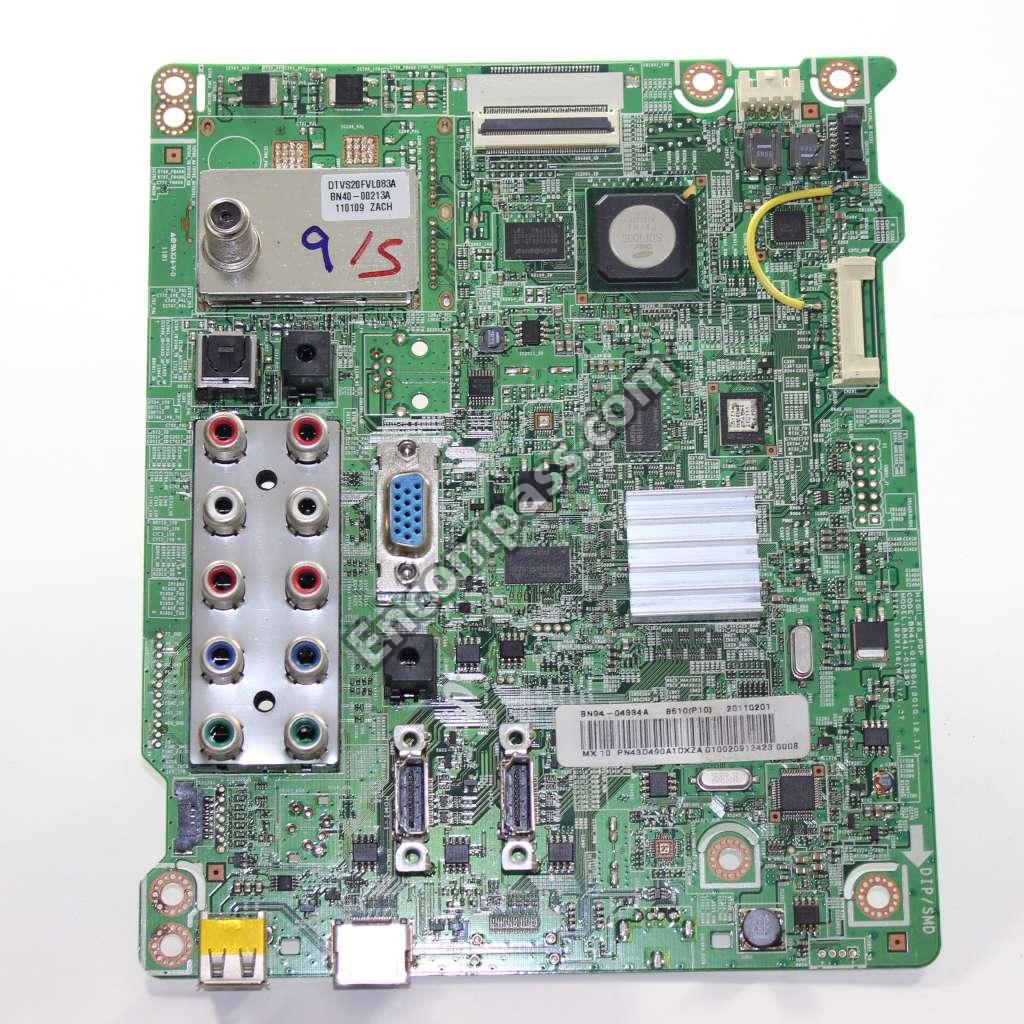

MAIN PC BOARD (VERSION N102) |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-000515 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
|
|

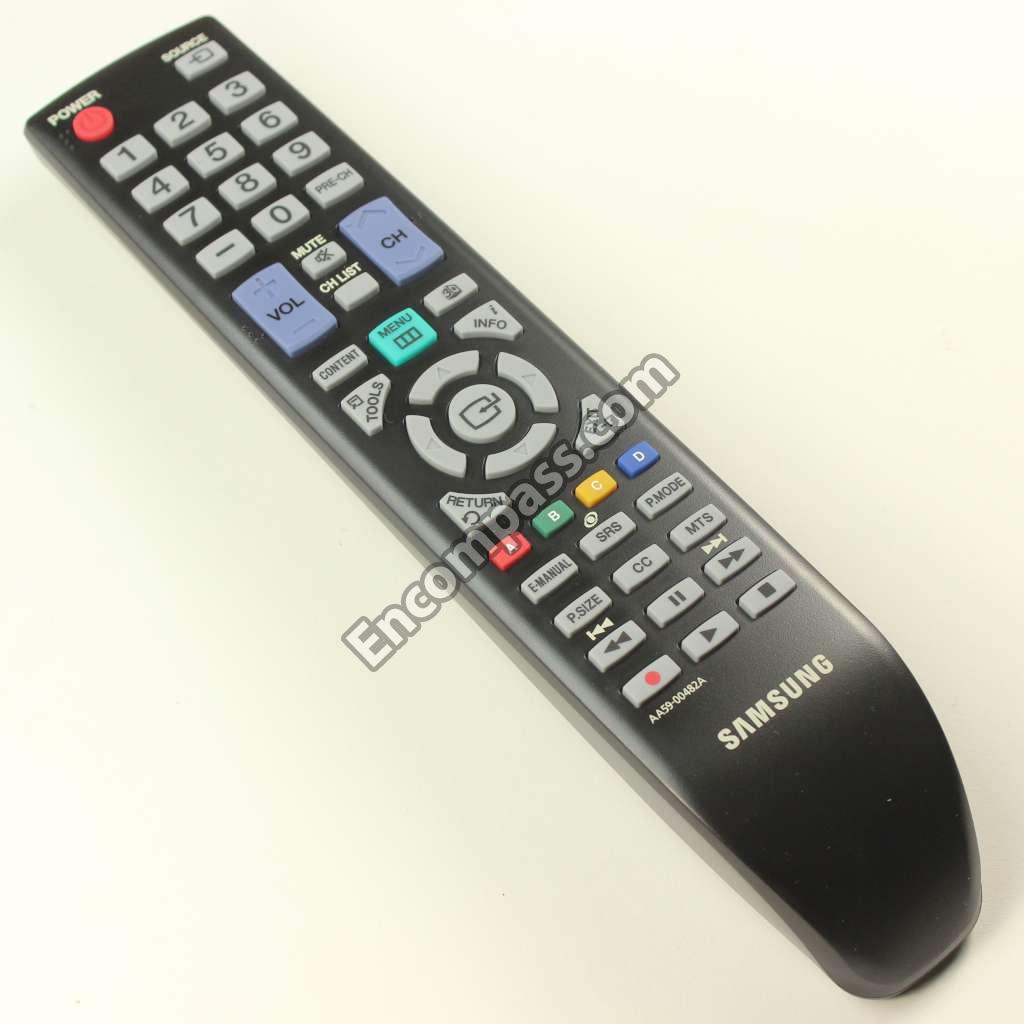

REMOCON;TM950,48,3V,NORTH AMERICA,550,56 |
| 6001-002283 | SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH |
| BN44-00442B | SMPS POWER PC BOARD (VERSION N102) |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|

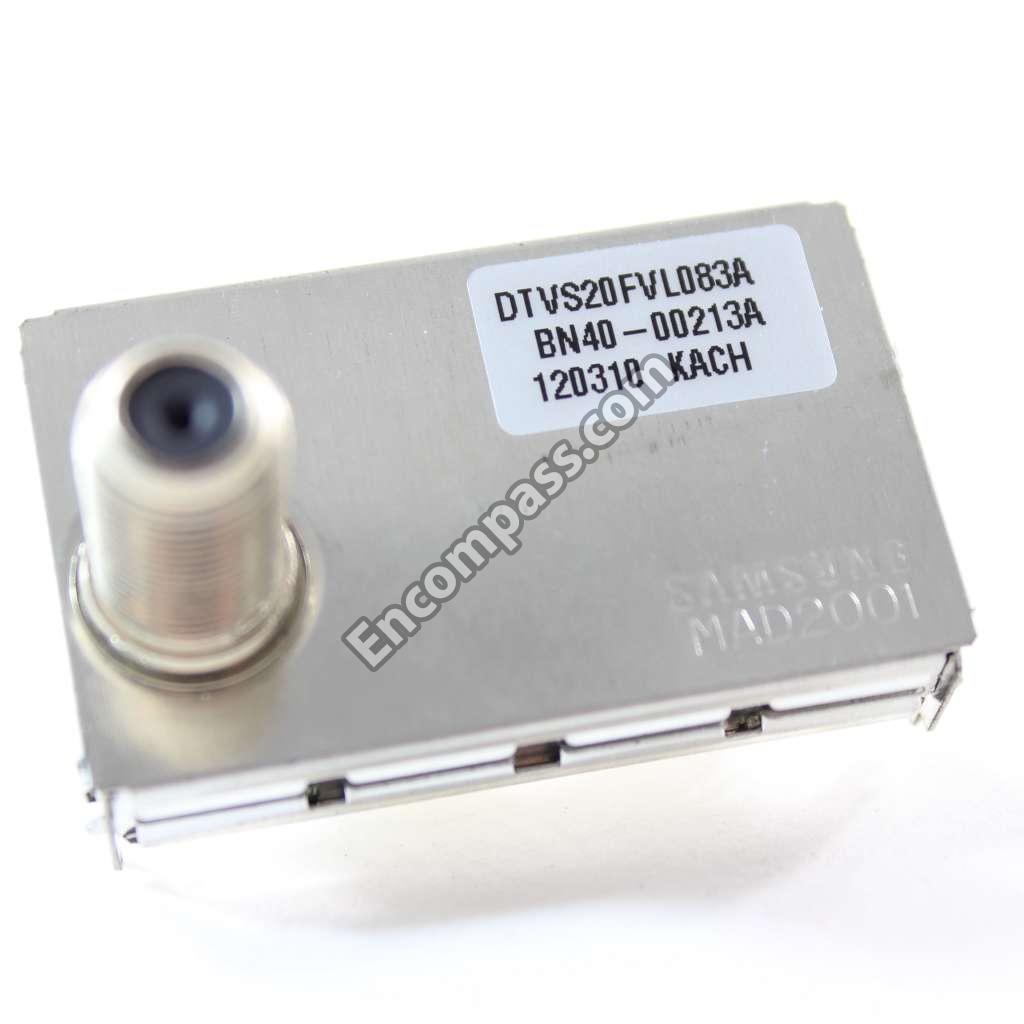

TUNER;DTVS20FVL083A,DTVS20FVL083A,VSBHAL |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
