Manufacturer
Samsung
Model Number
PN50C8000YFXZA
Description

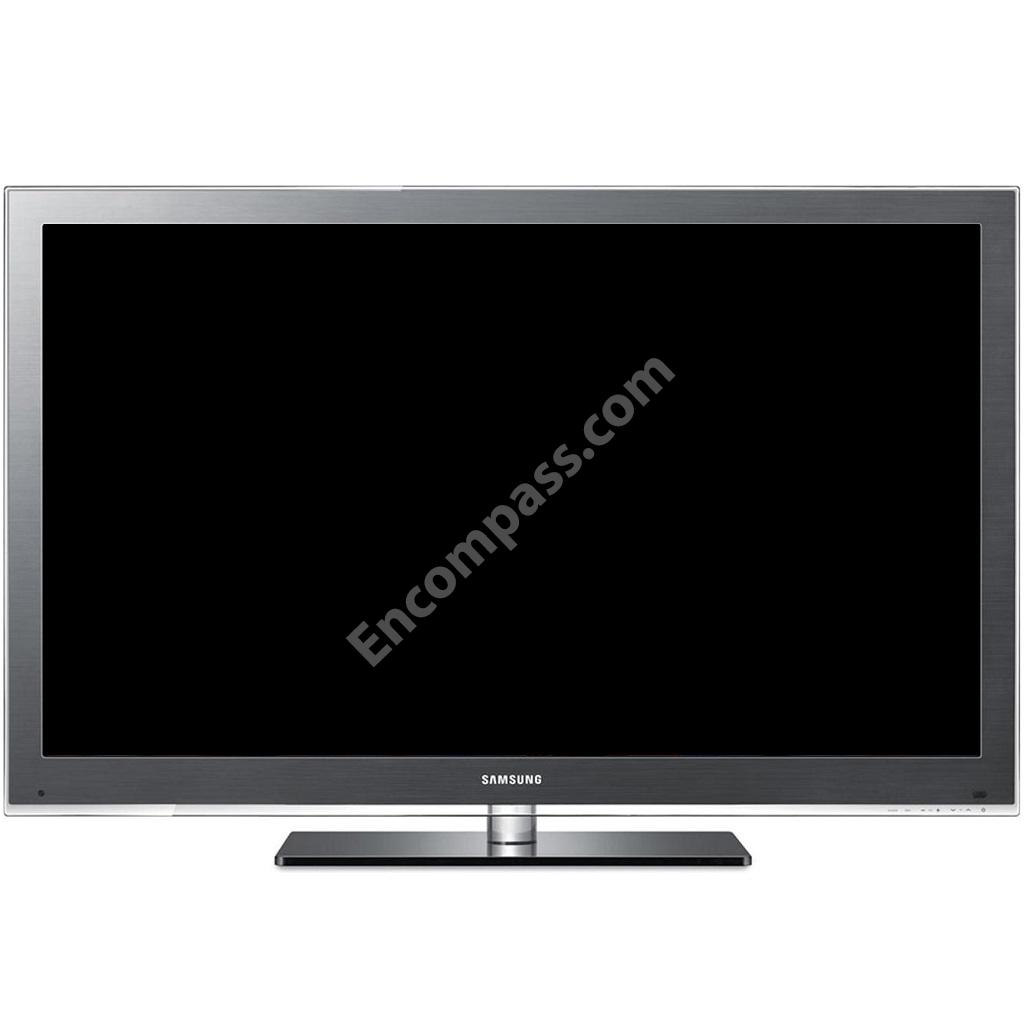

50-inch 8000 Series 3d 1080p Plasma Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-14504A | ASSY BOARD P-TOUCH FUNCTION&IR;50PC7000, |
| BN96-14796A | ASSY BRACKET P-SUPPORT STAND;PC6500/PC70 |
| BN96-12723U | ASSY CABLE P-FPCB LVDS CABLE;PDP 50 U/SL |
| BN96-12987B | ASSY COVER P-FRONT;PC8000 50,PMMA(CLEAR) |
| BN96-13008B | ASSY COVER P-REAR;PC6500/PC7000 50,PCM,T |
|
|

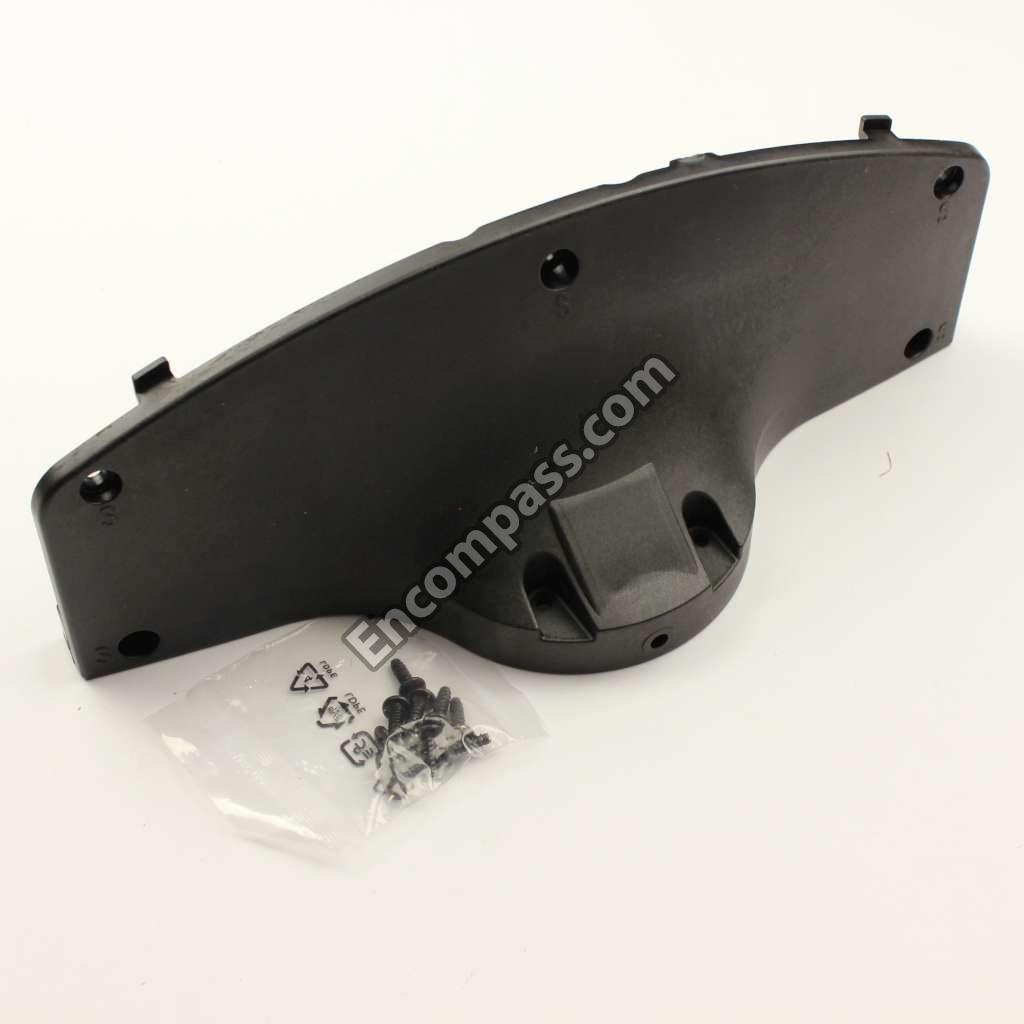

ASSY GUIDE P-STAND;PC7000 50,SUS T0.6 |
|
|
ASSY GUIDE P-STAND;UC6500 37/40/46/55,PC |
| BN96-10810A | ASSY HOLDER P;09 LEDTV MODEL,NYRON |
|
|
ASSY PCB MISC-MAIN;PN50C8000YFXZA |
| BN94-03313B | ASSY PCB MISC-MAIN;PN50C8000YFXZA |
|
|
ASSY PDP MODULE P;S50FH-YD06(M3),PP50FF0 |
|
|

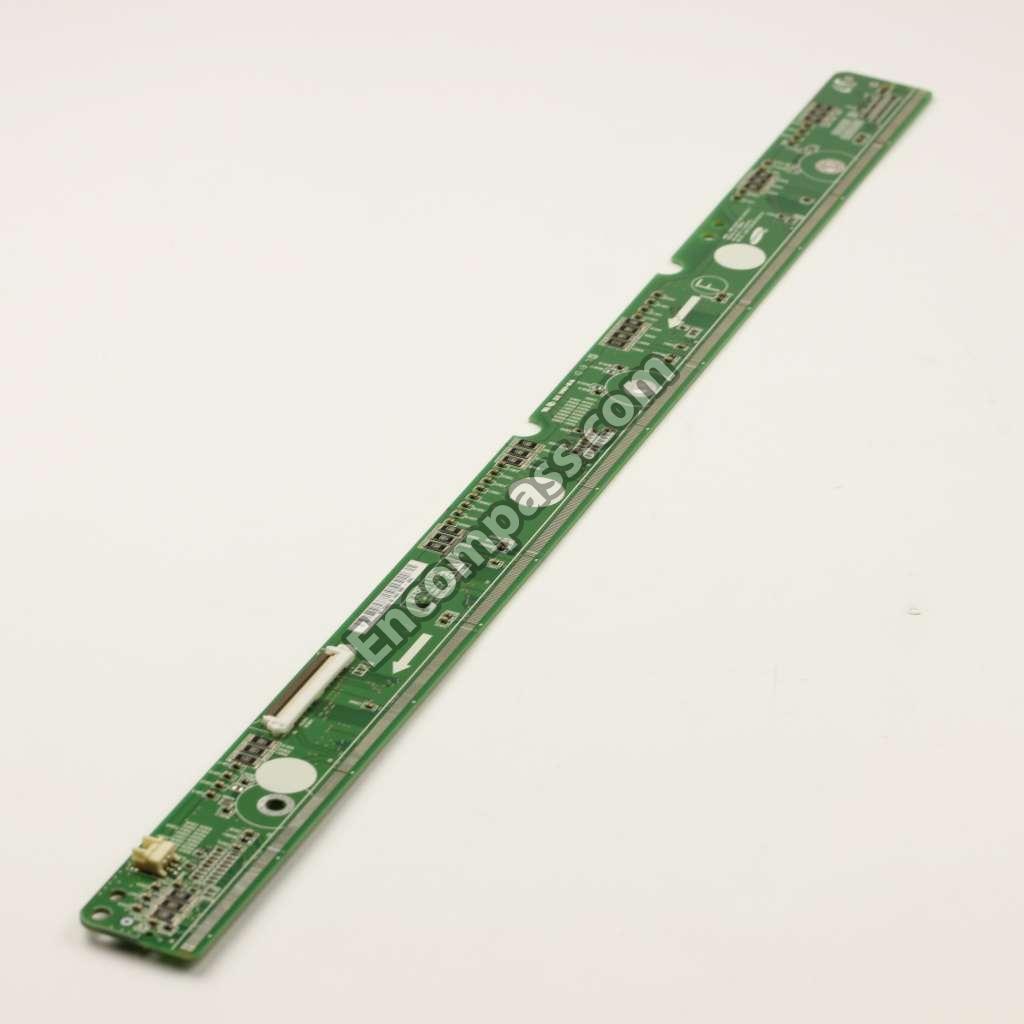

ASSY PDP P-E-BUFFER BOARD;S50FH-YB05,PL5 |
|
|
ASSY PDP P-F-BUFFER BOARD;S50FH-YB05,PL5 |
| BN96-12964A | ASSY PDP P-LOGIC MAIN BOARD;S50FH-YB05,P |
|
|

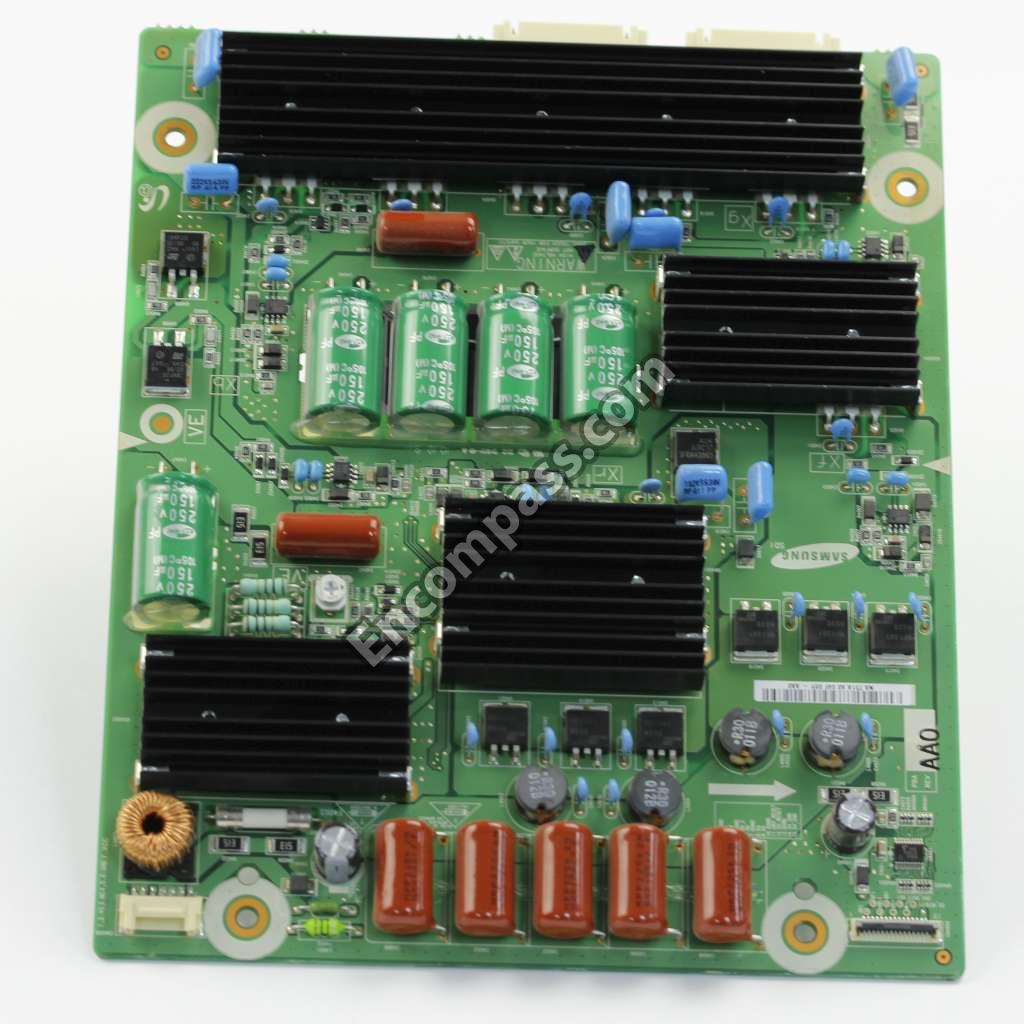

ASSY PDP P-X-MAIN BOARD;S50FH-YB05,PL50F |
| BN96-12961A | ASSY PDP P-X-MAIN BUFFER BOARD;S50FH-YB0 |
|
|

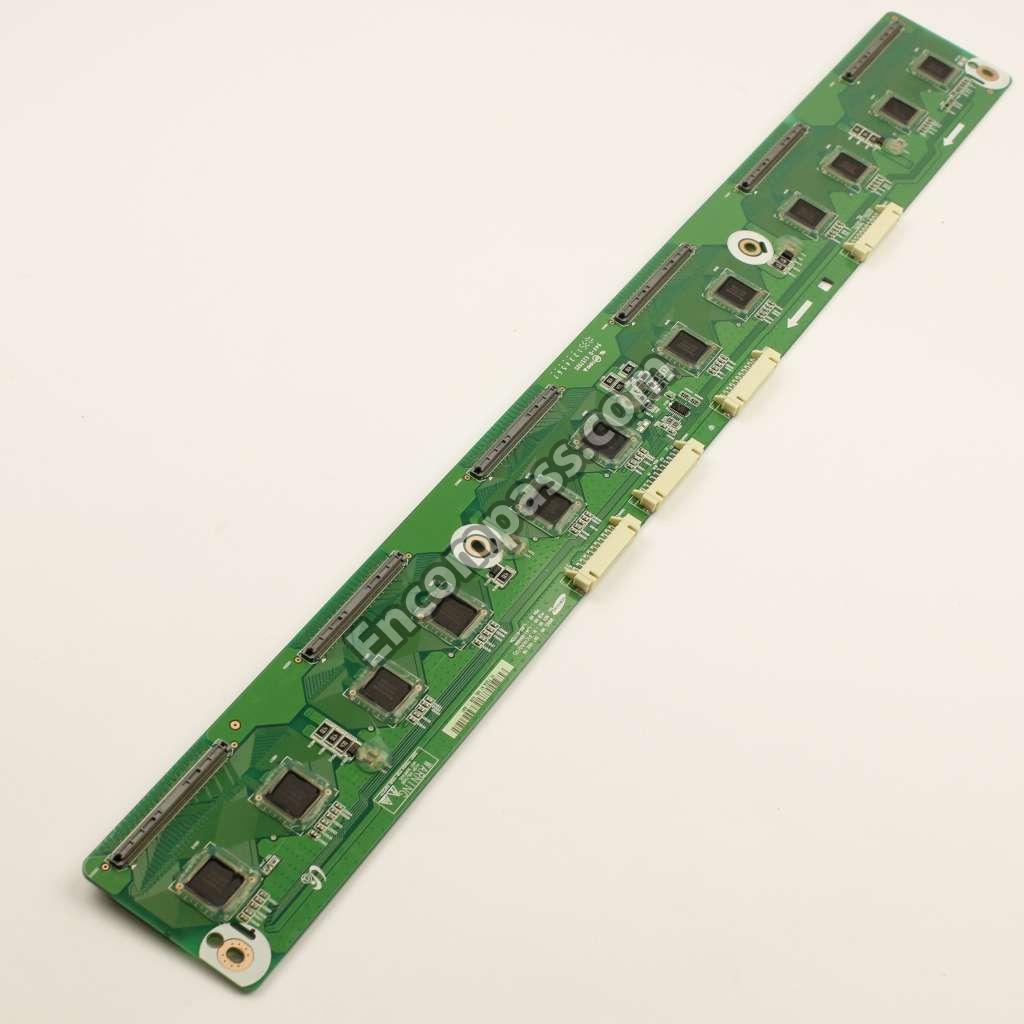

ASSY PDP P-Y SCAN BUFFER BOARD;S50FH-YB0 |
|
|

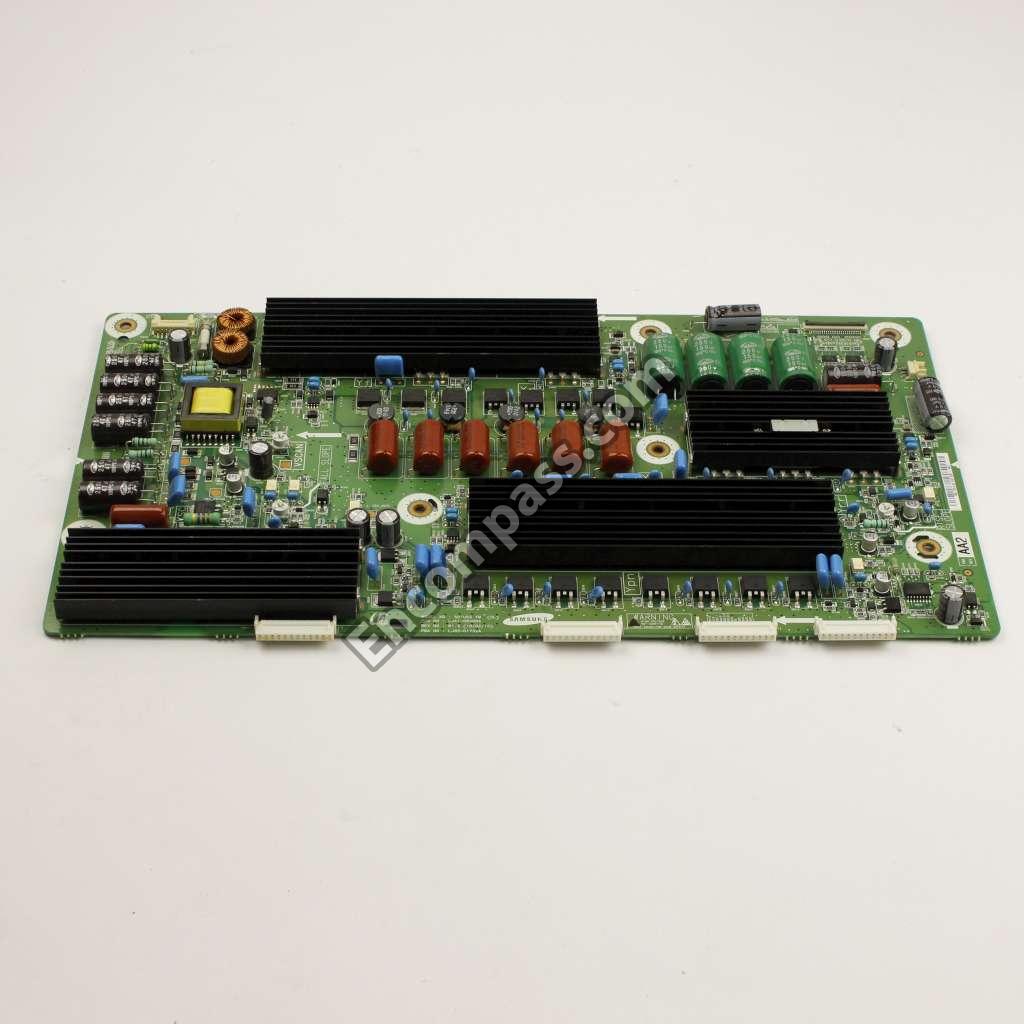

ASSY PDP P-Y-MAIN BOARD;S50FH-YB05,PL50F |
|
|
ASSY POWER CORD;10A/125V, UL/CSA,LP031LR |
|
|

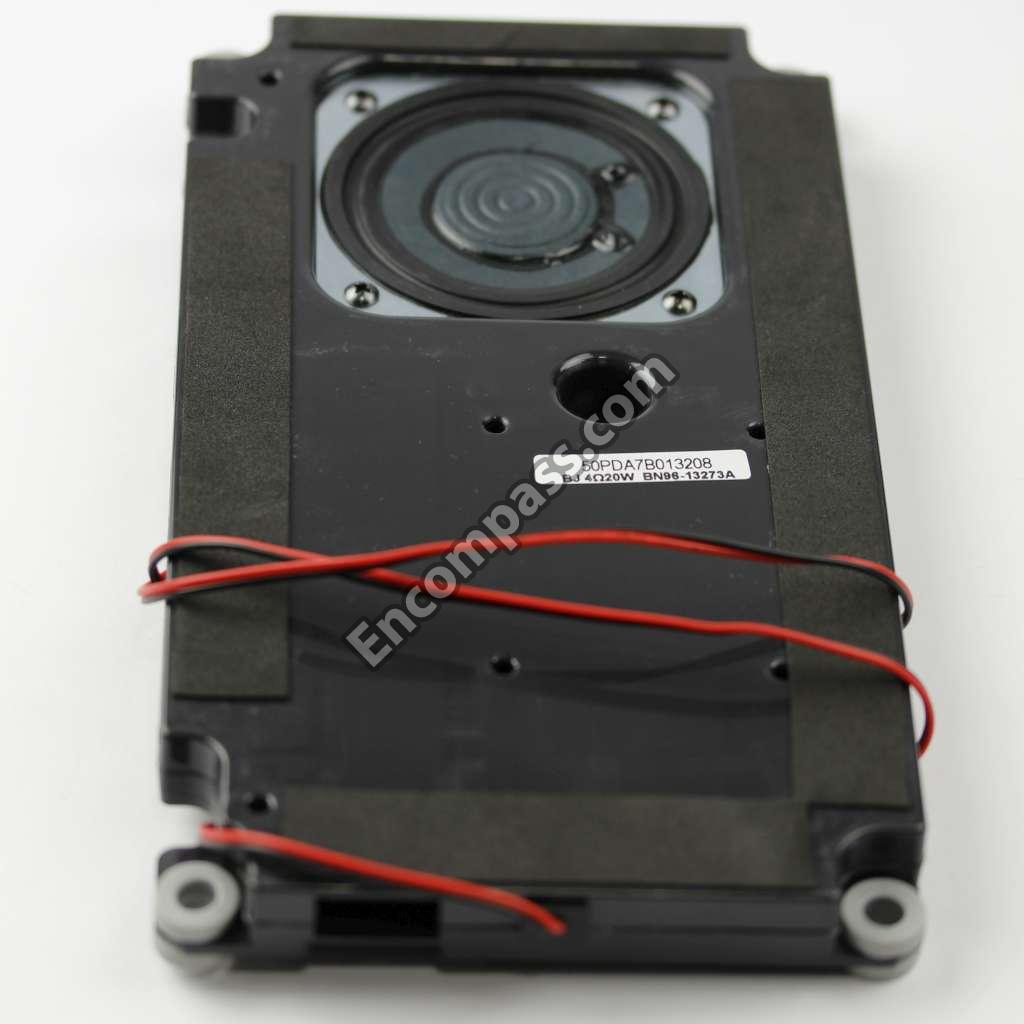

ASSY SPEAKER P;4OHM,4PIN,20W,R:750,ENCLO |
| BN96-12941K | ASSY SPEAKER P;8OHM,4PIN,10,L:250 R:670, |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 3301-001404 | BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ,- |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
| BN61-05728A | BOSS-TAPE;UB7000,TAPE,T0.4,W10,DARK GRAY |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005 |
| 2203-001124 | C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005 |
| 2203-000125 | C-CER,CHIP;1.2NF,10%,50V,X7R,TP,1608 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
|
|
C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216 |
| 2203-006333 | C-CER,CHIP;10000NF,20%,16V,X5R,TP,3216 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006104 | C-CER,CHIP;1000NF,10%,50V,X7R,TP,3225,2. |
| 2203-005918 | C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-006039 | C-CER,CHIP;1NF,10%,2000V,X7R,3216 |
| 2203-007138 | C-CER,CHIP;2200NF,10%,50V,X7R,TP,3216,1. |
| 2203-006170 | C-CER,CHIP;220NF,10%,16V,X7R,TP,1608 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| BP27-00002A | COIL CHOKE;SLF6028T-220MR77,22UF,20%,0.1 |
| 3701-001724 | CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI |
| 3701-001698 | CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI |
| 3708-002777 | CONNECTOR-FPC/FFC/PIC;82P,0.5MM/0.75MM,S |
| 3701-001293 | CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU |
| 3711-007317 | CONNECTOR-HEADER;BOX,13P,1R,2.0MM,SMD-A, |
| 3711-007587 | CONNECTOR-HEADER;BOX,18P,2R,2MM,ANGLE-DI |
| 3707-001095 | CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI |
| 3301-002053 | CORE-FERRITE;37.6X35.6MM,3500,310GAUSS |
| BN63-06481A | COVER-BOTTOM;50PC750,HIPS,V0,V1,BLK(BK-5 |
| BN63-02183F | COVER-SHEET;RHCM,PE VINYL,T0.05,900MM,20 |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
|
|

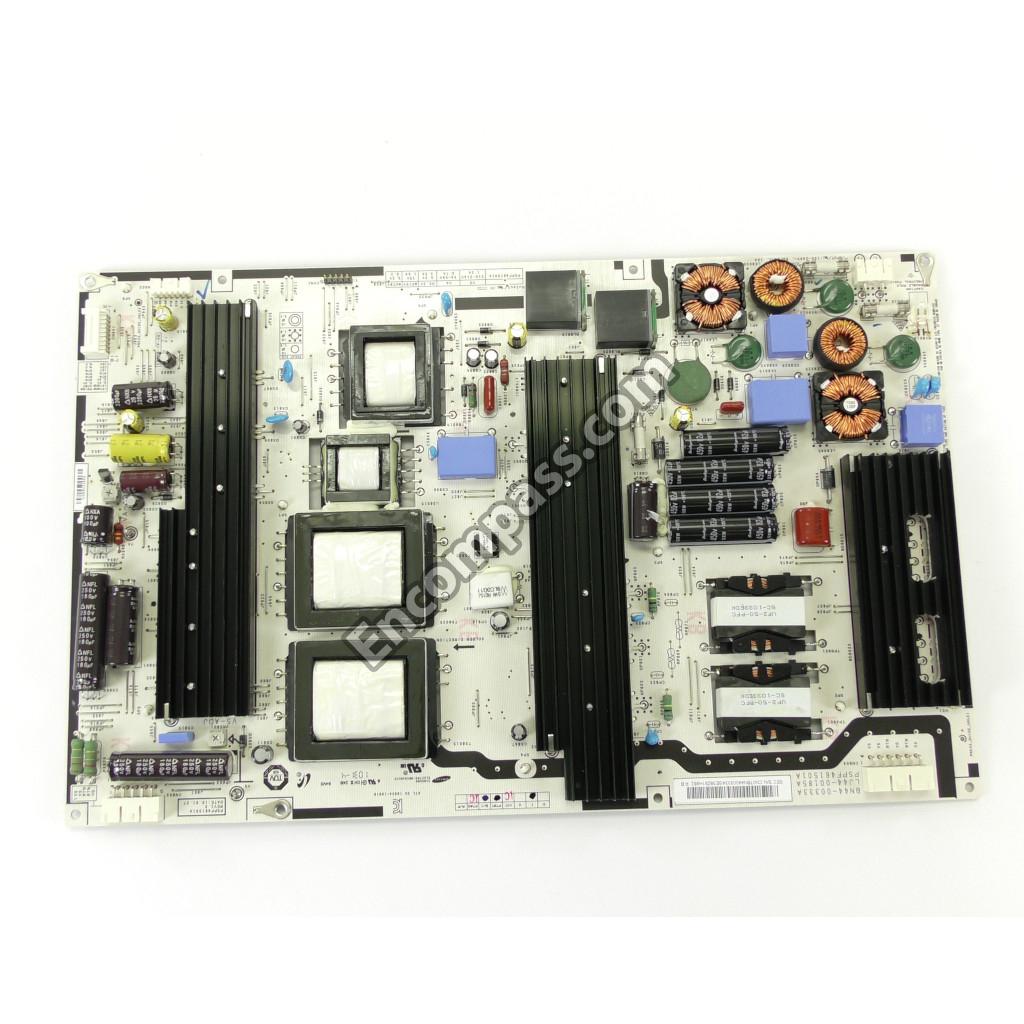

DC VSS-PDP TV;PZ-5A,AC/DC,AC100~240V,50/ |
| 0402-001098 | DIODE-RECTIFIER;SK34,40V,3A,SMC,TP |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S |
| 0505-002386 | FET-SILICON;AO3415AL,P,-20V,-4A,0.045OHM |
| 2901-001615 | FILTER-EMI AC LINE;250V,6A,0.1UF/2200PF, |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| AA63-01200A | GASKET-EMI;42S5,CONDUCTIVE FABRIC,0.1MM, |
| 3711-007302 | HEADER-BOARD TO BOARD;BOX,18P,2R,2MM,ANG |
| 3711-007336 | HEADER-BOARD TO CABLE;B0X,4P,1R,2.5MM,SM |
| 3711-005499 | HEADER-BOARD TO CABLE;BOX,8P,1R,1.25MM,S |
| BP62-00017A | HEAT SINK-ES;SP-50L2HX,A6063S,T2.0,26.2, |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
|
HOLDER-CORD;LB7000 46,ABS,V0,BLK |
| BN96-14797A | HOLDER-WALL;50PC6500,HIPS V0,BLK(BK0020) |
| BN61-05596A | HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,NYRON |
| BN13-00031A | IC ASIC;LUNA,SDP95,400,3.6,-40TO+125C,CA |
| 1001-000164 | IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 |
| 1203-005559 | IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 |
| 1205-003840 | IC-CODEC;WM8595GEFL/RS,QFN,48P,7X7X0.9MM |
| 1203-005538 | IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. |
| 1203-006013 | IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 |
| 1203-006012 | IC-DC/DC CONVERTER;MP8725EL,QFN14,14P,3X |
| 1105-002086 | IC-DDR SDRAM;EM6A9320BIA,128MB,LFBGA,144 |
| 1105-002049 | IC-DDR2 SDRAM;EM68B16CWPA-25H,DDR2 SDRAM |
| 1204-003100 | IC-DECODER;SDP92,FCPBGAH,937P,35X35MM,PL |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001406 | IC-EEPROM;AT24C512,512KBIT,64KX8BIT,SOIC |
| 1103-001475 | IC-EEPROM;M24256-BR,256KBIT,32KX8,SOP,8P |
|
|
IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q |
| 1006-001480 | IC-LINE TRANSCEIVER;MAX3222ECAP+T,SSOP,2 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-004937 | IC-POSI.ADJUST REG.;MP2000DJ-ADJ-LF-Z,TS |
| 1203-003544 | IC-POSI.ADJUST REG.;RT9173BPS,SOP-8,8P,5 |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-003121 | IC-POSI.FIXED REG.;FAN1112,SOT-223,3P,6. |
| 1203-002519 | IC-POSI.FIXED REG.;KIA7809AF,DPAK,3P,240 |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1201-002992 | IC-POWER AMP;STA369BWS,PSSO,36P,10.3X7.5 |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 1204-003101 | IC-VIDEO PROCESS;SDP94,PBGA,345P,19X19MM |
| 1001-001627 | IC-VIDEO SWITCH;SII9389CTU,TQFP,100P,14X |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-000125 | INDUCTOR-SMD;10UH,10%,2012,1.25T,1.15OHM |
| 2703-000398 | INDUCTOR-SMD;10UH,10%,3225,.5OHM,300MA,1 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-002238 | INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE |
| 2703-002044 | INDUCTOR-SMD;390NH,5%,2012,1.5OHM,290MA, |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 2703-000222 | INDUCTOR-SMD;560NH,10%,2012,.75OHM,150MA |
| 3722-003150 | JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE |
| 3722-002849 | JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE |
|
|
JACK-PHONE;1/6P,NI,BLK,ANGLE |
| 3722-003151 | JACK-PIN;5P(ULTRA SLIM),NI,BLK,ANGLE(SSR |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE |
| BN39-01267H | LEAD CONNECTOR;PN50C8000YFXZA,FLAT CONNE |
| 2804-001878 | OSCILLATOR-CLOCK;49.152MHZ,50PPM,10TTL/1 |
| 2007-000231 | R-CHIP;1.3KOHM,1%,1/10W,TP,1608 |
| 2007-009853 | R-CHIP;1.6KOHM,1%,1/16W,TP,1005 |
| 2007-007352 | R-CHIP;130KOHM,1%,1/10W,TP,1608 |
| 2007-000483 | R-CHIP;1OHM,5%,1/8W,TP,2012 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-000591 | R-CHIP;22OHM,1%,1/10W,TP,1608 |
| 2007-000606 | R-CHIP;240OHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000637 | R-CHIP;270KOHM,5%,1/10W,TP,1608 |
| 2007-000651 | R-CHIP;27KOHM,1%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000763 | R-CHIP;330OHM,1%,1/10W,TP,1608 |
| 2007-007947 | R-CHIP;36OHM,1%,1/10W,TP,1608 |
| 2007-007724 | R-CHIP;40.2OHM,1%,1/10W,TP,1608 |
| 2007-000946 | R-CHIP;47OHM,1%,1/10W,TP,1608 |
| 2007-008391 | R-CHIP;6.34KOHM,1%,1/16W,TP,1005 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
| 2011-001001 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,3.2 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP-V,4P,TP,1 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
| 2011-001497 | R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP-V,4P,TP |
|
|
REMOCON;TM1080,SAMSUNG,20PIN SINGLE,49,3 |
|
|
SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
| 6003-001748 | SCREW-TAPTYPE;BH,+,WP,S,M4,L10,ZPC(BLK), |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH |
| 0501-000669 | TR-SMALL SIGNAL;KTA1505Y,PNP,150MW,SOT-2 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 2601-001056 | TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 |
|
|
TUNER;DTVS20CVH081A,NTSC,191CH,45.75MHZ, |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
| 1405-001185 | VARISTOR;500V,24VDC,1.6X0.8X0.36MM,TP,15 |
