Manufacturer

Samsung

Model Number

PN51F4500AFXZA

Description

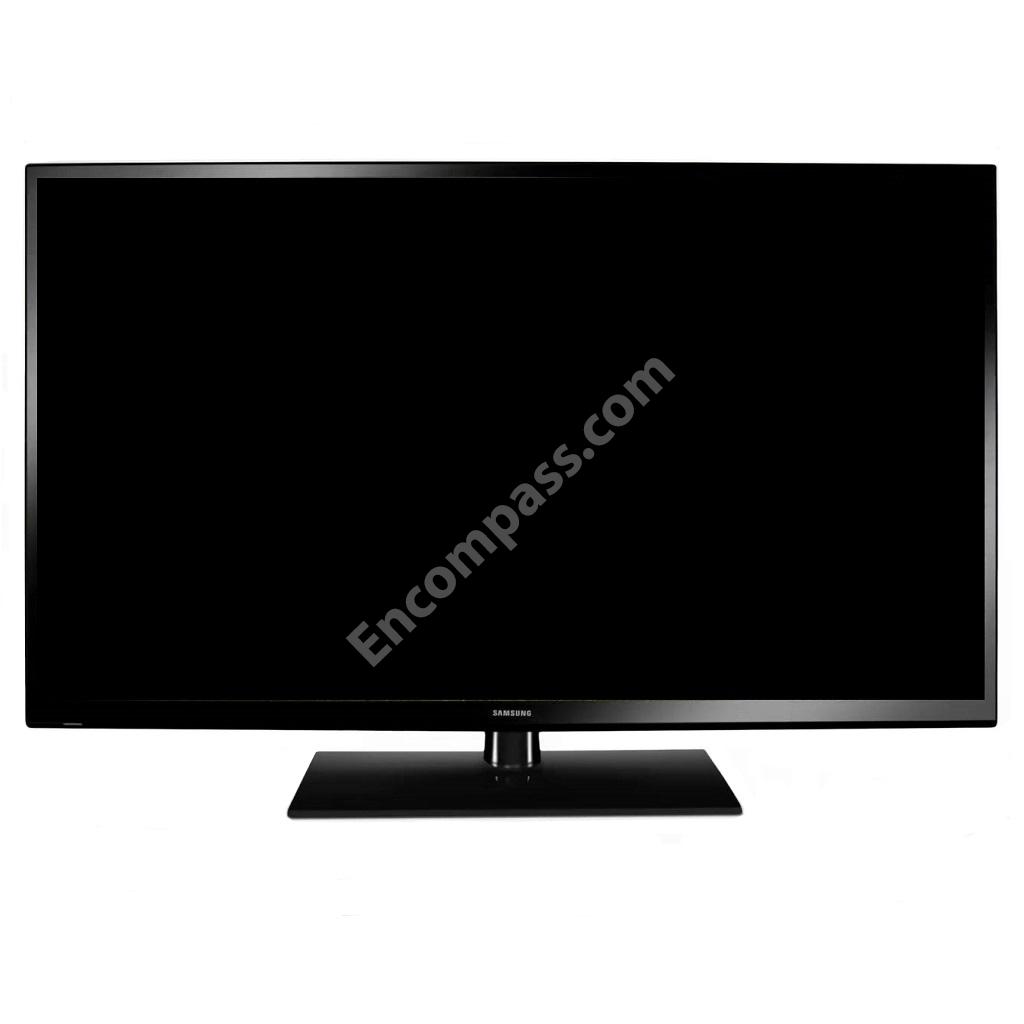

Plasma F4500 Series Tv - 51 Class

Interactive Exploded View

Parts List

Part Number	Description
BN96-16790A	ASSY BRACKET P-WALL;PD450/490,SECC

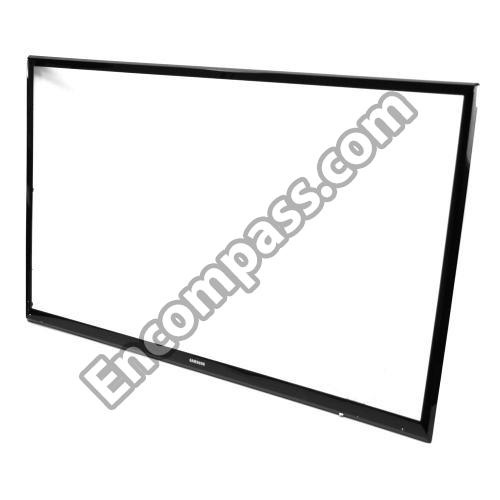

BN96-25956L	ASSY COVER P-FRONT;PF4500 51",ABS HB,BLA

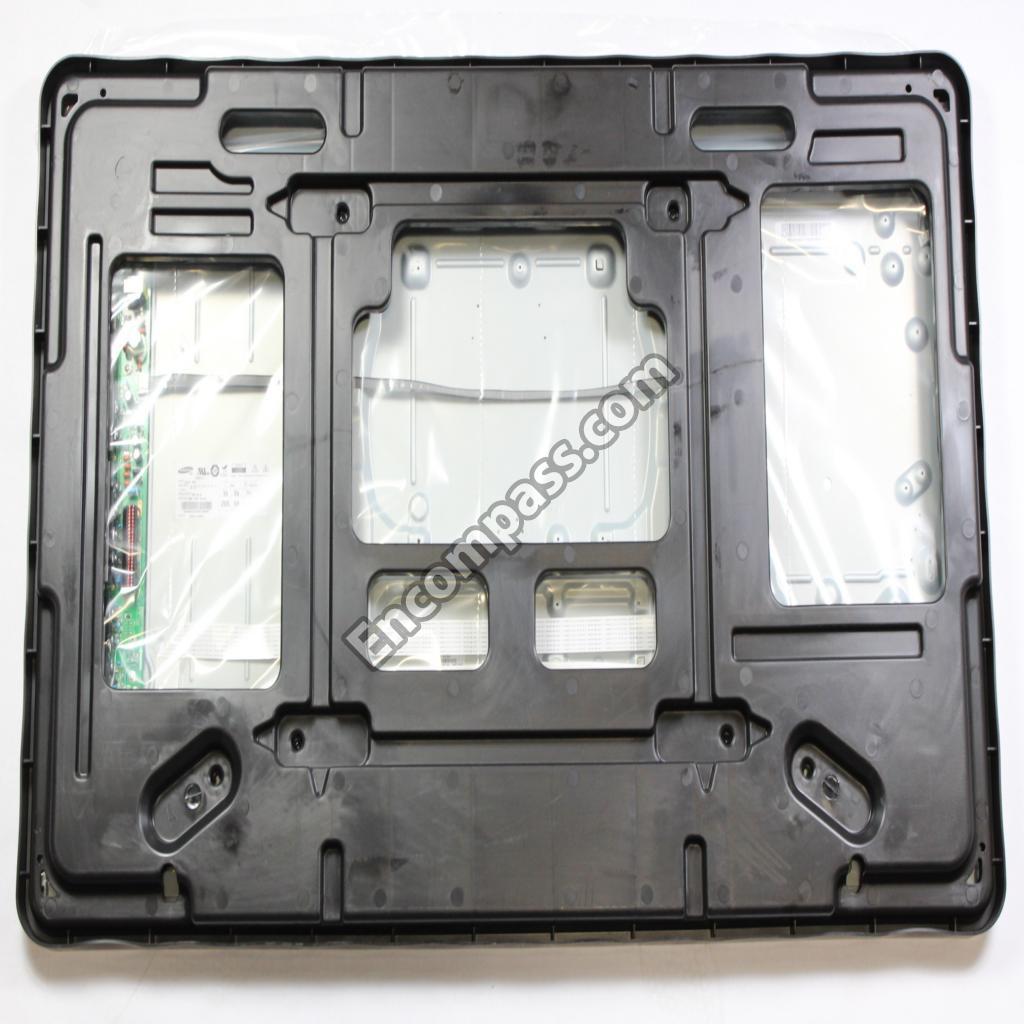

BN96-25963A	ASSY COVER P-REAR;PF4500/4900 51",NORTH
BN94-06195C	ASSY PCB MISC-MAIN;ATSC 51"

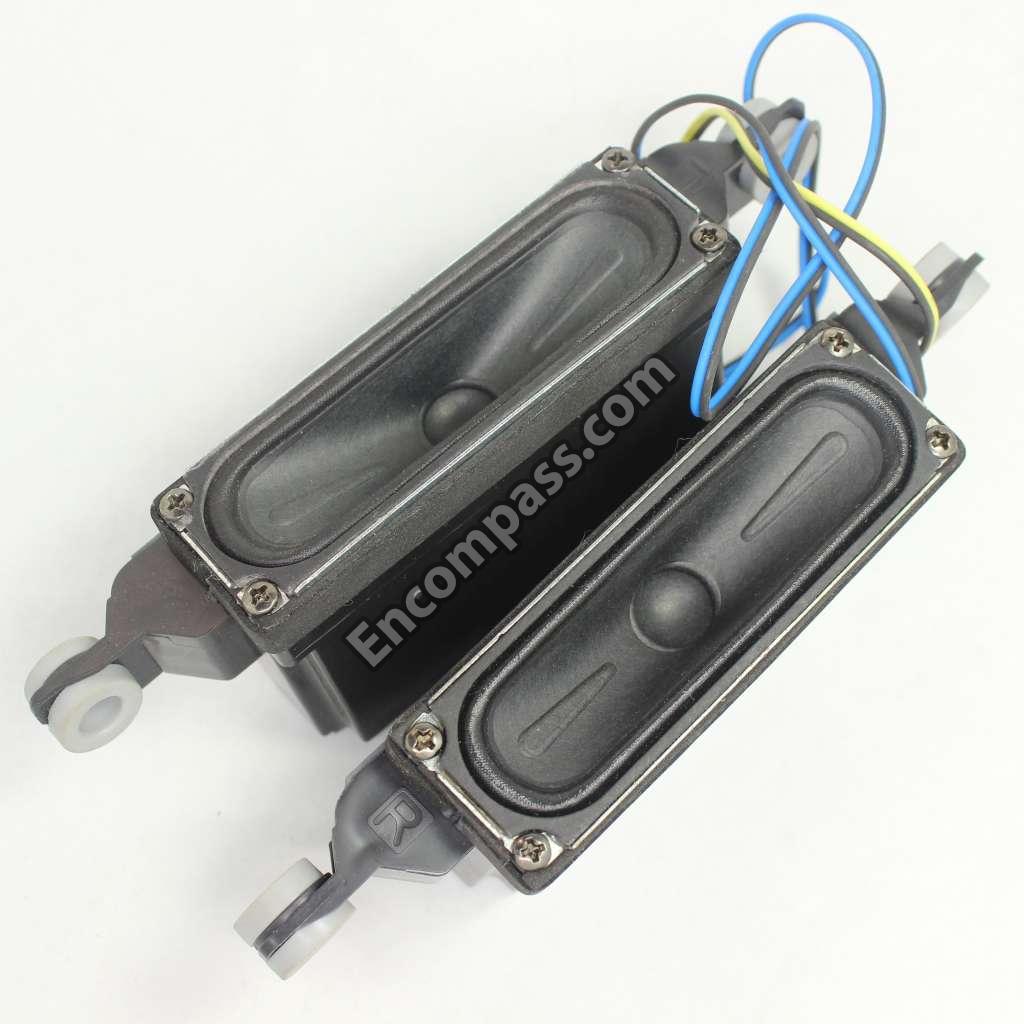

BN96-25571B	ASSY SPEAKER P;6OHM,10W,ENCLOSURE_5300
6902-001063	BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE
4301-000121	BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA
3301-000314	BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039	BEAD-SMD;26OHM,1608,TP
2203-000627	C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-007513	C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176	C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-006348	C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006048	C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-005249	C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285	C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-005221	C-CER,CHIP;15NF,10%,50V,X7R,TP,1608
2203-000575	C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-006126	C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
3903-000552	CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320
3708-003144	CONNECTOR-FPC/FFC/PIC;25P,1.0MM,SMD-A+DI
3708-003142	CONNECTOR-FPC/FFC/PIC;50P,0.5MM,SMD-A+DI
3701-001762	CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU
3711-007975	CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3707-001106	CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF
2801-003773	CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH
2801-004284	CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF,30OH
BN44-00599A	DC POWER SUPPLY-PDP;P51HF_DSM,P51HF_DSM,AC/DC,-20
0404-001404	DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0401-001116	DIODE-SWITCHING;BAV99DW,75V,215MA,SOT-36
0407-000114	DIODE-SWITCHING;KDS184,80V,100MA,SOT-23,
0401-001056	DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001271	DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251
0505-003196	FET-SILICON;A07410,N,30V,1.7A,0.045OHM,0

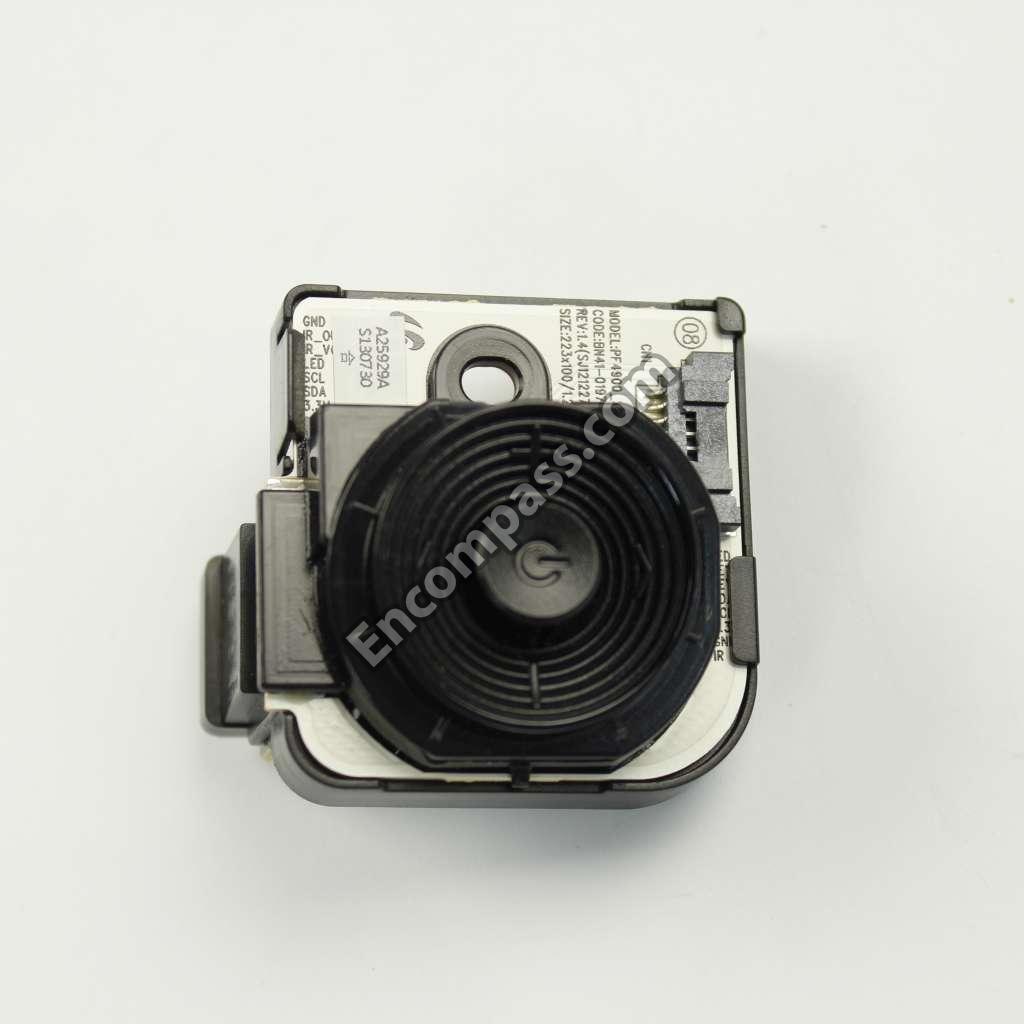

BN96-25929A	FUNCTION BOARD;PF43F4900,SJ13-01-
3601-001386	FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C
3711-008453	HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG
3711-008454	HEADER-BOARD TO CABLE;BOX,22P,2R,2MM,ANG
3711-008131	HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN13-00062A	IC ASIC;SPS-HI16,240,1.2V TO 3.3V,-0~+70
1001-001545	IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
1205-003201	IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM
0801-003514	IC-CMOS LOGIC;INVERTER,SC-88,6P,2X1.25X0
1105-002227	IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM
1204-003443	IC-DECODER;NT72569,LFBGA,620Z30,21X21MM,
1103-001561	IC-EEPROM;S-24C02DI-J800,2KBIT,256X8BIT,
1103-001531	IC-EEPROM;S-24C256CI-J8T1U4,256KBIT,32KX
1105-002456	IC-GDDR;EM6A9320BIB-5H,LFBGA,144P,12X12X
1107-002049	IC-NAND FLASH;K9F1G08U0D-SCB0,1GBIT,128M
1203-006138	IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2
1203-006136	IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135	IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-006130	IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109	IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1201-003333	IC-POWER AMP;NTP-7412S,MLF,48P,7X7MM,DUA
1203-007249	IC-SWITCH CUR. REG.;TPS62561DDC,DDA,5P,3
1203-007728	IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L
2703-000158	INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45,
2703-002238	INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE
2703-003930	INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245
3722-003546	JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED
3722-003225	JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A
BN39-01768A	LEAD CONNECTOR;43PF4900 , 51PF4900,FLAT
BN39-01759B	LEAD CONNECTOR;PN51F4500,LEAD CONNECTOR,
BN96-13325F	LVDS CABLE
BN96-13325P	LVDS CABLE

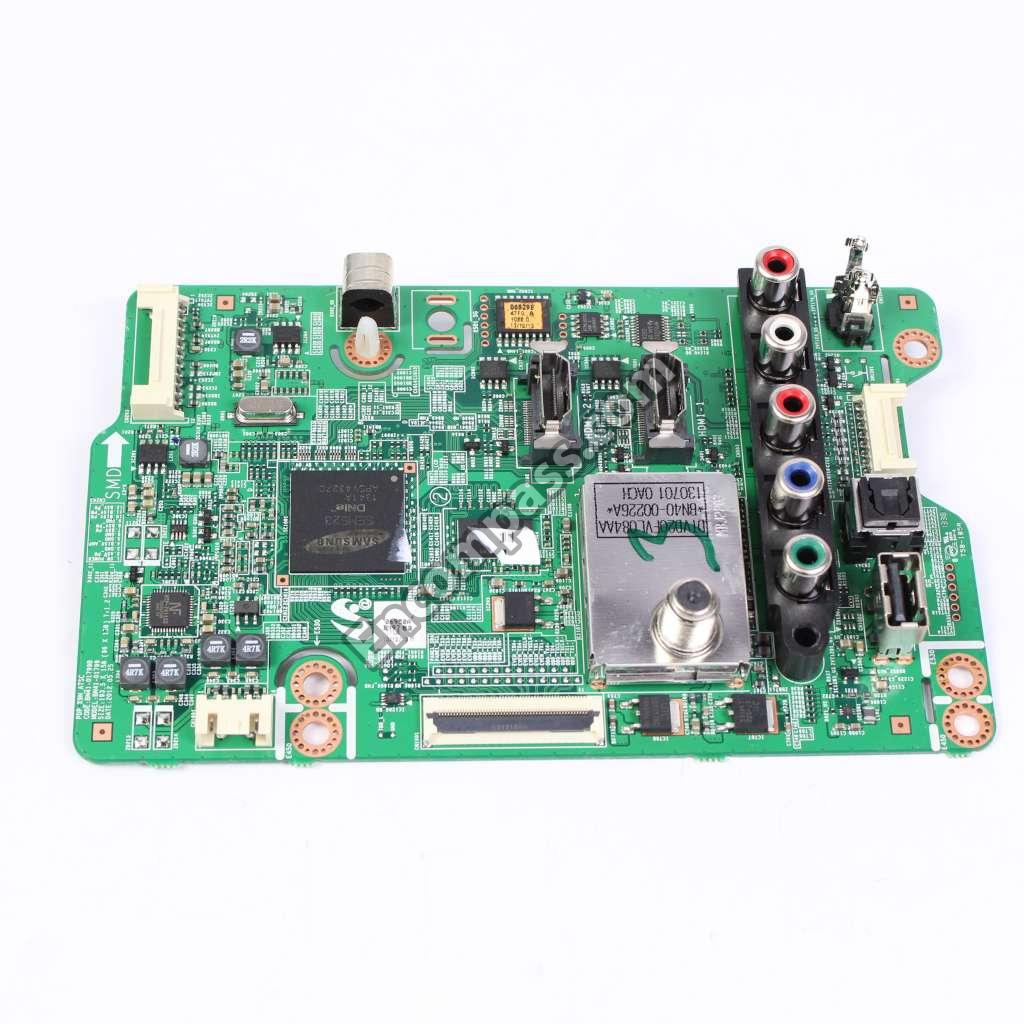

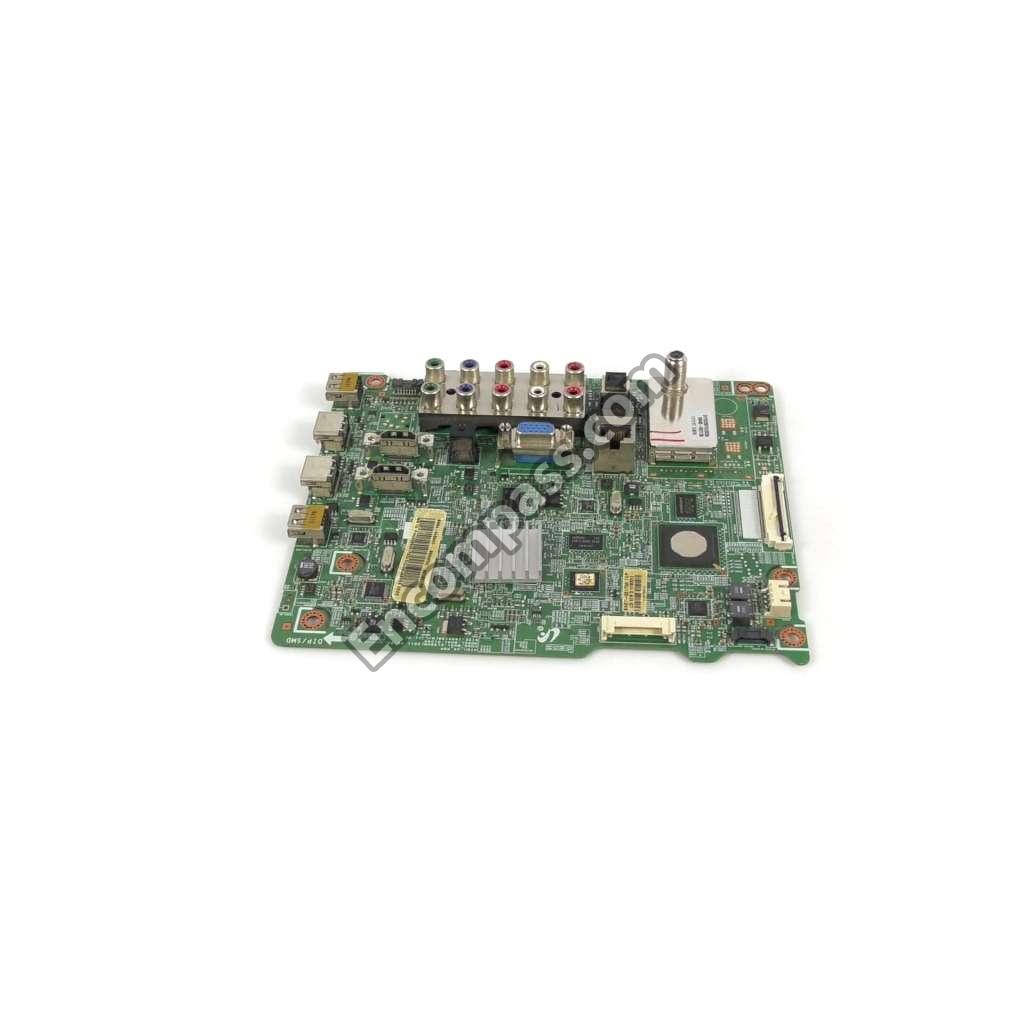

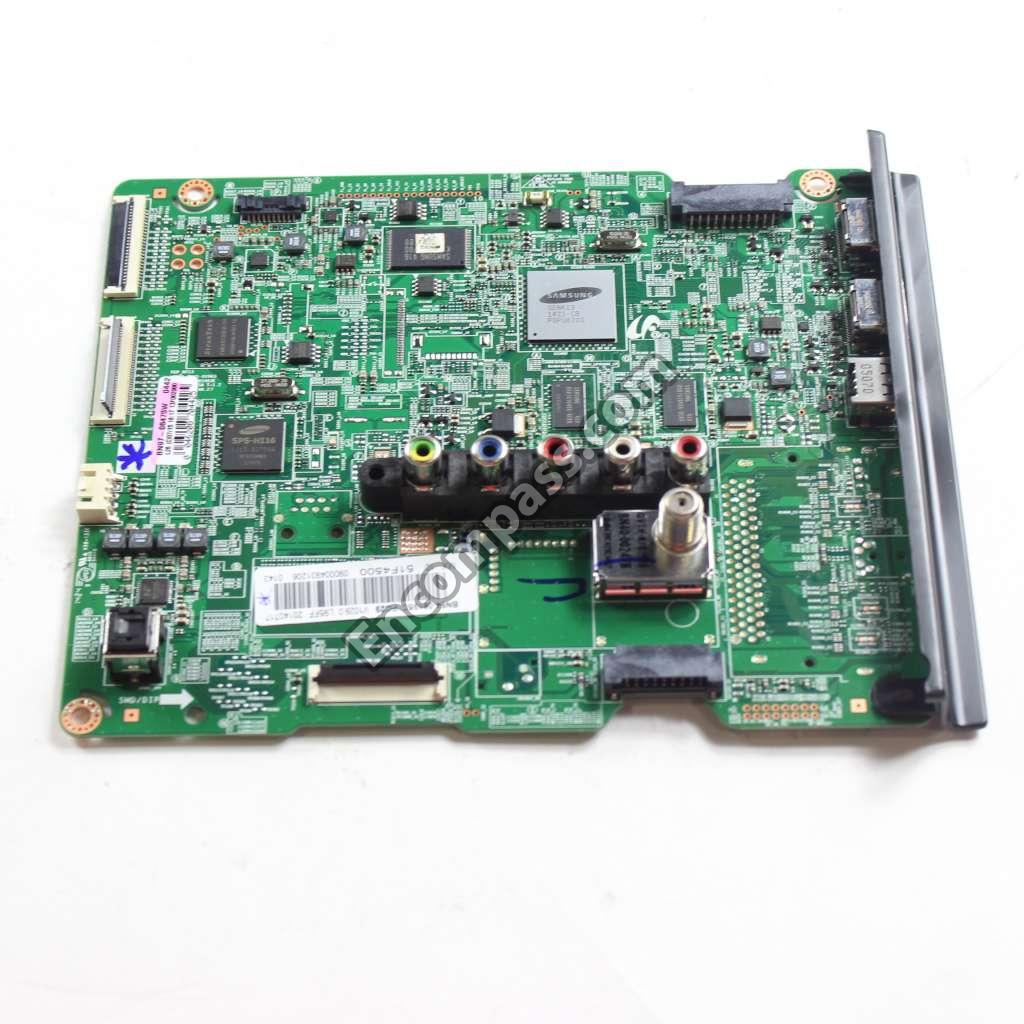

BN94-04354A	MAIN BOARD
BN96-19471A	MAIN BOARD
BN96-24574A	MAIN BOARD
BN96-25193A	PLASMA DISPLAY ASSEMBLY;S51AX-YB02,PC51AF014A,5

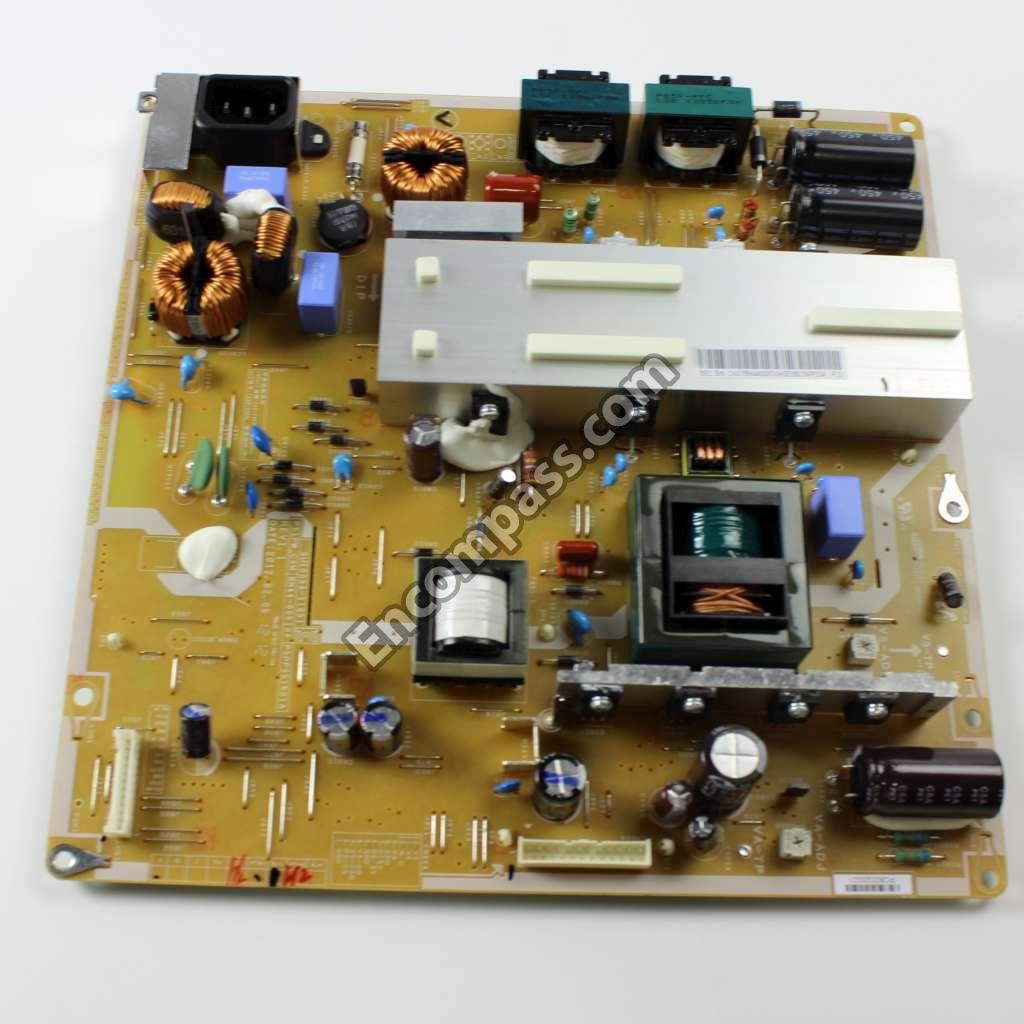

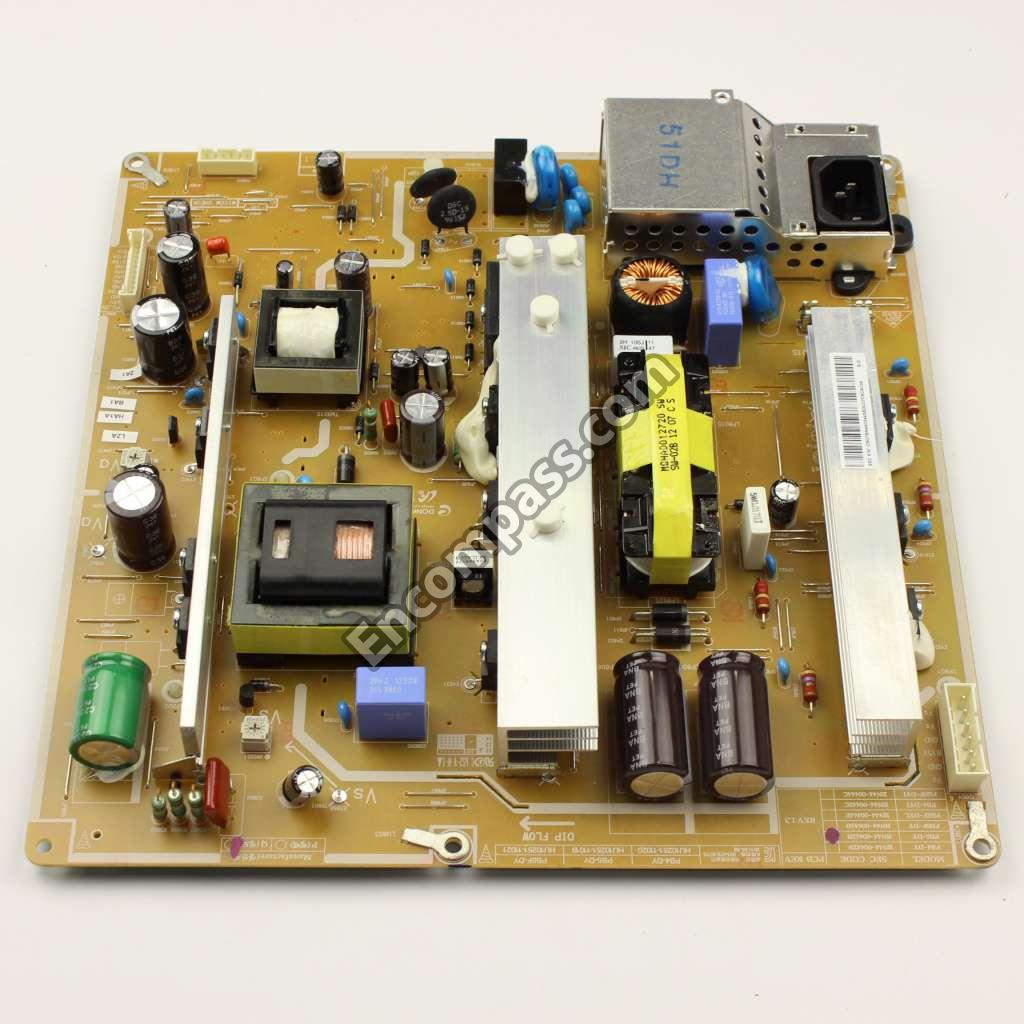

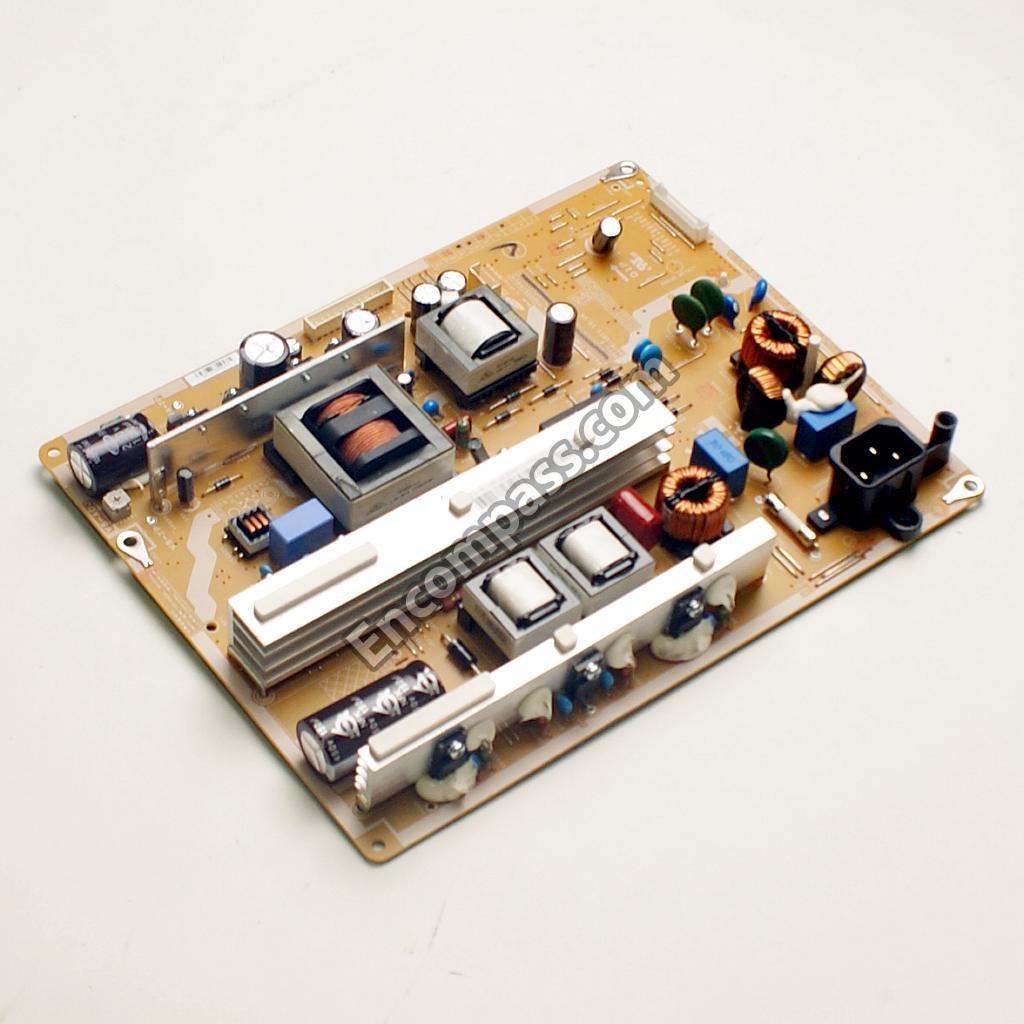

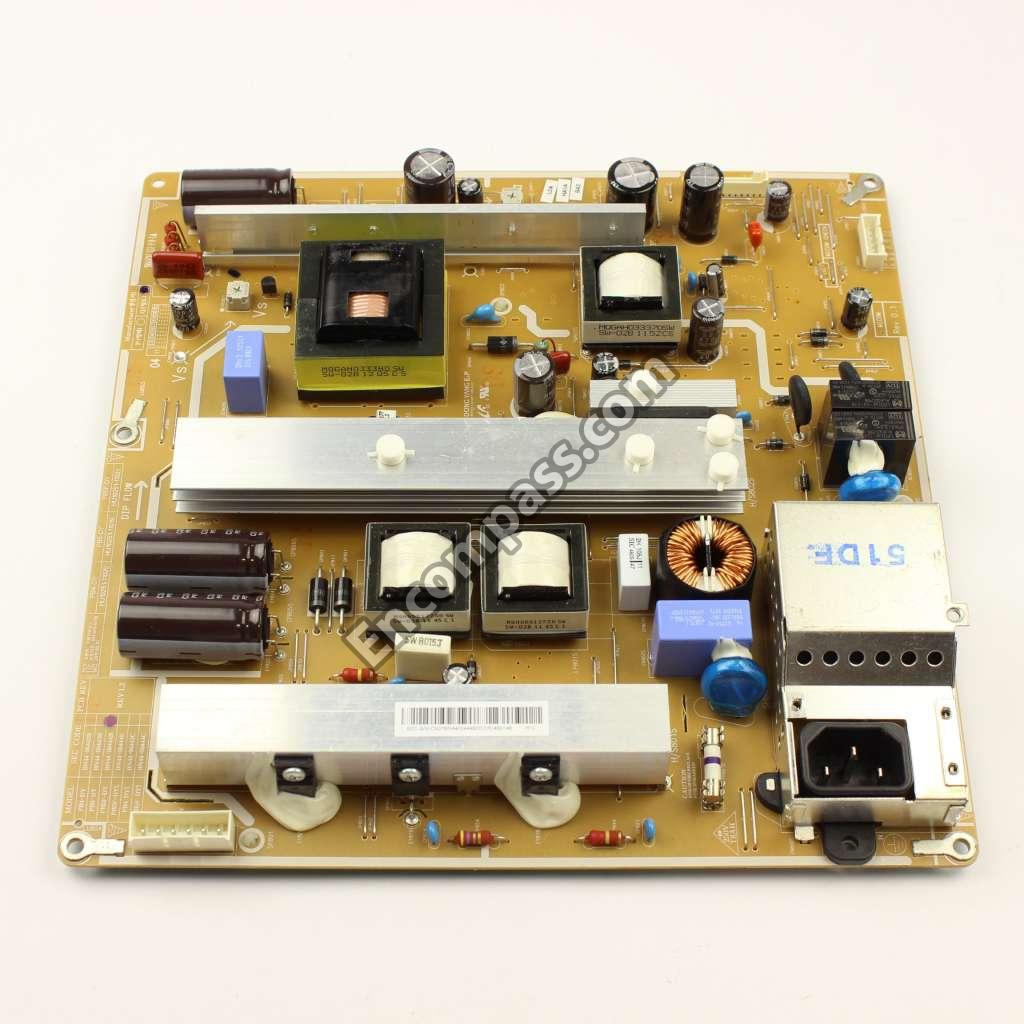

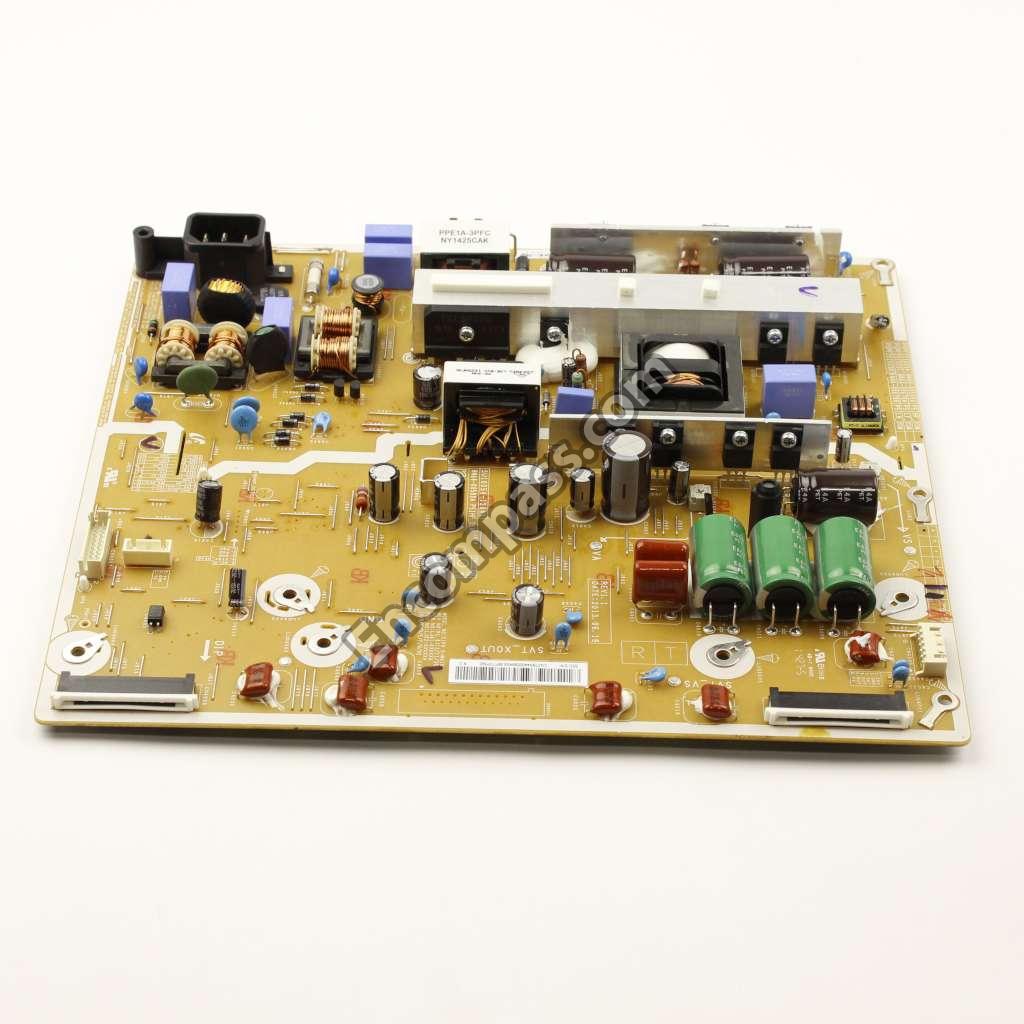

BN44-00508A	POWER SUPPLY
BN44-00444B	POWER SUPPLY
BN44-00443B	POWER SUPPLY
BN44-00510A	POWER SUPPLY
2007-008779	R-CHIP;0OHM,1%,1/16W,TP,1005
2007-007463	R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000265	R-CHIP;1.8KOHM,1%,1/10W,TP,1608
2007-000336	R-CHIP;120KOHM,1%,1/10W,TP,1608
2007-000475	R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-007617	R-CHIP;2.49KOHM,1%,1/10W,TP,1608
2007-000066	R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-008649	R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000583	R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-000691	R-CHIP;3.3MOHM,5%,1/10W,TP,1608
2007-000695	R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-000726	R-CHIP;300OHM,1%,1/10W,TP,1608
2007-000816	R-CHIP;390KOHM,1%,1/10W,TP,1608
2007-000828	R-CHIP;39KOHM,1%,1/10W,TP,1608
2007-000857	R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-008142	R-CHIP;511KOHM,1%,1/10W,TP,1608
2007-008269	R-CHIP;51KOHM,1%,1/16W,TP,1005
2007-001125	R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015	R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168	R-CHIP;75OHM,5%,1/4W,TP,3216
2007-007238	R-CHIP;8.25KOHM,1%,1/10W,TP,1608
2011-001587	R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP
2011-001506	R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001482	R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001449	R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262	R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001519	R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001261	R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527	R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,

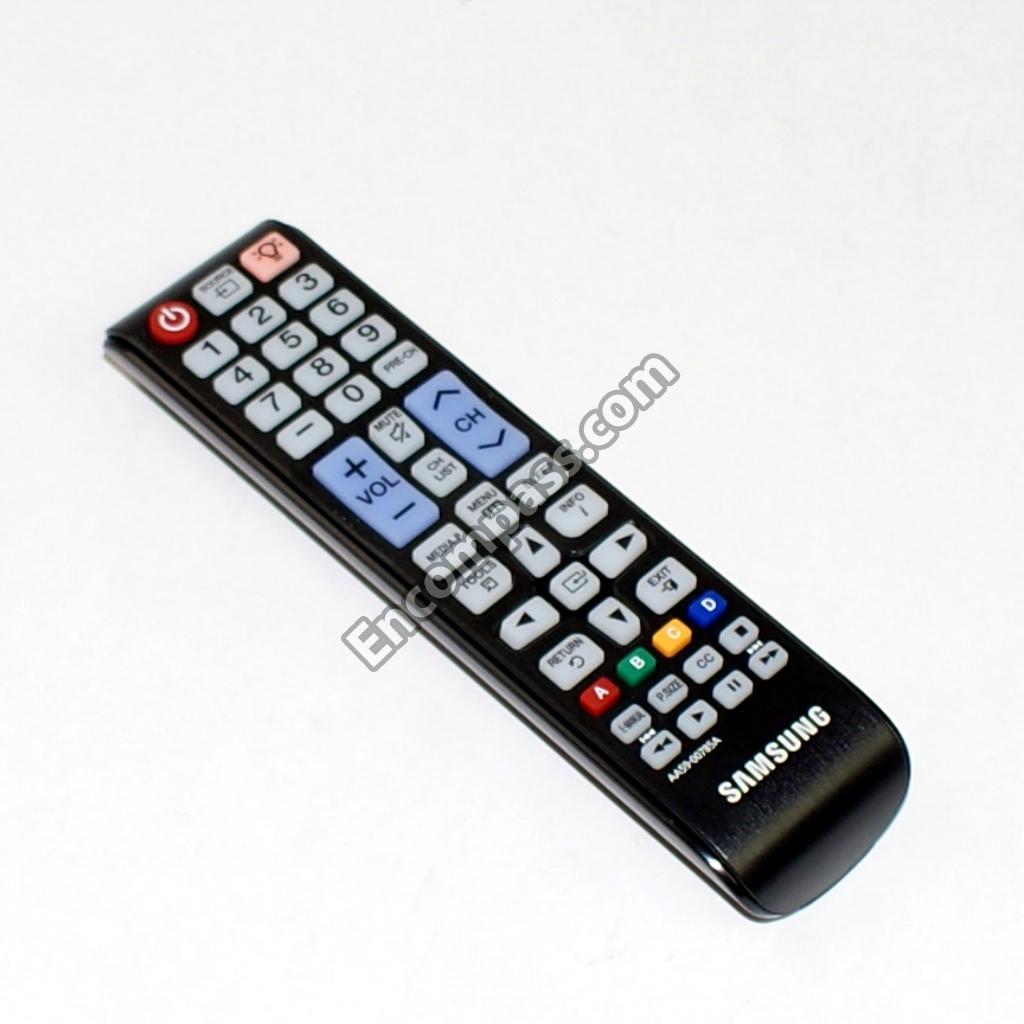

AA59-00785A	REMOTE;TM1240,45,3.0V,F5300, F5350, F45
6001-002606	SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR
6003-001782	SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR
6003-001439	SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC
6003-001807	SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH
BN60-00288B	SPACER-SCREEN;43PD490,SPONGE,640,NTR,T1.

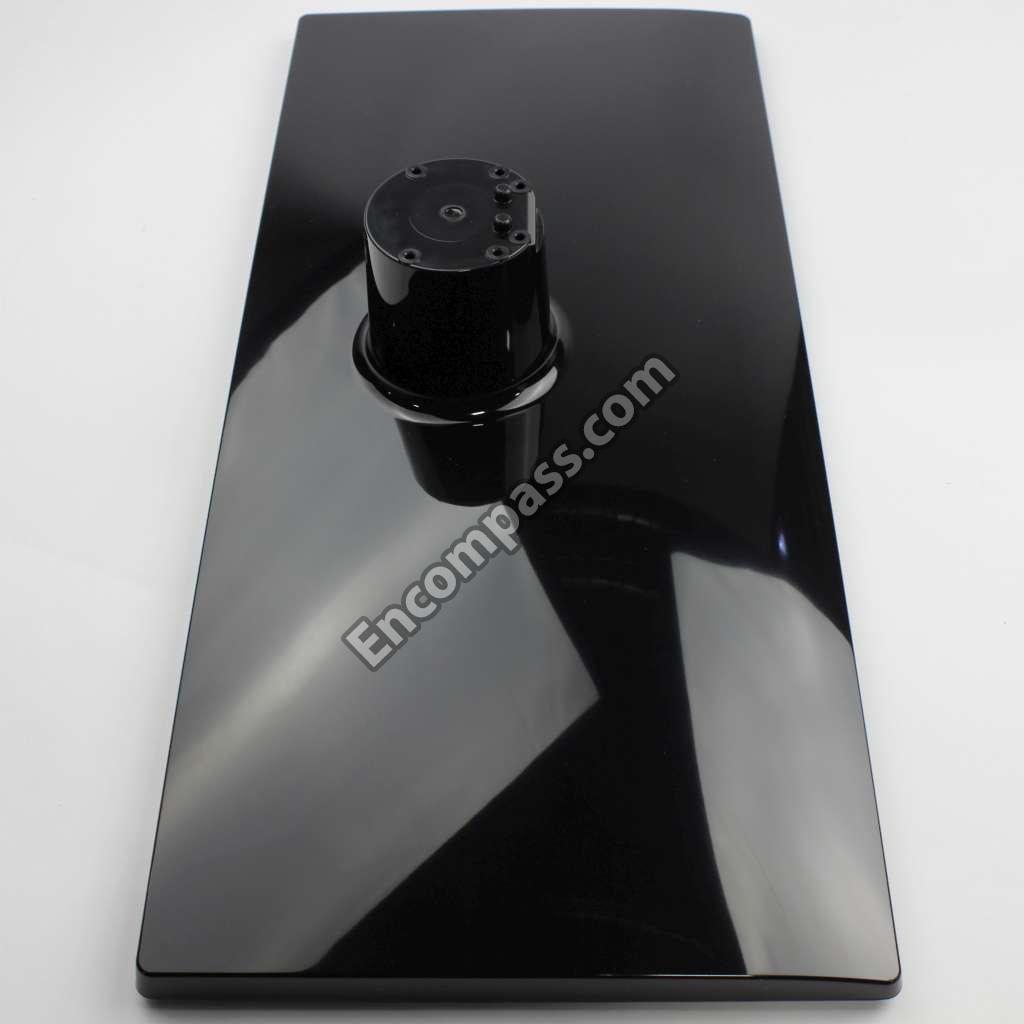

BN96-26537F	STAND BASE;PF4500,ABS,HB, BK0007,

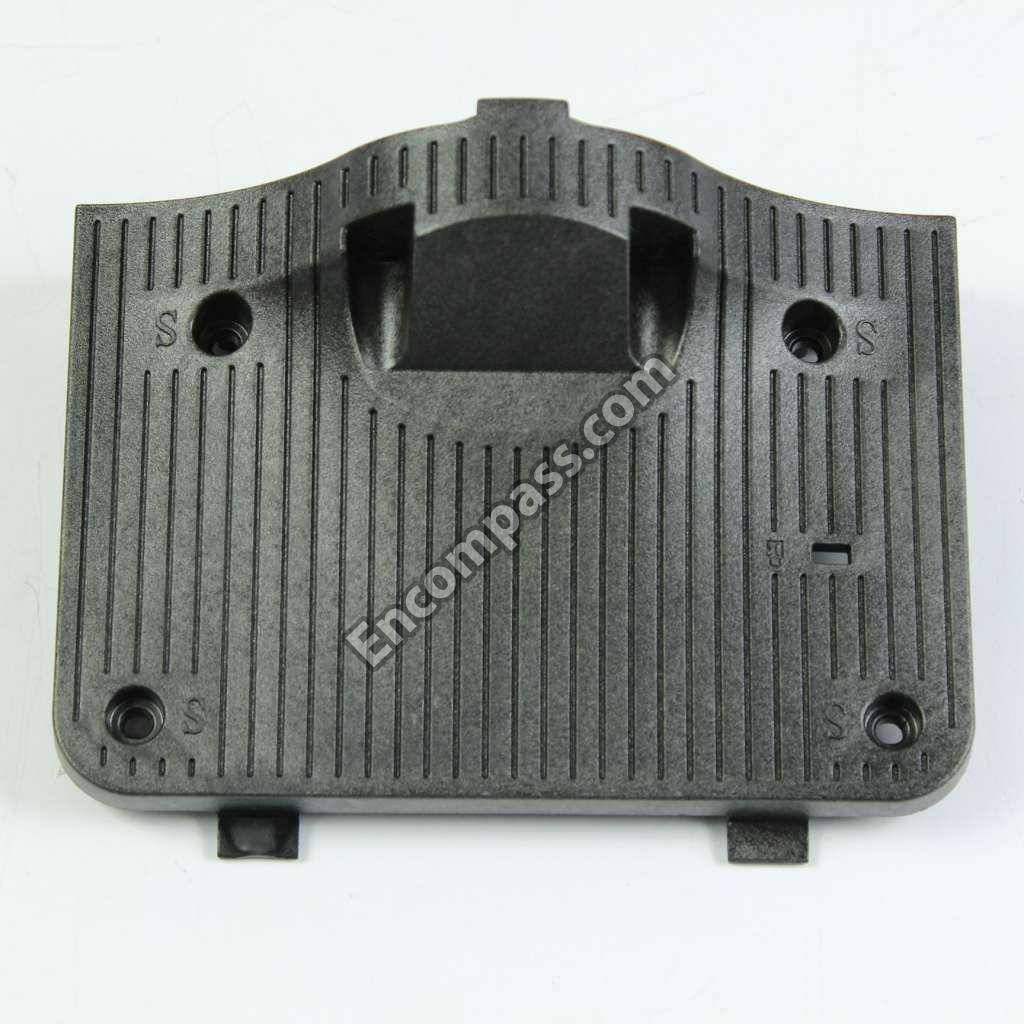

BN96-25971A	STAND SUPPORT;PF4500 51",PC+G/F20%,
0501-000279	TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000445	TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00247B	TUNER;GVTH-N7B/FNS,GVTH-N7B/FNS,VSB-HALF
1405-001271	VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1

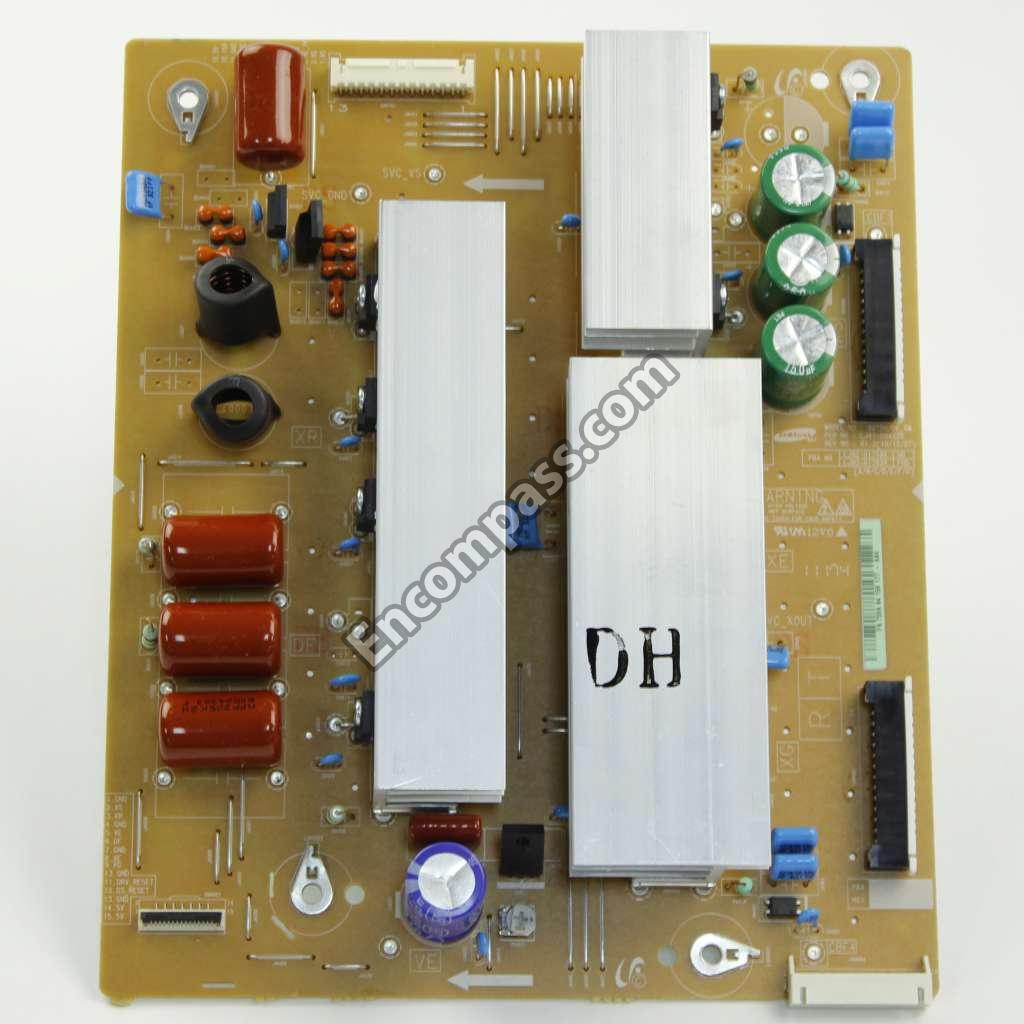

BN96-16516A	X-MAIN BOARD
BN96-25190A	X-Y MAIN BOARD;51FH,X-Y MAIN,LJ92-0

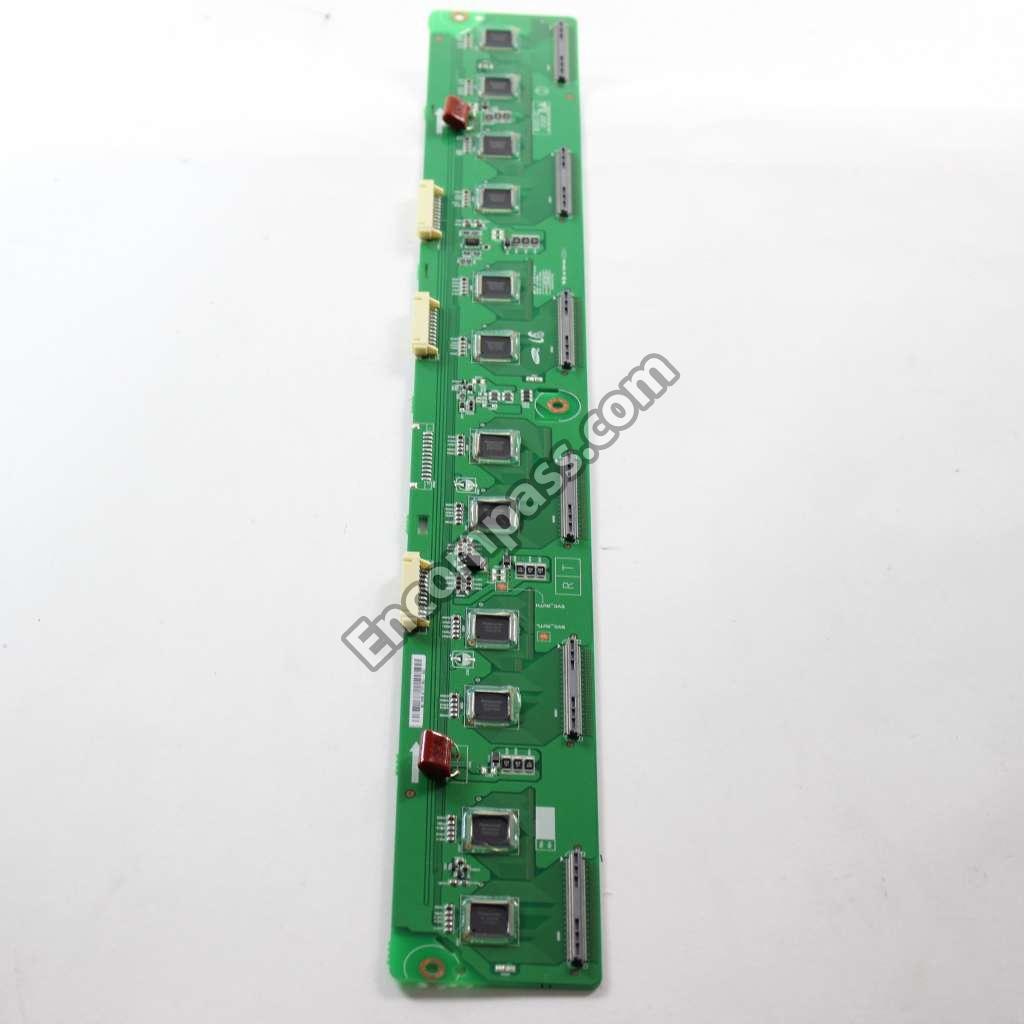

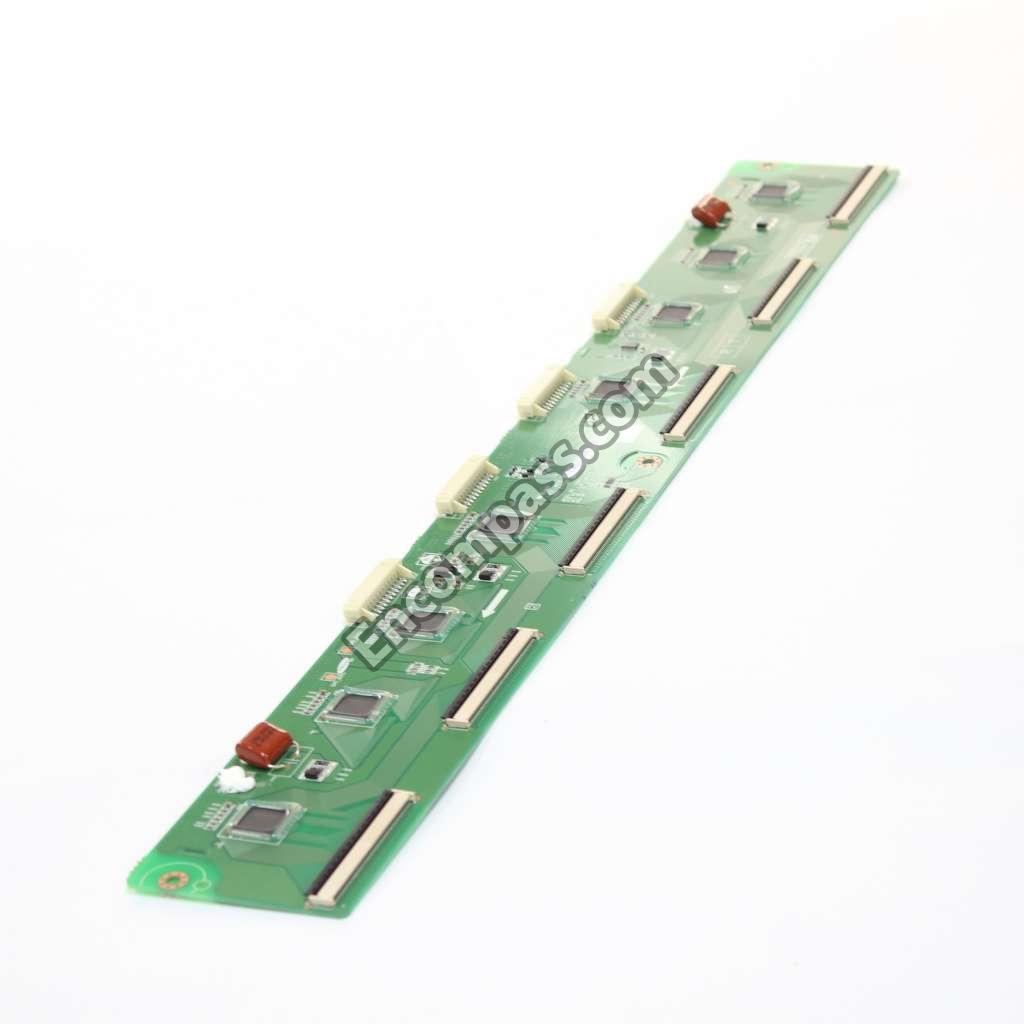

BN96-16526A	Y-BUFFER
BN96-16519A	Y-BUFFER BOARD
BN96-22110A	Y-BUFFER BOARD

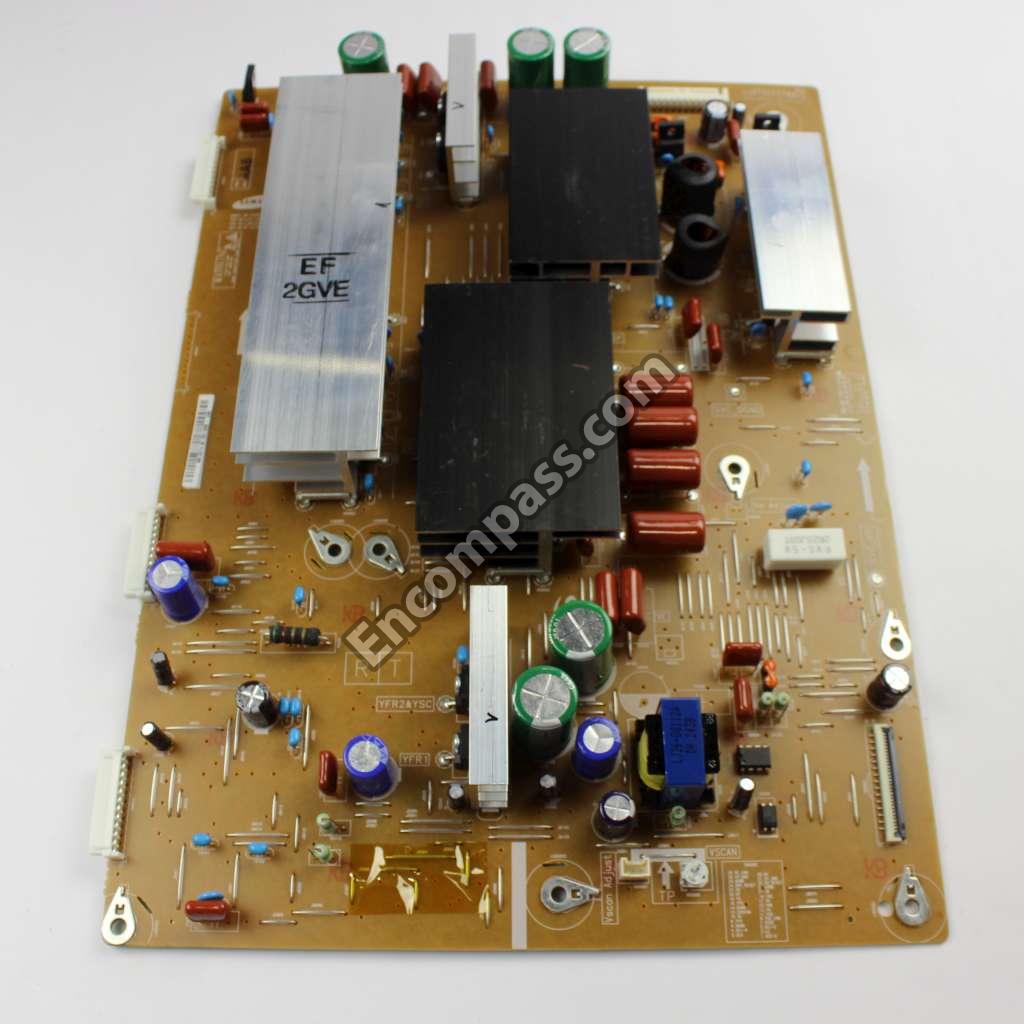

BN96-16517A	Y-MAIN BOARD
BN96-22107A	Y-MAIN BOARD
