Manufacturer
Samsung
Model Number
PN51F5500AFXZA
Description

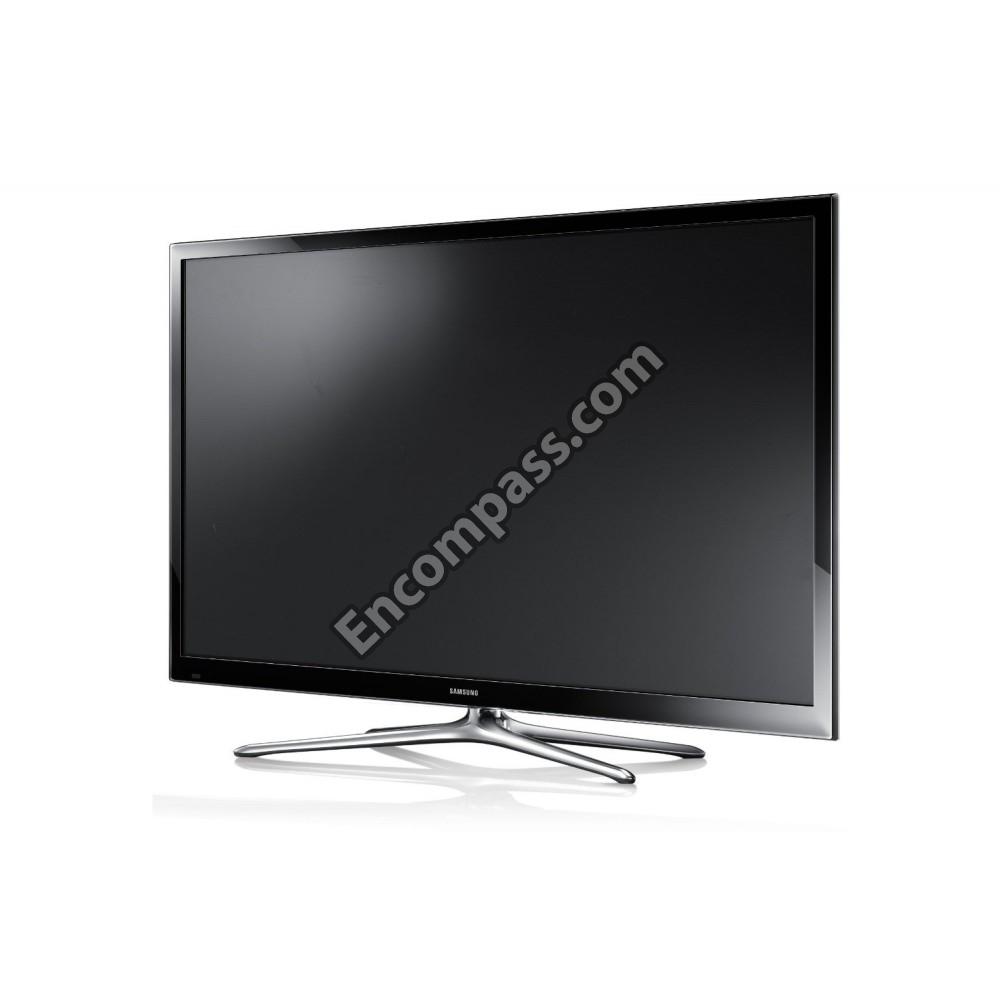

51-inch Class (50.7-inch Diag.) Plasma 5500 Series
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3D GLASSES ;SSG-5150GB,IN |
|
|
ASSY BRACKET P-WALL;PD450/490,SECC |
| BN96-25957A | ASSY COVER P-FRONT;PF5500 51",MABS/PMMA+ |
| BN96-25963P | ASSY COVER P-REAR;PF5500 51",NORTH AMERI |
|
|
ASSY GUIDE P-STAND;PF4900 43",PC+G/F20%, |
| 3708-003145 | CONNECTOR-FPC/FFC/PIC;30P,1.0MM,SMD-A+DI |
| 3708-003143 | CONNECTOR-FPC/FFC/PIC;60P,0.5MM,SMD-A+DI |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A+DI |
|
|
CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
|
|
CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
|
|

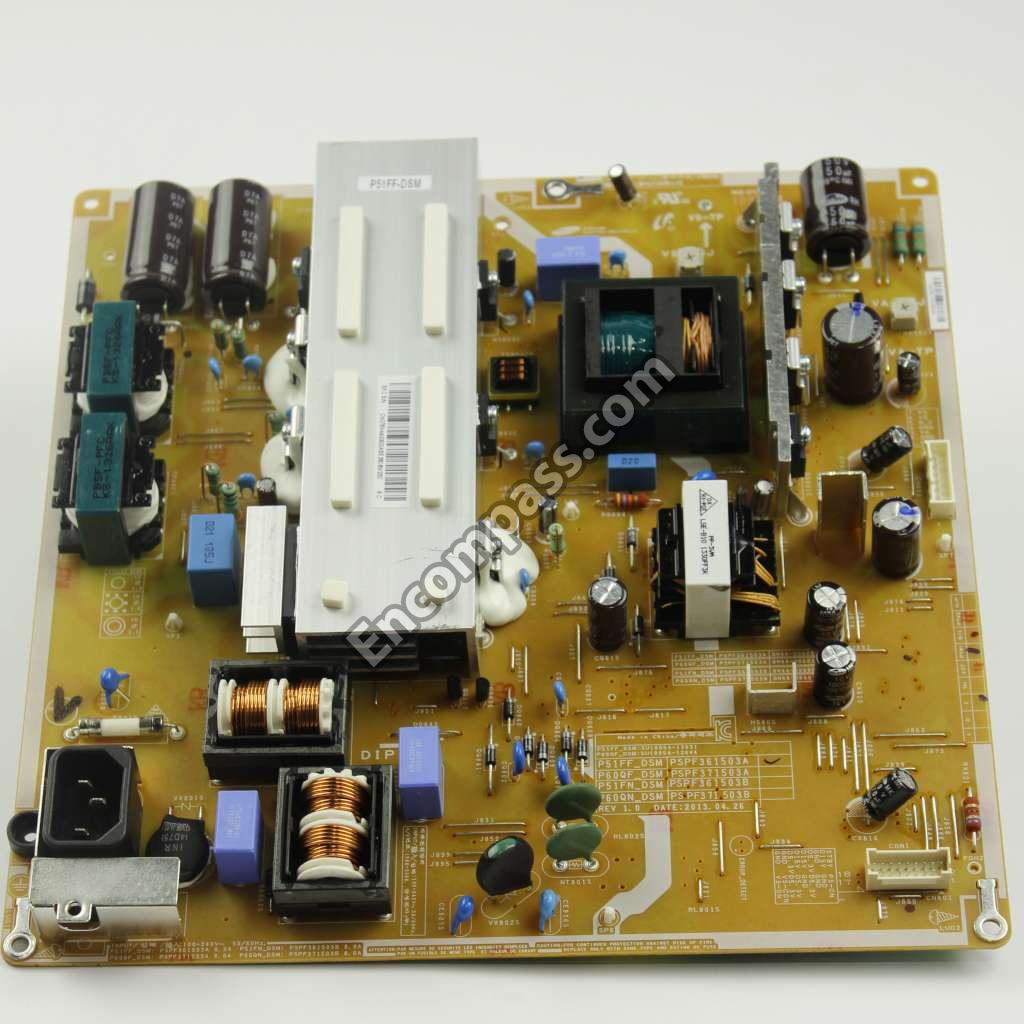

DC POWER SUPPLY -PDP;P51FF_DSM,P51FF_DSM,AC/DC,-20 |
|
|
FUNCTION PCB ASSY |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
| 3711-008454 | HEADER-BOARD TO CABLE;BOX,22P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
|
|
HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N |
| 1203-007502 | IC-DC/DC CONVERTER;AOZ3011PI,SO-8,8Z30,4 |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 0903-001863 | IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48 |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
|
|

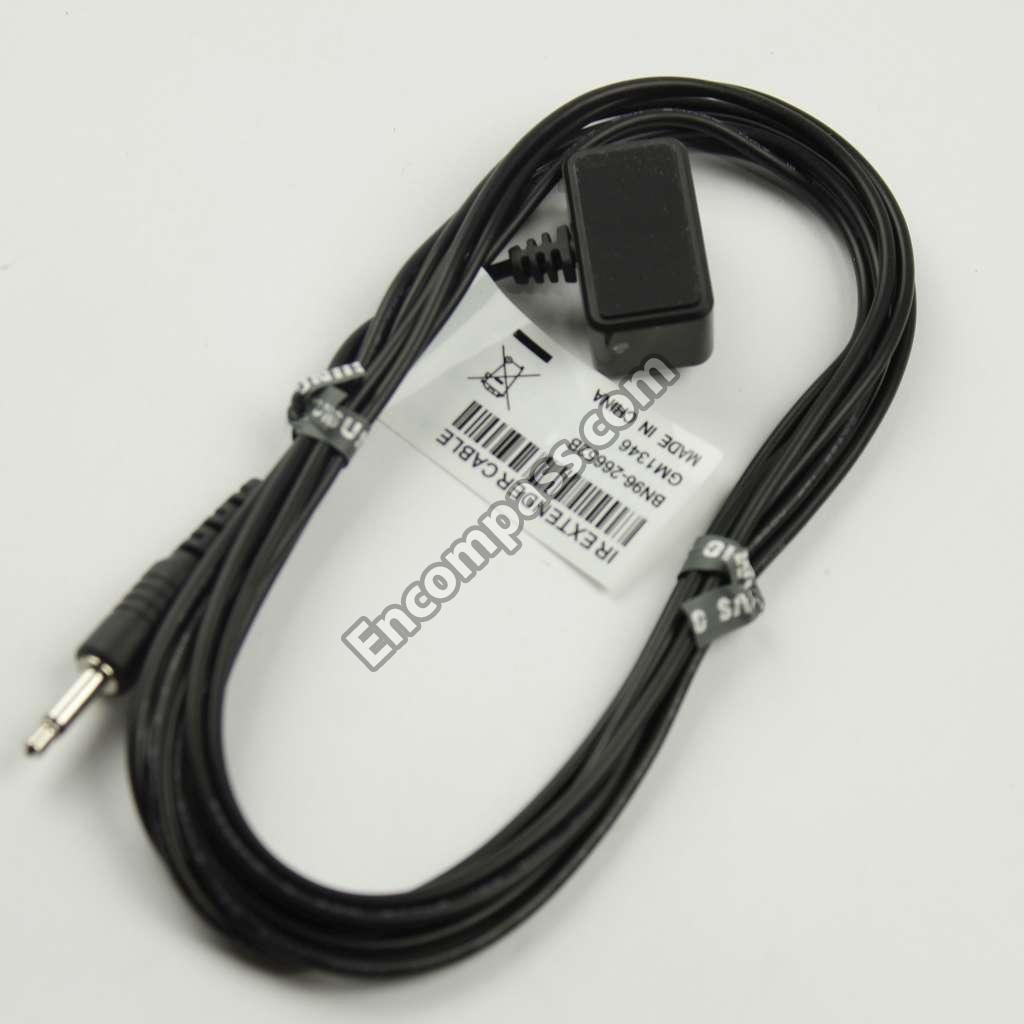

IR BLASTER CABLE |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003216 | JACK-PHONE;1P/7C,P-BRONZE,BLACK,SMD-A(DI |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
| 3722-003225 | JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A,13.1X |
|
|
LEAD CONNECTOR;PN51F5500,FLAT CONNECTOR, |

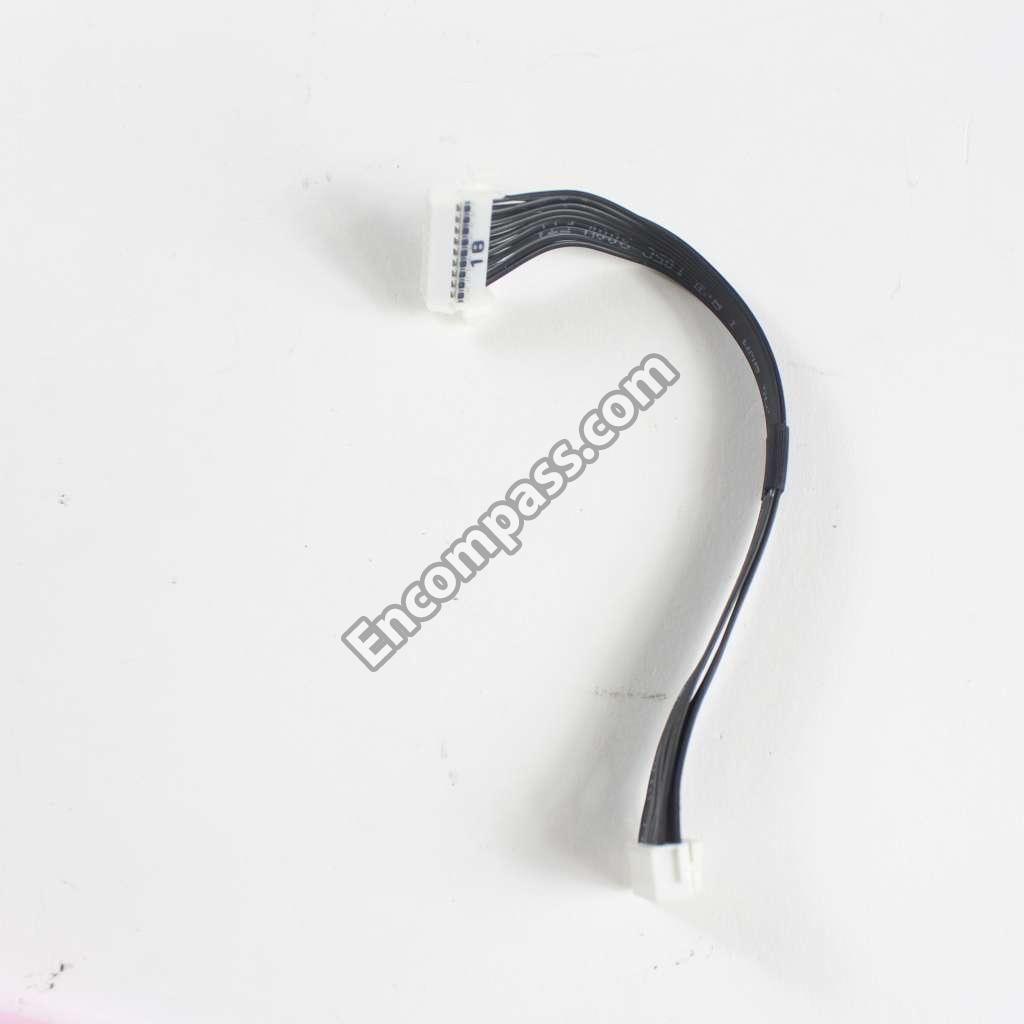

| BN39-01761A | LEAD CONNECTOR;PN51F5500,LEAD CONNECTOR, |
|
|

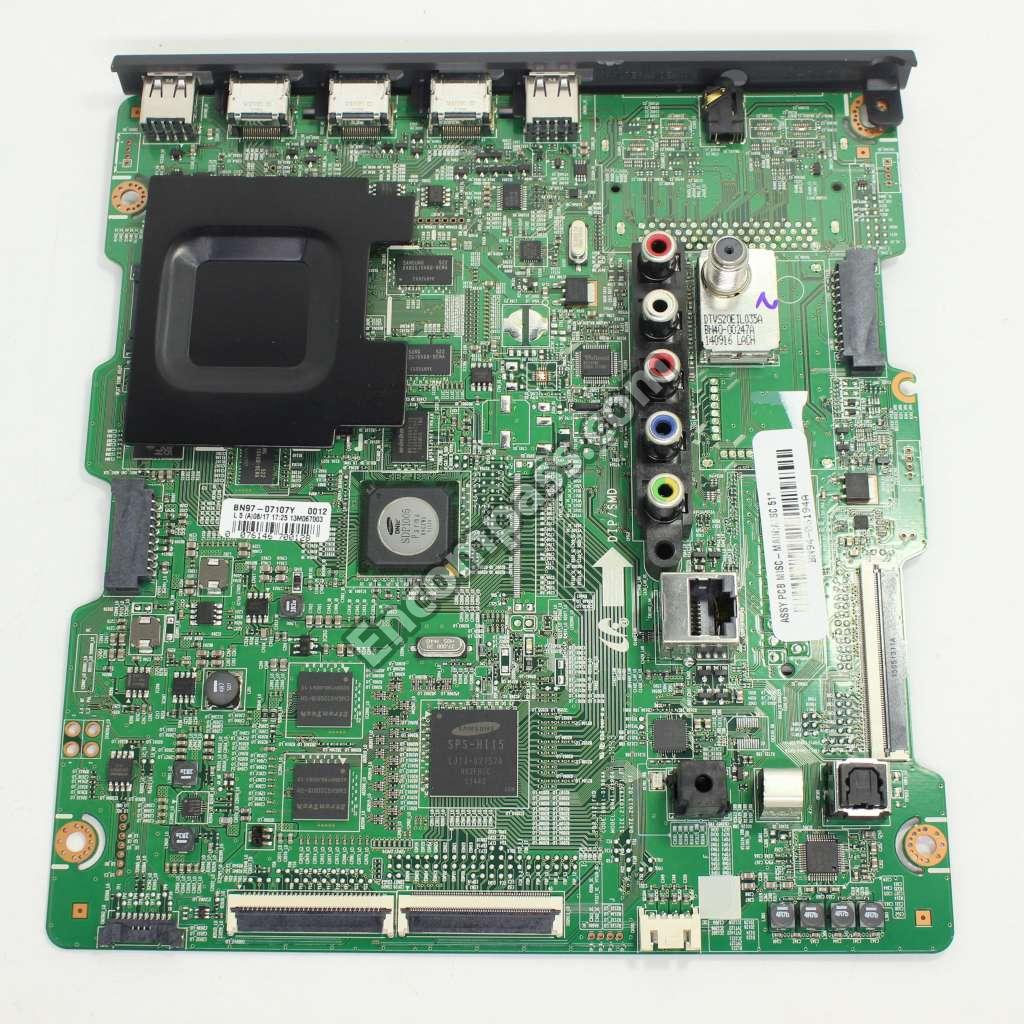

MAIN BOARD PCB ;ATSC 51" |
|
|
POWER CORD;DT,US,NAME 5-15P,IEC60320 |
|
|

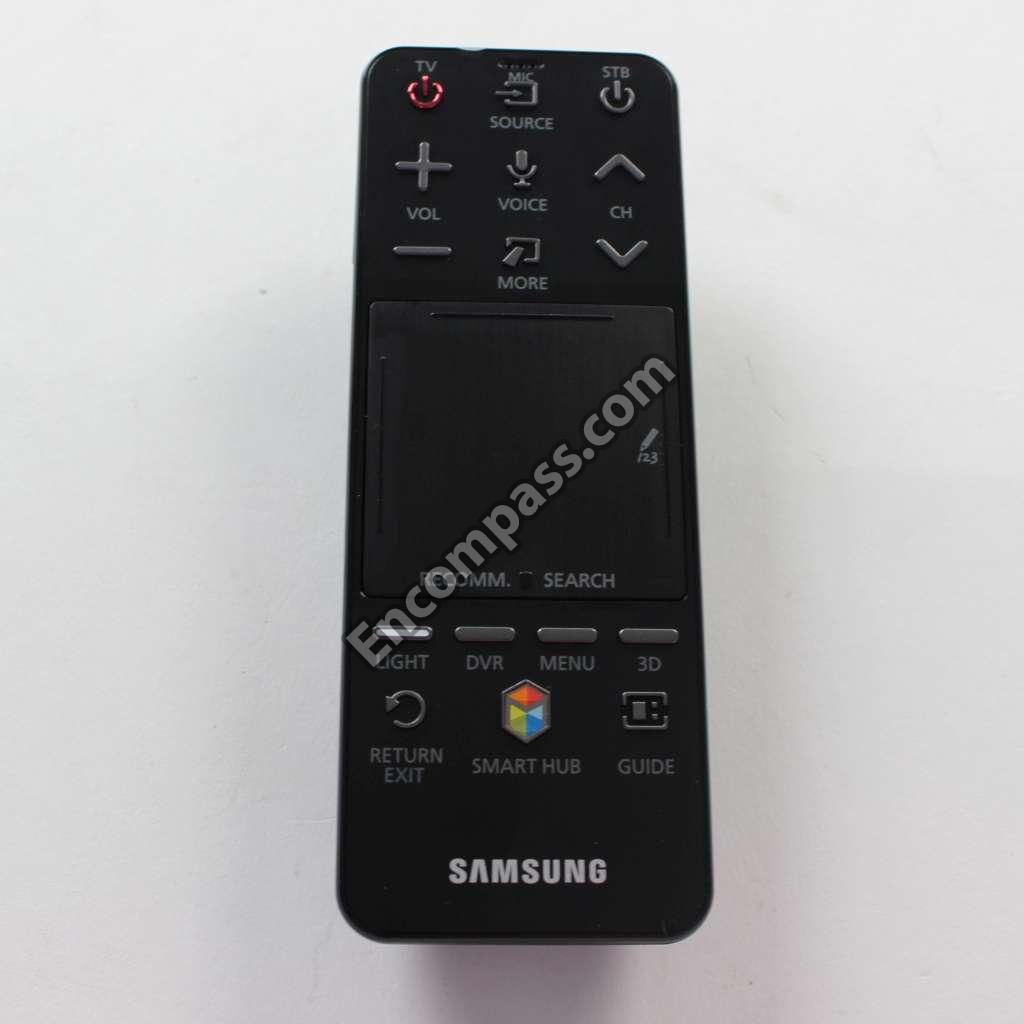

REMOTE CONTROL -SMART TOUCH CONTROL;TM1360,14,80 |
|
|
RF 7 BLUETOOTH MODULE PCB |
|
|
SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| BN60-00288B | SPACER-SCREEN;43PD490,SPONGE,640,NTR,T1. |
|
|

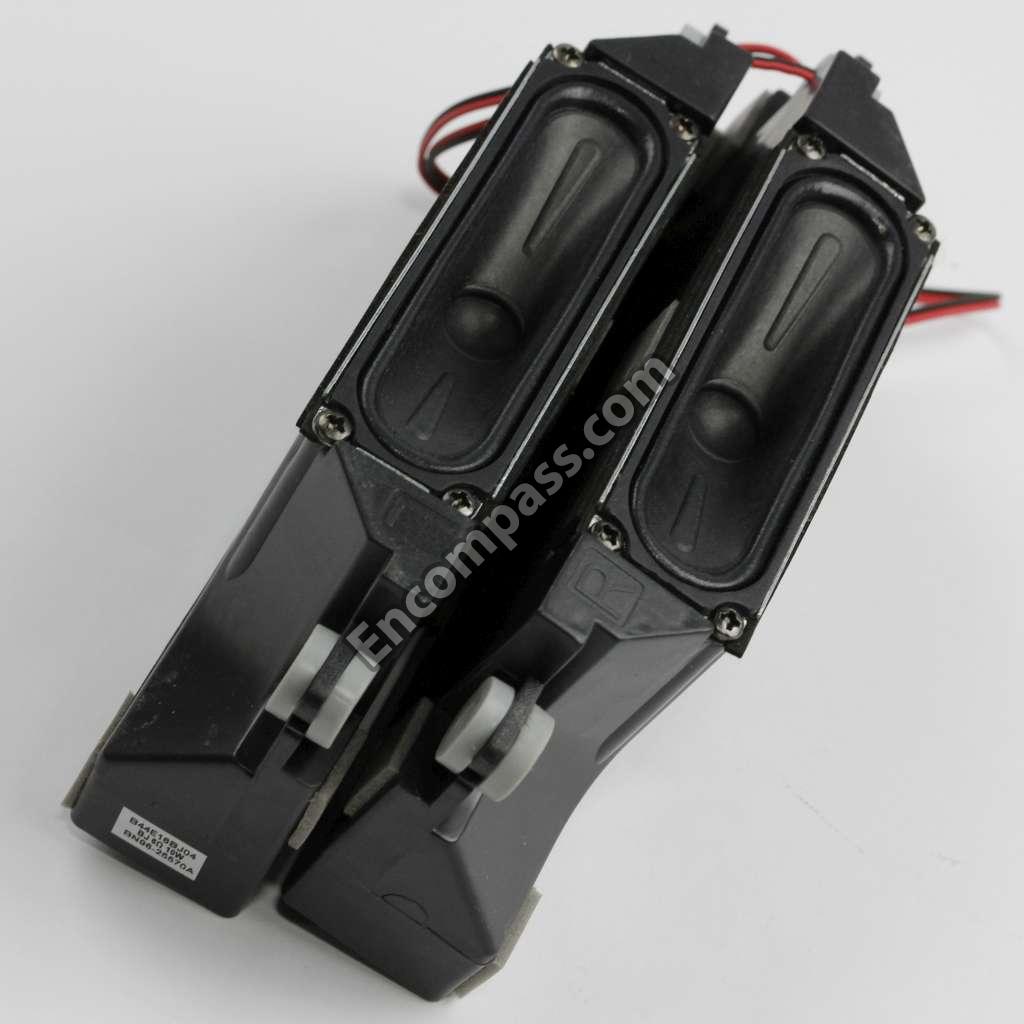

SPEAKER 6 OHM 10 WATT |
|
|

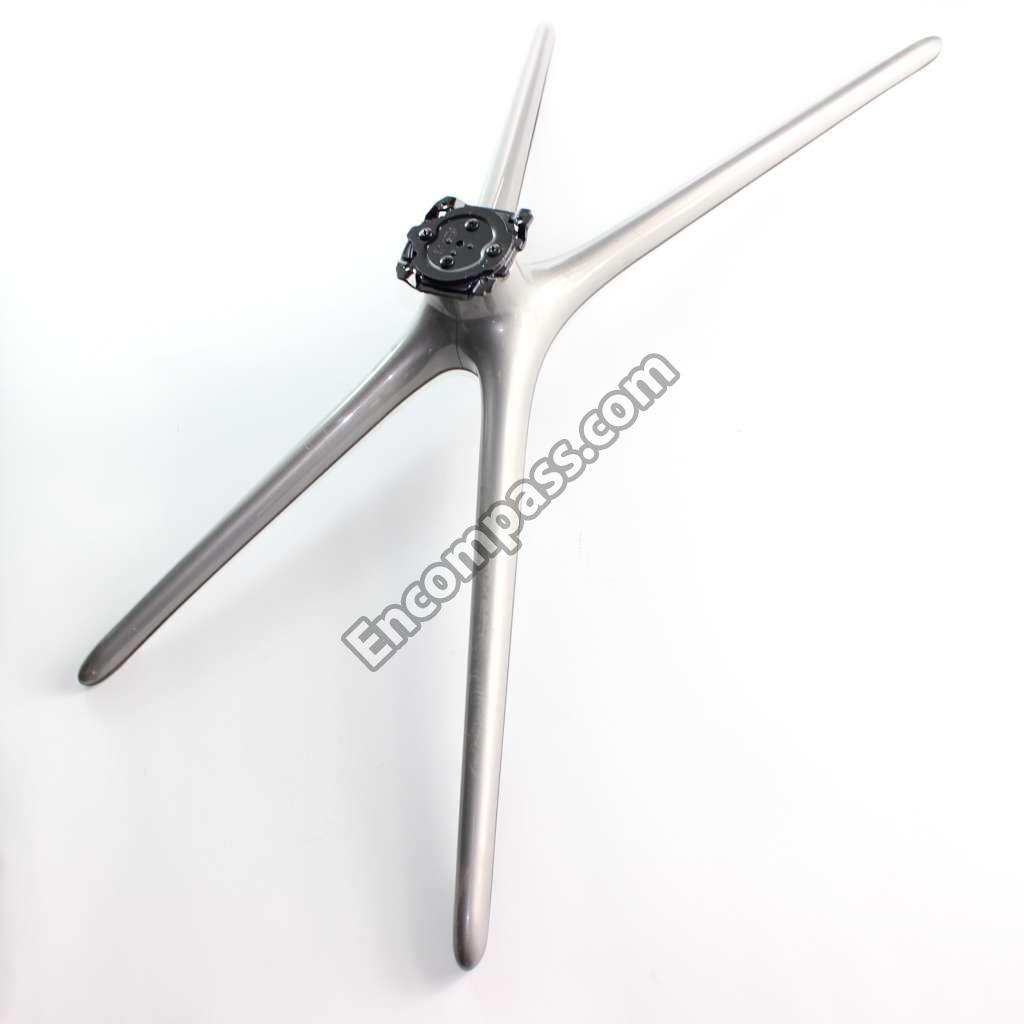

STAND BASE |
| BN40-00247A | TUNER;DTVS20EIL035A,DTVS20EIL035A,VSB-HA |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
|
|

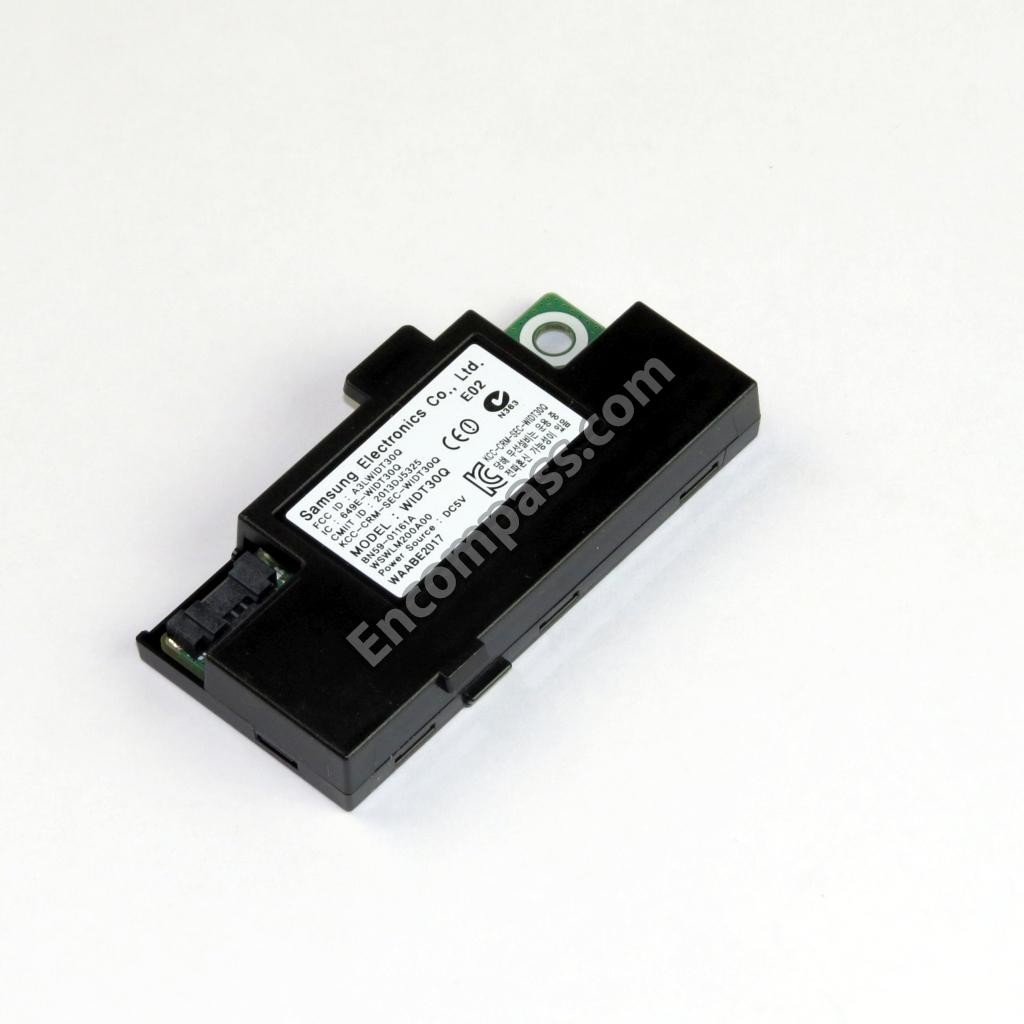

WIFI MODULE PCB |
|
|

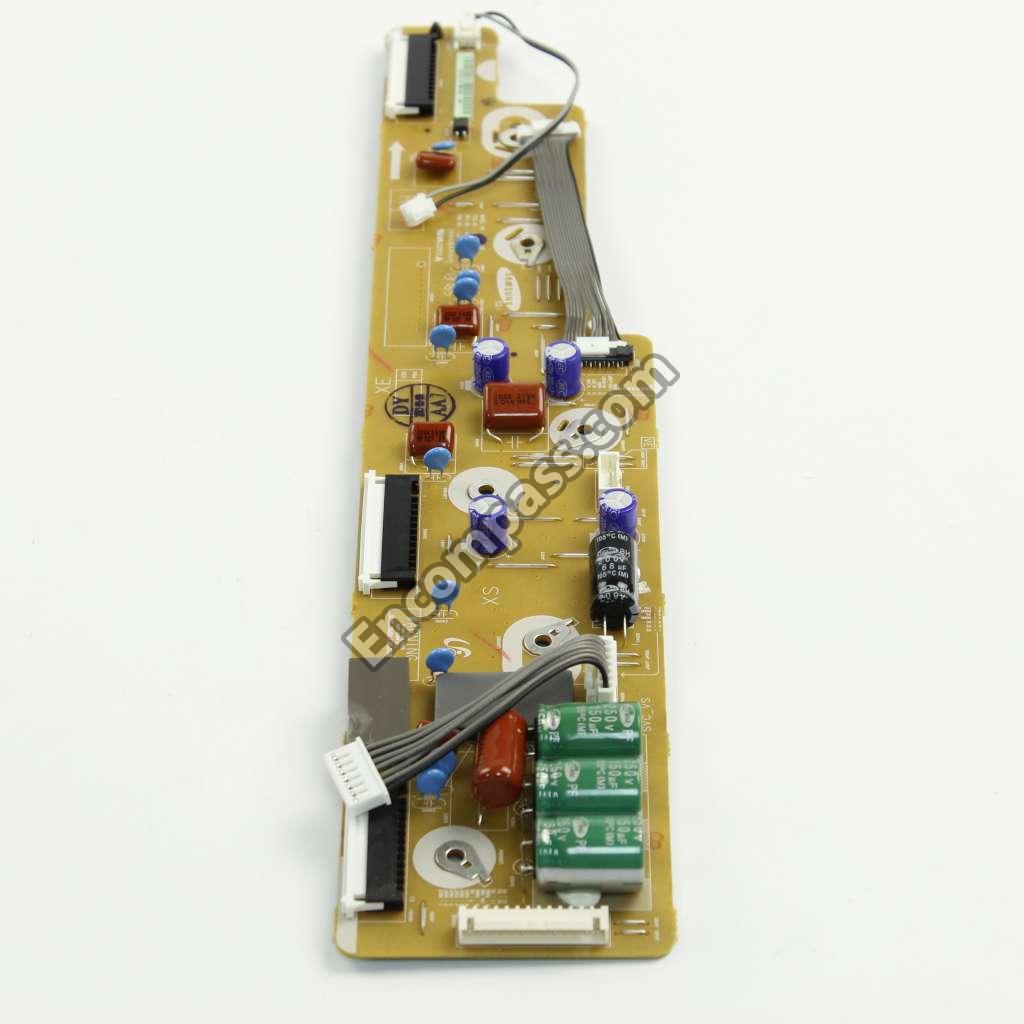

X-MAIN PCB ,LJ92-01941 |
|
|

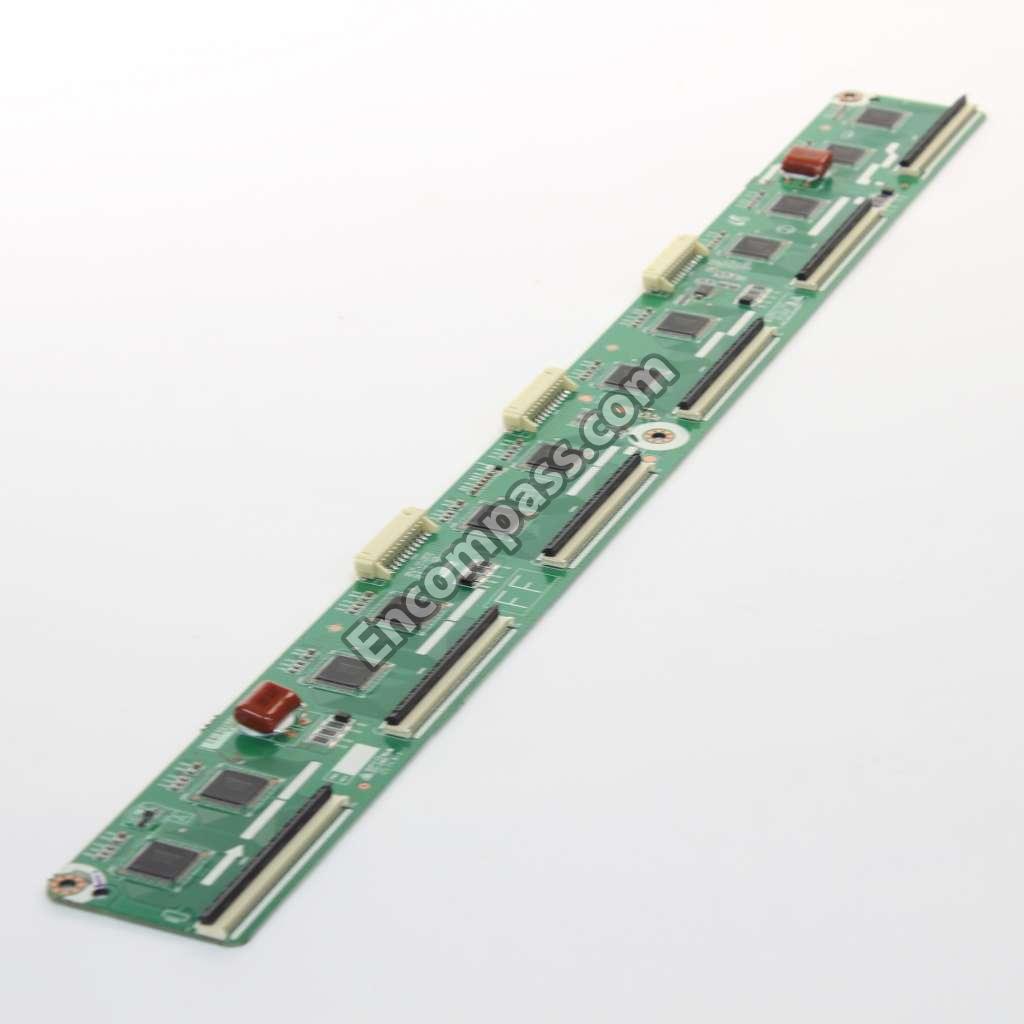

Y-BUFFER UPPER PCB |
|
|

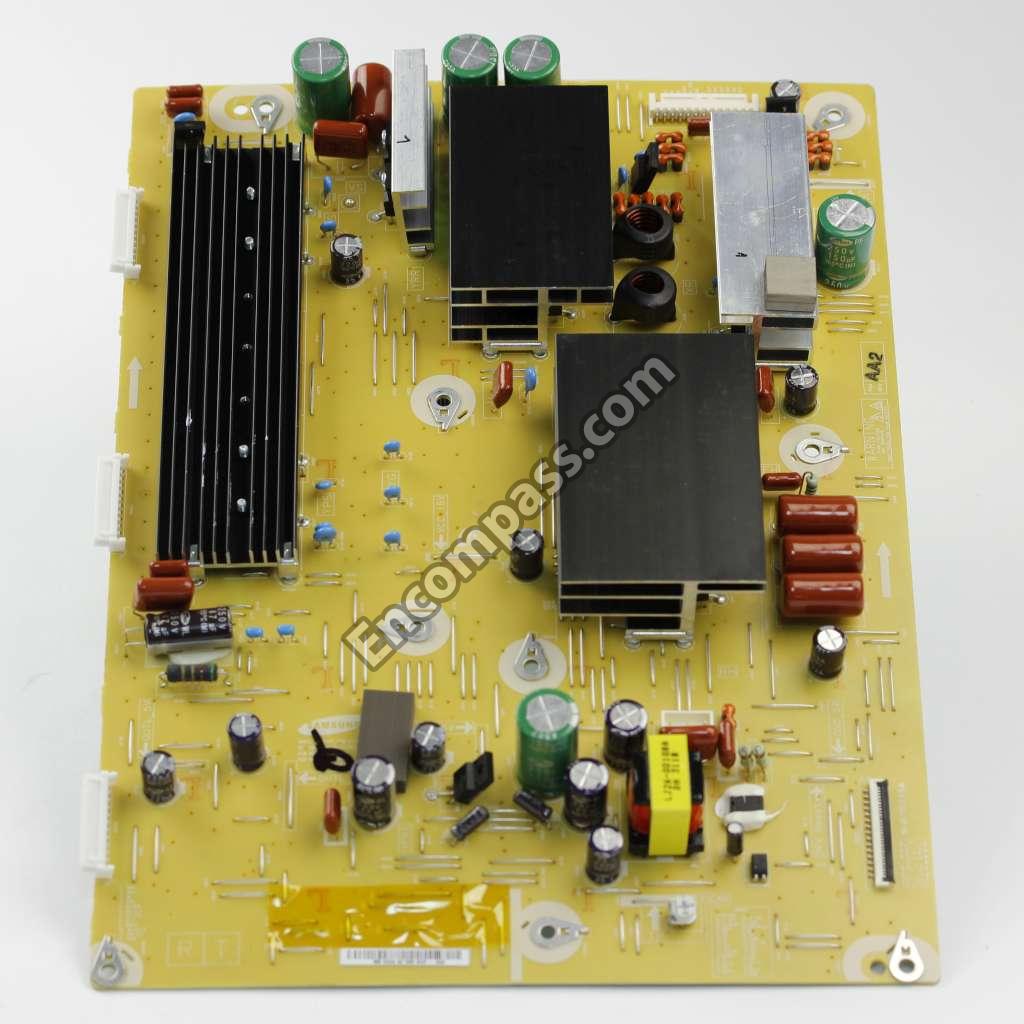

Y-MAIN PCB,LJ92-01943 |
