Manufacturer
Samsung
Model Number
PN51F8500AFXZA
Description

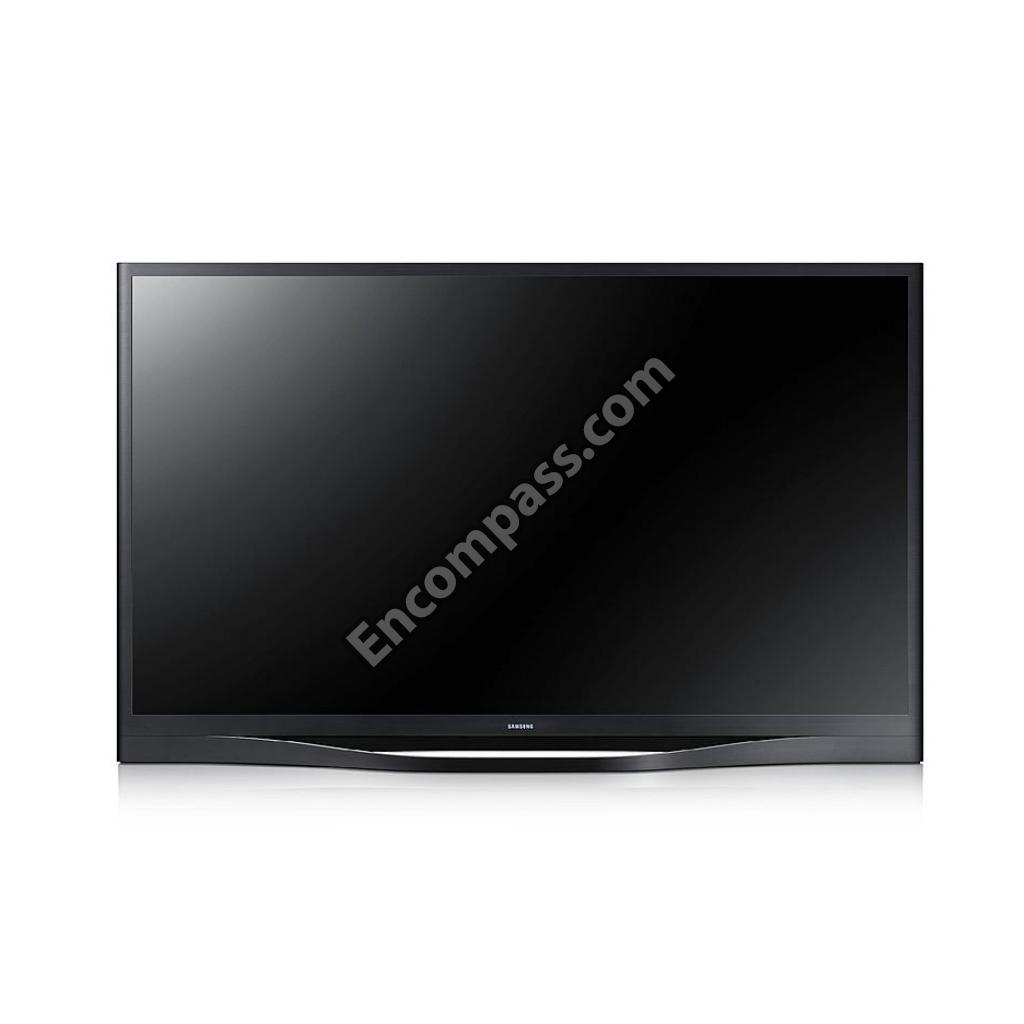

51-inch Plasma Smart Tv - 1080p (fullhd)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY ACCESSORY 3D GLASSES;SSG-5150GB,IN |
|
|
ASSY BOARD P-FUNCTION;PF43F4900,SJ13-01- |
|
|
ASSY BOARD P-RF-MODULE;BLUETOOTH MODULE, |
|
|
ASSY BRACKET P-WALL;PE6500 51,SECC,T1.6 |

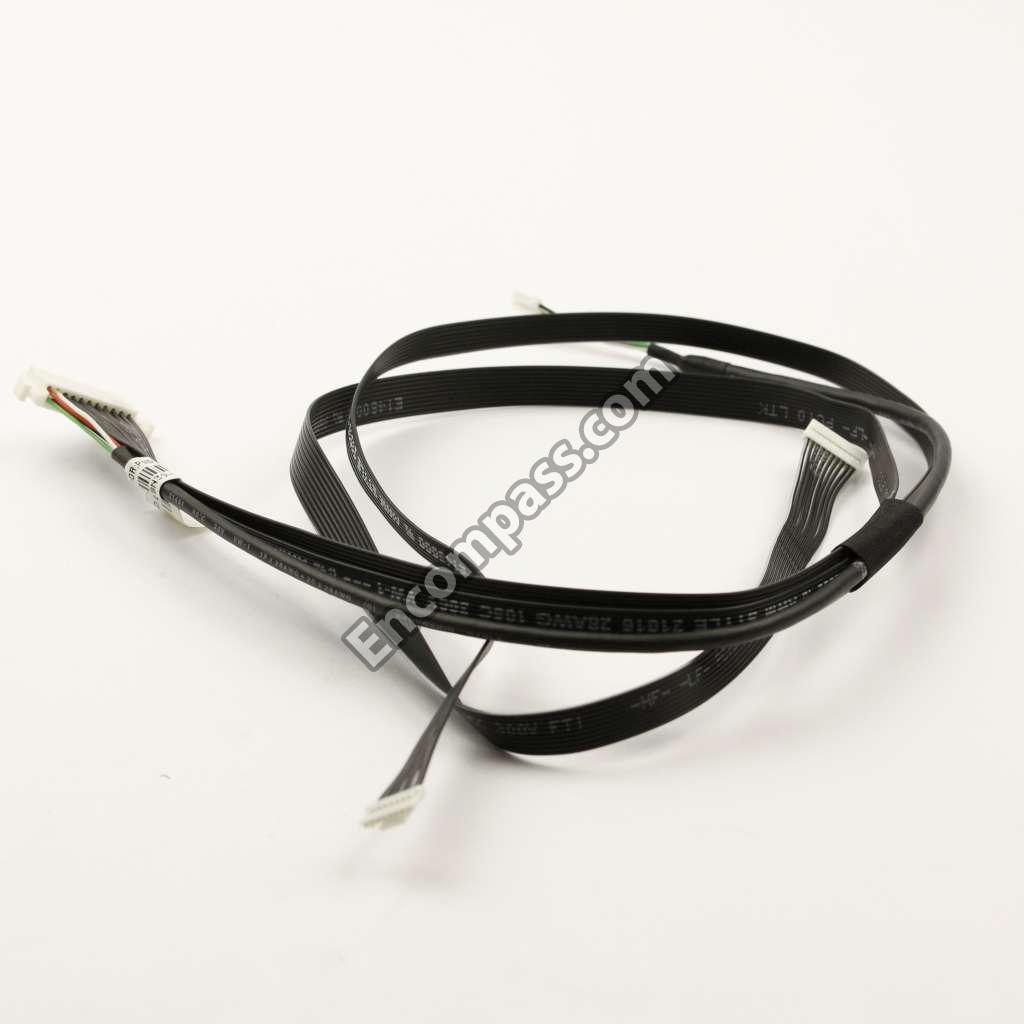

| BN96-26671D | ASSY CABLE P-FFC;PN51F8500,FFC,NH,595MM, |
|
|
ASSY CABLE P;IR BLASTER,IR BLASTER CABL, |
| BN96-25975A | ASSY COVER P-FRONT;PF8500 51",PMMA+PMMA/ |
| BN96-25978A | ASSY COVER P-REAR;PF8500 51",PCM,T0.4,BK |
| BN96-27952A | ASSY COVER P-SPEAKER,DECO;PF8500 51",W/W |
|
|

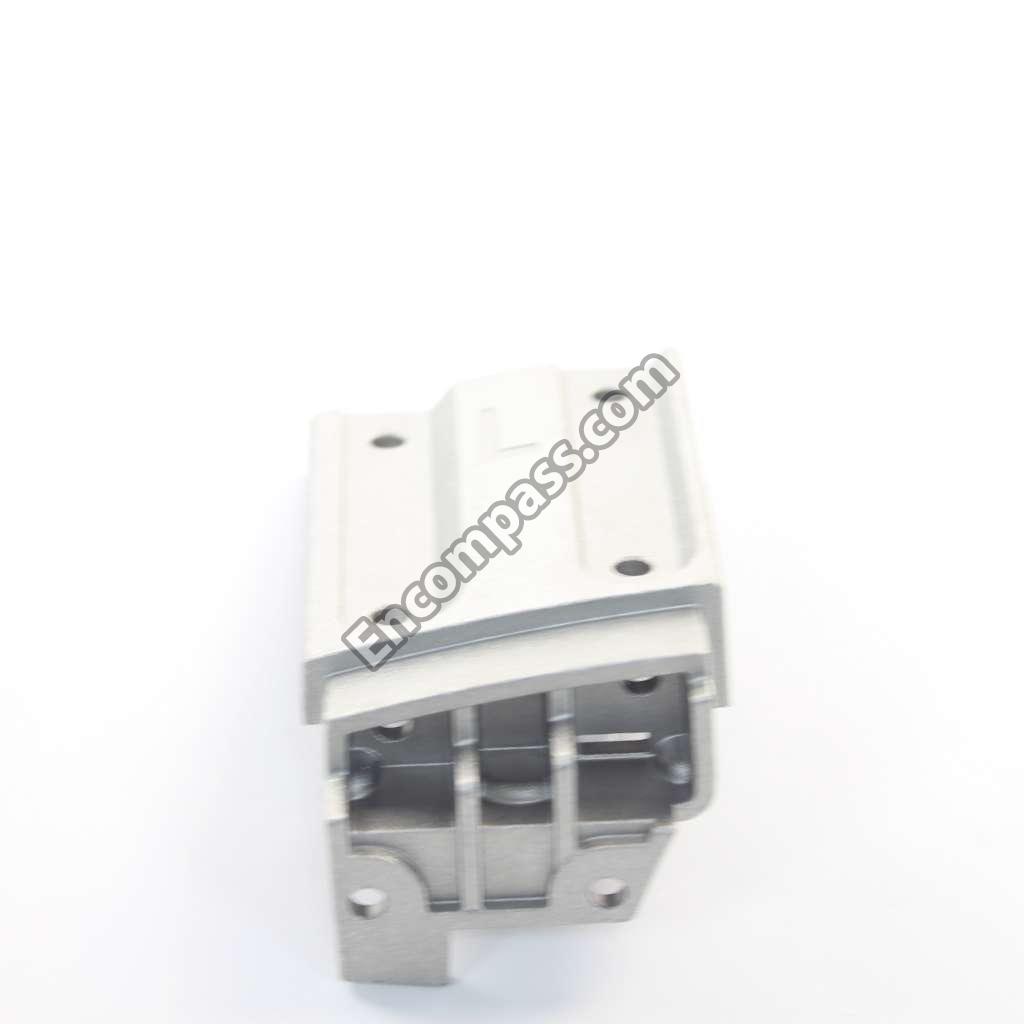

ASSY GUIDE P-STAND L;PF8500 51",AL DIECA |
|
|

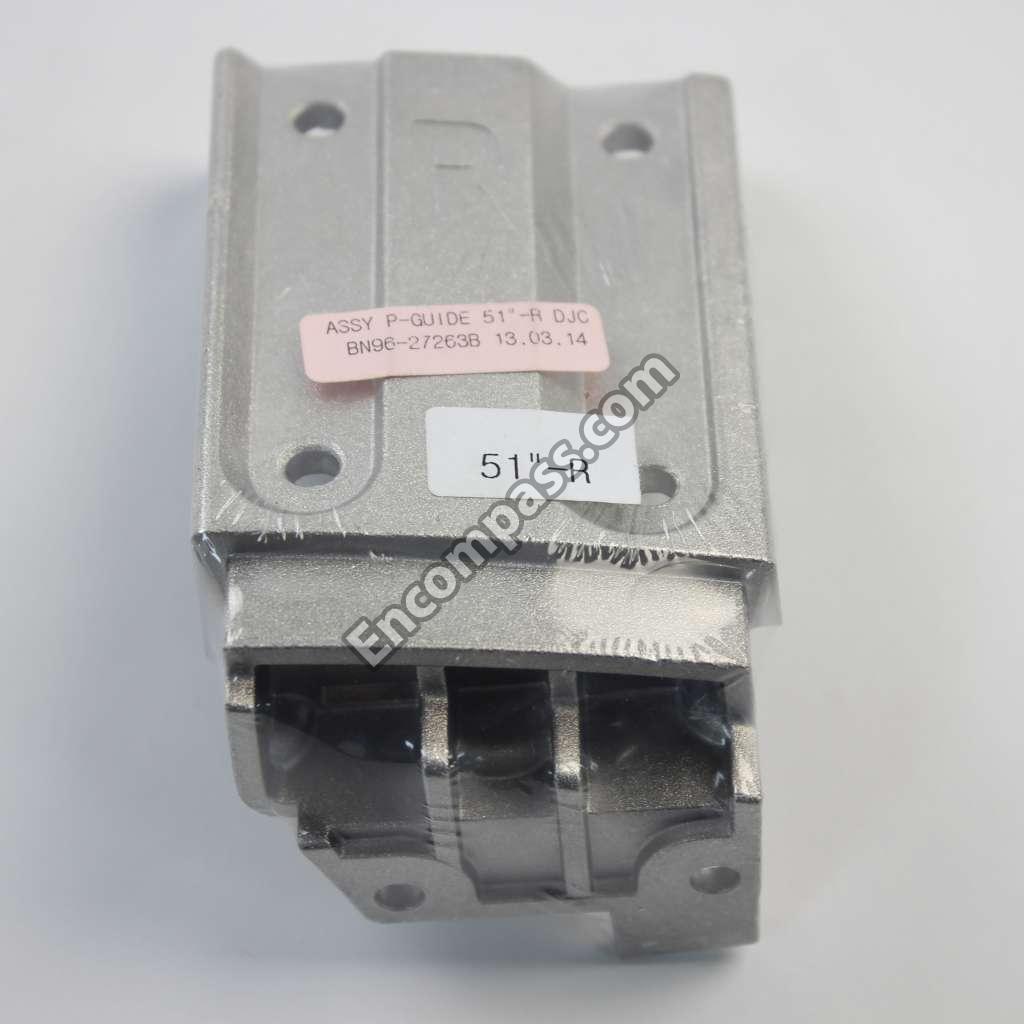

ASSY GUIDE P-STAND R;PF8500 51",AL DIECA |
| BN96-26578A | ASSY MISC P-AQUILA-8;AQUILA-8,TV CAMERA; |
|
|

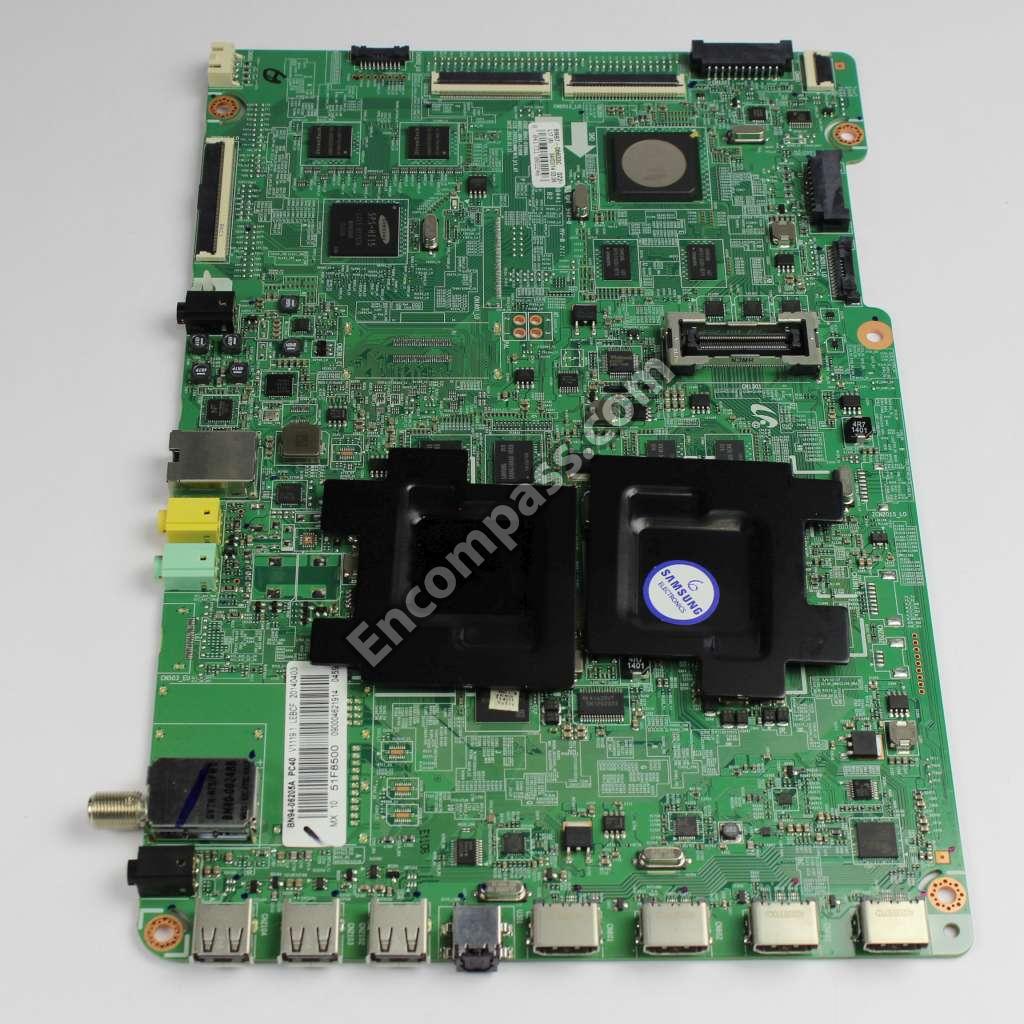

ASSY PCB MISC-MAIN;PN51F8500AFXZA, PN51F |
|
|

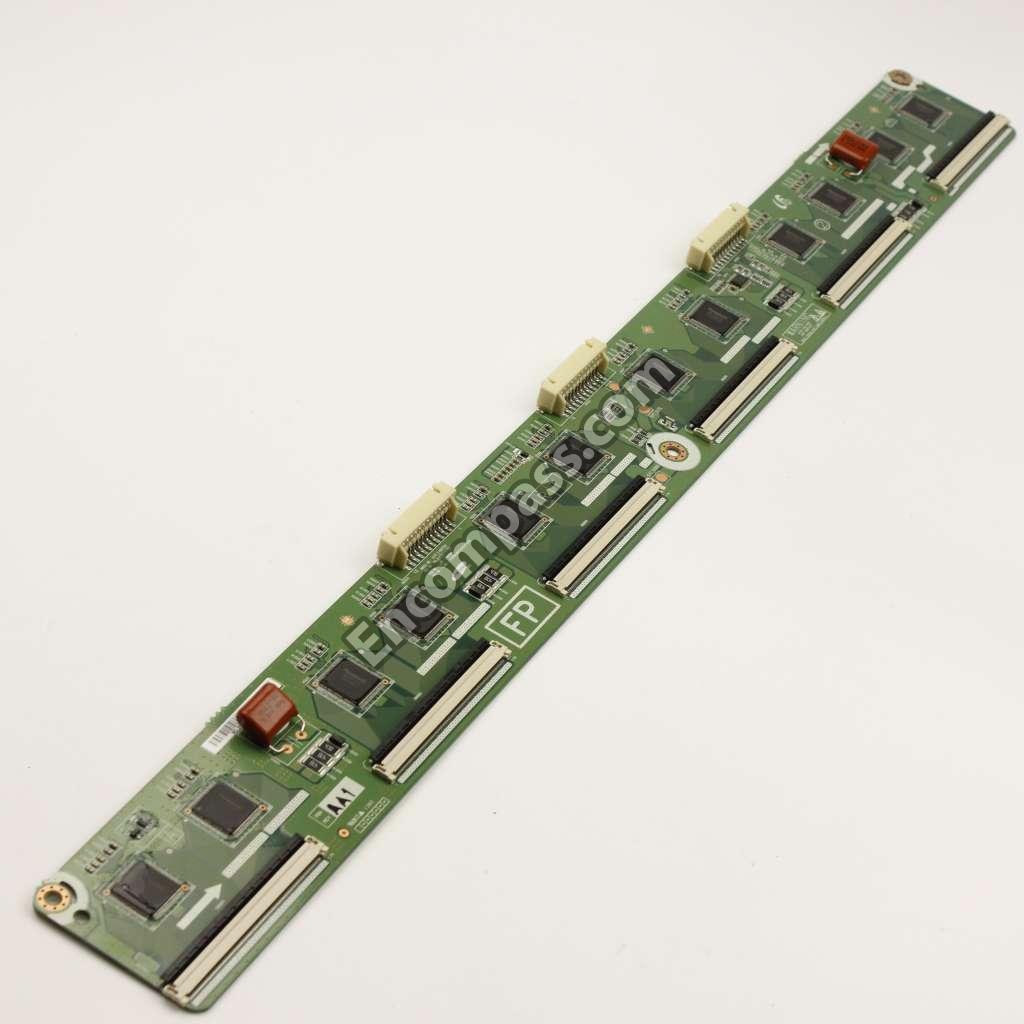

ASSY PDP P-LOGIC E-BUFFER;51FP,LOGIC E-B |
|
|
ASSY PDP P-LOGIC F-BUFFER;51FP,LOGIC F-B |

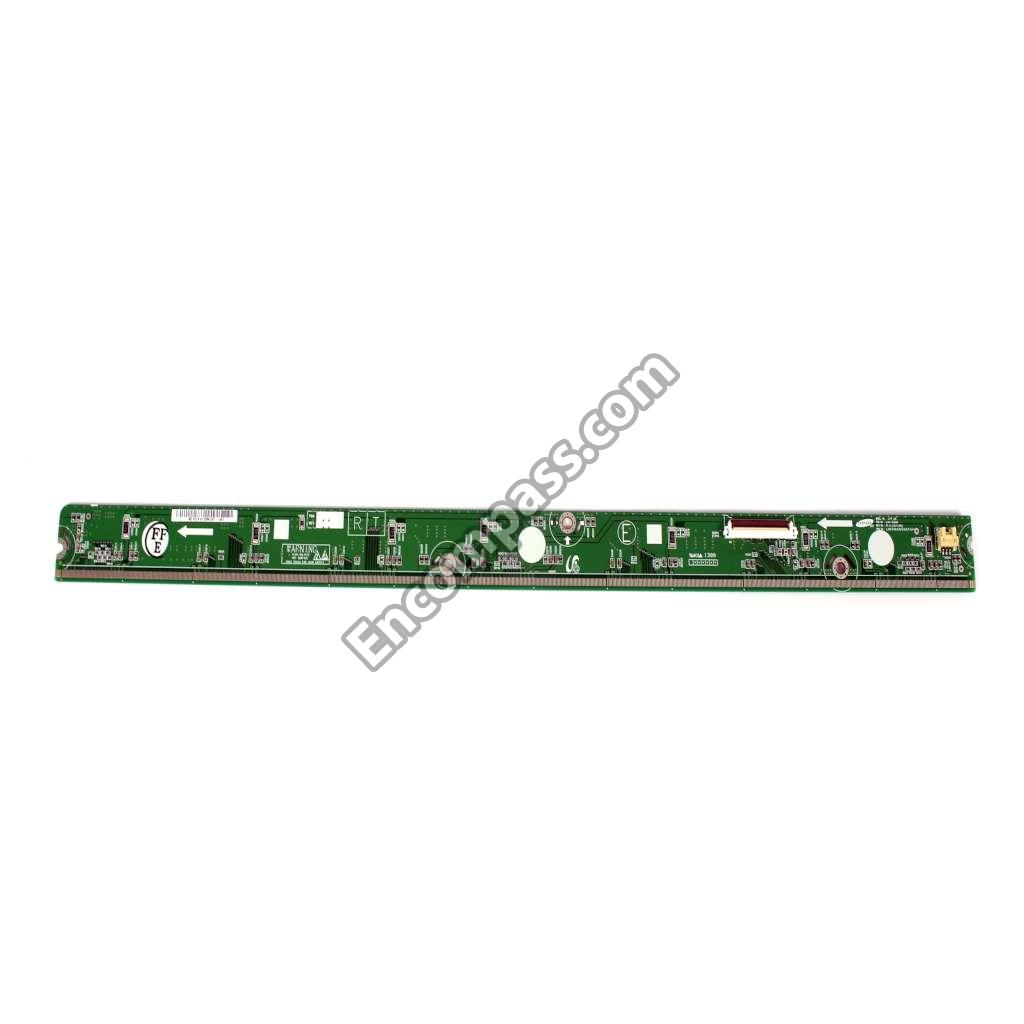

| BN96-25202A | ASSY PDP P-X-BUFFER;51FP,X-BUFFER,LJ92-0 |

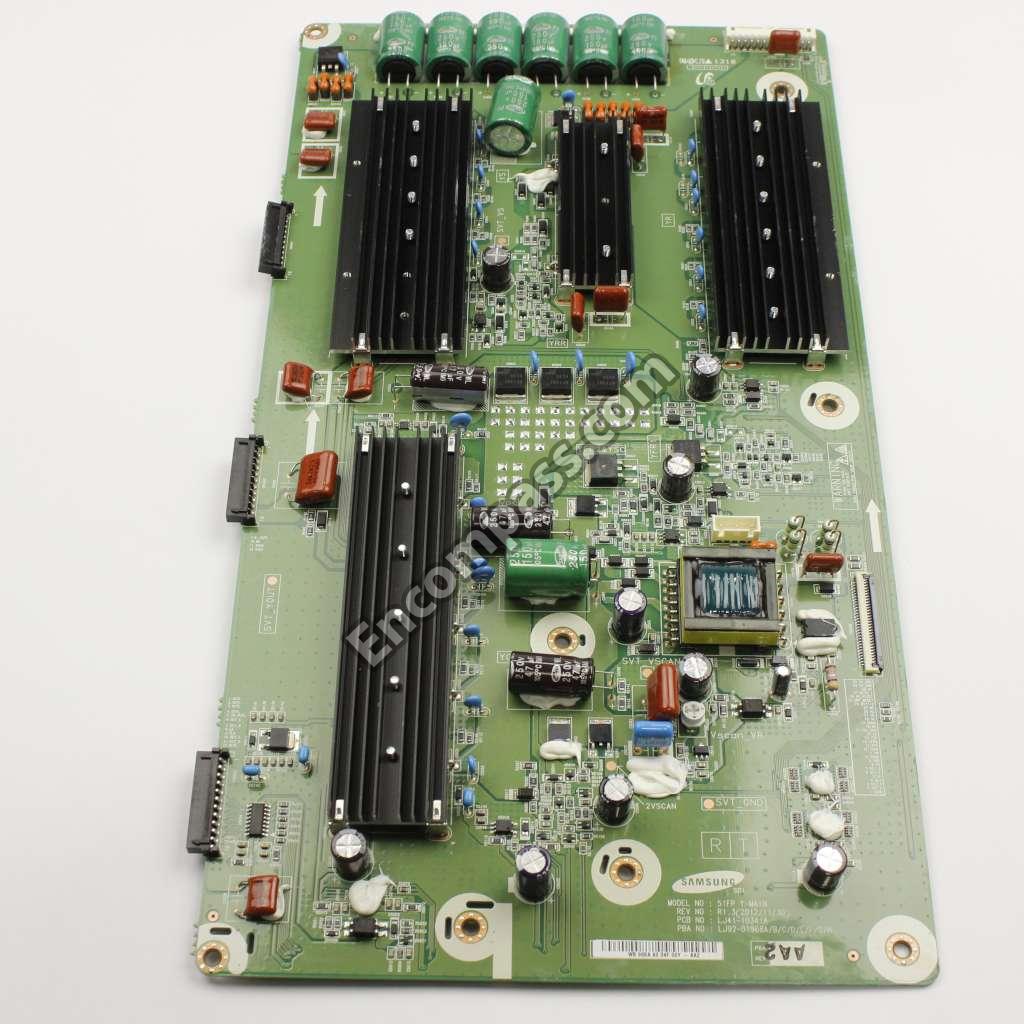

| BN96-25200A | ASSY PDP P-X-MAIN;51FP,X-MAIN,LJ92-01967 |
|
|
ASSY PDP P-Y-BUFFER(UP);51FP,Y-BUFFER(UP |
|
|
ASSY PDP P-Y-MAIN;51FP,Y-MAIN,LJ92-01968 |
|
|
ASSY SPEAKER P;6OHM,10W,ENCLOSURE_5500 |
| BN96-27145B | ASSY STAND P-BASE;PF8500 51"(G/STAND DEL |
|
|
CBF SIGNAL;CHELSEA SLIM, STEREO PLUG TO |
|
|
CBF SIGNAL;UE40B7000WWXXC,3P RCA,30AWG,1 |
|
|
CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320 |
| BN63-10288A | COVER-BOTTOM LEFT;PF8500,ABS,V0,BK0020 |
| BN63-10288B | COVER-BOTTOM RIGHT;PF8500,ABS,V0,BK0020 |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-004284 | CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF,30OH |
| 2801-003954 | CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH |
| BN61-06644A | HOLDER-PCB;LC750,PA66,V0 |
| BN61-08951A | HOLDER-WIRE;UF8000 55",PA66,NC (BLK),A20 |
| BN13-00061A | IC ASIC;SPS-HI15,432,1.2V TO 3.3V,0~+70 |
| 3722-003199 | JACK-MODULAR;8P/8C,ANGLE,AU,1P |
| 3722-003666 | JACK-PHONE;1P/7C,AU/NI,GRN,ANGLE |
| 3722-003665 | JACK-PHONE;1P/7C,AU/NI,YEL,ANGLE |
| 3722-003657 | JACK-PHONE;1P/7C,P-BRONZE,BLK,ANGLE |
|
|
JACK-USB;4P/1C,NI,BLK,A |
| BN39-01781C | LEAD CONNECTOR;PN51F8500,FLAT CONNECTOR, |
|
|
LEAD CONNECTOR;PN51F8500,LEAD CONNECTOR, |
|
|
NETWORK;WIDT-30Q,INTERNAL WIFI,USB,IEEE8 |
|
|

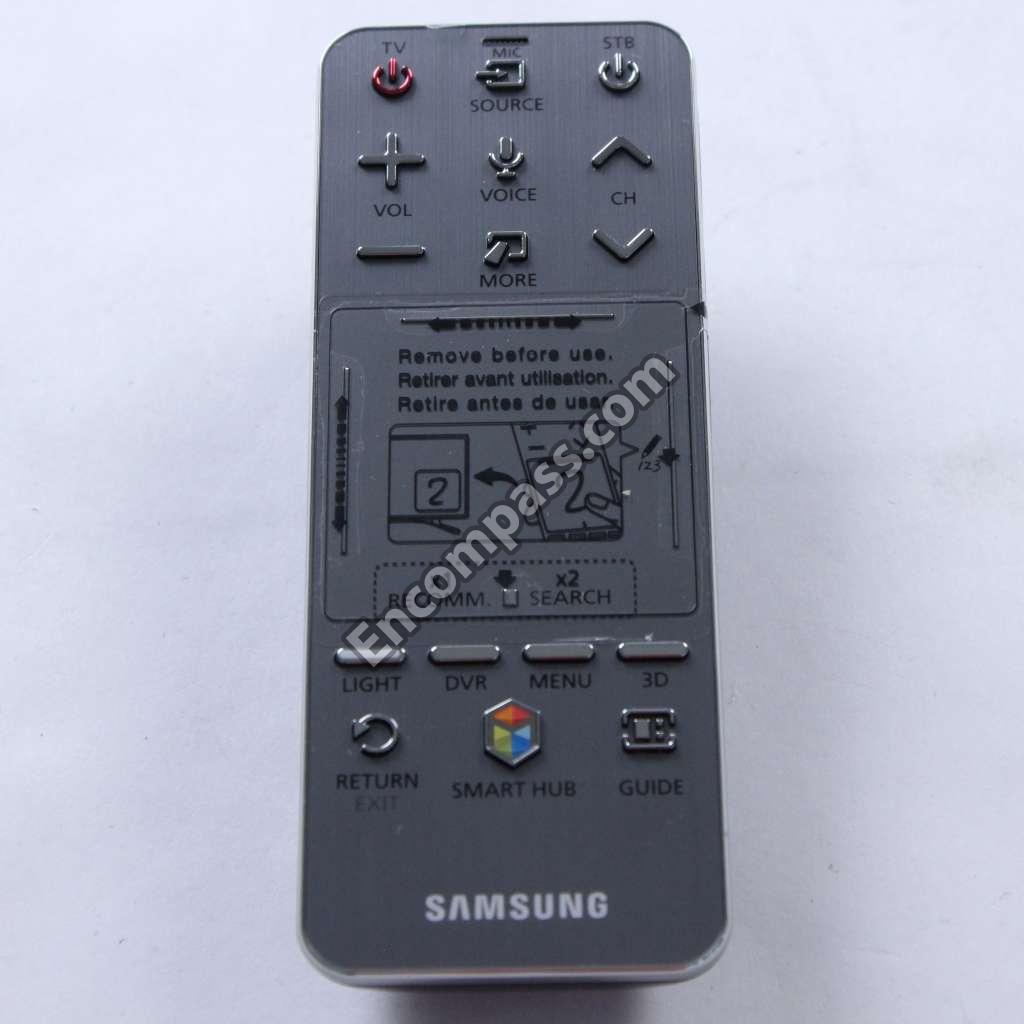

REMOCON-SMART TOUCH CONTROL;TM1390,14,80 |
|
|
REMOTE, TM1260B,,NETFLIX, AMAZON |
|
|
SCREW-MACHINE;PH,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;BH,S,M4,L12,NI PLT,SWRCH |
|
|
SCREW-TAPTYPE;BH,S,M4,L8,ZPC(WHT),SWRC |
| AA60-00171T | SPACER-FELT;56L7,FELT,50,NTR,T0.5,8 |
|
|

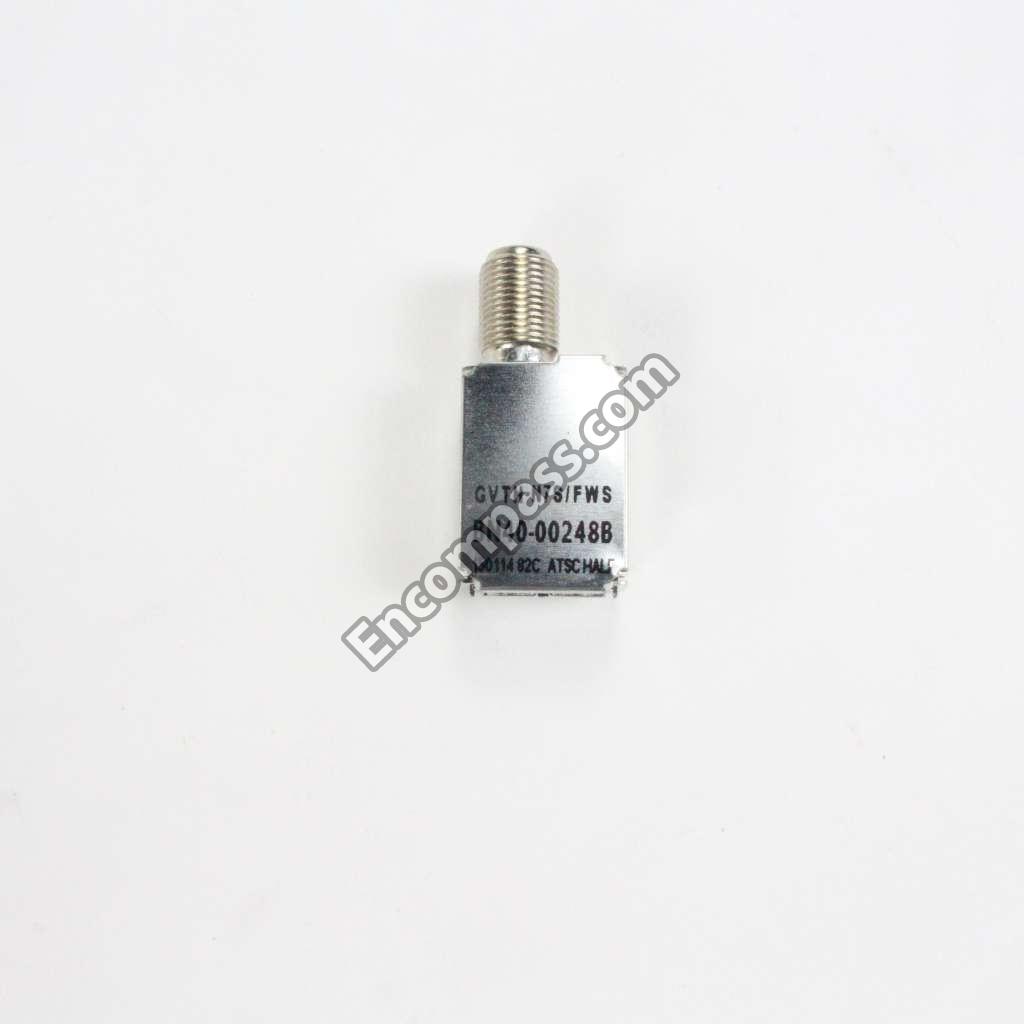

TUNER;GVTH-N7S/FWS,GVTH-N7S/FWS,VSB-HALF |
